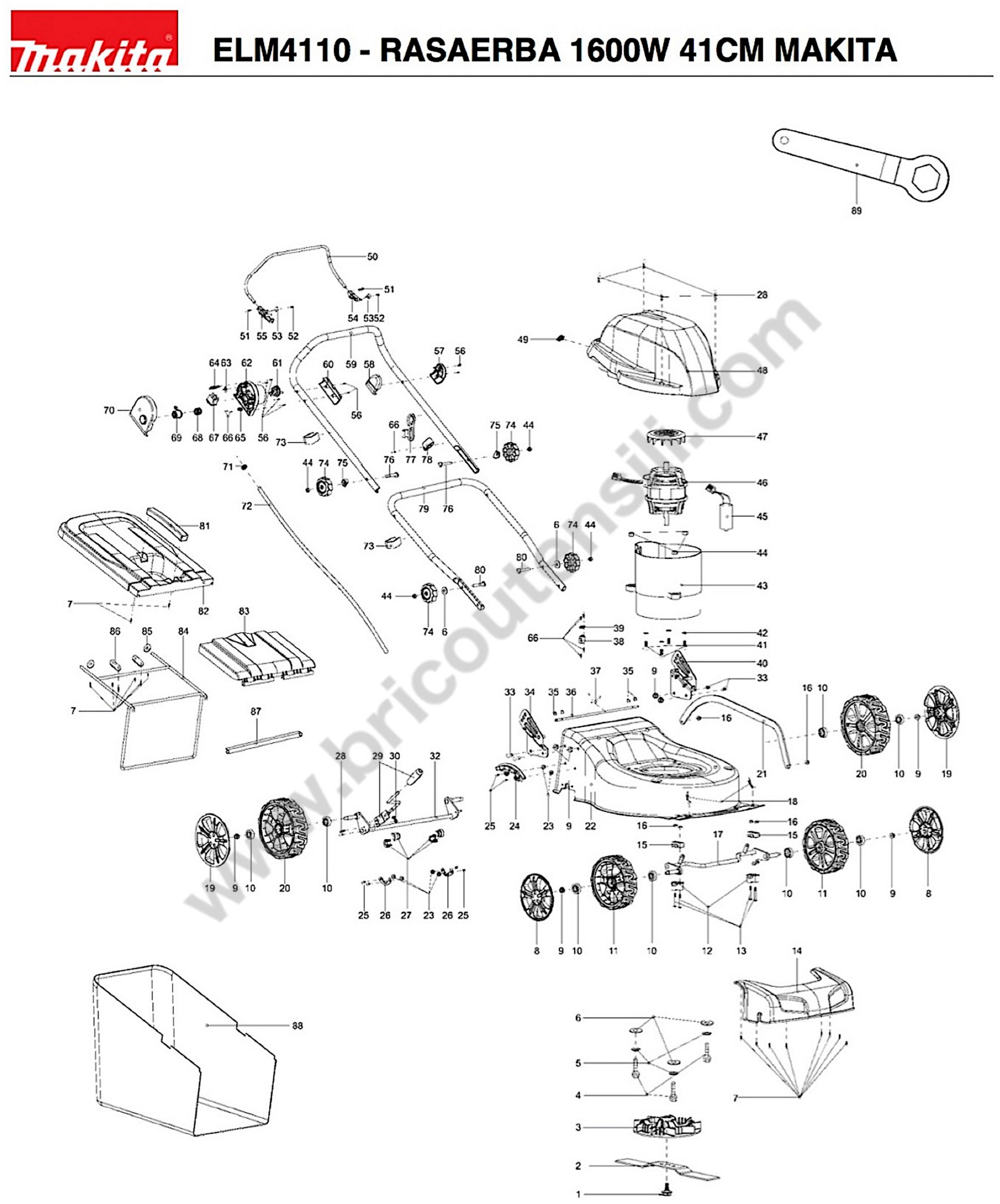

zoom_in View exploded
local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
Makita Spare Parts for Lawn Mower ELM4110
Distribution and Sale at attractive prices of MAKITA Original Spare Parts. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Lawn Mower ELM4110.In the following table, look for the model of Lawn Mower and the respective parts of the code.
| ELM4110 - RASAERBA 1600W 41CM MAKITA | ||
| Pos. | Codice | Descrizione |
| 1 | 671100802 | SCREW M10X40 |
| 2 | 671001427 | BLADE 410MM ELM4110 |
| 3 | 671005258 | FAN ELM4110 |
| 4 | 671006017 | SCREW M8X30 ELM4110 |
| 5 | 671008002 | WASHER ELM4110 |
| 6 | 671007007 | WASHER 8 ELM3310-3710 |
| 7 | 671001054 | SCREW 5X12 ELM3310-3710 |
| 8 | 671001176 | WHEEL COVER 175 ELM4110 |
| 9 | 671005028 | NUT M8 ELM4110 |
| 10 | 671004012 | BALL BEARING 6201Z ELM4110 |
| 11 | 671002012 | WHEEL ASSY 175 ELM4110 |
| 12 | 671418001 | FIXED BRACKET ELM4110 |
| 13 | 671002028 | SCREW M6X45 ELM4110 |
| 14 | 671420001 | FRONT PANEL ELM4110 |
| 15 | 671445001 | BRACKET PRESSING BOARD ELM4110 |
| 16 | 671005005 | NUT M6 ELM4110 |
| 17 | 671001428 | FRONT AXLE ELM4110 |
| 18 | 671011125 | SPRING ELM4110 |
| 19 | 671001177 | HUB COVER 200 ELM4110 |
| 20 | 671002013 | WHEEL 200 ELM4110 |
| 21 | 671001429 | LINK ROD ELM4110 |
| 22 | 671001178 | DECK BLUE ELM4110 |
| 23 | 671005024 | NUT M6 ELM4110 |
| 24 | 671001018 | HEIGHT ADJUSTMENT PLATE ELM4110 |
| 25 | 671002019 | SCREW M6X12 ELM4110 |
| 26 | 671001244 | PLATE ELM4110 |
| 27 | 671340001 | BUSH ELM4110 |
| 28 | 671002029 | SCREW M5X12 ELM4110 |
| 29 | DA00001073 | HEIGHT ADJUSTMENT LEVER |
| 30 | 671005011 | NUT M5 ELM4110 |
| 32 | 671001423 | REAR AXLE ELM4110 |
| 33 | 671006064 | SCREW M8X6 ELM4110 |
| 34 | 671001180 | LEFT SUPPORT BLUE ELM4110 |
| 35 | 671009017 | OPEN BLOCK RING ELM4110 |
| 36 | 671001498 | LONG POLE ELM4110 |
| 37 | 671011101 | SPRING ELM4110 |
| 38 | 671260001 | CABLE PRESSING BOARD BRACKET ELM4110 |
| 39 | 671001023 | CABLE CLAMP ELM3310 |
| 40 | 671001179 | RIGHT SUPPORT ELM4110 |
| 41 | 671001009 | SCREW ELM4110 |
| 42 | 671080100 | OUTER GEAR LOCKING WASHER |
| 43 | 671290013 | ENGINE COVER ELM4110 |
| 44 | 671005023 | NUT M8 |
| 45 | DA00001197 | CAPACITOR ASSY ELM4410 |
| 46 | 671002016 | ENGINE 1600W ELM4410 |
| 47 | DA00001026 | FAN ELM4110 |
| 48 | 671449001 | ENGINE CASING ELM4410 |
| 49 | 671284001 | BUSH 2 ELM3310-3710 |
| 50 | 671001442 | ENGINE BRAKE LEVER ELM4110 |
| 51 | 671002025 | SCREW M4X8 ELM3310-3710 |
| 52 | 671001036 | SCREW 3X10 ELM3310-3710 |
| 53 | 671011124 | SPRING EM3310-3710 |
| 54 | 671279005 | LEVER HINGE LEFT EM3310-3710 |
| 55 | DA00001023 | LEVER HINGER ELM3310-3710 |
| 56 | 671001005 | SCREW M4X16 ELM3310-3710 |
| 57 | 671257001 | LEFT SUPPORT ELM4110 |
| 58 | 671257002 | SUPPORT DX ELM4110 |
| 59 | 671001467 | UPPER HANDLE ELM4110 |
| 60 | 671451001 | PLATE ELM4110 |
| 61 | 671001071 | PIN ELM3310-3710 (COMPLETE) |
| 62 | 671001071 | PIN ELM3310-3710 (COMPLETE) |
| 63 | 671009002 | LED ELM3310-3710 |
| 64 | 671001043 | SCREEN ELM3310-3710 |
| 65 | 671491001 | CABLE CLAMP ELM3710 |
| 66 | 671001003 | SCREW 4X12 ELM3310-3710 |
| 67 | 671010040 | SWITCH ELM3310-3710 |
| 68 | 671011079 | SPRING ELM3310-3710 |
| 69 | 671425002 | SAFETY BUTTON ELM3310-710 |
| 70 | DA00000985 | SWITCH BOX RIGHT ELM4110 |
| 71 | 671283001 | BUSH 1 ELM3310-3710 |
| 72 | 671001072 | CABLE 1350MM ELM4110 |
| 73 | 671177001 | CABLE SUPPORT ELM4110 |
| 74 | 671530010 | KNOB PLM5600 |
| 75 | 671001085 | WASHER ELM4110 |
| 76 | 671006004 | SCREW M8X52 |
| 77 | 671001052 | CABLE HOLDER ELM 3310-3710 |
| 78 | 671328001 | LOCKING RING ELM4410 |
| 79 | 671001444 | LOWER HANDLE ELM4410 |
| 80 | DA00000880 | SCREW M8X35 ELM4410 |
| 81 | 671454001 | GRASS BAG HANDLEELM4410 |
| 82 | 671455001 | GRASS BAG COVER ELM4110 |
| 83 | 671456001 | COVER ELM4410 |
| 84 | 671001435 | FRAME FOR BAG ELM4110 |
| 85 | 671001436 | WASHER ELM4110 |
| 86 | 671001203 | PLATE ELM4110 |
| 87 | 671014170 | PLATE ELM4110 |
| 88 | 671001416 | GRASS BAG ELM4110 |
| 89 | 671002009 | HEXAGONAL WRENCH ELM3310-3710 |
