A.M.A. S.p.A.

Kawasaki Spare Parts for Hedgetrimmer TJ023V - AGP-HT60R - 62190

SKU: AMA TJ023V - AGP-HT60R - 62190
€8.59
VAT included

Kawasaki Spare Parts for Hedgetrimmer TJ023V - AGP-HT60R - 62190

Kawasaki genuine spare parts or replacement parts for to repair Hedgetrimmer AMA Garden 2-STROKE Powered Kawasaki  TJ023V - AGP-HT60R - 62190.
Kawasaki Spare Parts for Hedgetrimmer TJ023V - 62190
  • Online only
  • Kawasaki Spare Parts for Hedgetrimmer TJ023V - 62190
  • Kawasaki Spare Parts for Hedgetrimmer TJ023V - 62190
  • Kawasaki Spare Parts for Hedgetrimmer TJ023V - 62190
  • Kawasaki Spare Parts for Hedgetrimmer TJ023V - 62190
  • Kawasaki Spare Parts for Hedgetrimmer TJ023V - 62190
  • Kawasaki Spare Parts for Hedgetrimmer TJ023V - 62190
  • Kawasaki Spare Parts for Hedgetrimmer TJ023V - 62190
  • Kawasaki Spare Parts for Hedgetrimmer TJ023V - 62190
  • Kawasaki Spare Parts for Hedgetrimmer TJ023V - 62190
  • Kawasaki Spare Parts for Hedgetrimmer TJ023V - 62190
  • Kawasaki Spare Parts for Hedgetrimmer TJ023V - 62190
  • Kawasaki Spare Parts for Hedgetrimmer TJ023V - 62190
A.M.A. S.p.A.

Kawasaki Spare Parts for Hedgetrimmer TJ023V - AGP-HT60R - 62190

SKU: AMA TJ023V - AGP-HT60R - 62190 Condition: New
€8.59
VAT included

Kawasaki Spare Parts for Hedgetrimmer TJ023V - AGP-HT60R - 62190

Kawasaki genuine spare parts or replacement parts for to repair Hedgetrimmer AMA Garden 2-STROKE Powered Kawasaki  TJ023V - AGP-HT60R - 62190.
settings 125 spare parts
description 11 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
59 spare parts

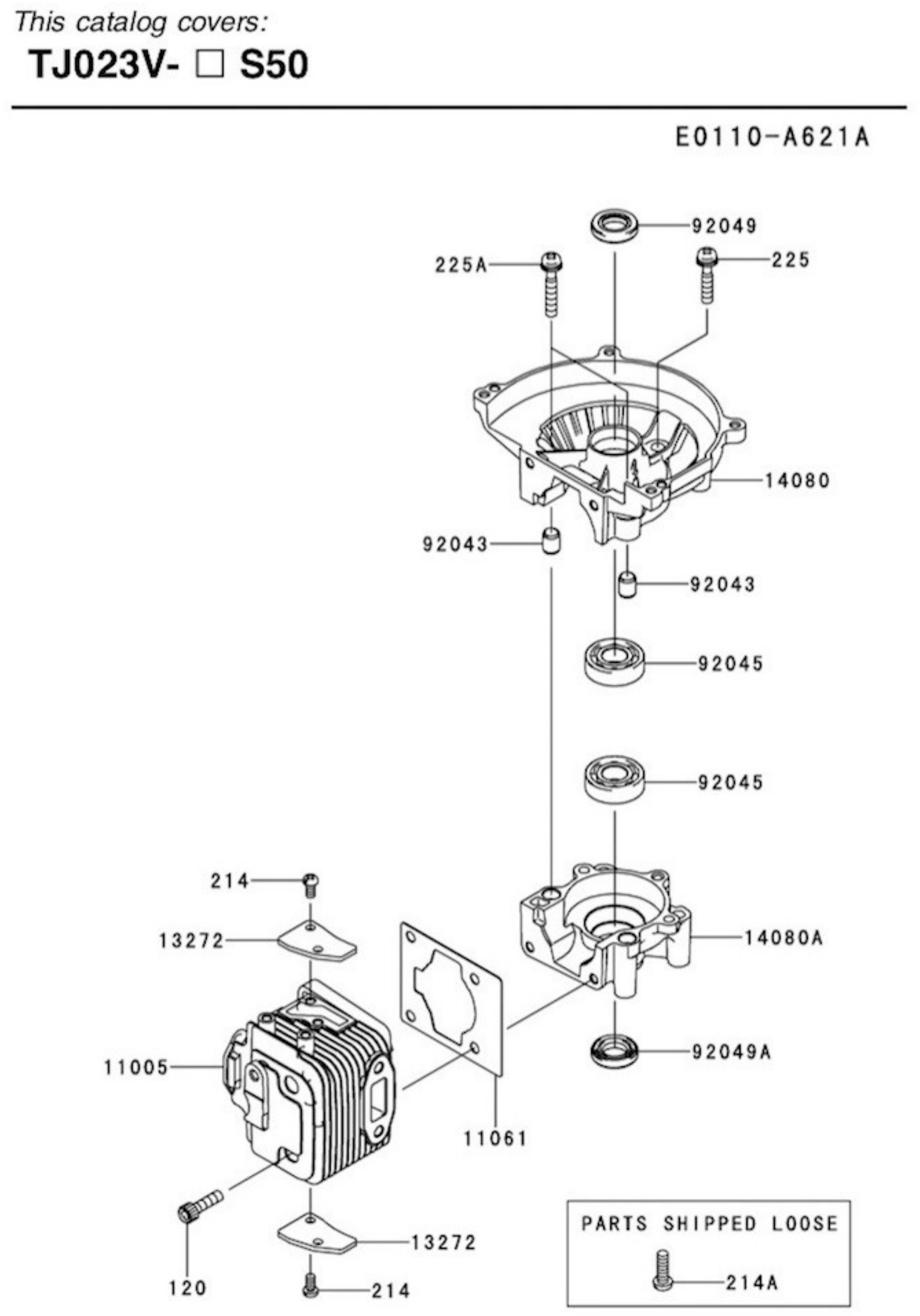

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
11005
 photo_cameraImage coming soon 11005-2161 CYLINDER - ENGINE €128.28
11061
 photo_cameraImage coming soon 11061-2054 Gasket €8.34
11061
 photo_cameraImage coming soon 11061-2198 GASKET €6.11
11061
 photo_cameraImage coming soon 11061-2200 GASKET €21.76
14069
 photo_cameraImage coming soon 14069-2088 Breather €13.27
92043
 photo_cameraImage coming soon 92043-2094 Pin €1.96

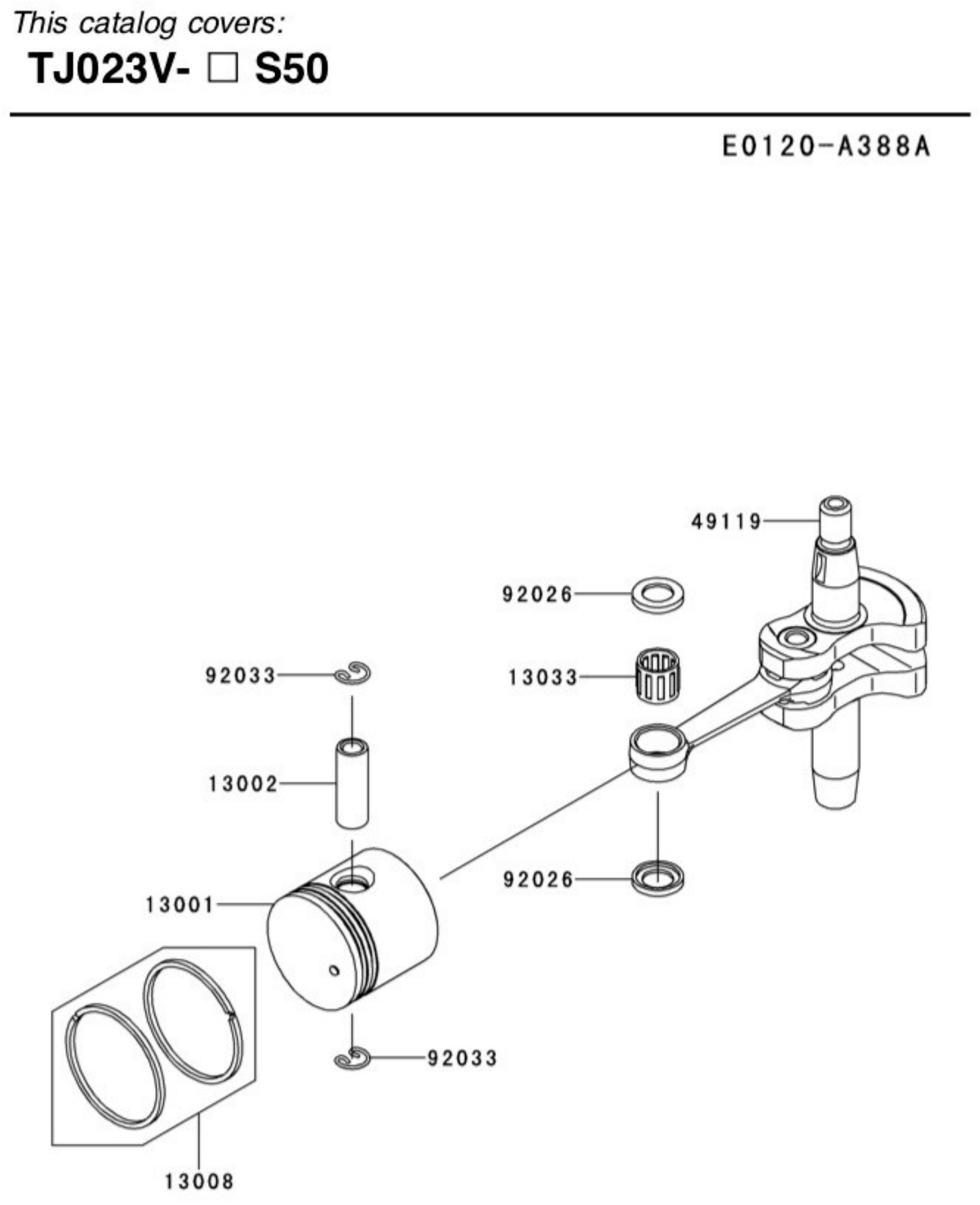

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
Pos. Item Price Buy
13001
 photo_cameraImage coming soon 13001-2171 PISTON - ENGINE €42.82
13002
 photo_cameraImage coming soon 13002-2072 PlN - PISTON €5.88
13033
 photo_cameraImage coming soon 13033-2057 BEARING-SMALL €7.10
92033
 Snap Ring for Brushcutters Kawasaki 92033-2010 Snap Ring for Brushcutters Kawasaki €0.44
92033
 photo_cameraImage coming soon 92033-2078 Ring-Snap €1.55
92033
 photo_cameraImage coming soon 92033-2191 RING-SNAP TJ27 €1.47

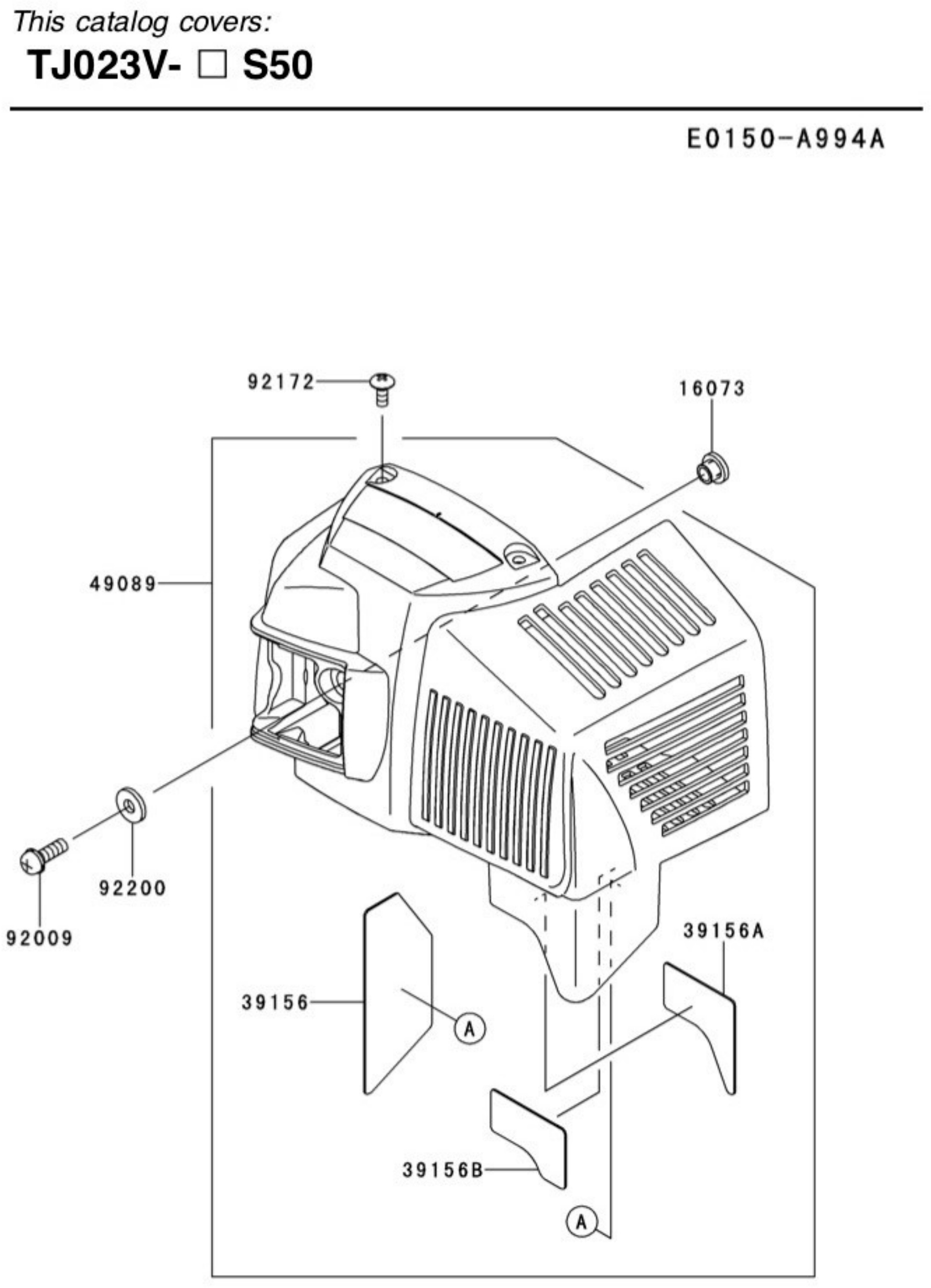

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 3
Pos. Item Price Buy
16073
 photo_cameraImage coming soon 16073-2197 INSULATOR €2.10
92172
 photo_cameraImage coming soon 92172-2065 SCREW €1.70
92172
 Stopper Screw mm 3x12 for Bruschcutters Kawasaki KBC 45-45U 92172-2091 Stopper Screw mm 3x12 for Bruschcutters Kawasaki KBC 45-45U €0.29
92200
 photo_cameraImage coming soon 92200-2074 Washer €1.37
92200
 photo_cameraImage coming soon 92200-2156 WASHER €1.32

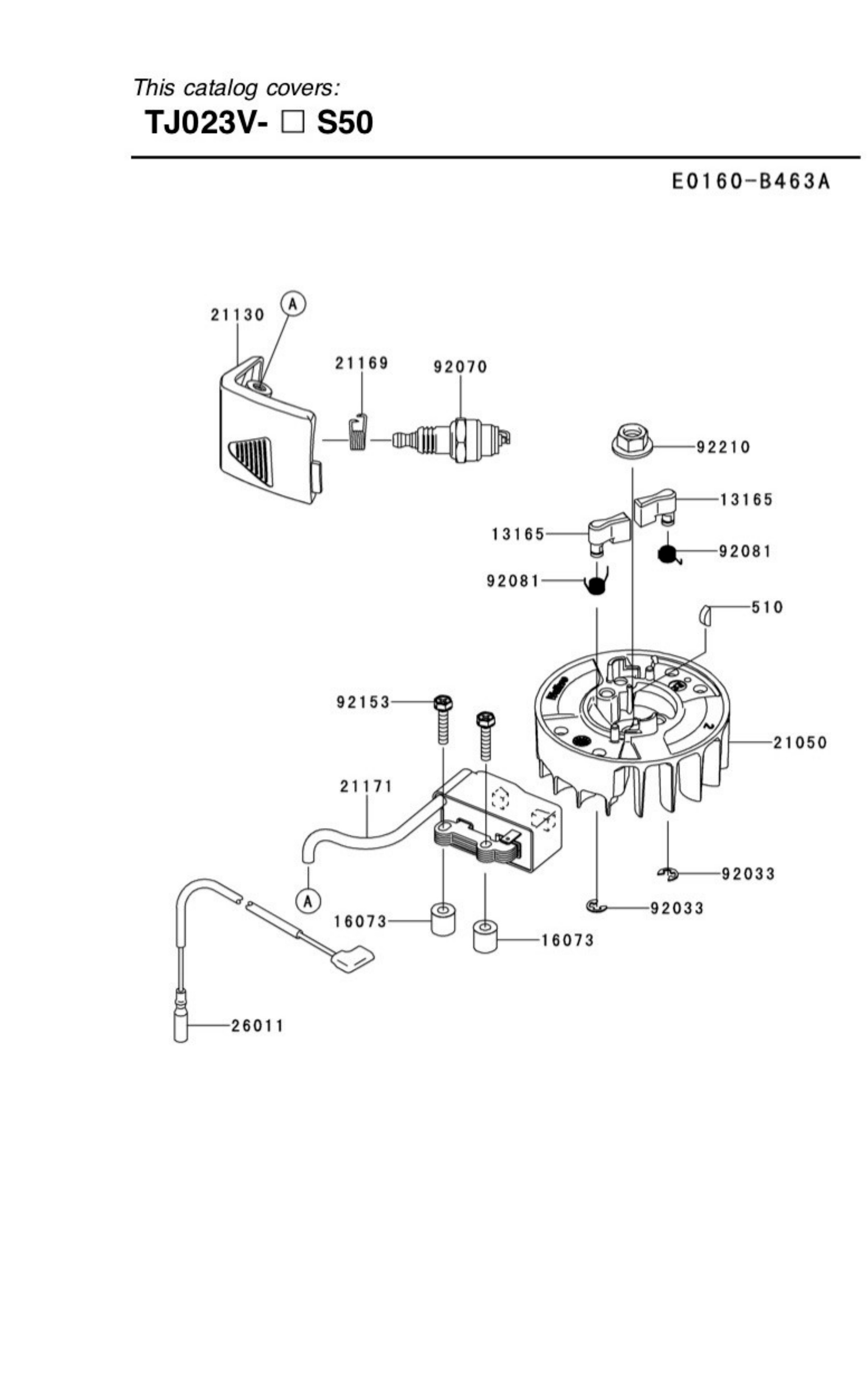

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 4
Pos. Item Price Buy
510
 photo_cameraImage coming soon 510A3100 Key Woodruff €1.64
13165
 photo_cameraImage coming soon 13165-2100 Pawl €4.28
21171
 photo_cameraImage coming soon 21171-0708 COIL - ASSY - IGNITION €121.64
92081
 photo_cameraImage coming soon 92081-2238 SPRING,RECOIL €19.86
92081
 photo_cameraImage coming soon 92081-2263 SPRING €6.68
92153
 photo_cameraImage coming soon 92153-2128 Bolt €5.26

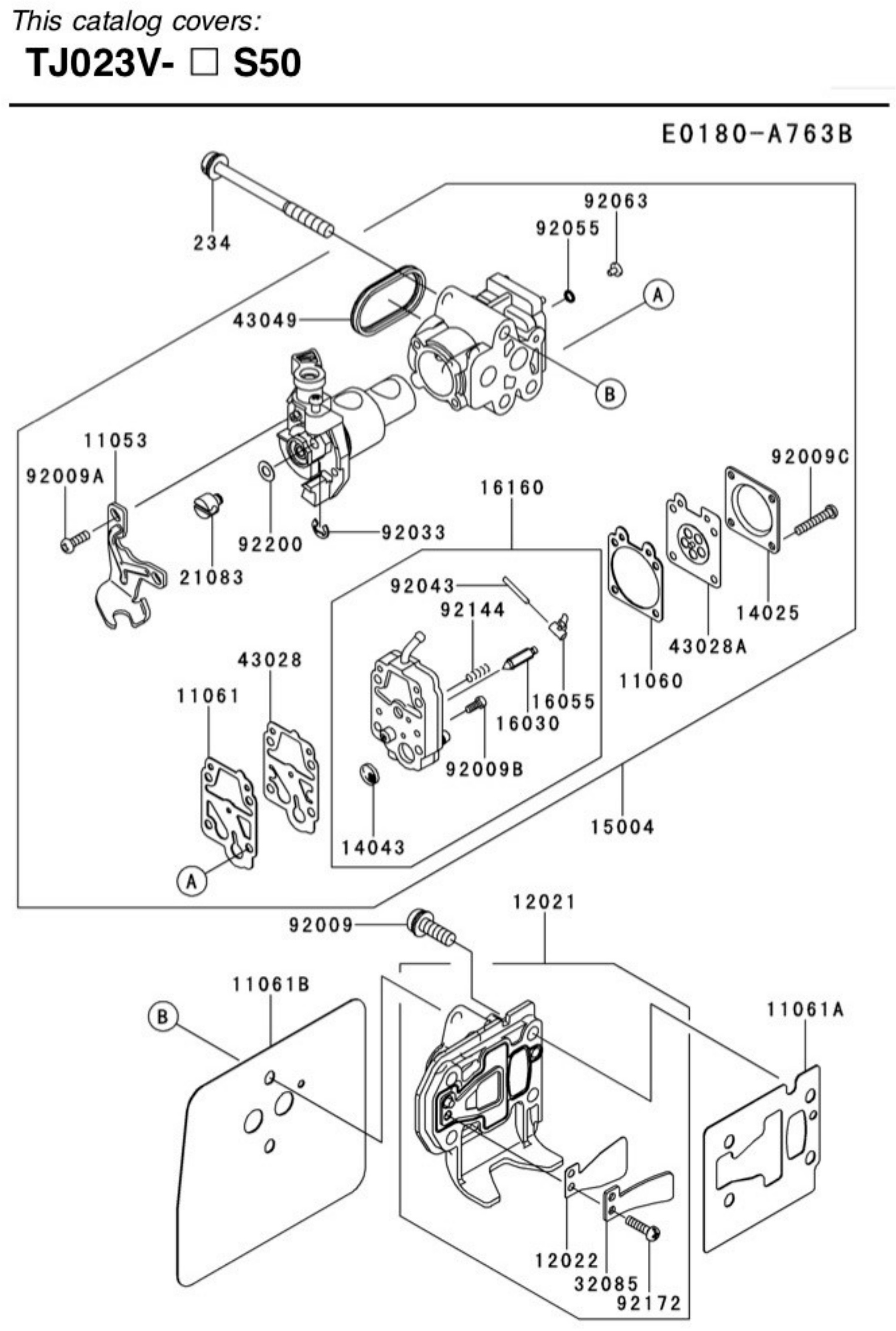

Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 5
Pos. Item Price Buy
11053
 photo_cameraImage coming soon 11053-2066 Bracket €16.40
11061A
 photo_cameraImage coming soon 11061-2201 GASKET €6.11
11061B
 photo_cameraImage coming soon 11061-2218 GASKET VALVE €7.27
12021
 photo_cameraImage coming soon 12021-2056 VALVE - ASSY - REED €82.97
12022
 photo_cameraImage coming soon 12022-2060 Valve Reed €9.27
14043
 photo_cameraImage coming soon 14043-2051 Filter €3.71
15004
 photo_cameraImage coming soon 15004-2040 CARBURETOR - ASSY €139.59
16030
 photo_cameraImage coming soon 16030-2078 Valve-Float €13.12
16055
 photo_cameraImage coming soon 16055-2051 Lever €4.76
21083
 Throttle Pawl for Brushcutters Kawasaki KBC 35 21083-2073 Throttle Pawl for Brushcutters Kawasaki KBC 35 €8.42
32085
 photo_cameraImage coming soon 32085-2106 Stopper €1.53
43028
 photo_cameraImage coming soon 43028-2067 Diaphragm €8.60
43028A
 Carburator Diaphragm for Bruschcutter Kawasaki KBC 35 43028-2096 Carburator Diaphragm for Bruschcutter Kawasaki KBC 35 €22.65
43049
 photo_cameraImage coming soon 43049-2062 Packing €4.30
92009A
 photo_cameraImage coming soon 92009-2277 Screw €1.62
92009B
 photo_cameraImage coming soon 92009-2336 Screw €2.16
92055
 photo_cameraImage coming soon 92055-2147 Ring-O €3.87
92144
 photo_cameraImage coming soon 92144-2086 SPRING CLUTCH €6.28
92144
 Carburator Spring for Brushcutters Kawasaki KBC 35 92144-2308 Carburator Spring for Brushcutters Kawasaki KBC 35 €4.80

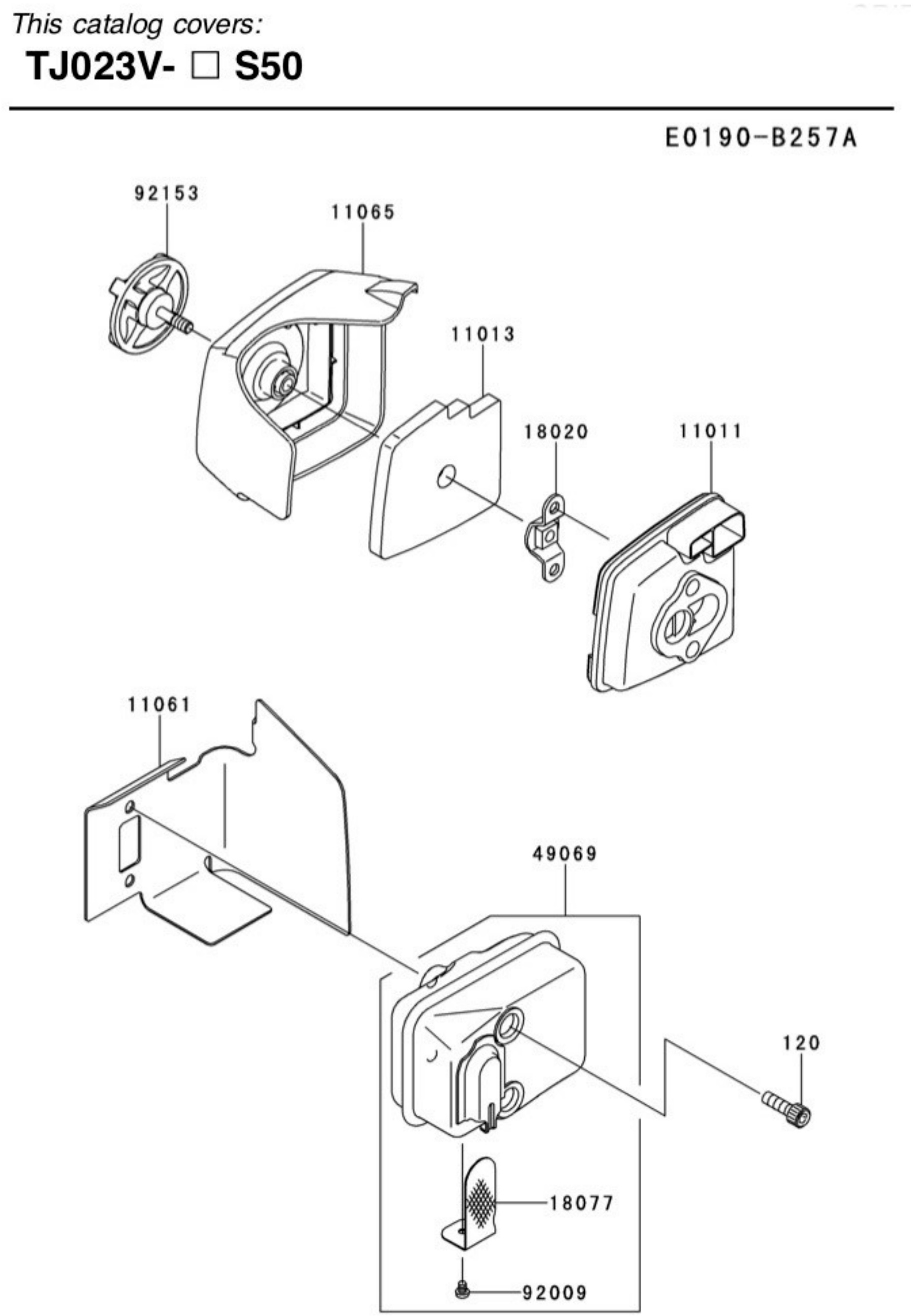

Page 6 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 6
Pos. Item Price Buy
11013
 photo_cameraImage coming soon 11013-2234 ELEMENT - AIR FILTER €9.38
11065
 photo_cameraImage coming soon 11065-2127 BUSH €8.05

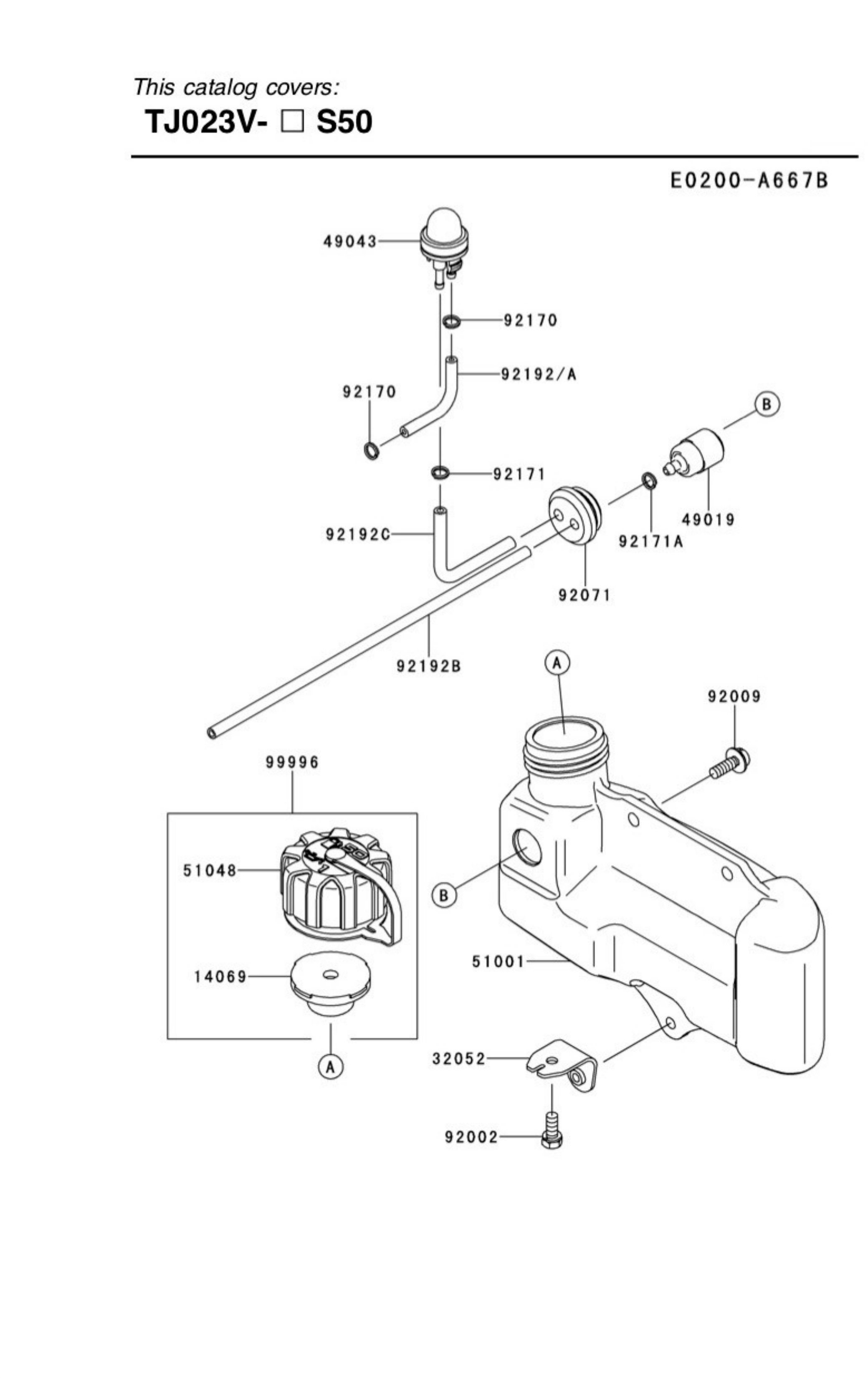

Page 7 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 7
Pos. Item Price Buy
49019
 photo_cameraImage coming soon 49019-2111 Filter Fuel €17.25
51001
 photo_cameraImage coming soon 51001-2334 TANK - COMP - FUEL €22.83
51048
 photo_cameraImage coming soon 51048-2083 Cap Assy €14.71
92071
 photo_cameraImage coming soon 92071-2169 Grommet €5.58
92171A
 photo_cameraImage coming soon 92171-2086 Clamp €1.66
92192B
 photo_cameraImage coming soon 92192-2177 Tube 3x5x200 €12.46
99996
 photo_cameraImage coming soon 99996-6089 Cap-Breather Assy €29.77

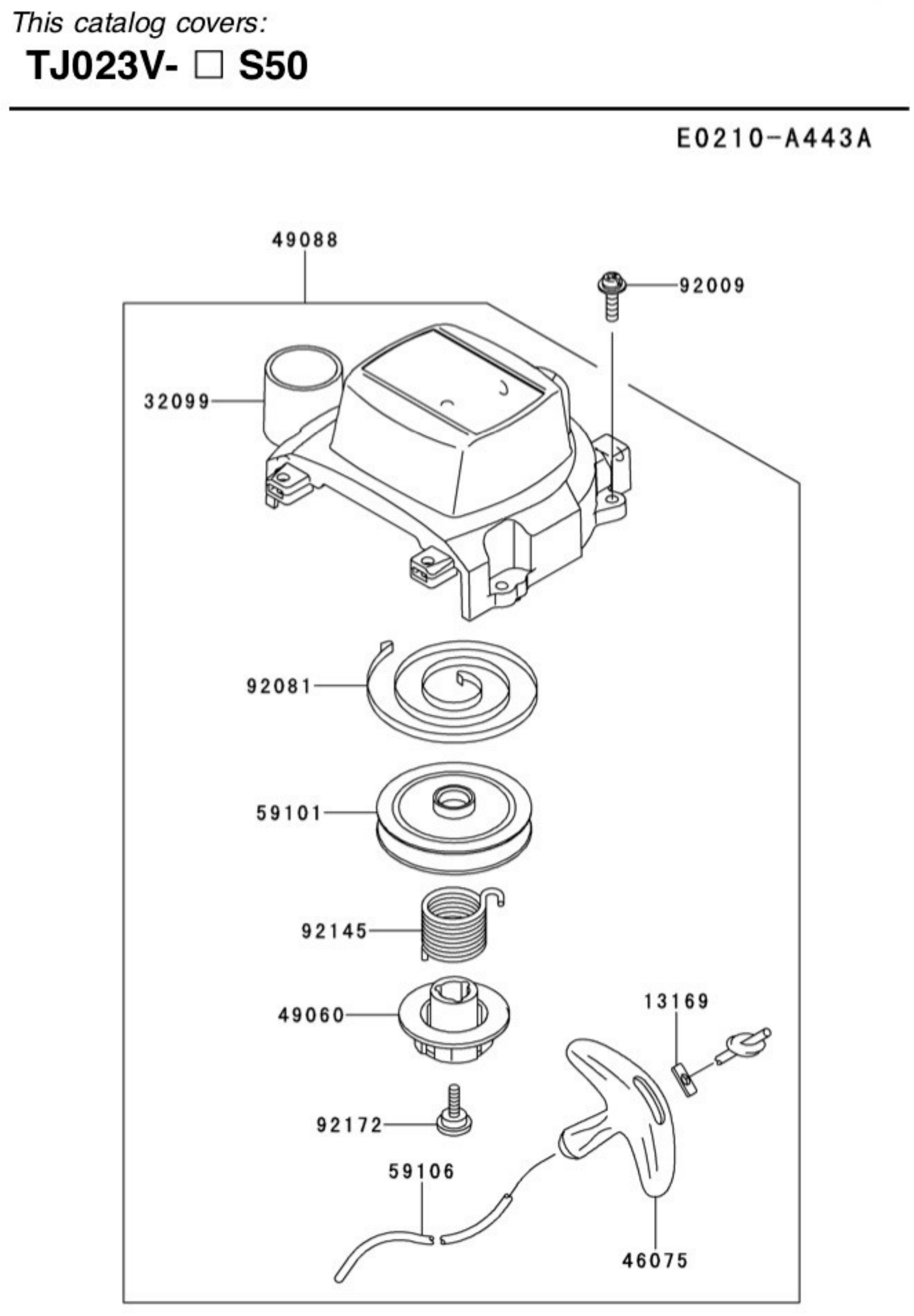

Page 8 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 8
Pos. Item Price Buy
13169
 photo_cameraImage coming soon 13169-2386 Plate Recoil Starter €2.09
46075
 photo_cameraImage coming soon 46075-2161 Grip Starter-Recoil €8.22
49060
 photo_cameraImage coming soon 49060-2067 CAM STARTER - RECOIL €9.38
49088
 photo_cameraImage coming soon 49088-2569 STARTER - RECOIL €55.79
59101
 photo_cameraImage coming soon 59101-2127 REEL STARTER - RECOIL €14.95

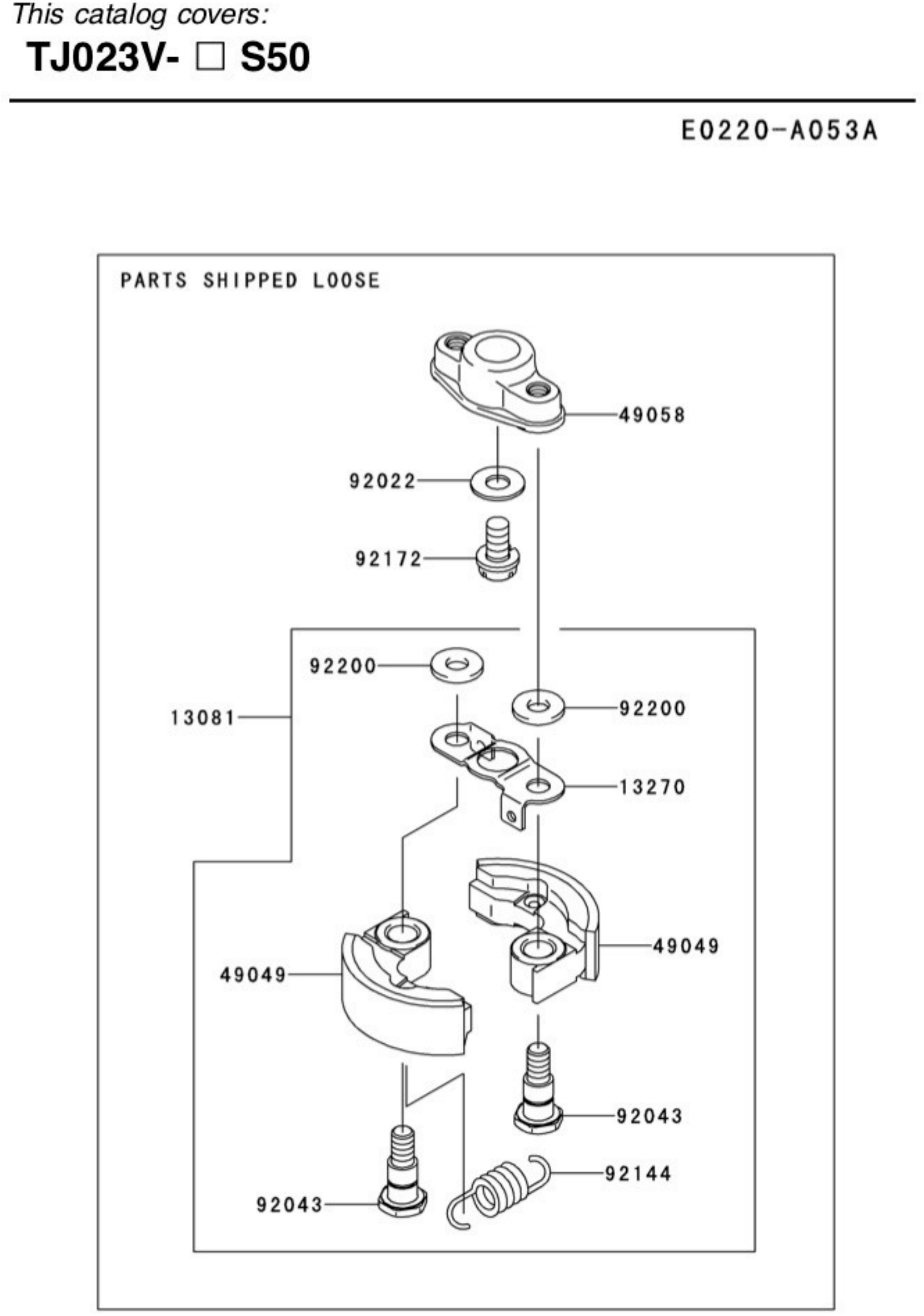

Page 9 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 9
Pos. Item Price Buy
13081
 photo_cameraImage coming soon 13081-0563 CLUTCH - ASSY €47.84
49058
 photo_cameraImage coming soon 49058-2078 WHEEL CLUTCH €21.71

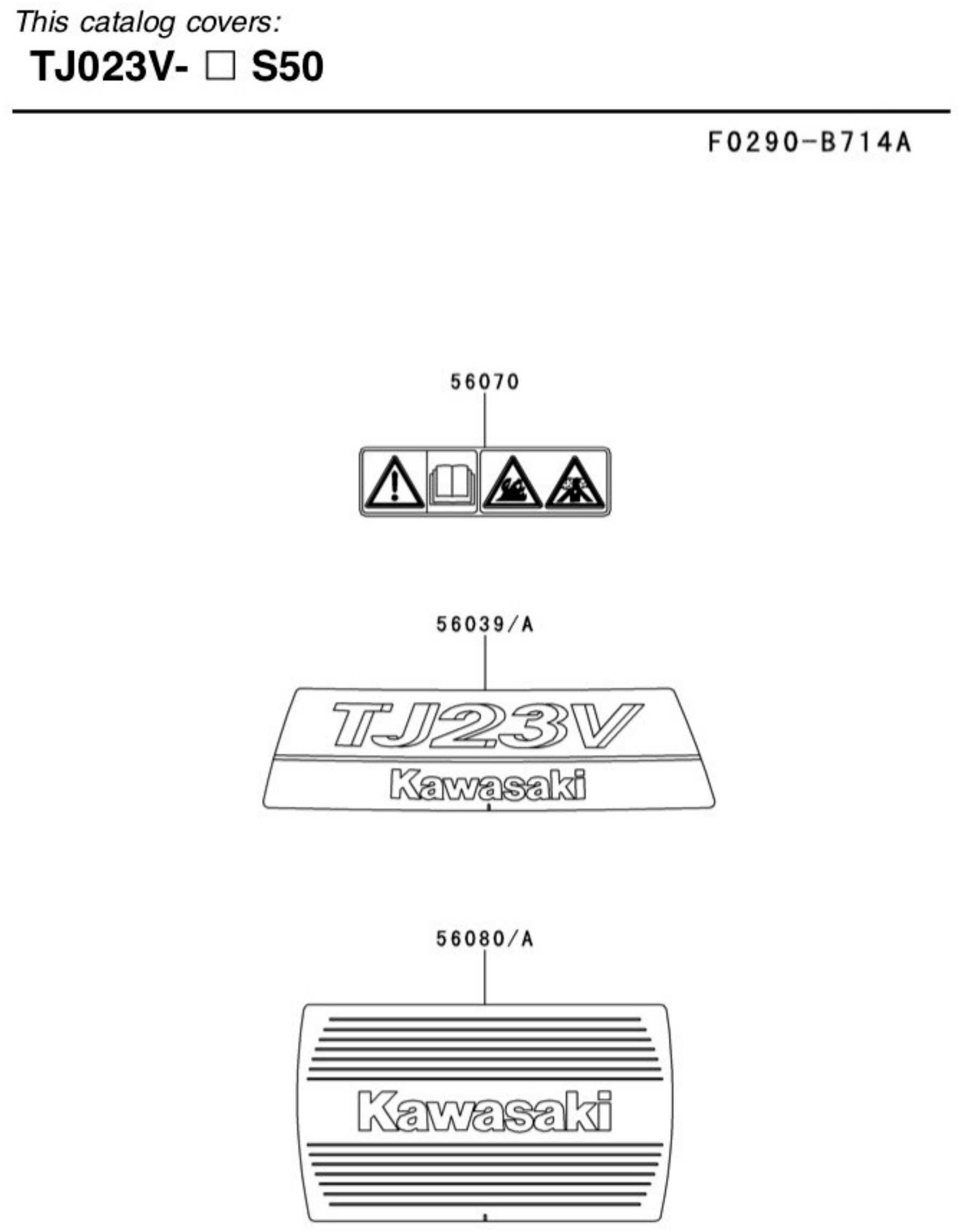

Page 10 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 10
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

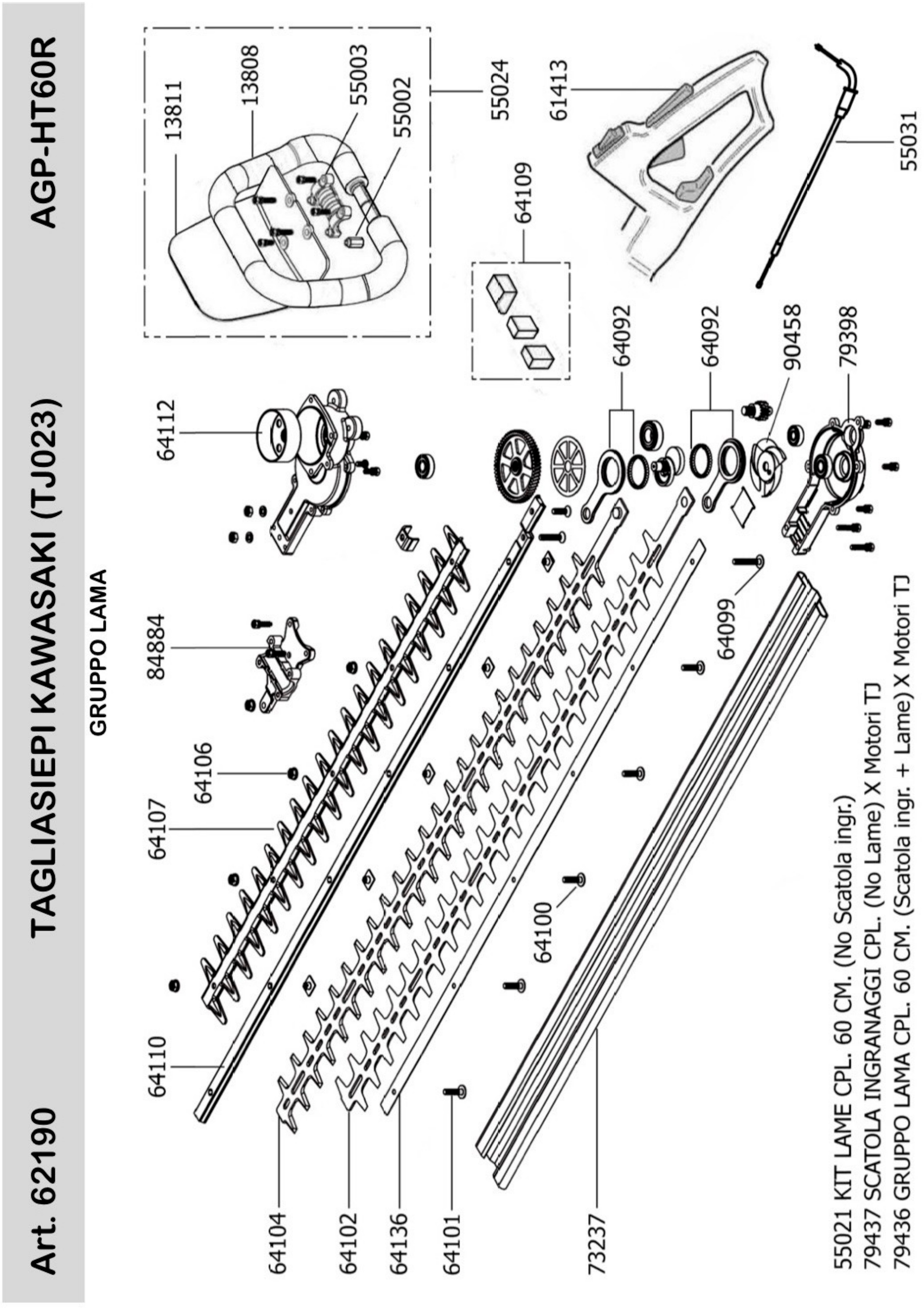

Page 11 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 11
Pos. Item Price Buy
64101
 photo_cameraImage coming soon 55291 Bolt Substituted by 55291 €14.51

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Kawasaki Spare Parts for Hedgetrimmer TJ023V - AGP-HT60R - 62190

Kawasaki genuine spare parts or replacement parts for to repair Hedgetrimmer AMA Garden 2-STROKE Powered Kawasaki  TJ023V - AGP-HT60R - 62190.

In the following table, look for the model of the Bruschcutter and the respective parts of the code.
AMA TJ023V - AGP-HT60R - 62190

Hedgetrimmer AMA Garden
2-STROKE POWERED Kawasaki TJ023V - 62190 - Engine
# Part Num. Description
11005 11005-2161 CYLINDER - ENGINE
11061 11061-2198 GASKET
13272 13272-2012 PLATE
14080 14080-2074 CRANKCASE
14080A 14080-2075 CRANKCASE
92043 92043-1302 PIN
92045 92045-2278 BEARING - BALL 6001C3
92049 92049-2288 SEAL - OIL SD 12X22X4.5 GS
92049A 92049-2289 SEAL - OIL SD 12X22X4.5 VS
120 120C B0518 BOLT - SOCKET,5X18
214 214AA0408 SCREW - PAN+-,4X8
214A 214AA0516 SCREW - PAN+-,5X16
225 225AA0525 SCREW - PAN-WSP-CROS 5X25
225A 225AA0530 SCREW - PAN-WSP-CROS 5X30
13001 13001-2171 PISTON - ENGINE
13002 13002-2072 PlN - PISTON
13008 13008-6050 RING - SET - PISTON
13033 13033-2057 BEARING - SMALL END
49119 49119-2241 CRANKSHAFT - ASSY
92026 92026-2354 SPACER
92033 92033-2191 RlNG - SNAP
16073 16073-2197 INSULATOR
39156 39156-2096 PAD
39156A 39156-2097 PAD
39156B 39156-2098 PAD
49089 49089-2770 SHROUD-ENGINE
92009 92009-2394 SCREW 5X16
92172 92172-2060 SCREW 4X10
92200 92200-2156 WASHER
13165 13165-2100 PAWL
16073 16073-2220 INSULATOR
21050 21050-0708 FLYWHEEL
21130 21130-2075 CAP-SPARK PLUG
21169 21169-2051 TERMINAL
21171 21171-0708 COIL - ASSY - IGNITION
26011 26011-2370 WIRE - LEAD,L=180
92033 92033-2010 RlNG-SNAP
92070 92070-2115 PLUG - SPARK BPMR8Y(NGK) SOL|D
92081 92081-2263 SPRING
92153 92153-2134 BOLT,4X20
92210 92210-2094 NUT M8
510 510A3100 KEY - WOODRUFF
11053 11053-2066 BRACKET
11060 11060-2456 GASKET
11061 11061-2054 GASKET
11061A 11061-2201 GASKET
11061B 11061-2218 GASKET VALVE
12021 12021-2056 VALVE - ASSY - REED
12022 12022-2060 VALVE - REED
14025 1 4025-2157 COVER
14043 14043-2051 FILTER
15004 15004-2040 CARBURETOR - ASSY
16030 16030-2078 VALVE - FLOAT
16055 16055-2051 LEVER
16160 1 6160-2143 BODY
21083 21083-2073 ARM
32085 32085-2106 STOPPER
43028 43028-2067 DIAPHRAGM
43028A 43028-2096 DIAPHRAGM
43049 43049-2062 PACKING
92009 92009-2249 SCREW 5X20
92009A 92009-2277 SCREW
92009B 92009-2336 SCREW
92009C 92009-2438 SCREW
92033 92033-2078 RING-SNAP
92043 92043-2094 PIN
92055 92055-2147 RING-O
92063 92063-2355 JET - MAIN #34
92144 92144-2308 SPRING
92172 92172-2091 SCREW 3X12
92200 92200-2074 WASHER
234 234AA0560 SCREW - PAN-WSP+- 5X60
11011 11011-2368 CASE - AIR FILTER
11013 11013-2234 ELEMENT - AIR FILTER
11061 11061-2200 GASKET
11065 11065-2127 CAP
18020 18020-2092 BAFFLE
18077 18077-2143 ARRESTER - SPARK
49069 49069-2439 MUFFLER - ASSY
92009 92009-2411 SCREW
92153 92153-2128 BOLT
120 120CB0516 BOLT - SOCKET 5X16
14069 14069-2088 BREATHER
32052 32052-2228 BRACKET - TANK
49019 49019-2111 FILTER - FUEL
49043 49043-2074 PUMP - PRIMING CARBURETOR
51001 51001-2334 TANK - COMP - FUEL
51048 51048-2083 CAP - ASSY - TANK
92002 92002-2313 BOLT
92009 92009-2368 SCREW 5X16
92071 92071-2169 GROMMET
92170 92170-2110 CLAMP
92171 92171-2058 CLAMP
92171A 92171-2086 CLAMP
92192 92192-1069 TUBE 2.3X5X38
92192A 92192-2171 TUBE 2.3X5X38
92192B 92192-2177 TUBE 3X5X200
92192C 92192-2178 TUBE,3X5.5X80
99996 99996-6089 CAP - TANK & BREATHEFL ASSY
13169 13169-2386 PLATE RECOIL STARTER
32099 32099-2418 CASE STARTER - RECOIL
46075 46075-2161 GRIPS STARTER - RECOIL
49060 49060-2067 CAM STARTER - RECOIL
49088 49088-2569 STARTER - RECOIL
59101 59101-2127 REEL STARTER - RECOIL
59106 59106-2168 ROPE 3X700
92009 92009-2386 SCREW 4X16
92081 92081-2238 SPRING RECOIL
92145 92145-2174 SPRING DAMPER
92172 92172-2065 SCREW
13081 13081-0563 CLUTCH - ASSY
13270 13270-2051 PLATE
49049 49049-2096 SHOE - CLUTCH
49058 49058-2078 WHEEL CLUTCH
92022 92022-2374 WASHER 6.5X14.5X1.0
92043 92043-2075 PIN
92144 92144-2086 SPRING CLUTCH
92172 92172-2134 SCHEW 6X12
92200 92200-2072 WASHER 6X14X1.6
56039 56039-0800 LABEL - PRODUCT
56039A 56039-2986 LABEL - PRODUCT
56070 56070-2020 LABEL - WARNING
56080 56080-0793 LABEL - BRAND
56080A 56080-2444 LABEL - BRAND
Hedgetrimmer 2-STROKE ENGINE TJ023V - 62190 - BLADE
64110 Upper Blade Guide
64107 Blade Protection
64106 Nut
84884 Support Plate
64112 Gears housing
13811 Hand Protection
13808 Handle
55003 Plate
55002 Nut
55024 Handle assembly
61413 Safety lever
64109 Set off
55031 Assembly Wire
64092 Biella
90458 Gear
79398 Gear case Cover
64099 Bolt
64100 Bolt
73237 Blade Guard
64101 55291 Bolt Substituted by 55291
64136 Lower Blade Guide
64102 Lower Blade
64104 Upper Blade
55021 Complete Blades Kit.60 Cm (Without Gear Box)
55022 Complete gearbox
63944 Complete Blades Group (with Gear Box)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AMA TJ023V - AGP-HT60R - 62190
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Kawasaki TJ023V - 62190

Diagram Kawasaki TJ023V - 62190

Download (962.33KB)

You might also like

Throttle Pawl for Brushcutters Kawasaki KBC 35
A.M.A. S.p.A. SKU: 21083-2073
Throttle Pawl for Brushcutters Kawasaki KBC 35
Throttle Pawl for Brushcutters Kawasaki KBC 35 Genuine part Kawasaky, Throttle Pawl for Brushcutters KBC 35 - KBC 35U - KBC 45 - KBC 45U - NKBC 35 - NKBC 45 - TOP 35. Part for the following products: - Brushcutter Kawasaki KBC 35 -...
AVAILABLE €8.42
Details
Carburator Spring for Brushcutters Kawasaky KBC 35
A.M.A. S.p.A. SKU: 92144-2308
Carburator Spring for Brushcutters Kawasaki KBC 35
Carburator Spring for Brushcutters Kawasaki KBC 35 Genuine part Kawasaki, Carburator Spring for Brushcutters  KBC 35 - KBC 35U - KBC 45 - KBC 45U - NKBC 35 - NKBC 45 - TOP 35. Parts for the following products: - Brushcutter Kawasaki...
AVAILABLE €4.80
Details
Blade cm 52 for Lawnmower AMA LT 52
A.M.A. S.p.A. SKU: 64102
Lower Blade for Hedge Trimmer AMA AG1HT60
Lower Blade for Hedge Trimmer AMA AG1HT60 Genuine replacement part AMA, Lower Blade for Hedge Trimmer AG1HT60. Parts for the following products: -  Hedge Trimmer AMA AG1HT60 – AG1HT75 - 63920 -  Hedge...
Last items in stock €54.29
Details
Upper Blade for Hedge Trimmer AMA AG1HT60
A.M.A. S.p.A. SKU: 64104
Upper Blade for Hedge Trimmer AMA AG1HT60
Upper Blade for Hedge Trimmer AMA AG1HT60 Genuine spare parts AMA, Upper Blade for Hedge Trimmer AG1HT60. Parts for the following products: -  Hedge Trimmer AMA AG1HT60 – AG1HT75 - 63920 -  Hedge Trimmer AMA TH023 -...
Last items in stock €54.29
Details
Conrod Ass'y for Hedge Trimmer AMA AG1HT60 – AG1HT75
A.M.A. S.p.A. SKU: 64092
Conrod Ass'y for Hedge Trimmer AMA AG1HT60 – AG1HT75
Conrod Ass'y for Hedge Trimmer AMA AG1HT60 – AG1HT75 Genuine spare parts AMA, Conrod Ass'y for Hedge Trimmer AG1HT60 – AG1HT75. Parts for the following products: - Hedge Trimmer AMA AG1HT60...
Last items in stock €44.47
Details
Blade Protection for Hedge Trimmers AMA AG1HT60 – AG1HT75
A.M.A. S.p.A. SKU: 64107
Blade Protection for Hedge Trimmers AMA AG1HT60 – AG1HT75
Blade Protection for Hedge Trimmers AMA AG1HT60 – AG1HT75 Genuine spare parts AMA, Blade Protection for Hedge Trimmers AG1HT60 – AG1HT75 Parts for the following products: - Hedge Trimmer AMA AG1HT60 – AG1HT75  - Code: 64107
Last items in stock €18.55
Details
Gear Case Cover for Hedge Trimmer AMA AG1-HT60R
A.M.A. S.p.A. SKU: 79398
Gear Case Cover for Hedge Trimmer AMA AG1-HT60R
AMA AG1-HT60R Gear Case Cover Original replacement part AMA, Gear Vase Cover for Hedge Trimmers AG1-HT60R - TH023 - AGPHT60R - TJ023V - AGP-HT60R. Parts for the following products: - AMA Hedge Trimmer...
Last items in stock €30.79
Details
Carburator Diaphragm for Bruschcutter Kawasaki KBC 35
A.M.A. S.p.A. SKU: 43028-2096
Carburator Diaphragm for Bruschcutter Kawasaki KBC 35
Carburator Diaphragm for Bruschcutter Kawasaki KBC 35 Original spare parts Kawasaki, Carburator Diaphragm for Bruschcutters KBC 35 - KBC 45 - KBC 53 Parts for the following products: -  Brushcutter KBC 35U -  Brushcutter KBC 45U -...
Last items in stock €22.65
Details
Handle Support Plate for Hedge Trimmer AMA AG1-HT60R
A.M.A. S.p.A. SKU: 84884
AMA AG1-HT60R Support Plate
AMA AG1-HT60R Handle Support Plate Original replacement part AMA, Handle Support Plate for Hedge Trimmers AG1-HT60R - TH023 - AGPHT60R - TJ023V - AGP-HT60R. Parts for the following products: - AMA...
Last items in stock €27.47
Details
AMA AG1 HT Throttle Cable
A.M.A. S.p.A. SKU: 55031
AMA AG1 HT Throttle Cable
AMA Throttle Cable for Hedgetrimmer AG1 HT Genuine replacement part AMA, Throttle Cable for Hedgetrimmer AG1HT60 - AG5-HT75R - AG1-HT75. Part For the Following Products: - Ama AG5 HT60R - 98850 - Ama AG1HT60 - AG1HT75 - 63920 -...
Last items in stock €13.83
Details
Comments (0)
