A.M.A. S.p.A.

Kawasaki Spare Parts for Hedgetrimmer TH023 - AG1-HT75R - 59110

SKU: AMA TH023 - AG1-HT75R - 59110
€8.59
VAT included

Kawasaki Spare Parts for Hedgetrimmer TH023 - AG1-HT75R - 59110

Kawasaki genuine spare parts or replacement parts for to repair Hedgetrimmer AMA Garden Powered Kawasaki - TH023-AG1-HT75R - 59110.
Kawasaki Spare Parts for Hedgetrimmer TH023 - AG1-HT75R - 59110
  • Kawasaki Spare Parts for Hedgetrimmer TH023 - AG1-HT75R - 59110
  • Kawasaki Spare Parts for Hedgetrimmer TH023 - AG1-HT75R - 59110
  • Kawasaki Spare Parts for Hedgetrimmer TH023 - AG1-HT75R - 59110
  • Kawasaki Spare Parts for Hedgetrimmer TH023 - AG1-HT75R - 59110
  • Kawasaki Spare Parts for Hedgetrimmer TH023 - AG1-HT75R - 59110
  • Kawasaki Spare Parts for Hedgetrimmer TH023 - AG1-HT75R - 59110
  • Kawasaki Spare Parts for Hedgetrimmer TH023 - AG1-HT75R - 59110
  • Kawasaki Spare Parts for Hedgetrimmer TH023 - AG1-HT75R - 59110
  • Kawasaki Spare Parts for Hedgetrimmer TH023 - AG1-HT75R - 59110
  • Kawasaki Spare Parts for Hedgetrimmer TH023 - AG1-HT75R - 59110
A.M.A. S.p.A.

Kawasaki Spare Parts for Hedgetrimmer TH023 - AG1-HT75R - 59110

SKU: AMA TH023 - AG1-HT75R - 59110 Condition: New
€8.59
VAT included

Kawasaki Spare Parts for Hedgetrimmer TH023 - AG1-HT75R - 59110

Kawasaki genuine spare parts or replacement parts for to repair Hedgetrimmer AMA Garden Powered Kawasaki - TH023-AG1-HT75R - 59110.
settings 111 spare parts
description 9 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
50 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

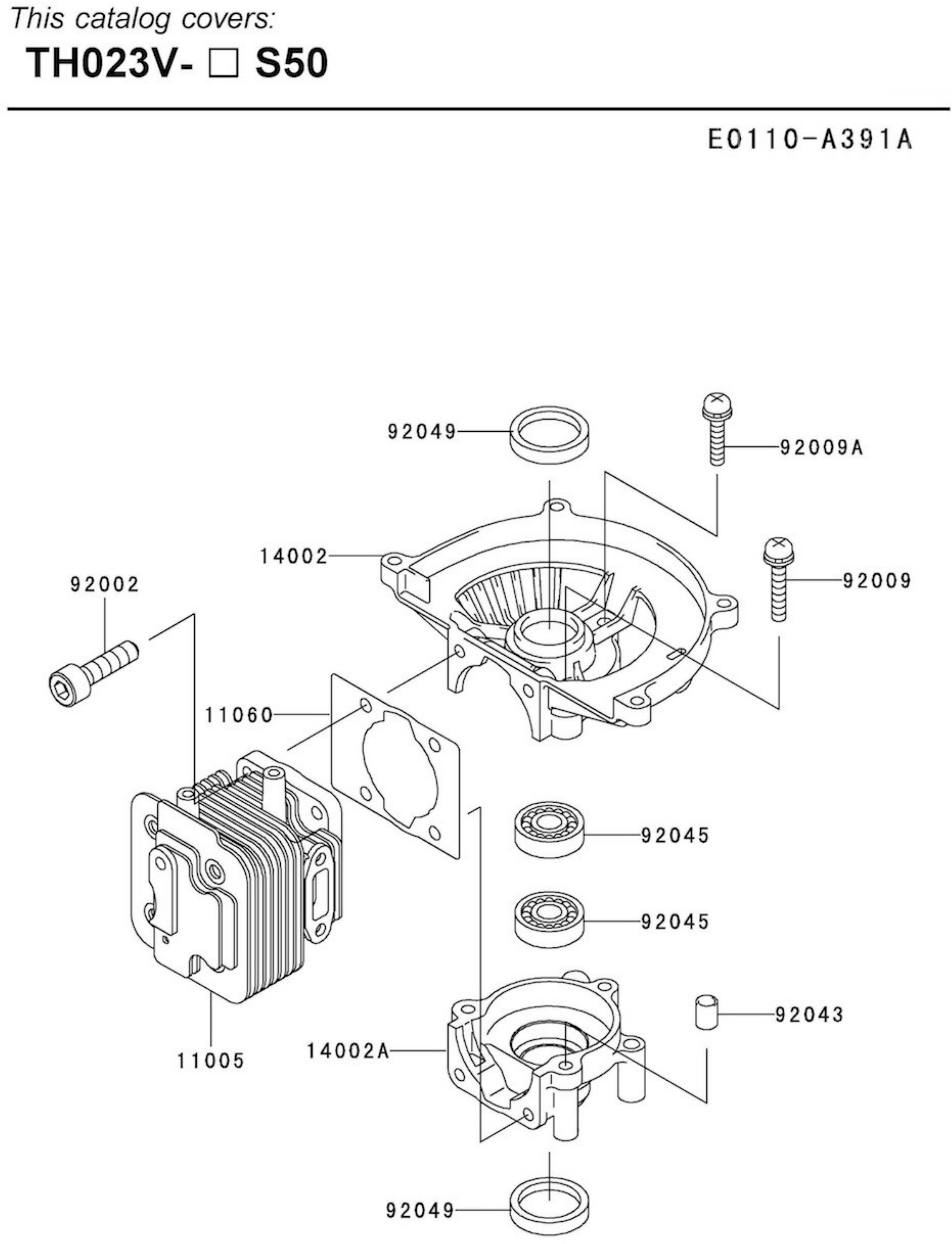

Esploso pagina 1
Pos. Item Price Buy
11005
 photo_cameraImage coming soon 11005-2150 CYLINDER-ENGINE €112.72
11060
 Diaphragm Gasket for Bruschcutter Kawasaki KBC 35 11060-2111 Diaphragm Gasket for Bruschcutter Kawasaki KBC 35 €5.89
11060
 photo_cameraImage coming soon 11060-2402 GASKET CYLINDER €5.27
92009A
 photo_cameraImage coming soon 92009-2336 Screw €2.16
92043
 photo_cameraImage coming soon 92043-2094 Pin €1.96
92049
 photo_cameraImage coming soon 92049-2108 SEAL-OIL €2.60
920098
 photo_cameraImage coming soon 92009-2337 Screw €1.62
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

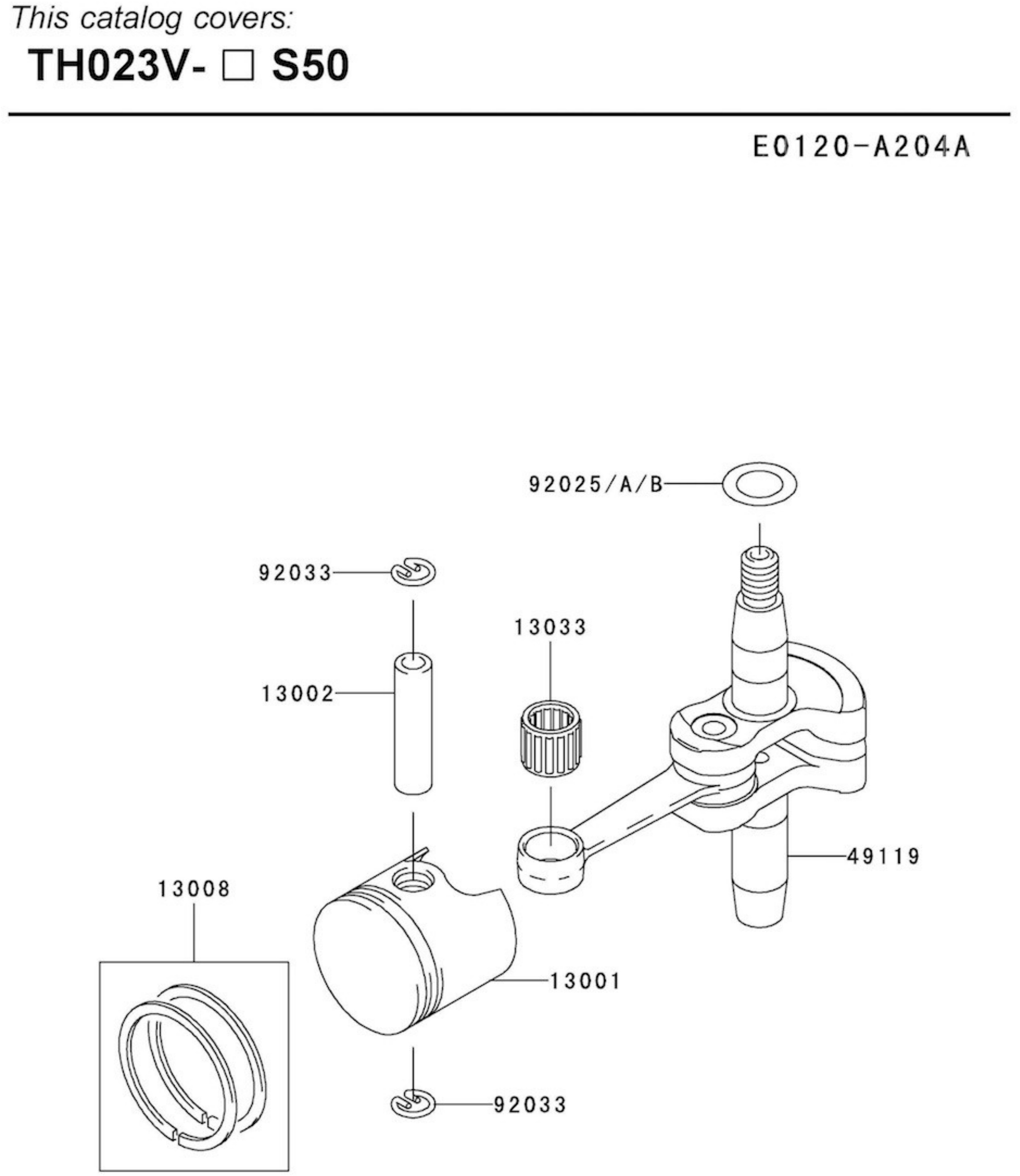

Esploso pagina 2
Pos. Item Price Buy
13001
 photo_cameraImage coming soon 13001-2154 PISTON-ENGINE €42.82
13002
 photo_cameraImage coming soon 13002-2058 PIN-PISTON TJ27 €13.72
13033
 photo_cameraImage coming soon 13033-2055 BEARING-SMALL END €13.87
92033
 Snap Ring for Brushcutters Kawasaki 92033-2010 Snap Ring for Brushcutters Kawasaki €0.44
92033
 photo_cameraImage coming soon 92033-2078 Ring-Snap €1.55
92033
 photo_cameraImage coming soon 92033-2191 RING-SNAP TJ27 €1.47
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

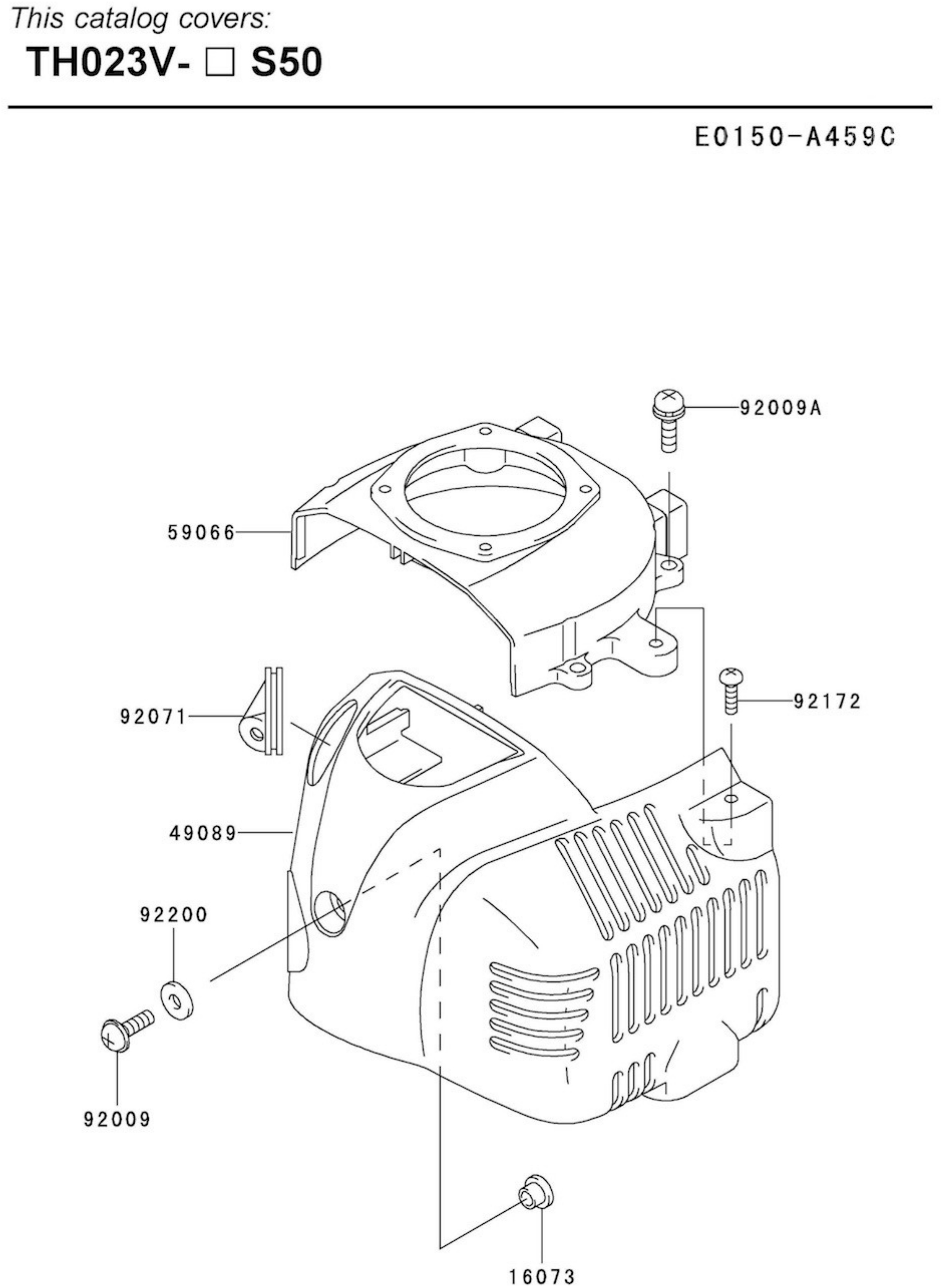

Esploso pagina 3
Pos. Item Price Buy
16073
 photo_cameraImage coming soon 16073-2197 INSULATOR €2.10
16073
 photo_cameraImage coming soon 16073-2231 INSULATOR €13.41
92071
 photo_cameraImage coming soon 92071-2142 Grommet €6.24
92200
 photo_cameraImage coming soon 92200-2074 Washer €1.37
92200
 photo_cameraImage coming soon 92200-2156 WASHER €1.32
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

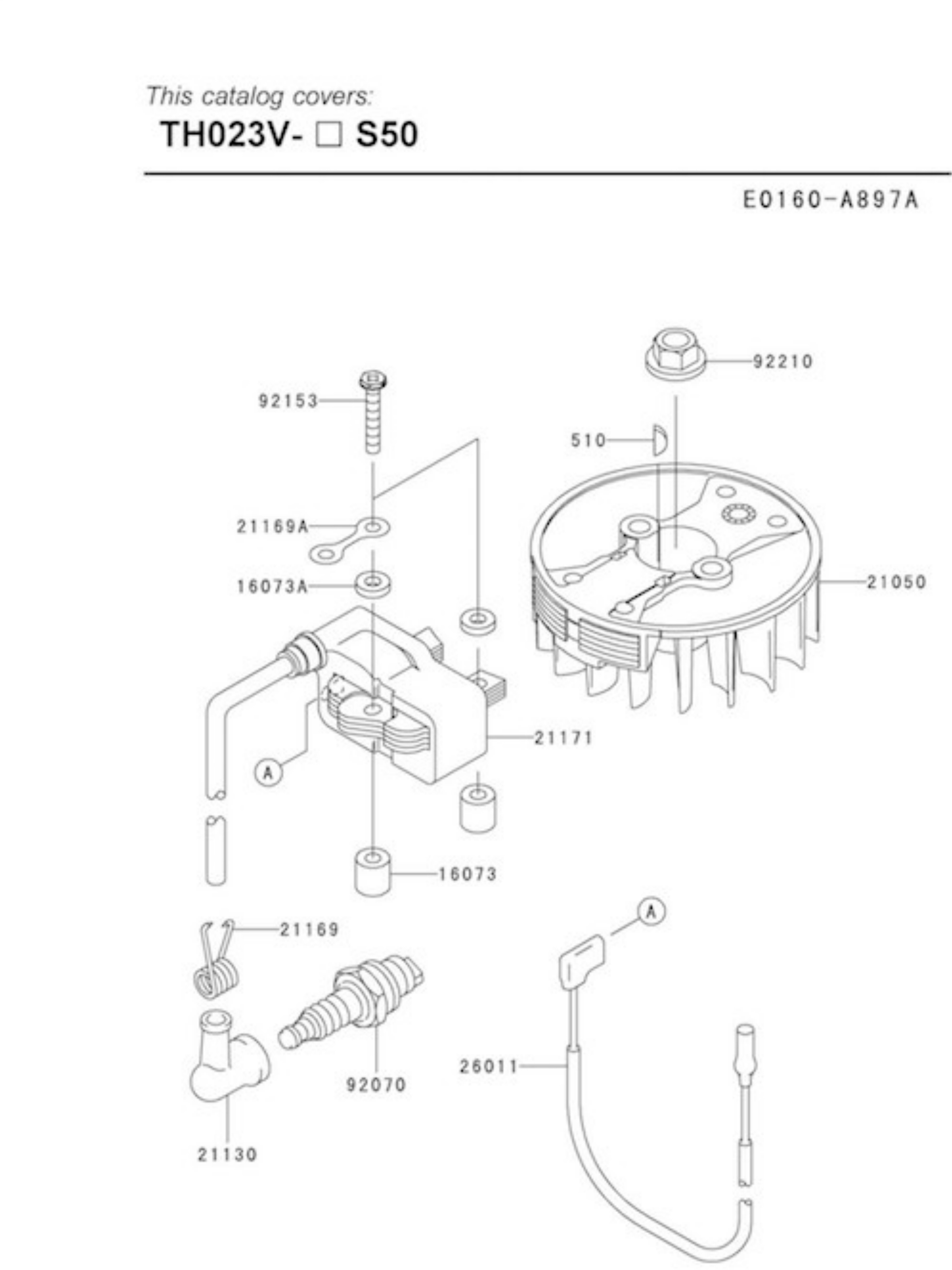

Esploso pagina 4
Pos. Item Price Buy
21130
 photo_cameraImage coming soon 21130-2056 CAP-SPARK PLUG €3.24
21171
 photo_cameraImage coming soon 21171-2241 COIL-ASSY-IGNITION €143.85
92070
 photo_cameraImage coming soon 92070-2108 PLUG-SPARK,BPMR6A(NGK),SOLID €12.31
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

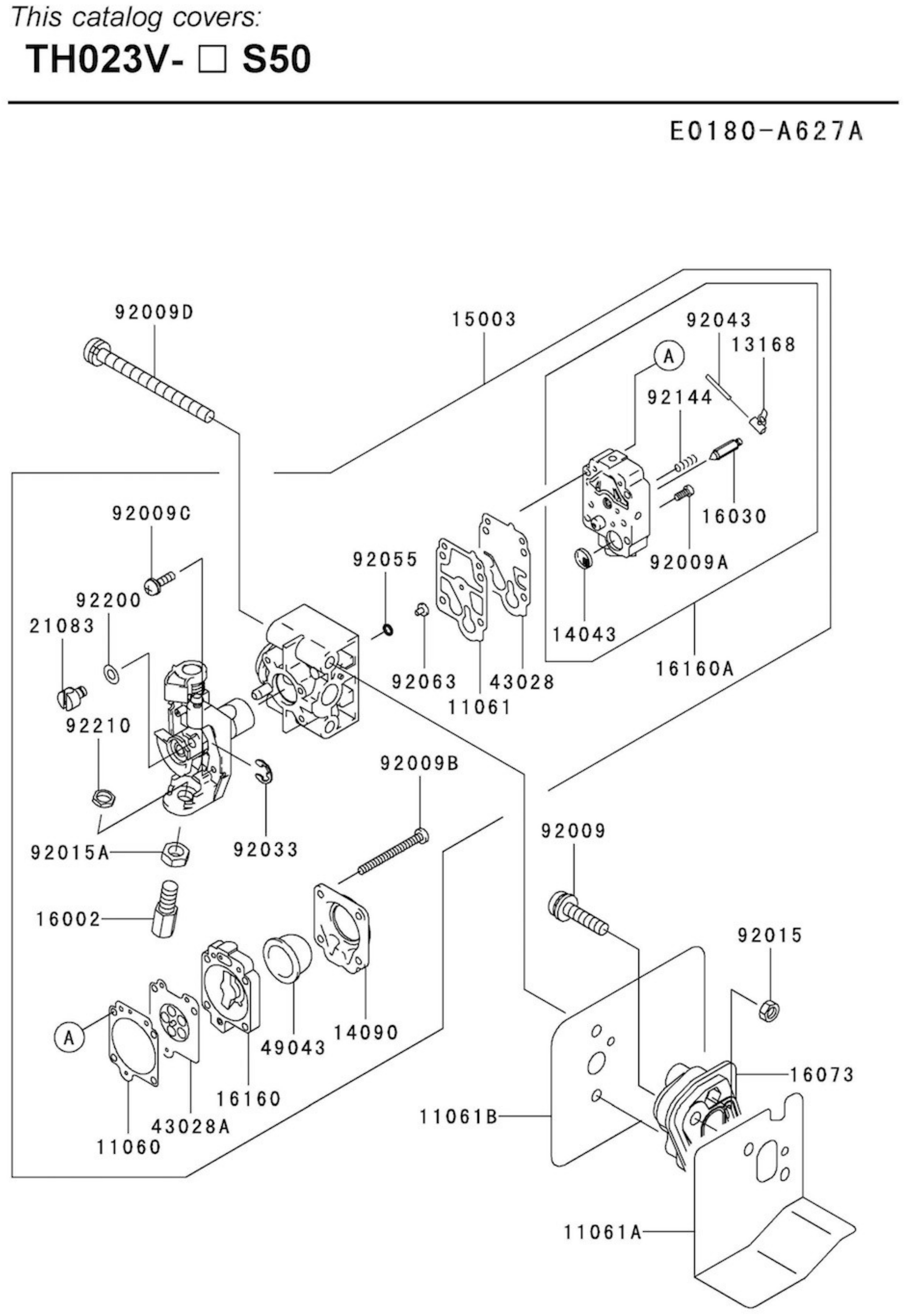

Esploso pagina 5
Pos. Item Price Buy
11061
 photo_cameraImage coming soon 11061-2054 Gasket €8.34
11061A
 photo_cameraImage coming soon 11061-2098 GASKET €13.41
13168
 photo_cameraImage coming soon 16055-2051 Lever €4.76
14043
 photo_cameraImage coming soon 14043-2051 Filter €3.71
14090
 photo_cameraImage coming soon 14090-2017 Cover Primed Pump €9.65
15003
 photo_cameraImage coming soon 15003-2807 CARBURETOR-ASSY €155.17
16030
 photo_cameraImage coming soon 16030-2078 Valve-Float €13.12
16160
 photo_cameraImage coming soon 16160-2089 Body €34.69
16160A
 photo_cameraImage coming soon 16160-2103 Body €42.80
21083
 Throttle Pawl for Brushcutters Kawasaki KBC 35 21083-2073 Throttle Pawl for Brushcutters Kawasaki KBC 35 €8.42
43028
 photo_cameraImage coming soon 43028-2067 Diaphragm €8.60
43028A
 photo_cameraImage coming soon 43028-2090 DIAPHRAGM €24.27
49043
 photo_cameraImage coming soon 49043-2067 Pump-Priming €8.06
92015A
 photo_cameraImage coming soon 92015-2145 Nut €3.01
92055
 photo_cameraImage coming soon 92055-2147 Ring-O €3.87
92144
 Carburator Spring for Brushcutters Kawasaki KBC 35 92144-2308 Carburator Spring for Brushcutters Kawasaki KBC 35 €4.80
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

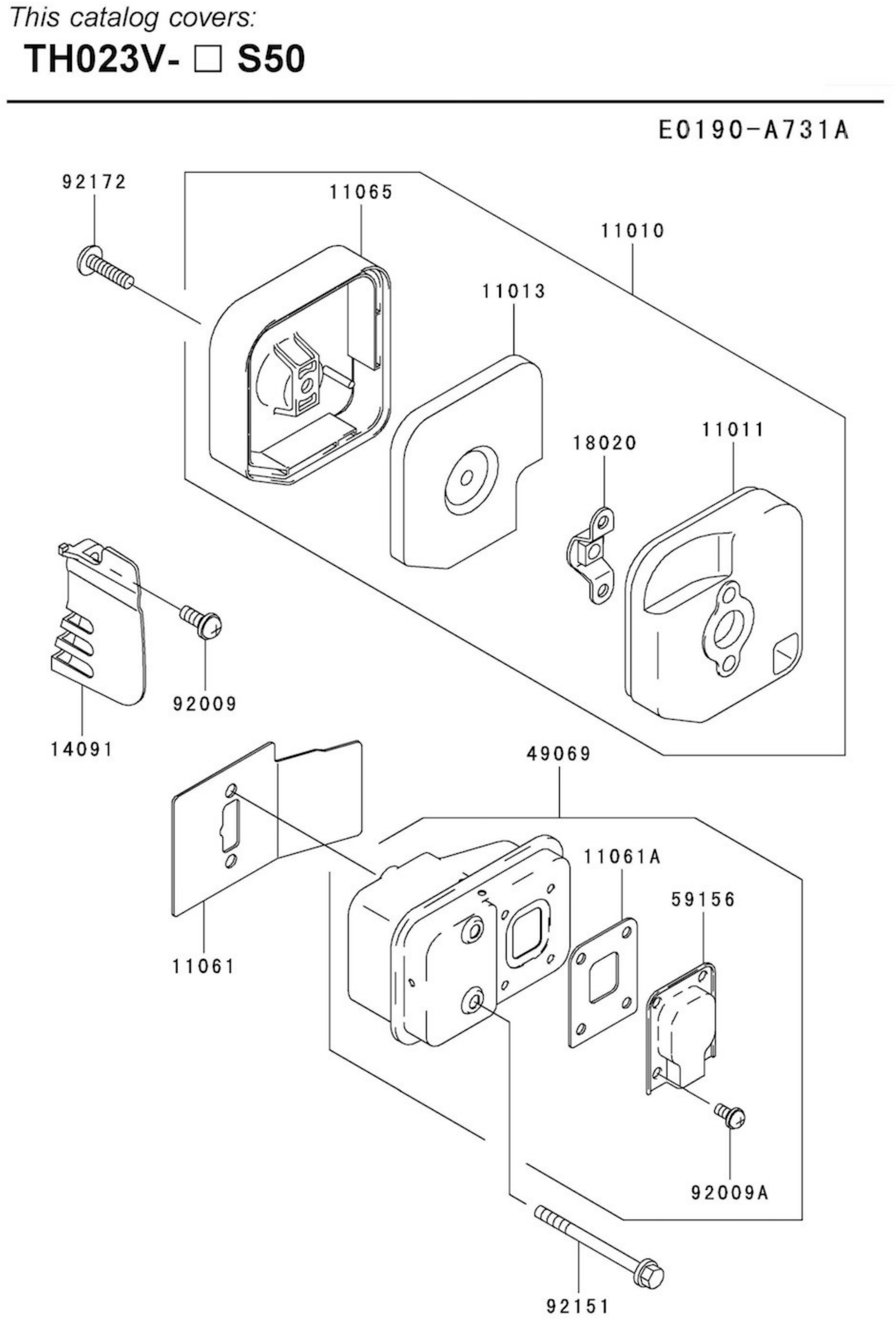

Esploso pagina 6
Pos. Item Price Buy
11010
 photo_cameraImage coming soon 11010-2572 FILTER-ASSY-AIR €32.72
11013
 Air Filter Element for Kawasaki Engine TH023 11013-2208 Air Filter Element for Kawasaki Engine TH023 €11.92
11065
 photo_cameraImage coming soon 11065-2114 BUSH €14.95
18020
 photo_cameraImage coming soon 18020-2082 BAFFLE €6.47
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

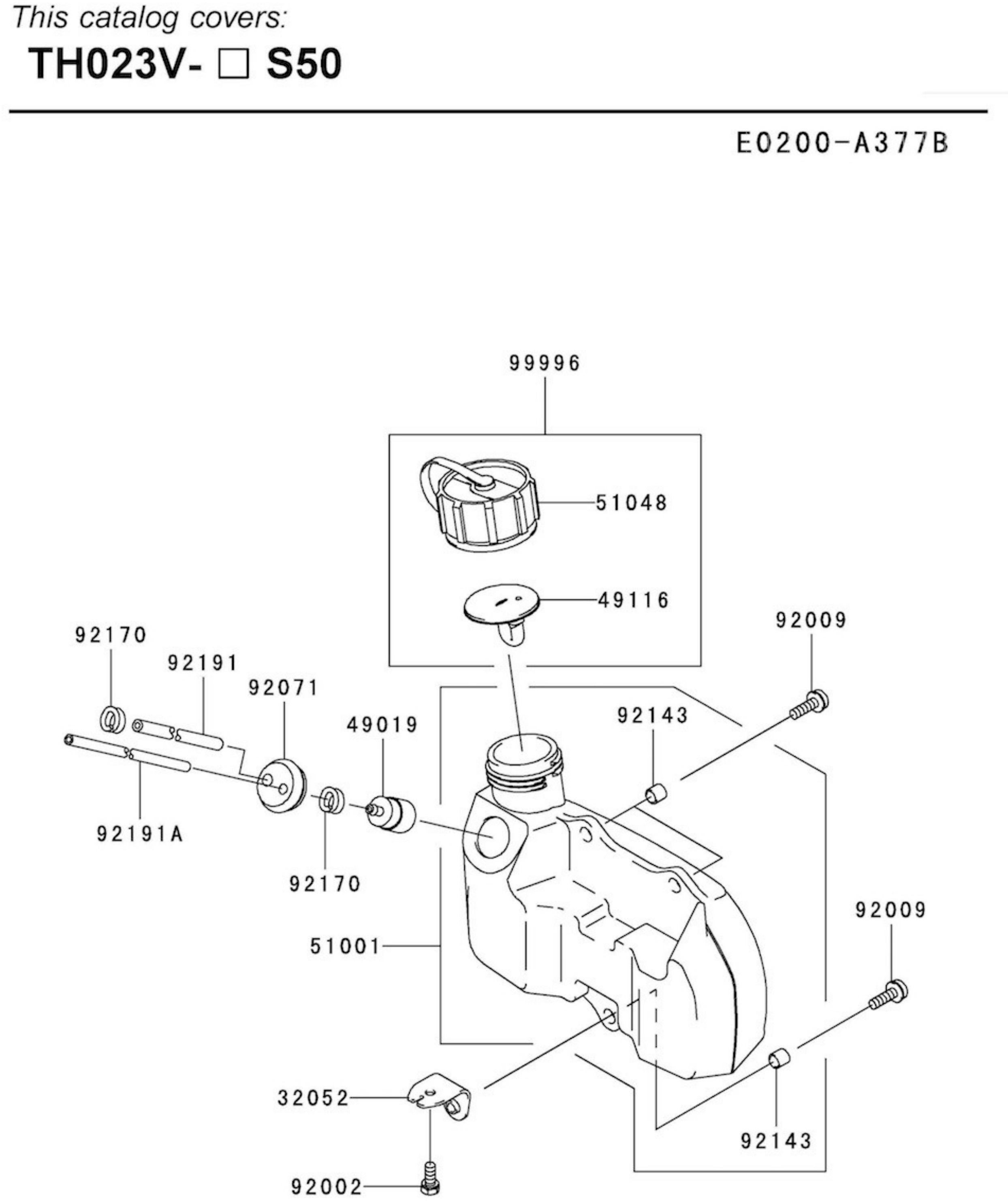

Esploso pagina 7
Pos. Item Price Buy
49019
 photo_cameraImage coming soon 49019-2111 Filter Fuel €17.25
49116
 photo_cameraImage coming soon 49116-2064 VALVE-ASSY €12.38
51048
 photo_cameraImage coming soon 51048-2078 CAP-ASSY-TANK €9.90
Page 8 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

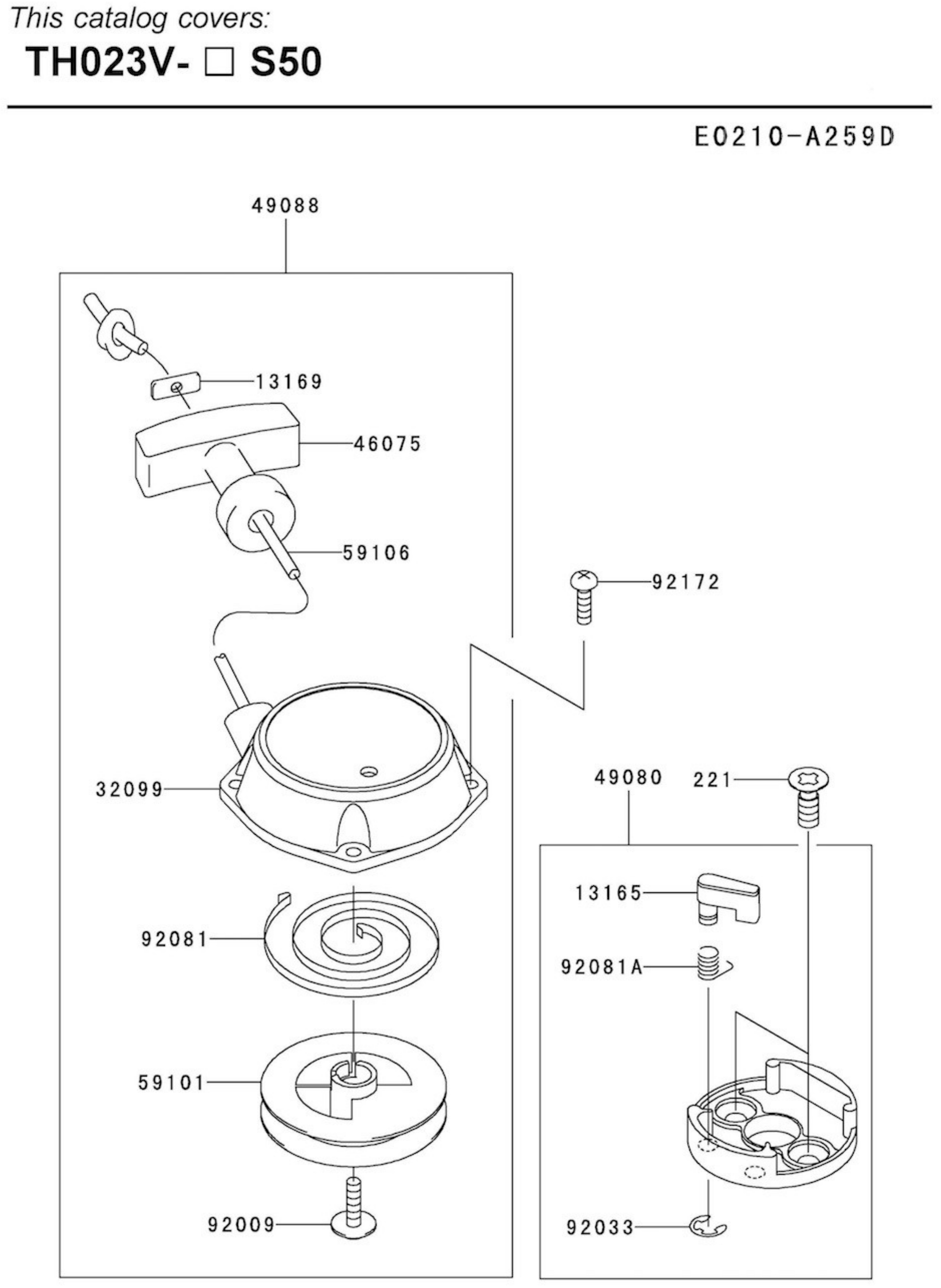

Esploso pagina 8
Pos. Item Price Buy
13165
 photo_cameraImage coming soon 13165-2052 PAWL €3.56
13169
 photo_cameraImage coming soon 13169-2386 Plate Recoil Starter €2.09
49088
 photo_cameraImage coming soon 49088-2515 Starter Assy Black €46.60
92081
 photo_cameraImage coming soon 92081-2238 SPRING,RECOIL €19.86
92081A
 photo_cameraImage coming soon 92081-2253 Brake spring €8.05
Page 9 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 9
Pos. Item Price Buy
64101
 photo_cameraImage coming soon 55291 Bolt Substituted by 55291 €14.51

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Kawasaki Spare Parts for Hedgetrimmer TH023 - AG1-HT75R - 59110

Kawasaki genuine spare parts or replacement parts for to repair Hedgetrimmer AMA Garden Powered Kawasaki - TH023 - AG1-HT75R - 59110.

In the following table, look for the model of the Bruschcutter and the respective parts of the code.
AMA Garden with Engine Kawasaki - TH023-AG1-HT75R - 59110.

AMA Garden with Engine Kawasaki - TH023-AG1-HT75R - 59110 - Engine Pag.1
# Part Num. Description
11005 11005-2150 CYLINDER-ENGINE
11060 11060-2402 GASKET CYLINDER
14002 14002-2349 CRANKCASE
14002A 14002-2350 CRANKCASE
92002 92002-2163 BOLT
92009 92009-2115 SCREW
92009A 92009-2235 SCREW 5X25
92043 92043-1302 PIN
92045 92045-2060 BEARING-BALL, 6001 V3
92049 92049-2108 SEAL-OIL
13001 13001-2154 PISTON-ENGINE
13002 13002-2058 PIN-PISTON
13008 13008-6050 RING-SET-PISTON
13033 13033-2055 BEARING-SMALL END
49119 49119-2205 CRANKSHAFT-ASSY
92025 92025-2104 SHIM,T=0.2O
92025A 92025-21O5 SHIM,T=O.4O
92025B 92025-21O6 SHIM,T=0.60
92033 92033-2191 RING-SNAP
16073 16073-2197 INSULATOR
49089 49089-2585 SHROUD-ENGINE
59066 59066-2781 HOUSING-FAN
92009 92009-2394 SCREW,5X16
92009A 92009-2395 SCREW,5X16
92071 92071 -2160 GROMMET
92172 92172-2061 SCREW,4X14
92200 92200-2156 WASHER
16073 16073-2214 INSULATOR
16073A 16073-2215 INSULATOR
21050 21050-2296 FLYWHEEL
21130 21130-2056 CAP-SPARK PLUG
21169 21169-2051 TERMINAL
21169A 21169-2072 TERMINAL
21171 21171-2241 COIL-ASSY-IGNITION
26011 26011-2370 W|RE-LEAD,L=180
92070 92070-2108 PLUG-SPARK,BPMR6A(NGK),SOLID
92153 92153-2069 BOLT,04X25
92210 92210-2094 NUT
510 51OA31 00 KEY-WOODRUFF
11060 11060-2111 GASKET
11061 11061-2054 GASKET
11061A 11061-2098 GASKET
11061B 11061-2099 GASKET
13168 16055-2051 LEVER
14043 14043-2051 FILTER
14090 14090-2017 COVER,PRIMER PUMP
15003 15003-2807 CARBURETOR-ASSY
16002 16002-2058 ADJUSTER-CABLE
16030 16030-2078 VALVE-FLOAT
16073 16073-2231 INSULATOR
16160 16160-2089 BODY
16160A 16160-2103 BODY
21083 21083-2073 ARM
43028 43028-2067 DIAPHRAGM
43028A 43028-2090 DIAPHRAGM
49043 49043-2067 PUMP-PRIMING
92009 92009-2249 SCREW,5X20
92009A 92009-2336 SCREW
920098 92009-2337 SCREW
92009C 92009-2373 SCREW
92009D 92009-2398 SCREW,5X60
92015 92015-2097 NUT,M5
92015A 92015-2145 NUT
92033 92033-2078 RING-SNAP
92043 92043-2094 PIN
92055 92055-2147 RING-O
92063 92063-2425 JET-MA|N,#32.5
92144 92144-2308 SPRING
92200 92200-2074 WASHER
92210 92210-2089 NUT
11010 11010-2572 FILTER-ASSY-AIR
11011 11011-2332 CASE-AIR FILTER
11013 11013-2208 ELEMENT-AIR FILTER
11061 11061-2082 GASKETMUFFLER
11061A 11061 -2083 GASKET
11065 11065-2114 CAP
14091 14091-2088 COVER
18020 18020-2082 BAFFLE
49069 49069-2369 MUFFLER-ASSY
59156 59156-2285 PIPE-TAIL
92009 92009-2393 SCREW,5X12
92009A 92009-2446 SCREW
92151 92151-2074 BOLT,5X55
92172 92172-2081 SCREW,5X20
32052 32052-2228 BRACKET-TANK
49019 49019-2111 FILTER-FUEL
49116 49116-2064 VALVE-ASSY
51001 51O01-2310 TANK-COMP-FUEL
51048 51048-2078 CAP-ASSY-TANK
92002 92002-2313 BOLT
92009 92009-2368 SCREW,5X16
92071 92071-2142 GROMMETFUEL TANK
92143 92143-2161 COLLAR,TANK
92170 92170-2080 CLAMP,FUEL FILTER
92191 92191-2154 TUBE
92191A 92191-2155 TUBE
99996 99996-6060 KITCAP-ASSY-TANK
13165 13165-2052 PAWL
13169 13169-2386 PLATE, RECO|L STARTER
32099 32099-2406 CASE, STARTER-RECOIL
46075 46075-2116 GRIR RECOIL STARTER
49080 49080-2099 PULLEY-STARTING
49088 49088-2515 STARTER-RECOIL
59101 59101-2106 REEL RECOIL STARTER
59106 59106-2147 ROPE, 3.5X800
92009 92009-2358 SCREW
92033 92033-2010 RING-SNAP
92081 92081-2238 SPR|NG,RECO|L
92081A 92081-2253 SPRING
92172 92172-2061 SCREW,4X14
221 221BO616 SCREW-CSK-CROS

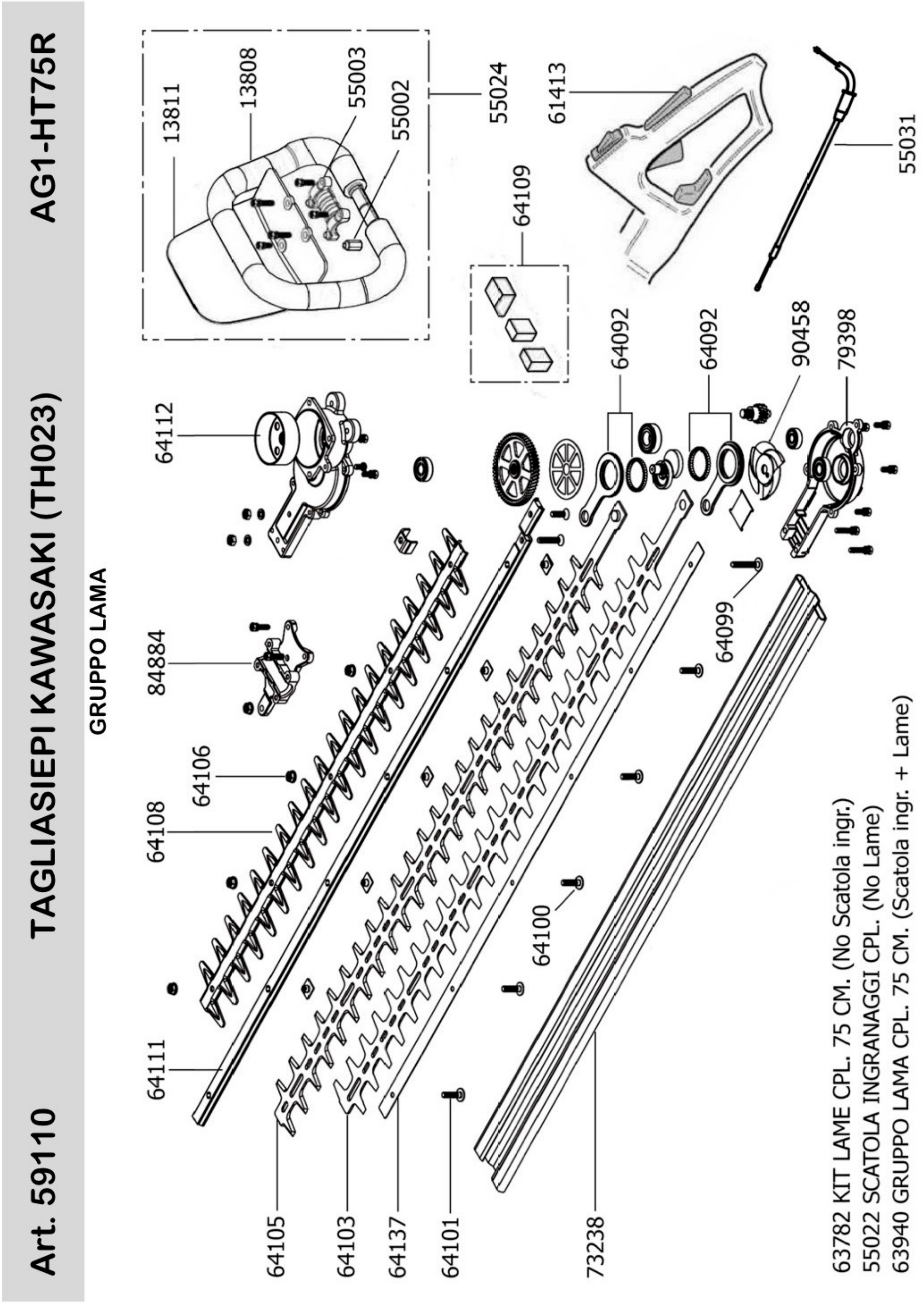

Hedgetrimmer - TH023-AG1-HT75R - 59110 - Blade Pag.2
64111 Upper Blade Guide
64108 Blade Protection
64106 Nut
84884 Support Plate
64112 Gears housing
13811 Hand Protection
13808 Handle
55003 Plate
55002 Nut
55024 Handle assembly
61413 Safety lever
64109 Set off
55031 Assembly Wire
64092 Biella
90458 Gear
79398 Gear case Cover
64099 Bolt
64100 Bolt
73238 Blade Guard
64101 55291 Bolt Substituted by 55291
64137 Lower Blade Guide
64103 Lower Blade
64105 Upper Blade
63782 Complete Blades Kit.75 Cm (Without Gear Box)
55022 Complete gearbox
63940 Complete Blades Group (with Gear Box)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AMA TH023 - AG1-HT75R - 59110
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Kawasaki TH023 - 59110

Diagram Kawasaki TH023 - 59110

Download (1.16MB)

You might also like

Throttle Pawl for Brushcutters Kawasaki KBC 35
A.M.A. S.p.A. SKU: 21083-2073
Throttle Pawl for Brushcutters Kawasaki KBC 35
Throttle Pawl for Brushcutters Kawasaki KBC 35 Genuine part Kawasaky, Throttle Pawl for Brushcutters KBC 35 - KBC 35U - KBC 45 - KBC 45U - NKBC 35 - NKBC 45 - TOP 35. Part for the following products: - Brushcutter Kawasaki KBC 35 -...
AVAILABLE €8.42
Details
Carburator Spring for Brushcutters Kawasaky KBC 35
A.M.A. S.p.A. SKU: 92144-2308
Carburator Spring for Brushcutters Kawasaki KBC 35
Carburator Spring for Brushcutters Kawasaki KBC 35 Genuine part Kawasaki, Carburator Spring for Brushcutters  KBC 35 - KBC 35U - KBC 45 - KBC 45U - NKBC 35 - NKBC 45 - TOP 35. Parts for the following products: - Brushcutter Kawasaki...
AVAILABLE €4.80
Details
Conrod Ass'y for Hedge Trimmer AMA AG1HT60 – AG1HT75
A.M.A. S.p.A. SKU: 64092
Conrod Ass'y for Hedge Trimmer AMA AG1HT60 – AG1HT75
Conrod Ass'y for Hedge Trimmer AMA AG1HT60 – AG1HT75 Genuine spare parts AMA, Conrod Ass'y for Hedge Trimmer AG1HT60 – AG1HT75. Parts for the following products: - Hedge Trimmer AMA AG1HT60...
Last items in stock €44.47
Details
Lower Blade for Hedge Trimmer AMA AG1HT75
A.M.A. S.p.A. SKU: 64103
Lower Blade for Hedge Trimmer AMA AG1HT75
Lower Blade for Hedge Trimmer AMA AG1HT75 Genuine replacement part AMA, Lower Blade for Hedge Trimmer AG1HT75 CM.75. Parts for the following products: -  Hedge Trimmer AMA AG1HT60 – AG1HT75...
Last items in stock €65.68
Details
Upper Blade for Hedge Trimmer AMA AG1HT75
A.M.A. S.p.A. SKU: 64105
Upper Blade for Hedge Trimmer AMA AG1HT75
Upper Blade for Hedge Trimmer AMA AG1HT75 Genuine replacement part AMA, Upper Blade for Hedge Trimmer AG1HT75 CM.75. Parts for the following products: - Hedge Trimmer AMA AG1HT75  - Code: 64105
Last items in stock €65.68
Details
Gear Case Cover for Hedge Trimmer AMA AG1-HT60R
A.M.A. S.p.A. SKU: 79398
Gear Case Cover for Hedge Trimmer AMA AG1-HT60R
AMA AG1-HT60R Gear Case Cover Original replacement part AMA, Gear Vase Cover for Hedge Trimmers AG1-HT60R - TH023 - AGPHT60R - TJ023V - AGP-HT60R. Parts for the following products: - AMA Hedge Trimmer...
Last items in stock €30.79
Details
Diaphragm Gasket for Bruschcutter Kawasaki KBC 35
A.M.A. S.p.A. SKU: 11060-2111
Diaphragm Gasket for Bruschcutter Kawasaki KBC 35
Carburator Diaphragm Gasket for Bruschcutter Kawasaki KBC 35 Original spare parts Kawasaki, Carburator Diaphragm Gasket for Bruschcutters KBC 35 - KBC 45 - KBC 53 Parts for the following products: -  Brushcutter KBC 35U -...
Last items in stock €5.89
Details
Air Filter Element for Kawasaki Engine TH023
A.M.A. S.p.A. SKU: 11013-2208
Air Filter Element for Kawasaki Engine TH023
Air Filter Element for Kawasaki Engine TH023 Original spare parts Kawasaki, Air Filter Element for Kawasaki Engine TH023. Parts for the following products: -  HEDGE TRIMMER AMA Powered KAWASAKI TH023 - AGPHT60R - 62190 -  HEDGE...
Last items in stock €11.92
Details
Handle Support Plate for Hedge Trimmer AMA AG1-HT60R
A.M.A. S.p.A. SKU: 84884
AMA AG1-HT60R Support Plate
AMA AG1-HT60R Handle Support Plate Original replacement part AMA, Handle Support Plate for Hedge Trimmers AG1-HT60R - TH023 - AGPHT60R - TJ023V - AGP-HT60R. Parts for the following products: - AMA...
Last items in stock €27.47
Details
AMA Hedgetrimmer AG1 HT75 Blade Guide
A.M.A. S.p.A. SKU: 64111
AMA Hedgetrimmer AG1 HT75 Blade Guide
AMA Hedgetrimmer AG1 HT75 Blade Guide Original replacement part AMA, Blade Guide for Hedgetrimmer AG1 HT75 - AG5 – HT75R. Part for the following products: - AMA AG1 HT75R - 59100 - AMA TH023 - AG1-HT75R -...
Last items in stock €39.52
Details
AMA AG1 HT Throttle Cable
A.M.A. S.p.A. SKU: 55031
AMA AG1 HT Throttle Cable
AMA Throttle Cable for Hedgetrimmer AG1 HT Genuine replacement part AMA, Throttle Cable for Hedgetrimmer AG1HT60 - AG5-HT75R - AG1-HT75. Part For the Following Products: - Ama AG5 HT60R - 98850 - Ama AG1HT60 - AG1HT75 - 63920 -...
Last items in stock €13.83
Details
Comments (0)
