A.M.A. S.p.A.

Kawasaki Spare Parts for Bruschcutter KBC 35

SKU: AMA KBC 35 – 84803
€4.65
VAT included

AMA KBC 35 Bruschcutter Powered Kawasaki Spara Parts

Kawasaki original spare parts for to fix of engine parts or parts of the Transmission Shaft or to repairing damaged and worn components of the Brushcutter AMA Garden Powered Kawasaki KBC 35 - 84803.

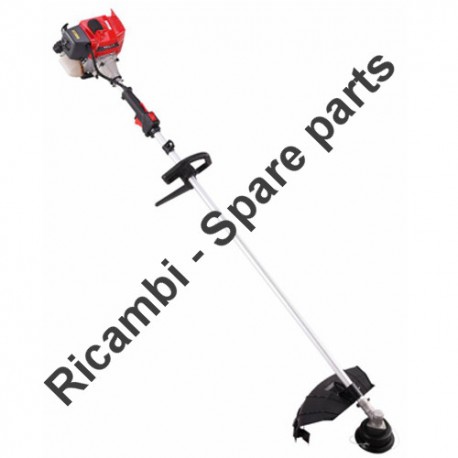

Kawasaky Spare Parts for Bruschcutter KBC 35-KBC 35U
  • Kawasaky Spare Parts for Bruschcutter KBC 35-KBC 35U
  • Kawasaki Spare Parts for Bruschcutter KBC 35
  • Kawasaki Spare Parts for Bruschcutter KBC 35
  • Kawasaki Spare Parts for Bruschcutter KBC 35
  • Kawasaki Spare Parts for Bruschcutter KBC 35
  • Kawasaki Spare Parts for Bruschcutter KBC 35
  • Kawasaki Spare Parts for Bruschcutter KBC 35
  • Kawasaki Spare Parts for Bruschcutter KBC 35
  • Kawasaki Spare Parts for Bruschcutter KBC 35
  • Kawasaki Spare Parts for Bruschcutter KBC 35
  • Kawasaki Spare Parts for Bruschcutter KBC 35
A.M.A. S.p.A.

Kawasaki Spare Parts for Bruschcutter KBC 35

SKU: AMA KBC 35 – 84803 Condition: New
€4.65
VAT included

AMA KBC 35 Bruschcutter Powered Kawasaki Spara Parts

Kawasaki original spare parts for to fix of engine parts or parts of the Transmission Shaft or to repairing damaged and worn components of the Brushcutter AMA Garden Powered Kawasaki KBC 35 - 84803.
settings 227 spare parts
description 10 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
203 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

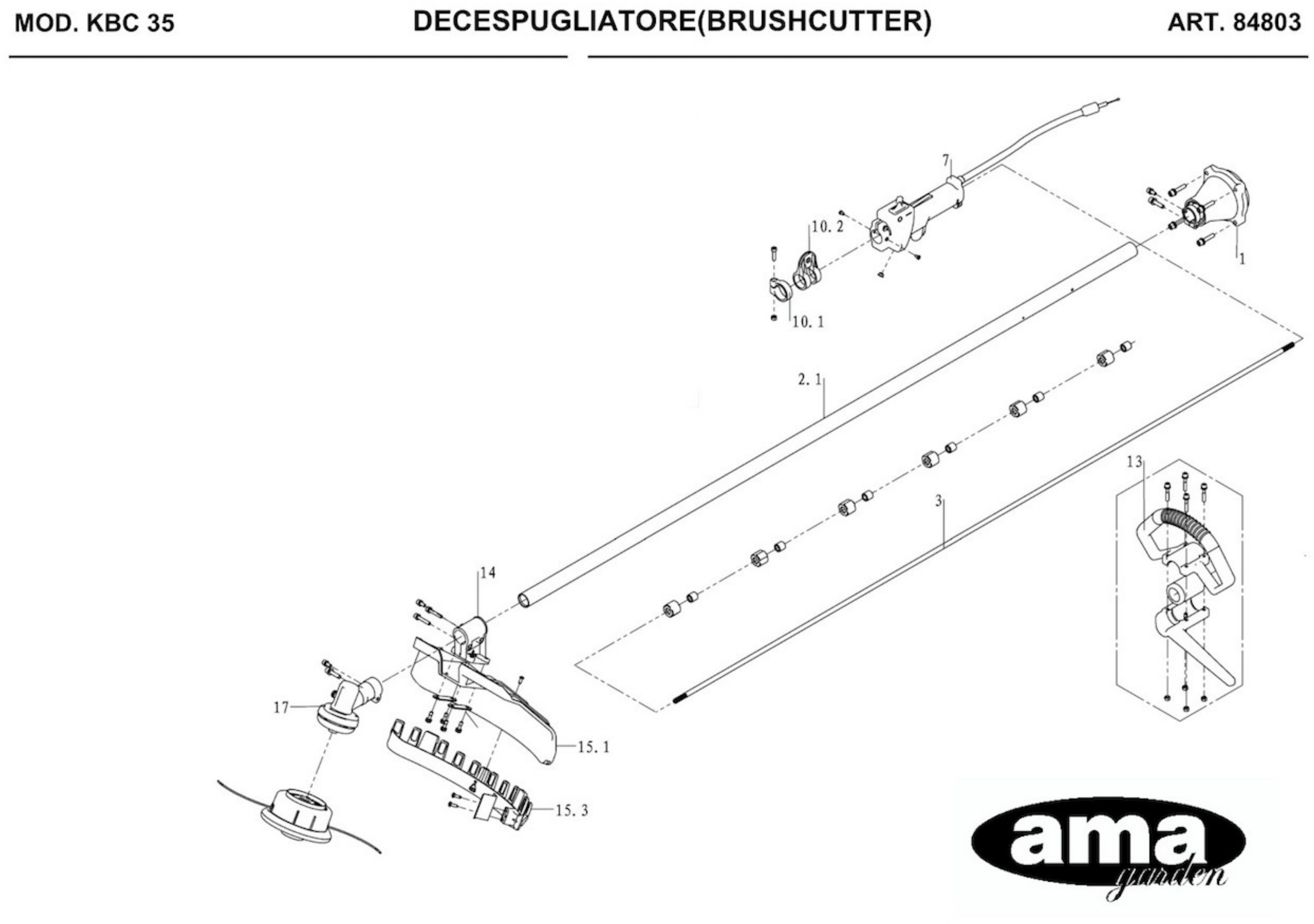

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 88676 Profes. Connecter Assy €26.15
2.1
 Alluminium Pipe Shaft for Brushcutter AMA Playcut BC 350 79954 Alluminium Pipe Shaft for Brushcutter AMA Playcut BC 350 €28.62
3
 Drive Shaft for Brushcutters Kawasaki KBC 35-KBC 45 88400 Drive Shaft for Brushcutters Kawasaki KBC 35-KBC 45 €15.53
7
 Throttle Handle Assembly for Brushcutter Kawasaki KBC 35 88401 Throttle Handle Assembly for Brushcutter Kawasaki KBC 35 €19.14
10.2
 photo_cameraImage coming soon 88403 Holder Assy €2.78
10.1
 photo_cameraImage coming soon 88404 Band €2.78
13
 Complete Front Handle for Bruschcutter Kawasaki KBC 35 88402 Complete Front Handle for Bruschcutter Kawasaki KBC 35 €18.84
14
 Safety Guard Braket for Brushcutters AMA Playcut 79950 Safety Guard Braket for Brushcutters AMA Playcut €5.72
15.1
 Safety Guard for Brushcutter Kawasaki KBC 35 88405 Safety Guard for Brushcutter Kawasaki KBC 35 €11.10
15.3
 photo_cameraImage coming soon 88406 Guard Assy €4.59
17
 Gear Box for Brushcutter Kawasaki KBC 35 88407 Gear Box for Brushcutter Kawasaki KBC 35 €42.04
510A3100
 photo_cameraImage coming soon 510A3100 Key Woodruff €1.64
11005
 photo_cameraImage coming soon 11005-2160 Cylinder-Engine €168.63
11011
 photo_cameraImage coming soon 11011-2366 Case-Air Filter €14.81
11013
 photo_cameraImage coming soon 11013-2229 Element Air Filter €4.62
11049
 photo_cameraImage coming soon 11049-2006 Bracket €13.27
11060
 Diaphragm Gasket for Bruschcutter Kawasaki KBC 35 11060-2111 Diaphragm Gasket for Bruschcutter Kawasaki KBC 35 €5.89
11061
 photo_cameraImage coming soon 11061-2054 Gasket €8.34
11061
 Cylinder Gasket for Brushcutters Kawasaki KBC 35-35U-NKBC 35 11061-2192 Cylinder Gasket for Brushcutters Kawasaki KBC 35-35U-NKBC 35 €5.27
11061
 photo_cameraImage coming soon 11061-2193 Gasket Muffler €14.96
11061
 photo_cameraImage coming soon 11061-2208 Gasket Carburator €2.42
11061
 Gasket Cylinder Insulator for Brushcutters Kawasaki KBC 35 11061-2209 Gasket Cylinder Insulator for Brushcutters Kawasaki KBC 35 €4.31
11065
 photo_cameraImage coming soon 11065-2125 Cap €14.19
11065
 photo_cameraImage coming soon 11065-2130 Cap €10.69
12021
 photo_cameraImage coming soon 12021-2055 Valve Assy Reed €56.63
12022
 photo_cameraImage coming soon 12022-2060 Valve Reed €9.27
13001
 photo_cameraImage coming soon 13001-2170 Piston Engine €32.45
13002
 photo_cameraImage coming soon 13002-2101 Piston Pin €20.10
13008
 Piston Rings for Brushcutters Kawasaki KBC 35-35U-NKBC 35 13008-6045 Piston Rings for Brushcutters Kawasaki KBC 35-35U-NKBC 35 €18.33
13033
 photo_cameraImage coming soon 13033-2067 Bearing-Small End €10.76
13081
 photo_cameraImage coming soon 13081-2220 Clutch Assy €66.52
13081
 photo_cameraImage coming soon 13081-2236 Clutch-Assy €64.82
13165
 photo_cameraImage coming soon 13165-2103 Pawl €2.42
13169
 photo_cameraImage coming soon 13169-2386 Plate Recoil Starter €2.09
13272
 photo_cameraImage coming soon 13272-2009 Plate €2.81
14043
 photo_cameraImage coming soon 14043-2051 Filter €3.71
14069
 photo_cameraImage coming soon 14069-2088 Breather €13.27
14080
 photo_cameraImage coming soon 14080-2064 Crankcase €76.24
14080
 photo_cameraImage coming soon 14080-2065 Crankcase €54.46
14090
 photo_cameraImage coming soon 14090-2017 Cover Primed Pump €9.65
15004
 photo_cameraImage coming soon 15004-2049 Carburetor Assy €170.77
16030
 photo_cameraImage coming soon 16030-2078 Valve-Float €13.12
16055
 photo_cameraImage coming soon 16055-2051 Lever €4.76
16160
 photo_cameraImage coming soon 16160-2089 Body €34.69
16160
 photo_cameraImage coming soon 16160-2141 Body €35.36
18020
 photo_cameraImage coming soon 18020-2091 Baffle €2.46
18077
 photo_cameraImage coming soon 18077-2139 Arrester-Spark €13.61
21050
 photo_cameraImage coming soon 21050-2317 Flywheel €115.36
21083
 Throttle Pawl for Brushcutters Kawasaki KBC 35 21083-2073 Throttle Pawl for Brushcutters Kawasaki KBC 35 €8.42
21130
 photo_cameraImage coming soon 21130-2074 Cap-Spark Plug €8.02
21130
 photo_cameraImage coming soon 21130-2077 Cap-Spark Plug €8.97
21171
 photo_cameraImage coming soon 21171-2257 Coil Ass'y Ignition €97.29
26011
 photo_cameraImage coming soon 26011-2113 Wire-Lead €1.99
32085
 photo_cameraImage coming soon 32085-2106 Stopper €1.53
32099
 photo_cameraImage coming soon 32099-2419 Case Starter-Recoil €27.53
34001
 photo_cameraImage coming soon 34001-2090 Stand €8.05
43028
 photo_cameraImage coming soon 43028-2067 Diaphragm €8.60
43028
 Carburator Diaphragm for Bruschcutter Kawasaki KBC 35 43028-2096 Carburator Diaphragm for Bruschcutter Kawasaki KBC 35 €22.65
43049
 photo_cameraImage coming soon 43049-2062 Packing €4.30
46075
 photo_cameraImage coming soon 46075-2161 Grip Starter-Recoil €8.22
49019
 photo_cameraImage coming soon 49019-2114 Filter Fuel €20.85
49043
 photo_cameraImage coming soon 49043-2067 Pump-Priming €8.06
49049
 photo_cameraImage coming soon 49049-2075 Shoe Clutch €26.75
49049
 photo_cameraImage coming soon 49049-2104 Shoe-Clutch €20.03
49060
 photo_cameraImage coming soon 49060-2062 Cam Starter-Recoil €25.89
49069
 photo_cameraImage coming soon 49069-2435 Muffler Ass'y €68.91
49080
 photo_cameraImage coming soon 49080-2201 Pulley-Starting €17.45
49088
 Recoil Starter Ass'y for Brush Cutters Kawasaki KBC 35 49088-2566 Recoil Starter Ass'y for Brush Cutters Kawasaki KBC 35 €68.85
49089
 photo_cameraImage coming soon 49089-2643 Shroud-Engine €45.84
49119
 photo_cameraImage coming soon 49119-2243 CrankShaft €250.29
51001
 Fuel Tank for Bruschcutter Kawasaki KBC 35-35U 51001-2336 Fuel Tank for Bruschcutter Kawasaki KBC 35-35U €34.81
51048
 photo_cameraImage coming soon 51048-2083 Cap Assy €14.71
59066
 photo_cameraImage coming soon 59066-2800 Housing-Fan €61.75
59101
 Reel Starter for Brushcutters Kawasaki KBC 35 59101-2119 Reel Starter for Brushcutters Kawasaki KBC 35 €17.34
59106
 photo_cameraImage coming soon 59106-2072 Rope 3.5x850 €7.99
92009
 photo_cameraImage coming soon 92009-2277 Screw €1.62
92009
 photo_cameraImage coming soon 92009-2336 Screw €2.16
92009
 photo_cameraImage coming soon 92009-2337 Screw €1.62
92009
 photo_cameraImage coming soon 92009-2354 Screw €2.79
92015
 photo_cameraImage coming soon 92015-2145 Nut €3.01
92026
 Clutch Spring Washer for Brushcutter Kawasaki KBC 35 92026-2125 Clutch Spring Washer for Brushcutter Kawasaki KBC 35 €1.32
92026
 photo_cameraImage coming soon 92026-2355 Spacer 9x15x1.8 €4.51
92033
 Snap Ring for Brushcutters Kawasaki 92033-2010 Snap Ring for Brushcutters Kawasaki €0.44
92033
 photo_cameraImage coming soon 92033-2061 Seeger €1.41
92033
 photo_cameraImage coming soon 92033-2078 Ring-Snap €1.55
92043
 photo_cameraImage coming soon 92043-2094 Pin €1.96
92043
 photo_cameraImage coming soon 92043-2210 Pin Clutch €7.17
92045
 photo_cameraImage coming soon 92045-2058 Bearing-ball 6201C3 €9.65
92049
 Oil Seal mm 12z22x4,5 GS for Brushcutters Kawasaki KBC 35 92049-2253 Oil Seal mm 12z22x4,5 GS for Brushcutters Kawasaki KBC 35 €4.31
92049
 photo_cameraImage coming soon 92049-2267 Seal-Oil ISCD12x22x4.5F €3.13
92055
 photo_cameraImage coming soon 92055-2147 Ring-O €3.87
92063
 photo_cameraImage coming soon 92063-2393 Jet-Main €8.46
92070
 photo_cameraImage coming soon 92070-2107 Sparkplug BPMR7A €4.42
92071
 photo_cameraImage coming soon 92071-2142 Grommet €6.24
92144
 photo_cameraImage coming soon 92144-2054 Spring €18.98
92144
 Ratcket Spring for Brush Cutter Kawasaki KBC 35 92144-2157 Ratcket Spring for Brush Cutter Kawasaki KBC 35 €2.97
92144
 Carburator Spring for Brushcutters Kawasaki KBC 35 92144-2308 Carburator Spring for Brushcutters Kawasaki KBC 35 €4.80
92144
 Clutch Spring for Brush Cutters Kawasaki KBC 35-35U-45-45U 92144-2390 Clutch Spring for Brush Cutters Kawasaki KBC 35-35U-45-45U €5.17
92145
 photo_cameraImage coming soon 92145-2149 Spring €8.41
92145
 photo_cameraImage coming soon 92145-2178 Spring €4.83
92153
 photo_cameraImage coming soon 92153-2128 Bolt €5.26
92170
 photo_cameraImage coming soon 92170-2041 Clamp €1.51
92171
 photo_cameraImage coming soon 92171-2073 Clamp €2.07
92172
 Stopper Screw mm 3x12 for Bruschcutters Kawasaki KBC 45-45U 92172-2091 Stopper Screw mm 3x12 for Bruschcutters Kawasaki KBC 45-45U €0.29
92191
 photo_cameraImage coming soon 92191-2102 Tube 3x5x182 €2.45
92192
 photo_cameraImage coming soon 92192-2117 Tube 3x6x90 €3.43
92192
 photo_cameraImage coming soon 92192-2165 Tube 6x6.6x80 €2.44
92200
 Clutch Wave Washer for Brushcutter Kawasaki KBC 35 92200-2064 Clutch Wave Washer for Brushcutter Kawasaki KBC 35 €1.56
92200
 photo_cameraImage coming soon 92200-2074 Washer €1.37
99996
 photo_cameraImage coming soon 99996-6089 Cap-Breather Assy €29.77
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

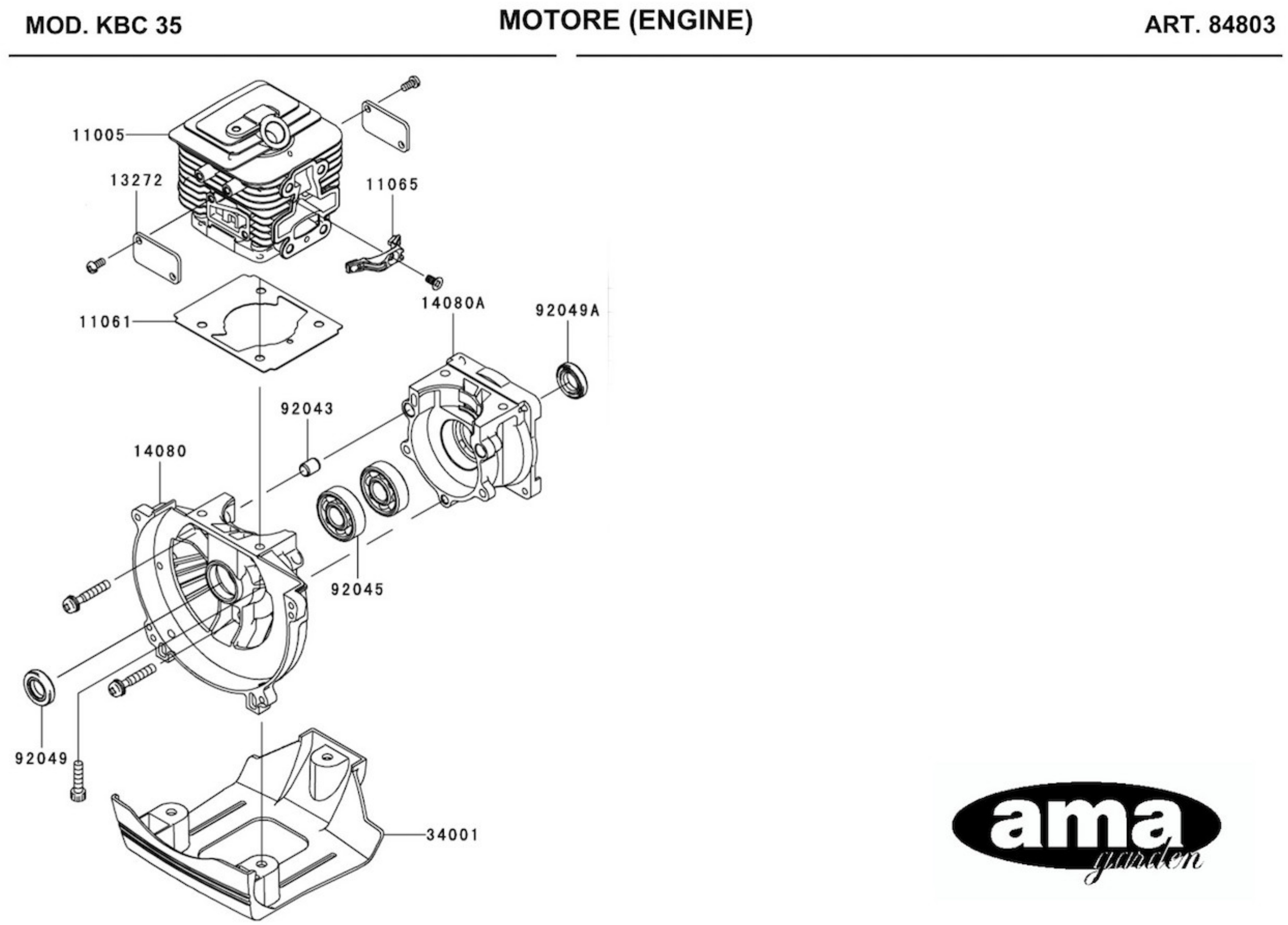

Esploso pagina 2
Pos. Item Price Buy
11005
 photo_cameraImage coming soon 11005-2160 Cylinder-Engine €168.63
11061
 photo_cameraImage coming soon 11061-2054 Gasket €8.34
11061
 Cylinder Gasket for Brushcutters Kawasaki KBC 35-35U-NKBC 35 11061-2192 Cylinder Gasket for Brushcutters Kawasaki KBC 35-35U-NKBC 35 €5.27
11061
 photo_cameraImage coming soon 11061-2193 Gasket Muffler €14.96
11061
 photo_cameraImage coming soon 11061-2208 Gasket Carburator €2.42
11061
 Gasket Cylinder Insulator for Brushcutters Kawasaki KBC 35 11061-2209 Gasket Cylinder Insulator for Brushcutters Kawasaki KBC 35 €4.31
11065
 photo_cameraImage coming soon 11065-2125 Cap €14.19
11065
 photo_cameraImage coming soon 11065-2130 Cap €10.69
13272
 photo_cameraImage coming soon 13272-2009 Plate €2.81
14080
 photo_cameraImage coming soon 14080-2064 Crankcase €76.24
14080
 photo_cameraImage coming soon 14080-2065 Crankcase €54.46
34001
 photo_cameraImage coming soon 34001-2090 Stand €8.05
92043
 photo_cameraImage coming soon 92043-2094 Pin €1.96
92043
 photo_cameraImage coming soon 92043-2210 Pin Clutch €7.17
92045
 photo_cameraImage coming soon 92045-2058 Bearing-ball 6201C3 €9.65
92049
 Oil Seal mm 12z22x4,5 GS for Brushcutters Kawasaki KBC 35 92049-2253 Oil Seal mm 12z22x4,5 GS for Brushcutters Kawasaki KBC 35 €4.31
92049
 photo_cameraImage coming soon 92049-2267 Seal-Oil ISCD12x22x4.5F €3.13
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

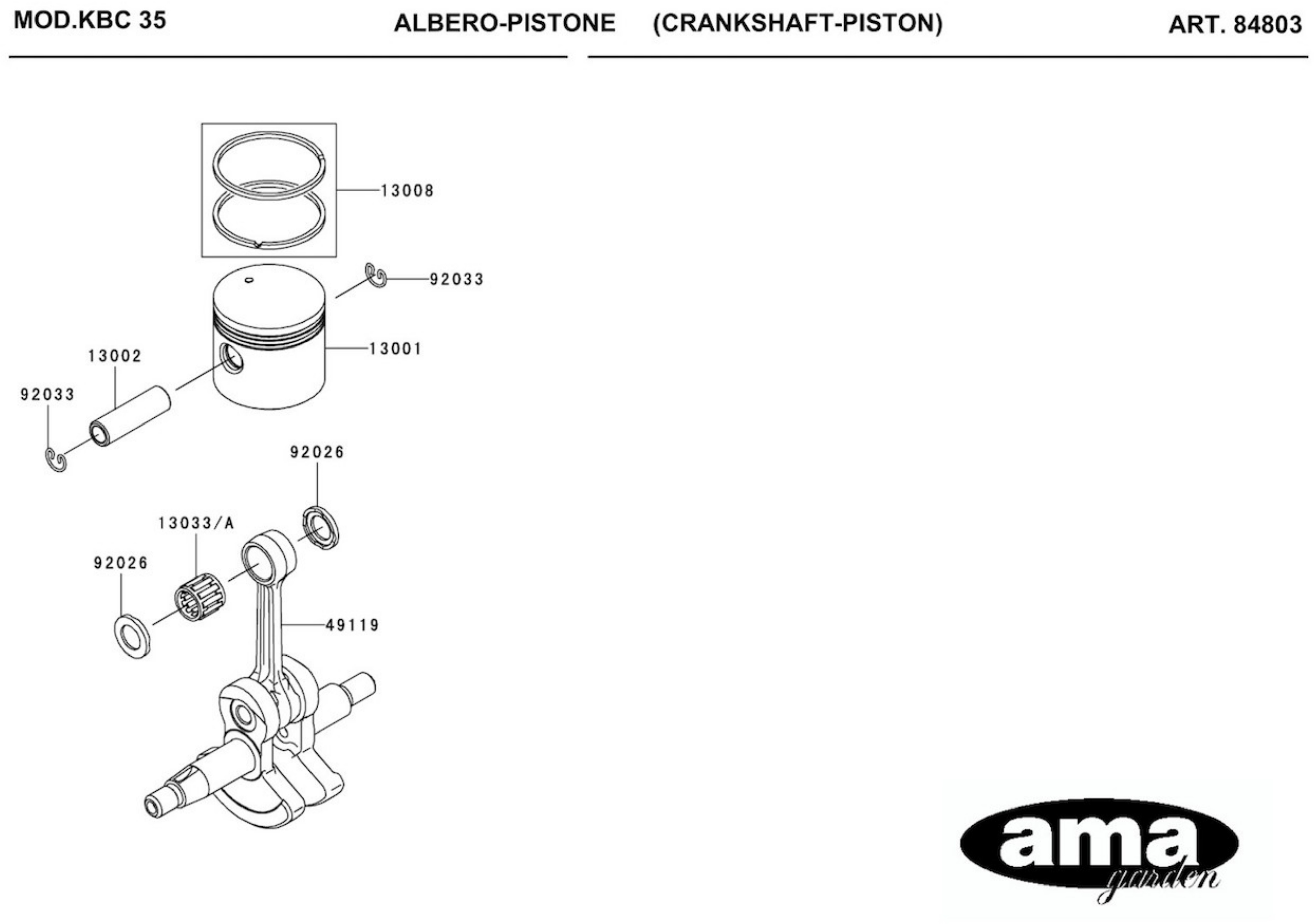

Esploso pagina 3
Pos. Item Price Buy
13001
 photo_cameraImage coming soon 13001-2170 Piston Engine €32.45
13002
 photo_cameraImage coming soon 13002-2101 Piston Pin €20.10
13008
 Piston Rings for Brushcutters Kawasaki KBC 35-35U-NKBC 35 13008-6045 Piston Rings for Brushcutters Kawasaki KBC 35-35U-NKBC 35 €18.33
49119
 photo_cameraImage coming soon 49119-2243 CrankShaft €250.29
92026
 Clutch Spring Washer for Brushcutter Kawasaki KBC 35 92026-2125 Clutch Spring Washer for Brushcutter Kawasaki KBC 35 €1.32
92026
 photo_cameraImage coming soon 92026-2355 Spacer 9x15x1.8 €4.51
92033
 Snap Ring for Brushcutters Kawasaki 92033-2010 Snap Ring for Brushcutters Kawasaki €0.44
92033
 photo_cameraImage coming soon 92033-2061 Seeger €1.41
92033
 photo_cameraImage coming soon 92033-2078 Ring-Snap €1.55

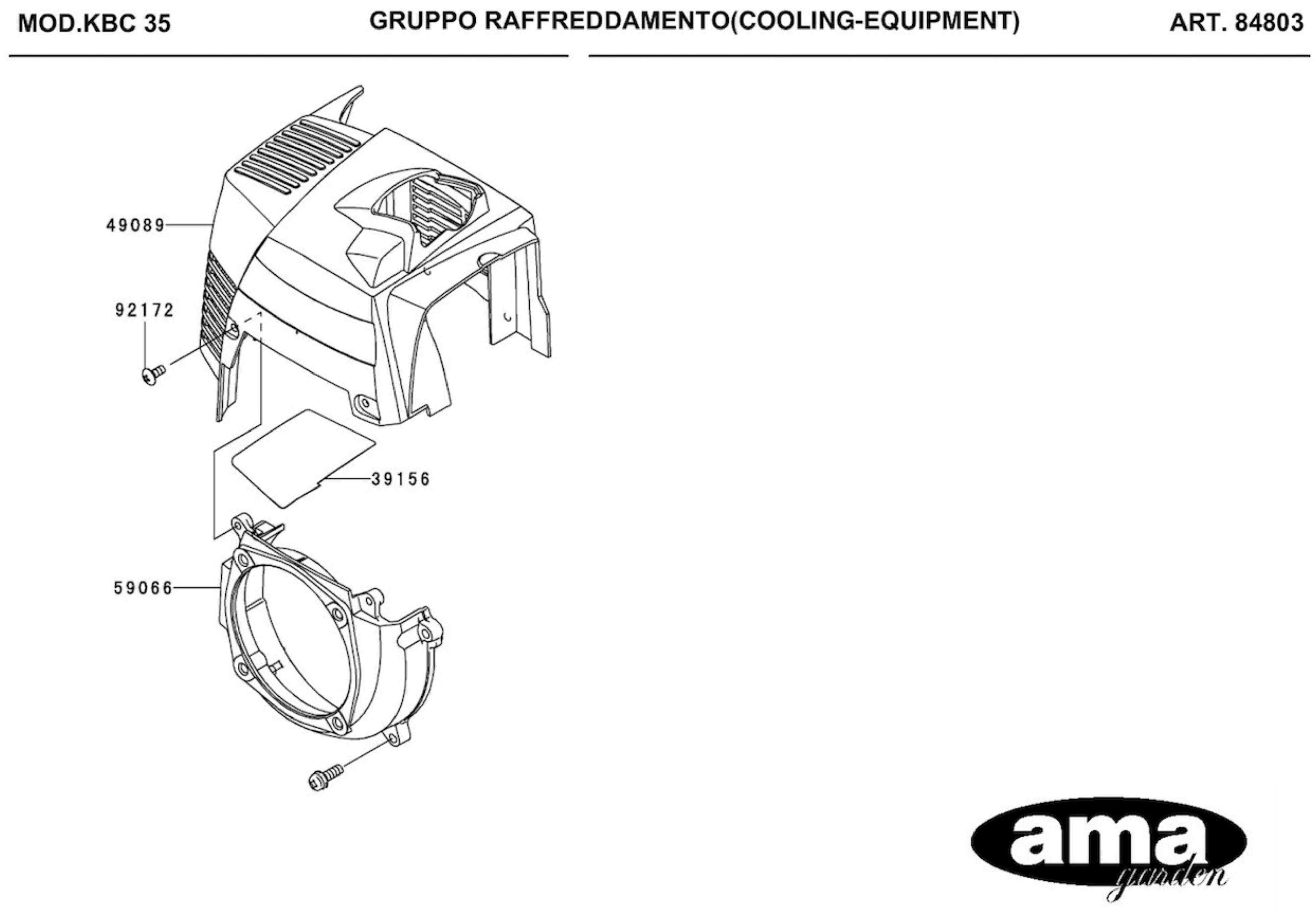

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 4
Pos. Item Price Buy
49089
 photo_cameraImage coming soon 49089-2643 Shroud-Engine €45.84
59066
 photo_cameraImage coming soon 59066-2800 Housing-Fan €61.75
92172
 Stopper Screw mm 3x12 for Bruschcutters Kawasaki KBC 45-45U 92172-2091 Stopper Screw mm 3x12 for Bruschcutters Kawasaki KBC 45-45U €0.29

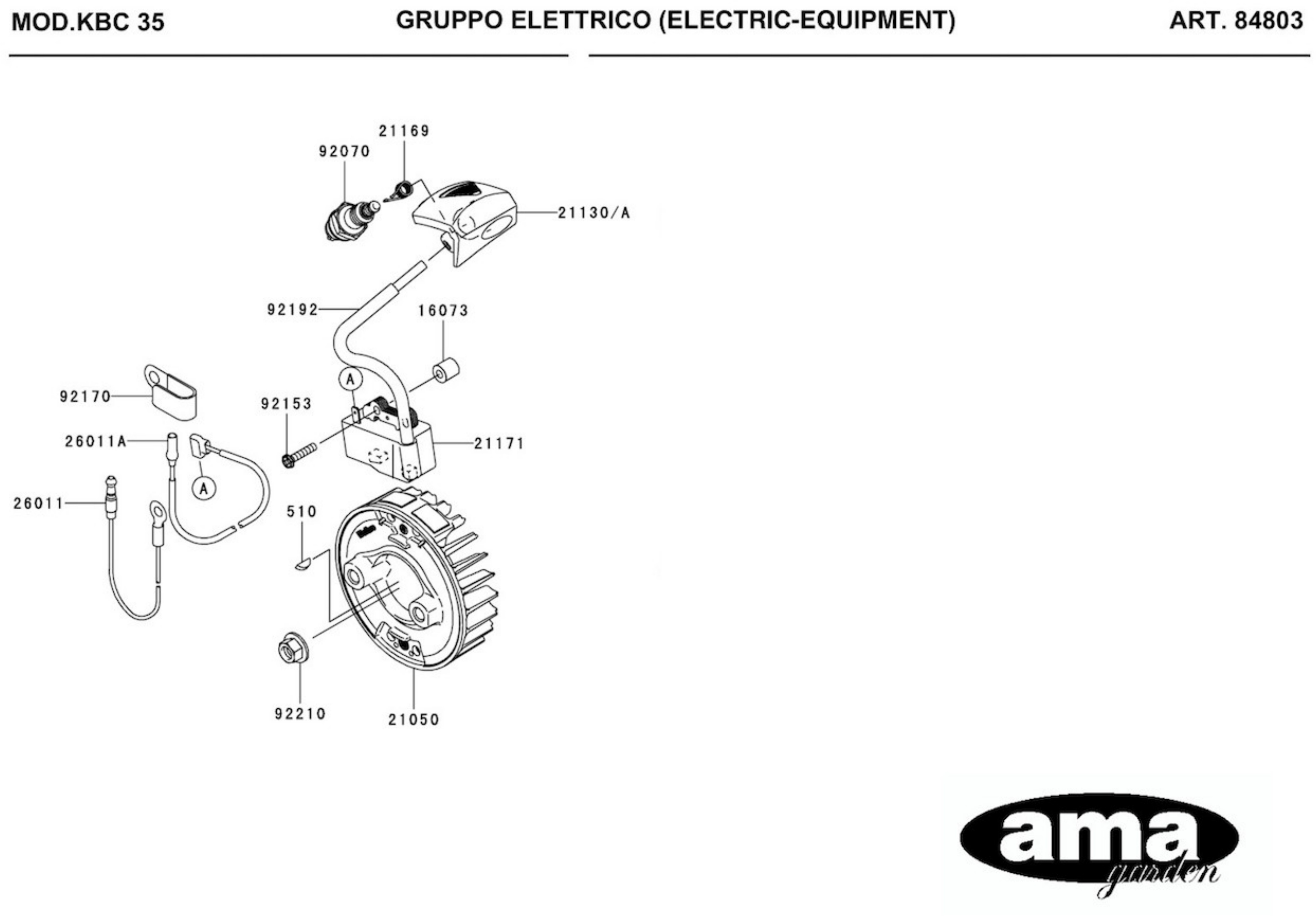

Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 5
Pos. Item Price Buy
21050
 photo_cameraImage coming soon 21050-2317 Flywheel €115.36
21171
 photo_cameraImage coming soon 21171-2257 Coil Ass'y Ignition €97.29
26011
 photo_cameraImage coming soon 26011-2113 Wire-Lead €1.99
92070
 photo_cameraImage coming soon 92070-2107 Sparkplug BPMR7A €4.42
92153
 photo_cameraImage coming soon 92153-2128 Bolt €5.26
92170
 photo_cameraImage coming soon 92170-2041 Clamp €1.51
92192
 photo_cameraImage coming soon 92192-2117 Tube 3x6x90 €3.43
92192
 photo_cameraImage coming soon 92192-2165 Tube 6x6.6x80 €2.44

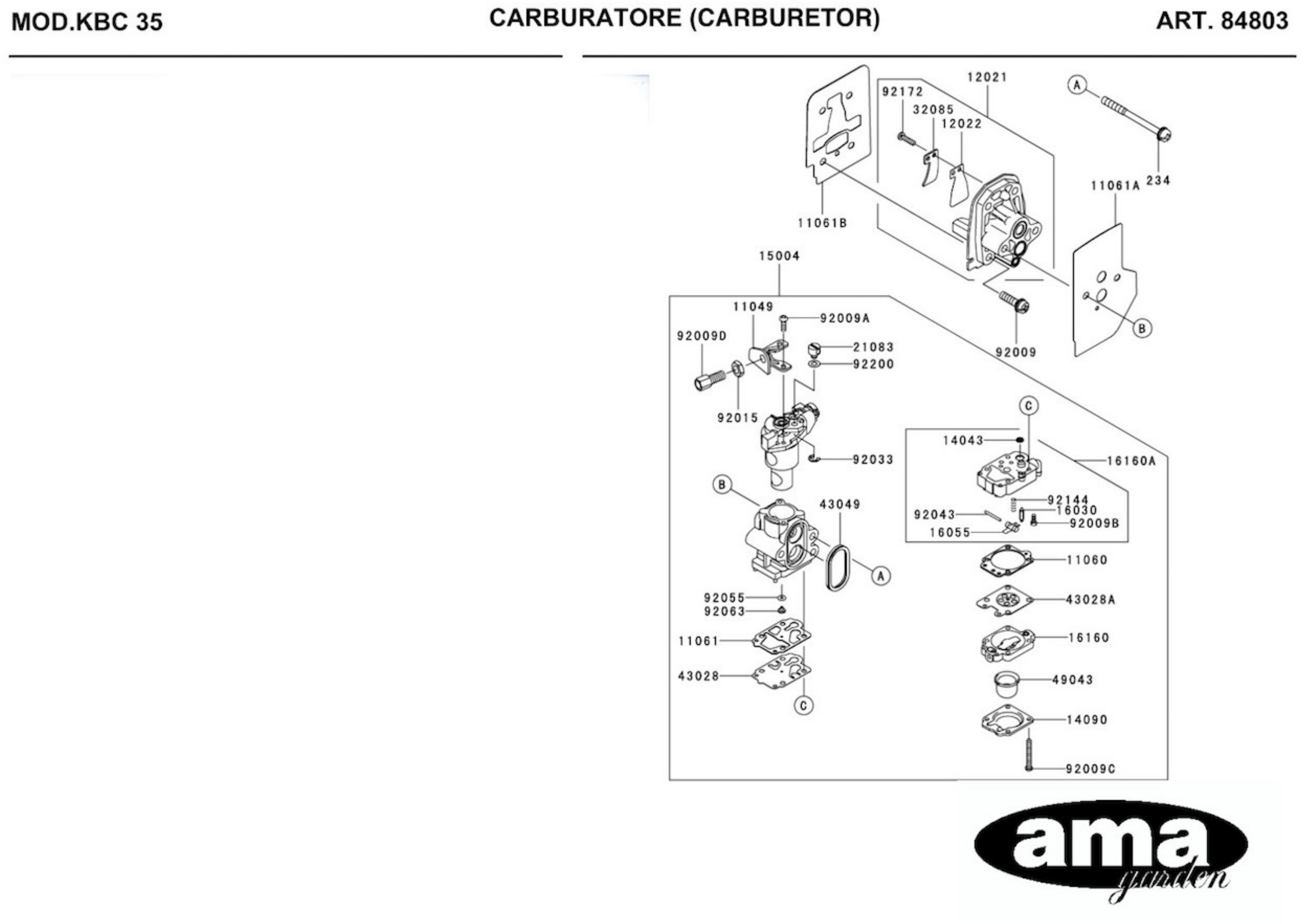

Page 6 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 6
Pos. Item Price Buy
11049
 photo_cameraImage coming soon 11049-2006 Bracket €13.27
11060
 Diaphragm Gasket for Bruschcutter Kawasaki KBC 35 11060-2111 Diaphragm Gasket for Bruschcutter Kawasaki KBC 35 €5.89
12021
 photo_cameraImage coming soon 12021-2055 Valve Assy Reed €56.63
12022
 photo_cameraImage coming soon 12022-2060 Valve Reed €9.27
14043
 photo_cameraImage coming soon 14043-2051 Filter €3.71
14090
 photo_cameraImage coming soon 14090-2017 Cover Primed Pump €9.65
15004
 photo_cameraImage coming soon 15004-2049 Carburetor Assy €170.77
16030
 photo_cameraImage coming soon 16030-2078 Valve-Float €13.12
16055
 photo_cameraImage coming soon 16055-2051 Lever €4.76
16160
 photo_cameraImage coming soon 16160-2089 Body €34.69
16160
 photo_cameraImage coming soon 16160-2141 Body €35.36
21083
 Throttle Pawl for Brushcutters Kawasaki KBC 35 21083-2073 Throttle Pawl for Brushcutters Kawasaki KBC 35 €8.42
32085
 photo_cameraImage coming soon 32085-2106 Stopper €1.53
43028
 photo_cameraImage coming soon 43028-2067 Diaphragm €8.60
43028
 Carburator Diaphragm for Bruschcutter Kawasaki KBC 35 43028-2096 Carburator Diaphragm for Bruschcutter Kawasaki KBC 35 €22.65
43049
 photo_cameraImage coming soon 43049-2062 Packing €4.30
49043
 photo_cameraImage coming soon 49043-2067 Pump-Priming €8.06
92009
 photo_cameraImage coming soon 92009-2277 Screw €1.62
92009
 photo_cameraImage coming soon 92009-2336 Screw €2.16
92009
 photo_cameraImage coming soon 92009-2337 Screw €1.62
92009
 photo_cameraImage coming soon 92009-2354 Screw €2.79
92015
 photo_cameraImage coming soon 92015-2145 Nut €3.01
92055
 photo_cameraImage coming soon 92055-2147 Ring-O €3.87
92063
 photo_cameraImage coming soon 92063-2393 Jet-Main €8.46
92144
 photo_cameraImage coming soon 92144-2054 Spring €18.98
92144
 Ratcket Spring for Brush Cutter Kawasaki KBC 35 92144-2157 Ratcket Spring for Brush Cutter Kawasaki KBC 35 €2.97
92144
 Carburator Spring for Brushcutters Kawasaki KBC 35 92144-2308 Carburator Spring for Brushcutters Kawasaki KBC 35 €4.80
92144
 Clutch Spring for Brush Cutters Kawasaki KBC 35-35U-45-45U 92144-2390 Clutch Spring for Brush Cutters Kawasaki KBC 35-35U-45-45U €5.17
92200
 Clutch Wave Washer for Brushcutter Kawasaki KBC 35 92200-2064 Clutch Wave Washer for Brushcutter Kawasaki KBC 35 €1.56
92200
 photo_cameraImage coming soon 92200-2074 Washer €1.37

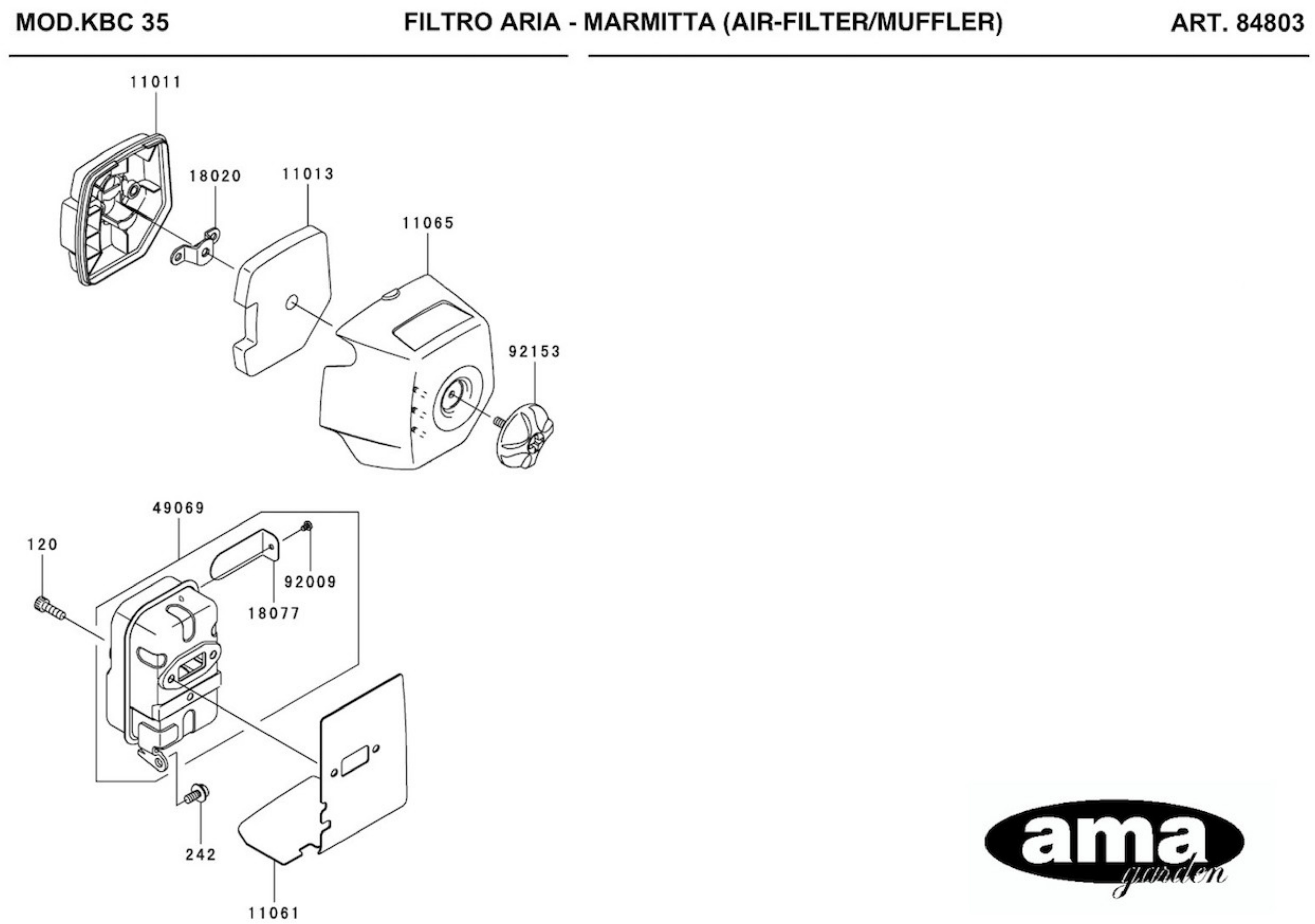

Page 7 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 7
Pos. Item Price Buy
11011
 photo_cameraImage coming soon 11011-2366 Case-Air Filter €14.81
11013
 photo_cameraImage coming soon 11013-2229 Element Air Filter €4.62
18020
 photo_cameraImage coming soon 18020-2091 Baffle €2.46
18077
 photo_cameraImage coming soon 18077-2139 Arrester-Spark €13.61
49069
 photo_cameraImage coming soon 49069-2435 Muffler Ass'y €68.91

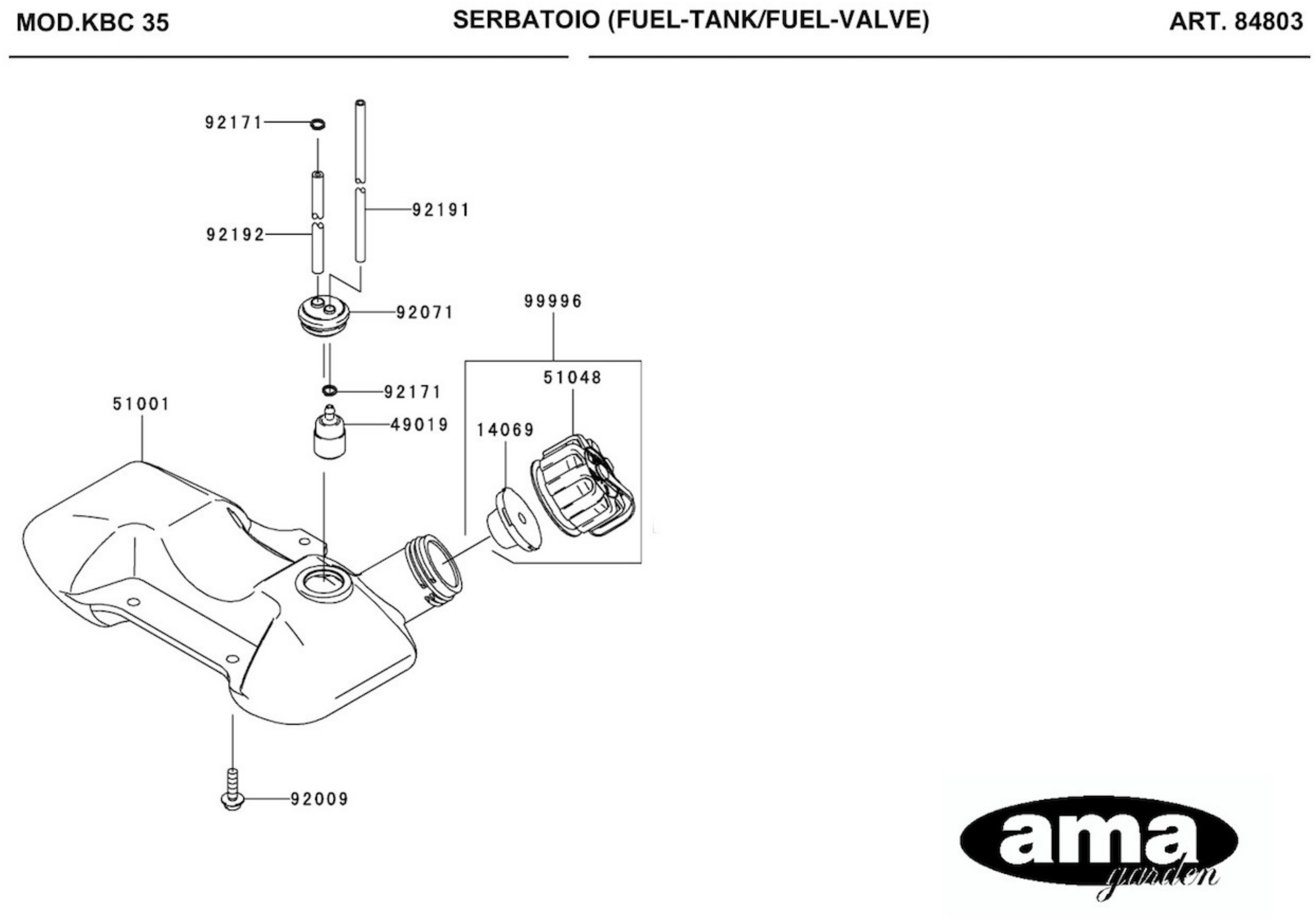

Page 8 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 8
Pos. Item Price Buy
14069
 photo_cameraImage coming soon 14069-2088 Breather €13.27
49019
 photo_cameraImage coming soon 49019-2114 Filter Fuel €20.85
51001
 Fuel Tank for Bruschcutter Kawasaki KBC 35-35U 51001-2336 Fuel Tank for Bruschcutter Kawasaki KBC 35-35U €34.81
51048
 photo_cameraImage coming soon 51048-2083 Cap Assy €14.71
92071
 photo_cameraImage coming soon 92071-2142 Grommet €6.24
92171
 photo_cameraImage coming soon 92171-2073 Clamp €2.07
92191
 photo_cameraImage coming soon 92191-2102 Tube 3x5x182 €2.45
99996
 photo_cameraImage coming soon 99996-6089 Cap-Breather Assy €29.77

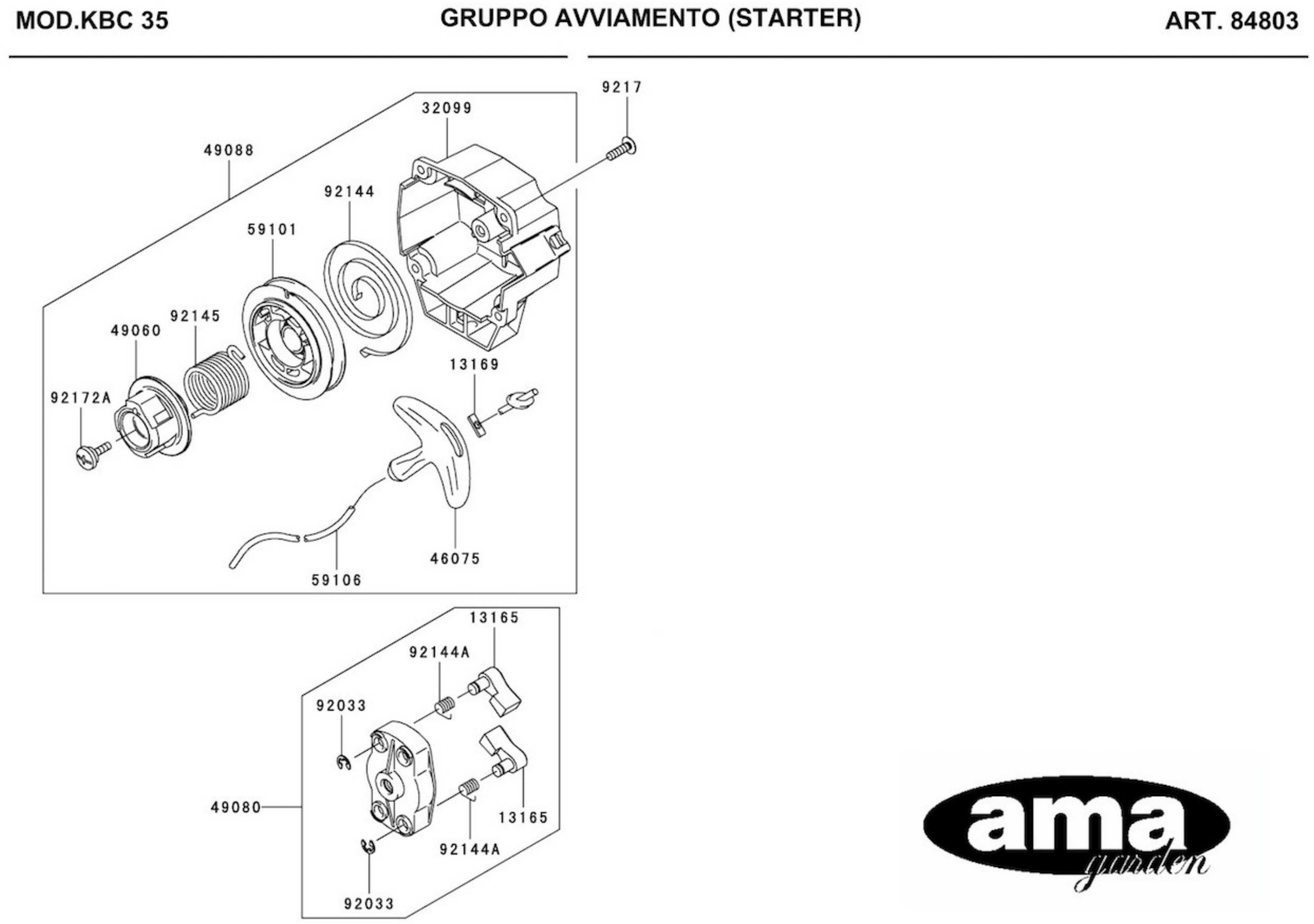

Page 9 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 9
Pos. Item Price Buy
13165
 photo_cameraImage coming soon 13165-2103 Pawl €2.42
13169
 photo_cameraImage coming soon 13169-2386 Plate Recoil Starter €2.09
32099
 photo_cameraImage coming soon 32099-2419 Case Starter-Recoil €27.53
46075
 photo_cameraImage coming soon 46075-2161 Grip Starter-Recoil €8.22
49060
 photo_cameraImage coming soon 49060-2062 Cam Starter-Recoil €25.89
49080
 photo_cameraImage coming soon 49080-2201 Pulley-Starting €17.45
49088
 Recoil Starter Ass'y for Brush Cutters Kawasaki KBC 35 49088-2566 Recoil Starter Ass'y for Brush Cutters Kawasaki KBC 35 €68.85
59101
 Reel Starter for Brushcutters Kawasaki KBC 35 59101-2119 Reel Starter for Brushcutters Kawasaki KBC 35 €17.34
59106
 photo_cameraImage coming soon 59106-2072 Rope 3.5x850 €7.99
92145
 photo_cameraImage coming soon 92145-2149 Spring €8.41
92145
 photo_cameraImage coming soon 92145-2178 Spring €4.83

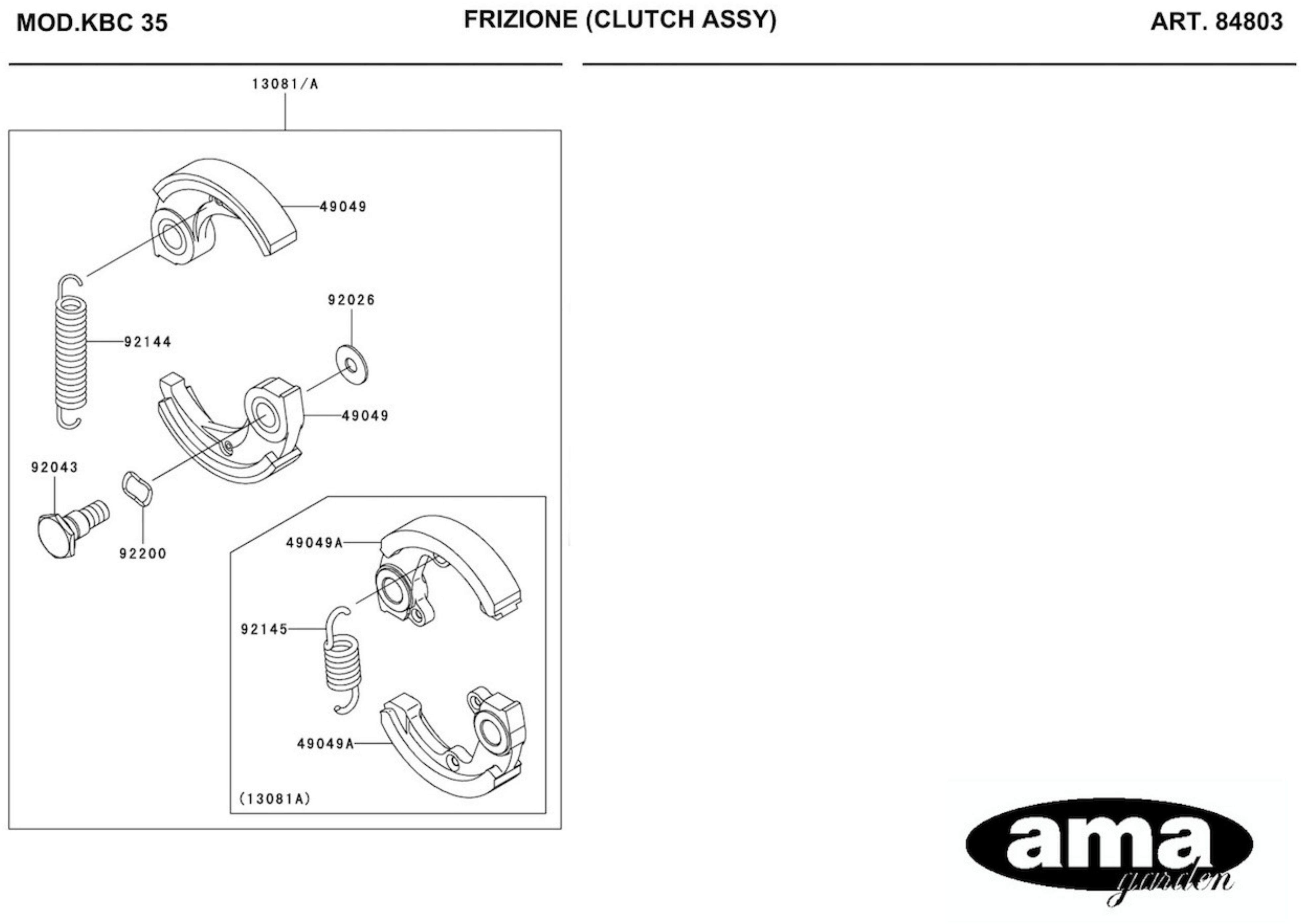

Page 10 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 10
Pos. Item Price Buy
49049
 photo_cameraImage coming soon 49049-2075 Shoe Clutch €26.75
49049
 photo_cameraImage coming soon 49049-2104 Shoe-Clutch €20.03

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AMA KBC 35 Bruschcutter Powered Kawasaki Spara Parts

Kawasaki original spare parts for to fix of engine parts or parts of the Transmission Shaft or to repairing damaged and worn components of the Brushcutter AMA Garden Powered Kawasaki KBC 35 - 84803.

In the following table, look for the model of the Bruschcutter and the respective parts of the code.
AMA KBC 35 – 84803

Bruschcutter AMA GArden Powered Kawasaki KBC 35
# Part Num. Description
1 88676 Profes. Connecter Assy
2.1 79954 Trasmission Pipe cpl.
3 88400 Drive Shaft
7 88401 Level Assy
10.1 88404 Band
10.2 88403 Holder Assy
13 88402 Handle Assy
14 79950 Bracket
15.1 88405 Safety Guard
15.3 88406 Guard Assy
17 88407 Gear Care Assy
11005 11005-2160 Cylinder-Engine
11061 11061-2192 Gasket
11065 11065-2130 Cap
13272 13272-2009 Plate
14080 14080-2064 Crankcase
14080 14080-2065 Crankcase
34001 34001-2090 Stand
92043 92043-1302 Pin
92045 92045-2058 Bearing-ball 6201C3
92049 92049-2253 Seal-Oil ISCD12x22x4.5
92049 92049-2267 Seal-Oil ISCD12x22x4.5F
13001 13001-2170 Piston Engine
13002 13002-2101 Piston Pin
13008 13008-6045 Ring Set Piston
13033 13033-2067 Bearing-Small End
49119 49119-2243 CrankShaft
92026 92026-2355 Spacer 9x15x1.8
92033 92033-2061 Seeger
3915 3915-2089 Pad,Shroud
49089 49089-2643 Shroud-Engine
59066 59066-2800 Housing-Fan
92172 92172-2060 Screw M4x10
16073 16073-2220 Insulator
21050 21050-2317 Flywheel
21130 21130-2074 Cap-Spark Plug
21130 21130-2077 Cap-Spark Plug
21169 21169-2051 Terminal
21171 21171-2257 Coil Ass'y Ignition
26011 26011-2113 Wire-Lead
26011 26011-2361 Wire-Lead
92070 92070-2107 Sparkplug BPMR7A
92153 92153-2134 Bolt 4x20
92170 92170-2041 Clamp
92192 92192-2165 Tube 6x6.6x80
92210 92210-2094 Nut M9
510A3100 510A3100 Key Woodruff
11049 11049-2006 Bracket
11060 11060-2111 Gasket
11061 11061-2054 Gasket
11061 11061-2208 Gasket Carburator
11061 11061-2209 Gasket Carburator
12021 12021-2055 Valve Assy Reed
12022 12022-2060 Valve Reed
14043 14043-2051 Filter
14090 14090-2017 Cover Primed Pump
15004 15004-2049 Carburetor Assy
16030 16030-2078 Valve-Float
16055 16055-2051 Lever
16160 16160-2089 Body
16160 16160-2141 Body
21083 21083-2073 Arm
32085 32085-2106 Stopper
43028 43028-2067 Diaphragm
43028 43028-2096 Diaphragm
43049 43049-2062 Packing
49043 49043-2067 Pump-Priming
92009 92009-2249 Screw 5x20
92009 92009-2277 Screw
92009 92009-2336 Screw
92009 92009-2337 Screw
92009 92009-2354 Screw
92015 92015-2145 Nut
92033 92033-2078 Ring-Snap
92043 92043-2094 Pin
92055 92055-2147 Ring-O
92063 92063-2393 Jet-Main
92144 92144-2308 Spring
92172 92172-2091 Screw 3x12
92200 92200-2074 Washer
234AA0560 234AA0560 Screw 5x60
11011 11011-2366 Case-Air Filter
11013 11013-2229 Element Air Filter
11061 11061-2193 Gasket Muffler
11065 11065-2125 Cap
18020 18020-2091 Baffle
18077 18077-2139 Arrester-Spark
49069 49069-2435 Muffler Ass'y
120CB0516 120CB0516 Bolt Socket 5x16
242AA0512 242AA0512 Screw 5x12
92153 92153-2128 Bolt
14069 14069-2088 Breather
49019 49019-2114 Filter Fuel
51001 51001-2336 Fuel Tank
51048 51048-2083 Cap Assy
92009 92009-2383 Screw 5x20
92071 92071-2142 Grommet
92171 92171-2073 Clamp
92191 92191-2102 Tube 3x5x182
92192 92192-2117 Tube 3x6x90
99996 99996-6089 Cap-Breather Assy
13165 13165-2103 Pawl
13169 13169-2386 Plate Recoil Starter
32099 32099-2419 Case Starter-Recoil
46075 46075-2161 Grip Starter-Recoil
49060 49060-2062 Cam Starter-Recoil
49080 49080-2201 Pulley-Starting
49088 49088-2566 Starter Recoil
59101 59101-2119 Reel, Starter Recoil
59106 59106-2072 Rope 3.5x850
92033 92033-2010 Ring-Snap
92144 92144-2054 Spring
92144 92144-2157 Spring
92145 92145-2149 Spring
92172 92172-2061 Screw 4x14
13081 13081-2220 Clutch-Assy
13081 13081-2236 Clutch-Assy
49049 49049-2075 Shoe-Clutch
49049 49049-2104 Shoe-Clutch
92026 92026-2125 Washer
92043 92043-2210 Pin Clutch
92144 92144-2390 Clutch Spring
92145 92145-2178 Spring
92200 92200-2064 Washer Spring 10.5x14.5x0.3
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AMA KBC 35 – 84803
10 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Kawasaki KBC 35

Diagram Kawasaki KBC 35

Download (1.03MB)

You might also like

Clutch Spring for Brush Cutters Kawasaki KBC 35-35U-45-45U
A.M.A. S.p.A. SKU: 92144-2390
Clutch Spring for Brush Cutters Kawasaki KBC 35-35U-45-45U
Clutch Spring for Brush Cutters Kawasaki KBC 35-35U-45-45U Original spare Kawasaki, Clutch Spring for Brushcutters KBC 35 - 35U - KBC 45 - 84805 - KBC 45U - 84806. Parts for the following products: -  Brushcutter AMA Kawasaki KBC 35...
Last items in stock €5.17
Details
Drum Clutch for Brushcutter Kawasaki KBC 35-45-53
A.M.A. S.p.A. SKU: AMA 88676
Drum Clutch for Brushcutter Kawasaki KBC 35-45-53
Drum Clutch for Brushcutter AMA Kawasaki KBC 35-45-53 Original spare Kawasaki, Drum Clutch Assembly for Brushcutters AMA Garden with Engine Kawasaki KBC 35-45-53. Parts for the following products: -  Brushcutter...
Last items in stock €31.49
Details
Piston Rings for Brushcutters Kawasaki KBC 35-35U-NKBC 35
A.M.A. S.p.A. SKU: 13008-6045
Piston Rings for Brushcutters Kawasaki KBC 35-35U-NKBC 35
Piston Ring Set for Brushcutters Kawasaki KBC 35-35U-NKBC 35 Genuine replacement part KAWASAKY, Piston Ring Set TH34 / TJ35 for Brushcutters KBC 35 - 35U - NKBC 35 - TOP 35. Parts for the following products: - Brushcutter Kawasaki KBC...
AVAILABLE €18.33
Details
Reel Starter for Brushcutters Kawasaky KBC 35
A.M.A. S.p.A. SKU: 59101-2119
Reel Starter for Brushcutters Kawasaki KBC 35
Reel Starter for Brushcutters Kawasaki KBC 35 Genuine parts Kawasaki, Reel Starter for Brushcutters  KBC 35 - KBC 35U - KBC 45 - KBC 45U - NKBC 35 - NKBC 45 - TOP 35. Parts for the following products: - Brushcutter Kawasaki KBC 35 -...
AVAILABLE €17.34
Details
Throttle Pawl for Brushcutters Kawasaki KBC 35
A.M.A. S.p.A. SKU: 21083-2073
Throttle Pawl for Brushcutters Kawasaki KBC 35
Throttle Pawl for Brushcutters Kawasaki KBC 35 Genuine part Kawasaky, Throttle Pawl for Brushcutters KBC 35 - KBC 35U - KBC 45 - KBC 45U - NKBC 35 - NKBC 45 - TOP 35. Part for the following products: - Brushcutter Kawasaki KBC 35 -...
AVAILABLE €8.42
Details
Carburator Spring for Brushcutters Kawasaky KBC 35
A.M.A. S.p.A. SKU: 92144-2308
Carburator Spring for Brushcutters Kawasaki KBC 35
Carburator Spring for Brushcutters Kawasaki KBC 35 Genuine part Kawasaki, Carburator Spring for Brushcutters  KBC 35 - KBC 35U - KBC 45 - KBC 45U - NKBC 35 - NKBC 45 - TOP 35. Parts for the following products: - Brushcutter Kawasaki...
AVAILABLE €4.80
Details
Complete Front Handle for Bruschcutter Kawasaki KBC 35 Sale
A.M.A. S.p.A. SKU: 88402
Complete Front Handle for Bruschcutter Kawasaki KBC 35
Complete Front Handle for Bruschcutter Kawasaki KBC 35 Original spare prts Kawasaki, Complete Front Handle for Bruschcutter KBC 35 - KBC 45 - KBC 53 - NKBC 35 - NKBC 45. Parts for the following products: - Bruschcutter Kawasaki KBC 35...
Last items in stock €18.84
Details
Gear Box for Brushcutter Kawasaki KBC 35
A.M.A. S.p.A. SKU: 88407
Gear Box for Brushcutter Kawasaki KBC 35
Gear Box for Brushcutter Kawasaki KBC 35 Original spare Kawasaki, Gear Box Assembly for Brushcutters AMA Garden with Engine Kawasaki KBC 35 - KBC 35U - KBC 45 - KBC 53. Parts for the following products: - Brushcutter AMA Garden...
AVAILABLE €42.04
Details
Drive Shaft for Brushcutters Kawasaki KBC 35-KBC 45
A.M.A. S.p.A. SKU: 88400
Drive Shaft for Brushcutters Kawasaki KBC 35-KBC 45
Drive Shaft for Brushcutters Kawasaki KBC 35-KBC 45 Original spare Kawasaki, Drive Shaft for Brushcutters AMA Garden with Engine Kawasaki KBC 35-KBC 35U - KBC 45-KBC 45U - KBC 53-KBC 53U. Parts for the...
AVAILABLE €15.53
Details
Cylinder Gasket for Brushcutters Kawasaki KBC 35-35U-NKBC 35
A.M.A. S.p.A. SKU: 11061-2192
Cylinder Gasket for Brushcutters Kawasaki KBC 35-35U-NKBC 35
Cylinder Gasket for Brushcutters Kawasaki KBC 35-35U-NKBC 35 Genuine part KAWASAKY, Cylinder Gasket for Brushcutters KBC 35 - 35U - NKBC 35 - TOP 35. Parts for the following products: - Brushcutter Kawasaki KBC 35 - Brushcutter...
AVAILABLE €5.27
Details
Gasket Cylinder Insulator for Brushcutters Kawasaki KBC 35
A.M.A. S.p.A. SKU: 11061-2209
Gasket Cylinder Insulator for Brushcutters Kawasaki KBC 35
Gasket Cylinder Insulator for Brushcutters Kawasaki KBC 35 Genuine part KAWASAKY, Gasket Cylinder Insulator for Brushcutters KBC 35 - 35U - NKBC 35 - TOP 35. Parts for the following products: - Brushcutter Kawasaki KBC 35 -...
AVAILABLE €4.31
Details
Oil Seal mm 12z22x4,5 GS for Brushcutters Kawasaki KBC 35
A.M.A. S.p.A. SKU: 92049-2253
Oil Seal mm 12z22x4,5 GS for Brushcutters Kawasaki KBC 35
Oil Seal mm 12z22x4,5 GS for Brushcutters Kawasaki KBC 35 Genuine part KAWASAKY, Oil Seal mm 12z22x4,5 GS for Brushcutters KBC 35 - 35U - NKBC 35 - TOP 35. Parts for the following products: - Brushcutter Kawasaki KBC 35 - Brushcutter...
AVAILABLE €4.31
Details
Fuel Tank for Bruschcutter Kawasaki KBC 35-35U Sale
A.M.A. S.p.A. SKU: 51001-2336
Fuel Tank for Bruschcutter Kawasaki KBC 35-35U
Fuel Tank for Bruschcutter Kawasaki KBC 35-35U Original replacement part Kawasaki, Fuel Tank for Bruschcutters KBC 35 - KBC 35U - NKBC 35 - TOP 35. Part for the following products: - Bruschcutter Kawasaki KBC 35 - Bruschcutter...
AVAILABLE €34.81
Details
Clutch Spring Washer for Brushcutter Kawasaki KBC 35
A.M.A. S.p.A. SKU: 92026-2125
Clutch Spring Washer for Brushcutter Kawasaki KBC 35
Clutch Spring Washer for Brushcutter Kawasaki KBC 35 Genuine replacement part KAWASAKY, Clutch Spring Washer for Brushcutters KBC 35 - KBC 35U - NKBC 35 - NKBC 45. Part for the following products: - Bruschcutter Kawasaki KBC 35 -...
AVAILABLE €1.32
Details
Safety Guard Braket for Brushcutters AMA Playcut
A.M.A. S.p.A. SKU: 79950
Safety Guard Braket for Brushcutters AMA Playcut
Safety Guard Braket for Brushcutters AMA Playcut Genuine spare part AMA, Safety Guard Braket for Brushcutters Playcut BC 260 - BC 350 - BC 450 - BC 530 - Kawasaki KBC 35 - KBC 45 - KBC 53 -...
AVAILABLE €5.72
Details
Clutch Wave Washer for Brushcutter Kawasaki KBC 35
A.M.A. S.p.A. SKU: 92200-2064
Clutch Wave Washer for Brushcutter Kawasaki KBC 35
Clutch Wave Washer for Brushcutter Kawasaki KBC 35 Genuine replacement part KAWASAKY, Clutch Wave Washer for Brushcutters KBC 35 - KBC 35U - NKBC 35 - NKBC 45. Part for the following products: - Engine Kawasaki 2 Tempi TH034D -...
AVAILABLE €1.56
Details
Safety Guard for Brushcutter Kawasaki KBC 35
A.M.A. S.p.A. SKU: 88405
Safety Guard for Brushcutter Kawasaki KBC 35
Safety Guard for Brushcutter Kawasaki KBC 35 Genuine replacement part KAWASAKY, Safety Guard for Brushcutters AMA Powered Kawasaki KBC 35 - KBC 35U - KBC 45 - KBC 53 - KBC 45U...
Last items in stock €11.10
Details
Guard for Brushcutter Kawasaki KBC 35
A.M.A. S.p.A. SKU: AMA Garden 88406
Guard for Brushcutter Kawasaki KBC 35
Guard for Brushcutter AMA Powered Kawasaki KBC 35 Genuine replacement part AMA Garden - KAWASAKY, Guard for Brushcutters AMA Garden Powered Kawasaki KBC 35 - KBC 35U - KBC 45 - KBC 53 - KBC 45U -  KBC 53U - NKBC 45. Part for the...
Last items in stock €4.08
Details
Carburator Diaphragm for Bruschcutter Kawasaki KBC 35
A.M.A. S.p.A. SKU: 43028-2096
Carburator Diaphragm for Bruschcutter Kawasaki KBC 35
Carburator Diaphragm for Bruschcutter Kawasaki KBC 35 Original spare parts Kawasaki, Carburator Diaphragm for Bruschcutters KBC 35 - KBC 45 - KBC 53 Parts for the following products: -  Brushcutter KBC 35U -  Brushcutter KBC 45U -...
Last items in stock €22.65
Details
Diaphragm Gasket for Bruschcutter Kawasaki KBC 35
A.M.A. S.p.A. SKU: 11060-2111
Diaphragm Gasket for Bruschcutter Kawasaki KBC 35
Carburator Diaphragm Gasket for Bruschcutter Kawasaki KBC 35 Original spare parts Kawasaki, Carburator Diaphragm Gasket for Bruschcutters KBC 35 - KBC 45 - KBC 53 Parts for the following products: -  Brushcutter KBC 35U -...
Last items in stock €5.89
Details
Air Cleaner Element for Brush Cutters Kawasaki KBC 35
A.M.A. S.p.A. SKU: 11013-2229 - 0711
Air Cleaner Element for Brush Cutters Kawasaki KBC 35
Air Cleaner Element for Brush Cutters Kawasaki KBC 35 Original spare Kawasaki, Air Cleaner Element Sponge for Brushcutters KBC 35 - 35U - NKBC 35 - TOP 35 - Top 35U Parts for the following products: -  Brushcutter AMA Kawasaki KBC 35...
Last items in stock €4.89
Details
Ratcket Spring for Brush Cutter Kawasaki KBC 35
A.M.A. S.p.A. SKU: 92144-2157
Ratcket Spring for Brush Cutter Kawasaki KBC 35
Ratcket Spring for Brush Cutter Kawasaki KBC 35 Original spare Kawasaki, Ratcket Spring for Brushcutters KBC 35 - 35U - NKBC 35 - TOP 35 - Top 35U Parts for the following products: -  Brushcutter AMA Kawasaki KBC 35 - 84803 -...
on 7/10 Business Days Approx. €2.97
Details
Comments (0)
