HOMELITE Line Trimmer B25 Parts
€0.10
VAT included
HOMELITE Line Trimmer B25 Spare Parts
Fix Your HOMELITE Line Trimmer B25. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
HOMELITE Line Trimmer B25 Parts
€0.10
VAT included
HOMELITE Line Trimmer B25 Spare Parts
Fix Your HOMELITE Line Trimmer B25. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings
22 Spare parts
description
2 exploded views
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
22 spare parts
Page 1
zoom_in View exploded
local_shipping ON DEMAND ONLY
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
88060 SCREW (10-24 x 2 1/2") | €1.90 | |
|
13
|
|
96935 PISTON AND CONNECTING ROD ASSEMBLY | €6.34 | |
|
14
|
|
96169-S SPIGPLUG (DJ7Y) | €6.34 | |
|
18
|
|
98792 DAMPER - Rubber | €2.79 | |
|
23
|
|
81208 NUT (10-24) | €2.92 | |
|
24
|
|
98768 HEAT DAM | €16.87 | |
|
25
|
|
82549 SCREW - Taptite (10-24 x 1") | €8.38 | |
|
35
|
|
A-01441 FUEL TANK | €16.49 | |
|
40
|
|
A-00982 FUEL CAP ASSEMBLY | €8.50 | |
|
42
|
|
98819 Choker handle | €4.97 | |
|
49
|
|
A-02396 TUBE ADAPTER | €19.29 | |
|
51
|
|
81208 NUT (10-24) | €2.92 | |
|
52
|
|
01547 ADAPTER - Clutch | €3.68 | |
|
54
|
|
00242 CLUTCH | €18.78 | |
|
56
|
|
82538 SCREW (10-24 x 3/4") | €26.01 | |
|
58
|
|
2264 Pre-Assembly Fitting | €0.12 | Not available for order |
|
59
|
|
98770 Motor | €13.32 | |
|
61
|
|
82541 SCREW - Plastite (10 x 1/2") | €1.12 | |
|
67
|
|
82538 SCREW (10-24 x 3/4") | €26.01 | |
|
68
|
|
A-98773 SPRING AND HOUSING | €7.49 | |
|
78
|
|
81208 NUT (10-24) | €2.92 | |
|
81
|
|
95020 COMPRESSION SPRING | €8.38 |
Page 2
zoom_in View exploded
local_shipping ON DEMAND ONLY
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
3
|
|
98816 Flap, Depris | €5.00 | |
|
5
|
|
A-00879 GRIP ASSEMBLY | €26.64 | |
|
19
|
|
81208 NUT (10-24) | €2.92 | |
|
25
|
|
A-97709-A HANDLEBAR (ST-175BC only) | €6.22 |
Shipping and delivery information will be available shortly.
For spare parts that cannot be purchased, please contact our call center.
HOMELITE Line Trimmer B25 Spare Parts
Fix Your HOMELITE Line Trimmer B25. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Drill Driver and their spare part.

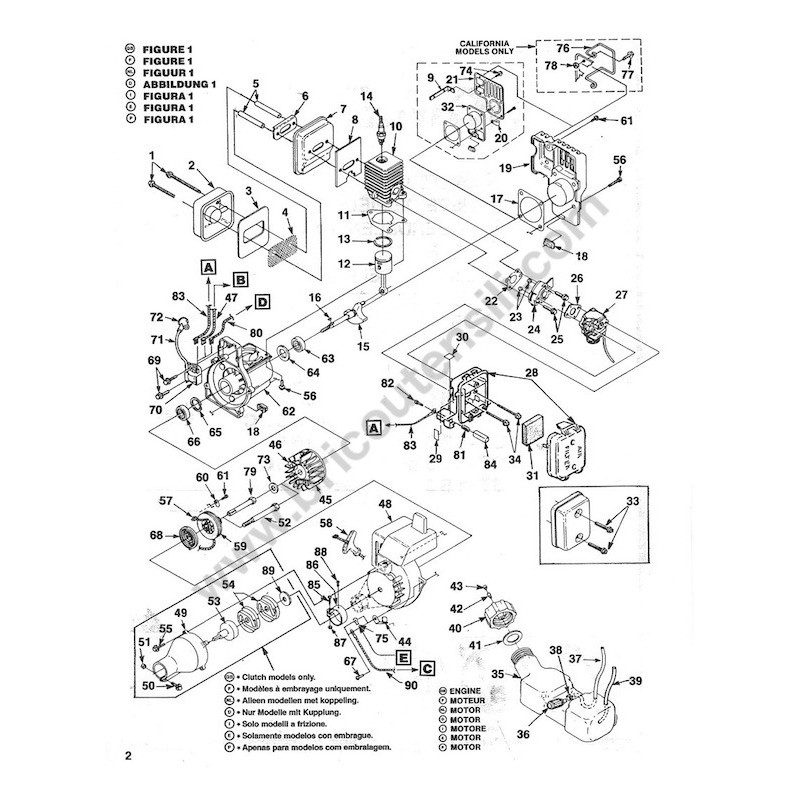

| HOMELITE Line Trimmer B25 Parts List Pag.1 | ||
| # | Part Num. | Description |
| 1 | 88060 | SCREW (10-24 x 2 1/2") |
| 2 | A-98780 | COVER - Muffler |
| 3 | 98782 | DEFLECTOR - Muffler |
| 4 | 98784-A | SPARK ARRESTER |
| 5 | 98860-A | SPACER - Muffler |
| 6 | 98783 | PLATE - Reinforcement |
| 7 | A-01323 | BODY - Muffler |
| 8 | 98786-A | GASKET - Muffler |
| 9 | 00179 | BRACKET |
| 10 | A-00108 | CYLINDER |
| 11 | 98764 | GASKET - Cylinder |
| 12 | A-01036-A | PISTON AND CONNECTING ROD |
| 13 | 96935 | PISTON AND CONNECTING ROD ASSEMBLY |
| 14 | 96169-S | SPIGPLUG (DJ7Y) |
| 15 | 98758-2 | CRANKSHAFT (145 & 155) |
| 15 | 98758-4 | CRANKSHAFT (175 & 175C - 185 - 185C - 285 - 285C) |
| 15 | 98758-3 | CRANKSHAFT (175BC - 385 - 385C - 485) |
| 16 | 69250 | WRENCH - Woodruff |
| 17 | 98767-A | GASKET - Crankcase |
| 18 | 98792 | DAMPER - Rubber |
| 19 | 01023-A | COVER - Crankcase |
| 21 | 98934 | SCREEN |
| 22 | 98765-B | GASKET - Heat Insulator |
| 23 | 81208 | NUT (10-24) |
| 24 | 98768 | HEAT DAM |
| 25 | 82549 | SCREW - Taptite (10-24 x 1") |
| 26 | 98766-A | GASKET - Carburetor |
| 27 | 8720293 | CARBURETOR (Zama) |
| 27 | 8720227 | CARBURETOR (Walbro) |
| 28 | A-01440-A | AIR FILTER BOX |
| 29 | 00772 | DECALS - Choke, Run |
| 30 | 98943 | DECALS - Push-Hold |
| 31 | D-98760-A | AIR FILTER |
| 33 | 82368 | SCREW - Plastite (8 x 3/4") |
| 34 | 82542 | SCREW (10-24 x 2 1/4") |
| 35 | A-01441 | FUEL TANK |
| 36 | 49422 | FUEL FILTER |
| 37 | 94772-32 | HOSE - Rubber (7") |
| 38 | 98268 | WIRE CLAMP |
| 39 | 01439-32 | HOSE - Rubber (3") |
| 40 | A-00982 | FUEL CAP ASSEMBLY |
| 41 | 98805 | GASKET - Fuel Cap |
| 42 | 98819 | VALVE - Filter |
| 43 | 98913 | FILTER - Cap |
| 44 | A-98808 | BRACKET - Cable |
| 45 | A-95007 | ROTOR |
| 46 | A-70285-E | KIT - Starter Ratchet |
| 47 | A-88918 | ELECTRIC CABLE (Various models) |
| 48 | A-02576-A | ENGINE HOUSING |
| 48 | A-02575 | HOUSING ENGINE |
| 49 | A-02396 | TUBE ADAPTER |
| 50 | 88054 | SCREW (10-24 x 1 1/4") |
| 51 | 81208 | NUT (10-24) |
| 52 | 01547 | ADAPTER - Clutch |
| 53 | A-02727 | CONNECTOR AND DRUM |
| 54 | 00242 | CLUTCH |
| 55 | 88052 | SCREW (10-24 x 7/8") |
| 56 | 82538 | SCREW (10-24 x 3/4") |
| 57 | 00715 | STARTER ROPE |
| 58 | 02264 | STARTER HANDLE |
| 59 | 98770 | PULLEY - Starter |
| 60 | 98791 | BRACKET - Retainer |
| 61 | 82541 | SCREW - Plastite (10 x 1/2") |
| 62 | A-00107 | CRANKCASE ASSEMBLY |
| 63 | 98797 | BALL BEARING |
| 64 | 98800 | GASKET (Oil Seal) |
| 65 | 98799 | RETAINING RING |
| 66 | 98798 | BALL BEARING |
| 67 | 82538 | SCREW - Taptite (10-24 x 7/8") |
| 68 | A-98773 | SPRING AND HOUSING |
| 69 | 82540 | SCREW - Taptite (8-32 x 1") |
| 70 | 94711-BS | IGNITION MODULE |
| 71 | 69326 | HIGH VOLTAGE CABLE |
| 72 | A-33055 | HIGH TERMINAL TENSION |
| 73 | 84065 | FLAT WASHER (5/16") |
| 74 | 88077 | SCREW - Hex Sems (10-24 x 3/8") |
| 75 | 00719 | TERMINAL |
| 76 | A-00254 | WIRE PROTECTION KIT (California) |
| 77 | 88049 | SCREW - Hex Sems (10-24 x 1/2") |
| 78 | 81208 | NUT (10-24) |
| 79 | 98795 | TRANSMISSION CONNECTOR |
| 80 | A-00681 | ELECTRIC CABLE |
| 81 | 95020 | COMPRESSION SPRING |
| 82 | 93923 | SCREW (#6 Plastite) |
| 83 | A98809 | ELECTRIC CABLE |
| 84 | 98769 | SWITCH BUTTON |
| 85 | 82268 | SCREW - Hex Sems (10-24 x 3/8") |
| 86 | 98802-A | CLAMP |
| 87 | 97574 | SQUARE NUT |
| 88 | 82522 | SCREW |
| 89 | 98929-A | FLAT WASHER |
| 90 | A-98919 | GROUND CABLE |
| HOMELITE Decespugliatore B25 Pag.2 | ||
| # | Part Num. | Description |
| 1 | 93992 | WING NUT (Wing Nut) |
| 2 | 82368 | SCREW - Plastite (118 x 3/4") |
| 3 | 98816 | FLEXIBLE SHAFT |
| 4 | A98525 | FRONT HANDLE |
| 5 | A-00879 | GRIP ASSEMBLY |
| 6 | 98772-A | TRIGGER |
| 7 | DA-98911-A | ST-155 SPOOL AND LINE |
| 7 | DA-98911-B | DUAL LINE SPOOL AND LINE |
| 8 | A-03006 | THROTTLE CABLE |
| 9 | DA-97952-B | REPLACEMENT LINE (.080") |
| 10 | 82531 | SCREW (10-24 x 1") |
| 11 | A-00104-A | DRIVE SHAFT HOUSING |
| 12 | 98923-1 | DECAL |
| 13 | 00308 | DECAL - Warning |
| 14 | 98853 | CLAMP |
| 15 | 83009 | GROWER WASHER (1/4") |
| 16 | 84006 | FLAT WASHER (1/4") |
| 17 | 98821 | GRASS DEFLECTOR |
| 18 | 98857 | LINE CUTTER BLADE (145 & 155) |
| 18 | 00117 | LINE CUTTER BLADE (175 & 175C - ST-175BC) |
| 19 | 81208 | NUT (10-24) |
| 20 | 80295 | SCREW (1/4-20 x 2") |
| 21 | A-98231-A | HOUSING AND EYE |
| 22 | 98848 | COMPRESSION SPRING |
| 23 | 82511 | SCREW (10-24 x 1/2") |
| 24 | A-98866-A | SPOOL RETAINER |
| 24 | A-02781 | SPOOL RETAINER (ST-175BC) |
| 25 | A-97709-A | HANDLEBAR (ST-175BC only) |
| 26 | 94474-B | GRIP |
| 27 | 88071 | SCREW |
| 28 | 88078 | SCREW |
| 29 | 00422 | CLAMP |
| 30 | 83061 | WASHER |
| 31 | 81267 | NUT |
| 32 | 02617 | ADAPTER |
| 33 | 02616 | WEED BLADE |
| 34 | 00580 | CUP WASHER |
| 35 | 83030 | WASHER |
| 36 | 80085 | SCREW |
| 37 | 95231 | INDICATOR PLATE |
| 38 | 72084-A1 | NUT |
| 39 | 93653 | TOGGLE SWITCH |
| 40 | A-98918 | ELECTRIC CORD |
| 41 | A-98919 | GROUND LEAD |
