HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Electric Rotary Hammer DH24PG

SKU: Hitachi DH24PG
€2.24
VAT included

Hitachi Spare Parts for Electric Rotary Hammer DH24PG

Hitachi-HIKOKI-Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for corded Rotary Hammer DH 24 PG.
Hitachi Spare Parts for Electric Rotary Hammer DH24PG
  • Hitachi Spare Parts for Electric Rotary Hammer DH24PG
  • Hitachi Spare Parts for Electric Rotary Hammer DH24PG
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Electric Rotary Hammer DH24PG

SKU: Hitachi DH24PG Condition: New
€2.24
VAT included

Hitachi Spare Parts for Electric Rotary Hammer DH24PG

Hitachi-HIKOKI-Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for corded Rotary Hammer DH 24 PG.
settings 73 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
73 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

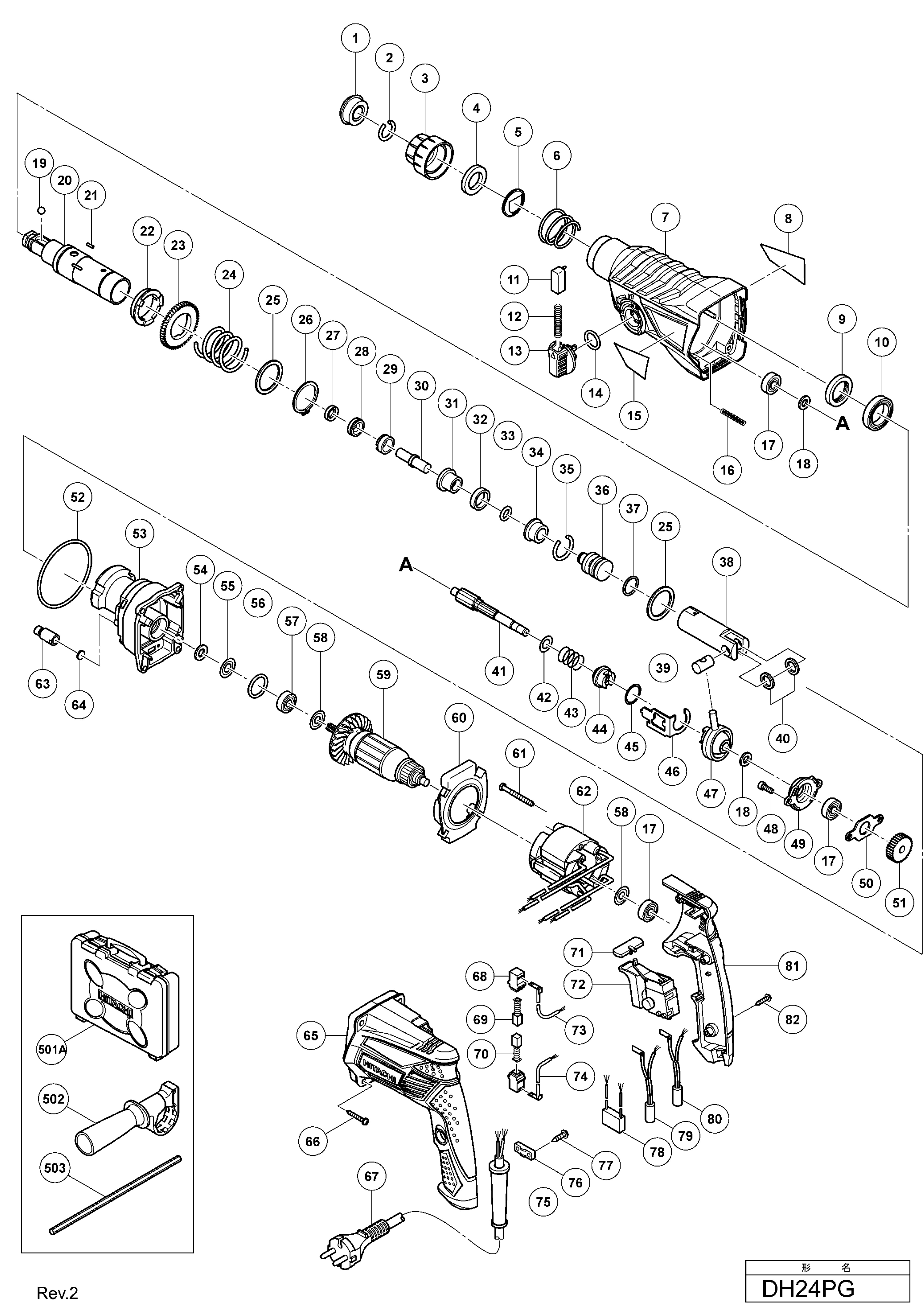

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
*503
 photo_cameraImage coming soon 303709 delimiter Depth €1.75
*72
 Switch for Rotary Hammers Hitachi DH22-24-26-28 335796 Switch for Rotary Hammers Hitachi DH22-24-26-28 €23.45
*62
 photo_cameraImage coming soon 340866E Stator 220v-230v €20.37
*59
 photo_cameraImage coming soon 360962E Armature 220v-230v €23.87
*67
 photo_cameraImage coming soon 500247Z CORD €17.20
*75
 Cord Armor D.10.1 for Hitachi Power Tools 938051 Cord Armor D.10.1 for Hitachi Power Tools €1.34
*75
 Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.37
1
 Front Cap for Rotary Hammers Hitachi DH22/28 306345 Front Cap for Rotary Hammers Hitachi DH22/28 €4.18
2
 Stopper Ring for Hammers Hitachi 306340 Stopper Ring for Hammers Hitachi €2.08
3
 photo_cameraImage coming soon 324527 GRIP €3.78
4
 photo_cameraImage coming soon 324528 BALL HOLDER €7.34
5
 photo_cameraImage coming soon 324526 Support Thrust Dh24dva €1.46
6
 photo_cameraImage coming soon 322812 Spring Gate Punta €2.05
7
 photo_cameraImage coming soon 335258 PROTECTION L3709-115 HEADSET €10.57
9
 photo_cameraImage coming soon 335259 OIL SEAL €4.06
10
 photo_cameraImage coming soon 335260 BALL BEARING 6805DD €4.66
11
 photo_cameraImage coming soon 322789 BACK PANEL €5.86
12
 photo_cameraImage coming soon 317223 PUSHING SPRING €2.22
13
 photo_cameraImage coming soon 334011 CHANGE LEVER €3.12
14
 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 878885 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 €1.34
17
 photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
19
 Steel Ball 7 mm for Hammers Hitachi DH24-26-28 335300 Steel Ball 7 mm for Hammers Hitachi DH24-26-28 €3.48
20
 Cylinder for Rotary Hammer Hitachi DH24PG 335261 Cylinder for Rotary Hammer Hitachi DH24PG €30.57
22
 Cylinder Clutch for Rotative Hammer Hitachi DH26PB 335263 Cylinder Clutch for Rotative Hammer Hitachi DH26PB €17.55
23
 photo_cameraImage coming soon 335265 SECOND GEAR €8.91
24
 photo_cameraImage coming soon 335266 PROTECTION L3709-125 HEADSET €11.19
25
 photo_cameraImage coming soon 301679 WASHER (A) €2.18
26
 photo_cameraImage coming soon 948310 RETAINING RING FOR D30 SHAFT €1.71
27
 Oil Seal mm 9,5x16x4 for Rotary Hammer Hitachi DH24PG 335262 Oil Seal mm 9,5x16x4 for Rotary Hammer Hitachi DH24PG €2.63
28
 photo_cameraImage coming soon 335268 HAMMER HOLDER (C) €13.24
29
 photo_cameraImage coming soon 335795 SLEEVE (FW) €5.85
30
 photo_cameraImage coming soon 335269 SECOND HAMMER €5.48
31
 photo_cameraImage coming soon 335267 HAMMER HOLDER (A) €4.17
32
 photo_cameraImage coming soon 322805 DAMPER (A) €2.05
33
 photo_cameraImage coming soon 322808 O-RING (C) €2.02
34
 photo_cameraImage coming soon 324524 DAMPER HOLDER €7.80
35
 photo_cameraImage coming soon 322807 STOPPER RING €2.05
36
 photo_cameraImage coming soon 335246 STRIKER €5.77
37
 photo_cameraImage coming soon 335247 O-Ring D17 €3.63
38
 Piston for Hammers Hitachi DH24-26-28PC 335255 Piston for Hammers Hitachi DH24-26-28PC €23.72
39
 photo_cameraImage coming soon 335793 PISTON PIN €4.62
40
 photo_cameraImage coming soon 335794 PISTON WASHER €1.66
41
 photo_cameraImage coming soon 335248 Second Shaft €12.19
42
 photo_cameraImage coming soon 335251 Washer (C) €2.02
43
 photo_cameraImage coming soon 323182 CLUTCH SPRING €2.05
44
 photo_cameraImage coming soon 335254 CLUTCH €5.44
45
 photo_cameraImage coming soon 331315 WASHER €1.62
46
 photo_cameraImage coming soon 335252 Change Plate €2.29
47
 photo_cameraImage coming soon 335249 RECIPROCATING BEARING €19.44
49
 photo_cameraImage coming soon 335270 BEARING HOLDER €20.31
50
 photo_cameraImage coming soon 335271 BEARING COVER €2.02
51
 photo_cameraImage coming soon 335253 FIRST GEAR €12.19
52
 O-Ring D 72.2 for Rotary Hammers Hitachi DH26PB 335245 O-Ring D 72.2 for Rotary Hammers Hitachi DH26PB €2.78
53
 photo_cameraImage coming soon 335272 Inner Cover €17.60
54
 photo_cameraImage coming soon 322816 FELT PACKING €2.05
55
 Packing Washer for Rotary Hammer Hitachi DH24PB3 322818 Packing Washer for Rotary Hammer Hitachi DH24PB3 €4.09
56
 photo_cameraImage coming soon 876796 O-RING (P-22) €1.33
57
 photo_cameraImage coming soon 608DDM BALL BEARING 608DDC2PS2L €7.07
58
 Dust Washer for Demolition Hammer Hitachi H45MRY 982631 Dust Washer for Demolition Hammer Hitachi H45MRY €1.34
60
 photo_cameraImage coming soon 335244 FAN GUIDE €2.29
61
 photo_cameraImage coming soon 981824 Hex. Hd. Tapping Screw D4x45 €4.37
63
 photo_cameraImage coming soon 334008 AIR CAP €1.60
64
 photo_cameraImage coming soon 324543 In Dh24pb3 Felt Gasket-Pc3 €2.05
65
 photo_cameraImage coming soon 335660 Housing €13.53
68
 Brush Holder for Demolition Hammer Hitachi DH28PCY 955203 Brush Holder for Demolition Hammer Hitachi DH28PCY €4.39
69
 Carbon Brushes for Sanders Hitachi SV12-13 999041 Carbon Brushes for Sanders Hitachi SV12-13 €9.62
70
 Carbon Brushes for Rotary Hammer Hitachi DH24PB3 999072 Carbon Brushes for Rotary Hammer Hitachi DH24PB3 €18.01
71
 Pusching Button for Drills Hitachi DV16-18V-DV20VB2 322853 Pusching Button for Drills Hitachi DV16-18V-DV20VB2 €2.78
76
 photo_cameraImage coming soon 937631 CORD CLIP €1.37
78
 Noise Suppressor Hitachi GP 10 930039 Noise Suppressor Hitachi GP 10 €4.04
81
 photo_cameraImage coming soon 335661 handle Cover €9.48
82
 photo_cameraImage coming soon 301653 Tapp.Screw (W / Flange) D4x20 €5.63
502
 photo_cameraImage coming soon 324548 Lateral grip €17.67

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Electric Rotary Hammer DH24PG

Hitachi-HIKOKI-Tanaka authorized service center

 and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for corded Rotary Hammer DH 24 PG.

In the following table , look for the model of the Hammer or impact drill and the respective parts of the code .
corded Rotary Hammer DH 24 PG

Corded Rotary Hammer DH 24 PG
# Part Num. Description
1 306345 Front cap
2 306340 Ring Latch
3 324527 Dh24pb3 ring-Pc3
4 324528 Support Balls Dh24pb3-Pc3-Dva
5 324526 Support Thrust Dh24dva
6 322812 Spring Gate Punta
7 335258 Gear Cover
9 335259 Oil Seal
10 335260 Ball Bearing 6805dd
11 322789 Selector Dh24pb2
12 317223 Spring
13 334011 Change Lever
14 878885 ring
16 335800 Spring (E)
17 608vvm bearing 608vv
18 335250 Bearing Washer
19 335300 Steel Ball D7.0 (10 Pcs.)
20 335261 Cylinder
21 335264 Pin D2.5
22 335263 Cylinder Clutch
23 335265 Second Gear
24 335266 Spring (A)
25 301679 washer
26 948310 Ring Type C Trees D.30
27 335262 Oil Seal (A)
28 335268 Hammer Holder (C)
29 335795 Sleeve (Fw)
30 335269 Second Hammer
31 335267 Hammer Holder (A)
32 322805 Shock Dh24pb2
33 322808 O-ring (C)
34 324524 Support Cushion Dh24pb3-Pc3
35 322807 Ring Latch
36 335246 Striker
37 335247 O-Ring D17
38 335255 Piston
39 335793 Piston Pin
40 335794 Piston Washer
41 335248 Second Shaft
42 335251 Washer (C)
43 323182 Friz spring. X Dh24pc2
44 335254 Clutch
45 331315 washer Dh22ph
46 335252 Change Plate
47 335249 Reciprocating Bearing
48 990079 Seal Lock Hex. M5x16 socket
49 335270 Bearing Holder
50 335271 Bearing Cover
51 335253 First Gear
52 335245 O-Ring D72.2
53 335272 Inner Cover
54 322816 Held Felt
55 322818 Packing Washer Dh24pm
56 876796 O-Ring P.22
57 608ddm bearing 608ddm
58 982631 Washer (A)
*59 360962e Armature 220v-230v
*59 360962f Armature 240v
60 335244 fan Guide
61 981824 Hex. Hd. Tapping Screw D4x45
*62 340866e Stator 220v-230v
*62 340866k Pan (220V)
*62 340866l Stator 240v
63 334008 Air Cap
64 324543 Gua.Feltro Dh24pb3-Pc3
65 335660 Housing
66 301654 Tap. Screw (W / Flange) D5x35
*67 500247z Cord (Cord Armor D8.8)
68 955203 brush holder
69 999041 Carbon Brushe (1 pair)
70 999072 Carbon Brushe set (1 pair self-locking)
71 322853 Rev. Button
*72 335796 switch
*75 953327 Sleeve saver D8.8
*75 938051 Sleeve saver D.10
76 937631 terminal Wire Tie
77 984750 Tapping Screw (W / Flange) D4x16
78 930039 Noise Suppressor
81 335661 handle Cover
82 301653 Tapping Screw (W / Flange) D4x20
501a 337257 houses
502 324548 Charged. Side Dh24pb3/Pc3
*503 303709 Delimiter Depth '
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s HITACHI websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to HITACHI brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi DH24PG
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi DH24PG

Diagram Hitachi DH24PG

Download (88.01KB)

You might also like

Piston for Hammers Hitachi DH24-26-28PC
HiKOKI Power Tools Italia S.p.a. SKU: 335255
Piston for Hammers Hitachi DH24-26-28PC
Piston for Rotary Hammers Hitachi DH24-26-28PC Genuine replacement part Hitachi Koky, Piston for Rotary Hammers model DH24PC-DH26PC-DH28PCY-DH28PC. Part for the following items: - Hammer DH 24PG - Hammer DH 26PC - Hammer DH 28 PCY -...
AVAILABLE €23.72
Details
Piston for Hammers Hitachi DH14-18DL-22PG Sale
HiKOKI Power Tools Italia S.p.a. SKU: 306324
Piston for Hammers Hitachi DH14-18DL-22PG
Piston for Hammers Hitachi DH14-18DL-22PG Genuine parts for Hitachi Hammers model DH 14DL - DH 18DL - DH 22PG. For the following items: - Hammer DH 14DL - Hammer DH 18DL - Hammer DH 22PG - Code: 306324
AVAILABLE €18.00
Details
Grease for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: Grasso Hitachi
Grease for Hammers Hitachi
Grease for Hammers Hitachi Genuine spare parts Hitachi, Grease for all Demolition Hammers Hitachi Grease should be replaced for reasons of maintenance in the replacement of parts as: Piston, Rod, Tree, Barrel, first or second gear...
Last items in stock €10.99
Details
Steel Ball 7 mm for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 959156
Steel Ball 7 mm for Hammers Hitachi
Steel Ball 7 mm for Hammers Hitachi Hitachi genuine parts, steel ball diameter MM 7, Box 10 Pcs for Demolition hammers and Drills Hammers, DH14DSL - DH18PB - DH18DSL - DH25DL - DH25DAL - DH36DL - DH36DAL - H25PV - DH28PD - DH30PC2....
AVAILABLE €3.48
Details
Steel Ball 7 mm for Hammers Hitachi DH24-26-28
HiKOKI Power Tools Italia S.p.a. SKU: 335300
Steel Ball 7 mm for Hammers Hitachi DH24-26-28
Steel Ball 7 mm for Hammers Hitachi DH24-26-28 Hitachi genuine parts, steel ball diameter MM 7, Box 10 Pcs for Demolition hammers and Drills Hammers, DH 24PG - 26PC DH - DH 28PCY - DH28PC. Suitable for the following items: - Drill...
AVAILABLE €3.48
Details
Second Pinion for Hammers Hitachi DH28PC - Drawing
HiKOKI Power Tools Italia S.p.a. SKU: 335278
Second Pinion for Hammers Hitachi DH28PCY
Second Pinion for Hammers Hitachi DH28PCY Genuine parts Hitachi, Second Pinion for Hammers model Electropneumatic Hammer 3.5 Joule - 3.5Kg DH28PCY. For the following items: - Electropneumatic Hammer DH26PC - Electropneumatic Hammer DH...
AVAILABLE €16.60
Details
Pinion Sleeve for Hammers Hitachi DH28PC
HiKOKI Power Tools Italia S.p.a. SKU: 335275
Pinion Sleeve for Hammers Hitachi DH28PCY
Pinion Sleeve for Hammers Hitachi DH28PCY Genuine parts Hitachi, Pinion Sleeve for Hammers model Electropneumatic Hammer 3.5 Joule - 3.5Kg DH28PCY. Part for the following items: - Electropneumatic Hammer DH26PC - Electropneumatic...
AVAILABLE €9.62
Details
Pinion Lock Plate for Hammers Hitachi DH28PC
HiKOKI Power Tools Italia S.p.a. SKU: 335276
Pinion Lock Plate for Hammers Hitachi DH28PCY
Pinion Lock Plate for Hammers Hitachi DH28PCY Genuine parts Hitachi, Pinion Lock Plate for Hammers model Electropneumatic Hammer 3.5 Joule - 3.5Kg DH28PCY For the following items: - Electropneumatic Hammer DH26PC - Electropneumatic...
Last items in stock €19.40
Details
Second Gear for Hammers Hitachi DH18PB Sale
HiKOKI Power Tools Italia S.p.a. SKU: 306333
Second Gear for Hammers Hitachi DH18PB
Second Gear for Hammers Hitachi DH18PB Genuine parts Hitachi, Second Gear for Hammers model DH 14 - DH14DSL - DH18DL - DH 22 PG -  DH18PB. Part for the following items: - Drill Hammer DH 14 - Cordless Hammer DH14DSL - Drill Hammer...
AVAILABLE €27.77
Details
Thrust Plate for Hammers Hitachi DH18PB Sale
HiKOKI Power Tools Italia S.p.a. SKU: 325588
Thrust Plate for Hammers Hitachi DH18PB
Thrust Plate for Hammers Hitachi DH18PB Genuine parts Hitachi, Thrust Plate for Hammers model DH 14 - DH14DSL - DH18DL - DH 22 PG - DH18PB. For the following items: - Drill Hammer DH 14 - Cordless Hammer DH14DSL - Drill Hammer DH18DL...
AVAILABLE €8.23
Details
Stopper for Hammers Hitachi DH14DSL
HiKOKI Power Tools Italia S.p.a. SKU: 327875
Stopper for Hammers Hitachi DH14DSL
Stopper for Hammers Hitachi DH14DSL Genuine parts Hitachi, Stopper for Hammers model DH 14 - DH14DSL - DH18DL - DH 22 PG - DH18PB. For the following items: - Drill Hammer DH 14 - Cordless Hammer DH14DSL - Drill Hammer DH18DL - Drill...
AVAILABLE €4.04
Details
Steel Ball 6,35 mm for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 959150
Steel Ball 6,35 mm for Hammers Hitachi
Steel Ball 6,35 mm for Hammers Hitachi Hitachi genuine parts, steel ball diameter MM 6,35, Box 10 Pcs for Demolition Hammers and Percussion drills, H45MR - H45MRY - H41MB - H60MC - D13VG - DV16V-20VB2. Suitable for the following...
AVAILABLE €3.48
Details
Stopper Ring for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 306340
Stopper Ring for Hammers Hitachi
Stopper Ring for Hammers Hitachi Genuine parts Hitachi, Stopper Ring for Hammers Hitachi. For the following items: - Hammer DH 28 PCY - Hammer DH 26PC - Hammer DH 24PG
AVAILABLE €2.08
Details
Front Cap for Rotary Hammers Hitachi DH22/28
HiKOKI Power Tools Italia S.p.a. SKU: 306345
Front Cap for Rotary Hammers Hitachi DH22/28
Front Cap for Rotary Hammers Hitachi DH22/28 Genuine part HITACHI, Front Cap for Rotary Hammers DH22PG - DH24PG - DH26PC - DH28PCY - DH14DSL - DH18DSL - DH25DL - DH25DAL - DH36DL - DH36DAL - DH28PD - DH24PB3 - DH28PC - DH28PFY.
Last items in stock €4.18
Details
Carbon Brushes for Rotary Hammer Hitachi DH24PB3
HiKOKI Power Tools Italia S.p.a. SKU: 999072
Carbon Brushes for Rotary Hammer Hitachi DH24PB3
Carbon Brushes for Rotary Hammer Hitachi DH24PB3 Genuine Spare Part Hitachi, Self-Locking Carbon Brushes for Rotary Hammers DH24PB3 - DH24PC3 - DH24PD3 - DH24PG - DH24PH - DH24PM...
on 7/10 Business Days Approx €18.01
Details
Piston for Demolition Hammer Hitachi DH28PC
HiKOKI Power Tools Italia S.p.a. SKU: 330172
Piston for Demolition Hammer Hitachi DH28PC
Piston for Demolition Hammer Hitachi DH28PC Original spare parts Hitachi, Piston for Demolition Hammers DH28PC - DH28PD For the follows items: - Demolition Hammer Hitachi DH28PC - Demolition Hammer...
AVAILABLE €11.00
Details
Cylinder Clutch for Rotative Hammer Hitachi DH26PB
HiKOKI Power Tools Italia S.p.a. SKU: 335263
Cylinder Clutch for Rotative Hammer Hitachi DH26PB
Cylinder Clutch for Rotary Hammer Hitachi DH26PB Genuine Spare Part Hitachi, Cylinder Clutch for Rotary Hammers DH26PB - DH18DBL - DH24PG - DH24PH - DH24PB - DH24PC - DH24PBY - DH24PCY - DH24PMY - DH28PMY. Part for the following...
AVAILABLE €17.55
Details
Cylinder for Rotary Hammer Hitachi DH24PG
HiKOKI Power Tools Italia S.p.a. SKU: 335261
Cylinder for Rotary Hammer Hitachi DH24PG
Cylinder for Rotary Hammer Hitachi DH24PG Original spare part Hitachi, Cylinder for Rotary Hammers DH24PG - DH24PH - DH26PB - DH26PC - DH28PBY - DH28PCY - DH18DBL - DH36DBL...
Usually Ships in: 7/10 Business Days Approx. €30.57
Details
Dust Washer for Demolition Hammer Hitachi H45MRY
HiKOKI Power Tools Italia S.p.a. SKU: 982631
Dust Washer for Demolition Hammer Hitachi H45MRY
Dust Washer for Demolition Hammer Hitachi H45MRY Genuine Spare Part Hitachi, Dust Washer for Demolition Hammers H45MR - H45FRV - H45MRY - H45SR - DH40MRY - H41MB. Part for the following items: - Rotary Hammer Hitachi DH24PG - Rotary...
AVAILABLE €1.34
Details
O-RING (B) for Rotary Hammer Hitachi DH20PB
HiKOKI Power Tools Italia S.p.a. SKU: 301672
O-RING (B) for Rotary Hammer Hitachi DH20PB
O-RING (B) for Rotary Hammer Hitachi DH20PB Genuine parts Hitachi, O-RING (B) for Rotary Hammers DH20PB - DH22PG - DH24PB - DH24PC - DH24PG - DH26PC - DH28PCY. For the following items: -  Rotary Hammer DH20PB -  Rotary Hammer DH22PG...
AVAILABLE €1.13
Details
Packing Washer for Rotary Hammer Hitachi DH24PB3
HiKOKI Power Tools Italia S.p.a. SKU: 322818
Packing Washer for Rotary Hammer Hitachi DH24PB3
Packing Washer for Rotary Hammer Hitachi DH24PB3 Genuine replacement part HITACHI HIKOKI, Packing Washer for Rotary Hammers DH24PB3 - DH24PC3 - DH24PD3 - DH24PM Part for the following products: -  Rotary Hammer Hitachi DH24PB3 -...
on 7/10 Business Days Approx. €4.09
Details
Comments (0)
