Hitachi Spare Parts for Rotary Hammer DH45ME

SKU: Hitachi DH45ME
€19.79
VAT included

Hitachi Spare Parts for Rotary Hammer DH45ME

Hitachi-HIKOKI Original spare parts at attractive prices never seen on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Rotary Hammer DG45ME.
Hitachi Spare Parts for Rotary Hammer DH45ME
  • Hitachi Spare Parts for Rotary Hammer DH45ME
  • Hitachi Spare Parts for Rotary Hammer DH45ME

Hitachi Spare Parts for Rotary Hammer DH45ME

SKU: Hitachi DH45ME Condition: New
€19.79
VAT included

Hitachi Spare Parts for Rotary Hammer DH45ME

Hitachi-HIKOKI Original spare parts at attractive prices never seen on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Rotary Hammer DG45ME.
settings 124 spare parts

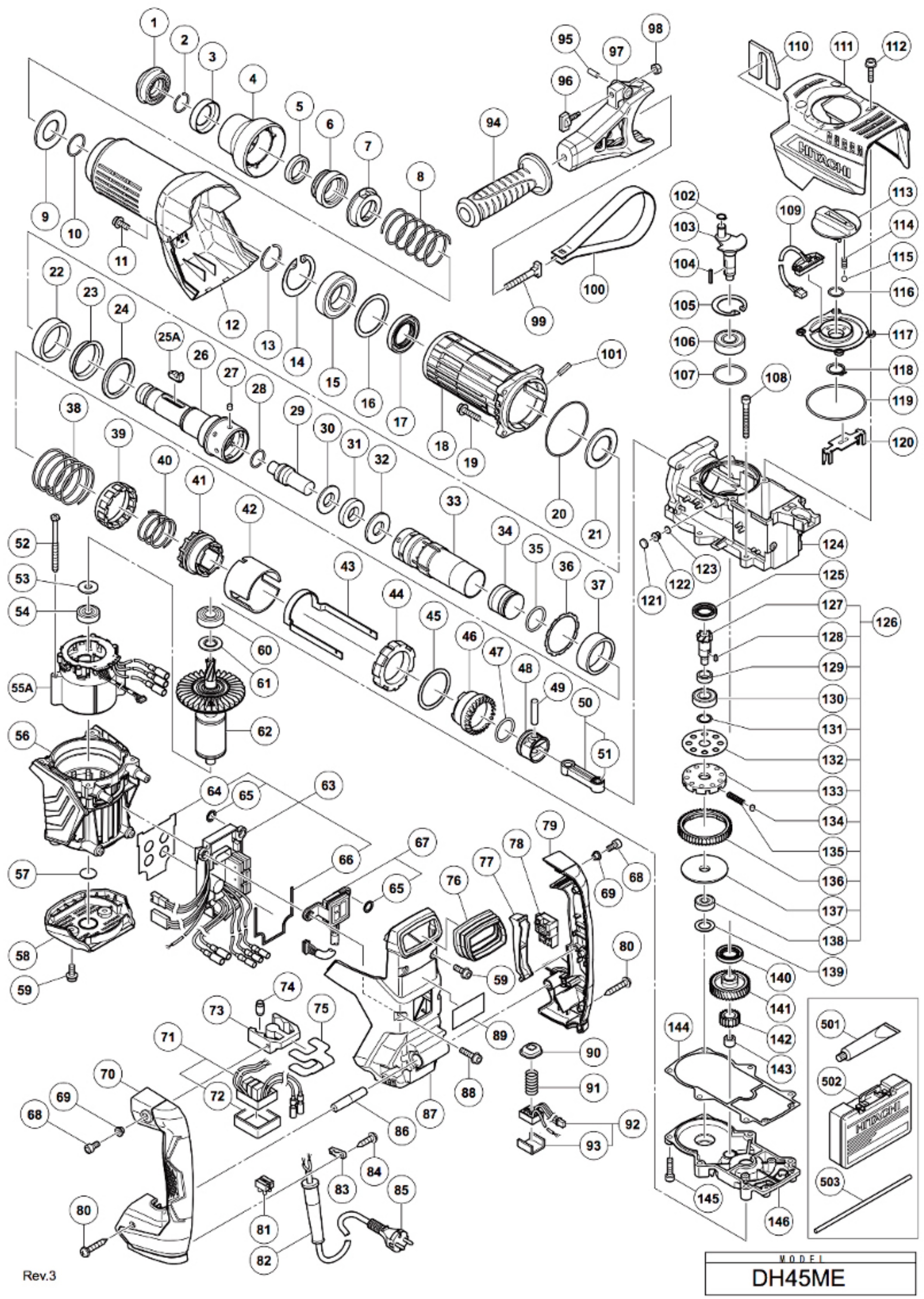

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

111 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 337562 FRONT CAP €3.88
2
photo_cameraImage coming soon 318590 STOPPER RING €2.27
3
photo_cameraImage coming soon 338155 RETAINER WASHER €6.38
4
photo_cameraImage coming soon 338154 GRIP €2.25
6
photo_cameraImage coming soon 338153 BIT LOCK HOLDER €16.51
9
photo_cameraImage coming soon 337557 SPRING HOLDER (A) €1.65
10
photo_cameraImage coming soon 872470 O-RING (S-26) €2.09
12
photo_cameraImage coming soon 338120 CYLINDER CASE COVER €15.39
13
photo_cameraImage coming soon 318757 RETAINING RING D35 €7.87
15
Bearing 6007DD for Demolition Hammers DH45MR-DH40MRY 6007DD Bearing 6007DD for Demolition Hammers DH45MR-DH40MRY €16.60
16
photo_cameraImage coming soon 321297 BEARING WASHER €6.27
17
Oil Seal 15ZX35X53 for Rotary Hammer Hitachi DH40MRY-DH45MR 321301 Oil Seal 15ZX35X53 for Rotary Hammer Hitachi DH40MRY-DH45MR €11.86
18
photo_cameraImage coming soon 338121 CYLINDER CASE €50.11
21
photo_cameraImage coming soon 338124 RETAINER DAMPER HOLDER €7.65
22
photo_cameraImage coming soon 338123 RETAINER DAMPER (B) €5.62
24
photo_cameraImage coming soon 338122 RETAINER DAMPER WASHER €7.85
26
photo_cameraImage coming soon 338125 RETAINER SLEEVE €56.38
27
Needle Pin 6x6 mm for Demolition Hammers Hitachi DH40/50MRY-DH45MR 313057 Needle Pin 6x6 mm for Demolition Hammers Hitachi DH40/50MRY-DH45MR €5.52
28
O-Ring (C) for Combined Hammer Hitachi DH45MR 324921 O-Ring (C) for Combined Hammer Hitachi DH45MR €6.82
29
photo_cameraImage coming soon 338126 SECOND HAMMER €22.18
30
photo_cameraImage coming soon 338127 DAMPER WASHER €9.02
31
photo_cameraImage coming soon 324923 DAMPER €6.62
32
photo_cameraImage coming soon 338128 DAMPER HOLDER €6.17
33
photo_cameraImage coming soon 338129 CYLINDER €47.80
34
photo_cameraImage coming soon 338133 STRIKER €16.34
35
photo_cameraImage coming soon 338134 O-RING (E) €4.70
37
photo_cameraImage coming soon 338130 SPRING HOLDER (B) €2.17
38
photo_cameraImage coming soon 338137 LOCK SPRING €1.82
39
photo_cameraImage coming soon 338135 LOCK SLEEVE €1.72
40
photo_cameraImage coming soon 338131 CLUTCH SPRING €1.82
41
photo_cameraImage coming soon 338132 CLUTCH €45.10
42
photo_cameraImage coming soon 338138 SLEEVE €1.65
43
photo_cameraImage coming soon 338157 SLIDER €3.42
44
photo_cameraImage coming soon 338139 METAL (A) €10.90
45
photo_cameraImage coming soon 338140 METAL WASHER €1.25
46
photo_cameraImage coming soon 338141 BEVEL GEAR €17.39
48
photo_cameraImage coming soon 338147 PISTON €9.43
49
Piston Pin for Rotary Hammer DH45ME 338149 Piston Pin for Rotary Hammer DH45ME €5.15
50
photo_cameraImage coming soon 339049 CONNECTING ROD ASS'Y €15.31
51
photo_cameraImage coming soon 335303 NEEDLE BEARING €5.77
53
photo_cameraImage coming soon 944954 BEARING WASHER €1.30
54
photo_cameraImage coming soon 6201VV BALL BEARING 6201VVCMPS2L €6.76
55
photo_cameraImage coming soon 340899 STATOR SENSOR PCB SET 220V-240V €53.30
56
photo_cameraImage coming soon 338168 HOUSING €29.40
57
photo_cameraImage coming soon 333225 DUST SEAL €1.29
58
photo_cameraImage coming soon 338170 TAIL COVER €3.13
60
photo_cameraImage coming soon 6202DD Ball Bearing 6202dd €7.97
61
photo_cameraImage coming soon 980700 DUST WASHER (B) €1.24
62
photo_cameraImage coming soon 360992 ROTOR €166.98
63
Controller Ass'y for Rotary Hammer DH45ME 338183 Controller Ass'y for Rotary Hammer DH45ME €115.18
67
photo_cameraImage coming soon 338184 PANEL ASS'Y €19.04
69
photo_cameraImage coming soon 991711 DISTANCE PIECE (B) €1.33
70
photo_cameraImage coming soon 338173 HANDLE (A) €7.38
71
Filter PCB Ass'y for Rotary Hammer DH45ME 338181 Filter PCB Ass'y for Rotary Hammer DH45ME €30.88
73
Transatory Unit for Demolition Hammer Hitachi H45SA 310123 Transatory Unit for Demolition Hammer Hitachi H45SA €16.13
74
Damper for Demolition Hammers H60MRV-H45MR-H45MRY 310124 Damper for Demolition Hammers H60MRV-H45MR-H45MRY €5.77
76
photo_cameraImage coming soon 338176 BELLOWS €6.78
77
photo_cameraImage coming soon 337588 TRIGGER €1.25
78
photo_cameraImage coming soon 337587 SWITCH €18.75
79
photo_cameraImage coming soon 338174 HANDLE (B) €7.38
82
photo_cameraImage coming soon 940778 CORD ARMOR D10.7 €3.43
82
photo_cameraImage coming soon 958049 CORD ARMOR D8.2 €1.34
83
photo_cameraImage coming soon 960266 CORD CLIP €1.37
87
photo_cameraImage coming soon 338164 BACK COVER €9.63
90
photo_cameraImage coming soon 338171 ON LOCK BUTTON €1.33
92
photo_cameraImage coming soon 338185 ON LOCK PCB (A) ASS'Y €11.41
94
photo_cameraImage coming soon 330209 SIDE HANDLE €20.87
95
photo_cameraImage coming soon 949859 ROLL PIN D2X8 (10 PCS.) €1.90
96
photo_cameraImage coming soon 337577 WING BOLT €1.32
97
photo_cameraImage coming soon 338166 MOUNT €5.65
99
photo_cameraImage coming soon 333227 HANDLE BOLT €21.70
100
photo_cameraImage coming soon 338165 BAND €7.85
102
Retaining Ring D.10 for Hammer DH45ME - DH40MR 939540 Retaining Ring D.10 for Hammer DH45ME - DH40MR €0.35
103
photo_cameraImage coming soon 338144 CRANK SHAFT €32.35
104
photo_cameraImage coming soon 971750 FEATHER KEY 3X3X20 €3.30
105
photo_cameraImage coming soon 948391 RETAINING RING FOR D40 HOLE €2.25
106
photo_cameraImage coming soon 6203DD BALL BEARING 6203DDCMPS2L €8.89
107
O-Ring S-40 for Demolition Hammers Hitachi DH38MS-DH40MEY 996363 O-Ring S-40 for Demolition Hammers Hitachi DH38MS-DH40MEY €2.19
109
photo_cameraImage coming soon 338179 ON LOCK PCB (B) €9.63
111
photo_cameraImage coming soon 338161 CRANK COVER €5.25
113
photo_cameraImage coming soon 338159 CHANGE LEVER €2.62
115
photo_cameraImage coming soon 959149 STEEL BALL D4.76 €1.28
116
O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 878885 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 €1.34
117
photo_cameraImage coming soon 338158 LEVER SHAFT HOLDER €5.53
118
photo_cameraImage coming soon 939547 RETAINING RING FOR D20 SHAFT €5.65
119
photo_cameraImage coming soon 326257 O-RING (I.D 74.5) €4.60
120
photo_cameraImage coming soon 338156 CHANGE PLATE €1.45
121
photo_cameraImage coming soon 324544 Felt Dh24pb3-Pc3-Pd3 €1.87
124
photo_cameraImage coming soon 338143 CRANK CASE €68.61
125
Oil Seal 20x32x5 for Rotary Hammer Hitachi DH45MR-DH40MRY-DH38MS 313050 Oil Seal 20x32x5 for Rotary Hammer Hitachi DH45MR-DH40MRY-DH38MS €5.43
126
photo_cameraImage coming soon 338178 SLIP CLUTCH ASS'Y €65.94
127
photo_cameraImage coming soon 338150 BEVEL PINION €10.13
128
photo_cameraImage coming soon 944109 FEATHER KEY 3X3X8 €2.99
130
Bearing 6002DD for Hammers-Reciprocatin Saw-Milling Machine Hitachi 6002DD Bearing 6002DD for Hammers-Reciprocatin Saw-Milling Machine Hitachi €9.62
131
photo_cameraImage coming soon 313058 WASHER €1.34
132
photo_cameraImage coming soon 313053 WASHER (A) €4.60
133
photo_cameraImage coming soon 321281 GEAR HOLDER €29.30
134
photo_cameraImage coming soon 320343 NEEDLE €6.81
135
photo_cameraImage coming soon 321282 SPRING (C) €2.46
136
photo_cameraImage coming soon 338152 SECOND GEAR €17.31
137
photo_cameraImage coming soon 321283 SPACER €26.50
138
photo_cameraImage coming soon 629VVM BALL BEARING 629VVC2PS2L €7.32
139
Bearing Washer (C) for Hammer Hitachi DH40MA 944525 Bearing Washer (C) for Hammer Hitachi DH40MA €1.26
140
photo_cameraImage coming soon 971745 OIL SEAL (A) €8.62
141
photo_cameraImage coming soon 338145 FIRST GEAR €38.66
142
photo_cameraImage coming soon 338146 SECOND PINION €6.33
143
Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR 939299 Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR €13.81
146
photo_cameraImage coming soon 338169 GEAR COVER €41.34
501
photo_cameraImage coming soon 981840 GREASE 30 GR €10.98
601
photo_cameraImage coming soon 308471 GREASE 70 GR €19.79
602
photo_cameraImage coming soon 980927 GREASE 500 GR €84.44

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Rotary Hammer DH45ME

Hitachi-HIKOKI Original spare parts

at attractive prices never seen on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Rotary Hammer DG45ME.

In the following table, look for the model of the Rotary Hammer and their spare part.
Hitachi DH45ME

Rotary Hammer DH45ME
# Part Num. Description
1 337562 FRONT CAP
2 318590 STOPPER RING
3 338155 RETAINER WASHER
4 338154 GRIP
6 338153 BIT LOCK HOLDER
9 337557 SPRING HOLDER (A)
10 872470 O-RING (S-26)
12 338120 CYLINDER CASE COVER
13 318757 RETAINING RING D35
15 6007DD BALL BEARING 6007DDUAV2S
16 321297 BEARING WASHER
17 321301 OIL SEAL
18 338121 CYLINDER CASE
20 338142 O-RING (F)
21 338124 RETAINER DAMPER HOLDER
22 338123 RETAINER DAMPER (B)
24 338122 RETAINER DAMPER WASHER
26 338125 RETAINER SLEEVE
27 313057 NEEDLE PIN D6X6
28 324921 O-RING (C)
29 338126 SECOND HAMMER
30 338127 DAMPER WASHER
31 324923 DAMPER
32 338128 DAMPER HOLDER
33 338129 CYLINDER
34 338133 STRIKER
35 338134 O-RING (E)
36 338136 LOCK SPRING WASHER
37 338130 SPRING HOLDER (B)
38 338137 LOCK SPRING
39 338135 LOCK SLEEVE
40 338131 CLUTCH SPRING
41 338132 CLUTCH
42 338138 SLEEVE
43 338157 SLIDER
44 338139 METAL (A)
45 338140 METAL WASHER
46 338141 BEVEL GEAR
47 338134 O-RING (E)
48 338147 PISTON
49 338149 PISTON PIN
50 339049 CONNECTING ROD ASS'Y
51 335303 NEEDLE BEARING
53 944954 BEARING WASHER
54 6201VV BALL BEARING 6201VV
55 340899 STATOR SENSOR PCB SET 220V-240V
56 338168 HOUSING
57 333225 DUST SEAL
58 338170 TAIL COVER
60 6202DD BALL BEARING 6202DD
61 980700 DUST WASHER (B)
62 360992 ROTOR
63 338183 CONTROLLER ASS'Y 220V-240V
67 338184 PANEL ASS'Y
69 991711 DISTANCE PIECE (B)
70 338173 HANDLE (A)
71 338181 FILTER PCB ASS'Y 220V-240V
73 310123 TRANSATORY UNIT
74 310124 HANDLE DAMPER
75 338162 HANDLE DAMPER HOLDER
76 338176 BELLOWS
77 337588 TRIGGER
78 337587 SWITCH
79 338174 HANDLE (B)
82 958049 CORD ARMOR D8.2
82 940778 CORD ARMOR D10.7
83 960266 CORD CLIP
86 338175 HANDLE SHAFT
87 338164 BACK COVER
90 338171 ON LOCK BUTTON
91 338172 ON LOCK SPRING
92 338185 ON LOCK PCB (A) ASS'Y
93 339059 PACKING (A)
94 330209 SIDE HANDLE
95 949859 ROLL PIN D2X8
96 337577 WING BOLT
97 338166 MOUNT
98 949556 NUT M6
99 333227 HANDLE BOLT
100 338165 BAND
101 949859 ROLL PIN D2X8
102 939540 RETAINING RING FOR D10 SHAFT
103 338144 CRANK SHAFT
104 971750 FEATHER KEY 3X3X20
105 948391 RETAINING RING FOR D40 HOLE
106 6203DD BALL BEARING 6203DDCMPS2L
107 996363 O-RING (S-40)
109 338179 ON LOCK PCB (B)
110 339050 FELT PACKING (D)
111 338161 CRANK COVER
113 338159 CHANGE LEVER
114 337567 LEVER SPRING
115 959149 STEEL BALL D4.76
116 878885 O-RING (S-18)
117 338158 LEVER SHAFT HOLDER
118 939547 RETAINING RING FOR D20 SHAFT
119 326257 O-RING (I.D 74.5)
120 338156 CHANGE PLATE
121 324544 FELT PACKING (B)
122 339048 VALVE
123 339054 FELT PACKING (A)
124 338143 CRANK CASE
125 313050 OIL SEAL (A)
126 338178 SLIP CLUTCH ASS'Y
127 338150 BEVEL PINION
128 944109 FEATHER KEY 3X3X8
129 338151 COLLAR
130 6002DD BALL BEARING 6002DDCMPS2L
131 313058 WASHER
132 313053 WASHER (A)
133 321281 GEAR HOLDER
134 320343 NEEDLE
135 321282 SPRING (C)
136 338152 SECOND GEAR
137 321283 SPACER
138 629VVM BALL BEARING 629VV
139 944525 BEARING WASHER (C)
140 971745 OIL SEAL (A)
141 338145 FIRST GEAR
142 338146 SECOND PINION
143 939299 NEEDLE BEARING (M661)
144 338167 SEAL PACKING
146 338169 GEAR COVER
501 981840 GREASE (A) FOR HAMMER.HAMMER DRILL (30G)
601 308471 GREASE FOR HAMMER.HAMMER DRILL (70G)
602 980927 GREASE FOR HAMMER.HAMMER DRILL (500G)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi DH45ME
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi DH45ME

Diagram Hitachi DH45ME

Download (715.4KB)

You might also like

HiKOKI Power Tools Italia S.p.a. SKU: 324921
O-Ring (C) for Combined Hammer Hitachi DH45MR Genuine part Hitachi, O-Ring (C) for Combined Hammer DH45MR. For the following items: - HAMMER HITACHI-HIKOKI DH45ME - HAMMER HITACHI-HIKOKI H45MEY - HAMMER HITACHI-HIKOKI DH45MR - Code:...
AVAILABLE €6.82
HiKOKI Power Tools Italia S.p.a. SKU: 939540
Retaining Ring D.10 for Rotary Hammers DH45ME - DH40MR Original spare parts HITACHI, Retaining Ring D.10 for Rotary Hammers DH45ME - DH40MR - Angle Grinder S23UBY - G23UBY...
AVAILABLE €0.35
HiKOKI Power Tools Italia S.p.a. SKU: 338149
Piston Pin for Rotary Hammer DH45ME Original spare parts HITACHI, Piston Pin for Rotary Hammer DH45ME. Parts for the following products: -  Rotary Hammer DH45ME Y - Code: 338149
AVAILABLE €5.15
HiKOKI Power Tools Italia S.p.a. SKU: 944525
Bearing Washer (C) for Demolition Hammer Hitachi DH40MA Original replacement part Hitachi HIKOKI, Bearing Washer (C) for Demolition Hammer DH40SA - DH40YB - DH40MA. Part for the following items : -  Demolition Hammer DH40SA -...
on 7/10 Business Days Approx €1.26
HiKOKI Power Tools Italia S.p.a. SKU: 338181
Filter PCB Ass'y for Rotary Hammer DH45ME Original spare parts HITACHI, Filter PCB Ass'y 220V-240V for Rotary Hammer DH45ME - Demolition Hammers DH52MEY - H60MEY Parts for the following products: -  Rotary Hammer DH45ME Y -...
Last items in stock €30.88
HiKOKI Power Tools Italia S.p.a. SKU: 338183
Controller Ass'y for Rotary Hammer DH45ME Original spare parts HITACHI, Controller Ass'y 220V-240V for Rotary Hammer DH45ME - Demolition Hammers DH52MEY - H60MEY Parts for the following products:...
Usually Ships in: 7/10 Business Days Approx. €115.18
Comments (0)
