Hitachi Spare Parts for Rotary Hammer DH28PFY

SKU: Hitachi DH28PFY
€2.24
VAT included

Hitachi Spare Parts for Rotary Hammer DH28PFY

Hitachi-HIKOKI Tanaka Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer DH 28PFY.
Hitachi Spare Parts for Rotary Hammer DH 28PFY
  • Hitachi Spare Parts for Rotary Hammer DH 28PFY
  • Hitachi Spare Parts for Rotary Hammer DH 28PFY

Hitachi Spare Parts for Rotary Hammer DH28PFY

SKU: Hitachi DH28PFY Condition: New
€2.24
VAT included

Hitachi Spare Parts for Rotary Hammer DH28PFY

Hitachi-HIKOKI Tanaka Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer DH 28PFY.
settings 77 spare parts

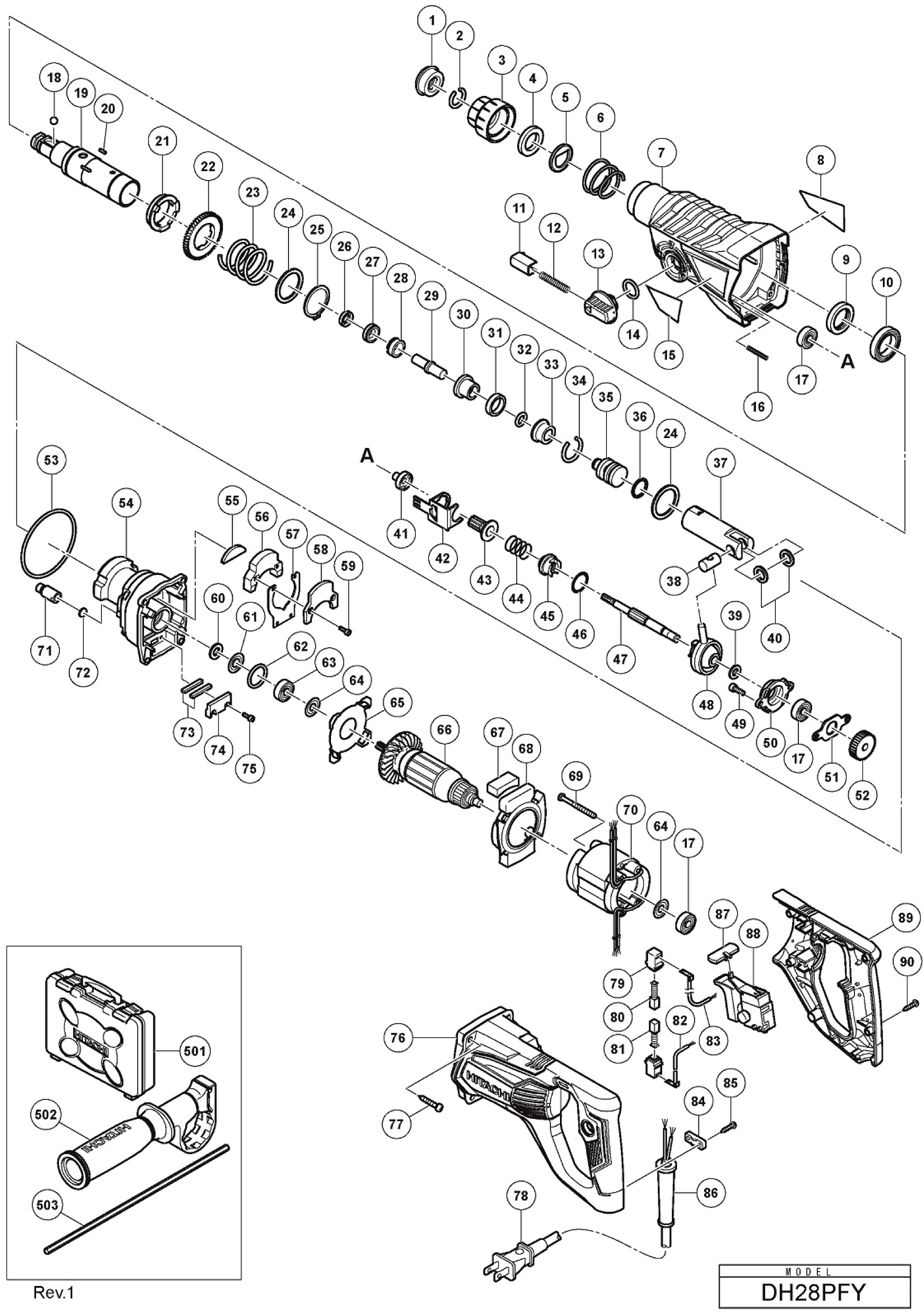

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

72 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
Front Cap for Rotary Hammers Hitachi DH22/28 306345 Front Cap for Rotary Hammers Hitachi DH22/28 €4.18
2
Stopper Ring for Hammers Hitachi 306340 Stopper Ring for Hammers Hitachi €2.08
3
photo_cameraImage coming soon 324527 GRIP €3.78
4
photo_cameraImage coming soon 324528 BALL HOLDER €7.34
5
photo_cameraImage coming soon 324526 Support Thrust Dh24dva €1.46
6
photo_cameraImage coming soon 322812 Spring Gate Punta €2.05
7
photo_cameraImage coming soon 335274 HANDLE L3709 €10.57
9
photo_cameraImage coming soon 335259 OIL SEAL €4.06
10
photo_cameraImage coming soon 335260 BALL BEARING 6805DD €4.66
11
photo_cameraImage coming soon 322789 BACK PANEL €5.86
12
photo_cameraImage coming soon 317223 PUSHING SPRING €2.22
13
photo_cameraImage coming soon 334011 CHANGE LEVER €3.12
14
O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 878885 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 €1.34
17
photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
18
Steel Ball 7 mm for Hammers Hitachi DH24-26-28 335300 Steel Ball 7 mm for Hammers Hitachi DH24-26-28 €3.48
19
Cylinder for Rotary Hammer Hitachi DH24PG 335261 Cylinder for Rotary Hammer Hitachi DH24PG €30.57
21
Cylinder Clutch for Rotative Hammer Hitachi DH26PB 335263 Cylinder Clutch for Rotative Hammer Hitachi DH26PB €17.55
22
photo_cameraImage coming soon 335265 SECOND GEAR €8.91
23
photo_cameraImage coming soon 335266 PROTECTION L3709-125 HEADSET €11.19
24
photo_cameraImage coming soon 301679 WASHER (A) €2.18
25
photo_cameraImage coming soon 948310 RETAINING RING FOR D30 SHAFT €1.71
26
Oil Seal mm 9,5x16x4 for Rotary Hammer Hitachi DH24PG 335262 Oil Seal mm 9,5x16x4 for Rotary Hammer Hitachi DH24PG €2.63
27
photo_cameraImage coming soon 335268 HAMMER HOLDER (C) €13.24
28
photo_cameraImage coming soon 335795 SLEEVE (FW) €5.85
29
photo_cameraImage coming soon 335269 SECOND HAMMER €5.48
30
photo_cameraImage coming soon 335267 HAMMER HOLDER (A) €4.17
31
photo_cameraImage coming soon 322805 DAMPER (A) €2.05
32
photo_cameraImage coming soon 322808 O-RING (C) €2.02
33
photo_cameraImage coming soon 324524 DAMPER HOLDER €7.80
34
photo_cameraImage coming soon 322807 STOPPER RING €2.05
35
photo_cameraImage coming soon 335246 STRIKER €5.77
36
photo_cameraImage coming soon 335247 O-Ring D17 €3.63
37
Piston for Hammers Hitachi DH24-26-28PC 335255 Piston for Hammers Hitachi DH24-26-28PC €23.72
38
photo_cameraImage coming soon 335793 PISTON PIN €4.62
40
photo_cameraImage coming soon 335794 PISTON WASHER €1.66
41
Pinion Sleeve for Hammers Hitachi DH28PCY 335275 Pinion Sleeve for Hammers Hitachi DH28PCY €9.62
42
Pinion Lock Plate for Hammers Hitachi DH28PCY 335276 Pinion Lock Plate for Hammers Hitachi DH28PCY €19.40
43
Second Pinion for Hammers Hitachi DH28PCY 335278 Second Pinion for Hammers Hitachi DH28PCY €16.60
44
photo_cameraImage coming soon 323182 CLUTCH SPRING €2.05
45
photo_cameraImage coming soon 335254 CLUTCH €5.44
46
photo_cameraImage coming soon 331315 WASHER €1.62
47
photo_cameraImage coming soon 335277 SECOND SHAFT €9.15
48
photo_cameraImage coming soon 335249 RECIPROCATING BEARING €19.44
50
photo_cameraImage coming soon 335270 BEARING HOLDER €20.31
51
photo_cameraImage coming soon 335271 BEARING COVER €2.02
52
photo_cameraImage coming soon 335253 FIRST GEAR €12.19
53
O-Ring D 72.2 for Rotary Hammers Hitachi DH26PB 335245 O-Ring D 72.2 for Rotary Hammers Hitachi DH26PB €2.78
54
photo_cameraImage coming soon 335798 INNER COVER €17.60
55
photo_cameraImage coming soon 335285 WEIGHT DAMPER (A) €2.02
56
photo_cameraImage coming soon 335280 WEIGHT (A) €6.77
57
Flat Washer for Angle Grinder Flex L 3709 335282 Flat Washer for Angle Grinder Flex L 3709 €7.10
58
photo_cameraImage coming soon 335281 WEIGHT (B) €4.06
59
photo_cameraImage coming soon 325241 SEAL LOCK HEX. SOCKET HD. BOLT M3X8 €2.70
60
photo_cameraImage coming soon 322816 FELT PACKING €2.05
61
Packing Washer for Rotary Hammer Hitachi DH24PB3 322818 Packing Washer for Rotary Hammer Hitachi DH24PB3 €4.09
62
photo_cameraImage coming soon 876796 O-RING (P-22) €1.33
63
photo_cameraImage coming soon 608DDM BALL BEARING 608DDC2PS2L €7.07
64
Dust Washer for Demolition Hammer Hitachi H45MRY 982631 Dust Washer for Demolition Hammer Hitachi H45MRY €1.34
67
photo_cameraImage coming soon 335286 WEIGHT DAMPER (B) €2.29
68
photo_cameraImage coming soon 335244 FAN GUIDE €2.29
71
photo_cameraImage coming soon 334008 AIR CAP €1.60
72
photo_cameraImage coming soon 324543 In Dh24pb3 Felt Gasket-Pc3 €2.05
74
photo_cameraImage coming soon 335283 SPRING HOLDER €2.02
79
Brush Holder for Demolition Hammer Hitachi DH28PCY 955203 Brush Holder for Demolition Hammer Hitachi DH28PCY €4.39
80
Carbon Brushes for Sanders Hitachi SV12-13 999041 Carbon Brushes for Sanders Hitachi SV12-13 €9.62
81
Carbon Brushes for Rotary Hammer Hitachi DH24PB3 999072 Carbon Brushes for Rotary Hammer Hitachi DH24PB3 €18.01
84
photo_cameraImage coming soon 937631 CORD CLIP €1.37
86
Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.37
87
Pusching Button for Drills Hitachi DV16-18V-DV20VB2 322853 Pusching Button for Drills Hitachi DV16-18V-DV20VB2 €2.78
502
photo_cameraImage coming soon 335273 SIDE HANDLE €11.47
613
photo_cameraImage coming soon 335782 GREASE FOR ROTARY HAMMER (60G) €18.17
614
photo_cameraImage coming soon 335781 GREASE FOR ROTARY HAMMER (500G) €78.63

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Rotary Hammer DH28PFY

Hitachi-HIKOKI Tanaka Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer DH 28PFY.

In the following table, look for the model of the Rotary Hammer and their spare part.
Hitachi DH28PFY

Rotary Hammer DH 28PFY
# Part Num. Description
1 306345 FRONT CAP
2 306340 STOPPER RING
3 324527 GRIP
4 324528 BALL HOLDER
5 324526 HOLDER PLATE
6 322812 HOLDER SPRING
7 335274 GEAR COVER
9 335259 OIL SEAL
10 335260 BALL BEARING 6805DD
11 322789 PUSHING BUTTON
12 317223 PUSHING SPRING
13 334011 CHANGE LEVER
14 878885 O-RING (S-18)
16 335800 SPRING (E)
17 608VVM BALL BEARING 608VVC2PS2L
18 335300 STEEL BALL D7.0 (10 PCS.)
19 335261 CYLINDER
20 335264 PIN D2.5
21 335263 CYLINDER CLUTCH
22 335265 SECOND GEAR
23 335266 SPRING (A)
24 301679 WASHER (A)
25 948310 RETAINING RING FOR D30 SHAFT
26 335262 OIL SEAL (A)
27 335268 HAMMER HOLDER (C)
28 335795 SLEEVE (FW)
29 335269 SECOND HAMMER
30 335267 HAMMER HOLDER (A)
31 322805 DAMPER (A)
32 322808 O-RING (C)
33 324524 DAMPER HOLDER
34 322807 STOPPER RING
35 335246 STRIKER
36 335247 O-RING D17
37 335255 PISTON
38 335793 PISTON PIN
39 335250 BEARING WASHER
40 335794 PISTON WASHER
41 335275 PINION SLEEVE
42 335276 LOCK PLATE
43 335278 SECOND PINION
44 323182 CLUTCH SPRING
45 335254 CLUTCH
46 331315 WASHER
47 335277 SECOND SHAFT
48 335249 RECIPROCATING BEARING
50 335270 BEARING HOLDER
51 335271 BEARING COVER
52 335253 FIRST GEAR
53 335245 O-RING D72.2
54 335798 INNER COVER
55 335285 WEIGHT DAMPER (A)
56 335280 WEIGHT (A)
57 335282 LEAF SPRING
58 335281 WEIGHT (B)
59 325241 SEAL LOCK HEX. SOCKET HD. BOLT M3X8
60 322816 FELT PACKING
61 322818 PACKING WASHER
62 876796 O-RING (P-22)
63 608DDM BALL BEARING 608DD
64 982631 WASHER (A)
65 335279 COVER PLATE
67 335286 WEIGHT DAMPER (B)
68 335244 FAN GUIDE
71 334008 AIR CAP
72 324543 FELT PACKING (A)
73 335284 SPRING DAMPER
74 335283 SPRING HOLDER
79 955203 BRUSH HOLDER
80 999041 CARBON BRUSH (1 PAIR)
81 999072 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
84 937631 CORD CLIP
86 953327 CORD ARMOR D8.8
87 322853 PUSHING BUTTON
502 335273 SIDE HANDLE
613 335782 GREASE FOR ROTARY HAMMER (60G)
614 335781 GREASE FOR ROTARY HAMMER (500G)

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi DH28PFY
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi DH 28PFY

Diagram Hitachi DH 28PFY

Download (461.24KB)
