Hitachi-HIKOKI Original spare parts sourced directly from the manufacturer, with after-sales service at the lowest price on the web for to make maintenance or repair damaged parts for DH28PC Rotary Hammer.

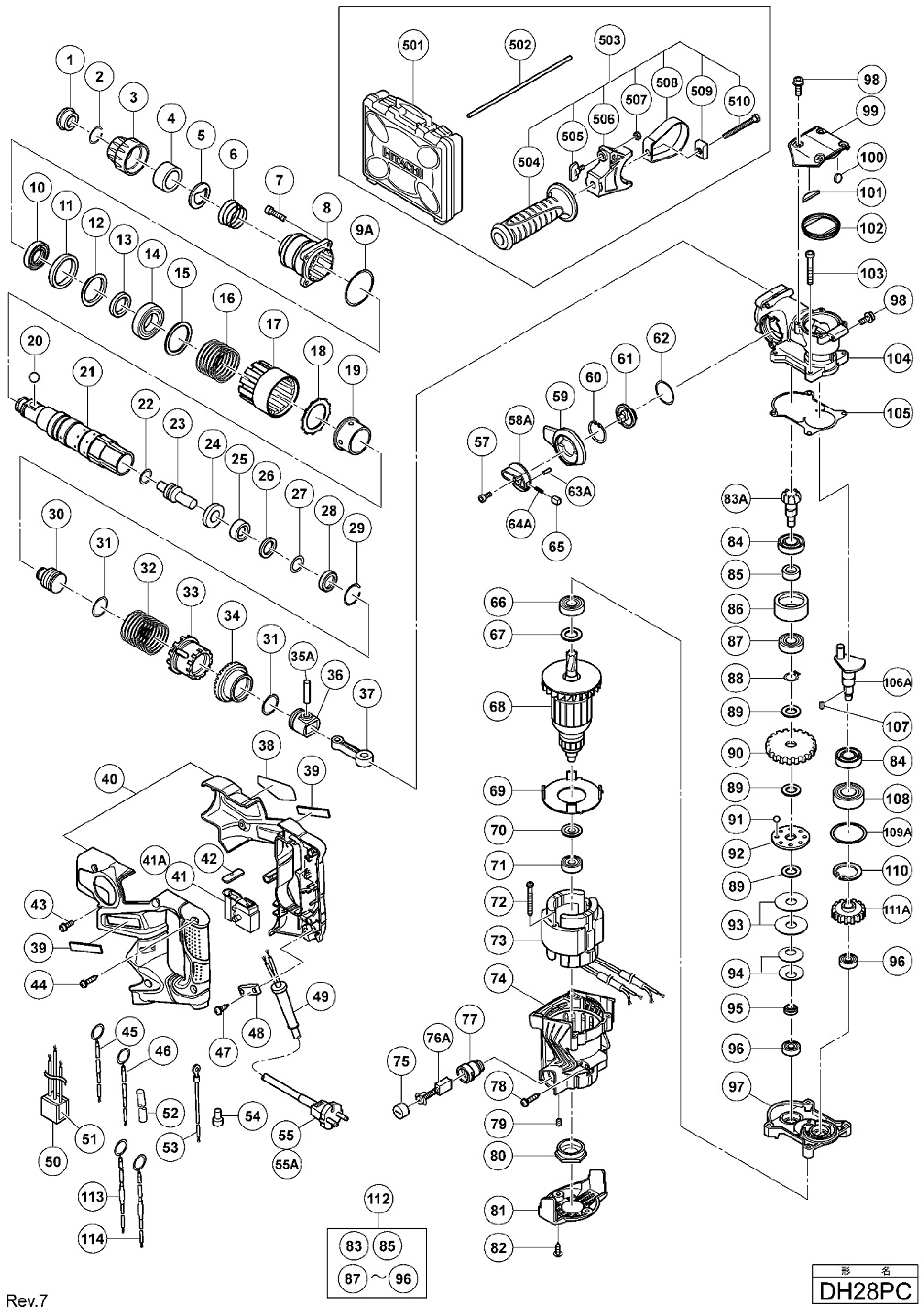

In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
| Hammer DH28PC | ||
| # | Part Num. | Description |
| 1 | 306345 | FRONT CAP |
| 2 | 306340 | STOPPER RING |
| 3 | 324527 | GRIP |
| 4 | 330192 | BALL HOLDER |
| 5 | 324526 | HOLDER PLATE |
| 6 | 330191 | HOLDER SPRING |
| 8 | 330174 | CYLINDER CASE |
| 9A | 334370 | O-RING (I.D 49.5) |
| 10 | 328867 | OIL SEAL |
| 11 | 330175 | DAMPER (A) |
| 12 | 330184 | DAMPER WASHER (B) |
| 13 | 304020 | FELT PACKING (A) |
| 14 | 6905DD | BALL BEARING 6905DDUCMNS7S |
| 15 | 330176 | WASHER (A) |
| 16 | 330177 | LOCK SPRING |
| 17 | 330178 | LOCK SLEEVE |
| 18 | 330179 | WASHER (B) |
| 19 | 330187 | SLIDE SLEEVE |
| 20 | 959156 | STEEL BALL D7.0 |
| 21 | 330180 | CYLINDER |
| 22 | 323058 | O-RING (C) |
| 23 | 330181 | SECOND HAMMER |
| 24 | 330182 | DAMPER WASHER |
| 25 | 330183 | DAMPER (B) |
| 26 | 331672 | DAMPER HOLDER (A) |
| 27 | 330186 | O-RING (A) |
| 28 | 331673 | DAMPER HOLDER (B) |
| 29 | 323062 | STOPPER RING |
| 30 | 330185 | STRIKER |
| 31 | 319577 | O-RING (I.D 19.2) |
| 32 | 330188 | CLUTCH SPRING |
| 33 | 330189 | CLUTCH |
| 34 | 330190 | BEVEL GEAR |
| 35A | 330173 | PISTON PIN |
| 36 | 330172 | PISTON |
| 37 | 319585 | CONNECTING ROD |
| 40 | 330256 | HANDLE (A).(B) SET |
| 41 | 331677 | SWITCH |
| 42 | 322853 | PUSHING BUTTON |
| 45 | 330254 | INTERNAL WIRE 18AWGX300L (BLUE) |
| 46 | 330255 | INTERNAL WIRE 18AWGX300L(BROWN) |
| 48 | 960266 | CORD CLIP |
| 49 | 953327 | CORD ARMOR D8.8 |
| 49 | 940778 | CORD ARMOR D10.7 |
| 50 | 317492 | SUPPORT (B) |
| 51 | 325566 | NOISE SUPPRESSOR |
| 52 | 321322 | VINYL TUBE L35 |
| 58A | 331545 | CHANGE LEVER |
| 59 | 330207 | LEVER HOLDER |
| 60 | 939556 | RETAINING RING FOR D35 HOLE |
| 61 | 330206 | LEVER SHAFT |
| 62 | 330205 | O-RING |
| 63A | 331548 | PIN D2X10 |
| 64A | 331546 | LEVER SPRING |
| 65 | 321311 | PUSHING BUTTON |
| 66 | 6001DD | BALL BEARING 6001DDCMPS2L |
| 67 | 971736 | WASHER (B) |
| 68 | 360857E | ARMATURE 220V-230V |
| 69 | 330202 | FAN GUIDE |
| 70 | 982631 | WASHER (A) |
| 71 | 608VVM | BALL BEARING 608VVC2PS2L |
| 73 | 340739E | STATOR 220V-230V |
| 74 | 330201 | HOUSING ASS'Y |
| 75 | 935829 | BRUSH CAP |
| 76A | 999004 | CARBON BRUSH 7X11X17 (1 PAIR) |
| 77 | 957051 | BRUSH HOLDER |
| 80 | 310111 | BEARING BUSHING (B) |
| 81 | 330203 | TAIL COVER |
| 82 | 307811 | TAPPING SCREW (W/FLANGE) D4X16 (BLACK) |
| 83A | 330196 | BEVEL PINION |
| 84 | 981851 | OIL SEAL (B) |
| 85 | 330197 | COLLAR |
| 86 | 330194 | SLEEVE |
| 87 | 6001DD | BALL BEARING 6001DDCMPS2L |
| 88 | 939542 | RETAINING RING FOR D12 SHAFT |
| 89 | 992503 | WASHER |
| 90 | 330198 | SECOND GEAR |
| 91 | 959155 | STEEL BALL D3.97 |
| 92 | 992916 | CLUTCH PLATE |
| 93 | 992926 | SPRING PLATE |
| 94 | 980877 | BELLEVILLE SPRING |
| 95 | 330199 | BUSHING |
| 96 | 608VVM | BALL BEARING 608VVC2PS2L |
| 97 | 330200 | GEAR COVER |
| 99 | 330204 | CRANK COVER |
| 100 | 324544 | FELT PACKING (B) |
| 101 | 331674 | FELT PACKING |
| 102 | 331675 | RUBBER SEAL |
| 104 | 330169 | CRANK CASE |
| 105 | 331676 | SEAL PACKING |
| 106A | 330170 | CRANK SHAFT |
| 107 | 944109 | FEATHER KEY 3X3X8 |
| 108 | 6002DD | BALL BEARING 6002DDCMPS2L |
| 109A | 334369 | O-RING (I.D 31.5) |
| 110 | 948001 | RETAINING RING FOR D32 HOLE |
| 111A | 330171 | FIRST GEAR |
| 112 | 330195 | SLIP CLUTCH ASS'Y |
| 503 | 330208 | SIDE HANDLE ASS'Y |
| 504 | 330209 | SIDE HANDLE |
| 505 | 307947 | WING BOLT M6X12 |
| 507 | 949556 | NUT M6 (10 PCS.) |
| 618 | 981122 | SPECIAL SCREW M6X22 |
| 628 | 980927 | GREASE FOR HAMMER DRILL (500G) |
| 629 | 981840 | GREASE (A) FOR HAMMER DRILL (30G) |
| 630 | 308471 | GREASE FOR HAMMER DRILL (70G) |
| 698 | 948310 | RETAINING RING FOR D30 SHAFT |
| 700 | 959150 | STEEL BALL D6.35 (10 PCS.) |
