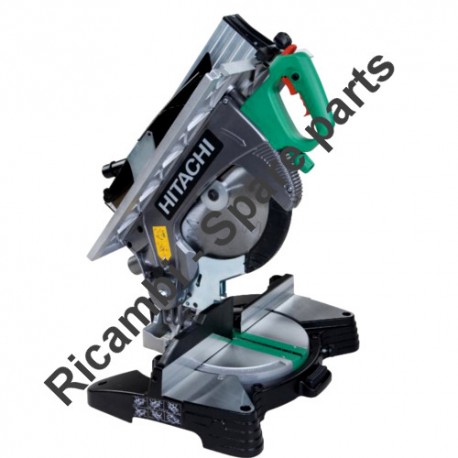

Hitachi Spare Parts for Mitre Saw C12YA

SKU: Hitachi C12YA
€11.64
VAT included

Hitachi Spare Parts for Mitre Saw C12YA

We have the original Spares Hitachi-HIKOKI for Mitre Saw C12YA the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Mitre Saw C12YA. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Hitachi Spare Parts for Mitre Saw C12YA
  • On sale!
  • Hitachi Spare Parts for Mitre Saw C12YA
  • Hitachi Spare Parts for Mitre Saw C12YA
  • Hitachi Spare Parts for Mitre Saw C12YA
  • Hitachi Spare Parts for Mitre Saw C12YA
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Mitre Saw C12YA

SKU: Hitachi C12YA Condition: New
€11.64
VAT included

Hitachi Spare Parts for Mitre Saw C12YA

We have the original Spares Hitachi-HIKOKI for Mitre Saw C12YA the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Mitre Saw C12YA. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 79 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
79 spare parts

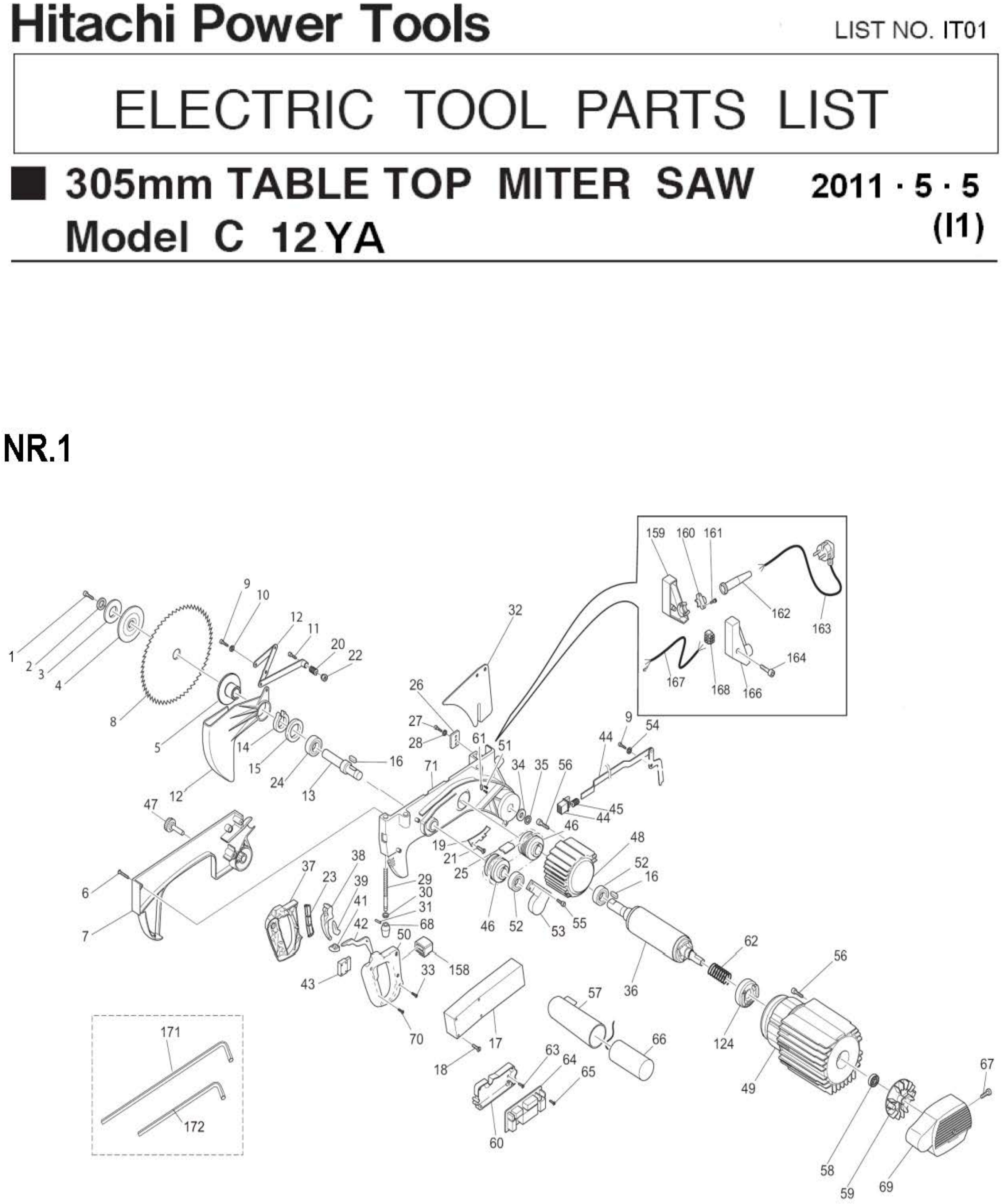

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 332226 SOCKET HEAD SCREW €4.87
2
 photo_cameraImage coming soon 332237 WASHER €3.01
3
 photo_cameraImage coming soon 332248 WASHER €3.54
4
 photo_cameraImage coming soon 332258 WHEEL FLANGE €15.70
5
 photo_cameraImage coming soon 332269 WHEEL FLANGE €27.81
11
 photo_cameraImage coming soon 332228 PROTECTION LOCKING PIN €10.71
12
 LEVER AND PROTECTION GROUP C12YA 332229 LEVER AND PROTECTION GROUP C12YA €23.69
13
 photo_cameraImage coming soon 332230 SHAFT €25.77
19
 photo_cameraImage coming soon 332236 CABLE PROTECTION €5.03
20
 photo_cameraImage coming soon 332238 SPRING €5.69
22
 photo_cameraImage coming soon 332240 NUT €7.37
23
 photo_cameraImage coming soon 332399 KNOB €8.89
25
 photo_cameraImage coming soon 332243 BELT €33.44
29
 photo_cameraImage coming soon 332247 ROLL SHAFT €23.10
30
 photo_cameraImage coming soon 332333 ELASTIC SPIN €1.68
31
 photo_cameraImage coming soon 332250 PIN €14.81
36
 photo_cameraImage coming soon 332254 ROTOR €85.54
37
 photo_cameraImage coming soon 332255 LEFT HALF HANDLE €12.06
38
 photo_cameraImage coming soon 332256 SAFETY BUTTON €4.87
39
 photo_cameraImage coming soon 332257 SAFETY BUTTON €4.69
40
 photo_cameraImage coming soon 332259 HEADLESS SCREW €14.81
41
 photo_cameraImage coming soon 332260 RELEASE BUTTON €4.87
42
 photo_cameraImage coming soon 332261 LEVER €5.03
43
 photo_cameraImage coming soon 332262 SWITCH €12.58
44
 photo_cameraImage coming soon 332263 HEAD RELEASE LEVER GROUP €19.26
45
 photo_cameraImage coming soon 332264 SPRING €5.69
46
 photo_cameraImage coming soon 332265 GEAR WHEEL €19.10
47
 photo_cameraImage coming soon 332266 KNOB €8.90
48
 photo_cameraImage coming soon 332267 MOTOR SUPPORT €46.02
50
 photo_cameraImage coming soon 332270 RIGHT HALF HANDLE €12.06
57
 photo_cameraImage coming soon 332277 CONDENSATOR COVER €14.06
59
 photo_cameraImage coming soon 332279 MOTOR FAN €6.03
60
 photo_cameraImage coming soon 332281 ELECTRONIC BOX €2.86
62
 photo_cameraImage coming soon 332283 STATOR L3410 €111.67
64
 photo_cameraImage coming soon 332285 ELECTRONIC CARD €43.22
66
 photo_cameraImage coming soon 332286 CONDENSATOR €20.14
68
 photo_cameraImage coming soon 332288 ADJUSTING HANDWHEEL €4.87
69
 photo_cameraImage coming soon 332289 MOTOR COVER €9.04
71
 photo_cameraImage coming soon 332292 RIGHT SAW COVER €95.19
72
 photo_cameraImage coming soon 332349 CABLE LOCKING DEVICE (OLD 332293) €14.25
76
 Upper Protection for Wood Mitre Saw Hitachi C12YA 332362 Upper Protection for Wood Mitre Saw Hitachi C12YA €21.21
78
 photo_cameraImage coming soon 332364 ADJUSTING HANDWHEEL €4.53
79
 photo_cameraImage coming soon 332365 SPRING €6.21
80
 photo_cameraImage coming soon 332366 WASHER €2.68
84
 photo_cameraImage coming soon 332368 UPPER TABLE FRONT GUIDE €25.31
85
 Stainless Steel Ball 3.5 mm for Mitre Saw Hitachi C12YA 332350 Stainless Steel Ball 3.5 mm for Mitre Saw Hitachi C12YA €4.41
93
 photo_cameraImage coming soon 332351 GUIDE €10.05
98
 photo_cameraImage coming soon 332353 UPPER TABLE €61.76
100
 photo_cameraImage coming soon 332355 GUIDE €9.23
102
 photo_cameraImage coming soon 332357 LOWER PROTECTION €9.71
103
 photo_cameraImage coming soon 332358 SHEET BRACKET €7.04
104
 Wing Nut for Mitre Saw Hitachi C12YA 332359 Wing Nut for Mitre Saw Hitachi C12YA €9.58
109
 photo_cameraImage coming soon 332340 RING €6.89
110
 photo_cameraImage coming soon 332345 SPRING €36.70
111
 photo_cameraImage coming soon 332346 RIGHT PROTECTION €22.06
113
 photo_cameraImage coming soon 332348 HAND LEVER €10.71
114
 photo_cameraImage coming soon 332297 SPACER €8.03
115
 photo_cameraImage coming soon 332298 TIE ROD €8.03
117
 photo_cameraImage coming soon 332219 GUARD €8.37
118
 photo_cameraImage coming soon 332300 BASE €139.31
122
 photo_cameraImage coming soon 332304 GRADUATE PLATE €8.89
123
 photo_cameraImage coming soon 332305 ANGULAR BRACKET €7.21
124
 photo_cameraImage coming soon 332306 THICKNESS WASHER €2.02
125
 photo_cameraImage coming soon 332308 WING NUT €6.89
129
 photo_cameraImage coming soon 332312 SWIVEL SUPPORT PIN €10.71
130
 photo_cameraImage coming soon 332313 LEVER €6.70
131
 photo_cameraImage coming soon 332314 SLIDING BRACKET €10.90
132
 photo_cameraImage coming soon 332315 RUBBER SUPPORT €2.19
134
 photo_cameraImage coming soon 332317 PLASTIC COVER €4.36
138
 photo_cameraImage coming soon 332322 BASE EXTENSION €18.95
140
 photo_cameraImage coming soon 332324 SUPPORT COVER €9.38
143
 photo_cameraImage coming soon 332327 HEADLESS SCREW €1.68
146
 photo_cameraImage coming soon 332331 LEFT PROTECTION €14.81
148
 photo_cameraImage coming soon 332333 ELASTIC SPIN €1.68
149
 photo_cameraImage coming soon 332334 JOINT SHAFT €9.23
152
 photo_cameraImage coming soon 332337 SHAFT €17.91
157
 photo_cameraImage coming soon 332343 JOINT-SHAFT GROUP €58.15
169
 photo_cameraImage coming soon 332361 COMPLETE UPPER GUIDE €74.87
173
 photo_cameraImage coming soon 332220 PUSH STICK €14.58
174
 photo_cameraImage coming soon 332380 SNAP RING €4.21

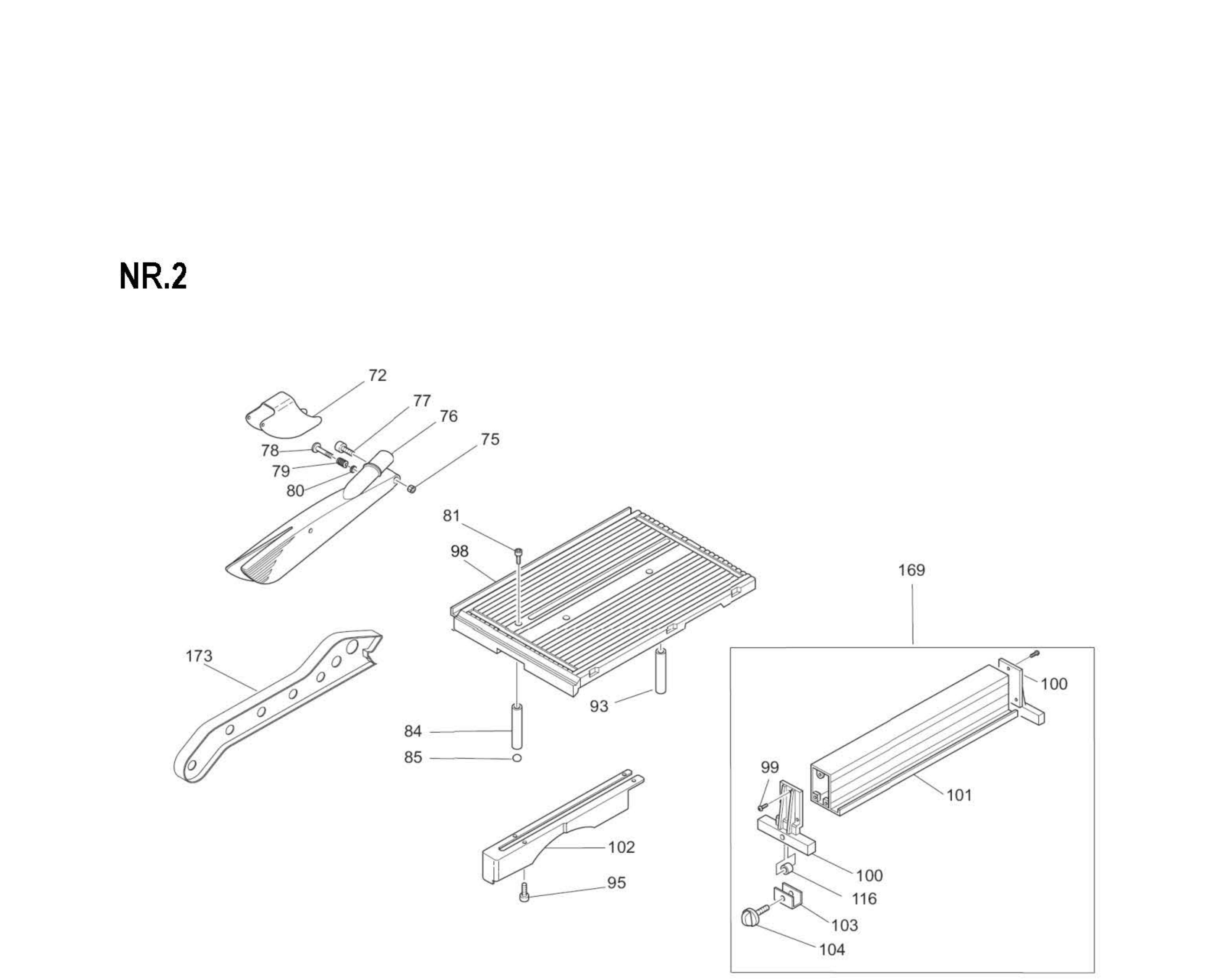

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
72
 photo_cameraImage coming soon 332349 CABLE LOCKING DEVICE (OLD 332293) €14.25
76
 Upper Protection for Wood Mitre Saw Hitachi C12YA 332362 Upper Protection for Wood Mitre Saw Hitachi C12YA €21.21
78
 photo_cameraImage coming soon 332364 ADJUSTING HANDWHEEL €4.53
79
 photo_cameraImage coming soon 332365 SPRING €6.21
80
 photo_cameraImage coming soon 332366 WASHER €2.68
84
 photo_cameraImage coming soon 332368 UPPER TABLE FRONT GUIDE €25.31
85
 Stainless Steel Ball 3.5 mm for Mitre Saw Hitachi C12YA 332350 Stainless Steel Ball 3.5 mm for Mitre Saw Hitachi C12YA €4.41
93
 photo_cameraImage coming soon 332351 GUIDE €10.05
98
 photo_cameraImage coming soon 332353 UPPER TABLE €61.76
100
 photo_cameraImage coming soon 332355 GUIDE €9.23
102
 photo_cameraImage coming soon 332357 LOWER PROTECTION €9.71
103
 photo_cameraImage coming soon 332358 SHEET BRACKET €7.04
104
 Wing Nut for Mitre Saw Hitachi C12YA 332359 Wing Nut for Mitre Saw Hitachi C12YA €9.58
169
 photo_cameraImage coming soon 332361 COMPLETE UPPER GUIDE €74.87
173
 photo_cameraImage coming soon 332220 PUSH STICK €14.58

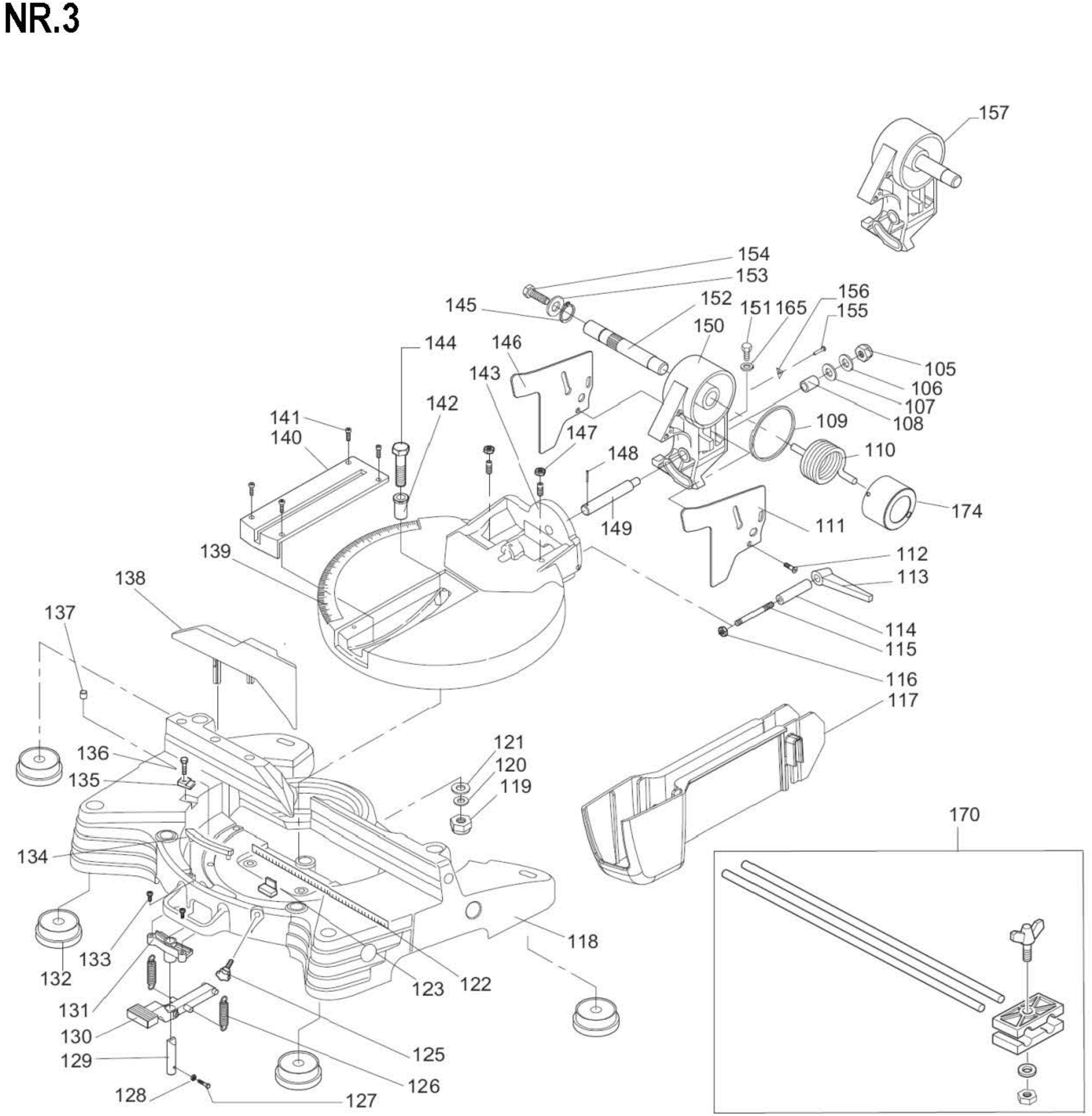

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
109
 photo_cameraImage coming soon 332340 RING €6.89
110
 photo_cameraImage coming soon 332345 SPRING €36.70
111
 photo_cameraImage coming soon 332346 RIGHT PROTECTION €22.06
113
 photo_cameraImage coming soon 332348 HAND LEVER €10.71
114
 photo_cameraImage coming soon 332297 SPACER €8.03
115
 photo_cameraImage coming soon 332298 TIE ROD €8.03
117
 photo_cameraImage coming soon 332219 GUARD €8.37
118
 photo_cameraImage coming soon 332300 BASE €139.31
122
 photo_cameraImage coming soon 332304 GRADUATE PLATE €8.89
123
 photo_cameraImage coming soon 332305 ANGULAR BRACKET €7.21
125
 photo_cameraImage coming soon 332308 WING NUT €6.89
129
 photo_cameraImage coming soon 332312 SWIVEL SUPPORT PIN €10.71
130
 photo_cameraImage coming soon 332313 LEVER €6.70
131
 photo_cameraImage coming soon 332314 SLIDING BRACKET €10.90
132
 photo_cameraImage coming soon 332315 RUBBER SUPPORT €2.19
134
 photo_cameraImage coming soon 332317 PLASTIC COVER €4.36
138
 photo_cameraImage coming soon 332322 BASE EXTENSION €18.95
140
 photo_cameraImage coming soon 332324 SUPPORT COVER €9.38
143
 photo_cameraImage coming soon 332327 HEADLESS SCREW €1.68
146
 photo_cameraImage coming soon 332331 LEFT PROTECTION €14.81
149
 photo_cameraImage coming soon 332334 JOINT SHAFT €9.23
152
 photo_cameraImage coming soon 332337 SHAFT €17.91
157
 photo_cameraImage coming soon 332343 JOINT-SHAFT GROUP €58.15
174
 photo_cameraImage coming soon 332380 SNAP RING €4.21

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Mitre Saw C12YA

We have the original Spares Hitachi-HIKOKI for Mitre Saw C12YA the diagram, parts list and tool repair that help you need to get your tools running like new again.

In the following table, look for the model of the Cordless Drill and the respective parts of the code.
Hitachi C12YA

Mitre Saw C12YA
# Part Num. Description
1 332226 SOCKET HEAD SCREW
2 332237 WASHER
3 332248 WASHER
4 332258 WHEEL FLANGE
5 332269 WHEEL FLANGE
11 332228 PROTECTION LOCKING PIN
12 332229 LEVER AND PROTECTION GROUP
13 332230 SHAFT
19 332236 CABLE PROTECTION
20 332238 SPRING
22 332240 NUT
23 332399 KNOB
25 332243 BELT
29 332247 ROLL SHAFT
30 332333 ELASTIC SPIN
31 332250 PIN
36 332254 ROTOR
37 332255 LEFT HALF HANDLE
38 332256 SAFETY BUTTON
39 332257 SAFETY BUTTON
40 332259 HEADLESS SCREW
41 332260 RELEASE BUTTON
42 332261 LEVER
43 332262 SWITCH
44 332263 HEAD RELEASE LEVER GROUP
45 332264 SPRING
46 332265 GEAR WHEEL
47 332266 KNOB
48 332267 MOTOR SUPPORT
50 332270 RIGHT HALF HANDLE
57 332277 CONDENSATOR COVER
59 332279 MOTOR FAN
60 332281 ELECTRONIC BOX
62 332283 SPRING
64 332285 ELECTRONIC CARD
66 332286 CONDENSATOR
68 332288 ADJUSTING HANDWHEEL
69 332289 MOTOR COVER
71 332292 RIGHT SAW COVER
72 332349 CABLE LOCKING DEVICE (OLD 332293)
76 332362 UPPER PROTECTION
78 332364 ADJUSTING HANDWHEEL
79 332365 SPRING
80 332366 WASHER
84 332368 UPPER TABLE FRONT GUIDE
85 332350 BALL
93 332351 GUIDE
98 332353 UPPER TABLE
100 332355 GUIDE
102 332357 LOWER PROTECTION
103 332358 SHEET BRACKET
104 332359 WING NUT
109 332340 RING
110 332345 SPRING
111 332346 RIGHT PROTECTION
113 332348 HAND LEVER
114 332297 SPACER
115 332298 TIE ROD
117 332219 GUARD
118 332300 BASE
122 332304 GRADUATE PLATE
123 332305 ANGULAR BRACKET
124 332306 THICKNESS WASHER
125 332308 WING NUT
129 332312 SWIVEL SUPPORT PIN
130 332313 LEVER
131 332314 SLIDING BRACKET
132 332315 RUBBER SUPPORT
134 332317 PLASTIC COVER
138 332322 BASE EXTENSION
140 332324 SUPPORT COVER
143 332327 HEADLESS SCREW
146 332331 LEFT PROTECTION
148 332333 ELASTIC SPIN
149 332334 JOINT SHAFT
152 332337 SHAFT
157 332343 JOINT-SHAFT GROUP
169 332361 COMPLETE UPPER GUIDE
173 332220 PUSH STICK
174 332380 SNAP RING
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi C12YA
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi C12YA

Diagram Hitachi C12YA

Download (395.72KB)

You might also like

Mitre Saw 12" with Upper Bench HITACHI C12YA
HiKOKI Power Tools Italia S.p.a. SKU: C12YA
Mitre Saw 12" with Upper Bench HITACHI C12YA
Mitre Saw 12" with Upper Bench HITACHI C12YA Mitre saw for wood with upper floor. composite cutting capacity characterized by a high range of combinations. Equipped with induction motor 1500W super quiet and does not require any...
Out-of-Stock €1,108.01
Details
Guide for Radial Mitre Saw Hitachi C 12RSH Sale
HiKOKI Power Tools Italia S.p.a. SKU: 332359
Wing Nut for Mitre Saw Hitachi C12YA
Wing Nut for Mitre Saw Hitachi C12YA Genuine parts Hitachi, Wing Nut for Mitre Saw Hitachi C12YA. Part for the following items: - Mitre Saw Hitachi C12YA - Code: 332359
AVAILABLE €9.58
Details
Upper Protection for Wood Mitre Saw Hitachi C12YA
HiKOKI Power Tools Italia S.p.a. SKU: 332362
Upper Protection for Wood Mitre Saw Hitachi C12YA
Upper Protection for Wood Mitre Saw Hitachi C12YA Original spare part Hitachi, Upper Protection for Wood Mitre Saw Hitachi C12YA. Part for the following products: - Wood Mitre Saw Hitachi C12YA - Code : 332362
Usually Ships in: 7/10 Business Days Approx. €21.21
Details
Comments (0)
