Hitachi Spare Parts for Rotary Hammer DH24PB3

SKU: Hitachi DH24PB3 Condition: New
€1.33
VAT included

Hitachi Spare Parts for Rotary Hammer DH24PB3

Hitachi-HIKOKI Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer DH 24PB3.
settings 84 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
84 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

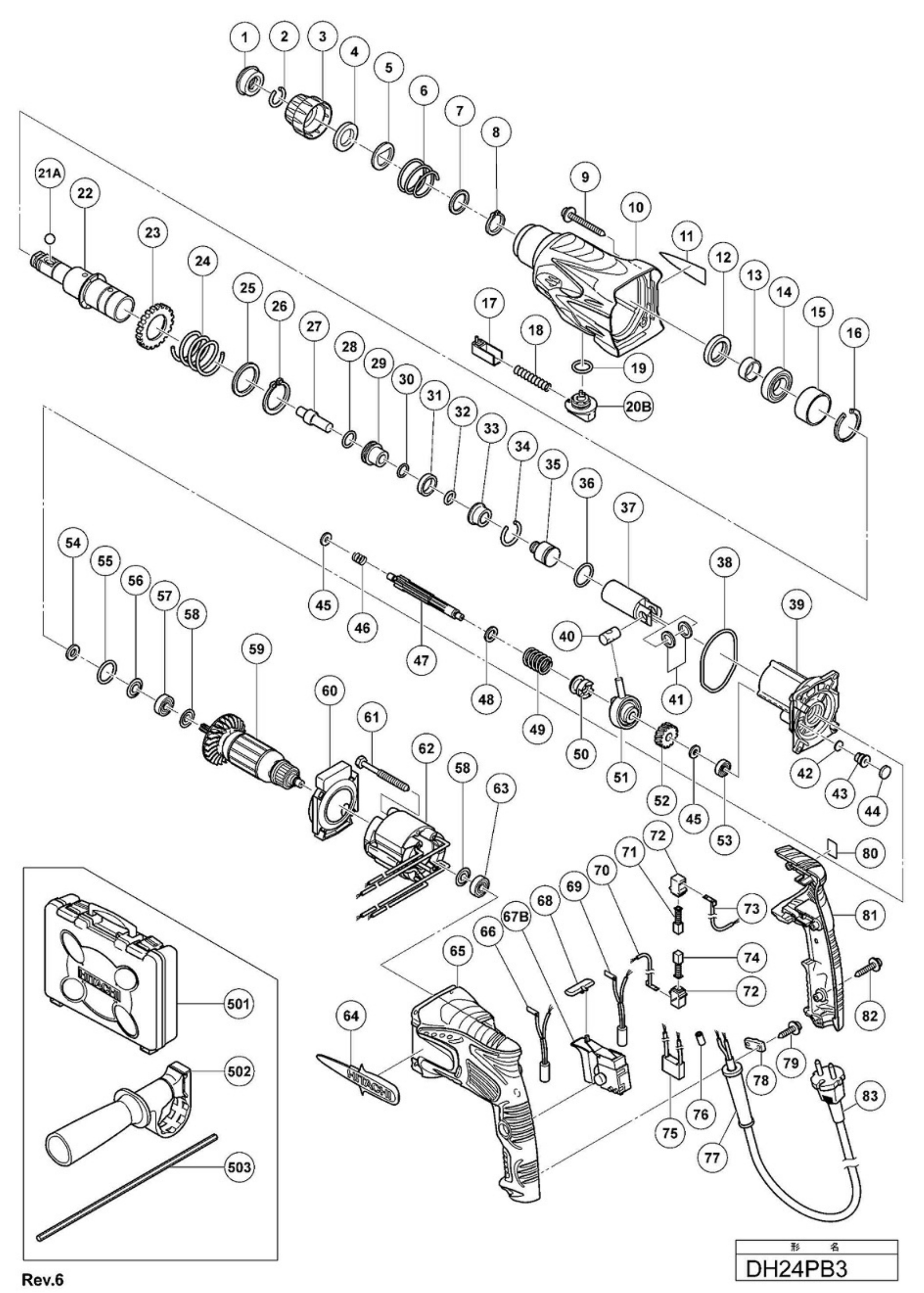

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Front Cap for Rotary Hammers Hitachi DH22/28 306345 Front Cap for Rotary Hammers Hitachi DH22/28 €4.18
2
 Stopper Ring for Hammers Hitachi 306340 Stopper Ring for Hammers Hitachi €2.08
3
 photo_cameraImage coming soon 324527 GRIP €3.78
4
 photo_cameraImage coming soon 324528 BALL HOLDER €7.34
5
 photo_cameraImage coming soon 324526 Support Thrust Dh24dva €1.46
6
 photo_cameraImage coming soon 322812 Spring Gate Punta €2.05
7
 photo_cameraImage coming soon 984118 WASHER (B) €1.30
8
 photo_cameraImage coming soon 939547 RETAINING RING FOR D20 SHAFT €5.65
10
 photo_cameraImage coming soon 324546 GEAR COVER €71.01
12
 photo_cameraImage coming soon 307688 OIL SEAL €5.10
13
 photo_cameraImage coming soon 322815 SLEEVE €1.99
14
 photo_cameraImage coming soon 6904DD BALL BEARING 6904DDPS2L €23.92
15
 photo_cameraImage coming soon 324522 SLEEVE (A) €3.68
16
 photo_cameraImage coming soon 322813 RETAINING RING 37MM €1.99
17
 photo_cameraImage coming soon 324530 PUSHING BUTTON €1.82
18
 photo_cameraImage coming soon 317223 PUSHING SPRING €2.22
19
 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 878885 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 €1.34
20B
 photo_cameraImage coming soon 322787 CHANGE LEVER €7.55
21A
 Steel Ball 7 mm for Hammers Hitachi DH24-26-28 335300 Steel Ball 7 mm for Hammers Hitachi DH24-26-28 €3.48
22
 photo_cameraImage coming soon 322814 CYLINDER €71.68
23
 photo_cameraImage coming soon 301677 SECOND GEAR €29.15
24
 photo_cameraImage coming soon 301678 SPRING (A) €4.12
25
 photo_cameraImage coming soon 301679 WASHER (A) €2.18
26
 photo_cameraImage coming soon 948310 RETAINING RING FOR D30 SHAFT €1.71
27
 photo_cameraImage coming soon 324525 SECOND HAMMER €7.34
28
 O-Ring 1 AP-20 for Rotary Hammer Hitachi DH24PB3 944486 O-Ring 1 AP-20 for Rotary Hammer Hitachi DH24PB3 €1.41
29
 photo_cameraImage coming soon 324523 HAMMER HOLDER €13.24
30
 photo_cameraImage coming soon 322802 O-RING (B) €3.86
31
 photo_cameraImage coming soon 322805 DAMPER (A) €2.05
32
 photo_cameraImage coming soon 322808 O-RING (C) €2.02
33
 photo_cameraImage coming soon 324524 DAMPER HOLDER €7.80
34
 photo_cameraImage coming soon 322807 STOPPER RING €2.05
35
 Striker for Cordless Hammers Hitachi DH36DL-DH36DAL 324535 Striker for Cordless Hammers Hitachi DH36DL-DH36DAL €12.42
36
 photo_cameraImage coming soon 322834 BACK PANEL €3.86
37
 Piston for Cordless Rotary Hammers Hitachi DH25DAL-DH36DAL 324534 Piston for Cordless Rotary Hammers Hitachi DH25DAL-DH36DAL €21.58
38
 photo_cameraImage coming soon 322793 O-RING (I.D. 66.5) €12.01
39
 photo_cameraImage coming soon 324542 INNER COVER ASS'Y €39.20
40
 photo_cameraImage coming soon 322798 PISTON PIN €2.52
41
 photo_cameraImage coming soon 322799 WASHER (C) €7.66
42
 photo_cameraImage coming soon 324543 In Dh24pb3 Felt Gasket-Pc3 €2.05
43
 photo_cameraImage coming soon 324545 Valve Dh24pb3-Pc3 €1.82
44
 photo_cameraImage coming soon 324544 Felt Dh24pb3-Pc3-Pd3 €1.87
45
 photo_cameraImage coming soon 322795 SPACER €1.99
46
 photo_cameraImage coming soon 322796 SPRING (B) €15.01
47
 photo_cameraImage coming soon 322794 SECOND SHAFT €21.21
48
 photo_cameraImage coming soon 301659 WASHER (B) €1.30
49
 Clutch Spring for Rotative Hammer Hitachi DH24PB3 301660 Clutch Spring for Rotative Hammer Hitachi DH24PB3 €2.08
50
 photo_cameraImage coming soon 324532 CLUTCH €13.24
51
 photo_cameraImage coming soon 324533 RECIPROCATING BEARING €42.44
52
 photo_cameraImage coming soon 322797 FIRST GEAR €15.75
53
 photo_cameraImage coming soon 626VVM BALL BEARING 626VVC2PS2L €5.14
54
 photo_cameraImage coming soon 322816 FELT PACKING €2.05
55
 photo_cameraImage coming soon 876796 O-RING (P-22) €1.33
56
 Packing Washer for Rotary Hammer Hitachi DH24PB3 322818 Packing Washer for Rotary Hammer Hitachi DH24PB3 €4.09
57
 photo_cameraImage coming soon 608DDM BALL BEARING 608DDC2PS2L €7.07
58
 Dust Washer for Demolition Hammer Hitachi H45MRY 982631 Dust Washer for Demolition Hammer Hitachi H45MRY €1.34
59
 Armature for Rotary Hammer Hitachi DH24PB3 360720E Armature for Rotary Hammer Hitachi DH24PB3 €54.00
60
 photo_cameraImage coming soon 324531 PULLEY X LRP 1503 VRA €79.91
62
 photo_cameraImage coming soon 340635E STATOR 220V-230V €68.60
63
 photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
65
 Left Housing for Rotary Hammer Hitachi DH24PB3 324553 Left Housing for Rotary Hammer Hitachi DH24PB3 €31.29
66
 photo_cameraImage coming soon 324549 CHOKE COIL (A) BROWN €13.24
67B
 Switch for Rotary Hammers Hitachi DH22-24-26-28 335796 Switch for Rotary Hammers Hitachi DH22-24-26-28 €23.45
68
 Pusching Button for Drills Hitachi DV16-18V-DV20VB2 322853 Pusching Button for Drills Hitachi DV16-18V-DV20VB2 €2.78
69
 photo_cameraImage coming soon 324551 CHOKE COIL (A) BLUE €13.24
70
 photo_cameraImage coming soon 324538 INTERNAL WIRE (A) (BLUE) €5.48
71
 Carbon Brushes for Sanders Hitachi SV12-13 999041 Carbon Brushes for Sanders Hitachi SV12-13 €9.62
72
 Brush Holder for Demolition Hammer Hitachi DH28PCY 955203 Brush Holder for Demolition Hammer Hitachi DH28PCY €4.39
73
 photo_cameraImage coming soon 324537 Internal Cable Brown Dh24pb3 €5.48
74
 Carbon Brushes for Rotary Hammer Hitachi DH24PB3 999072 Carbon Brushes for Rotary Hammer Hitachi DH24PB3 €18.01
75
 Noise Suppressor Hitachi GP 10 930039 Noise Suppressor Hitachi GP 10 €4.04
76
 photo_cameraImage coming soon 981373 TUBE (D) €1.37
77
 Cord Armor D.10.1 for Hitachi Power Tools 938051 Cord Armor D.10.1 for Hitachi Power Tools €1.34
77
 Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.37
78
 photo_cameraImage coming soon 937631 CORD CLIP €1.37
81
 Right Handle Cover for Rotary Hammer Hitachi DH24PB3 324554 Right Handle Cover for Rotary Hammer Hitachi DH24PB3 €18.53
502
 photo_cameraImage coming soon 324548 Lateral grip €17.67
503
 photo_cameraImage coming soon 303709 delimiter Depth €1.75
601
 photo_cameraImage coming soon 981840 GREASE 30 GR €10.98
602
 photo_cameraImage coming soon 308471 GREASE 70 GR €19.79
603
 photo_cameraImage coming soon 980927 GREASE 500 GR €84.44
608
 photo_cameraImage coming soon 948310 RETAINING RING FOR D30 SHAFT €1.71
610
 Steel Ball 6,35 mm for Hammers Hitachi 959150 Steel Ball 6,35 mm for Hammers Hitachi €3.48
674
 photo_cameraImage coming soon 981122 SPECIAL SCREW M6X22 €1.75
684
 photo_cameraImage coming soon 326305 SERVICE KIT (DH 24PB3,ETC.) €58.83

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Rotary Hammer DH24PB3

Hitachi-HIKOKI Original spare parts

 at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer DH 24PB3.

In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
Hitachi DH24PB3

Rotary Hammer DH 24PB3
# Part Num. Description
1 306345 FRONT CAP
2 306340 STOPPER RING
3 324527 GRIP
4 324528 BALL HOLDER
5 324526 HOLDER PLATE
6 322812 HOLDER SPRING
7 984118 WASHER (B)
8 939547 RETAINING RING FOR D20 SHAFT
10 324546 GEAR COVER
12 307688 OIL SEAL
13 322815 SLEEVE
14 6904DD BALL BEARING 6904DDPS2L
15 324522 SLEEVE (A)
16 322813 RETAINING RING 37MM
17 324530 PUSHING BUTTON
18 317223 PUSHING SPRING
19 878885 O-RING (S-18)
20B 322787 CHANGE LEVER
21A 335300 STEEL BALL D7.0
22 322814 CYLINDER
23 301677 SECOND GEAR
24 301678 SPRING (A)
25 301679 WASHER (A)
26 948310 RETAINING RING FOR D30 SHAFT
27 324525 SECOND HAMMER
28 944486 O-RING (1AP-20)
29 324523 HAMMER HOLDER
30 322802 O-RING (B)
31 322805 DAMPER (A)
32 322808 O-RING (C)
33 324524 DAMPER HOLDER
34 322807 STOPPER RING
35 324535 STRIKER
36 322834 O-RING (I.D. 16)
37 324534 PISTON
38 322793 O-RING (I.D. 66.5)
39 324542 INNER COVER ASS'Y
40 322798 PISTON PIN
41 322799 WASHER (C)
42 324543 FELT PACKING (A)
43 324545 VALVE
44 324544 FELT PACKING (B)
45 322795 SPACER
46 322796 SPRING (B)
47 322794 SECOND SHAFT
48 301659 WASHER (B)
49 301660 CLUTCH SPRING
50 324532 CLUTCH
51 324533 RECIPROCATING BEARING
52 322797 FIRST GEAR
53 626VVM BALL BEARING 626VVC2PS2L
54 322816 FELT PACKING
55 876796 O-RING (P-22)
56 322818 PACKING WASHER
57 608DDM BALL BEARING 608DD
58 982631 WASHER (A)
59 360720E ARMATURE ASSY 220V-230V
60 324531 FAN GUIDE
62 340635E STATOR 220V-230V
63 608VVM BALL BEARING 608VVC2PS2L
65 324553 HOUSING, LEFT
66 324549 CHOKE COIL (A) BROWN
67B 335796 SWITCH
68 322853 PUSHING BUTTON
69 324551 CHOKE COIL (A) BLUE
70 324538 INTERNAL WIRE (A) (BLUE)
71 999041 CARBON BRUSH (1 PAIR)
72 955203 BRUSH HOLDER
73 324537 INTERNAL WIRE (A) (BROWN)
74 999072 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
75 930039 NOISE SUPPRESSOR
75 930039 FILTER
76 981373 TUBE (D)
77 953327 CORD ARMOR D8.8
77 938051 CORD ARMOR D10.1
78 937631 CORD CLIP
81 324554 HANDLE COVER
502 324548 SIDE HANDLE
503 303709 DEPTH GAUGE
601 981840 GREASE (A) FOR HAMMER.HAMMER DRILL (30G)
602 308471 GREASE FOR HAMMER.HAMMER DRILL (70G)
603 980927 GREASE FOR HAMMER.HAMMER DRILL (500G)
608 948310 RETAINING RING FOR D30 SHAFT
610 959150 STEEL BALL D6.35
674 981122 SPECIAL SCREW M6X22
684 326305 SERVICE KIT (DH 24PB3,ETC.)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi DH24PB3
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi DH 24PB3

Diagram Hitachi DH 24PB3

Download (321.36KB)

You might also like

Switch for Rotary Hammers Hitachi DH22-24-26-28
HiKOKI Power Tools Italia S.p.a. SKU: 335796
Switch for Rotary Hammers Hitachi DH22-24-26-28
Switch for Rotary Hammers Hitachi DH22-24-26-28 Original spare parts Hitachi, Switch for Rotary Hammers Hitachi, DH22PG - DH24PB3 - DH24PG - DH26PG - DH28PCY - DH28PC. Parts for the following products: - Rotary Hammer Hitachi DH22PG -...
Last items in stock €23.45
Details
Steel Ball 7 mm for Hammers Hitachi DH24-26-28
HiKOKI Power Tools Italia S.p.a. SKU: 335300
Steel Ball 7 mm for Hammers Hitachi DH24-26-28
Steel Ball 7 mm for Hammers Hitachi DH24-26-28 Hitachi genuine parts, steel ball diameter MM 7, Box 10 Pcs for Demolition hammers and Drills Hammers, DH 24PG - 26PC DH - DH 28PCY - DH28PC. Suitable for the following items: - Drill...
AVAILABLE €3.48
Details
Rotary Hammer Hitachi DH28PC
HiKOKI Power Tools Italia S.p.a. SKU: DH28PC
Rotary Hammer Hitachi DH28PC
Rotary Hammer Hitachi DH28PC Characteristics Rotary hammer powerful and fast, reversible, with SDS-PLUS, equipped with safety clutch, electronic switch for speed control and manual switch to activate or exclude the 3 working modes:...
build View Spare Parts
Pusching Button for Drills Hitachi DV16-18V-DV20VB2
HiKOKI Power Tools Italia S.p.a. SKU: 322853
Pusching Button for Drills Hitachi DV16-18V-DV20VB2
Pusching Button for Drills Hitachi DV16-18V-DV20VB2 Original spare part HITACHI, Pusching Button for Percussion Drills Hitachi DV 16-18V - DV 20VB2. Part for the following products: - Percussion Drill DV16V - Percussion Drill DV...
AVAILABLE €2.78
Details
Stopper Ring for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 306340
Stopper Ring for Hammers Hitachi
Stopper Ring for Hammers Hitachi Genuine parts Hitachi, Stopper Ring for Hammers Hitachi. For the following items: - Hammer DH 28 PCY - Hammer DH 26PC - Hammer DH 24PG
AVAILABLE €2.08
Details
Front Cap for Rotary Hammers Hitachi DH22/28
HiKOKI Power Tools Italia S.p.a. SKU: 306345
Front Cap for Rotary Hammers Hitachi DH22/28
Front Cap for Rotary Hammers Hitachi DH22/28 Genuine part HITACHI, Front Cap for Rotary Hammers DH22PG - DH24PG - DH26PC - DH28PCY - DH14DSL - DH18DSL - DH25DL - DH25DAL - DH36DL - DH36DAL - DH28PD - DH24PB3 - DH28PC - DH28PFY.
Last items in stock €4.18
Details
Brush Holder for Demolition Hammer Hitachi DH28PCY
HiKOKI Power Tools Italia S.p.a. SKU: 955203
Brush Holder for Demolition Hammer Hitachi DH28PCY
Brush Holder for Demolition Hammer Hitachi DH28PCY Genuine Spare Part HITACHI, Brush Holder for Demolition Hammer Hitachi DH22PG - DH22PH - DH24PB3 - DH24PC3 - DH24PD3 - DH24PG - DH24PH - DH24PM - DH26PB - DH26PC - DH28PBY - DH28PCY -...
Usually Ships in: 7/10 Business Days Approx. €4.39
Details
Carbon Brushes for Rotary Hammer Hitachi DH24PB3
HiKOKI Power Tools Italia S.p.a. SKU: 999072
Carbon Brushes for Rotary Hammer Hitachi DH24PB3
Carbon Brushes for Rotary Hammer Hitachi DH24PB3 Genuine Spare Part Hitachi, Self-Locking Carbon Brushes for Rotary Hammers DH24PB3 - DH24PC3 - DH24PD3 - DH24PG - DH24PH - DH24PM...
on 7/10 Business Days Approx €18.01
Details
Armature for Rotary Hammer Hitachi DH24PB3
HiKOKI Power Tools Italia S.p.a. SKU: 360720E
Armature for Rotary Hammer Hitachi DH24PB3
Armature for Rotary Hammer Hitachi DH24PB3 Genuine Spare Part Hitachi, Armature 220V-230V Ass'y for Rotary Hammers DH24PB3 - DH24PC3 - DH24PM. Parts for the following products: - ...
Last items in stock €54.00
Details
Clutch Spring for Rotative Hammer Hitachi DH24PB3
HiKOKI Power Tools Italia S.p.a. SKU: 301660
Clutch Spring for Rotative Hammer Hitachi DH24PB3
Clutch Spring for Rotative Hammer Hitachi DH24PB3 Genuine Spare Part Hitachi, Clutch Spring for Rotative Hammers DH22PB - DH24PV - DH24PB3 - DH24PD3 - DH25DL - DH36DL Parts for the following products: - Rotative Hammer Hitachi DH22PB...
AVAILABLE €2.08
Details
Dust Washer for Demolition Hammer Hitachi H45MRY
HiKOKI Power Tools Italia S.p.a. SKU: 982631
Dust Washer for Demolition Hammer Hitachi H45MRY
Dust Washer for Demolition Hammer Hitachi H45MRY Genuine Spare Part Hitachi, Dust Washer for Demolition Hammers H45MR - H45FRV - H45MRY - H45SR - DH40MRY - H41MB. Part for the following items: - Rotary Hammer Hitachi DH24PG - Rotary...
AVAILABLE €1.34
Details
O-Ring 1 AP-20 for Rotary Hammer Hitachi DH24PB3
HiKOKI Power Tools Italia S.p.a. SKU: 944486
O-Ring 1 AP-20 for Rotary Hammer Hitachi DH24PB3
O-Ring 1 AP-20 for Rotary Hammer Hitachi DH24PB3 Genuine replacement part HITACHI, O-Ring 1 AP-20 for Rotary Hammers DH22PB - DH24DV - DH24DVA - DH24PB3 - DH24PC3 - DH24PD3 -  DH24PM. Part for the following products: - Rotary Hammer...
AVAILABLE €1.41
Details
Piston for Cordless Rotary Hammers Hitachi DH25DAL-DH36DAL
HiKOKI Power Tools Italia S.p.a. SKU: 324534
Piston for Cordless Rotary Hammers Hitachi DH25DAL-DH36DAL
Piston for Cordless Rotary Hammers Hitachi DH25DAL-DH36DAL Original spare part Hitachi, Piston for Cordless Rotary Hammers DH25DL - DH25DAL - DH36DL - DH36DAL. Part for the following products: -  Cordless Rotary Hammer DH25DL -...
Last items in stock €21.58
Details
Left Housing for Rotary Hammer Hitachi DH24PB3
HiKOKI Power Tools Italia S.p.a. SKU: 324553
Left Housing for Rotary Hammer Hitachi DH24PB3
Left Housing for Rotary Hammer Hitachi DH24PB3 Genuine replacement part HITACHI, Left Housing for Rotary Hammers DH24PB3 - DH24PC3 - DH24PD3 - DH24PM - DM20V. Part...
Usually Ships in: 7/10 Business Days Approx. €31.29
Details
Striker for Cordless Hammers Hitachi DH36DL-DH36DAL
HiKOKI Power Tools Italia S.p.a. SKU: 324535
Striker for Cordless Hammers Hitachi DH36DL-DH36DAL
Striker for Cordless Hammers Hitachi DH36DL-DH36DAL Original spare part Hitachi-HIKOKI, Striker for Cordless Rotary Hammers DH25DL - DH25DAL - DH36DL - DH36DAL. Part for the following products: -  Cordless Rotary Hammer DH25DL -...
Last items in stock €12.42
Details
Packing Washer for Rotary Hammer Hitachi DH24PB3
HiKOKI Power Tools Italia S.p.a. SKU: 322818
Packing Washer for Rotary Hammer Hitachi DH24PB3
Packing Washer for Rotary Hammer Hitachi DH24PB3 Genuine replacement part HITACHI HIKOKI, Packing Washer for Rotary Hammers DH24PB3 - DH24PC3 - DH24PD3 - DH24PM Part for the following products: -  Rotary Hammer Hitachi DH24PB3 -...
on 7/10 Business Days Approx. €4.09
Details
Comments (0)
