Hitachi Spare Parts for Sliding Compound Miter Saw C12LCH

SKU: Hitachi C12LCH
€5.95
VAT included

Hitachi Spare Parts for Sliding Compound Miter Saw C12LCH

We are Hitachi-HIKOKI original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Sliding Compound Miter Saw C12LCH.
Hitachi Spare Parts for Sliding Compound Miter Saw C12LCH
  • Online only
  • Hitachi Spare Parts for Sliding Compound Miter Saw C12LCH
  • Hitachi Spare Parts for Sliding Compound Miter Saw C12LCH
  • Hitachi Spare Parts for Sliding Compound Miter Saw C12LCH
  • Hitachi Spare Parts for Sliding Compound Miter Saw C12LCH

Hitachi Spare Parts for Sliding Compound Miter Saw C12LCH

SKU: Hitachi C12LCH Condition: New
€5.95
VAT included

Hitachi Spare Parts for Sliding Compound Miter Saw C12LCH

We are Hitachi-HIKOKI original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Sliding Compound Miter Saw C12LCH.
settings 371 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

153 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
*216
Front-Cover for Inverter Telwin TECNICA 151/S-171/S-211/S 322950 Front-Cover for Inverter Telwin TECNICA 151/S-171/S-211/S €16.58
*273
photo_cameraImage coming soon 340625E STATOR ASS'Y (B) 230V €58.67
*265
photo_cameraImage coming soon 360710E ARMATURE 220V-230V €84.67
*262
photo_cameraImage coming soon 999065 CARBON BRUSH (1 PAIR) €10.05
4
photo_cameraImage coming soon 949900 ROLL PIN D3X14 (10 PCS.) €3.29
17
photo_cameraImage coming soon 322935 USB PLUG €3.29
18
photo_cameraImage coming soon 323665 BOLT (LEFT HAND) M10 €7.66
19
photo_cameraImage coming soon 323666 KNOB (A) €3.29
21
photo_cameraImage coming soon 304043 MACHINE SCREW M4X10 (BLACK) €1.46
23
photo_cameraImage coming soon 323599 PINION €13.12
27
photo_cameraImage coming soon 322933 SHAFT (D) €7.55
29
photo_cameraImage coming soon 323593 SHAFT (C) €5.48
30A
photo_cameraImage coming soon 323663 HINGE €34.97
37A
photo_cameraImage coming soon 323619 ENCODER €54.52
41
photo_cameraImage coming soon 323595 SPRING (A) €7.66
43
photo_cameraImage coming soon 302518 STOPPER PIN ASS'Y €5.62
44
photo_cameraImage coming soon 984528 O-RING (P6) €1.58
45
photo_cameraImage coming soon 323601 DUST GUIDE ASS'Y €6.03
48
photo_cameraImage coming soon 322963 DUST GUIDE HOLDER €1.33
53
photo_cameraImage coming soon 323664 GEAR (C) ASS'Y €21.86
54
photo_cameraImage coming soon 949900 ROLL PIN D3X14 (10 PCS.) €3.29
64
photo_cameraImage coming soon 323659 COVER (A) €3.29
67
Front-Cover for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE 322893 Front-Cover for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE €16.58
68
photo_cameraImage coming soon 304043 MACHINE SCREW M4X10 (BLACK) €1.46
69
photo_cameraImage coming soon 680418 NYLON NUT M12 €5.48
74A
photo_cameraImage coming soon 323627 SPRING PLATE €8.76
79
photo_cameraImage coming soon 323680 SIDE HANDLE €5.48
80A
photo_cameraImage coming soon 329314 LASER HOLDER ASS'Y €43.60
104
photo_cameraImage coming soon 304043 MACHINE SCREW M4X10 (BLACK) €1.46
107
photo_cameraImage coming soon 323624 TURN TABLE €90.68
109A
photo_cameraImage coming soon 323619 ENCODER €54.52
114A
photo_cameraImage coming soon 323621 CONTROLLER €54.63
120
photo_cameraImage coming soon 304043 MACHINE SCREW M4X10 (BLACK) €1.46
122
photo_cameraImage coming soon 323648 TABLE INSERT (A) €3.29
123
photo_cameraImage coming soon 323649 TABLE INSERT (B) €3.29
125A
photo_cameraImage coming soon 323612 MONITOR (A) €65.56
128
photo_cameraImage coming soon 323615 INDICATION PANEL ASS'Y €6.03
132
photo_cameraImage coming soon 323611 MONITOR CASE (A) €14.76
135
photo_cameraImage coming soon 323677 VISE ASS'Y €7.12
137
Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE 301806 Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE €1.23
140
photo_cameraImage coming soon 302532 VISE PLATE €4.60
144
photo_cameraImage coming soon 304043 MACHINE SCREW M4X10 (BLACK) €1.46
146
photo_cameraImage coming soon 323630 SUB FENCE ASS'Y €18.58
148
Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE 301806 Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE €1.23
152
photo_cameraImage coming soon 323629 FENCE (B) €19.67
154
photo_cameraImage coming soon 323625 LINER (A) €5.48
159A
photo_cameraImage coming soon 322910 HOLDER €3.29
165
photo_cameraImage coming soon 323628 FENCE (A) €19.67
168
photo_cameraImage coming soon 323606 BASE RUBBER €1.60
172
photo_cameraImage coming soon 323656 SCALE (A) €7.66
196A
photo_cameraImage coming soon 323639 SPINDLE ASS'Y €27.32
197
photo_cameraImage coming soon 323641 BEARING HOLDER €7.66
198
photo_cameraImage coming soon 6203VV BALL BEARING 6203VVCMPS2L €7.85
200
photo_cameraImage coming soon 304043 MACHINE SCREW M4X10 (BLACK) €1.46
201
photo_cameraImage coming soon 323640 SPINDLE AND GEAR SET €14.21
202
photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
204
photo_cameraImage coming soon 322924 HANDLE €7.66
208
photo_cameraImage coming soon 323638 GEAR CASE €71.02
210
photo_cameraImage coming soon 323653 GEAR CASE COVER ASS'Y €7.55
216
Front-Cover for Inverter Telwin TECNICA 151/S-171/S-211/S 322950 Front-Cover for Inverter Telwin TECNICA 151/S-171/S-211/S €16.58
218
photo_cameraImage coming soon 323668 PROTECTIVE COVER (B) €18.58
220
photo_cameraImage coming soon 323672 COVER PLATE (B) ASS'Y €8.76
222
photo_cameraImage coming soon 323667 PROTECTIVE COVER (A) €37.04
224
photo_cameraImage coming soon 323669 COVER PLATE (A) €5.48
230
photo_cameraImage coming soon 322947 SPECIAL SCREW (C) M5 €1.33
231
photo_cameraImage coming soon 322938 WASHER M10 €1.33
238
photo_cameraImage coming soon 323632 CORD (B) €10.93
240
photo_cameraImage coming soon 937631 CORD CLIP €1.37
242
photo_cameraImage coming soon 940778 CORD ARMOR D10.7 €3.43
246
photo_cameraImage coming soon 301653 Tapp.Screw (W / Flange) D4x20 €5.63
247A
photo_cameraImage coming soon 324952 SWITCH HANDLE (C).(D) SET €26.23
249A
photo_cameraImage coming soon 323978 SWITCHING POWER SUPPLY €42.51
250
photo_cameraImage coming soon 301653 Tapp.Screw (W / Flange) D4x20 €5.63
252
photo_cameraImage coming soon 323634 SWITCH (A) (1P TYPE) €8.64
253
photo_cameraImage coming soon 323635 SWITCH (B) (1P TYPE) €8.64
257
photo_cameraImage coming soon 320950 SWITCH (1P SCREW TYPE) €34.97
259
photo_cameraImage coming soon 322914 HOUSING ASS'Y €29.51
261
Brush Holder for Angle Grinders Hitachi G23SS-G23SW-G23SWU 938241 Brush Holder for Angle Grinders Hitachi G23SS-G23SW-G23SWU €11.86
262
Carbon Brushes for Angle Grinders Hitachi G 23SS -  G 23SW 999038 Carbon Brushes for Angle Grinders Hitachi G 23SS - G 23SW €6.97
263
Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU 945161 Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU €2.78
264
photo_cameraImage coming soon 303792 RUBBER RING €1.23
266
photo_cameraImage coming soon 6202VV BALL BEARING 6202VVCMPS2L €7.42
267
photo_cameraImage coming soon 980700 DUST WASHER (B) €1.24
270
photo_cameraImage coming soon 6000VV BALL BEARING 6000VVCMPS2L €9.76
271
photo_cameraImage coming soon 322915 FAN GUIDE €3.29
274
photo_cameraImage coming soon 937623 BRUSH TERMINAL €1.33
278
photo_cameraImage coming soon 324626 LOCK LEVER (D) €5.48
279
photo_cameraImage coming soon 877371 NYLON NUT M5 €1.23
282
Noise Suppressor Hitachi GP 10 930039 Noise Suppressor Hitachi GP 10 €4.04
284
photo_cameraImage coming soon 324630 LINK (B) ASS'Y €16.39
291
photo_cameraImage coming soon 323984 RETURN SPRING (A) €1.38
294
photo_cameraImage coming soon 324633 WASHER (D) €8.76
295
photo_cameraImage coming soon 324634 WASHER (C) €8.21
297
photo_cameraImage coming soon 326825 BEARING COVER €2.75

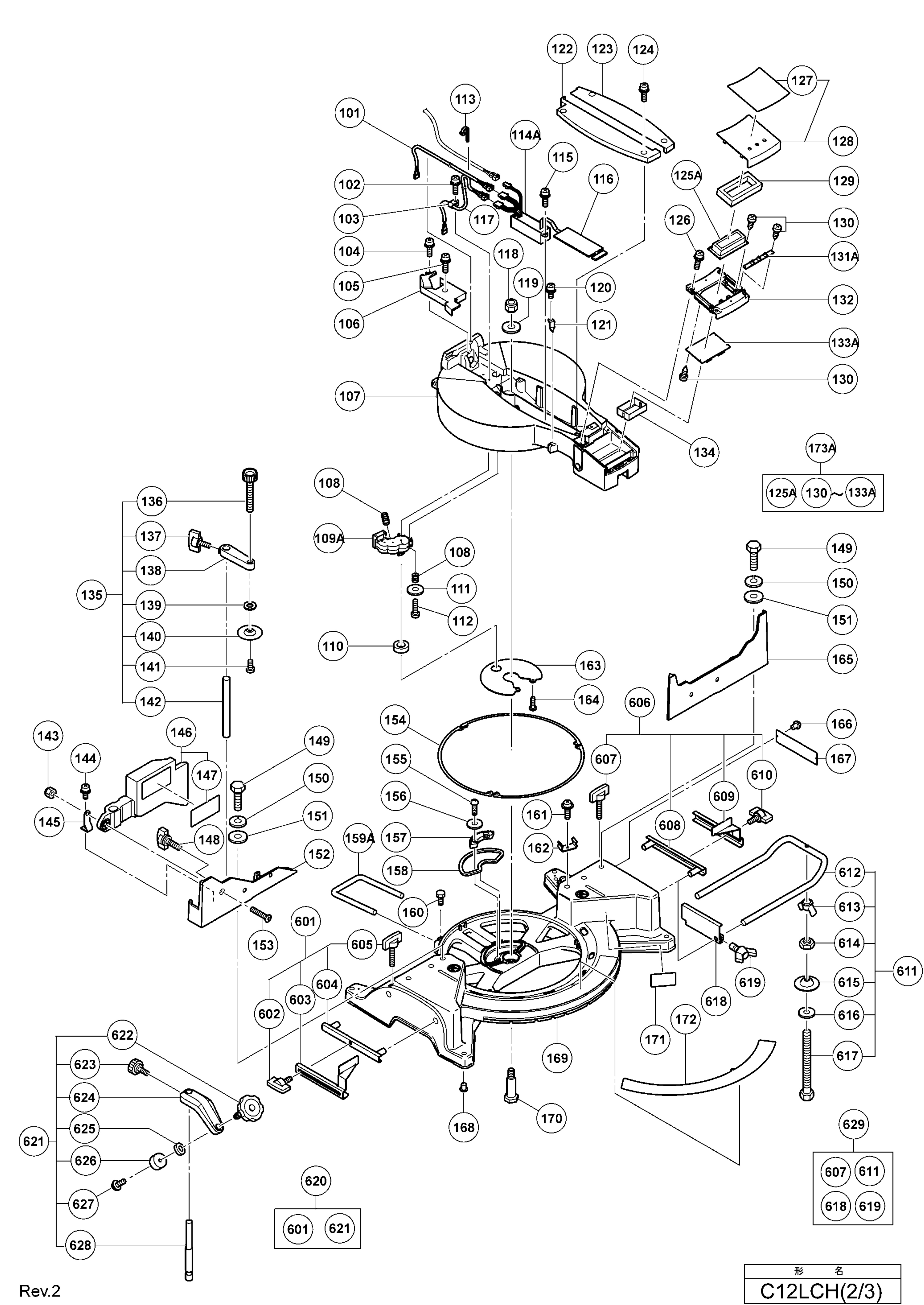

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
107
photo_cameraImage coming soon 323624 TURN TABLE €90.68
114A
photo_cameraImage coming soon 323621 CONTROLLER €54.63
122
photo_cameraImage coming soon 323648 TABLE INSERT (A) €3.29
123
photo_cameraImage coming soon 323649 TABLE INSERT (B) €3.29
125A
photo_cameraImage coming soon 323612 MONITOR (A) €65.56
128
photo_cameraImage coming soon 323615 INDICATION PANEL ASS'Y €6.03
132
photo_cameraImage coming soon 323611 MONITOR CASE (A) €14.76
135
photo_cameraImage coming soon 323677 VISE ASS'Y €7.12
137
Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE 301806 Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE €1.23
140
photo_cameraImage coming soon 302532 VISE PLATE €4.60
146
photo_cameraImage coming soon 323630 SUB FENCE ASS'Y €18.58
152
photo_cameraImage coming soon 323629 FENCE (B) €19.67
154
photo_cameraImage coming soon 323625 LINER (A) €5.48
159A
photo_cameraImage coming soon 322910 HOLDER €3.29
165
photo_cameraImage coming soon 323628 FENCE (A) €19.67
168
photo_cameraImage coming soon 323606 BASE RUBBER €1.60
172
photo_cameraImage coming soon 323656 SCALE (A) €7.66

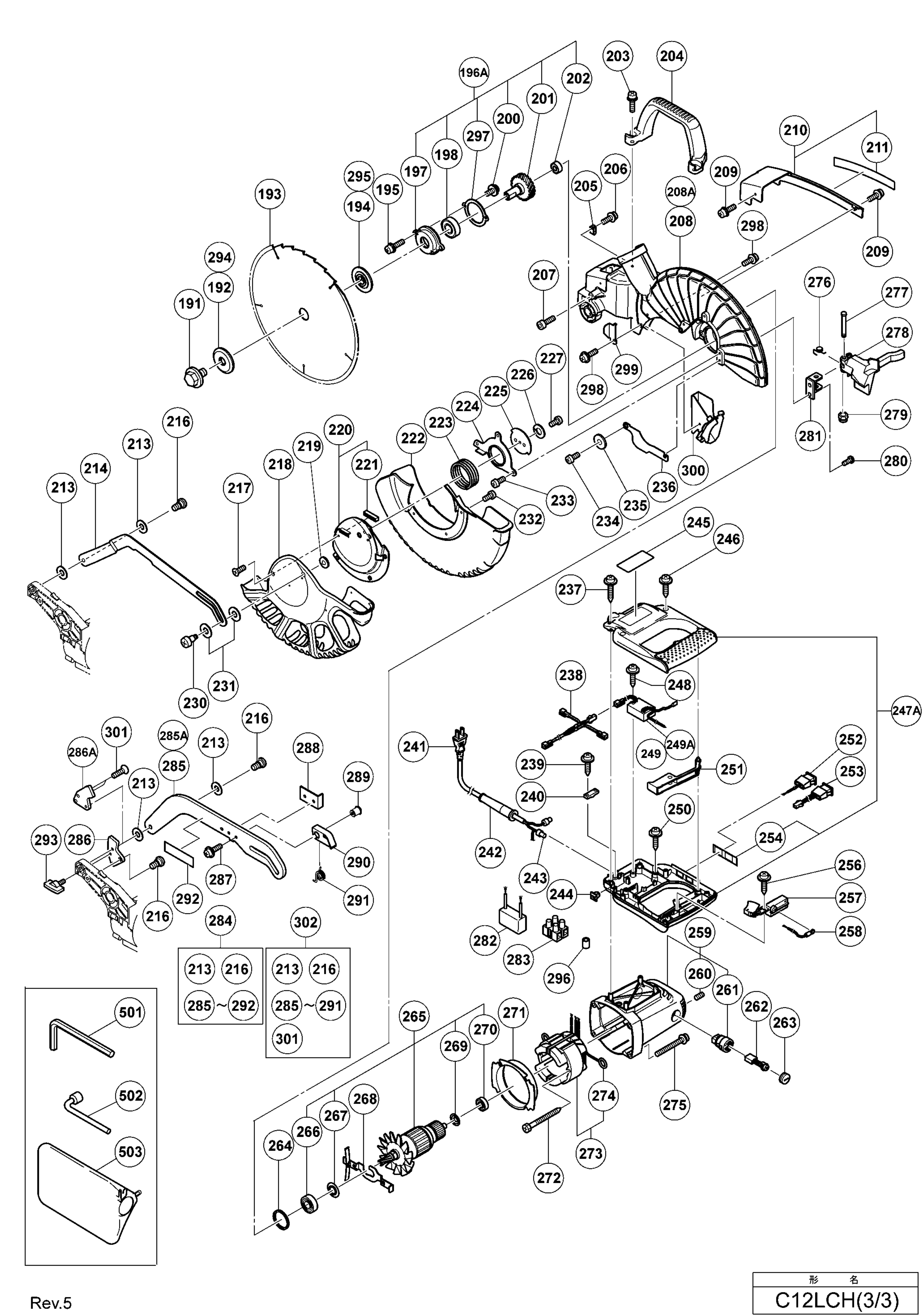

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
196A
photo_cameraImage coming soon 323639 SPINDLE ASS'Y €27.32
197
photo_cameraImage coming soon 323641 BEARING HOLDER €7.66
198
photo_cameraImage coming soon 6203VV BALL BEARING 6203VVCMPS2L €7.85
201
photo_cameraImage coming soon 323640 SPINDLE AND GEAR SET €14.21
202
photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
204
photo_cameraImage coming soon 322924 HANDLE €7.66
208
photo_cameraImage coming soon 323638 GEAR CASE €71.02
210
photo_cameraImage coming soon 323653 GEAR CASE COVER ASS'Y €7.55
216
Front-Cover for Inverter Telwin TECNICA 151/S-171/S-211/S 322950 Front-Cover for Inverter Telwin TECNICA 151/S-171/S-211/S €16.58
218
photo_cameraImage coming soon 323668 PROTECTIVE COVER (B) €18.58
220
photo_cameraImage coming soon 323672 COVER PLATE (B) ASS'Y €8.76
222
photo_cameraImage coming soon 323667 PROTECTIVE COVER (A) €37.04
224
photo_cameraImage coming soon 323669 COVER PLATE (A) €5.48
230
photo_cameraImage coming soon 322947 SPECIAL SCREW (C) M5 €1.33
231
photo_cameraImage coming soon 322938 WASHER M10 €1.33
238
photo_cameraImage coming soon 323632 CORD (B) €10.93
240
photo_cameraImage coming soon 937631 CORD CLIP €1.37
242
photo_cameraImage coming soon 940778 CORD ARMOR D10.7 €3.43
246
photo_cameraImage coming soon 301653 Tapp.Screw (W / Flange) D4x20 €5.63
247A
photo_cameraImage coming soon 324952 SWITCH HANDLE (C).(D) SET €26.23
249A
photo_cameraImage coming soon 323978 SWITCHING POWER SUPPLY €42.51
252
photo_cameraImage coming soon 323634 SWITCH (A) (1P TYPE) €8.64
253
photo_cameraImage coming soon 323635 SWITCH (B) (1P TYPE) €8.64
257
photo_cameraImage coming soon 320950 SWITCH (1P SCREW TYPE) €34.97
259
photo_cameraImage coming soon 322914 HOUSING ASS'Y €29.51
261
Brush Holder for Angle Grinders Hitachi G23SS-G23SW-G23SWU 938241 Brush Holder for Angle Grinders Hitachi G23SS-G23SW-G23SWU €11.86
262
Carbon Brushes for Angle Grinders Hitachi G 23SS -  G 23SW 999038 Carbon Brushes for Angle Grinders Hitachi G 23SS - G 23SW €6.97
263
Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU 945161 Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU €2.78
264
photo_cameraImage coming soon 303792 RUBBER RING €1.23
266
photo_cameraImage coming soon 6202VV BALL BEARING 6202VVCMPS2L €7.42
267
photo_cameraImage coming soon 980700 DUST WASHER (B) €1.24
270
photo_cameraImage coming soon 6000VV BALL BEARING 6000VVCMPS2L €9.76
271
photo_cameraImage coming soon 322915 FAN GUIDE €3.29
274
photo_cameraImage coming soon 937623 BRUSH TERMINAL €1.33
278
photo_cameraImage coming soon 324626 LOCK LEVER (D) €5.48
279
photo_cameraImage coming soon 877371 NYLON NUT M5 €1.23
282
Noise Suppressor Hitachi GP 10 930039 Noise Suppressor Hitachi GP 10 €4.04
284
photo_cameraImage coming soon 324630 LINK (B) ASS'Y €16.39
291
photo_cameraImage coming soon 323984 RETURN SPRING (A) €1.38
294
photo_cameraImage coming soon 324633 WASHER (D) €8.76
295
photo_cameraImage coming soon 324634 WASHER (C) €8.21
297
photo_cameraImage coming soon 326825 BEARING COVER €2.75

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Sliding Compound Miter Saw C12LCH

We are Hitachi-HIKOKI original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Sliding Compound Miter Saw C12LCH.

In the following table, look for the model of the Miter Saw and theirs spare part.
Hitachi C12LCH

Sliding Compound Miter Saw C 12LCH
# Part Num. Description
1 323141 SPRING (B)
2 323137 LASER HOLDER (A)
3A 328943 LASER HOLDER (B)
4 949900 ROLL PIN D3X14 (10 PCS.)
5 323142 SPRING (C)
6 962782 HEX. SOCKET SET SCREW M5X6
7 949531 SPLIT PIN D2X12 (10 PCS.)
8 323144 SPECIAL BOLT M5
9 975144 CABLE TIE
10A 331876 LASER BASE ASS'Y
12B 331879 LASER MODULE (A) ASS'Y
13 323143 WASHER
14 323140 SPRING (A)
15 323136 LASER COVER
16 323208 MACHINE SCREW M6X20 (BLACK)
17 322935 CLAMP LEVER
18 323665 BOLT (LEFT HAND) M10
19 323666 KNOB (A)
20 323597 GEAR BOX (C)
21 304043 MACHINE SCREW M4X10 (BLACK)
22 323598 GEAR BOX (C) COVER
23 323599 PINION
24 949821 HEX. SOCKET HD.M5X16 (10 PCS.)
25 949454 SPRING WASHER M5 (10 PCS.)
26 323596 HINGE PLATE
27 322933 SHAFT (D)
28 322934 WASHER M16
29 323593 SHAFT (C)
30A 323663 HINGE
30B 336361 HINGE
31 993539 MACHINE SCREW M4X16
32 980523 NYLON CLIP
33 323600 HINGE COVER
34 949241 MACHINE SCREW M5X20 (10 PCS.)
35 949432 BOLT WASHER M6 (10 PCS.)
36 323142 SPRING (C)
37A 323619 ENCODER
38 949216 MACHINE SCREW M4X10 (10 PCS.)
39 307956 SEAL LOCK HEX.SET SCREW M6X10
40 323594 SLEEVE
41 323595 SPRING (A)
42 323684 LINER (D)
43 302518 STOPPER PIN ASS'Y
44 984528 O-RING (P-6)
45 323601 DUST GUIDE ASS'Y
46 990541 MACHINE SCREW M5X16
47 323602 SCALE (B)
48 322963 DUST GUIDE HOLDER
49 949214 MACHINE SCREW M4X6 (10 PCS.)
50 949431 BOLT WASHER M5 (10 PCS.)
51 949454 SPRING WASHER M5 (10 PCS.)
52 949821 HEX. SOCKET HD M5X16 (10 PCS.)
53 323664 GEAR (C) ASS'Y
54 949900 ROLL PIN D3X14 (10 PCS.)
55 949660 HEX. SOCKET HD.M6X20 (10 PCS.)
56 323683 LINER (B)
57 949221 MACHINE SCREW M4X20 (10 PCS.)
58 949423 WASHER M4 (10 PCS.)
59 323142 SPRING (C)
60 303006 SPACER D4X10
61 949432 BOLT WASHER M6 (10 PCS.)
62 323662 BEVEL PLATE (B)
63 323661 BEVEL PLATE (A)
64 323659 COVER (A)
65 303409 NYLOCK BOLT M8X25
66 935196 MACHINE SCREW M4X12 (BLACK)
67 322893 INDICATOR (B)
68 304043 MACHINE SCREW M4X10 (BLACK)
69 680418 NYLON NUT M12
70 949217 MACHINE SCREW M4X12 (10 PCS.)
71 949423 WASHER M4 (10 PCS.)
72 323607 GEAR (B)
74A 323627 SPRING PLATE
75 949457 SPRING WASHER M8 (10 PCS.)
76 949655 HEX. SOCKET HD. M8X16 (10 PCS.)
77 323609 SPACER (A)
78 307635 MACHINE SCREW M4X10
79 323680 SIDE HANDLE
80A 329314 LASER HOLDER ASS'Y
101 323658 CORD (A) LENGTH 380MM
102 993539 MACHINE SCREW M4X16
103 973313 NYLON CLIP
104 304043 MACHINE SCREW M4X10 (BLACK)
105 993539 MACHINE SCREW M4X16
106 323650 CORD COVER
107 323624 TURN TABLE
108 323142 SPRING (C)
109A 323619 ENCODER
110 323622 PACKING (B)
111 949432 BOLT WASHER M6 (10 PCS.)
112 949241 MACHINE SCREW M5X20 (10 PCS.)
113 975144 CABLE TIE
114A 323621 CONTROLLER
115 993539 MACHINE SCREW M4X16
116 323617 PACKING (C)
117 323620 CORD (A) LENGTH 160MM
118 975348 NYLON NUT M8
119 318929 WASHER (F)
120 304043 MACHINE SCREW M4X10 (BLACK)
121 318927 INDICATOR (A)
122 323648 TABLE INSERT (A)
123 323649 TABLE INSERT (B)
124 990541 MACHINE SCREW M5X16
125A 323612 MONITOR (A)
126 993539 MACHINE SCREW M4X16
127 323616 PANEL SHEET (A)
128 323615 INDICATION PANEL ASS'Y
129 323608 PACKING (D)
130 321672 TAPPING SCREW D2X6
131A 323613 PRINTED CIRCUIT BOARD (B1)
132 323611 MONITOR CASE (A)
133A 323614 PRINTED CIRCUIT BOARD (B2)
134 323618 INSULATING CASE
135 323677 VISE ASS'Y
136 323678 KNOB BOLT
137 301806 WING BOLT M6X15
139 949432 BOLT WASHER M6 (10 PCS.)
140 302532 VISE PLATE
141 949216 MACHINE SCREW M4X10 (10 PCS.)
142 322954 VISE SHAFT
143 963837 NYLON NUT M6
144 304043 MACHINE SCREW M4X10 (BLACK)
145 323631 PLATE (C)
146 323630 SUB FENCE ASS'Y
148 301806 WING BOLT M6X15
149 949678 BOLT M8X35 (10 PCS.)
150 949457 SPRING WASHER M8 (10 PCS.)
151 949433 BOLT WASHER M8 (10 PCS.)
152 323629 FENCE (B)
153 323685 FLAT HD. SCREW M6X30
154 323625 LINER (A)
155 302317 MACHINE SCREW M5X16 (BLACK)
156 949431 BOLT WASHER M5 (10 PCS.)
157 323604 GEAR (A)
158 323603 PACKING (A)
159A 322910 HOLDER
160 949610 BOLT M6X10 (10 PCS.)
161 987512 MACHINE SCREW M5X16
162 323605 HOOK
163 323623 DUST COVER
164 949215 MACHINE SCREW M4X8 (10 PCS.)
165 323628 FENCE (A)
168 323606 BASE RUBBER
170 323626 SHAFT (B)
172 323656 SCALE (A)
173A 323610 MONITOR ASS'Y
191 988101 BOLT (A) M10
192 323652 WASHER (B)
194 323651 WASHER (A)
195 323208 MACHINE SCREW M6X20 (BLACK)
196A 323639 SPINDLE ASS'Y
197 323641 BEARING HOLDER
198 6203VV BALL BEARING 6203VVCMPS2L
200 304043 MACHINE SCREW M4X10 (BLACK)
201 323640 SPINDLE AND GEAR SET
202 608VVM BALL BEARING 608VVC2PS2L
203 323208 MACHINE SCREW M6X20 (BLACK)
204 322924 HANDLE
205 980523 NYLON CLIP
206 935196 MACHINE SCREW M4X12 (BLACK)
207 949755 HEX. SOCKET HD.M6X16 (10 PCS.)
208 323638 GEAR CASE
208A 336362 GEAR CASE
209 993539 MACHINE SCREW M4X16
210 323653 GEAR CASE COVER ASS'Y
211 323654 CAUTION LABEL (B)
213 322948 WASHER M7
214 323674 LINK
216 322950 SPECIAL SCREW M6
*216 322950 SPECIAL SCREW M6
217 318363 FLAT HD. SCREW M4X10 (BLACK)
218 323668 PROTECTIVE COVER (B)
219 949454 SPRING WASHER M5 (10 PCS.)
220 323672 COVER PLATE (B) ASS'Y
221 323673 CUSHION
222 323667 PROTECTIVE COVER (A)
223 323671 RETURN SPRING
224 323669 COVER PLATE (A)
225 323670 COVER WASHER
226 949454 SPRING WASHER M5 (10 PCS.)
227 949236 MACHINE SCREW M5X10 (10 PCS.)
230 322947 SPECIAL SCREW (C) M5
231 322938 WASHER M10
232 949215 MACHINE SCREW M4X8 (10 PCS.)
233 323040 MACHINE SCREW M5X10 (BLACK)
234 323040 MACHINE SCREW M5X10 (BLACK)
235 949431 BOLT WASHER M5 (10 PCS.)
236 323675 SPINDLE COVER
237 307028 TAPPING SCREW D4X25 (BLACK)
238 323632 CORD (B)
239 984750 TAPPING SCREW D4X16
240 937631 CORD CLIP
*241 500234Z CORD
242 940778 CORD ARMOR D10.7
244 319349 CORD BUSH
246 301653 TAPPING SCREW D4X20 (BLACK)
247A 324952 SWITCH HANDLE (C).(D) SET
248 984750 TAPPING SCREW D4X16
249A 323978 SWITCHING POWER SUPPLY
*249A 324322 SWITCHING POWER SUPPLY
250 301653 TAPPING SCREW D4X20 (BLACK)
251 323645 SWITCH LEVER (A)
252 323634 SWITCH (A) (1P TYPE)
253 323635 SWITCH (B) (1P TYPE)
254 323644 SWITCH LABEL (A)
256 984750 TAPPING SCREW D4X16
257 320950 SWITCH (1P SCREW TYPE)
*258 323983 INTERNAL WIRE (D)
259 322914 HOUSING ASS'Y
260 938477 HEX. SOCKET SET SCREW M5X8
261 938241 BRUSH HOLDER
262 999038 CARBON BRUSH (1 PAIR)
*262 999065 CARBON BRUSH (1 PAIR)
263 945161 BRUSH CAP
264 303792 RUBBER RING
*265 360710E ARMATURE 220V-230V
266 6202VV BALL BEARING 6202VVCMPS2L
267 980700 DUST WASHER (B)
268 323637 LOCK LEVER
269 302428 WASHER (A)
270 6000VV BALL BEARING 6000VVCMPS2L
271 322915 FAN GUIDE
*273 340625E STATOR ASS'Y (B) 230V
274 937623 BRUSH TERMINAL
275 322123 MACHINE SCREW M5X40 (BLACK)
276 324625 LEVER SPRING (A)
277 323990 LEVER SHAFT
278 324626 LOCK LEVER (D)
279 877371 NYLON NUT M5
280 949236 MACHINE SCREW M5X10 (10 PCS.)
281 324627 LEVER HOLDER (A)
282 930039 NOISE SUPPRESSOR
284 324630 LINK (B) ASS'Y
287 935196 MACHINE SCREW M4X12 (BLACK)
288 323985 STOP PLATE
289 323988 RETURN SHAFT
290 323989 RETURN PLATE
291 323984 RETURN SPRING (A)
293 302459 WING BOLT M6X17
294 324633 WASHER (D)
295 324634 WASHER (C)
297 326825 BEARING COVER
298 935196 MACHINE SCREW M4X12 (BLACK)
299 336365 GUARD (A)
300 336366 GUIDE HOLDER
301 949334 FLAT HD. SCREW M5X16 (10 PCS.)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi C12LCH
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram C12LCH

Diagram C12LCH

Download (187.36KB)

You might also like

HiKOKI Power Tools Italia S.p.a. SKU: 999038
Carbon Brushes for Angle Grinders Hitachi G 23SS -  G 23SW Genuine parts Hitachi, carbon Brushesfor Angle Grinders 230 mm G 23SS -  G 23SW - G 23SWU - Router M12VE , Circolar Saw C9U2 - Radial Miter Saw C 10FCH2 - C 12LCH. Part for...
AVAILABLE €6.97
HiKOKI Power Tools Italia S.p.a. SKU: 322955
Dust Bag for Slide Compound Mitre Saw Hitachi C12LCH Original spare part Hitachi, Dust and Chips bag for Slide Compound Mitre Saws C10FCH2 - C12LCH - Planer P20SF. Part for the following products:...
AVAILABLE €20.79
HiKOKI Power Tools Italia S.p.a. SKU: 938241
Brush Holder for Angle Grinders Hitachi G23SS-G23SW-G23SWU Original parts Hitachi, Brush holder for Angle Grinders G 23SS - 23SW G - G 23SWU - Radial Miter Saws 10FCH2 C - C 12LCH - C 12RSH. For the following items: - Angle Grinder...
AVAILABLE €11.86
HiKOKI Power Tools Italia S.p.a. SKU: 301806
Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE Genuine part Hitachi, Wing Nut M6X15 for Sliding Compound Miter Saws C8FSE - C12LCH - Routers M8SA2 - M12VE - M12V2 - Circular...
AVAILABLE €1.23
Comments (0)
