Hitachi Spare Parts for Planer FP20SA

SKU: Hitachi FP20SA
€29.24
VAT included

Hitachi Spare Parts for Planer FP20SA

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Planer FP20SA.
Hitachi Spare Parts for Planer FP20SA
  • Hitachi Spare Parts for Planer FP20SA
  • Hitachi Spare Parts for Planer FP20SA - Diagram

Hitachi Spare Parts for Planer FP20SA

SKU: Hitachi FP20SA Condition: New
€29.24
VAT included

Hitachi Spare Parts for Planer FP20SA

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Planer FP20SA.
settings 28 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

22 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
3
photo_cameraImage coming soon 995740 FRONT BASE €17.29
6
photo_cameraImage coming soon 954448 KNOB €2.94
9
photo_cameraImage coming soon 311134 HOUSING OFF BLACK-GREEN FP20SA €20.98
9
photo_cameraImage coming soon 995745 HOUSING MOSS GREEN €29.20
10
photo_cameraImage coming soon 995734 TAIL COVER ASS'Y €6.04
13
photo_cameraImage coming soon 954444 CUTTER BLOCK ASS'Y €24.99
18
photo_cameraImage coming soon 931701 BEARING LOCK €1.33
23
Belt for Planer Hitachi FP20SA 995732 Belt for Planer Hitachi FP20SA €13.81
24
Pulley (B) for Planer Hitachi FP20SA 954459 Pulley (B) for Planer Hitachi FP20SA €7.20
25
photo_cameraImage coming soon 954458 PULLEY (A) €3.76
26
photo_cameraImage coming soon 995731 END BRACKET €6.61
29
photo_cameraImage coming soon 995730 FAN GUIDE ASS'Y €3.76
32
photo_cameraImage coming soon 995748 HANDLE COVER €10.54
34
photo_cameraImage coming soon 960266 CORD CLIP €1.37
37A
Brushe Holder for Orbital Sanders Hitachi SV12SD-SG-SH 930483 Brushe Holder for Orbital Sanders Hitachi SV12SD-SG-SH €2.78
38
Carbon Brushes for Sanders Hitachi SV12-13 999041 Carbon Brushes for Sanders Hitachi SV12-13 €9.62
41A
photo_cameraImage coming soon 995733 REAR BASE €15.70
43
Unipolar Switch for Orbital Sander Hitachi SV12V 957747 Unipolar Switch for Orbital Sander Hitachi SV12V €20.93
43
photo_cameraImage coming soon 994734 SWITCH (B) (2P SCREW TYPE) W/LOCK €14.05
43A
photo_cameraImage coming soon 998317 SWITCH (B) (2P SCREW TYPE) W/O LOCK €14.05
504A
photo_cameraImage coming soon 949395 WING BOLT €3.87
1001
Knives for Planer Hitachi FP20SA 879417 Knives for Planer Hitachi FP20SA €27.22

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Planer FP20SA

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor

. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Planer FP20SA.

In the following table, look for the model of the Planer and their spare part.
Hitachi - HIKOKI Planer FP20SA

Hitachi-HIKOKI Planer FP20SA
# Part Num. Description
1 943608 ADJUSTING SPRING
2 954449 RUBBER PACKING
3 995740 FRONT BASE
5 954452 SCALE
6 954448 KNOB
9 311134 HOUSING OFF BLACK-GREEN FP20SA
9 995745 HOUSING MOSS GREEN
10 995734 TAIL COVER ASS'Y
13 954444 CUTTER BLOCK ASS'Y
15 954447 PLATE HOLDER (1 PAIR)
18 931701 BEARING LOCK
22 995739 BELT COVER
23 995732 BELT X FP20SA
24 954459 PULLEY (B)
25 954458 PULLEY (A)
26 995731 END BRACKET
29 995730 FAN GUIDE ASS'Y
32 995748 HANDLE COVER
34 960266 CORD CLIP
37A 930483 BRUSH HOLDER
38 999041 CARBON BRUSHE (1 PAIR)
40 954453 PLATE
41A 995733 REAR BASE
43 957747 SWITCH (A) (1P SCREW TYPE) W/LOCK
43 994734 SWITCH (B) (2P SCREW TYPE) W/LOCK
43A 998317 SWITCH (B) (2P SCREW TYPE) W/O LOCK
504A 949395 WING BOLT
1001 879417 Knives for Planer Hitachi FP20SA
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi FP20SA
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

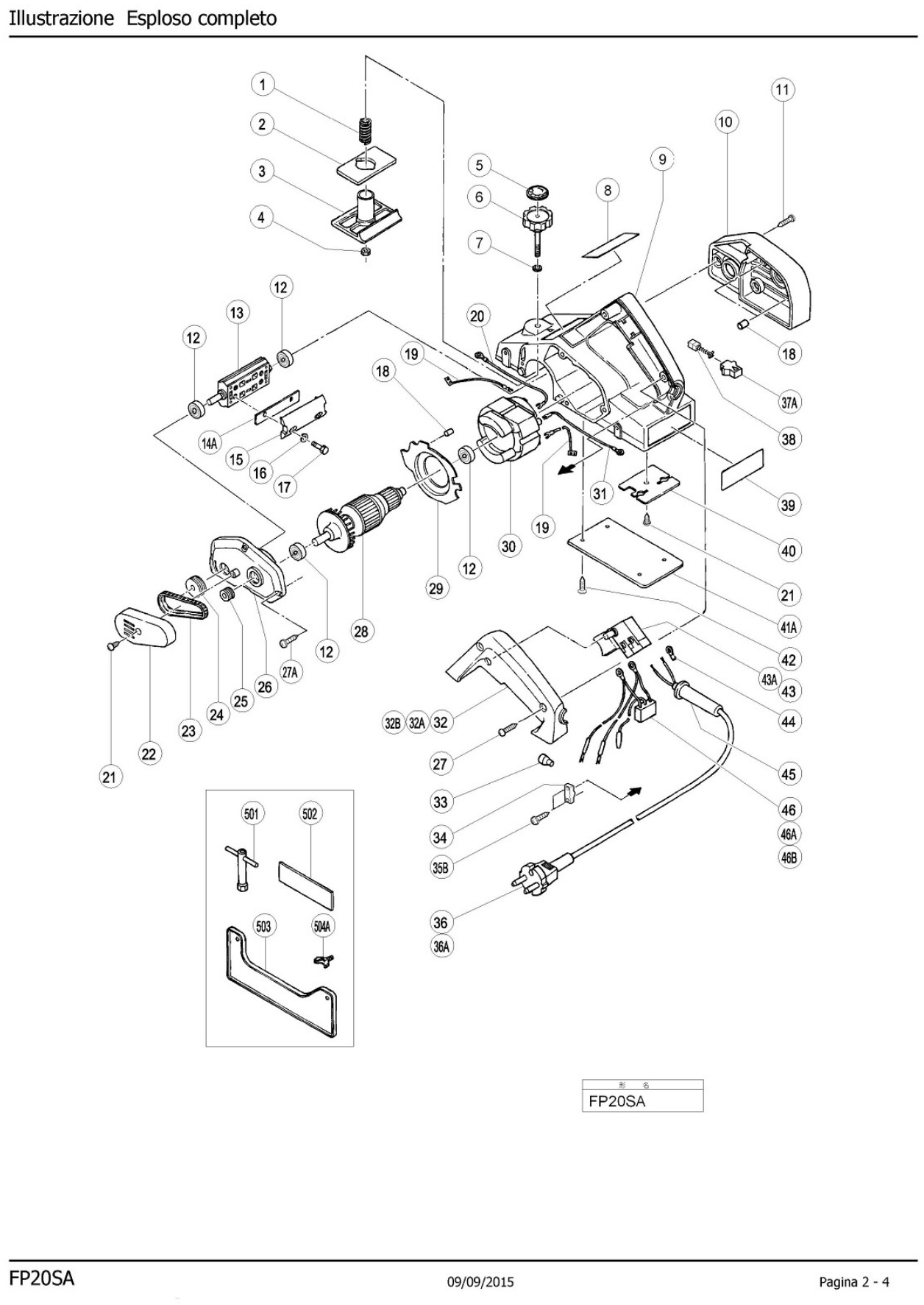

Diagram Hitachi FP20SA

Diagram Hitachi FP20SA

Download (284.48KB)
