Hitachi Spare Parts for Hammer Drill PR-38E

SKU: Hitachi PR-38E
€21.56
VAT included

Hitachi Spare Parts for Hammer Drill PR-38E

Hitachi-HIKOKI original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Rotary Hammer Drill PR-38E.
Hitachi Spare Parts for Hammer PR-38E
  • Hitachi Spare Parts for Hammer PR-38E
  • Hitachi Spare Parts for Hammer PR-38E

Hitachi Spare Parts for Hammer Drill PR-38E

SKU: Hitachi PR-38E Condition: New
€21.56
VAT included

Hitachi Spare Parts for Hammer Drill PR-38E

Hitachi-HIKOKI original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Rotary Hammer Drill PR-38E.
settings 45 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

38 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
*92
photo_cameraImage coming soon 940778 CORD ARMOR D10.7 €3.43
2
Brush Holder for Hammers PR-38E-H45MR-H45FRV-DH40MRY 971001 Brush Holder for Hammers PR-38E-H45MR-H45FRV-DH40MRY €12.55
4
photo_cameraImage coming soon 930703 BRUSH TERMINAL €3.04
10
photo_cameraImage coming soon 6000VV BALL BEARING 6000VVCMPS2L €9.76
11
photo_cameraImage coming soon 944433 DUST SEAL €1.46
14
photo_cameraImage coming soon 6202VV BALL BEARING 6202VVCMPS2L €7.42
15
Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR 939299 Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR €13.81
26
photo_cameraImage coming soon 6204DD BALL BEARING 6204DDCMPS2L €11.52
29
photo_cameraImage coming soon 932815 WOODRUFF KEY 3X13 €1.39
32
photo_cameraImage coming soon 955011 OIL GAUGE €6.39
35
photo_cameraImage coming soon 981941 CLUTCH PLATE €6.90
37
photo_cameraImage coming soon 956207 SLIP PLATE (B) €1.34
40
Bearing Washer (C) for Hammer Hitachi DH40MA 944525 Bearing Washer (C) for Hammer Hitachi DH40MA €1.26
41
photo_cameraImage coming soon 944516 BEARING WASHER (B) €1.23
42
photo_cameraImage coming soon 629VVM BALL BEARING 629VVC2PS2L €7.32
46
photo_cameraImage coming soon 980756 NEEDLE BEARING (NSK AJ50 1203) €12.95
55
photo_cameraImage coming soon 6001VV BALL BEARING 6001VVCMPS2L €8.22
56
photo_cameraImage coming soon 971070 FINAL PINION €6.39
57
photo_cameraImage coming soon 932819 WOODRUFF KEY 3X10 €1.28
89E
Switch 2P Pillar Type W/O Lock for Hammer PR-38E 981533Z Switch 2P Pillar Type W/O Lock for Hammer PR-38E €36.47
90F
photo_cameraImage coming soon 312408 HANDLE €19.36
90D
photo_cameraImage coming soon 981986Z SUPPORT (A) €30.09
92
photo_cameraImage coming soon 958049 CORD ARMOR D8.2 €1.34
93A
photo_cameraImage coming soon 960266 CORD CLIP €1.37
97
Carbon Brushes for Hitachi Hammer Hitachi DH38MS 999043 Carbon Brushes for Hitachi Hammer Hitachi DH38MS €9.62
97A
Carbon Brushes for Demolition Hammer Hitachi DH30PC2 999073 Carbon Brushes for Demolition Hammer Hitachi DH30PC2 €16.60
98
Brushes Cap for Demolition Hammers Hitachi H45MR - H45MRY - H45FRV 935829 Brushes Cap for Demolition Hammers Hitachi H45MR - H45MRY - H45FRV €1.66
109
photo_cameraImage coming soon 971097 FAN €9.08
111
photo_cameraImage coming soon 937631 CORD CLIP €1.37
118
photo_cameraImage coming soon 953261 SLIDE SWITCH (1P SOLDER TYPE) €17.20
119
photo_cameraImage coming soon 971792 SLIDE SWITCH COVER €1.99
124
photo_cameraImage coming soon 986491 SEAL LOCK HEX. SOCKET HD. BOLT M6X50 €1.28
132
Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V 939544 Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V €0.55
134
Noise Suppressor Hitachi GP 10 930039 Noise Suppressor Hitachi GP 10 €4.04
136
Noise Suppressor for Angle Grinder Hitachi G12SA2 994273 Noise Suppressor for Angle Grinder Hitachi G12SA2 €9.62
138
photo_cameraImage coming soon 981373 TUBE (D) €1.37
650
photo_cameraImage coming soon 944574 DRIFT KEY €6.91
665
photo_cameraImage coming soon 980734 SIDE HANDLE €34.33

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Hammer Drill PR-38E

Hitachi-HIKOKI original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Rotary Hammer Drill PR-38E.

In the following table, look for the model of the Hammer Drill and their spare part.
Rotary Hammer Drill PR-38E

Rotary Hammer PR-38E
# Part Num. Description
2 971001 BRUSH HOLDER
4 930703 BRUSH TERMINAL
10 6000VV BALL BEARING 6000VVCMPS2L
11 944433 DUST SEAL
14 6202VV BALL BEARING 6202VVCMPS2L
15 939299 NEEDLE BEARING (M661)
22 956967 OIL FELT
26 6204DD BALL BEARING 6204DDCMPS2L
29 932815 WOODRUFF KEY 3X13
32 955011 OIL GAUGE
35 981941 CLUTCH PLATE
37 956207 SLIP PLATE (B)
38 944514 BELLEVILLE SPRING
39 944515 U-NUT M12
40 944525 BEARING WASHER (C)
41 944516 BEARING WASHER (B)
42 629VVM BALL BEARING 629VVC2PS2L
46 980756 NEEDLE BEARING (NSK AJ50 1203)
55 6001VV BALL BEARING 6001VV
56 971070 FINAL PINION
57 932819 WOODRUFF KEY 3X10
81 971087 STOPPER WASHER
89E 981533Z SWITCH (2P PILLAR TYPE) W/O LOCK
90D 981986Z SUPPORT (A)
90F 312408 SUPPORT (F)
92 958049 CORD ARMOR D8.2
*92 940778 CORD ARMOR D10.7
93A 960266 CORD CLIP
97 999043 CARBON BRUSH (1 PAIR)
97A 999073 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
98 935829 BRUSH CAP
109 971097 FAN
111 937631 CORD CLIP
113 956252 WIRE CLIP
114 954017 TAPPING SCREW D4X12
118 953261 SLIDE SWITCH (1P SOLDER TYPE)
119 971792 SLIDE SWITCH COVER
124 986491 SEAL LOCK HEX. SOCKET HD. BOLT M6X50
132 939544 RETAINING RING FOR D15 SHAFT (10 PCS.)
134 930039 NOISE SUPPRESSOR
136 994273 NOISE SUPPRESSOR
*136 930039 NOISE SUPPRESSOR
138 981373 TUBE (D)
140 930153 SUPPORT (B)
650 944574 DRIFT KEY
665 980734 SIDE HANDLE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi PR-38E
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

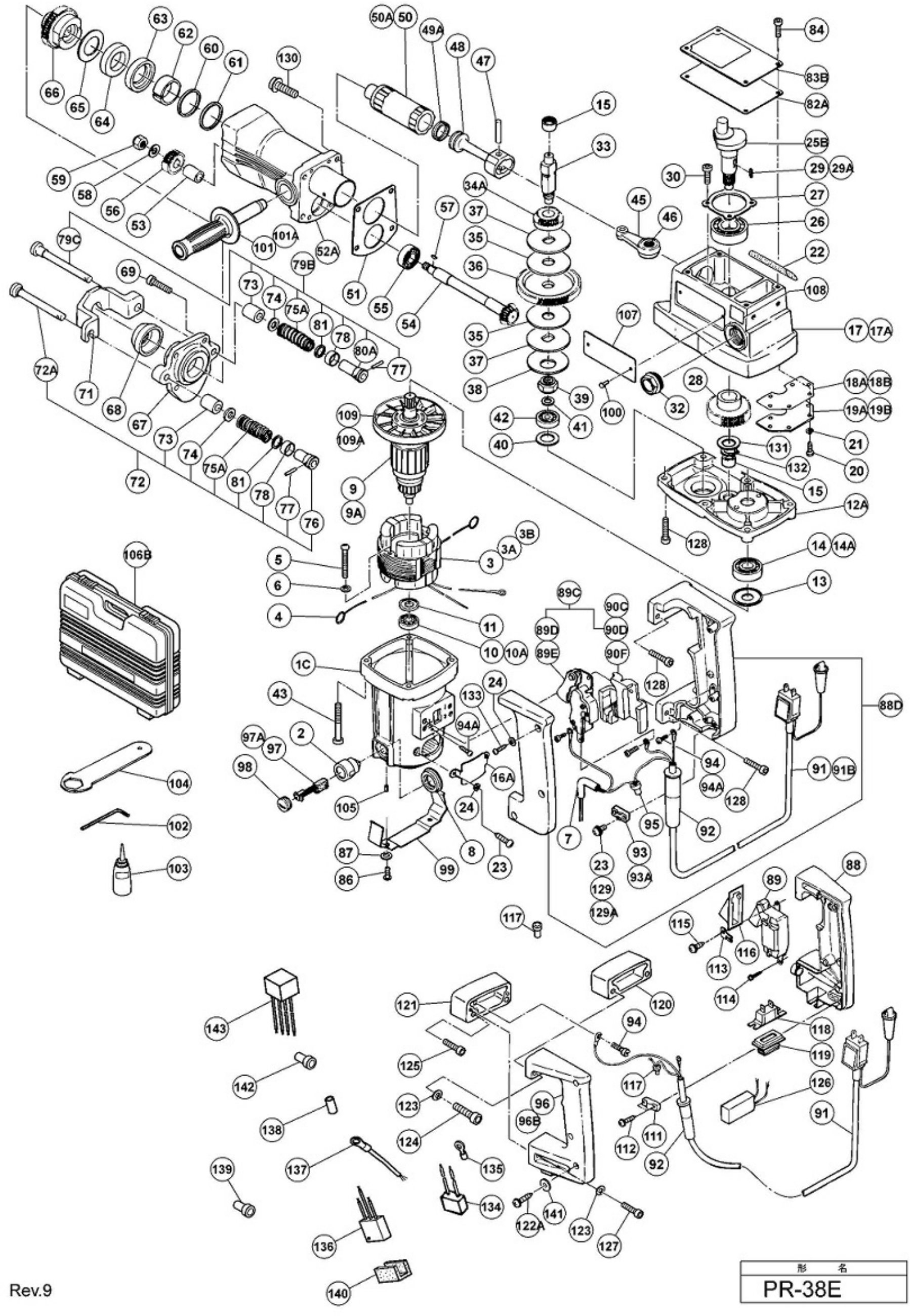

Diagram Hitachi PR-38E

Diagram Hitachi PR-38E

Download (365.62KB)
