Hitachi Spare Parts for Cordless Impact Driver Drill DV18DL

SKU: Hitachi DV18DL
€8.78
VAT included

Spare Parts for Cordless Impact Driver Drill DV18DL

Hitachi-HIKOKI original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Cordless Impact Driver Drill DV18DL.

Fix Your Cordless Impact Driver Drill DV18DL. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Hitachi Spare Parts for Cordless Impact Driver Drill DV18DL
  • Hitachi Spare Parts for Cordless Impact Driver Drill DV18DL
  • Hitachi Spare Parts for Cordless Impact Driver Drill DV18DL

Hitachi Spare Parts for Cordless Impact Driver Drill DV18DL

SKU: Hitachi DV18DL Condition: New
€8.78
VAT included

Spare Parts for Cordless Impact Driver Drill DV18DL

Hitachi-HIKOKI original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Cordless Impact Driver Drill DV18DL.

Fix Your Cordless Impact Driver Drill DV18DL. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 51 spare parts

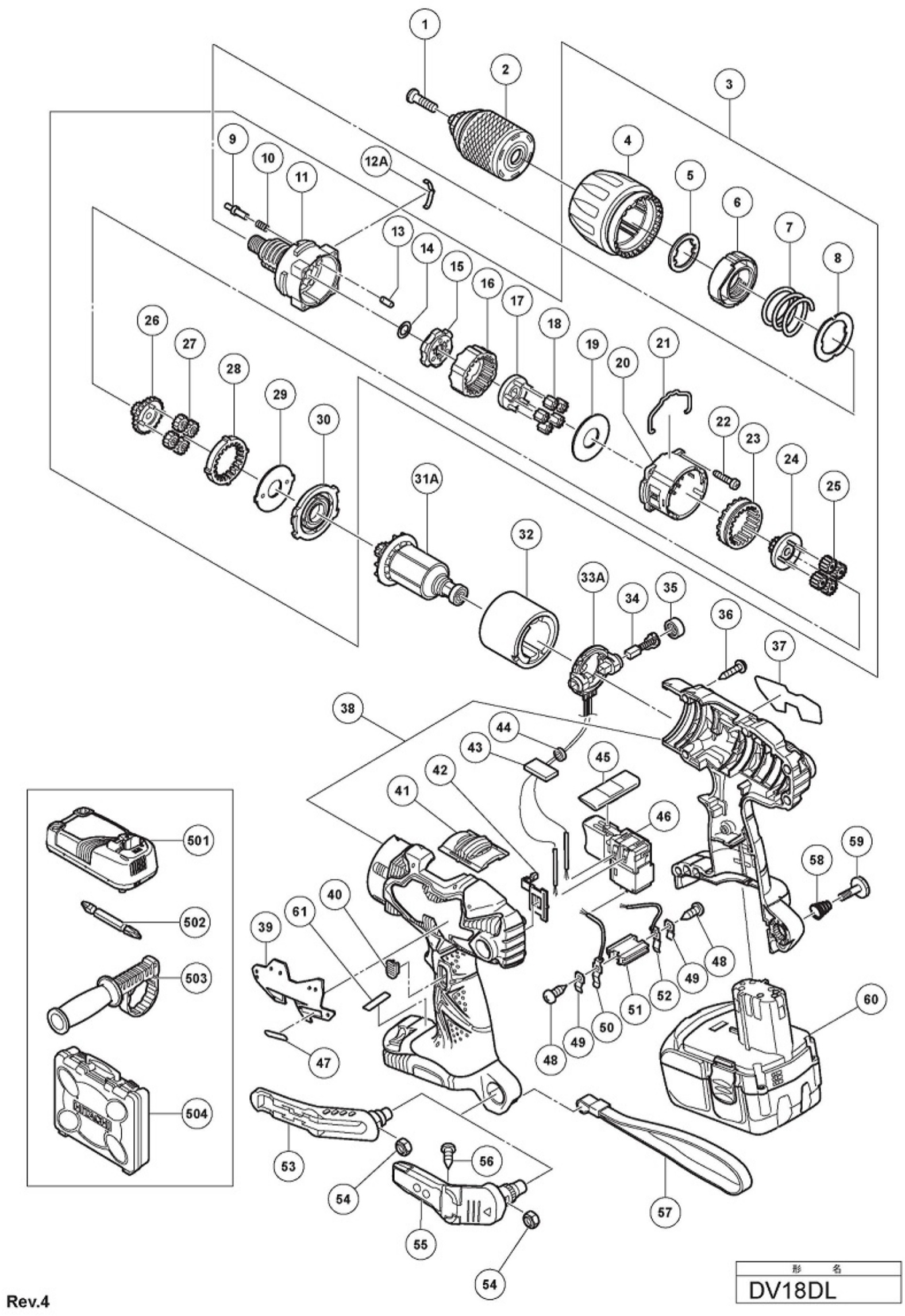

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

50 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
4
Front Cap Ass'y for Codless Drill Drivers Hitachi DV14DL - DV18DL 324074 Front Cap Ass'y for Codless Drill Drivers Hitachi DV14DL - DV18DL €18.00
5
photo_cameraImage coming soon 324136 SWITCH PLATE €2.02
6
photo_cameraImage coming soon 324064 NUT €2.02
7
photo_cameraImage coming soon 324135 SPRING €2.02
8
photo_cameraImage coming soon 324063 THRUST WASHER €2.02
9
photo_cameraImage coming soon 322972 STOPPER €3.90
10
photo_cameraImage coming soon 322971 STOPPER SPRING €2.02
11
photo_cameraImage coming soon 324062 FRONT CASE €46.72
12A
photo_cameraImage coming soon 323231 CLICK SPRING €2.02
13
photo_cameraImage coming soon 322975 PIN SET (6 PCS.) €22.77
14
photo_cameraImage coming soon 324065 WASHER (D) €2.02
15
photo_cameraImage coming soon 322976 LOCK RING €12.16
16
photo_cameraImage coming soon 324066 RING GEAR €5.73
17
photo_cameraImage coming soon 322978 CARRIER €3.68
18
photo_cameraImage coming soon 324067 PLANET GEAR (C) SET €5.73
19
photo_cameraImage coming soon 322980 WASHER (A) €2.02
20
Gears Housing for Cordless Drills Hitachi DV14DL-DV18DL 322981 Gears Housing for Cordless Drills Hitachi DV14DL-DV18DL €6.83
21
photo_cameraImage coming soon 322990 SHIFT ARM €2.02
23
photo_cameraImage coming soon 324069 SLIDE RING GEAR €7.34
24
photo_cameraImage coming soon 324068 PINION (C) €5.48
25
photo_cameraImage coming soon 324070 PLANET GEAR (B) SET €3.90
26
photo_cameraImage coming soon 324071 PINION (B) €7.65
27
photo_cameraImage coming soon 324073 PLANET GEAR (A) SET €3.90
28
photo_cameraImage coming soon 324072 FIRST RING GEAR €3.90
29
photo_cameraImage coming soon 322988 WASHER (B) €2.02
30
photo_cameraImage coming soon 322989 MOTOR SPACER €3.90
31A
Armature for Cordless Drill Hitachi DV18DL 360996 Armature for Cordless Drill Hitachi DV18DL €47.32
32
Magnet for Codless Drill Drivers Hitachi DV14DL - DV18DL 322996 Magnet for Codless Drill Drivers Hitachi DV14DL - DV18DL €16.60
33A
Carbon Brushes Holder for Cordless Drills Hitachi DV14DL-DV18DL 338733 Carbon Brushes Holder for Cordless Drills Hitachi DV14DL-DV18DL €18.00
34
Carbon Brushes for Cordless Drill and Grinders Hitachi 999054 Carbon Brushes for Cordless Drill and Grinders Hitachi €9.76
35
Brushes Cap for Cordless Driver Drill Hitachi DS14DSAL/DS18DSAL 319918 Brushes Cap for Cordless Driver Drill Hitachi DS14DSAL/DS18DSAL €4.32
38
Housing for Cordless Drill Hitachi DV18DL 326278 Housing for Cordless Drill Hitachi DV18DL €34.75
39
photo_cameraImage coming soon 326279 PLATE (A) €25.17
40
photo_cameraImage coming soon 326276 LEVER (A) €2.02
41
photo_cameraImage coming soon 324137 SHIFT KNOB €3.02
42
photo_cameraImage coming soon 326277 LEVER (B) €1.55
43
photo_cameraImage coming soon 326493 SUPPORT (D) €1.61
45
photo_cameraImage coming soon 322997 PUSHING BUTTON €2.03
46
photo_cameraImage coming soon 333640 SWITCH * EX 322994 €29.92
49
photo_cameraImage coming soon 996118 HOLDER SPRING €3.28
50
photo_cameraImage coming soon 323003 TERMINAL €1.59
51
photo_cameraImage coming soon 320997 TERMINAL PIECE €2.02
52
photo_cameraImage coming soon 322995 TERMINAL €1.59
53
photo_cameraImage coming soon 320287 HOOK ASS'Y €6.60
55
Hook Ass'Y with Ligh for Cordless Drills Hitachi DV14DL-DV18DL 321918 Hook Ass'Y with Ligh for Cordless Drills Hitachi DV14DL-DV18DL €18.00
57
photo_cameraImage coming soon 306952 STRAP (BLACK) €8.78
58
photo_cameraImage coming soon 319926 HOOK SPRING €2.20
59
photo_cameraImage coming soon 320881 SPECIAL SCREW (A) M5 €2.27
503
photo_cameraImage coming soon 323001 FOOT €2.39
504
photo_cameraImage coming soon HTA323230 CASE €63.05

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Spare Parts for Cordless Impact Driver Drill DV18DL

Hitachi-HIKOKI original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Cordless Impact Driver Drill DV18DL.

In the following table, look for the model of the Cordells Drill and their spare part.
Hitachi DV18DL

Cordless Impact Driver Drill DV18DL
# Part Num. Description
3 324061 GEAR BOX ASS'Y
4 324074 FRONT CAP
5 324136 SWITCH PLATE
6 324064 NUT
7 324135 SPRING
8 324063 THRUST WASHER
9 322972 STOPPER
10 322971 STOPPER SPRING
11 324062 FRONT CASE
12A 323231 CLICK SPRING
13 322975 PIN SET (6 PCS.)
14 324065 WASHER (D)
15 322976 LOCK RING
16 324066 RING GEAR
17 322978 CARRIER
18 324067 PLANET GEAR (C) SET
19 322980 WASHER (A)
20 322981 REAR CASE
21 322990 SHIFT ARM
23 324069 SLIDE RING GEAR
24 324068 PINION (C)
25 324070 PLANET GEAR (B) SET
26 324071 PINION (B)
27 324073 PLANET GEAR (A) SET
28 324072 FIRST RING GEAR
29 322988 WASHER (B)
30 322989 MOTOR SPACER
31A 360996 ARMATURE AND PINION SET
32 322996 MAGNET
33A 338733 BRUSH BLOCK
34 999054 CARBON BRUSH 5X6X11.5 (1 PAIR)
35 319918 BRUSH CAP
38 326278 HOUSING (A).(B) SET
39 326279 PLATE (A)
40 326276 LEVER (A)
41 324137 SHIFT KNOB
42 326277 LEVER (B)
43 326493 SUPPORT (D)
45 322997 PUSHING BUTTON
46 333640 DC-SPEED CONTROL SWITCH
49 996118 HOLDER SPRING
50 323003 TERMINAL
51 320997 TERMINAL PIECE
52 322995 TERMINAL
53 320287 HOOK ASS'Y
55 321918 HOOK ASS'Y (W/LIGHT)
57 306952 STRAP (BLACK)
58 319926 HOOK SPRING
59 320881 SPECIAL SCREW (A) M5
503 323001 SIDE HANDLE
504 HTA323230 CASE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s HITACHI websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to HITACHI brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
