HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Dust collector RP35YE

SKU: Hitachi RP35YE
€1.40
VAT included

Hitachi Spare Parts for Dust collector RP35YE

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Dust collector RP35YE.
Hitachi Spare Parts for Dust collector RP35YE
  • Online only
  • Hitachi Spare Parts for Dust collector RP35YE
  • Hitachi Spare Parts for Dust collector RP35YE
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Dust collector RP35YE

SKU: Hitachi RP35YE Condition: New
€1.40
VAT included

Hitachi Spare Parts for Dust collector RP35YE

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Dust collector RP35YE.
settings 54 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
54 spare parts

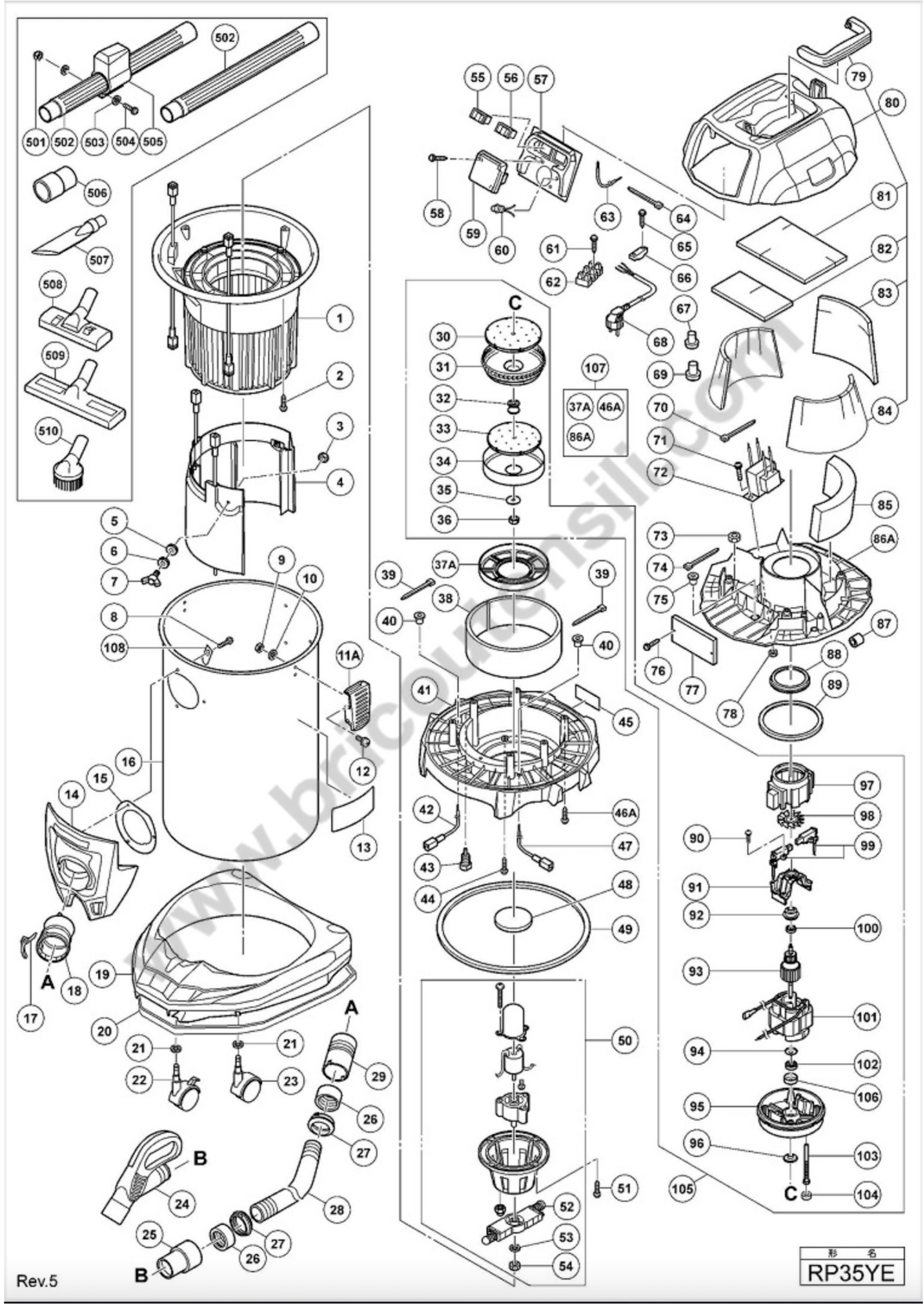

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
4
 photo_cameraImage coming soon 329360 WATER GUARD €48.68
5
 photo_cameraImage coming soon 949424 WASHER M5 (10 PCS.) €1.96
8
 photo_cameraImage coming soon 307811 TAPPING SCREW (W/FLANGE) D4X16 (BLACK) €1.40
11A
 photo_cameraImage coming soon 325867 CLAMP €17.10
14
 photo_cameraImage coming soon 329361 JOINT COVER (A) €16.97
15
 photo_cameraImage coming soon 325862 JOINT COVER PACKING €7.89
16
 photo_cameraImage coming soon 325905 TANK (SUS) €315.72
17
 Hose Stopper for Dust Collectors Hitachi RP150YB 321014 Hose Stopper for Dust Collectors Hitachi RP150YB €3.17
18
 photo_cameraImage coming soon 325864 HOSE JOINT €22.36
19
 photo_cameraImage coming soon 325904 BASE (SUS) €78.82
20
 photo_cameraImage coming soon 325906 BUMPER (A) €19.73
22
 photo_cameraImage coming soon 325859 CASTER D50 (W/STOPPER) €10.52
23
 photo_cameraImage coming soon 325858 CASTER D50 €10.52
24
 photo_cameraImage coming soon 325901 JOINT HANDLE €15.54
25
 photo_cameraImage coming soon 320986 SLEEVE (B) ID38 €15.53
26
 Screw Ring for Dust Collector Hitachi RP35YE 321065 Screw Ring for Dust Collector Hitachi RP35YE €11.35
27
 Click Ring for Dust Collectors Hitachi RP150YB 321066 Click Ring for Dust Collectors Hitachi RP150YB €3.17
28
 photo_cameraImage coming soon 328684 HOSE ASS'Y ID38 €69.44
29
 photo_cameraImage coming soon 320985 SLEEVE (A) ID38 €18.28
37A
 photo_cameraImage coming soon 334977 SUPPORT RING (B) €9.78
38
 photo_cameraImage coming soon 325875 MOTOR BASE FILTER €16.97
41
 photo_cameraImage coming soon 329363 MOTOR BASE €48.68
42
 photo_cameraImage coming soon 329362 INTERNAL WIRE (J) €10.39
44
 photo_cameraImage coming soon 307811 TAPPING SCREW (W/FLANGE) D4X16 (BLACK) €1.40
47
 photo_cameraImage coming soon 329365 INTERNAL WIRE (J) €10.52
48
 photo_cameraImage coming soon 325874 MOTOR FILTER €6.58
49
 photo_cameraImage coming soon 325873 MOTOR BASE PACKING €10.52
50
 photo_cameraImage coming soon 328690 DUST MOTOR BASE ASS'Y €113.17
52
 photo_cameraImage coming soon 325947 DUST HANDLE €14.47
55
 photo_cameraImage coming soon 325931 SWITCH (B) €7.89
56
 photo_cameraImage coming soon 325931 SWITCH (B) €7.89
57
 photo_cameraImage coming soon 329756 SWITCH HOLDER (EU) €5.25
59
 photo_cameraImage coming soon 328685 RECEPTACLE €89.50
60
 photo_cameraImage coming soon 326107 PUSHING SWITCH €61.85
61
 photo_cameraImage coming soon 301653 Tapp.Screw (W / Flange) D4x20 €5.63
72
 photo_cameraImage coming soon 328687 TRANSFORMER 230V €57.77
77
 photo_cameraImage coming soon 329366 PRINTED BOARD (A) (EU) €218.46
79
 photo_cameraImage coming soon 325893 HANDLE €10.52
80
 photo_cameraImage coming soon 328688 HEAD COVER ASS'Y €76.32
81
 photo_cameraImage coming soon 325891 HEAD COVER PACKING (C) €13.03
82
 photo_cameraImage coming soon 325892 HEAD COVER PACKING (D) €6.58
83
 photo_cameraImage coming soon 325890 HEAD COVER PACKING (B) €13.15
84
 photo_cameraImage coming soon 325889 HEAD COVER PACKING (A) €15.78
85
 photo_cameraImage coming soon 325882 MOTOR COVER PACKING (B) €15.78
86A
 photo_cameraImage coming soon 329367 MOTOR COVER €34.08
88
 photo_cameraImage coming soon 325876 SUPPORT RING (A) €7.89
93
 photo_cameraImage coming soon 360817 ARMATURE 230V €80.14
99
 photo_cameraImage coming soon 999102 CARBON BRUSH (1 PAIR) €14.47
105
 photo_cameraImage coming soon 328689 MOTOR ASS'Y €184.12
502
 photo_cameraImage coming soon 320990 EXTENSION PIPE €7.05
505
 photo_cameraImage coming soon 321067 PIPE HOLDER €4.74
506
 photo_cameraImage coming soon 320994 ADAPTER €4.74
507
 photo_cameraImage coming soon 320993 NOZZLE €4.74
508
 photo_cameraImage coming soon 782261 NOZZLE FOR FLUID €26.77
509
 photo_cameraImage coming soon 782262 WET NOZZLE €55.50
510
 photo_cameraImage coming soon 782271 BRUSH €8.90

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Dust Collector RP35YE

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Dust collector RP35YE.

In the following table, look for the model of the Dust Collector and their spare part.
Hitachi RP35YE
Dust Collector RP35EY
# Part Num. Description
1 329359 POWDER FILTER
2 994810 SCREW (PLASTIC TIE) D4X16
3 949555 NUT M5
4 329360 WATER GUARD
5 949424 WASHER M5
6 949454 SPRING WASHER M5
7 949393 WING BOLT M5X15
8 307811 TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
9 311839 HEX. CAP NUT M4
10 949453 SPRING WASHER M4
11A 325867 CLAMP
12 323211 MACHINE SCREW M4X8 (BLACK)
14 329361 JOINT COVER (A)
15 325862 JOINT COVER PACKING
16 325905 TANK (SUS)
17 321014 HOSE STOPPER
18 325864 HOSE JOINT
19 325904 BASE (SUS)
20 325906 BUMPER (A)
21 949433 BOLT WASHER M8
22 325859 CASTER D50 (W/STOPPER)
23 325858 CASTER D50
24 325901 JOINT HANDLE
25 320986 SLEEVE (B) ID38
26 321065 SCREW RING
27 321066 CLICK RING
28 328684 HOSE ASS'Y ID38
29 320985 SLEEVE (A) ID38
30 326218 FAN (A)
31 326225 CASING (A)
32 326226 SPACER
33 326217 FAN (B)
34 326227 CASING (B)
35 326228 SPECIAL WASHER
36 949568 LOCK NUT M8
37A 334977 SUPPORT RING (B)
38 325875 MOTOR BASE FILTER
39 975144 CABLE TIE
40 325950 RUBBER BUSH
41 329363 MOTOR BASE
42 329362 INTERNAL WIRE (J)
43 325952 JOINT
44 307811 TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
46A 307028 TAPPING SCREW (W/FLANGE) D4X25 (BLACK)
47 329365 INTERNAL WIRE (J)
48 325874 MOTOR FILTER
49 325873 MOTOR BASE PACKING
50 328690 DUST MOTOR BASE ASS'Y
51 994806 SCREW (PLASTIC TIE) D4X20
52 325947 DUST HANDLE
53 949455 SPRING WASHER M6
54 949556 NUT M6
55 325931 SWITCH (B)
56 325931 SWITCH (B)
57 329756 SWITCH HOLDER (EU)
58 313687 TAPPING SCREW (W/FLANGE) D3X16 (BLACK)
59 328685 RECEPTACLE
60 326107 PUSHING SWITCH
61 301653 TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
62 321041 TERMINAL PLATE
63 328686 INTERNAL WIRE (E)
64 975144 CABLE TIE
65 305095 TAPPING SCREW (W/FLANGE) D4X20
66 995063 CORD CLIP
67 959140 CONNECTOR 50091
68 500479Z CORD
69 959141 CONNECTOR 50092
70 975144 CABLE TIE
71 301295 MACHINE SCREW (W/WASHERS) M4X20
72 328687 TRANSFORMER 230V
73 949568 LOCK NUT M8
74 975144 CABLE TIE
75 328109 RUBBER BUSH
76 325929 TAPPING SCREW (W/FLANGE) D4X10 (BLACK)
77 329366 PRINTED BOARD (A) (EU)
78 949554 NUT M4
79 325893 HANDLE
80 328688 HEAD COVER ASS'Y
81 325891 HEAD COVER PACKING (C)
82 325892 HEAD COVER PACKING (D)
83 325890 HEAD COVER PACKING (B)
84 325889 HEAD COVER PACKING (A)
85 325882 MOTOR COVER PACKING (B)
86A 329367 MOTOR COVER
87 329755 FERRITE CORE
88 325876 SUPPORT RING (A)
89 325879 MOTOR PACKING
90 949218 MACHINE SCREW M4X14
91 326221 MOTOR FRAME
92 326229 BEARING HOLDER (A)
93 360817 ARMATURE 230V
94 326222 PRESS PLATE
95 326223 MOTOR BASE
96 326224 FLANGE WASHER
97 326215 FAN COVER
98 326216 COOLING FAN
99 999102 CARBON BRUSH (1 PAIR)
100 326231 BALL BEARING 607Z
101 340710 STATOR 230V
102 326230 BALL BEARING 608RS
103 326219 BOLT M5X70
104 326220 RUBBER SPACER
105 328689 MOTOR ASS'Y
106 334527 BEARING HOLDER (B)
107 334980 MOTOR COVER SET
108 325926 EARTH PLATE
502 320990 EXTENSION PIPE
505 321067 PIPE HOLDER
506 320994 ADAPTER
507 320993 NOZZLE
508 782261 NOZZLE FOR FLUID
509 782262 WET NOZZLE
510 782271 BRUSH
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase.All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi RP35YE
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Hitachi HIKOKI RP35YE Drawing

Hitachi HIKOKI RP35YE Drawing

Download (538.83KB)
