Hitachi Spare Parts for Portable Cut-Off Machine CC14SF

SKU: Hitachi CC14SF
€8.36
VAT included

Hitachi Spare Parts for Portable Cut-Off Machine CC14SF

Original spare parts for Hitachi-HIKOKI Portable Cut-Off Machine CC14SF.
Chop saw 2000W  from the new design. With a grip soft-grip to improve the feeling to the operator, is characterized by the block of the 'shaft for easier replacement of the disc.
Hitachi Spare Parts for Rebar Cutter-Bending VB16Y
  • Hitachi Spare Parts for Rebar Cutter-Bending VB16Y
  • Hitachi Spare Parts for Portable Cut-Off Machine CC14SF

Hitachi Spare Parts for Portable Cut-Off Machine CC14SF

SKU: Hitachi CC14SF Condition: New
€8.36
VAT included

Hitachi Spare Parts for Portable Cut-Off Machine CC14SF

Original spare parts for Hitachi-HIKOKI Portable Cut-Off Machine CC14SF.
Chop saw 2000W  from the new design. With a grip soft-grip to improve the feeling to the operator, is characterized by the block of the 'shaft for easier replacement of the disc.
settings 65 spare parts

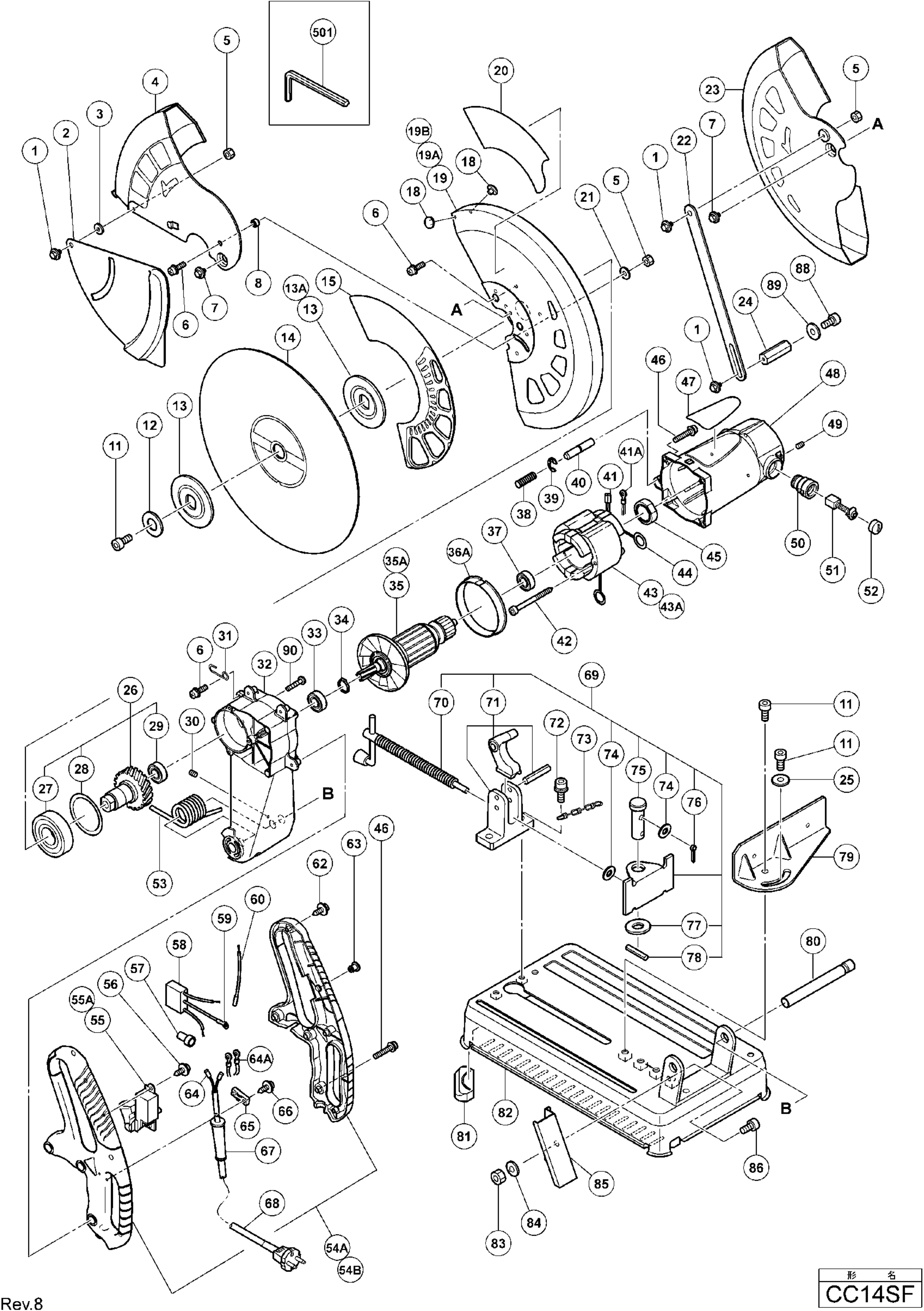

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Shippend in 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

33 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
*53
photo_cameraImage coming soon 321422 SPRING €6.03
*13
photo_cameraImage coming soon 325117 WHEEL WASHER (A) €5.03
*4
photo_cameraImage coming soon 325128 SUB COVER (A) €17.02
*2
photo_cameraImage coming soon 325132 SUB COVER (B) €11.02
*43
photo_cameraImage coming soon 340643H STATOR ASS'Y 230V-240V €95.92
*35
photo_cameraImage coming soon 360732F ARMATURE 230V-240V €82.92
*68
photo_cameraImage coming soon 500247Z CORD €17.20
*67
Cord Armor D.10.1 for Hitachi Power Tools 938051 Cord Armor D.10.1 for Hitachi Power Tools €1.34
*5
Lock Nut M5 for Reciprocating Saws Hitachi CR13V2 - CR13VBY 949566 Lock Nut M5 for Reciprocating Saws Hitachi CR13V2 - CR13VBY €1.45
*67
Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.37
*55
photo_cameraImage coming soon 976825 SWITCH (2P PILLAR TYPE) W/LOCK €23.02
*58
Noise Suppressor for Angle Grinder Hitachi G12SA2 994273 Noise Suppressor for Angle Grinder Hitachi G12SA2 €9.62
19
photo_cameraImage coming soon 325105 WHEEL COVER (A) €43.02
26
photo_cameraImage coming soon 325103 SPINDLE ASS'Y €45.92
29
photo_cameraImage coming soon 6002VV BALL BEARING 6002VVCMPS2L €9.49
32
photo_cameraImage coming soon 325113 GEAR CASE €47.92
34
Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V 939544 Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V €0.55
36A
photo_cameraImage coming soon 326156 FAN GUIDE (M) €2.02
37
photo_cameraImage coming soon 6000VV BALL BEARING 6000VVCMPS2L €9.76
38
photo_cameraImage coming soon 948363 GAUGE SPRING €2.02
39
photo_cameraImage coming soon 955479 RETAINING RING (E-TYPE) FOR D6 SHAFT €1.40
41
photo_cameraImage coming soon 981373 TUBE (D) €1.37
44
photo_cameraImage coming soon 998744 BRUSH TERMINAL €2.02
48
photo_cameraImage coming soon 325125 HOUSING ASS'Y €39.92
50
photo_cameraImage coming soon 980487 BRUSH HOLDER €9.92
51
Carbon Brushe Set for Hitachi Wall Chasers CM7R - CM9SR 999044 Carbon Brushe Set for Hitachi Wall Chasers CM7R - CM9SR €10.04
52
Brushe Cap for Routers Hitachi M12SA-M12V G 940540 Brushe Cap for Routers Hitachi M12SA-M12V G €1.78
62
photo_cameraImage coming soon 301653 Tapp.Screw (W / Flange) D4x20 €5.63
65
photo_cameraImage coming soon 937631 CORD CLIP €1.37
69
photo_cameraImage coming soon 325101 VISE ASS'Y €29.93
70
photo_cameraImage coming soon 321226 SCREW €22.46
77
photo_cameraImage coming soon 321232 WASHER M16 €25.80
79
photo_cameraImage coming soon 325100 VISE (B) €12.02

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Portable Cut-Off Machine CC14SF

Original spare parts for Hitachi-HIKOKI Portable Cut-Off Machine CC14SF.
Chop saw 2000W from the new design. With a grip soft-grip to improve the feeling to the operator, is characterized by the block of the 'shaft for easier replacement of the disc, clamp block quickly and protection disc with an' effective shielding conductive. Private spaces burnished metal with double electrical insulation inside.

In the following table, look for the model of the Cutter-Bending and their spare part.
Cut-Off Machine CC14SF

Portable Cut-Off Machine CC14SF
# Part NUm. Description
*1 325133 BOLT (B) (W/FLANGE)
*2 325132 SUB COVER (B)
*3 949433 BOLT WASHER M8 (10 PCS.)
*4 325128 SUB COVER (A)
*5 949566 LOCK NUT M5 (10 PCS.)
*6 307294 MACHINE SCREW (W/WASHERS) M5X16 (BLACK)
*6 307294 MACHINE SCREW (W/WASHERS) M5X16 (BLACK)
7 325130 BOLT (A) (W/FLANGE)
11 949844 HEX. SOCKET HD. BOLT M10X20 (10 PCS.)
12 965724 WASHER (A)
*13 325117 WHEEL WASHER (A)
13A 335333 WHEEL WASHER (C)
18 325127 COVER BUSH
19 325105 WHEEL COVER (A)
19A 335334 WHEEL COVER (A)
25 949434 BOLT WASHER M10 (10 PCS.)
26 325103 SPINDLE ASS'Y
27 6306VV BALL BEARING 6306VVCMPS2L
28 325017 STOPPER PIN (B)
29 6002VV BALL BEARING 6002VVCMPS2L
30 318044 SEAL LOCK HEX. SOCKET SET SCREW M5X16
31 321234 CHAIN HOOK
32 325113 GEAR CASE
33 6002VV BALL BEARING 6002VVCMPS2L
34 939544 RETAINING RING FOR D15 SHAFT (10 PCS.)
*35 360732F ARMATURE 230V-240V
36A 326156 FAN GUIDE (M)
37 6000VV BALL BEARING 6000VVCMPS2L
38 948363 GAUGE SPRING
39 955479 RETAINING RING (E-TYPE) FOR D6 SHAFT
40 321239 STOPPER PIN
41 981373 TUBE (D)
*43 340643H STATOR ASS'Y 230V-240V
44 998744 BRUSH TERMINAL
45 325116 BEARING BUSHING
46 312298 MACHINE SCREW (W/WASHERS) M5X35
48 325125 HOUSING ASS'Y
49 938477 HEX. SOCKET SET SCREW M5X8
50 980487 BRUSH HOLDER
51 999044 CARBON BRUSH (1 PAIR)
52 940540 BRUSH CAP
*53 321422 SPRING
*55 976825 SWITCH (2P PILLAR TYPE) W/LOCK
*58 994273 NOISE SUPPRESSOR
62 301653 TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
65 937631 CORD CLIP
66 984750 TAPPING SCREW (W/FLANGE) D4X16
*67 953327 CORD ARMOR D8.8
*67 938051 CORD ARMOR D10.1
*68 500247Z CORD
69 325101 VISE ASS'Y
70 321226 SCREW
71 325102 SCREW HOLDER
72 307357 HEX. SOCKET HD. BOLT (W/WASHERS) M8X25
73 968520 CHAIN (6 LINK)
74 949433 BOLT WASHER M8 (10 PCS.)
75 321229 BOLT
76 949537 SPLIT PIN D3X15 (10 PCS.)
77 321232 WASHER M16
78 949681 ROLL PIN D5X25 (10 PCS.)
79 325100 VISE (B)
80 321237 HINGE SHAFT
81 321223 BASE RUBBER
83 949568 LOCK NUT M8 (10 PCS.)
84 949457 SPRING WASHER M8 (10 PCS.)
85 325108 SPARK CHUTE
*85 330712 SPARK CHUTE
86 949656 HEX. SOCKET HD. BOLT M8X20 (10 PCS.)
