Hitachi Spare Parts for Wall Chaser CM7MR

SKU: Hitachi CM7MR
€40.56
VAT included

Hitachi Spare Parts for Wall Chaser CM7MR

We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Wall Chaser CM7MR.
Hitachi Spare Parts for Wall Chaser CM7MR
  • Hitachi Spare Parts for Wall Chaser CM7MR
  • Hitachi Spare Parts for Wall Chaser CM7MR
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Wall Chaser CM7MR

SKU: Hitachi CM7MR Condition: New
€40.56
VAT included

Hitachi Spare Parts for Wall Chaser CM7MR

We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Wall Chaser CM7MR.
settings 82 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN: Usually Ships in 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
82 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 7/10 BUSINESS DAYS

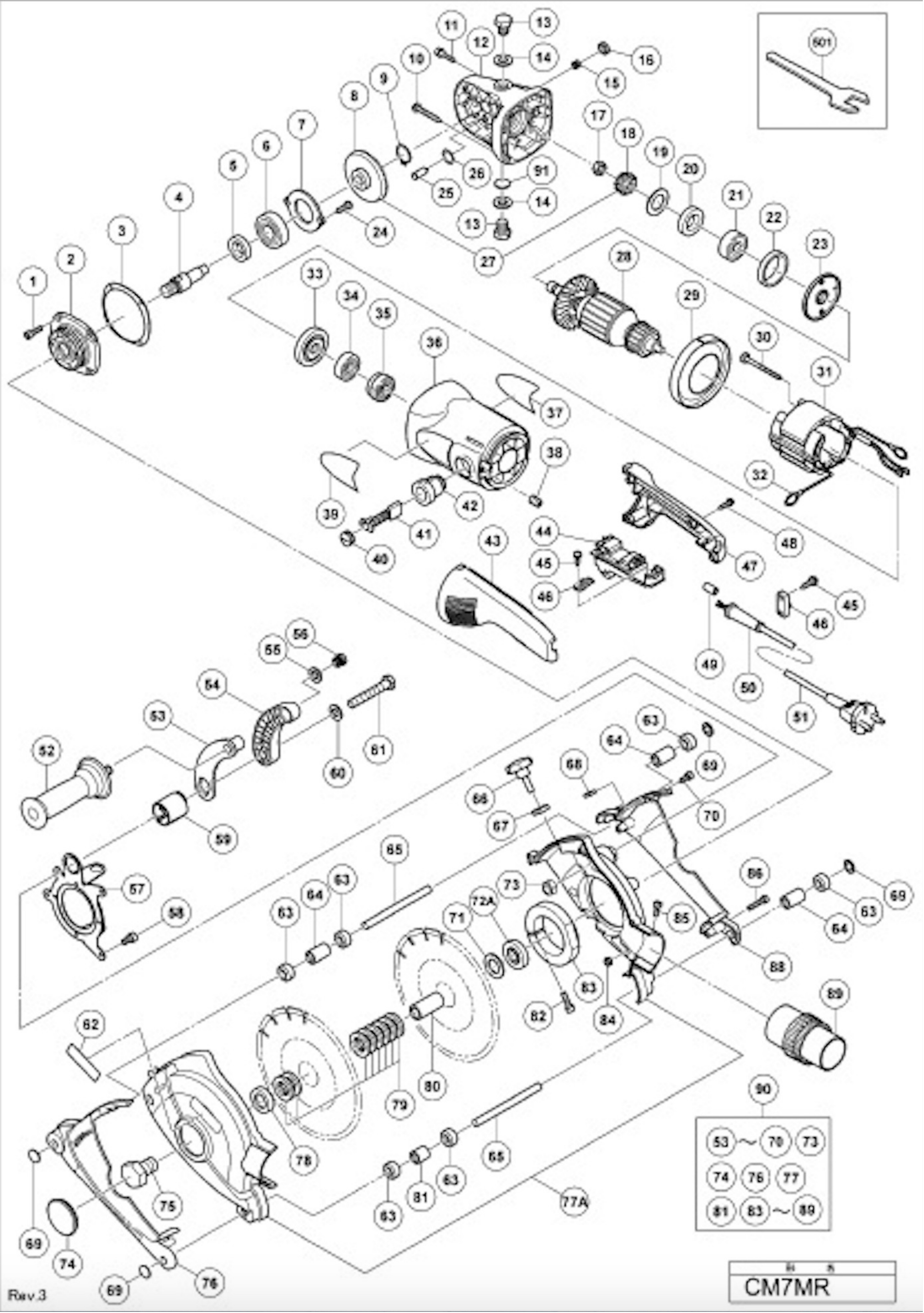

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 994192 HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 €0.00 Not available for order
2
 Packing Gland for Angle Grinder Hitachi G23SS 320227 Packing Gland for Angle Grinder Hitachi G23SS €15.80
3
 Packing Gland Gasket for Angle Grinder Hitachi G23SS 320228 Packing Gland Gasket for Angle Grinder Hitachi G23SS €3.60
4
 photo_cameraImage coming soon 320234 SPINDLE €18.24
5
 photo_cameraImage coming soon 990852 FELT PACKING (B) €2.38
6
 Ball Bearing Hitachi 6302VV 6302VV Ball Bearing Hitachi 6302VV €9.70
7
 Bearing Cover (B) for Angle Grinder Hitachi G23SS 320229 Bearing Cover (B) for Angle Grinder Hitachi G23SS €3.60
9
 Retaining Ring 12 mm for Hitachi Power Tools 939542 Retaining Ring 12 mm for Hitachi Power Tools €3.60
10
 photo_cameraImage coming soon 323209 TAPPING SCREW (W/FLANGE) D5X35 (BLACK) €0.00 Not available for order
11
 photo_cameraImage coming soon 984509 SEAL LOCK HEX. SOCKET HD. BOLT MSX14 €0.00 Not available for order
12
 photo_cameraImage coming soon 320217 GEAR COVER ASS'Y €23.12
13
 photo_cameraImage coming soon 331050 BOLT M14 €0.00 Not available for order
14
 photo_cameraImage coming soon 331045 NYLON WASHER D14 €0.00 Not available for order
15
 Button Spring for Angle Grinders Hitachi G23 320219 Button Spring for Angle Grinders Hitachi G23 €3.60
16
 Pushing Button for Angle Grinders Hitachi G23 306888 Pushing Button for Angle Grinders Hitachi G23 €1.16
17
 photo_cameraImage coming soon 320226 SPECIAL NUT M10 €3.60
19
 photo_cameraImage coming soon 320221 SEAL WASHER €2.38
20
 photo_cameraImage coming soon 320222 FELT PACKING €2.38
21
 photo_cameraImage coming soon 6301VV BALL BEARING 6301VVCMPS2L €12.14
22
 photo_cameraImage coming soon 994208 RUBBER RING (B) €1.16
23
 photo_cameraImage coming soon 320220 BEARING COVER (A) €6.04
24
 photo_cameraImage coming soon 949236 MACHINE SCREW M5X10 €0.00 Not available for order
25
 Lock Pin for Angle Grinder Hitachi G23SS 306890 Lock Pin for Angle Grinder Hitachi G23SS €2.38
26
 photo_cameraImage coming soon 320218 0-RING €2.38
27
 Gear an Pinion for Grinder Hitachi G23SS 330032 Gear an Pinion for Grinder Hitachi G23SS €35.32
28
 Armature for Grinder Hitachi 230 mm G23SR-SRU 360762E Armature for Grinder Hitachi 230 mm G23SR-SRU €75.58
29
 photo_cameraImage coming soon 320215 FAN GUIDE €2.38
30
 photo_cameraImage coming soon 961501 HEX. HD. TAPPING SCREW D5X60 €0.00 Not available for order
31
 photo_cameraImage coming soon 340664E STATOR ASS'Y 220V-230V €54.84
32
 photo_cameraImage coming soon 958032 BRUSH TERMINAL €1.16
33
 photo_cameraImage coming soon 320216 DUST SEAL €2.38
34
 photo_cameraImage coming soon 6000VV BALL BEARING 6000VVCMPS2L €9.70
35
 Bearing Bush for Angle Grinder Hitachi G23SR 321536 Bearing Bush for Angle Grinder Hitachi G23SR €17.02
36
 photo_cameraImage coming soon 325640 HOUSING ASS'Y €67.04
38
 photo_cameraImage coming soon 938477 HEX. SOCKET SET SCREW MSX8 €0.00 Not available for order
40
 Brushe Cap for Routers Hitachi M12SA-M12V G 940540 Brushe Cap for Routers Hitachi M12SA-M12V G €1.16
41
 Carbon Brushe Set for Hitachi Wall Chasers CM7R - CM9SR 999044 Carbon Brushe Set for Hitachi Wall Chasers CM7R - CM9SR €9.70
42
 photo_cameraImage coming soon 980487 BRUSH HOLDER €9.70
43
 photo_cameraImage coming soon 325641 HANDLE (B) €13.36
44
 Switch for Angle Grinders Hitachi 230 mm 320238 Switch for Angle Grinders Hitachi 230 mm €37.76
45
 photo_cameraImage coming soon 984750 Tapp. Screw (W / Flange) D4x16 €0.00 Not available for order
46
 photo_cameraImage coming soon 960266 CORD CLIP €1.16
47
 photo_cameraImage coming soon 325642 HANDLE (A) €12.14
48
 photo_cameraImage coming soon 305812 SCREW WITH FLANGE D4X16 BLACK €0.00 Not available for order
49
 photo_cameraImage coming soon 981373 TUBE (D) €1.16
50
 photo_cameraImage coming soon 940778 CORD ARMOR D10.7 €3.60
52
 photo_cameraImage coming soon 937981 SIDE HANDLE FOR M14 €17.02
53
 photo_cameraImage coming soon 331027 HANDLE ARM (B) €38.98
54
 photo_cameraImage coming soon 331058 HANDLE ARM (A) €19.46
55
 photo_cameraImage coming soon 331053 NYLON WASHER D12 €0.00 Not available for order
56
 photo_cameraImage coming soon 331037 HANDLE PLUG €0.00 Not available for order
57
 photo_cameraImage coming soon 331026 GEAR BOX BRACKET €58.50
58
 photo_cameraImage coming soon 331048 HEX. SOCKET HD. BOLT M5X12 €0.00 Not available for order
59
 photo_cameraImage coming soon 331059 HANDLE RATCHET €17.02
60
 photo_cameraImage coming soon 331043 BOLT WASHER D12 €0.00 Not available for order
61
 photo_cameraImage coming soon 331044 BOLT M12 €0.00 Not available for order
63
 photo_cameraImage coming soon 331028 ROLLER SPACER €0.00 Not available for order
64
 photo_cameraImage coming soon 331031 ROLLER SPACER (30) €0.00 Not available for order
65
 photo_cameraImage coming soon 331029 ROLLER SHAFT €9.70
66
 photo_cameraImage coming soon 331052 KNOB BOLT €0.00 Not available for order
67
 photo_cameraImage coming soon 331062 LOCK WASHER €0.00 Not available for order
68
 photo_cameraImage coming soon 331040 SQUARE NUT M8 €0.00 Not available for order
69
 photo_cameraImage coming soon 331041 SHAFT CAP €1.16
70
 photo_cameraImage coming soon 331046 HEX. SOCKET HD. BOLT M4X12 €0.00 Not available for order
71
 photo_cameraImage coming soon 331032 BLADE SPACER (3) €0.00 Not available for order
72A
 Wheel Washer for Angle Grinder Hitachi G23SS 937907Z Wheel Washer for Angle Grinder Hitachi G23SS €12.14
73
 photo_cameraImage coming soon 331042 NYLOCK NUT M12 €0.00 Not available for order
74
 photo_cameraImage coming soon 331038 RUBBER GROMMET €17.02
75
 photo_cameraImage coming soon 331050 BOLT M14 €0.00 Not available for order
76
 photo_cameraImage coming soon 331056 DUST GUARD (A) €32.88
77A
 photo_cameraImage coming soon 332984 DUST COVER SET €0.00 Not available for order
78
 photo_cameraImage coming soon 331034 BLADE WASHER €0.00 Not available for order
79
 photo_cameraImage coming soon 331033 BLADE SPACER (5) €10.92
80
 photo_cameraImage coming soon 331035 DRIVE SHAFT €0.00 Not available for order
81
 photo_cameraImage coming soon 331030 ROLLER SPACER(20) €0.00 Not available for order
82
 photo_cameraImage coming soon 331049 HEX. SOCKET HD. BOLT M6X25 €0.00 Not available for order
83
 photo_cameraImage coming soon 331060 GEAR BOX CLAMP €30.44
84
 photo_cameraImage coming soon 331051 NYLOCK NUT M5 €0.00 Not available for order
85
 photo_cameraImage coming soon 331048 HEX. SOCKET HD. BOLT M5X12 €0.00 Not available for order
86
 photo_cameraImage coming soon 331047 HEX. SOCKET HD. BOLT M4X20 €0.00 Not available for order
88
 photo_cameraImage coming soon 331057 DUST GUARD (B) €32.88
89
 photo_cameraImage coming soon 331061 VACUUM COUPLING €26.78
90
 photo_cameraImage coming soon 331025 DUST COVER ASS'Y €0.00 Not available for order
91
 photo_cameraImage coming soon 937033 FELT WASHER €2.38

Shipping and delivery information will be available shortly.

Hitachi Spare Parts for Wall Chaser CM7MR

We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Wall Chaser CM7MR.

In the following table, look for the model of the Miter Saw and theirs spare part.
Hitachi CM7MR

WALL CHASER CM 7MR
# Part Num. Description
1 994192 HEX. SOCKET HD. BOLT (W/FLANGE) M5X16
2 320227 PACKING GLAND
3 320228 SEAL PLATE
4 320234 SPINDLE
5 990852 FELT PACKING (B)
6 6302VV BALL BEARING 6302VVCMPS2L
7 320229 BEARING COVER (B)
9 939542 RETAINING RING FOR D12 SHAFT
10 323209 TAPPING SCREW (W/FLANGE) D5X35 (BLACK)
11 984509 SEAL LOCK HEX. SOCKET HD. BOLT M5X14
12 320217 GEAR COVER ASS'Y
13 331050 BOLT M14
14 331045 NYLON WASHER D14
15 320219 SPRING
16 306888 PUSHING BUTTON
17 320226 SPECIAL NUT M10
19 320221 SEAL WASHER
20 320222 FELT PACKING
21 6301VV BALL BEARING 6301VVCMPS2L
22 994208 RUBBER RING (B)
23 320220 BEARING COVER (A)
24 949236 MACHINE SCREW M5X10
25 306890 LOCK PIN
26 320218 O-RING
27 330032 GEAR AND PINION SET
28 360762E ARMATURE 220V-240V
29 320215 FAN GUIDE
30 961501 HEX. HD. TAPPING SCREW D5X60
31 340664E STATOR ASS'Y 220V-230V
32 958032 BRUSH TERMINAL
33 320216 DUST SEAL
34 6000VV BALL BEARING 6000VVCMPS2L
35 321536 BEARING BUSHING
36 325640 HOUSING ASS'Y
38 938477 HEX. SOCKET SET SCREW M5X8
40 940540 BRUSH CAP
41 999044 CARBON BRUSH (1 PAIR)
42 980487 BRUSH HOLDER
43 325641 HANDLE (B)
44 320238 SWITCH (2P PILLAR TYPE) W/SAFETY LOCK
45 984750 TAPPING SCREW (W/FLANGE) D4X16
45 984750 TAPPING SCREW (W/FLANGE) D4X16
46 960266 CORD CLIP
47 325642 HANDLE (A)
48 305812 TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
49 981373 TUBE (D)
50 940778 CORD ARMOR D10.7
52 937981 SIDE HANDLE FOR M14
53 331027 HANDLE ARM (B)
54 331058 HANDLE ARM (A)
55 331053 NYLON WASHER D12
56 331037 HANDLE PLUG
57 331026 GEAR BOX BRACKET
58 331048 HEX. SOCKET HD. BOLT M5X12
59 331059 HANDLE RATCHET
60 331043 BOLT WASHER D12
61 331044 BOLT M12
63 331028 ROLLER
64 331031 ROLLER SPACER (30)
65 331029 ROLLER SHAFT
66 331052 KNOB BOLT
67 331062 LOCK WASHER
68 331040 SQUARE NUT M8
69 331041 SHAFT CAP
70 331046 HEX. SOCKET HD. BOLT M4X12
71 331032 BLADE SPACER (3)
72A 937907Z WHEEL WASHER (C)
73 331042 NYLOCK NUT M12
74 331038 RUBBER GROMMET
75 331050 BOLT M14
76 331056 DUST GUARD (A)
77A 332984 DUST COVER SET
78 331034 BLADE WASHER
79 331033 BLADE SPACER (5)
80 331035 DRIVE SHAFT
81 331030 ROLLER SPACER(20)
82 331049 HEX. SOCKET HD. BOLT M6X25
83 331060 GEAR BOX CLAMP
84 331051 NYLOCK NUT M5
85 331048 HEX. SOCKET HD. BOLT M5X12
86 331047 HEX. SOCKET HD. BOLT M4X20
88 331057 DUST GUARD (B)
89 331061 VACUUM COUPLING
90 331025 DUST COVER ASS'Y
91 937033 FELT WASHER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CM7MR
12 Items

Data sheet

SHIPPING IN
Usually Ships in 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi CM7MR

Diagram Hitachi CM7MR

Download (1.49MB)

You might also like

Carbon Brushe Set for Hitachi Wall Chasers CM7R - CM9SR
HiKOKI Power Tools Italia S.p.a. SKU: 999044
Carbon Brushe Set for Hitachi Wall Chasers CM7R - CM9SR
Carbon Brushe Set for Hitachi Wall Chasers CM7R - CM9SR Genuine part Hitachi, Carbon Brushe Set for Hitachi Wall Chasers CM7R-CM9SR-CM12Y, Hammer DH50MRY, Demolition Hammers H60MC, Grinder G23SR, Router M12V2, Mitre Saw...
AVAILABLE €9.70
Details
Gear an Pinion for Grinder Hitachi G23SS
HiKOKI Power Tools Italia S.p.a. SKU: 330032
Gear an Pinion for Grinder Hitachi G23SS
Gear and Pinion for Grinder Hitachi G23SS Genuine spare part Hitachi KOKY, Gear and Pinion for Angle Grinder G23SS - G 23SF2 - G 23SR - G 23MR - Wall Chaser CM7MR - Cutting Machine CM9SR Part for the following products:...
AVAILABLE €35.32
Details
Armature for Grinder Hitachi 230 mm G23SR-SRU
HiKOKI Power Tools Italia S.p.a. SKU: 360762E
Armature for Grinder Hitachi 230 mm G23SR-SRU
Armature for Grinder Hitachi 230 mm G23SR-SRU Original spare parts for Hitachi KOKY grinder with disc 230 mm, G23SR - G23SRU - Cutting Machine CM9SR - Wall Chaser CM7MR. - Hitachi Code: 360762E
AVAILABLE €75.58
Details
Ball Bearing Hitachi 6302VV
HiKOKI Power Tools Italia S.p.a. SKU: 6302VV
Ball Bearing Hitachi 6302VV
Ball Bearing Hitachi 6302VV Genuine parts Hitachi, Ball Bearing 6302VV CMPS2S for Angle Grinders S 23UBY - G 23SR - G 23SS - G 23SW. Parts for the following products: - Angle Grinder Hitachi 230 mm S 23UBY - Angle Grinder Hitachi 230...
AVAILABLE €9.70
Details
Ball Bearing Hitachi 6301DD
HiKOKI Power Tools Italia S.p.a. SKU: 6301DD
Ball Bearing Hitachi 6301DD
Ball Bearing Hitachi 6301DD Genuine parts Hitachi, Ball Bearing 6301DD CMPS2S for Angle Grinders G 23SF2 - G 23MR - S 23UBY - G 23SF. Parts for the following products: - Angle Grinder Hitachi 230 mm G 23SF2 - Angle Grinder Hitachi 230...
AVAILABLE €10.92
Details
Carbon Brushes for Angle Grinder Hitachi G23SF - G23SR
HiKOKI Power Tools Italia S.p.a. SKU: 999074
Carbon Brushes for Angle Grinder Hitachi G23SF - G23SR
Carbon Brushes for Angle Grinder Hitachi G23SF - G23SR Genuine parts HITACHI, Carbon Brushes for Angle Grinder Hitachi G23SF - G23SR  230 mm G23SF - G23SR - Combination Hammer UVP DH50MRY - Demolition Hammer H60MC...
AVAILABLE €14.58
Details
Pushing Button for Angle Grinders Hitachi G15VA - G15YF
HiKOKI Power Tools Italia S.p.a. SKU: 306888
Pushing Button for Angle Grinders Hitachi G23
Pushing Button for Angle Grinders Hitachi G23 Original spare parts Hitachi, Pushing Button for Angle Grinders G23SS - G23SW - G23SF2 - S23UBY - G23UBY - G23SWU - G23SR - G23MR - G23SF - CM12Y - CM7MR - CM9SR - SP18VA. Part for the...
AVAILABLE €1.16
Details
Pushing Button for Angle Grinders Hitachi G23
HiKOKI Power Tools Italia S.p.a. SKU: 320219
Button Spring for Angle Grinders Hitachi G23
Button Spring for Angle Grinders Hitachi G23 Original spare parts Hitachi, Button Spring for Angle Grinders S23UBY - G23UBY - G23SWU - G23SS - G23SW - G23SR - G23MR - G23SF2 - CM7MR - CM9SR. Part for the following items: - Angle...
AVAILABLE €3.60
Details
Wheel Washer for Angle Grinder Hitachi G23SS
HiKOKI Power Tools Italia S.p.a. SKU: 937907Z
Wheel Washer for Angle Grinder Hitachi G23SS
Wheel Washer for Angle Grinder Hitachi G23SS Genuine spare part Hitachi HIKOKI, Wheel Washer for Angle Grinders G23SS - G23MR - G23SC3 - G23SE2 - G23SF2 - G23SR - G23ST. Part for the following products: - Angle Grinder HITACHI G23SS -...
on 7/10 Business Days Approx. €12.14
Details
Wheel Nut for Angle Grinder Hitachi G23SS
HiKOKI Power Tools Italia S.p.a. SKU: 937909Z
Wheel Nut for Angle Grinder Hitachi G23SS
Wheel Nut for Angle Grinder Hitachi G23SS Genuine spare part Hitachi KOKY, Wheel Nut for Angle Grinders G23SS - G23MR - G23SC3 - G23SE2 - G23SF2 - G23SR - G23ST Part for the following products: - Angle Grinder HITACHI G23SS - Angle...
AVAILABLE €17.02
Details
Bearing Bush for Angle Grinder Hitachi G23SR
HiKOKI Power Tools Italia S.p.a. SKU: 321536
Bearing Bush for Angle Grinder Hitachi G23SR
Bearing Bush for Angle Grinder Hitachi G23SR Genuine Spare Part Hitachi, Bearing Bush for Angle Grinders G23SR - G23UBY - G23UDY - G23SC3 - G23SE2. Part for the following products: - Angle Grinder G23SR - Angle Grinder G23UBY - Angle...
AVAILABLE €17.02
Details
Packing Gland for Angle Grinder Hitachi G23SS
HiKOKI Power Tools Italia S.p.a. SKU: 320227
Packing Gland for Angle Grinder Hitachi G23SS
Packing Gland for Angle Grinder Hitachi G23SS Genuine spare part Hitachi HIKOKI, Packing Gland for Angle Grinders G23SS - G23MR - G23SC3 - G23SE2 - G23SE2 - G23SR - G23ST Part for the following products: -  Angle Grinder G23SS -...
on 7/10 Business Days Approx. €15.80
Details
Packing Gland Gasket for Angle Grinder Hitachi G23SS
HiKOKI Power Tools Italia S.p.a. SKU: 320228
Packing Gland Gasket for Angle Grinder Hitachi G23SS
Packing Gland Gasket for Angle Grinder Hitachi G23SS Genuine spare part Hitachi HIKOKI, Packing Gland Gasket for Angle Grinders G23SS - G23MR - G23SC3 - G23SE2 - G23SE2 - G23SR - G23ST Part for the following products: -  Angle Grinder...
on 7/10 Business Days Approx. €3.60
Details
Lock Pin for Angle Grinder Hitachi G23SS
HiKOKI Power Tools Italia S.p.a. SKU: 306890
Lock Pin for Angle Grinder Hitachi G23SS
Lock Pin for Angle Grinder Hitachi G23SS Genuine spare part Hitachi HIKOKI, Lock Pin for Angle Grinders G23SS - G23MR - G23SC3 - G23SE2 - G23SE2 - G23SR - G23ST Part for the following...
Usually Ships in: 7/10 Business Days Approx. €2.38
Details
Bearing Cover (B) for Angle Grinder Hitachi G23SS
HiKOKI Power Tools Italia S.p.a. SKU: 320229
Bearing Cover (B) for Angle Grinder Hitachi G23SS
Bearing Cover (B) for Angle Grinder Hitachi G23SS Genuine spare part Hitachi HIKOKI, Bearing Cover (B) for Angle Grinders G23SS - G23MR - G23SC3 - G23SE2 - G23SE2 - G23SR - G23ST Part for the following products: -  Angle Grinder G23SS...
on 7/10 Business Days Approx. €3.60
Details
Comments (0)
No customer reviews for the moment.
