HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Sliding Compound Miter Saw C12RSH

SKU: Hitachi C12RSH
€5.95
VAT included

Hitachi Spare Parts for Sliding Compound Miter Saw C12RSH

We have the original Spares Hitachi-HIKOKI for Sliding Compound Miter Saw C12RSH, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Sliding Compound Miter Saw C12RSH. All Spares are original and can be supplied at Cheap and discounted prices.
Hitachi Spare Parts for Sliding Compound Miter Saw C12RSH
  • Online only
  • Hitachi Spare Parts for Sliding Compound Miter Saw C12RSH
  • Hitachi Spare Parts for Sliding Compound Miter Saw C12RSH-C12LCH
  • Hitachi Spare Parts for Sliding Compound Miter Saw C12RSH-C12LCH
  • Hitachi Spare Parts for Sliding Compound Miter Saw C12RSH-C12LCH
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Sliding Compound Miter Saw C12RSH

SKU: Hitachi C12RSH Condition: New
€5.95
VAT included

Hitachi Spare Parts for Sliding Compound Miter Saw C12RSH

We have the original Spares Hitachi-HIKOKI for Sliding Compound Miter Saw C12RSH, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Sliding Compound Miter Saw C12RSH. All Spares are original and can be supplied at Cheap and discounted prices.
settings 128 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
128 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

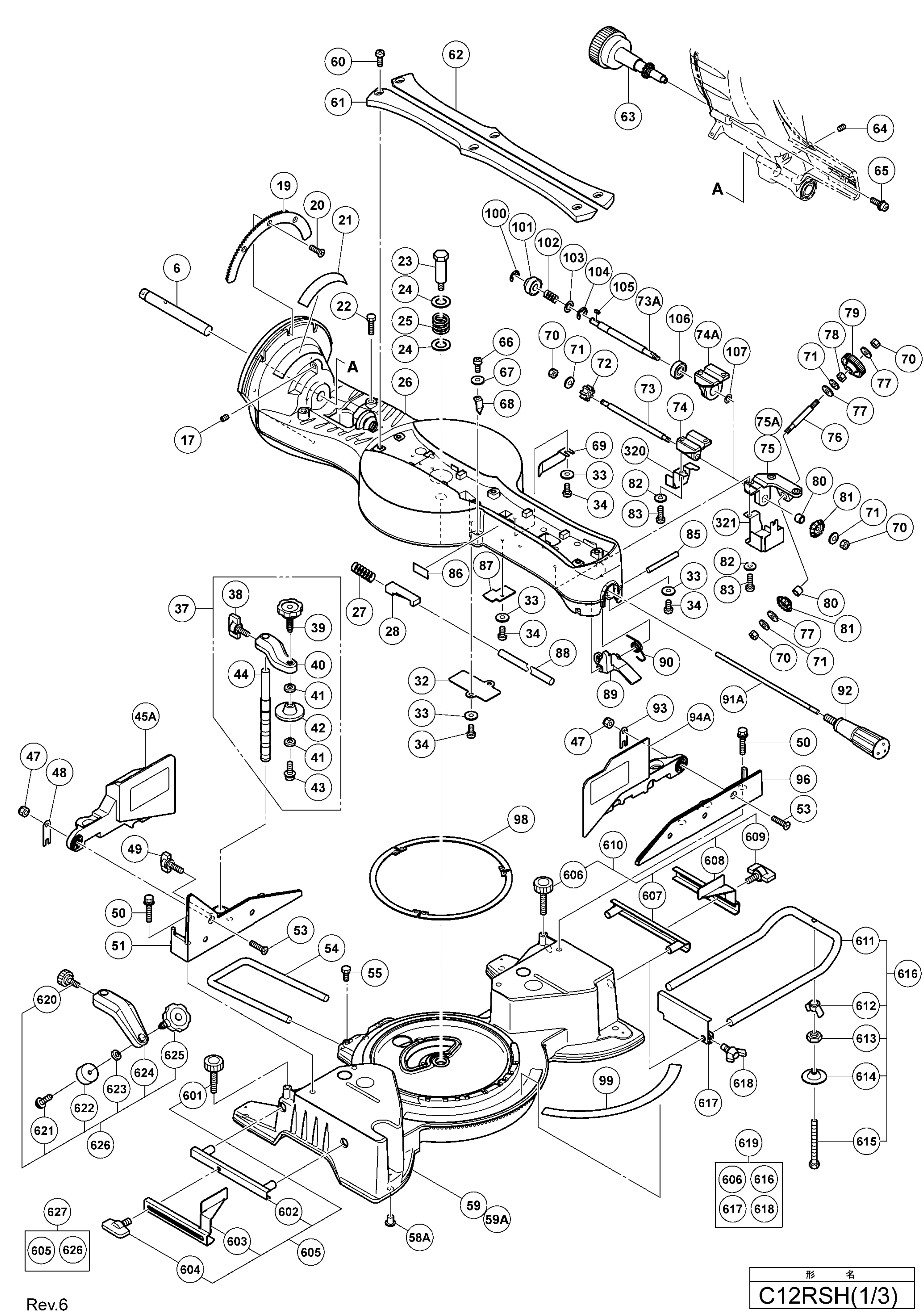

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
*233
 photo_cameraImage coming soon 323978 SWITCHING POWER SUPPLY €42.51
*190
 photo_cameraImage coming soon 328522 LINK €22.12
*290
 photo_cameraImage coming soon 328523 PROTECTIVE COVER FOR EUROPE €29.92
*253
 photo_cameraImage coming soon 340703E STATOR (B) ASS'Y 220V-230V €64.36
*256
 photo_cameraImage coming soon 360790B ARMATURE ASS'Y 220V-230V €79.65
*244
 photo_cameraImage coming soon 999065 CARBON BRUSH (1 PAIR) €10.05
6
 photo_cameraImage coming soon 324391 HOLDER SHAFT €18.58
17
 photo_cameraImage coming soon 324612 NYLOCK HEX. SET SCREW M8X16 €81.39
19
 photo_cameraImage coming soon 324399 GEAR (A) €8.21
21
 photo_cameraImage coming soon 324416 SCALE (B) €5.48
23
 photo_cameraImage coming soon 324401 SHAFT (B) €6.98
25
 photo_cameraImage coming soon 324402 SPRING (B) €5.48
26
 photo_cameraImage coming soon 324394 TURN TABLE €174.69
27
 photo_cameraImage coming soon 321417 SPRING (E) €4.49
28
 photo_cameraImage coming soon 322280 STOPPER (A) €6.84
32
 photo_cameraImage coming soon 321336 PIN COVER €2.49
37
 photo_cameraImage coming soon 324378 VISE ASS'Y €25.14
38
 photo_cameraImage coming soon 307947 WING BOLT M6X12 €2.20
41
 photo_cameraImage coming soon 996722 WASHER €1.55
42
 photo_cameraImage coming soon 322047 VISE PLATE €7.60
45A
 photo_cameraImage coming soon 324454 SUB FENCE (B) €25.14
48
 photo_cameraImage coming soon 324377 PLATE (B) €2.75
51
 photo_cameraImage coming soon 324385 FENCE (B) €20.66
54
 photo_cameraImage coming soon 998834 HOLDER €12.02
58A
 photo_cameraImage coming soon 323606 BASE RUBBER €1.60
61
 photo_cameraImage coming soon 324411 TABLE INSERT (B) €5.48
62
 photo_cameraImage coming soon 324410 TABLE INSERT (A) €5.48
63
 photo_cameraImage coming soon 324370 KNOB (B) €19.67
68
 photo_cameraImage coming soon 321329 INDICATOR €2.49
69
 photo_cameraImage coming soon 321342 SPACER (A) €2.49
72
 photo_cameraImage coming soon 324407 GEAR (D) €2.75
73
 photo_cameraImage coming soon 324405 BEVEL SHAFT (B) €8.76
74
 photo_cameraImage coming soon 324404 SHAFT HOLDER (B) €7.66
75
 photo_cameraImage coming soon 324403 SHAFT HOLDER (A) €9.85
76
 photo_cameraImage coming soon 324408 BEVEL SHAFT (A) €7.66
81
 photo_cameraImage coming soon 324406 BEVEL GEAR €7.66
85
 photo_cameraImage coming soon 321339 LEVER SHAFT €2.49
87
 photo_cameraImage coming soon 324395 COVER (B) €1.62
88
 photo_cameraImage coming soon 324396 SHAFT (C) €3.29
89
 photo_cameraImage coming soon 321338 LEVER €2.20
90
 photo_cameraImage coming soon 321340 SPRING (D) €2.27
91A
 photo_cameraImage coming soon 334378 SHAFT (A) €2.75
92
 photo_cameraImage coming soon 322283 SIDE HANDLE €9.21
93
 photo_cameraImage coming soon 324381 PLATE (A) €2.75
94A
 Sub Fence A for Sliding Compound Miter Saw Hitachi C12RSH 324455 Sub Fence A for Sliding Compound Miter Saw Hitachi C12RSH €32.10 Not available for order
96
 photo_cameraImage coming soon 324384 FENCE (A) €20.66
98
 photo_cameraImage coming soon 324400 LINER €2.20
99
 photo_cameraImage coming soon 315210 SCALE (A) €7.58
105
 photo_cameraImage coming soon 944109 FEATHER KEY 3X3X8 €2.99
106
 photo_cameraImage coming soon 6000DD BALL BEARING 6000DDCMPS2L €7.26
134
 photo_cameraImage coming soon 324417 SUPPORT €18.58
140
 photo_cameraImage coming soon 324383 SIDE COVER €14.10
143
 photo_cameraImage coming soon 324415 BUSHING €8.76
144
 photo_cameraImage coming soon 324414 BALL BUSHING €25.08
145
 photo_cameraImage coming soon 324413 HOLDER (A) €77.46
146
 photo_cameraImage coming soon 324418 KNOB BOLT M6X25 €5.92
147
 photo_cameraImage coming soon 947859 Lock Spring €1.75
149
 photo_cameraImage coming soon 324465 SLIDE PIPE (A) €22.95
151
 photo_cameraImage coming soon 324388 SLEEVE €7.66
152A
 photo_cameraImage coming soon 310898 SPRING €18.58
153
 photo_cameraImage coming soon 305180 CLUTCH SCREW €5.79
154
 photo_cameraImage coming soon 305179 CLUTCH SPRING €1.40
156A
 photo_cameraImage coming soon 325298 CLAMP LEVER €5.48
157
 photo_cameraImage coming soon 323903 BOLT M8X65 €8.76
160
 photo_cameraImage coming soon 323904 STOPPER HOLDER (C) €10.93
161
 photo_cameraImage coming soon 323905 STOPPER (C) €16.39
162
 photo_cameraImage coming soon 324420 SET PIN (A) €8.76
164
 photo_cameraImage coming soon 321329 INDICATOR €2.49
166
 photo_cameraImage coming soon 324466 SLIDE PIPE (B) €44.69
173
 photo_cameraImage coming soon 324467 HINGE (A) €69.82
174
 photo_cameraImage coming soon 324421 GRIP €1.60
176
 photo_cameraImage coming soon 324372 GUIDE €10.52
181
 photo_cameraImage coming soon 320183 COVER €5.48
182
 photo_cameraImage coming soon 324419 STOPPER PIN ASS'Y €7.66
183
 photo_cameraImage coming soon 872645 O-RING (P-9) €2.12
186A
 photo_cameraImage coming soon 324387 HINGE SHAFT (A) €3.29
187A
 photo_cameraImage coming soon 323606 BASE RUBBER €1.60
191
 photo_cameraImage coming soon 319270 ADJUSTER €8.26
193
 photo_cameraImage coming soon 305180 CLUTCH SCREW €5.79
194
 photo_cameraImage coming soon 305179 CLUTCH SPRING €1.40
196
 photo_cameraImage coming soon 319268 PLATE (B) €2.21
197
 photo_cameraImage coming soon 305179 CLUTCH SPRING €1.40
198B
 photo_cameraImage coming soon 329863 LASER MARKER €50.92
199
 photo_cameraImage coming soon 319267 SPRING €2.75
201
 photo_cameraImage coming soon 319271 COVER (A) €19.18
202
 photo_cameraImage coming soon 322291 PLATE (A) €3.50
206
 photo_cameraImage coming soon 319267 SPRING €2.75
207
 photo_cameraImage coming soon 319269 HOLDER (B) €2.76
231
 photo_cameraImage coming soon 324460 HANDLE (L) €14.76
238
 photo_cameraImage coming soon 324461 HANDLE (R) €10.93
239
 Cord Armor D.10.1 for Hitachi Power Tools 938051 Cord Armor D.10.1 for Hitachi Power Tools €1.34
240
 photo_cameraImage coming soon 937631 CORD CLIP €1.37
241
 photo_cameraImage coming soon 301653 Tapp.Screw (W / Flange) D4x20 €5.63
243
 Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU 945161 Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU €2.78
245
 Brush Holder for Angle Grinders Hitachi G23SS-G23SW-G23SWU 938241 Brush Holder for Angle Grinders Hitachi G23SS-G23SW-G23SWU €11.86
251
 photo_cameraImage coming soon 324459 HOUSING ASS'Y €33.88
252
 photo_cameraImage coming soon 937623 BRUSH TERMINAL €1.33
254
 photo_cameraImage coming soon 324397 END PLATE €5.48
257
 photo_cameraImage coming soon 6000VV BALL BEARING 6000VVCMPS2L €9.76
258
 photo_cameraImage coming soon 324442 FAN GUIDE €5.48
259
 photo_cameraImage coming soon 6201VV BALL BEARING 6201VVCMPS2L €6.76
263
 photo_cameraImage coming soon 324448 SWITCH HANDLE (L) €15.30
265
 photo_cameraImage coming soon 324462 SPINDLE COVER €8.21
266
 photo_cameraImage coming soon 324425 INTERNAL WIRE (A) €8.76
268
 photo_cameraImage coming soon 324424 SWITCH W/O LOCK €10.53
269
 photo_cameraImage coming soon 324449 SWITCH HANDLE (R) €12.02
270
 photo_cameraImage coming soon 961468 KNOB BOLT M6X37 €1.70
271
 photo_cameraImage coming soon 988821 LOCK SPRING €5.28
275
 photo_cameraImage coming soon 324437 GEAR CASE €85.76
280
 photo_cameraImage coming soon 606ZZM BALL BEARING 606VVC2 €16.22
289
 photo_cameraImage coming soon 307731 COVER €3.03
290A
 photo_cameraImage coming soon 336341 PROTECTIVE COVER €22.01
291A
 Return Spring for Miter Saw Hitachi C12RSH 328188 Return Spring for Miter Saw Hitachi C12RSH €3.48
292
 photo_cameraImage coming soon 324438 SPINDLE ASS'Y €45.78
293
 photo_cameraImage coming soon 6003DD BALL BEARING 6003DDCMPS2S €8.11
294
 photo_cameraImage coming soon 324439 BEARING HOLDER €10.92
295
 photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
298
 photo_cameraImage coming soon 321364 DUST GUIDE €3.28
299
 photo_cameraImage coming soon 312492 GUIDE HOLDER €5.41
300
 photo_cameraImage coming soon 324440 PINION ASS'Y €39.89
302
 photo_cameraImage coming soon 6201VV BALL BEARING 6201VVCMPS2L €6.76
306
 photo_cameraImage coming soon 321399 BALL BEARING 608VVC2NS7L €6.06
307
 photo_cameraImage coming soon 324443 PULLEY (A) €7.12
310
 photo_cameraImage coming soon 324427 BELT (200H10) 16X508 €36.29
311
 photo_cameraImage coming soon 983545 NEEDLE ROLLER €1.28
312A
 photo_cameraImage coming soon 325259 BEARING HOLDER (B) €4.40
314
 photo_cameraImage coming soon 307732 STOPPER PIN €4.57
317
 photo_cameraImage coming soon 324450 PULLEY COVER €12.02
319
 photo_cameraImage coming soon 319503 SWITCH (W/COVER) €16.39
336
 Guide for Radial Mitre Saw Hitachi C 12RSH 326828 Guide for Radial Mitre Saw Hitachi C 12RSH €18.00
337
 photo_cameraImage coming soon 321394 GUARD HOLDER €3.28
341
 photo_cameraImage coming soon 307811 TAPPING SCREW (W/FLANGE) D4X16 (BLACK) €1.40
344
 photo_cameraImage coming soon 307811 TAPPING SCREW (W/FLANGE) D4X16 (BLACK) €1.40
345
 photo_cameraImage coming soon 322457 LEVER SPRING €1.44
348
 photo_cameraImage coming soon 324633 WASHER (D) €8.76
349
 photo_cameraImage coming soon 328520 WASHER (C) €13.12
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

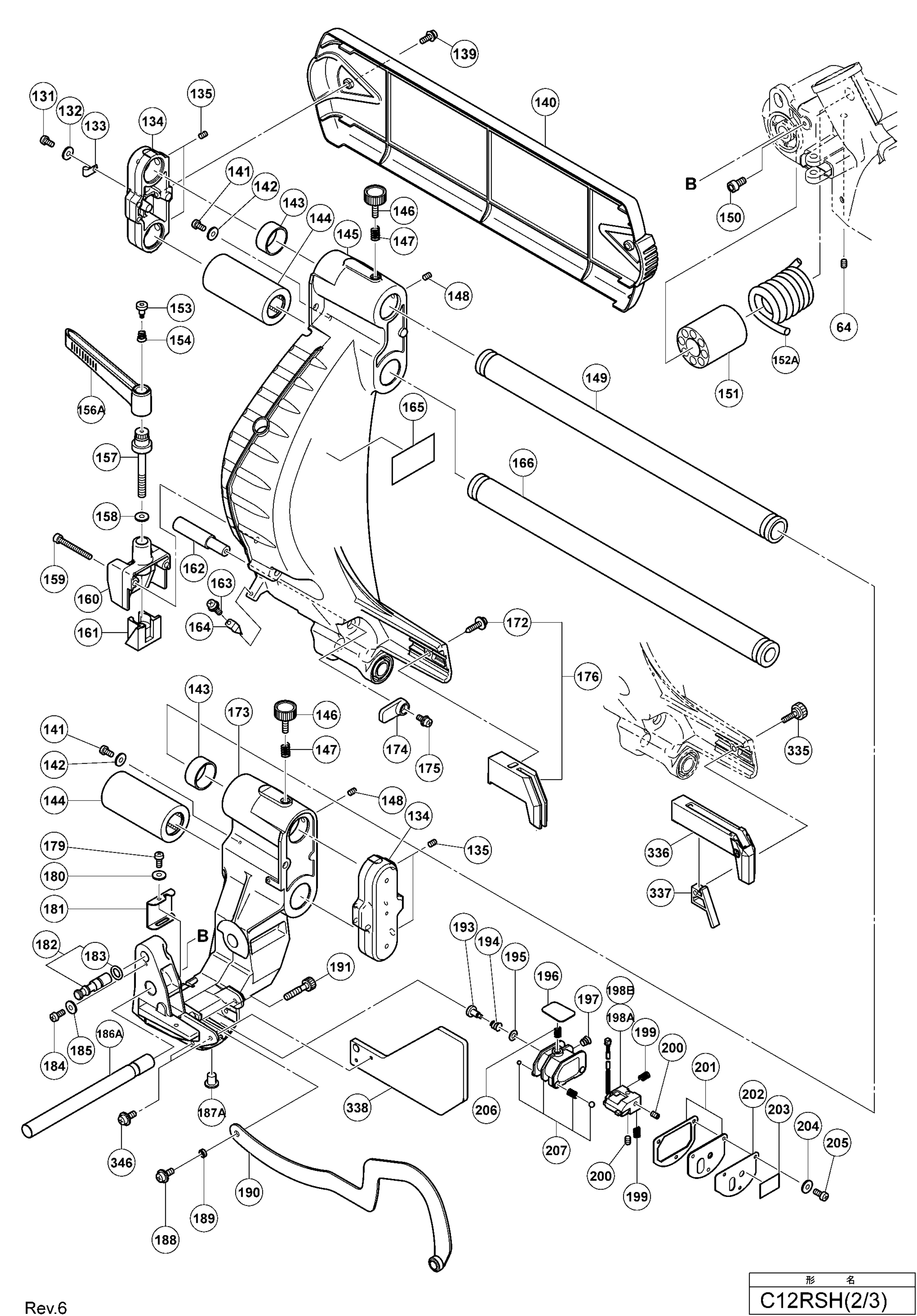

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
134
 photo_cameraImage coming soon 324417 SUPPORT €18.58
140
 photo_cameraImage coming soon 324383 SIDE COVER €14.10
143
 photo_cameraImage coming soon 324415 BUSHING €8.76
144
 photo_cameraImage coming soon 324414 BALL BUSHING €25.08
145
 photo_cameraImage coming soon 324413 HOLDER (A) €77.46
146
 photo_cameraImage coming soon 324418 KNOB BOLT M6X25 €5.92
147
 photo_cameraImage coming soon 947859 Lock Spring €1.75
149
 photo_cameraImage coming soon 324465 SLIDE PIPE (A) €22.95
151
 photo_cameraImage coming soon 324388 SLEEVE €7.66
152A
 photo_cameraImage coming soon 310898 SPRING €18.58
153
 photo_cameraImage coming soon 305180 CLUTCH SCREW €5.79
154
 photo_cameraImage coming soon 305179 CLUTCH SPRING €1.40
156A
 photo_cameraImage coming soon 325298 CLAMP LEVER €5.48
157
 photo_cameraImage coming soon 323903 BOLT M8X65 €8.76
160
 photo_cameraImage coming soon 323904 STOPPER HOLDER (C) €10.93
161
 photo_cameraImage coming soon 323905 STOPPER (C) €16.39
162
 photo_cameraImage coming soon 324420 SET PIN (A) €8.76
166
 photo_cameraImage coming soon 324466 SLIDE PIPE (B) €44.69
173
 photo_cameraImage coming soon 324467 HINGE (A) €69.82
174
 photo_cameraImage coming soon 324421 GRIP €1.60
176
 photo_cameraImage coming soon 324372 GUIDE €10.52
181
 photo_cameraImage coming soon 320183 COVER €5.48
182
 photo_cameraImage coming soon 324419 STOPPER PIN ASS'Y €7.66
183
 photo_cameraImage coming soon 872645 O-RING (P-9) €2.12
186A
 photo_cameraImage coming soon 324387 HINGE SHAFT (A) €3.29
191
 photo_cameraImage coming soon 319270 ADJUSTER €8.26
196
 photo_cameraImage coming soon 319268 PLATE (B) €2.21
198B
 photo_cameraImage coming soon 329863 LASER MARKER €50.92
199
 photo_cameraImage coming soon 319267 SPRING €2.75
202
 photo_cameraImage coming soon 322291 PLATE (A) €3.50
207
 photo_cameraImage coming soon 319269 HOLDER (B) €2.76
336
 Guide for Radial Mitre Saw Hitachi C 12RSH 326828 Guide for Radial Mitre Saw Hitachi C 12RSH €18.00
337
 photo_cameraImage coming soon 321394 GUARD HOLDER €3.28

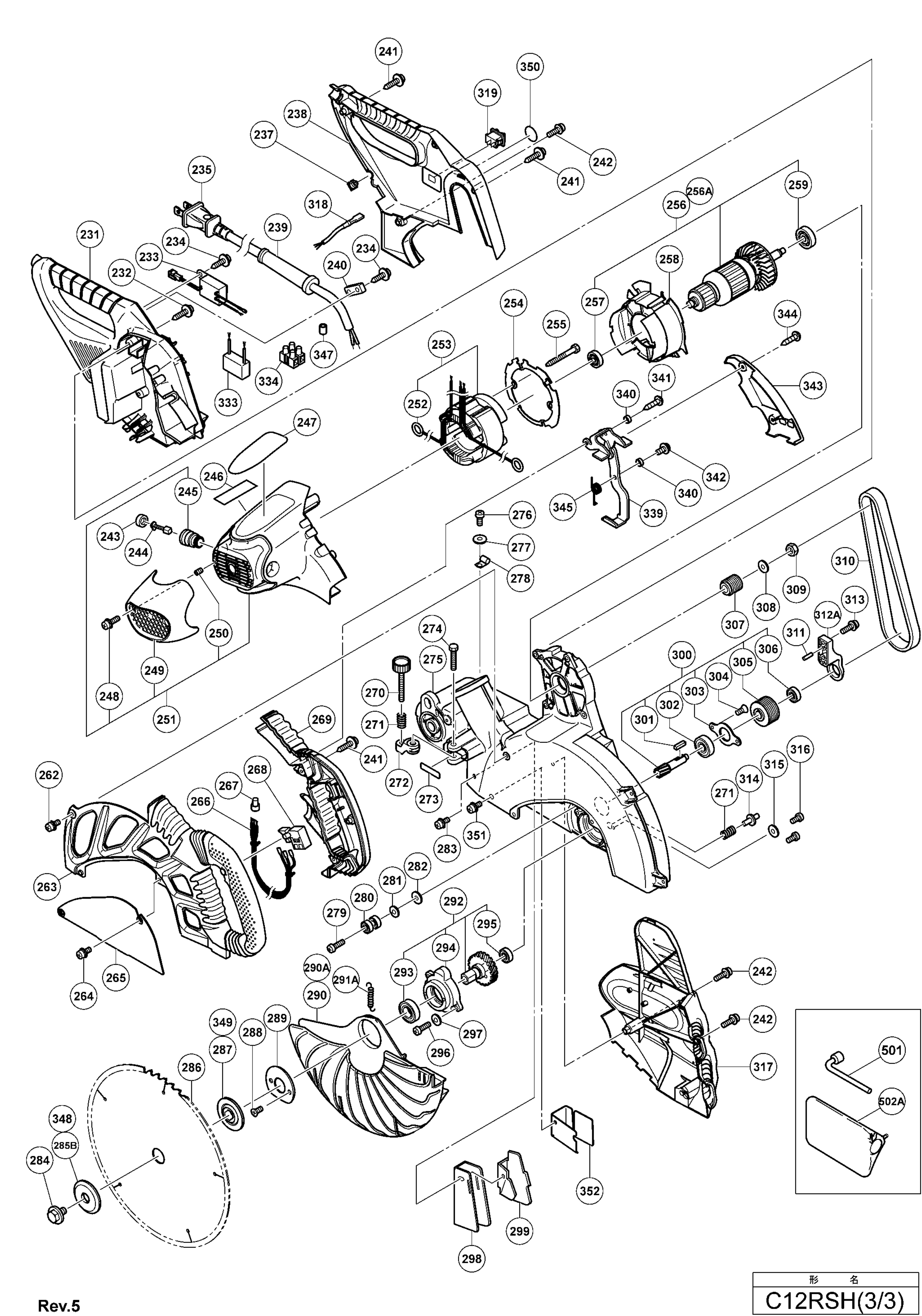

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
231
 photo_cameraImage coming soon 324460 HANDLE (L) €14.76
238
 photo_cameraImage coming soon 324461 HANDLE (R) €10.93
239
 Cord Armor D.10.1 for Hitachi Power Tools 938051 Cord Armor D.10.1 for Hitachi Power Tools €1.34
240
 photo_cameraImage coming soon 937631 CORD CLIP €1.37
241
 photo_cameraImage coming soon 301653 Tapp.Screw (W / Flange) D4x20 €5.63
243
 Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU 945161 Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU €2.78
245
 Brush Holder for Angle Grinders Hitachi G23SS-G23SW-G23SWU 938241 Brush Holder for Angle Grinders Hitachi G23SS-G23SW-G23SWU €11.86
251
 photo_cameraImage coming soon 324459 HOUSING ASS'Y €33.88
252
 photo_cameraImage coming soon 937623 BRUSH TERMINAL €1.33
254
 photo_cameraImage coming soon 324397 END PLATE €5.48
257
 photo_cameraImage coming soon 6000VV BALL BEARING 6000VVCMPS2L €9.76
258
 photo_cameraImage coming soon 324442 FAN GUIDE €5.48
259
 photo_cameraImage coming soon 6201VV BALL BEARING 6201VVCMPS2L €6.76
263
 photo_cameraImage coming soon 324448 SWITCH HANDLE (L) €15.30
265
 photo_cameraImage coming soon 324462 SPINDLE COVER €8.21
266
 photo_cameraImage coming soon 324425 INTERNAL WIRE (A) €8.76
268
 photo_cameraImage coming soon 324424 SWITCH W/O LOCK €10.53
269
 photo_cameraImage coming soon 324449 SWITCH HANDLE (R) €12.02
270
 photo_cameraImage coming soon 961468 KNOB BOLT M6X37 €1.70
271
 photo_cameraImage coming soon 988821 LOCK SPRING €5.28
275
 photo_cameraImage coming soon 324437 GEAR CASE €85.76
280
 photo_cameraImage coming soon 606ZZM BALL BEARING 606VVC2 €16.22
289
 photo_cameraImage coming soon 307731 COVER €3.03
290A
 photo_cameraImage coming soon 336341 PROTECTIVE COVER €22.01
291A
 Return Spring for Miter Saw Hitachi C12RSH 328188 Return Spring for Miter Saw Hitachi C12RSH €3.48
292
 photo_cameraImage coming soon 324438 SPINDLE ASS'Y €45.78
293
 photo_cameraImage coming soon 6003DD BALL BEARING 6003DDCMPS2S €8.11
294
 photo_cameraImage coming soon 324439 BEARING HOLDER €10.92
295
 photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
298
 photo_cameraImage coming soon 321364 DUST GUIDE €3.28
299
 photo_cameraImage coming soon 312492 GUIDE HOLDER €5.41
300
 photo_cameraImage coming soon 324440 PINION ASS'Y €39.89
306
 photo_cameraImage coming soon 321399 BALL BEARING 608VVC2NS7L €6.06
307
 photo_cameraImage coming soon 324443 PULLEY (A) €7.12
310
 photo_cameraImage coming soon 324427 BELT (200H10) 16X508 €36.29
312A
 photo_cameraImage coming soon 325259 BEARING HOLDER (B) €4.40
314
 photo_cameraImage coming soon 307732 STOPPER PIN €4.57
317
 photo_cameraImage coming soon 324450 PULLEY COVER €12.02
319
 photo_cameraImage coming soon 319503 SWITCH (W/COVER) €16.39
341
 photo_cameraImage coming soon 307811 TAPPING SCREW (W/FLANGE) D4X16 (BLACK) €1.40
345
 photo_cameraImage coming soon 322457 LEVER SPRING €1.44
348
 photo_cameraImage coming soon 324633 WASHER (D) €8.76
349
 photo_cameraImage coming soon 328520 WASHER (C) €13.12

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Sliding Compound Miter Saw C12RSH

Fix Your Sliding Compound Miter Saw C12RSH. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.

In the following table, look for the model of the Miter Saw and theirs spare part.
Hitachi C12RSH

Sliding Compound Miter Saw C 12RSH
# Part Num. Description
6 324391 HOLDER SHAFT
17 324612 NYLOCK HEX. SET SCREW M8X16
19 324399 GEAR (A)
20 949325 FLAT HD. SCREW M4X16
21 324416 SCALE (B)
22 303409 NYLOCK BOLT M8X25
23 324401 SHAFT (B)
24 955818 BOLT WASHER M16
25 324402 SPRING (B)
26 324394 TURN TABLE
27 321417 SPRING (E)
28 322280 STOPPER (A)
32 321336 PIN COVER
33 949429 BOLT WASHER M4
34 949215 MACHINE SCREW M4X8
37 324378 VISE ASS'Y
38 307947 WING BOLT M6X12
39 308396 KNOB BOLT M10
41 996722 WASHER
42 322047 VISE PLATE
43 996247 MACHINE SCREW M5X12 (BLACK)
44 324380 VISE SHAFT
45A 324454 SUB FENCE (B)
47 311144 NYLON NUT M6
48 324377 PLATE (B)
49 302459 WING BOLT M6X17
50 307221 BOLT (W/WASHERS) M8X35 (BLACK)
51 324385 FENCE (B)
53 949342 FLAT HD. SCREW M6X25
54 998834 HOLDER
55 949610 BOLT M6X10
58A 323606 BASE RUBBER
60 302317 MACHINE SCREW M5X16 (BLACK)
61 324411 TABLE INSERT (B)
62 324410 TABLE INSERT (A)
63 324370 KNOB (B)
64 307956 SEAL LOCK HEX.SET SCREW M6X10
65 307294 MACHINE SCREW M5X16 (BLACK)
66 949217 MACHINE SCREW M4X12
67 949429 BOLT WASHER M4
68 321329 INDICATOR
69 321342 SPACER (A)
70 949567 LOCK NUT M6
71 949455 SPRING WASHER M6
72 324407 GEAR (D)
73 324405 BEVEL SHAFT (B)
74 324404 SHAFT HOLDER (B)
75 324403 SHAFT HOLDER (A)
76 324408 BEVEL SHAFT (A)
77 949432 BOLT WASHER M6
78 949556 NUT M6
79 324409 KNOB (A)
80 950817 METAL D8X10
81 324406 BEVEL GEAR
82 949454 SPRING WASHER M5
83 949241 MACHINE SCREW M5X20
85 321339 LEVER SHAFT
87 324395 COVER (B)
88 324396 SHAFT (C)
89 321338 LEVER
90 321340 SPRING (D)
91A 334378 SHAFT (A)
92 322283 SIDE HANDLE
93 324381 PLATE (A)
94A 324455 SUB FENCE (A)
96 324384 FENCE (A)
98 324400 LINER
99 315210 SCALE (A)
100 673489 RETAINING RING (E) FOR D5 SHAFT
105 944109 FEATHER KEY 3X3X8
106 6000DD BALL BEARING 6000DDCMPS2L
107 949426 WASHER M8
131 949217 MACHINE SCREW M4X12
132 949429 BOLT WASHER M4
*133 948614 NYLON CLIP
134 324417 SUPPORT
135 961554 HEX. SOCKET SET SCREW M8X10
139 307294 MACHINE SCREW M5X16 (BLACK)
140 324383 SIDE COVER
141 949215 MACHINE SCREW M4X8
142 949429 BOLT WASHER M4
143 324415 BUSHING
144 324414 BALL BUSHING
145 324413 HOLDER (A)
146 324418 KNOB BOLT M6X25
147 947859 LOCK SPRING
148 307956 SEAL LOCK HEX. SET SCREW M6X10
149 324465 SLIDE PIPE (A)
150 877839 SEAL LOCK HEX. HD. BOLT M5X10
151 324388 SLEEVE
152A 310898 SPRING
153 305180 CLUTCH SCREW
154 305179 CLUTCH SPRING
156A 325298 CLAMP LEVER
157 323903 BOLT M8X65
158 949433 BOLT WASHER M8
159 949782 HEX. SOCKET HD. M6X50
160 323904 STOPPER HOLDER (C)
161 323905 STOPPER (C)
162 324420 SET PIN (A)
163 935196 MACHINE SCREW M4X12 (BLACK)
164 321329 INDICATOR
166 324466 SLIDE PIPE (B)
173 324467 HINGE (A)
174 324421 GRIP
175 307294 MACHINE SCREW M5X16 (BLACK)
176 324372 GUIDE
179 949215 MACHINE SCREW M4X8
180 949429 BOLT WASHER M4
181 320183 COVER
182 324419 STOPPER PIN ASS'Y
183 872645 O-RING (P-9)
184 949215 MACHINE SCREW M4X8
185 949429 BOLT WASHER M4
186A 324387 HINGE SHAFT (A)
187A 323606 BASE RUBBER
188 949237 MACHINE SCREW M5X12
189 303854 SPACER
*190 324376 LINK
*190 328522 LINK
191 319270 ADJUSTER
193 305180 CLUTCH SCREW
194 305179 CLUTCH SPRING
195 962614 ADJUSTING WASHER (B) T0.5
196 319268 PLATE (B)
197 305179 CLUTCH SPRING
198B 329863 LASER MARKER
199 319267 SPRING
200 319541 SEAL LOCK HEX. SET SCREW M5X6
201 319271 COVER (A)
202 322291 PLATE (A)
204 949429 BOLT WASHER M4
205 949217 MACHINE SCREW M4X12
206 319267 SPRING
207 319269 HOLDER (B)
231 324460 HANDLE (L)
232 305558 TAPPING SCREW D5X25 (BLACK)
*233 323978 SWITCHING POWER SUPPLY
234 984750 TAPPING SCREW D4X16
*235 500234Z CORD
237 319349 CORD BUSH
238 324461 HANDLE (R)
239 938051 CORD ARMOR D10.1
240 937631 CORD CLIP
241 301653 TAPPING SCREW D4X20 (BLACK)
242 880734 MACHINE SCREW M5X25 (BLACK)
243 945161 BRUSH CAP
*244 999065 CARBON BRUSH (1 PAIR)
245 938241 BRUSH HOLDER
248 990541 MACHINE SCREW M5X16
249 324445 TAIL COVER
250 938477 HEX. SOCKET SET SCREW M5X8
251 324459 HOUSING ASS'Y
252 937623 BRUSH TERMINAL
*253 340703E STATOR (B) ASS'Y 220V-230V
254 324397 END PLATE
255 953121 HEX. HD. TAPPING SCREW D5X50
*256 360790B ARMATURE ASS'Y 220V-230V
257 6000VV BALL BEARING 6000VVCMPS2L
258 324442 FAN GUIDE
259 6201VV BALL BEARING 6201VVCMPS2L
262 976706 MACHINE SCREW M5X10
263 324448 SWITCH HANDLE (L)
264 996247 MACHINE SCREW M5X12 (BLACK)
265 324462 SPINDLE COVER
266 324425 INTERNAL WIRE (A)
*267 959141 CONNECTOR 50092
268 324424 SWITCH W/O LOCK
269 324449 SWITCH HANDLE (R)
270 961468 KNOB BOLT M6X37
271 988821 LOCK SPRING
272 322314 STOPPER HOLDER
273 322313 SPRING PLATE
274 303410 NYLOCK BOLT M8X40
275 324437 GEAR CASE
276 949217 MACHINE SCREW M4X12
277 949429 BOLT WASHER M4
278 973313 NYLON CLIP
279 949260 MACHINE SCREW M6X25
280 606ZZM BALL BEARING 606VVC2
281 949455 SPRING WASHER M6
282 949425 WASHER M6
283 935196 MACHINE SCREW M4X12 (BLACK)
284 988101 BOLT (A) M10
285B 323652 WASHER (B)
287 324452 WASHER (A)
288 949322 FLAT HD. SCREW M4X10
289 307731 COVER
*290 324375 PROTECTIVE COVER
*290 328523 PROTECTIVE COVER FOR EUROPE
290A 336341 PROTECTIVE COVER
291A 328188 RETURN SPRING (B)
292 324438 SPINDLE ASS'Y
293 6003DD BALL BEARING 6003DDCMPS2S
294 324439 BEARING HOLDER
295 608VVM BALL BEARING 608VVC2PS2L
296 949241 MACHINE SCREW M5X20
297 949454 SPRING WASHER M5
298 321364 DUST GUIDE
299 312492 GUIDE HOLDER
300 324440 PINION ASS'Y
301 948919 FEATHER KEY 4X4X15
302 6201VV BALL BEARING 6201VVCMPS2L
303 322301 COVER (C)
304 949322 FLAT HD. SCREW M4X10
305 324441 PULLEY (B)
306 321399 BALL BEARING 608VVC2NS7L
307 324443 PULLEY (A)
308 961157 SUPER LOCK WASHER
309 949560 NUT M10
310 324427 BELT (200H10) 16X508
311 983545 NEEDLE ROLLER
312A 325259 BEARING HOLDER (B)
313 995096 MACHINE SCREW M5X20 (BLACK)
314 307732 STOPPER PIN
315 949429 BOLT WASHER M4
316 949215 MACHINE SCREW M4X8
317 324450 PULLEY COVER
318 324458 INTERNAL WIRE (C)
319 319503 SWITCH (W/COVER)
321 324822 GEAR COVER (C)
336 326828 GUARD
337 321394 GUARD HOLDER
340 302757 SPACER
341 307811 TAPPING SCREW D4X16 (BLACK)
342 954878 MACHINE SCREW M4X16
343 328519 LEVER COVER
344 307811 TAPPING SCREW D4X16 (BLACK)
345 322457 LEVER SPRING
346 307294 MACHINE SCREW M5X16 (BLACK)
347 324518 FERRITE CORE
348 324633 WASHER (D)
349 328520 WASHER (C)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi C12RSH
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi C12RSH

Diagram Hitachi C12RSH

Download (244.57KB)

You might also like

Carbon Brushes for Angle Grinders Hitachi G 23SS - G 23SW
HiKOKI Power Tools Italia S.p.a. SKU: 999038
Carbon Brushes for Angle Grinders Hitachi G 23SS - G 23SW
Carbon Brushes for Angle Grinders Hitachi G 23SS -  G 23SW Genuine parts Hitachi, carbon Brushesfor Angle Grinders 230 mm G 23SS -  G 23SW - G 23SWU - Router M12VE , Circolar Saw C9U2 - Radial Miter Saw C 10FCH2 - C 12LCH. Part for...
AVAILABLE €6.97
Details
Dust Bag for Radial Miter Saws Hitachi C12LCH
HiKOKI Power Tools Italia S.p.a. SKU: 322955
Dust Bag for Radial Miter Saws Hitachi C12LCH
Dust Bag for Slide Compound Mitre Saw Hitachi C12LCH Original spare part Hitachi, Dust and Chips bag for Slide Compound Mitre Saws C10FCH2 - C12LCH - Planer P20SF. Part for the following products:...
AVAILABLE €20.79
Details
Brush Holder for Angle Grinders Hitachi G23SS-G23SW-G23SWU
HiKOKI Power Tools Italia S.p.a. SKU: 938241
Brush Holder for Angle Grinders Hitachi G23SS-G23SW-G23SWU
Brush Holder for Angle Grinders Hitachi G23SS-G23SW-G23SWU Original parts Hitachi, Brush holder for Angle Grinders G 23SS - 23SW G - G 23SWU - Radial Miter Saws 10FCH2 C - C 12LCH - C 12RSH. For the following items: - Angle Grinder...
AVAILABLE €11.86
Details
Guide for Radial Mitre Saw Hitachi C 12RSH Sale
HiKOKI Power Tools Italia S.p.a. SKU: 326828
Guide for Radial Mitre Saw Hitachi C 12RSH
Guide for Radial Mitre Saw Hitachi C 12RSH Genuine parts Hitachi, Guide for Radial Mitre Saw Hitachi C 12RSH For the following items: - Radial Mitre Saw Hitachi C 12RSH - Code: 326828
AVAILABLE €18.00
Details
Vertical Guide SX for Radial Mitre Saw Hitachi C12RSH
HiKOKI Power Tools Italia S.p.a. SKU: 324455
Sub Fence A for Sliding Compound Miter Saw Hitachi C12RSH
Sub Fence A for Sliding Compound Miter Saw Hitachi C12RSH Genuine replacement part Hitachi, Vertical Left Guide (Sub Fence A) for Sliding Dual Compound Miter Saw with Laser Marker. Part for the following items: - ...
Out-of-Stock €32.10
Details
Return Spring for Miter Saw Hitachi C12RSH
HiKOKI Power Tools Italia S.p.a. SKU: 328188
Return Spring for Miter Saw Hitachi C12RSH
Return Spring for Miter Saw Hitachi C12RSH Genuine spare parts Hitachi, Return Spring (B) for Sliding Compound Miter Saw fro Wood C12RSH. Parts for the following products: -  Sliding Compound Miter Saw Hitachi C12RSH - ...
AVAILABLE €3.48
Details
Comments (0)
