Hitachi Spare Parts for Sliding Compound Miter Saw C8FSE

SKU: Hitachi C8FSE
€5.95
VAT included

Hitachi Spare Parts for Sliding Compound Miter Saw C8FSE

We are Hitachi-HIKOKI original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Sliding Compound Miter Saw C8FSE.
Hitachi Spare Parts for Sliding Compound Miter Saw C8FSE
  • Hitachi Spare Parts for Sliding Compound Miter Saw C8FSE
  • Hitachi Spare Parts for Sliding Compound Miter Saw C8FSE
  • Hitachi Spare Parts for Sliding Compound Miter Saw C8FSE
  • Hitachi Spare Parts for Sliding Compound Miter Saw C8FSE

Hitachi Spare Parts for Sliding Compound Miter Saw C8FSE

SKU: Hitachi C8FSE Condition: New
€5.95
VAT included

Hitachi Spare Parts for Sliding Compound Miter Saw C8FSE

We are Hitachi-HIKOKI original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Sliding Compound Miter Saw C8FSE.
settings 136 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

80 spare parts

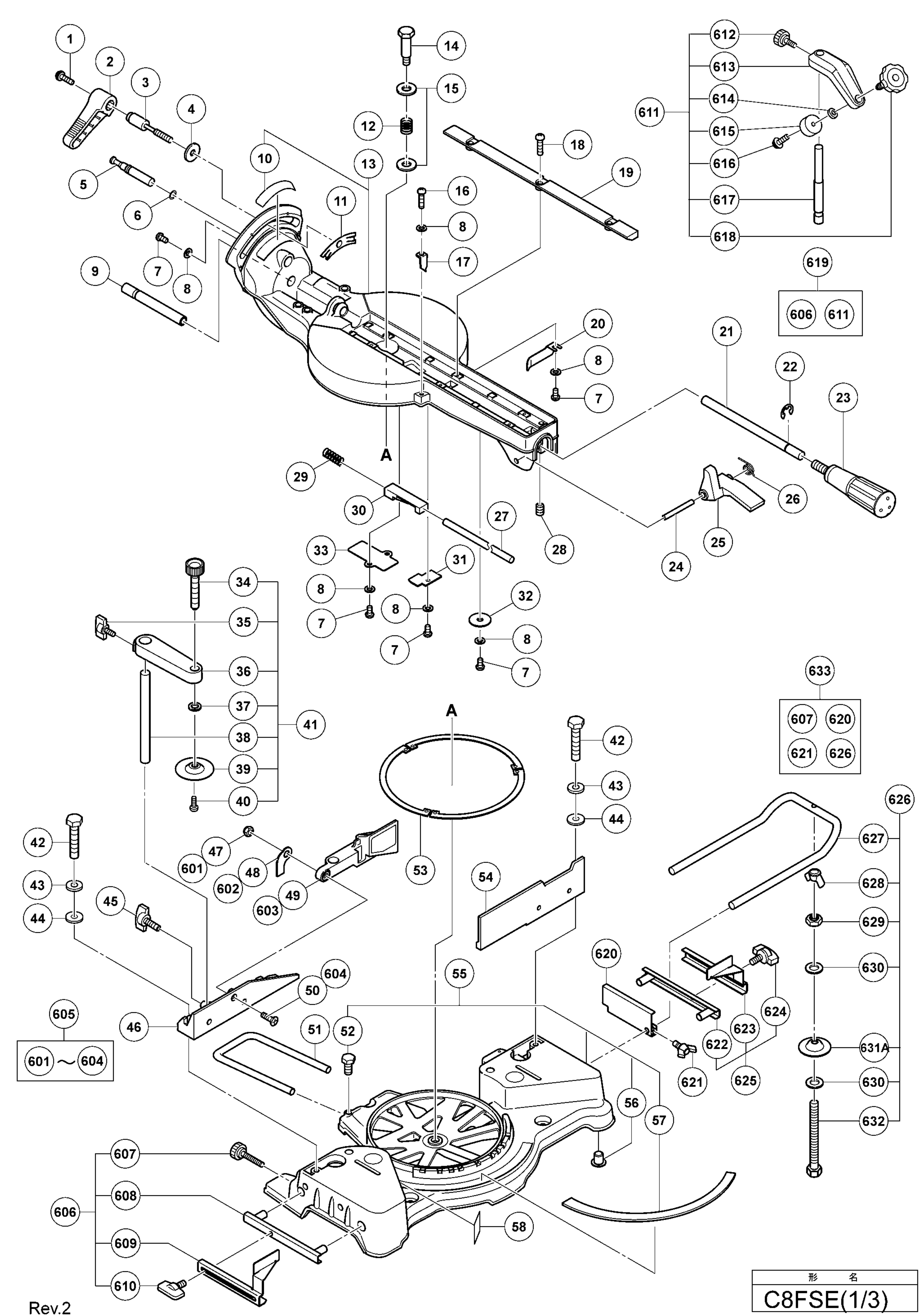

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 312488 CLAMP LEVER €9.36
3
photo_cameraImage coming soon 329409 BOLT (LEFT HAND) D10 €5.90
4
photo_cameraImage coming soon 965077 SPECIAL WASHER €1.40
5
photo_cameraImage coming soon 325028 SET PIN €9.21
6
photo_cameraImage coming soon 996407 O-RING (1AP-12) €1.52
9
photo_cameraImage coming soon 320141 HINGE SHAFT (A) €14.93
12
photo_cameraImage coming soon 312481 SPRING C8FSE €3.86
13
photo_cameraImage coming soon 329422 TURN TABLE ASS'Y €113.17
14
photo_cameraImage coming soon 329418 SHAFT (B) €6.58
17
photo_cameraImage coming soon 321329 INDICATOR €2.49
19
photo_cameraImage coming soon 329421 TABLE INSERT €3.94
20
photo_cameraImage coming soon 321342 SPACER (A) €2.49
21
photo_cameraImage coming soon 329416 SHAFT (A) €1.62
23
photo_cameraImage coming soon 322283 SIDE HANDLE €9.21
24
photo_cameraImage coming soon 321339 LEVER SHAFT €2.49
25
photo_cameraImage coming soon 321338 LEVER €2.20
26
photo_cameraImage coming soon 321340 SPRING (D) €2.27
27
photo_cameraImage coming soon 329415 SHAFT (C) €3.03
29
photo_cameraImage coming soon 321417 SPRING (E) €4.49
30
photo_cameraImage coming soon 322280 STOPPER (A) €6.84
31
photo_cameraImage coming soon 324395 COVER (B) €1.62
32
photo_cameraImage coming soon 875249 THRUST WASHER €1.70
33
photo_cameraImage coming soon 321336 PIN COVER €2.49
34
photo_cameraImage coming soon 302522 KNOB BOLT M10X66 €17.09
35
Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE 301806 Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE €1.23
39
photo_cameraImage coming soon 302532 VISE PLATE €4.60
41
HIKOKI C8FSE Vise Assy 329860 HIKOKI C8FSE Vise Assy €10.46
53
photo_cameraImage coming soon 324400 LINER €2.20
54
photo_cameraImage coming soon 329419 FENCE (A) €19.72
55
photo_cameraImage coming soon 329414 BASE ASS'Y €147.26
56
photo_cameraImage coming soon 323606 BASE RUBBER €1.60
57
photo_cameraImage coming soon 315210 SCALE (A) €7.58

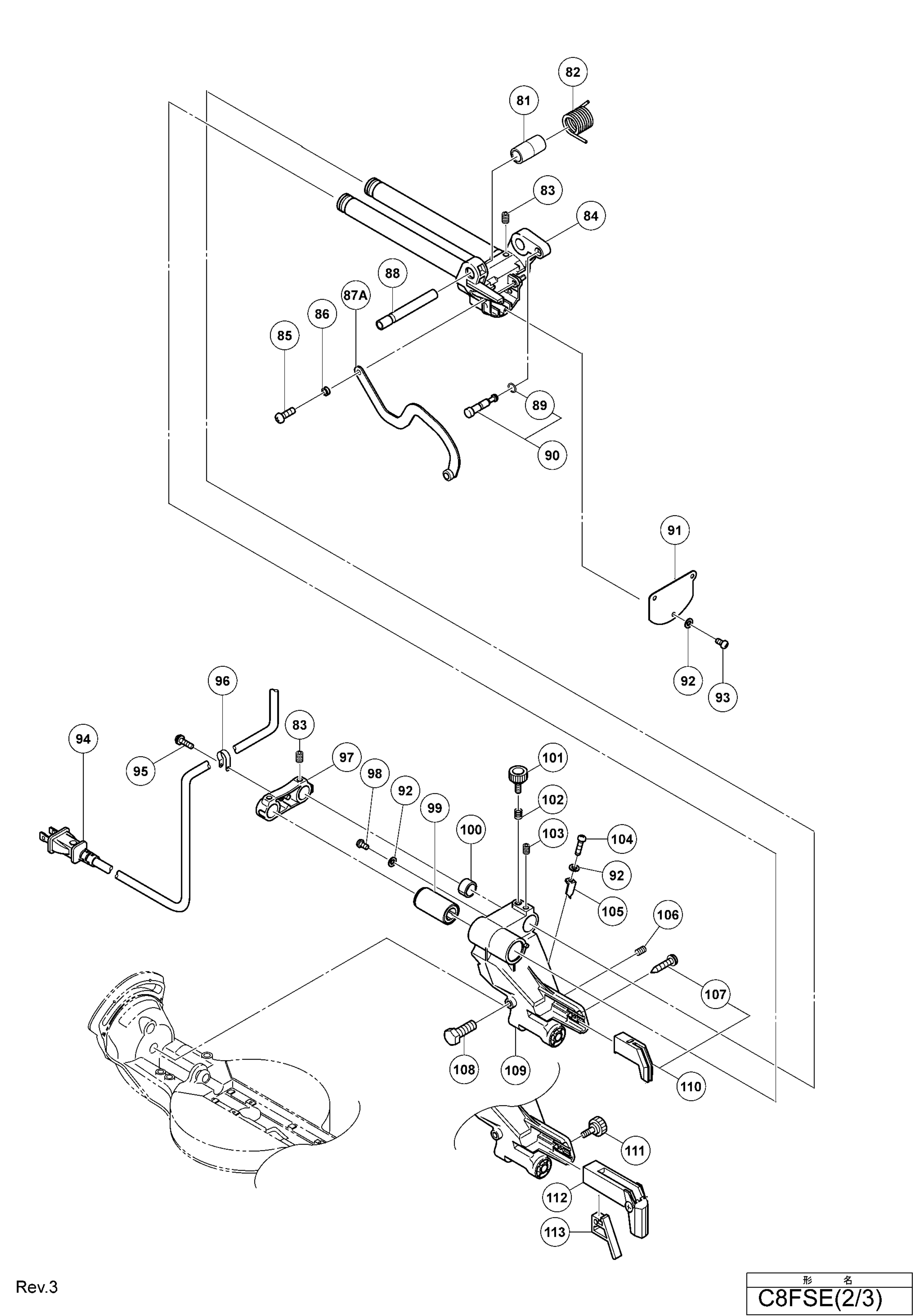

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
81
photo_cameraImage coming soon 322889 SLEEVE €1.44
82
photo_cameraImage coming soon 329410 LOCK LEVER SPRING €17.09
84
photo_cameraImage coming soon 329427 HINGE (A) ASS'Y €152.65
87A
photo_cameraImage coming soon 329411 LEVA C8FSE €13.14
89
photo_cameraImage coming soon 984528 O-RING (P6) €1.58
90
photo_cameraImage coming soon 302518 STOPPER PIN ASS'Y €5.62
100
photo_cameraImage coming soon 326141 SLEEVE €13.14
101
photo_cameraImage coming soon 324418 KNOB BOLT M6X25 €5.92
102
photo_cameraImage coming soon 947859 Lock Spring €1.75
109
photo_cameraImage coming soon 329428 HOLDER (A) €96.06
110
photo_cameraImage coming soon 324372 GUIDE €10.52
112
photo_cameraImage coming soon 321333 GUARD (A) €14.60
113
photo_cameraImage coming soon 321394 GUARD HOLDER €3.28

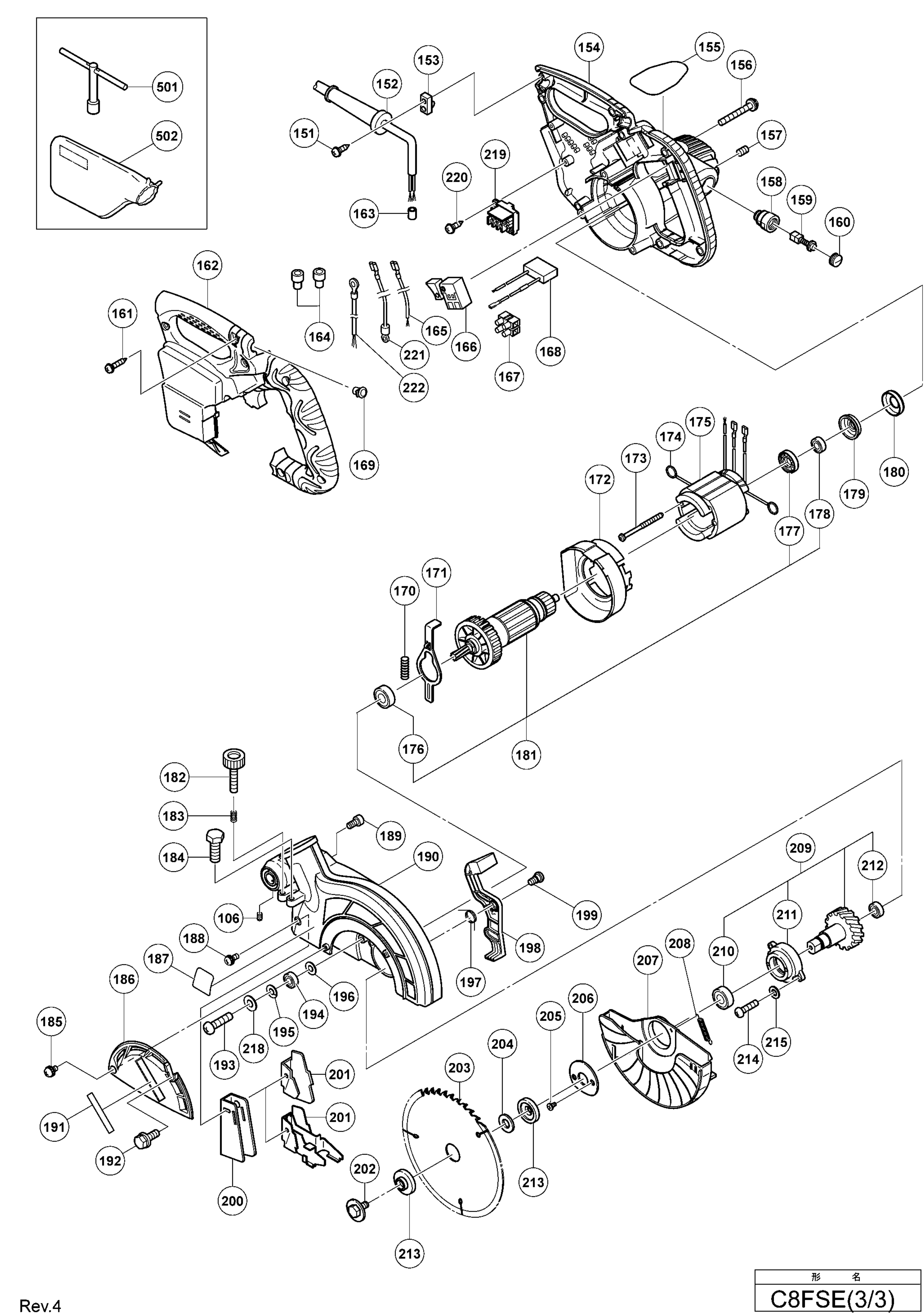

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
152
Cord Armor D.10.1 for Hitachi Power Tools 938051 Cord Armor D.10.1 for Hitachi Power Tools €1.34
153
photo_cameraImage coming soon 937631 CORD CLIP €1.37
154
photo_cameraImage coming soon 329437 HOUSING ASS'Y €52.63
158
photo_cameraImage coming soon 957571 BRUSH HOLDER €6.58
159
photo_cameraImage coming soon 999001 CARBON BRUSH (1 PAIR) €13.14
160
photo_cameraImage coming soon 931266 BRUSH CAP €1.52
161
photo_cameraImage coming soon 301653 Tapp.Screw (W / Flange) D4x20 €5.63
162
photo_cameraImage coming soon 329438 HANDLE COVER €26.31
166
photo_cameraImage coming soon 324424 SWITCH W/O LOCK €10.53
170
photo_cameraImage coming soon 323433 LOCK LEVER SPRING €3.81
171
photo_cameraImage coming soon 323432 LOCK LEVER €9.21
172
Stator for Angle Grinder Flex L 1710 FRA 329436 Stator for Angle Grinder Flex L 1710 FRA €119.15
174
photo_cameraImage coming soon 931867 BRUSH TERMINAL €1.66
175
photo_cameraImage coming soon 340729E STATOR ASS'Y 220V-230V €48.69
176
photo_cameraImage coming soon 6000VV BALL BEARING 6000VVCMPS2L €9.76
177
Dust Seal for Angle Grinders Hitachi G13SD - G12S2 315877 Dust Seal for Angle Grinders Hitachi G13SD - G12S2 €1.59
178
photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
179
photo_cameraImage coming soon 322089 BEARING BUSHING €6.58
181
photo_cameraImage coming soon 360839E ARMATURE ASS'Y 220V-230V €65.66
182
photo_cameraImage coming soon 961468 KNOB BOLT M6X37 €1.70
183
photo_cameraImage coming soon 988821 LOCK SPRING €5.28
186
photo_cameraImage coming soon 329413 SPINDLE COVER €13.14
190
HIKOKI C8FSE Gear Case 329431 HIKOKI C8FSE Gear Case €115.86
194
photo_cameraImage coming soon 606ZZM BALL BEARING 606VVC2 €16.22
197
photo_cameraImage coming soon 329463 LOCK LEVER SPRING €1.57
200
photo_cameraImage coming soon 321364 DUST GUIDE €3.28
201
photo_cameraImage coming soon 312492 GUIDE HOLDER €5.41
202
Bolt Left Hand M7x17,5 mm Compound Miter Saw Hitachi C8FSE 998335 Bolt Left Hand M7x17,5 mm Compound Miter Saw Hitachi C8FSE €2.08
204
photo_cameraImage coming soon 974663Z COLLAR (A) FOR D30 HOLE €7.63
206
photo_cameraImage coming soon 307731 COVER €3.03
207
photo_cameraImage coming soon 329412 LOWER GUARD €43.42
208
photo_cameraImage coming soon 317203 RETURN SPRING €5.92
209
HIKOKI C8FSE Spindle Assy 329432 HIKOKI C8FSE Spindle Assy €41.87
210
Ball Bearing 6003 VVCM for Reciprocating Saws Hitachi CR13V2 - CR13VBY 327694 Ball Bearing 6003 VVCM for Reciprocating Saws Hitachi CR13V2 - CR13VBY €7.35
218
photo_cameraImage coming soon 318452 WASHER (G) €1.70

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Sliding Compound Miter Saw C8FSE

We are Hitachi-HIKOKI original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Sliding Compound Miter Saw C8FSE.

In the following table, look for the model of the Miter Saw and theirs spare part.
Hitachi C8FSE

Sliding Compound Miter Saw C 8FSE
# Part Num. Descrition
1 935196 MACHINE SCREW M4X12 (BLACK)
2 312488 CLAMP LEVER
3 329409 BOLT (LEFT HAND) D10
4 965077 SPECIAL WASHER
5 325028 SET PIN
6 996407 O-RING (1AP-12)
7 949215 MACHINE SCREW M4X8 (10 PCS.)
8 949429 BOLT WASHER M4 (10 PCS.)
9 320141 HINGE SHAFT (A)
10 329417 SCALE (B)
11 329408 LINER (A)
12 312481 SPRING
13 329422 TURN TABLE ASS'Y
14 329418 SHAFT (B)
15 949437 BOLT WASHER M12 (10 PCS.)
16 949217 MACHINE SCREW M4X12 (10 PCS.)
17 321329 INDICATOR
18 949256 MACHINE SCREW M6X16 (10 PCS.)
19 329421 TABLE INSERT
20 321342 SPACER (A)
21 329416 SHAFT (A)
22 673489 RETAINING RING (E) FOR D5 SHAFT
23 322283 SIDE HANDLE
24 321339 LEVER SHAFT
25 321338 LEVER
26 321340 SPRING (D)
27 329415 SHAFT (C)
28 987860 SEAL LOCK HEX. SET SCREW M6X6
29 321417 SPRING (E)
30 322280 STOPPER (A)
31 324395 COVER (B)
32 875249 THRUST WASHER
33 321336 PIN COVER
34 302522 KNOB BOLT M10X66
35 301806 WING BOLT M6X15
37 949432 BOLT WASHER M6 (10 PCS.)
38 329859 VISE SHAFT
39 302532 VISE PLATE
40 949216 MACHINE SCREW M4X10 (10 PCS.)
41 329860 VISE ASS'Y
42 949678 BOLT M8X35 (10 PCS.)
43 949457 SPRING WASHER M8 (10 PCS.)
44 949433 BOLT WASHER M8 (10 PCS.)
45 307937 WING BOLT (A)
46 329420 FENCE (B)
47 963837 NYLON NUT M6
48 329465 PLATE
49 330138 SUB FENCE
50 949342 FLAT HD. SCREW M6X25 (10 PCS.)
51 998844 HOLDER
52 949610 BOLT M6X10 (10 PCS.)
53 324400 LINER
54 329419 FENCE (A)
55 329414 BASE ASS'Y
56 323606 BASE RUBBER
57 315210 SCALE (A)
81 322889 SLEEVE
82 329410 SPRING
83 961554 HEX. SOCKET SET SCREW M8X10
84 329427 HINGE (A) ASS'Y
85 949237 MACHINE SCREW M5X12 (10 PCS.)
86 998980 SPACER
87A 329411 LINK
88 320141 HINGE SHAFT (A)
89 984528 O-RING (P-6)
90 302518 STOPPER PIN ASS'Y
91 324058 HINGE COVER
92 949429 BOLT WASHER M4 (10 PCS.)
93 949215 MACHINE SCREW M4X8 (10 PCS.)
*94 500234Z CORD
95 935196 MACHINE SCREW M4X12 (BLACK)
*96 948614 NYLON CLIP
97 329492 SUPPORT
98 949215 MACHINE SCREW M4X8 (10 PCS.)
99 329424 BALL BUSHING
100 326141 BUSHING
101 324418 KNOB BOLT M6X25
102 947859 LOCK SPRING
103 307956 SEAL LOCK HEX. SET SCREW M6X10
104 949217 MACHINE SCREW M4X12 (10 PCS.)
105 321329 INDICATOR
106 301575 HEX. SOCKET SET SCREW M6X8
108 303409 NYLOCK BOLT M8X25
109 329428 HOLDER (A)
110 324372 GUARD ASS'Y
111 998879 KNOB BOLT
112 321333 GUARD (A)
113 321394 GUARD HOLDER
151 984750 TAPPING SCREW D4X16
152 938051 CORD ARMOR D10.1
153 937631 CORD CLIP
154 329437 HOUSING ASS'Y
156 322123 MACHINE SCREW M5X40 (BLACK)
157 938477 HEX. SOCKET SET SCREW M5X8
158 957571 BRUSH HOLDER
*159 999001 CARBON BRUSH (1 PAIR)
160 931266 BRUSH CAP
161 301653 TAPPING SCREW D4X20 (BLACK)
162 329438 HANDLE COVER
163 324518 FERRITE CORE
166 324424 SWITCH W/O LOCK
169 329439 CAP
170 323433 SPRING
171 323432 LOCK LEVER
172 329436 FAN GUIDE
173 960108 HEX. HD. TAPPING SCREW D4X60
174 931867 BRUSH TERMINAL
*175 340729E STATOR ASS'Y 220V-230V
176 6000VV BALL BEARING 6000VVCMPS2L
177 315877 DUST SEAL
178 608VVM BALL BEARING 608VVC2PS2L
179 322089 BEARING BUSHING
180 322090 RUBBER BUSHING
*181 360839E ARMATURE ASS'Y 220V-230V
182 961468 KNOB BOLT M6X37
183 988821 LOCK SPRING
184 303409 NYLOCK BOLT M8X25
185 996274 MACHINE SCREW M5X8
186 329413 SPINDLE COVER
188 935196 MACHINE SCREW M4X12 (BLACK)
189 877839 SEAL LOCK HEX. HD. BOLT M5X10
190 329431 GEAR CASE
191 328922 HITACHI PLATE
192 308259 BOLT (W/WASHERS) M6X16 (BLACK)
193 949260 MACHINE SCREW M6X25 (10 PCS.)
194 606ZZM BALL BEARING 606VVC2
195 949455 SPRING WASHER M6 (10 PCS.)
196 949425 WASHER M6 (10 PCS.)
197 329463 LOCK LEVER SPRING
200 321364 DUST GUIDE
201 312492 GUIDE HOLDER
*201 335780 GUIDE HOLDER
202 998335 BOLT (LEFT HAND) M7X17.5
*204 974663Z COLLAR (A) FOR D30 HOLE
205 949322 FLAT HD. SCREW M4X10 (10 PCS.)
206 307731 COVER
207 329412 LOWER GUARD
208 317203 RETURN SPRING
209 329432 SPINDLE ASS'Y
210 327694 BALL BEARING 6003VVCM
211 329435 BEARING HOLDER
212 608VVM BALL BEARING 608VVC2PS2L
213 308789 WASHER (D)
214 949241 MACHINE SCREW M5X20 (10 PCS.)
215 949454 SPRING WASHER M5 (10 PCS.)
218 318452 WASHER (G)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s HITACHI websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to HITACHI brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi C8FSE
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi C8FSE

Diagram Hitachi C8FSE

Download (174.46KB)

You might also like

HiKOKI Power Tools Italia S.p.a. SKU: 999038
Carbon Brushes for Angle Grinders Hitachi G 23SS -  G 23SW Genuine parts Hitachi, carbon Brushesfor Angle Grinders 230 mm G 23SS -  G 23SW - G 23SWU - Router M12VE , Circolar Saw C9U2 - Radial Miter Saw C 10FCH2 - C 12LCH. Part for...
AVAILABLE €6.97
HiKOKI Power Tools Italia S.p.a. SKU: 998335
Bolt Left Hand M7x17,5 mm Compound Miter Saw Hitachi C8FSE Genuine spare part Hitachi, Bolt Left Hand with Washer Diameter mm M7x017,5 Model c 7BC1 for Compound Miter Saw C8FSE - Cordless Circular Saw C18DSL. Part for the following...
AVAILABLE €2.08
HiKOKI Power Tools Italia S.p.a. SKU: 938241
Brush Holder for Angle Grinders Hitachi G23SS-G23SW-G23SWU Original parts Hitachi, Brush holder for Angle Grinders G 23SS - 23SW G - G 23SWU - Radial Miter Saws 10FCH2 C - C 12LCH - C 12RSH. For the following items: - Angle Grinder...
AVAILABLE €11.86
HiKOKI Power Tools Italia S.p.a. SKU: 315877
Dust Seal for Angle Grinders Hitachi G13SD - G12S2 Original spare parts Hitachi, Dust Seal for Straight Grinders GP2S2 - GP3V - GP5V - Angle Grinders G 12 SA2 - G 12 SE2 - G 12S2 - G 12SA3 - G 13SB3. Part for the following items: -...
AVAILABLE €1.59
HiKOKI Power Tools Italia S.p.a. SKU: 301806
Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE Genuine part Hitachi, Wing Nut M6X15 for Sliding Compound Miter Saws C8FSE - C12LCH - Routers M8SA2 - M12VE - M12V2 - Circular...
AVAILABLE €1.23
HiKOKI Power Tools Italia S.p.a. SKU: 329432
HIKOKI C8FSE Spindle Ass'y Genuine part Hitachi, Spindle Ass'y for Sliding Compound Miter Saws C8FSE - C8FSHE. Part for the following items: - Sliding Compound Miter Saw Hitachi C8FSE - Sliding Compound Miter Saw...
Last items in stock €41.87
HiKOKI Power Tools Italia S.p.a. SKU: 329860
HIKOKI C8FSE Vise Ass'y Genuine part Hitachi, Vise Ass'y for Sliding Compound Miter Saws C8FSE - C8FSHE. Part for the following items: - Sliding Compound Miter Saw Hitachi C8FSE - Sliding Compound Miter Saw...
Last items in stock €10.46
HiKOKI Power Tools Italia S.p.a. SKU: 329431
HIKOKI C8FSE Gear Case Genuine part Hitachi, Gear Case for Sliding Compound Miter Saws C8FSE - C8FSHE. Part for the following items: - Sliding Compound Miter Saw Hitachi C8FSE - Sliding Compound Miter Saw Hitachi...
Last items in stock €115.86
Comments (0)
