HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Reciprocating Saw CR13VBY

SKU: CR13VBY
€3.19
VAT included

Hitachi Spare Parts for Reciprocating Saw CR13VBY

We have the original Spares Hitachi-HIKOKI for Reciprocating Saw CR13VBY, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Reciprocating Saw CR13VBY. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Guaranteed.
Hitachi Spare Parts for Reciprocating Saw CR13VBY
  • Hitachi Spare Parts for Reciprocating Saw CR13VBY
  • Hitachi Spare Parts for Reciprocating saw CR13V2 - CR13VBY
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Reciprocating Saw CR13VBY

SKU: CR13VBY Condition: New
€3.19
VAT included

Hitachi Spare Parts for Reciprocating Saw CR13VBY

We have the original Spares Hitachi-HIKOKI for Reciprocating Saw CR13VBY, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Reciprocating Saw CR13VBY. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Guaranteed.
settings 56 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
56 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

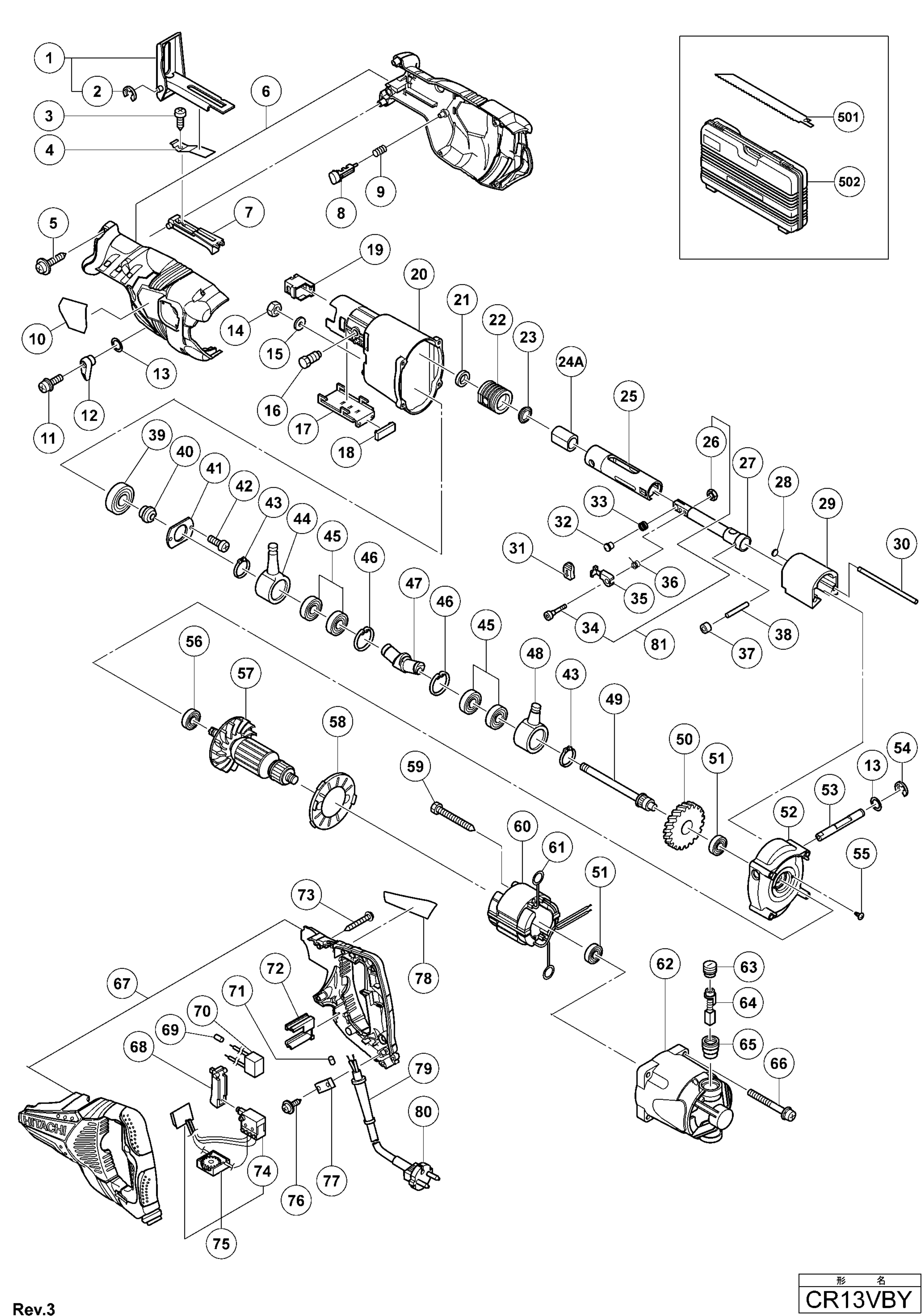

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 872971 RETAINING RING (E-TYPE) FOR D3 SHAFT €1.33
4
 photo_cameraImage coming soon 326595 HOLD SPRING (C) €6.53
6
 photo_cameraImage coming soon 326584 FRONT COVER (D).(E) SET €29.93
7
 photo_cameraImage coming soon 326597 BASE LEVER (C) €6.53
8
 photo_cameraImage coming soon 326596 PUSHING BUTTON (C) €6.53
13
 photo_cameraImage coming soon 872654 O-Ring 1ap.10 €2.02
16
 photo_cameraImage coming soon 318493 BOLT M10 €8.03
17
 photo_cameraImage coming soon 326574 BASE ADAPTER (C) €3.03
19
 photo_cameraImage coming soon 326589 BLADE HOLDER (C) €13.93
20
 photo_cameraImage coming soon 327116 GEAR COVER (D) €31.02
21
 photo_cameraImage coming soon 318458 FELT WASHER €3.19
22
 photo_cameraImage coming soon 326576 SEAL SLEEVE (C) €3.03
23
 photo_cameraImage coming soon 318459 V-RING €3.19
25
 photo_cameraImage coming soon 326578 GUIDE SLEEVE (C) ASS'Y €25.02
26
 Lock Nut M5 for Reciprocating Saws Hitachi CR13V2 - CR13VBY 949566 Lock Nut M5 for Reciprocating Saws Hitachi CR13V2 - CR13VBY €1.45
27
 photo_cameraImage coming soon 326580 PLUNGER (C) €39.92
28
 photo_cameraImage coming soon 327123 RUBBER SPACER €2.32
29
 photo_cameraImage coming soon 327122 COUNTER WEIGHT (D) €42.02
30
 photo_cameraImage coming soon 327121 WEIGHT SHAFT (D) €10.02
31
 photo_cameraImage coming soon 321130 CAP €4.04
32
 photo_cameraImage coming soon 321134 HOLDER PIN (B) €23.71
33
 photo_cameraImage coming soon 318483 SPRING (B) €3.19
34
 photo_cameraImage coming soon 326590 SPECIAL BOLT M5 €1.44
35
 photo_cameraImage coming soon 326588 LEVER (C) €13.93
36
 photo_cameraImage coming soon 326591 BLADE SPRING €1.44
37
 photo_cameraImage coming soon 327124 SWING ROLLER €5.03
38
 photo_cameraImage coming soon 326585 PIN D6 €5.03
39
 photo_cameraImage coming soon 6003DD BALL BEARING 6003DDCMPS2S €8.11
40
 photo_cameraImage coming soon 327118 SUB SHAFT (D) €5.03
41
 photo_cameraImage coming soon 318476 BEARING COVER (B) €9.03
43
 photo_cameraImage coming soon 967261 RETAINING RING FOR D17 SHAFT €1.33
44
 photo_cameraImage coming soon 326581 RECIPRO PLATE (C) €18.52
45
 Ball Bearing 6003 VVCM for Reciprocating Saws Hitachi CR13V2 - CR13VBY 327694 Ball Bearing 6003 VVCM for Reciprocating Saws Hitachi CR13V2 - CR13VBY €7.35
46
 photo_cameraImage coming soon 939556 Ring Type C X D.35 Holes €13.80
47
 photo_cameraImage coming soon 327119 SECOND SHAFT (D) €22.02
48
 photo_cameraImage coming soon 327115 RECIPRO PLATE (D) €22.02
49
 photo_cameraImage coming soon 327120 SECOND SHAFT (E) €10.02
50
 photo_cameraImage coming soon 318473 GEAR €19.02
51
 photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
52
 photo_cameraImage coming soon 327117 INNER COVER (D) €21.02
53
 photo_cameraImage coming soon 326602 CHANGE SHAFT (C1) €6.53
56
 photo_cameraImage coming soon 6001VV BALL BEARING 6001VVCMPS2L €8.22
57
 photo_cameraImage coming soon 360795E ARMATURE 230V €69.92
58
 photo_cameraImage coming soon 318467 FAN GUIDE €2.93
60
 photo_cameraImage coming soon 340698E STATOR ASS'Y 230V €56.92
61
 photo_cameraImage coming soon 930703 BRUSH TERMINAL €3.04
62
 photo_cameraImage coming soon 327126 Housing Motor CR13VBY €16.37
63
 Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU 945161 Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU €2.78
64
 Carbon Brushes for Hitachi Hammer Hitachi DH38MS 999043 Carbon Brushes for Hitachi Hammer Hitachi DH38MS €9.62
65
 photo_cameraImage coming soon 958900 BRUSH HOLDER €7.81
67
 photo_cameraImage coming soon 326600 HANDLE (E).(F) SET €33.02
71
 photo_cameraImage coming soon 981373 TUBE (D) €1.37
74
 photo_cameraImage coming soon 321960 SWITCH (1P SCREW TYPE) €33.02
77
 photo_cameraImage coming soon 937631 CORD CLIP €1.37
79
 Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.37
81
 photo_cameraImage coming soon 334921 SPECIAL BOLT M5 SET €9.06

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Reciprocating Saw CR13VBY

We have the original Spares Hitachi-HIKOKI for Reciprocating Saw CR13VBY, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Reciprocating Saw CR13VBY. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.
In the following table, look for the model of the Reciprocating Saw and theirs spare part.


Reciprocating saw CR13VBY
1 326575 BASE ASS'Y (C)
2 872971 RETAINING RING (E-TYPE) FOR D3 SHAFT
3 327693 TAPPING SCREW D4X8 (BLACK)
4 326595 HOLD SPRING (C)
5 307028 TAPPING SCREW (W/FLANGE) D4X25 (BLACK)
6 326584 FRONT COVER (D).(E) SET
7 326597 BASE LEVER (C)
8 326596 PUSHING BUTTON (C)
9 326594 PUSHING SPRING
11 303851 SEAL LOCK SCREW (W/WASHERS) M4X10 (BLACK
12 326593 CHANGE KNOB (C)
13 872654 O-RING (1AP-10)
14 327325 NUT M8
15 327114 WASHER (G)
16 318493 BOLT M10
17 326574 BASE ADAPTER (C)
18 326779 CUSHION RUBBER (C)
19 326589 BLADE HOLDER (C)
20 327116 GEAR COVER (D)
21 318458 FELT WASHER
22 326576 SEAL SLEEVE (C)
23 318459 V-RING
24A 334994 METAL (C)
25 326578 GUIDE SLEEVE (C) ASS'Y
26 949566 LOCK NUT M5
27 326580 PLUNGER (C)
28 327123 RUBBER SPACER
29 327122 COUNTER WEIGHT (D)
30 327121 WEIGHT SHAFT (D)
31 321130 CAP
32 321134 HOLDER PIN (B)
33 318483 SPRING (B)
34 326590 SPECIAL BOLT M5
35 326588 LEVER (C)
36 326591 BLADE SPRING
37 327124 SWING ROLLER
38 326585 PIN D6
39 6003DD BALL BEARING 6003DDCMPS2S
40 327118 SUB SHAFT (D)
41 318476 BEARING COVER (B)
42 326573 SEAL LOCK SCREW M4X10
43 967261 RETAINING RING FOR D17 SHAFT
44 326581 RECIPRO PLATE (C)
45 327694 BALL BEARING 6003VVCM (NYLON RETAINER)
46 939556 RETAINING RING FOR D35 HOLE
47 327119 SECOND SHAFT (D)
48 327115 RECIPRO PLATE (D)
49 327120 SECOND SHAFT (E)
50 318473 GEAR
51 608VVM BALL BEARING 608VVC2PS2L
52 327117 INNER COVER (D)
53 326602 CHANGE SHAFT (C1)
54 974577 RETAINING RING (E-TYPE) FOR D7 SHAFT
55 314430 SLOTTED HD. SCREW (SEAL LOCK) M4X10
56 6001VV BALL BEARING 6001VVCMPS2L
57 360795E ARMATURE 230V
58 318467 FAN GUIDE
59 953174 HEX. HD. TAPPING SCREW D5X55
60 340698E STATOR ASS'Y 230V
61 930703 BRUSH TERMINAL
62 327126 HOUSING
63 945161 BRUSH CAP
64 999043 CARBON BRUSH (1 PAIR)
65 958900 BRUSH HOLDER
66 307224 MACHINE SCREW (W/WASHERS) M5X60 (BLACK)
67 326600 HANDLE (E).(F) SET
68 322133 SWITCH TRIGGER
71 981373 TUBE (D)
72 326598 TRIAC HOLDER
73 305490 TAPPING SCREW (W/FLANGE) D4X30 (BLACK)
74 321960 SWITCH (1P SCREW TYPE)
76 984750 TAPPING SCREW (W/FLANGE) D4X16
77 937631 CORD CLIP
79 953327 CORD ARMOR D8.8
81 334921 SPECIAL BOLT M5 SET

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

CR13VBY
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi CR13VBY

Diagram Hitachi CR13VBY

Download (91.99KB)
