HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Impact Cordless Driver Drill DV18DBL

SKU: Hitachi DV18DBL
€2.07
VAT included

Hitachi Spare Parts for Impact Cordless Driver Drill DV18DBL

Hitachi-Koky original spare parts for the replacement of damaged parts or to repair electrical or mechanical components of the Cordless Drill DV18DBL.
Reversible drills and impact cordless drills with batteries from 1.5 Ah to 4, with torque clutch, DV 18 series.

- DV18DBL
Hitachi Spare Parts for Impact Cordless Driver Drill DV18DBL
  • Hitachi Spare Parts for Impact Cordless Driver Drill DV18DBL
  • Hitachi Spare Parts for Impact Cordless Driver Drill DV18DBL
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Impact Cordless Driver Drill DV18DBL

SKU: Hitachi DV18DBL Condition: New
€2.07
VAT included

Hitachi Spare Parts for Impact Cordless Driver Drill DV18DBL

Hitachi-Koky original spare parts for the replacement of damaged parts or to repair electrical or mechanical components of the Cordless Drill DV18DBL.
Reversible drills and impact cordless drills with batteries from 1.5 Ah to 4, with torque clutch, DV 18 series.

- DV18DBL
settings 44 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
44 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

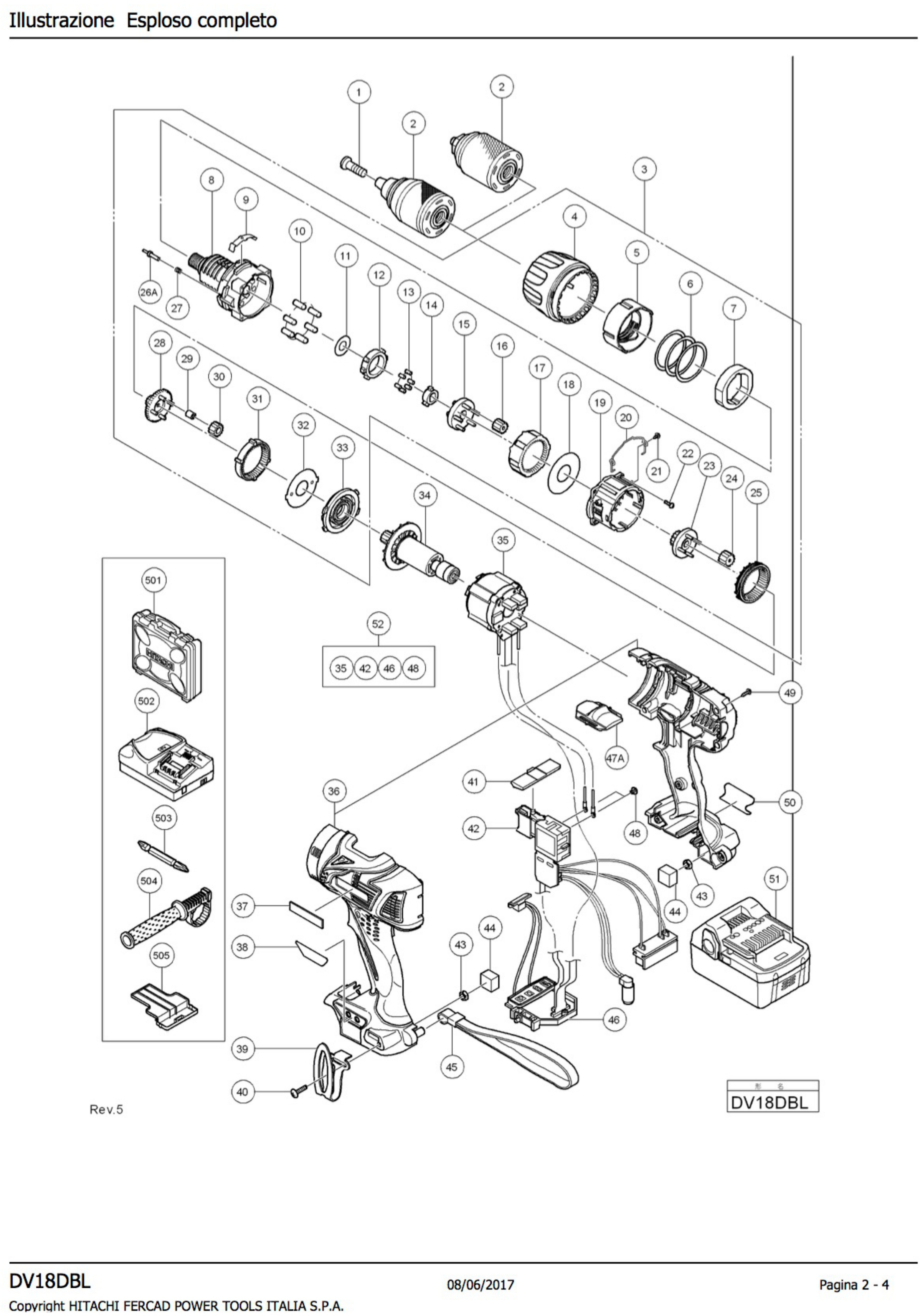

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 995344 Flat Hd. Screw (A) M6x25 €3.09
3
 photo_cameraImage coming soon 333435 GEAR BOX ASS'Y €143.94
4
 photo_cameraImage coming soon 333511 FRONT CAP €22.94
5
 photo_cameraImage coming soon 333512 NUT €3.38
6
 photo_cameraImage coming soon 333513 Brake spring €3.38
7
 photo_cameraImage coming soon 333514 SLEEVE €3.38
8
 photo_cameraImage coming soon 333515 FRONT CASE €109.65
9
 photo_cameraImage coming soon 333516 CLICK SPRING €3.38
10
 Pin Set for Cordless Drill Driver Hitachi DS18DBL2 333539 Pin Set for Cordless Drill Driver Hitachi DS18DBL2 €12.25
11
 photo_cameraImage coming soon 331909 WASHER (A) €3.38
12
 photo_cameraImage coming soon 331903 LOCK RING (A) €13.40
13
 photo_cameraImage coming soon 331888 NEEDLE ROLLER SET (6PCS.) €3.38
14
 photo_cameraImage coming soon 331904 LOCK CAM €3.38
15
 photo_cameraImage coming soon 333517 CARRIER €9.48
16
 photo_cameraImage coming soon 333518 PLANET GEAR (C) SET (5 PCS.) €2.70
17
 photo_cameraImage coming soon 333519 RING GEAR €13.40
18
 photo_cameraImage coming soon 331892 WASHER (A) €3.37
19
 photo_cameraImage coming soon 331893 REAR CASE €6.09
20
 photo_cameraImage coming soon 331894 SHIFT ARM €3.38
21
 photo_cameraImage coming soon 330579 SCREW SET D2X3.5 (2 PCS.) €4.07
23
 photo_cameraImage coming soon 331897 PINION (C) €10.84
24
 photo_cameraImage coming soon 333520 PLANET GEAR (B) SET (4 PCS.) €6.09
25
 photo_cameraImage coming soon 333521 SLIDE RING GEAR €9.48
26A
 photo_cameraImage coming soon 335296 STOPPER (A) €3.38
27
 photo_cameraImage coming soon 333523 STOPPER SPRING €3.38
28
 photo_cameraImage coming soon 333524 PINION (B) €6.09
29
 photo_cameraImage coming soon 331926 NEEDLE BEARING SET (4 PCS.) €13.40
30
 photo_cameraImage coming soon 333525 PLANET GEAR (A) SET (4 PCS.) €9.48
31
 photo_cameraImage coming soon 333526 FIRST RING GEAR €6.09
32
 photo_cameraImage coming soon 322988 WASHER (B) €2.02
33
 photo_cameraImage coming soon 331902 MOTOR SPACER €3.38
34
 photo_cameraImage coming soon 333528 ROTOR PINION SET €59.02
35
 photo_cameraImage coming soon 340765 STATOR FET PCB €204.02
36
 photo_cameraImage coming soon 331711 HOUSING (A).(B) SET €34.93
38
 photo_cameraImage coming soon 330662 PANEL SHEET (B) €2.52
39
 photo_cameraImage coming soon 332824 DUST HOOD HOLDING HOOK €6.47
41
 photo_cameraImage coming soon 331907 PUSHING BUTTON €3.38
42
 DC-Speed Control Switch for Cordless Drill Driver Hitachi DV14DBL 331715 DC-Speed Control Switch for Cordless Drill Driver Hitachi DV14DBL €58.49
44
 photo_cameraImage coming soon 330854 PACKING €12.63
45
 photo_cameraImage coming soon 306952 STRAP (BLACK) €8.78
46
 photo_cameraImage coming soon 333689 620265-4 €132.02
47A
 photo_cameraImage coming soon 334267 SPEED LEVER (EX 333527) €13.40
51
 photo_cameraImage coming soon 330068 BATTERY BSL 1830 (EUROPE.AUS.NZL) €248.59
52
 photo_cameraImage coming soon 333436 WIRING ASS'Y €250.92

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Impact Cordless Driver Drill DV18DBL

Hitachi-Koky original spare parts for the replacement of damaged parts or to repair electrical or mechanical components of the Cordless Drill DV18DBL.
Reversible drills and impact cordless drills with batteries from 1.5 Ah to 4, with torque clutch, DV 18 series.

- DV18DBL

In the following table, look for the model of the CORDLESS DRILL and theirs spare part.
Hitachi DV18DBL

CORDLESS IMPACT DRIVER DRILL DV 18DBL
# Part Num. Description
1 995344 FLAT HD. SCREW (A) (LEFT HAND) M6X25
*2 331914 DRILL CHUCK 13VLRR-N (W/O CHUCK WRENCH)
*2 333691 DRILL CHUCK 13VLRK-N (W/O CHUCK WRENCH)
3 333435 GEAR BOX ASS'Y
4 333511 FRONT CAP
5 333512 NUT
6 333513 SPRING
7 333514 SLEEVE
8 333515 FRONT CASE
9 333516 CLICK SPRING
10 333539 PIN SET (6 PCS.)
11 331909 WASHER (A)
12 331903 LOCK RING (A)
13 331888 NEEDLE ROLLER SET (6PCS.)
14 331904 LOCK CAM
15 333517 CARRIER
16 333518 PLANET GEAR (C) SET (5 PCS.)
17 333519 RING GEAR
18 331892 WASHER (A)
19 331893 REAR CASE
20 331894 SHIFT ARM
21 330579 SCREW SET D2X3.5 (2 PCS.)
22 320087 SCREW SET M3X12 (4 PCS.)
23 331897 PINION (C)
24 333520 PLANET GEAR (B) SET (4 PCS.)
25 333521 SLIDE RING GEAR
26A 335296 STOPPER (A)
27 333523 STOPPER SPRING
28 333524 PINION (B)
29 331926 NEEDLE BEARING SET (4 PCS.)
30 333525 PLANET GEAR (A) SET (4 PCS.)
31 333526 FIRST RING GEAR
32 322988 WASHER (B)
33 331902 MOTOR SPACER
34 333528 ROTOR PINION SET
35 340765 STATOR FET PCB
36 331711 HOUSING (A).(B) SET
38 330662 PANEL SHEET (B)
39 332824 HOOK
40 327001 TRUSS HD. SCREW M4 (BLACK)
41 331907 PUSHING BUTTON
42 331715 DC-SPEED CONTROL SWITCH
43 327002 LOCK NUT M4 (BLACK)
44 330854 PACKING
45 306952 STRAP (BLACK)
46 333689 CONTROLLER
47A 334267 SHIFT KNOB
48 994532 MACHINE SCREW (W/SP. WASHER) M3X5
49 313687 TAPPING SCREW (W/FLANGE) D3X16 (BLACK)
51 330068 BATTERY BSL 1830 (EUROPE,AUS,NZL)
52 333436 WIRING ASS'Y
53 336090 SUMI TUBE
