HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Screwdriver DB3DL

SKU: Hitachi DB3DL
€70.86
VAT included

Hitachi Spare Parts for Cordless Screwdriver DB3DL

Hitachi-HIKOKI original spare parts for to replace broken parts for to fix Cordless Screwdriver DB3DL.

Fix Your Cordless Screwdriver DB3DL. All Spares can be Supplied at low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Hitachi Spare Parts for Cordless Screwdriver DB3DL
  • Hitachi Spare Parts for Cordless Screwdriver DB3DL
  • Hitachi Spare Parts for Cordless Screwdriver DB3DL
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Screwdriver DB3DL

SKU: Hitachi DB3DL Condition: New
€70.86
VAT included

Hitachi Spare Parts for Cordless Screwdriver DB3DL

Hitachi-HIKOKI original spare parts for to replace broken parts for to fix Cordless Screwdriver DB3DL.

Fix Your Cordless Screwdriver DB3DL. All Spares can be Supplied at low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 37 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
37 spare parts

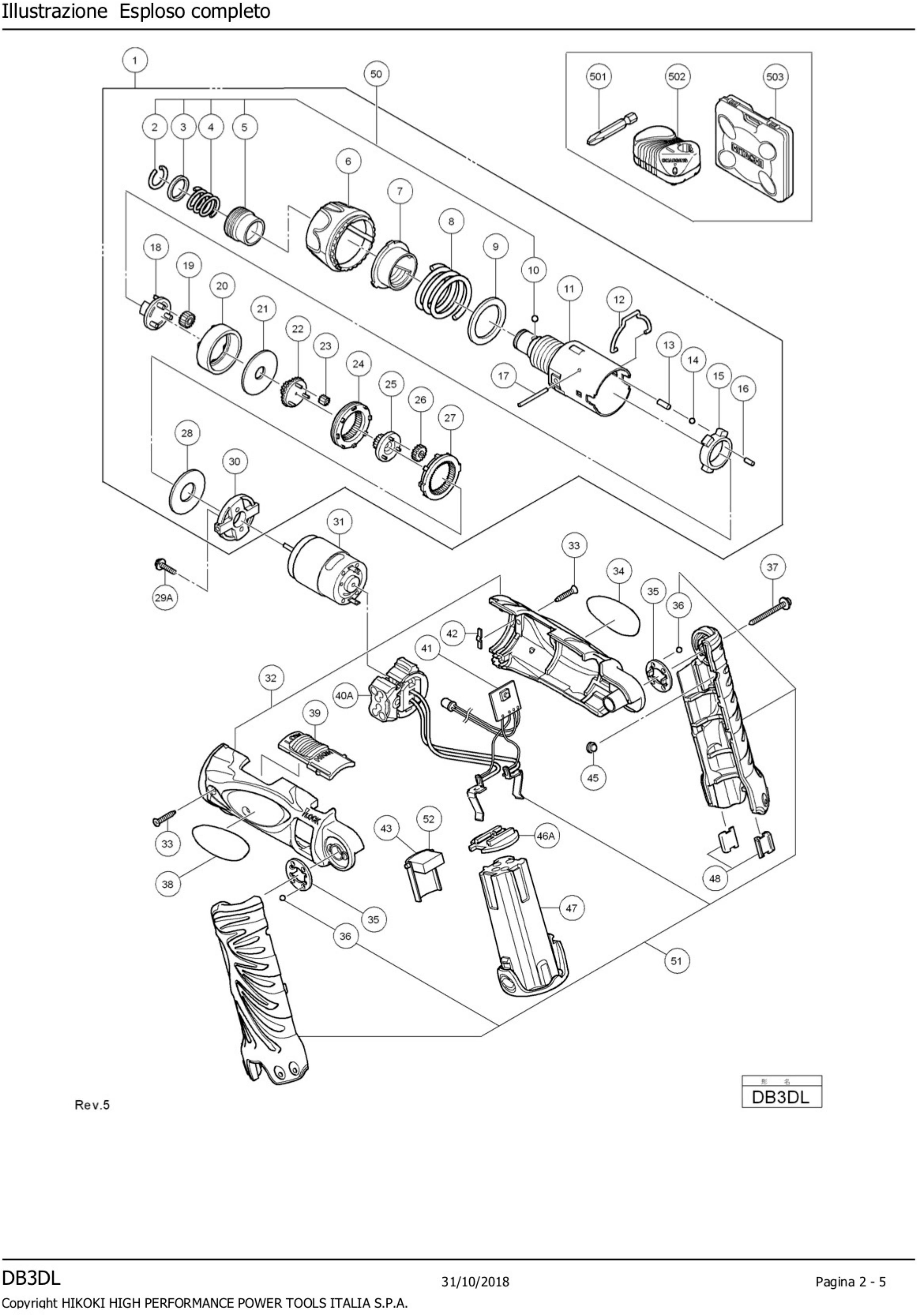

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 326348 COMPLETE GEAR BOX DB3DL €50.79
2
 photo_cameraImage coming soon 315984 SEALING RING €2.55
3
 photo_cameraImage coming soon 315983 WASHER (D) €2.02
4
 photo_cameraImage coming soon 320409 SPRING GUIDE €2.02
5
 photo_cameraImage coming soon 319921 WH12DM COMPASS GUIDE €9.91
6
 photo_cameraImage coming soon 326342 DB3DL ADJUSTMENT RING €2.88
7
 photo_cameraImage coming soon 326341 FRONT COVER SUPPORT DB3DL €2.02
8
 photo_cameraImage coming soon 326340 SPRING DB3DL €2.02
9
 photo_cameraImage coming soon 326339 DB3DL WASHER €2.02
10
 photo_cameraImage coming soon 319535 BALLS D3.5 (10 PCS.) €2.55
11
 photo_cameraImage coming soon 326349 FRONT COVER DB3DL €19.29
12
 photo_cameraImage coming soon 326345 LEVER DB3DL €2.02
14
 photo_cameraImage coming soon 317788 BALLS D3 DB3DL €2.02
15
 photo_cameraImage coming soon 326323 LOCK RING DB3DL €3.52
18
 photo_cameraImage coming soon 326325 SATELLITE SUPPORT C DB3DL €1.49
19
 Planet Gear for Cordless Screwdriver Hitachi DB3DL 326327 Planet Gear for Cordless Screwdriver Hitachi DB3DL €4.04
20
 photo_cameraImage coming soon 326326 RING GEAR DB3DL €3.52
21
 photo_cameraImage coming soon 326328 WASHER B DB3DL €2.02
22
 photo_cameraImage coming soon 326330 SATELLITE SUPPORT B ​​DB3DL €1.50
23
 photo_cameraImage coming soon 326332 SATELLITES B DB3DL (3PZ.) €1.50
24
 photo_cameraImage coming soon 326331 SLIDING RING GEAR DB3DL €1.50
25
 photo_cameraImage coming soon 326333 SATELLITE SUPPORT TO DB3DL €1.50
26
 photo_cameraImage coming soon 326335 SATELLITES IN DB3DL (3 PCS.) €2.02
27
 photo_cameraImage coming soon 326334 FIRST RING GEAR DB3DL €2.02
28
 photo_cameraImage coming soon 326336 DB3DL WASHER €1.50
30
 photo_cameraImage coming soon 326337 ENGINE SPACER DB3DL €1.50
31
 photo_cameraImage coming soon 326310 DB3DL ENGINE €11.91
32
 photo_cameraImage coming soon 326307 COMPLETE HOUSING DB3DL €10.04
35
 photo_cameraImage coming soon 326315 POSITION PLATE DB3DL €2.02
36
 photo_cameraImage coming soon 317788 BALLS D3 DB3DL €2.02
39
 photo_cameraImage coming soon 326308 SLIDE SWITCH D3 DB3DL €1.50
41
 photo_cameraImage coming soon 326313 DB3DL LED SWITCH €10.64
42
 photo_cameraImage coming soon 326309 SPRING STOP D3 DB3DL €2.02
46A
 photo_cameraImage coming soon 326316 BATTERY TERMINAL SUPPORT €1.52
50
 photo_cameraImage coming soon 320085 COMPLETE COMPASS GUIDE €13.63
51
 photo_cameraImage coming soon 328825 SET HANDLE AND TERMINALS DB3DL €24.70
52
 photo_cameraImage coming soon 328847 DB3DL RUBBER €1.87
503
 photo_cameraImage coming soon 326346 Case €59.05
Page 2 local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
503
 photo_cameraImage coming soon 326346 Case €59.05

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Cordless Screwdriver DB3DL

Fix Your Cordless Screwdriver DB3DL. All Spares can be Supplied at low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Cordless and theirs spare part.
Cordless Screwdriver DB3DL

SCREWDRIVER DB3DL Pag.1
# Part Num. Description
1 326348 COMPLETE GEAR BOX DB3DL
2 315984 SEALING RING
3 315983 WASHER (D)
4 320409 SPRING GUIDE
5 319921 WH12DM COMPASS GUIDE
6 326342 DB3DL ADJUSTMENT RING
7 326341 FRONT COVER SUPPORT DB3DL
8 326340 SPRING DB3DL
9 326339 DB3DL WASHER
10 319535 BALLS D3.5 (10 PCS.)
11 326349 FRONT COVER DB3DL
12 326345 LEVER DB3DL
13 326338 PIN SET (3 PCS)
14 317788 BALLS D3 DB3DL
15 326323 LOCK RING DB3DL
16 326324 NEEDLE ROLLER SET (6 PCS)
17 326329 NEEDLE
18 326325 SATELLITE SUPPORT C DB3DL
19 326327 SATELLITES C DB3DL (3PZ.)
20 326326 RING GEAR DB3DL
21 326328 WASHER B DB3DL
22 326330 SATELLITE SUPPORT B ​​DB3DL
23 326332 SATELLITES B DB3DL (3PZ.)
24 326331 SLIDING RING GEAR DB3DL
25 326333 SATELLITE SUPPORT TO DB3DL
26 326335 SATELLITES IN DB3DL (3 PCS.)
27 326334 FIRST RING GEAR DB3DL
28 326336 DB3DL WASHER
30 326337 ENGINE SPACER DB3DL
31 326310 DB3DL ENGINE
32 326307 COMPLETE HOUSING DB3DL
33 984319 FLAT SELF-THREADING SCREW D3X8 (+)
35 326315 POSITION PLATE DB3DL
36 317788 BALLS D3 DB3DL
38 328846 HITACHI LABEL NEW AUG
39 326308 SLIDE SWITCH D3 DB3DL
40A 331514 SWITCH DB3DL
41 326313 DB3DL LED SWITCH
42 326309 SPRING STOP D3 DB3DL
43 326314 COVER DB3DL
45 326317 IGNITION BUTTON LED D3 DB3DL
46A 326316 BATTERY TERMINAL SUPPORT
48 326318 CLIP DB3DL
50 320085 COMPLETE COMPASS GUIDE
51 328825 SET HANDLE AND TERMINALS DB3DL
52 328847 DB3DL RUBBER
STANDARD ACCESSORIES Pag.2
501 992671 + DRIVER BIT (B) NO.2 50L
502 CHARGER (MODEL UC 3SFL)
503 326346 CASE
