Hitachi Spare Parts for Mixer Drill D13

SKU: Hitachi D13
€32.23
VAT included

Hitachi Spare Parts for Mixer Drill D13

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Mixer D 13.
Hitachi Spare Parts for Mixer Drill D13
  • Hitachi Spare Parts for Mixer Drill D13
  • Hitachi Spare Parts for Mixer Drill D13
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Mixer Drill D13

SKU: Hitachi D13 Condition: New
€32.23
VAT included

Hitachi Spare Parts for Mixer Drill D13

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Mixer D 13.
settings 65 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN: Usually Ships in 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
Machine Type: Mixer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
65 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 7/10 BUSINESS DAYS

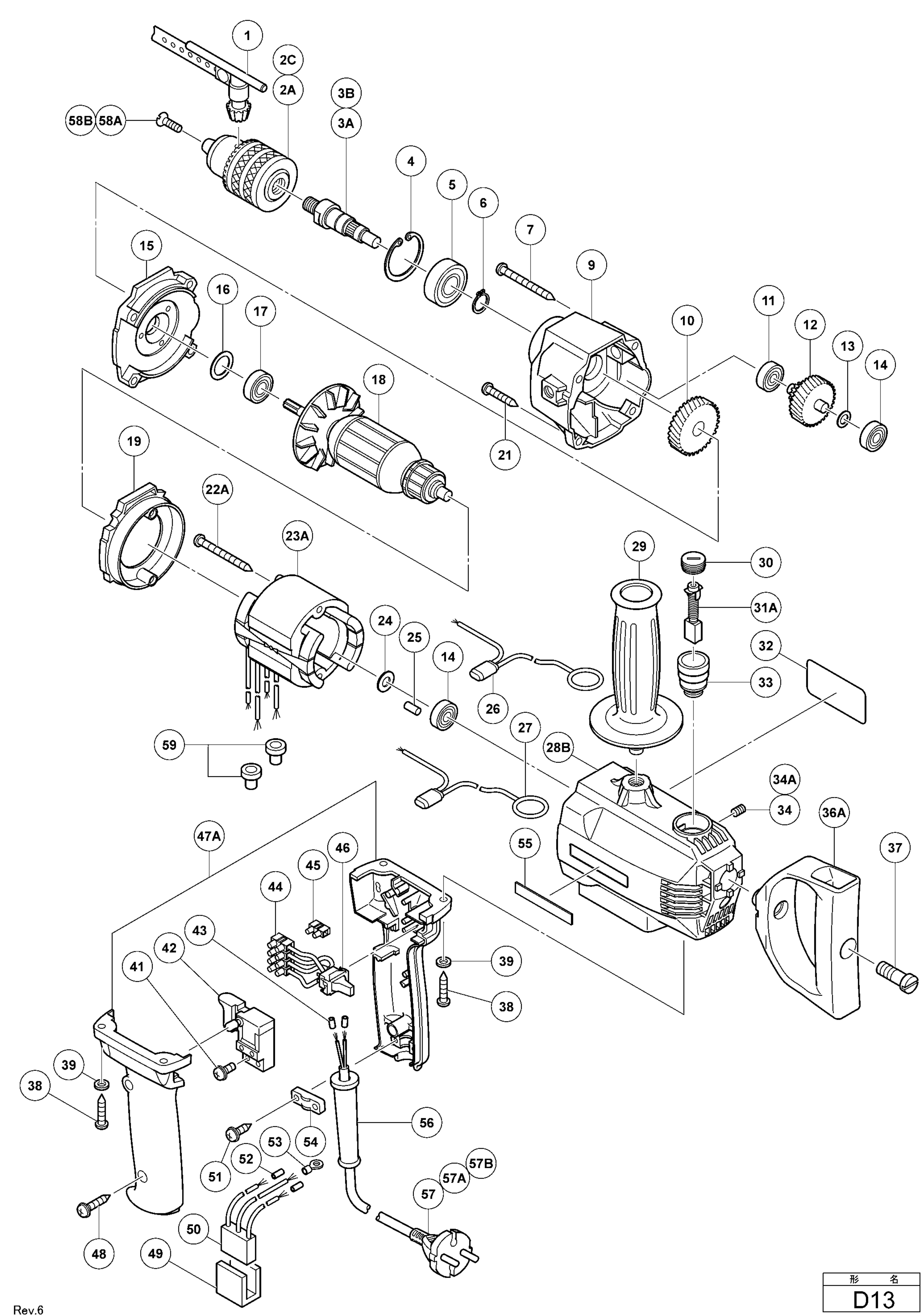

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 930515 CHUCK WRENCH 10G €12.14
2A
 photo_cameraImage coming soon 321810 DRILL CHUCK 13EL €0.00 Not available for order
2C
 photo_cameraImage coming soon 321814 DRILL CHUCK 13VLRB-D €31.66
3A
 photo_cameraImage coming soon 981651Z SPINDLE €0.00 Not available for order
3B
 photo_cameraImage coming soon 981667 SPINDLE €45.08
4
 photo_cameraImage coming soon 939556 Ring Type C X D.35 Holes €13.36
5
 photo_cameraImage coming soon 6202VV BALL BEARING 6202VVCMPS2L €7.26
6
 Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V 939544 Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V €0.00
7
 photo_cameraImage coming soon 957725 TAPPING SCREW D5X70 €0.00 Not available for order
9
 photo_cameraImage coming soon 981650 GEAR COVER €167.08
10
 photo_cameraImage coming soon 983448 FINAL GEAR €23.12
11
 photo_cameraImage coming soon 627VVM BALL BEARING 627VVC2PS2L €9.70
12
 photo_cameraImage coming soon 981652Z SECOND PINION €41.42
13
 photo_cameraImage coming soon 949426 WASHER M8 €0.00 Not available for order
14
 BALL BEARING 608VVC2PS2L 608VVM BALL BEARING 608VVC2PS2L €7.26
15
 photo_cameraImage coming soon 982791 INNER COVER ASS'Y €62.16
16
 photo_cameraImage coming soon 984357 WASHER €52.40
17
 photo_cameraImage coming soon 609VVM BALL BEARING 609VVC2PS2L €13.36
18
 ARMATURE 220V-230V 981657E ARMATURE 220V-230V €121.94
19
 photo_cameraImage coming soon 981562 FAN GUIDE €4.82
21
 photo_cameraImage coming soon 931875 TAPPING SCREW D5X35 €0.00 Not available for order
22A
 photo_cameraImage coming soon 991007 TAPPING SCREW D5X60 €0.00 Not available for order
23A
 STATOR 220V 982797E STATOR 220V €41.42
24
 photo_cameraImage coming soon 984367 WASHER (C) €0.00 Not available for order
25
 photo_cameraImage coming soon 946362 BEARING LOCK €1.16
26
 photo_cameraImage coming soon 318013 BRUSH TERMINAL €0.00 Not available for order
26
 photo_cameraImage coming soon 982798Z BRUSH TERMINAL €0.00 Not available for order
26
 photo_cameraImage coming soon 982800Z BRUSH TERMINAL (W/CHOKE COIL) €14.58
27
 photo_cameraImage coming soon 318014 BRUSH TERMINAL €0.00 Not available for order
27
 photo_cameraImage coming soon 982799Z BRUSH TERMINAL €0.00 Not available for order
27
 photo_cameraImage coming soon 982801Z BRUSH TERMINAL (W/CHOKE COIL) €15.80
28A
 photo_cameraImage coming soon 317447 HOUSING ASS'Y €0.00 Not available for order
28B
 photo_cameraImage coming soon 332082 HOUSING ASS'Y €48.74
29
 photo_cameraImage coming soon 981205 SIDE HANDLE FOR M10 €8.48
30
 Brushe Cap for Mixers Hitachi D13 - D13SA 961781 Brushe Cap for Mixers Hitachi D13 - D13SA €3.60
31A
 Carbon Brushes for Demolition Hammer Hitachi DH30PC2 999073 Carbon Brushes for Demolition Hammer Hitachi DH30PC2 €17.02
33
 photo_cameraImage coming soon 981586 BRUSH HOLDER €7.26
34
 photo_cameraImage coming soon 962782 HEX. SOCKET SET SCREW M5X6 €0.00 Not available for order
34A
 photo_cameraImage coming soon 985114 HEX. SOCKET SET SCREW M4X6 €0.00 Not available for order
36A
 photo_cameraImage coming soon 982794Z D-TYPE HANDLE €30.44
37
 photo_cameraImage coming soon 982796Z SPECIAL BOLT M10 €3.60
38
 photo_cameraImage coming soon 937807 TAPPING SCREW W/O FLANGE D5x25 €0.00 Not available for order
39
 photo_cameraImage coming soon 949424 WASHER M5 (10 PCS.) €2.38
41
 photo_cameraImage coming soon 980060 MACHINE SCREW (W/WASHER) M3.5X5 €0.00 Not available for order
42
 Unipolar Switch for Orbital Sander Hitachi SV12V 957747 Unipolar Switch for Orbital Sander Hitachi SV12V €20.68
42
 Single Phase Switch for Orbital Sander Hitachi SV12V 971667Z Single Phase Switch for Orbital Sander Hitachi SV12V €25.56
43
 photo_cameraImage coming soon 981373 TUBE (D) €1.16
44
 photo_cameraImage coming soon 982804Z PILLAR TERMINAL (B) €0.00 Not available for order
45
 photo_cameraImage coming soon 982805Z PILLAR TERMINAL (B) €0.00 Not available for order
46
 Switch for Mixer Hitachi D13 982802Z Switch for Mixer Hitachi D13 €42.64 €37.95 -11%
46
 photo_cameraImage coming soon 982803Z REVERSING SWITCH ASS'Y €0.00 Not available for order
47A
 photo_cameraImage coming soon 331660 HANDLE (A).(B) SET €30.44
48
 photo_cameraImage coming soon 982095 Tapping Screw (w/washer) D4x20 €0.00 Not available for order
49
 photo_cameraImage coming soon 930153 SUPPORT (B) €0.00 Not available for order
50
 Noise Suppressor for Angle Grinder Hitachi G12SA2 994273 Noise Suppressor for Angle Grinder Hitachi G12SA2 €7.26
51
 photo_cameraImage coming soon 930446 TAPPING SCREW (W/WASHER) D4X16 €0.00 Not available for order
52
 photo_cameraImage coming soon 981373 TUBE (D) €1.16
53
 photo_cameraImage coming soon 959146 TERMINAL 50061 €0.00 Not available for order
53
 photo_cameraImage coming soon 961419Z TERMINAL €0.00 Not available for order
54
 photo_cameraImage coming soon 960266 CORD CLIP €1.16
56
 Cord Armor D.10.1 for Hitachi Power Tools 938051 Cord Armor D.10.1 for Hitachi Power Tools €1.16
56
 Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.16
58B
 photo_cameraImage coming soon 331966 FLAT HD. SCREW (LEFT HAND) M6 X 20 €0.00 Not available for order
58
 photo_cameraImage coming soon 981122 SPECIAL SCREW M6X22 €1.16
58A
 Flat Hd. Screw (A) M6x25 995344 Flat Hd. Screw (A) M6x25 €3.60
59
 photo_cameraImage coming soon 959140 CONNECTOR 50091 €0.00 Not available for order

Shipping and delivery information will be available shortly.

Hitachi Spare Parts for Mixer Drill D13

Hitachi-HIKOKI Tanaka

 authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Mixer D 13.

In the following table, look for the mixer model and the corresponding replacement code.
Hitachi D13

Mixer Drill D 13
# Part Num. Description
1 930515 CHUCK WRENCH 10G
2A 321810 DRILL CHUCK 13EL
2C 321814 DRILL CHUCK 13VLRB-D
3A 981651Z SPINDLE
3B 981667 SPINDLE
4 939556 RETAINING RING FOR D35 HOLE
5 6202VV BALL BEARING 6202VVCMPS2L
6 939544 RETAINING RING FOR D15 SHAFT
7 957725 TAPPING SCREW D5X70
9 981650 GEAR COVER
10 983448 FINAL GEAR
11 627VVM BALL BEARING 627VVC2PS2L
12 981652Z SECOND PINION
13 949426 WASHER M8
14 608VVM BALL BEARING 608VVC2PS2L
15 982791 INNER COVER ASS'Y
16 984357 WASHER
17 609VVM BALL BEARING 609VVC2PS2L
18 981657E ARMATURE 220V-230V
19 981562 FAN GUIDE
21 931875 TAPPING SCREW D5X35
22A 991007 TAPPING SCREW D5X60
23A 982797E STATOR 220V
24 984367 WASHER (C)
25 946362 BEARING LOCK
26 982798Z BRUSH TERMINAL
26 982800Z BRUSH TERMINAL (W/CHOKE COIL)
26 318013 BRUSH TERMINAL
27 982799Z BRUSH TERMINAL
27 982801Z BRUSH TERMINAL (W/CHOKE COIL)
27 318014 BRUSH TERMINAL
28A 317447 HOUSING ASS'Y
28B 332082 HOUSING ASS'Y
29 981205 SIDE HANDLE FOR M10
30 961781 BRUSH CAP
31A 999073 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
33 981586 BRUSH HOLDER
34 962782 HEX. SOCKET SET SCREW M5X6
34A 985114 HEX. SOCKET SET SCREW M4X6
36A 982794Z D-TYPE HANDLE
37 982796Z SPECIAL BOLT M10
38 937807 TAPPING SCREW D5X25
39 949424 WASHER M5 (10 PCS.)
41 980060 MACHINE SCREW (W/WASHER) M3.5X5
42 957747 SWITCH (A) (1P SCREW TYPE) W/LOCK
42 971667Z SWITCH (2P PILLAR TYPE) W/LOCK
43 981373 TUBE (D)
44 982804Z PILLAR TERMINAL (B)
45 982805Z PILLAR TERMINAL (B)
46 982802Z REVERSING SWITCH ASS'Y
46 982803Z REVERSING SWITCH ASS'Y
47A 331660 HANDLE (A).(B) SET
48 982095 TAPPING SCREW (W/WASHER) D4X20
49 930153 SUPPORT (B)
50 994273 NOISE SUPPRESSOR
51 930446 TAPPING SCREW (W/WASHER) D4X16
52 981373 TUBE (D)
53 959146 TERMINAL 50061
53 961419Z TERMINAL
54 960266 CORD CLIP
56 953327 CORD ARMOR D8.8
56 938051 CORD ARMOR D10.1
58 981122 SPECIAL SCREW M6X22
58A 995344 FLAT HD. SCREW (A) (LEFT HAND) M6X25
58B 331966 FLAT HD. SCREW (LEFT HAND) M6X20
59 959140 CONNECTOR 50091
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi D13
12 Items

Data sheet

SHIPPING IN
Usually Ships in 7/10 BUSINESS DAYS
Machine Type
Mixer
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi D13

Diagram Hitachi D13

Download (82.6KB)

You might also like

Impact Drill Hitachi DV16V - 590 W
HiKOKI Power Tools Italia S.p.a. SKU: DV16V - 590 W
Impact Drill Hitachi DV16V - 590 W
Impact Drill Hitachi DV16V - 590 W Excellent for drilling steel, wood and plastic without impact concrete, brick, ceramic tile, marble, granite and other stones with percussion.
on 7/10 Business Days Approx €159.76
Details
Percussion Drill Hitachi DV 18V - 690 W
HiKOKI Power Tools Italia S.p.a. SKU: DV 18V - 690 W
Impact Drill Hitachi DV 18V - 690 W
Impact Drill Hitachi DV 18V - 690 W Combined action of rotation and impact for making holes in hard materials (concrete, marble, granite ...), the ability to drill up to 18 mm. Action only rotation: for the execution of holes in the...
on 7/10 Business Days Approx €254.92
Details
Percussion Drill Hitachi DV 20VB2 - 790 W
HiKOKI Power Tools Italia S.p.a. SKU: DV 20VB2 - 790 W
Impact Drill Hitachi DV 20VB2 - 790 W
Impact Drill Hitachi DV 20VB2 - 790 W New drill reversible evolution of the previous model DV20VB. Extremely rugged and powerful with high-quality and robust chuck with manual transmission and two-speed electronic switch with variable...
Out-of-Stock €229.30
Details
Switch for Mixer Hitachi D13 -11% Sale
HiKOKI Power Tools Italia S.p.a. SKU: 982802Z
Switch for Mixer Hitachi D13
Switch for Mixer Hitachi D13 Original spare part Hitachi, Switch for Mixer Hitachi D13 Part for the following products: - Mixer Hitachi D13 - Cod : 982802Z
AVAILABLE €37.95 €42.64
Details
Unipolar Switch for Orbital Sander Hitachi SV12V
HiKOKI Power Tools Italia S.p.a. SKU: 957747
Unipolar Switch for Orbital Sander Hitachi SV12V
Switch (A) for Orbital Sander Hitachi SV12V Genuine Spare Part Hitachi-Koky, SWITCH (A) (1P SCREW TYPE) W/LOCK for Orbital Sander SV12V - Mixer for mortar and glue model D13. Part for the following products: -...
AVAILABLE €20.68
Details
Carbon Brushes for Demolition Hammer Hitachi DH30PC2
HiKOKI Power Tools Italia S.p.a. SKU: 999073
Carbon Brushes for Demolition Hammer Hitachi DH30PC2
Carbon Brushes for Demolition Hammer Hitachi DH30PC2 Genuine Spare Part Hitachi, Autolocking Carbon Brushes for Rotary Hammers D13 - DH30PC2 - DH40MR - DH40MRY - DH40SR - H41SA - H41SC - H45MR - H45MRY - H45SR Part for the following...
AVAILABLE €17.02
Details
Mixer 1500 Watts Hitachi UM 16VST
HiKOKI Power Tools Italia S.p.a. SKU: 16VST2
Mixer 1500 Watts Hitachi UM 16VST
Mixer 1500 Watts Hitachi UM 16VST2 Features: 1.600W mixer with 2-speed manual gearbox and electronically controlled with the same selector. Offering progressive start to avoid mismatches, the thermal protection device and the feedback...
on 7/10 Business Days Approx €306.75
Details
Armature for Mixers Hitachi 16VST
HiKOKI Power Tools Italia S.p.a. SKU: 333625
Armature for Mixers Hitachi 16VST
Armature for Mixer Hitachi 16VST Original Part Hitachi-HIKOKI, Armature 230V for Mixer for Mortars and Glues UM16VST. Part for the following products: -  Mixer for Mortars and Glues UM16VST - Code: 333625
AVAILABLE €56.06
Details
Switch for Mixer Hitachi UM16VST
HiKOKI Power Tools Italia S.p.a. SKU: 333605
Switch for Mixer Hitachi UM16VST
Switch for Mixer Hitachi UM16VST Genuine part Hitachi, Switch for mortar and glue Mixer model UM16VST Part for the following products: -  Mixer Hitachi UM16VST - Code: 333605
Usually Ships in: 7/10 Business Days Approx. €12.14
Details
Speed Control for Mixer Hitachi UM16VST
HiKOKI Power Tools Italia S.p.a. SKU: 333612
Speed Control for Mixer Hitachi UM16VST
Speed Control for Mixer Hitachi UM16VST Genuine spare Hitachi-HIKOKI, Speed Control (Circuit Board) for Mixers for mortar and glue model, UM16VST. Part for the following products: -  Mixer Hitachi-HIKOKI UM16VST - Code:...
on 7/10 Business Days Approx €13.36
Details
Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V Sale
HiKOKI Power Tools Italia S.p.a. SKU: 939544
Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V
Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V Original spare part HITACHI, Retaining Ring Type C 15 mm diameter for shafts, for Impact Drills D 13VG - DV 16V. Part for the following products: - Impact Drill D 13VG -...
AVAILABLE €0.00
Details
Controller for Mixer Hitachi UM16VST - Old Type
HiKOKI Power Tools Italia S.p.a. SKU: 333633
Controller for Mixer Hitachi UM16VST
Controller for Mixer Hitachi UM16VST Genuine replacement part Hitachi Koky, Controller for Mixer UM16VST.  Part for the following products:  -  Mixer Hitachi UM16VST - Code : 333633
AVAILABLE €36.54
Details
Inductance Unit for Mixers Hitachi UM16VST
HiKOKI Power Tools Italia S.p.a. SKU: 333611
Inductance Unit for Mixers Hitachi UM16VST
Inductance Unit for Mixers Hitachi UM16VST Genuine Spare Parts Hitachi KOKY, Inductance Unit for Mixers for mortars and Glues UM16VST. Parts for the following products: - Mixer Drill Hitachi UM 16VST - Hitachi Code: 333625
AVAILABLE €4.82
Details
Brushe Cap for Mixers Hitachi D13 - D13SA
HiKOKI Power Tools Italia S.p.a. SKU: 961781
Brushe Cap for Mixers Hitachi D13 - D13SA
Brushe Cap for Mixers Hitachi D13 - D13SA Genuine part Hitachi, Brushe Cap for Mixers D13 - D13SA - Circular Saws C9U - C0U2 - C9U3 - Core-Drill DC12V - Rotary Hammers DH50SA1 - DH50SB - Demolition Hammer H55SA Part for the following...
AVAILABLE €3.60
Details
Comments (0)
No customer reviews for the moment.
