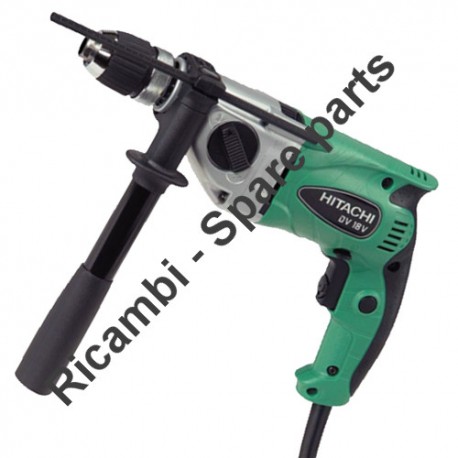

Hitachi Spare Parts for Percussion Drill DV18V
Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Percussion Drill DV18V.
In the following table , look for the model of the impact drill and the respective parts of the code .
| Percussion Drill DV 18V |
| # |
Part Num. |
Description |
| 1 |
995344 |
Flat Hd. Screw (A) M6x25 |
| 2 |
987576 |
Chuck Wrench For 13vlb -> HTA100106 |
| *3 |
322357 |
Drill Chuck 13vlrh-N (W / O |
| 3 |
HFAM231220 |
Keyless Chuck 1.5-13 mm 1/2"x20 |
| 4 |
322857 |
Spindle Dv20vb2 |
| 5 |
939556 |
Ring Type C X D.35 Holes |
| 6 |
322851 |
Oil Seal Dv20vb2 |
| 7 |
6202dd |
Ball Bearing 6202dd |
| 8 |
322850 |
Toothed ring Dv20vb2 |
| 9 |
984101 |
spring |
| 10 |
959150 |
Steel Ball D.6 |
| 11 |
322845 |
Graft (B) |
| 12 |
316321 |
Tapp. Screw (W / Flange) D5x45 |
| 13 |
322852 |
washer Dm20v |
| 14 |
322858 |
According Pinion Dv20vb2 |
| 15 |
322841 |
Clutch Lever Dv20vb2 |
| 16 |
322842 |
Cover Lever Dv20vb2 |
| 17 |
322840 |
bracket Exchange |
| 18 |
322859 |
Cop. Inp. Internal (B) |
| 19 |
322847 |
Clutch Lever |
| 21 |
322848 |
roll |
| 22 |
306353 |
O-ring (S-22) |
| 23 |
981328 |
Spring H Dh24dva |
| 24a |
335299 |
Steel Ball D3.5 (10 Pcs.) |
| 25 |
322844 |
Cop. Gears Compl. (A) |
| 26 |
323048 |
Ring Seal (E-Type) |
| 27 |
322849 |
hook |
| 28 |
322860 |
Without Dv18v |
| 29 |
322846 |
September Dv20vb230 Gear |
| 31 |
939553 |
Seeger Dm20vRetaining |
| *32 |
360655e |
induced D13vh |
| *32 |
360655f |
Armature 240v |
| 33 |
322843 |
Help Air Dv18v |
| 34 |
981824 |
Hex. Hd. Tapping Screw D4x45 |
| *35 |
340589e |
Stator 220v-230v D13vh |
| *35 |
340589f |
Stator 240v |
| 36a |
698vvc |
bearing 698vvc |
| 37a |
331663 |
Complete carcass |
| 39 |
301653 |
Tapp.Screw (W / Flange) D4x20 |
| 41 |
322853 |
Rev. Button |
| 42 |
322854 |
switch |
| *44 |
322517 |
Internal cable Marr. 220v-240v |
| 45 |
999041 |
Brushes (1 pair) |
| 46 |
955203 |
brush holder |
| 52 |
984750 |
Tapp. Screw (W / Flange) D4x16 |
| 53 |
937631 |
terminal Wire Tie |
| 54 |
953327 |
Sleeve saver D8.8 |
| *55 |
500231z |
Cord |
| 56 |
309929 |
bushing |
| 501 |
323130 |
houses |
| 502 |
323050 |
Impugn.Laterale Dv20vb2 |
| 503 |
303709 |
delimiter Depth |
