HiKOKI Power Tools Italia S.p.a.

HIKOKI Cordless Drill DV18DE Parts

SKU: HIKOKI DV18DE
€1.26
VAT included

HIKOKI Spare Parts for Cordless Driver Drill DV18DE

Hitachi-HIKOKI Tanaka Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Cordless Drill Driver DV18DE.
Hitachi HIKOKI Cordless Drill DV18DE Parts
  • Hitachi HIKOKI Cordless Drill DV18DE Parts
  • Hitachi HIKOKI Cordless Drill DV18DE Parts Diagram
HiKOKI Power Tools Italia S.p.a.

HIKOKI Cordless Drill DV18DE Parts

SKU: HIKOKI DV18DE Condition: New
€1.26
VAT included

HIKOKI Spare Parts for Cordless Driver Drill DV18DE

Hitachi-HIKOKI Tanaka Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Cordless Drill Driver DV18DE.
settings 50 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
50 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

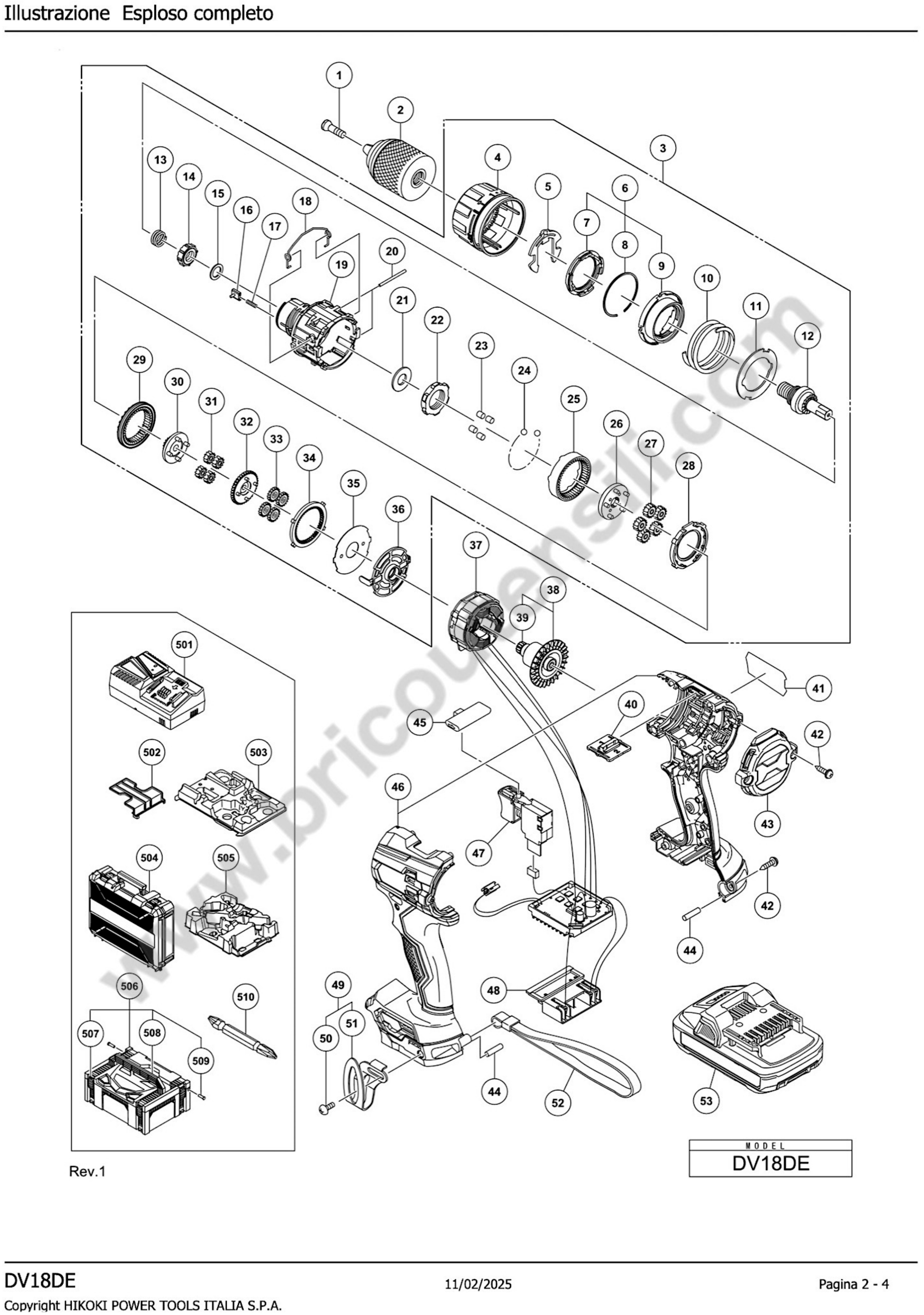

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 Keyless Chuck for Cordless Drill Driver Hitachi DV18DBEL 335961 Keyless Chuck for Cordless Drill Driver Hitachi DV18DBEL €59.36
3
 photo_cameraImage coming soon 379096 GEAR BOX COMPL. INCLUD.4-6.10-36 €53.92
4
 photo_cameraImage coming soon 379102 RING NUT €6.17
5
 photo_cameraImage coming soon 327146 CLICK SPRING €2.70
6
 photo_cameraImage coming soon 379100 NUT COMPLETE INCLUD.7-9 €2.28
7
 photo_cameraImage coming soon 379925 COVER €1.46
8
 photo_cameraImage coming soon 379101 C-RING €1.46
9
 photo_cameraImage coming soon 379114 ADJUSTMENT NUT €1.46
10
 photo_cameraImage coming soon 370607 SPRING €5.03
11
 photo_cameraImage coming soon 370603 SPRING PLATE €3.11
12
 photo_cameraImage coming soon 379099 SHAFT €13.16
13
 photo_cameraImage coming soon 327136 SPRING (C) €2.70
14
 photo_cameraImage coming soon 339772 RATCHET (B) €4.07
15
 photo_cameraImage coming soon 327147 WASHER (A) €2.70
17
 photo_cameraImage coming soon 327133 STOPPER SPRING €2.70
18
 photo_cameraImage coming soon 370608 Shift Arm (NEW) €1.63
19
 photo_cameraImage coming soon 379097 GEAR CASE €4.16
20
 photo_cameraImage coming soon 379268 PIVOT D2.2 €1.46
21
 photo_cameraImage coming soon 328717 WASHER B €2.35
22
 photo_cameraImage coming soon 370609 LOCK RING €7.43
23
 photo_cameraImage coming soon 319744 ROLLER €2.27
24
 photo_cameraImage coming soon 306936 STEEL BALL D5 €1.40
25
 photo_cameraImage coming soon 379116 RING GEAR €1.73
26
 photo_cameraImage coming soon 379115 PLANETARY SUPPORT (C) €2.82
27
 photo_cameraImage coming soon 379267 PLANETARY SET (C) (5 PCS) €1.73
28
 photo_cameraImage coming soon 379117 LOCKING PLATE €5.50
29
 photo_cameraImage coming soon 379119 GEAR SLIDING RING €2.61
30
 photo_cameraImage coming soon 379118 PINION (C) €2.28
31
 photo_cameraImage coming soon 379269 PLANE SET (B) (4PCS) €1.46
32
 photo_cameraImage coming soon 379120 PINION (B) €2.40
33
 photo_cameraImage coming soon 370614 BOLTS €2.70
34
 photo_cameraImage coming soon 370604 First Ring Gear €2.62
35
 photo_cameraImage coming soon 379121 PLATE (B) €1.46
37
 photo_cameraImage coming soon 341137 FIELD INCLUD.47.48 €71.42
38
 photo_cameraImage coming soon 361190 ARMATURE INCLUD.39 €16.41
39
 photo_cameraImage coming soon 379110 PINION ROTOR €1.88
43
 photo_cameraImage coming soon 379108 REAR COVER €1.61
44
 photo_cameraImage coming soon 373041 REAR BUMPER €1.40
45
 photo_cameraImage coming soon 339768 SELECTOR €1.36
46
 photo_cameraImage coming soon 379106 CASE COMPLETE (A+B) €20.30
47
 photo_cameraImage coming soon 379109 SWITCH €12.22
48
 photo_cameraImage coming soon 339769 CONNECTOR €4.22
49
 photo_cameraImage coming soon 379397 HOOK COMPLETE INCLUD.50.51 €2.95
50
 photo_cameraImage coming soon 337357 TRUSS HD. SCREW M4 (BLACK) €1.27
51
 photo_cameraImage coming soon 372229 HOOK €4.06
52
 photo_cameraImage coming soon 306952 STRAP (BLACK) €8.78
502
 photo_cameraImage coming soon 329897 BATTERY PROTECTION €2.20
506
 photo_cameraImage coming soon 336471 CASE ASS'Y (STACKABLE 2) €62.45
508
 photo_cameraImage coming soon 336473 HANDLE FOR EUROPE.RUS €6.68
510
 photo_cameraImage coming soon 983006 + DRIVER BIT NO.2 65L €13.19
Page 2 local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
502
 photo_cameraImage coming soon 329897 BATTERY PROTECTION €2.20
506
 photo_cameraImage coming soon 336471 CASE ASS'Y (STACKABLE 2) €62.45
508
 photo_cameraImage coming soon 336473 HANDLE FOR EUROPE.RUS €6.68
510
 photo_cameraImage coming soon 983006 + DRIVER BIT NO.2 65L €13.19

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

HIKOKI Spare Parts for Cordless Driver Drill DV18DE

Hitachi-HIKOKI Tanaka Authorized Technical Assistance and original spare parts

 Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Cordless Drill Driver DV18DE.

In the following table, look for the model of the Cordless driver drill and theirs spare part.
Hitachi DV18DE

HIKOKI CORDLESS IMPACT DRIVER DRILL DV18DE Parts List
# Part Num. Description
Pag.1
1 379124 SCREW SX M6
2 335961 SPINDLE 13VLRU-N
3 379096 GEAR BOX COMPL. INCLUD.4-6.10-36
4 379102 RING NUT
5 327146 ELASTIC STOP
6 379100 NUT COMPLETE INCLUD.7-9
7 379925 COVER
8 379101 C-RING
9 379114 ADJUSTMENT NUT
10 370607 SPRING
11 370603 SPRING PLATE
12 379099 SHAFT
13 327136 SPRING C
14 339772 TOOTHED RING
15 327147 WASHER A
16 379098 PAWL
17 327133 PAWL SPRING
18 370608 ARM (NEW)
19 379097 GEAR CASE
20 379268 PIVOT D2.2
21 328717 WASHER B
22 370609 STOP RING
23 319744 ROLLER
24 306936 STEEL BALL
25 379116 RING GEAR
26 379115 PLANETARY SUPPORT (C)
27 379267 PLANETARY SET (C) (5 PCS)
28 379117 LOCKING PLATE
29 379119 GEAR SLIDING RING
30 379118 PINION (C)
31 379269 PLANE SET (B) (4PCS)
32 379120 PINION (B)
33 370614 GEAR SET (A)(4PCS.)
34 370604 RING GEAR
35 379121 PLATE (B)
36 379122 SPACER
37 341137 FIELD INCLUD.47.48
38 361190 ARMATURE INCLUD.39
39 379110 PINION ROTOR
40 379104 GEAR SLIDE
42 313687
43 379108 REAR COVER
44 373041 SHOCK ABSORBER
45 339768 SELECTOR
46 379106 CASE COMPLETE (A+B)
47 379109 SWITCH
48 339769 CONNECTOR
49 379397 HOOK COMPLETE INCLUD.50.51
50 337357 M4 SCREW FOR HOOK (BLACK)
51 372229 HOOK
52 306952 GRIP STRAP
Accessories Pag.2
502 329897 BATTERY PROTECTION
503 379126
504 379251
505 379127 INNER HOUSING
506 336471 CASE ASS'Y (STACKABLE 2)
507 336472 CLIP
508 336473 GRIP
509 336474 PIVOT
510 983006 + DRIVER BIT NO.2 65L
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
HIKOKI DV18DE
4 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

HIKOKI DV18DE Parts Diagram

HIKOKI DV18DE Parts Diagram

Download (465.08KB)
