Hikoki DH28PEC Rotary Hammer Parts

Name: Hikoki DH28PEC Rotary Hammer Parts
Brand: HiKOKI Power Tools Italia S.p.a.
SKU: Hitachi DH28PEC
Availability: InStock

SKU: Hitachi DH28PEC

€4.17

VAT included

Hikoki DH28PEC Rotary Hammer Spare Parts

84 spare parts

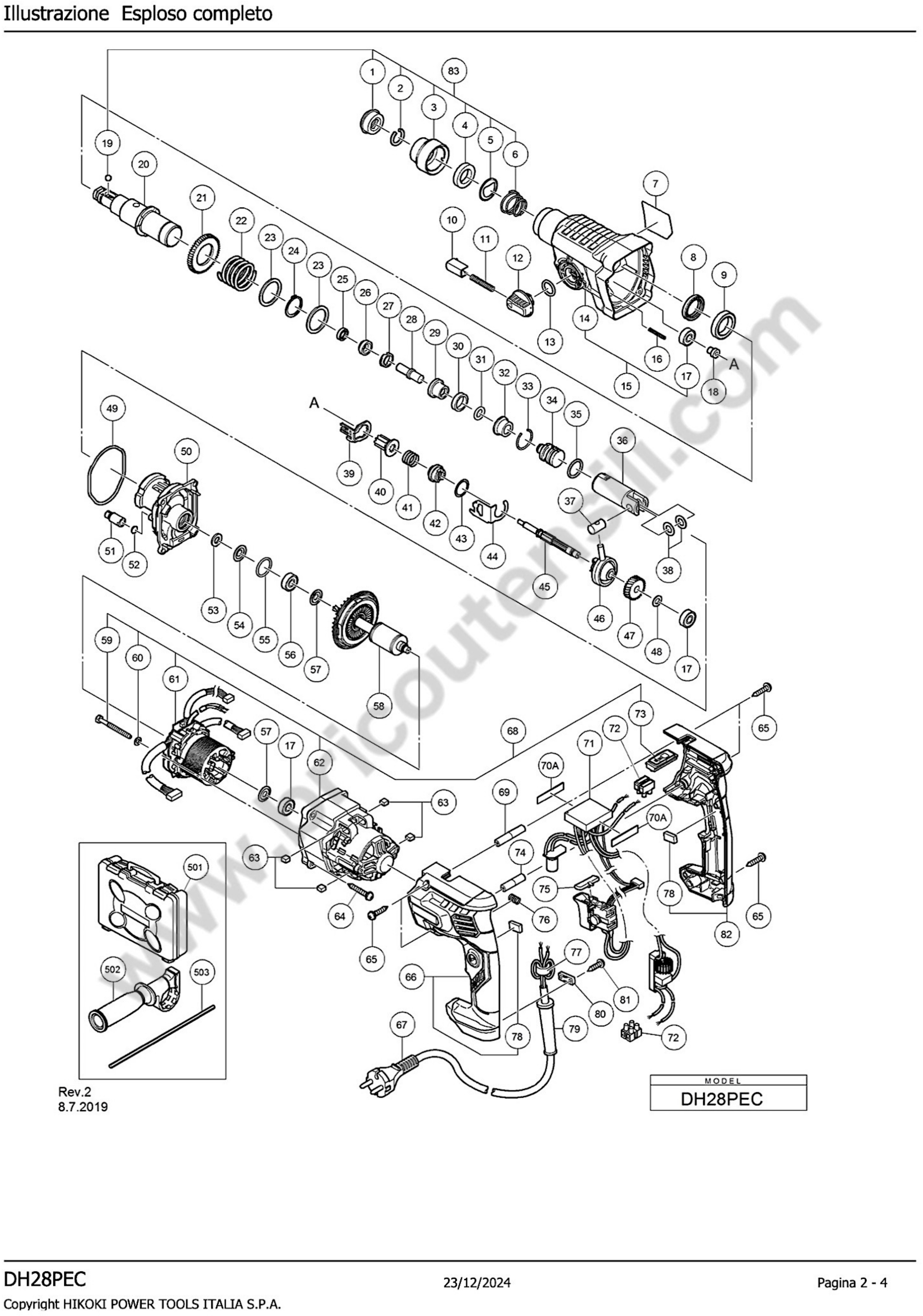

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1		306345 Front Cap for Rotary Hammers Hitachi DH22/28	€4.18
2		306340 Stopper Ring for Hammers Hitachi	€2.08
3	Image coming soon	374436 GRIP	€1.33
4	Image coming soon	374437 BALL HOLDER	€2.01
5	Image coming soon	374435 HOLDER PLATE	€1.33
6	Image coming soon	322812 Spring Gate Punta	€2.05
8	Image coming soon	335259 OIL SEAL	€4.06
9	Image coming soon	6805BB BALL BEARING 6805	€3.32
10	Image coming soon	322789 BACK PANEL	€5.86
11	Image coming soon	317223 PUSHING SPRING	€2.22
12	Image coming soon	334011 CHANGE LEVER	€3.12
13		878885 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3	€1.34
14	Image coming soon	374425 GEAR COVER	€19.56
15	Image coming soon	375021 GEAR COVER ASS'Y INCLUDING 14.17	€20.12
17	Image coming soon	608VVM BALL BEARING 608VVC2PS2L	€7.12
18	Image coming soon	374422 SHAFT HOLDER (B)	€1.33
19		959156 Steel Ball 7 mm for Hammers Hitachi	€3.48
20	Image coming soon	374426 CYLINDER	€25.36
21	Image coming soon	335265 SECOND GEAR	€8.91
22	Image coming soon	374430 SPRING (B)	€1.68
23	Image coming soon	301679 WASHER (A)	€2.18
24	Image coming soon	948310 RETAINING RING FOR D30 SHAFT	€1.71
25		335262 Oil Seal mm 9,5x16x4 for Rotary Hammer Hitachi DH24PG	€2.63
26	Image coming soon	374431 HAMMER HOLDER (B)	€1.68
27	Image coming soon	374427 HOLDER SLEEVE	€3.51
28	Image coming soon	374432 SECOND HAMMER	€3.72
29	Image coming soon	374429 HAMMER HOLDER (A)	€3.16
30	Image coming soon	322805 DAMPER (A)	€2.05
31	Image coming soon	322808 O-RING (C)	€2.02
32	Image coming soon	324524 DAMPER HOLDER	€7.80
33	Image coming soon	322807 STOPPER RING	€2.05
34	Image coming soon	374443 STRIKER	€5.38
35	Image coming soon	372816 0-RING	€4.10
36	Image coming soon	372817 PISTON	€13.51
37	Image coming soon	335793 PISTON PIN	€4.62
38	Image coming soon	335794 PISTON WASHER	€1.66
39	Image coming soon	374434 LOCK PLATE	€1.33
40	Image coming soon	374440 SECOND PINION	€8.61
41	Image coming soon	323182 CLUTCH SPRING	€2.05
42	Image coming soon	375022 CLUTCH	€5.44
43	Image coming soon	331315 WASHER	€1.62
44	Image coming soon	374439 CHANGE PLATE©	€1.33
45	Image coming soon	374438 SECOND SHAFT	€6.86
46	Image coming soon	335249 RECIPROCATING BEARING	€19.44
47	Image coming soon	374441 FIRST GEAR	€5.22
48	Image coming soon	374442 BEARING WASHER	€1.33
49		335245 O-Ring D 72.2 for Rotary Hammers Hitachi DH26PB	€2.78
50	Image coming soon	375369 INNER COVER	€9.37
51	Image coming soon	334008 AIR CAP	€1.60
52	Image coming soon	324543 In Dh24pb3 Felt Gasket-Pc3	€2.05
53	Image coming soon	322816 FELT PACKING	€2.05
54		322818 Packing Washer for Rotary Hammer Hitachi DH24PB3	€4.09
55	Image coming soon	876796 O-RING (P-22)	€1.33
56	Image coming soon	608DDM BALL BEARING 608DDC2PS2L	€7.07
57		982631 Dust Washer for Demolition Hammer Hitachi H45MRY	€1.34
58	Image coming soon	361104 ROTOR	€122.59
61	Image coming soon	341027 STATOR	€152.05
62	Image coming soon	375585 HOUSING	€10.16
63	Image coming soon	374448 HANDLE DAMPER	€1.33
66	Image coming soon	375579 LEFT HANDLE COMPLETE INCLUDED.78	€6.58
67	Image coming soon	714520 POWER CORD 5M 2X1.5	€15.00
68	Image coming soon	375583 MOTOR ASS'Y INCLUDED.59-62.73	€209.46
69	Image coming soon	374445 HANDLE SHAFT (A)	€1.33
70A	Image coming soon	373635 RUBBER SHEET	€1.33
71	Image coming soon	374452 Dc Filter Sw Pcb Ass'Y + SWITCH	€70.44
73	Image coming soon	375368 PANEL	€13.63
74	Image coming soon	374446 HANDLE SHAFT (B)	€1.33
75		322853 Pusching Button for Drills Hitachi DV16-18V-DV20VB2	€2.78
76	Image coming soon	374421 HANDLE SPRING	€1.33
78	Image coming soon	375581 SUPPORT	€1.33
79		953327 Cord Armor D.8.8 for Hitachi Power Tools	€1.37
82	Image coming soon	375580 RIGHT HANDLE COMPLETE INCLUDED.78	€6.58
83	Image coming soon	375363 GRIP SET	€3.87
501	Image coming soon	374320 CASE	€33.12
502	Image coming soon	374447 SIDE HANDLE	€12.18
503	Image coming soon	303709 delimiter Depth	€1.75
601	Image coming soon	306885 DUST COLLECTOR (B) ASS'Y	€39.43
602	Image coming soon	948310 RETAINING RING FOR D30 SHAFT	€1.71
603		959150 Steel Ball 6,35 mm for Hammers Hitachi	€3.48
604	Image coming soon	971787 DUST CUP	€6.85
605	Image coming soon	321814 DRILL CHUCK 13VLRB-D	€31.72
606	Image coming soon	321813 DRILL CHUCK 13VLD-D	€31.72
607	Image coming soon	980927 GREASE 500 GR	€84.44
608	Image coming soon	981840 GREASE 30 GR	€10.98
609	Image coming soon	308471 GREASE 70 GR	€19.79

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hikoki DH28PEC Rotary Hammer Spare Parts

Hitachi-HIKOKI Original spare parts sourced directly from the manufacturer, with after-sales service at the lowest price on the web for to make maintenance or repair damaged parts for DH28PEC Rotary Hammer.

In the following table, look for the model of the Rotary Hammer and the respective parts of the code.

Hikoki DH28PEC Rotary Hammer Spare Parts
#	Part Num.	Description
1	306345	FRONT CAP
2	306340	STOPPER RING
3	374436	GRIP
4	374437	BALL HOLDER
5	374435	HOLDER PLATE
6	322812	HOLDER SPRING
8	335259	OIL SEAL
9	6805BB	BALL BEARING 6805
10	322789	PUSHING BUTTON
11	317223	PUSHING SPRING
12	334011	CHANGE LEVER
13	878885	O-RING
14	374425	GEAR COVER
15	375021	GEAR COVER ASS'Y INCLUDING 14.17
16	335800	SPRING (E)
17	608VVM	BALL BEARING 608VVM
18	374422	SHAFT HOLDER (B)
19	959156	STEEL BALL D7.0
20	374426	CYLINDER
21	335265	SECOND GEAR
22	374430	SPRING (B)
23	301679	WASHER
24	948310	RING TYPE C FOR SHAFTS D.30
25	335262	OIL SEAL (A)
26	374431	HAMMEER HOLDER (B)
27	374427	WASHER
28	374432	SECOND HAMMER
29	374429	HAMMER HOLDER
30	322805	DAMPER (A)
31	322808	O-RING (C)
32	324524	DAMPER HOLDER DH24PB3-PC3
33	322807	STOPPER RING
34	374443	STRIKER
35	372816	O-RING
36	372817	PISTON
37	335793	PISTON PIN
38	335794	PISTON WASHER
39	374434	LOCK PLATE
40	374440	SECOND PINION
41	323182	CLUTCH SPRING
42	375022	CLUTCH
43	331315	WASHER DH22PH
44	374439	CHANGE PLATE
45	374438	SECOND SHAFT
46	335249	ARTICULATED BEARING
47	374441	FIRST GEAR
48	374442	BEARING WASHER
49	335245	O-RING D72.2
50	375369	INNER COVER
51	334008	AIR CAP
52	324543	FELT PACKING (A)
53	322816	FELT PACKING (A)
54	322818	PACKING WASHER DH24PM
55	876796	O-RING P.22
56	608DDM	BALL BEARING 608DDM
57	982631	WASHER
58	361104	ROTOR
61	341027	STATOR
62	375585	HOUSING
63	374448	HANDLE DAMPER
66	375579	LEFT HANDLE COMPLETE INCLUDED.78
67	714520	CORD 5M 2X1.5 WITH PLUG (CORD ARMOR D8.8)
68	375583	MOTOR ASS'Y INCLUDED.59-62.73
69	374445	HANDLE SHAFT (A)
70A	373635	RUBBER SHEET
71	374452	Dc Filter Sw Pcb Ass'Y + SWITCH
73	375368	PANEL
74	374446	HANDLE SHAFT (B)
75	322853	PUSHING BUTTON
76	374421	HANDLE SPRING
78	375581	SUPPORT
79	953327	CORD ARMOR D8.8
82	375580	RIGHT HANDLE COMPLETE INCLUDED.78
83	375363	GRIP SET INCLUDED.1-6.19
501	374320	CASE
502	374447	SIDE HANDLE ASS'Y
503	303709	DEPTH GAUGE
601	306885	Dust Collector (B) Ass'Y
602	948310	Retaining Ring For D30 Shaft
603	959150	Steel Ball D6.35 (10 Pcs.)
604	971787	Dust Cup
605	321814	Drill Chuck 13Vlrb-D
606	321813	Drill Chuck 13Vld-D
607	980927	GREASE FOR HAMMER DRILL (500G)
608	981840	GREASE (A) FOR HAMMER DRILL (30G)
609	308471	GREASE FOR HAMMER DRILL (70G)

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Hitachi DH28PEC

Available 6 Items

Data sheet

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]

Specific References

Condition New

Download

HIKOKI DH28PEC Parts Diagram

Download (441.61KB)

HiKOKI Power Tools Italia S.p.a. SKU: 959156

Steel Ball 7 mm for Hammers Hitachi

Steel Ball 7 mm for Hammers Hitachi Hitachi genuine parts, steel ball diameter MM 7, Box 10 Pcs for Demolition hammers and Drills Hammers, DH14DSL - DH18PB - DH18DSL - DH25DL - DH25DAL - DH36DL - DH36DAL - H25PV - DH28PD - DH30PC2....
