HiKOKI Power Tools Italia S.p.a.

Hikoki CM5MA Wall Chaser Parts

SKU: Hitachi CM5MA
€46.18
VAT included

Hikoki CM5MA Wall Chaser Parts

We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Wall Chaser CM5MA.
Hikoki CM5MA Wall Chaser Parts
  • Hikoki CM5MA Wall Chaser Parts
  • Hikoki CM5MA Wall Chaser Parts Diagram
HiKOKI Power Tools Italia S.p.a.

Hikoki CM5MA Wall Chaser Parts

SKU: Hitachi CM5MA Condition: New
€46.18
VAT included

Hikoki CM5MA Wall Chaser Parts

We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Wall Chaser CM5MA.
settings 33 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
33 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

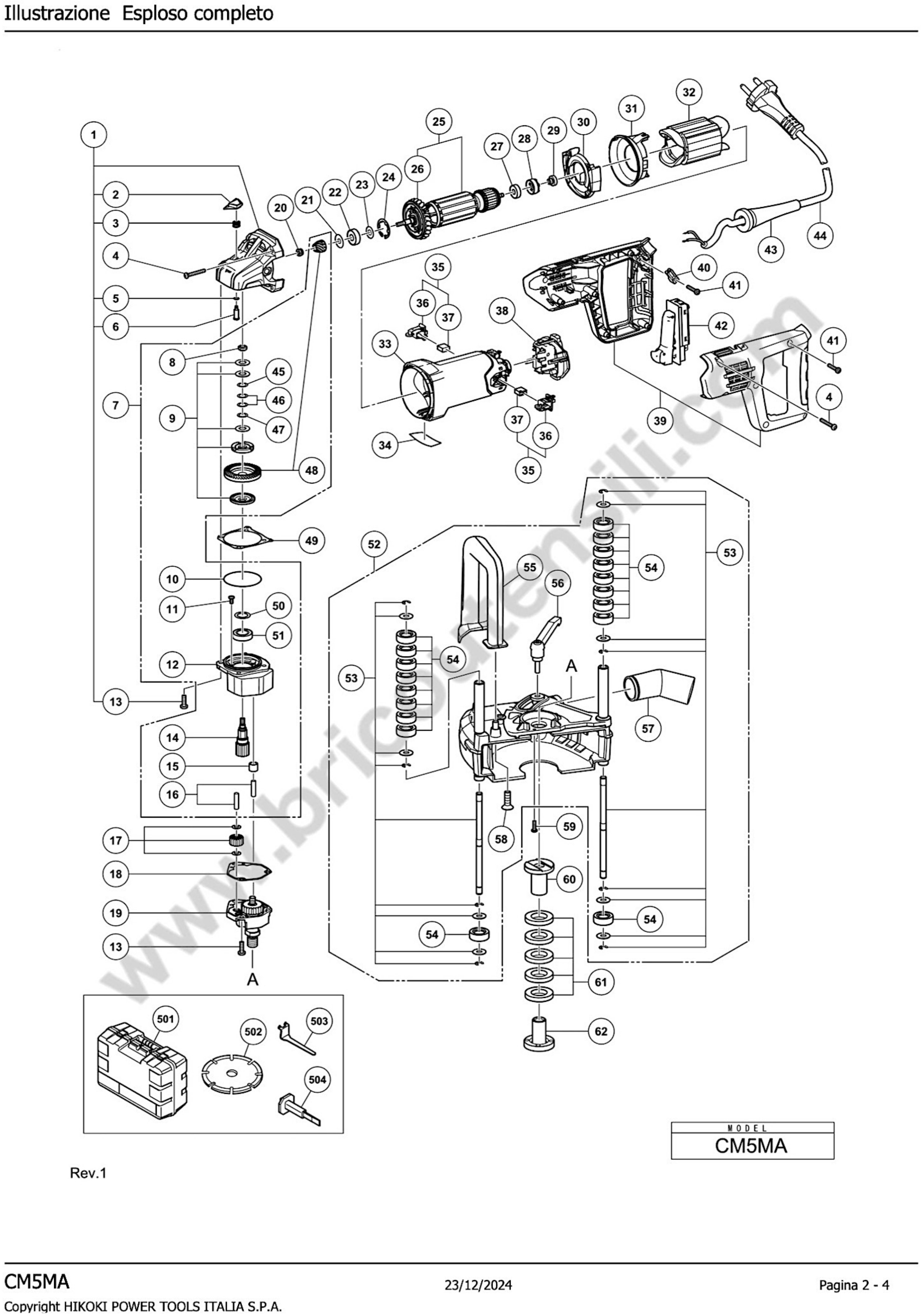

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 377411 PUSHING BUTTON €1.32
3
 photo_cameraImage coming soon 372944 SPRING (A) €1.33
5
 photo_cameraImage coming soon 377410 0-RING €1.32
6
 photo_cameraImage coming soon 372946 ROLLER €6.98
9
 photo_cameraImage coming soon 372931 GEAR SET INCLUDE.9-11 €10.76
21
 photo_cameraImage coming soon 372908 WASHER 7.05X19.5X0.2 €1.33
22
 photo_cameraImage coming soon 372907 BEARING 8X22X7 €2.22
23
 photo_cameraImage coming soon 372906 WASHER 8.05X17X0.4 €1.32
24
 photo_cameraImage coming soon 372942 RETAINING RING €1.33
25
 photo_cameraImage coming soon 377328 ARMATURE ASSY 230-240V INCLUDING 24 €59.68
26
 photo_cameraImage coming soon 372938 FAN €2.94
27
 photo_cameraImage coming soon 372904 BEARING 6X19X6 €2.33
28
 photo_cameraImage coming soon 372905 BEARING SEAT €1.33
29
 photo_cameraImage coming soon 372947 MAGNET €2.05
30
 photo_cameraImage coming soon 372901 INTERNAL CARTER €1.33
31
 photo_cameraImage coming soon 372900 FAN GUIDE €1.33
32
 photo_cameraImage coming soon 377329 STATOR 230-240V €34.50
33
 photo_cameraImage coming soon 377015 CARTER DX + SX + SCREWS WSE500 €14.43
35
 photo_cameraImage coming soon 377363 BRUSH HOLDER SET (2PCS) + BRUSHES INCLUDED 32.33 €29.89
36
 photo_cameraImage coming soon 377404 BRUSH HOLDER SET €12.57
37
 photo_cameraImage coming soon 372939 CARBON BRUSHE (1 PAIR) €9.44
40
 photo_cameraImage coming soon 371271 CABLE CLAMP €1.37
43
 photo_cameraImage coming soon 372894 CABLE SLEEVE €1.33
44
 photo_cameraImage coming soon 714500 POWER CABLE €15.65
45
 photo_cameraImage coming soon 372925 WASHER 10.2X14.8X0.1 €1.33
47
 photo_cameraImage coming soon 372926 WASHER 10.2X14.8X0.5 €1.33
48
 photo_cameraImage coming soon 372929 GEAR ASSY €13.42
49
 photo_cameraImage coming soon 372918 SEAL €1.33
503
 photo_cameraImage coming soon 377098 SPANNER €9.00
603
 photo_cameraImage coming soon 981840 GREASE 30 GR €10.98
604
 photo_cameraImage coming soon 335782 GREASE FOR ROTARY HAMMER (60G) €18.17
605
 photo_cameraImage coming soon 308471 GREASE 70 GR €19.79
606
 photo_cameraImage coming soon 980927 GREASE 500 GR €84.44

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hikoki CM5MA Wall Chaser Parts

We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Wall Chaser CM5MA.

In the following table, look for the model of the Miter Saw and theirs spare part.
Hitachi CM5MA
Hikoki CM5MA Wall Chaser Parts
# Part Num. Description
1 377403 Gear Cover Ass'Y 2.3.5.6.13
2 377411 Pushing Button
3 372944 SPRING (A)
5 377410 O-RING
6 372946 Lock Pin
7 377409 Gear Flange Ass'Y INCLUDING 8-12.14-16.45-48.50.51
9 372931 Friction Washer Ass'Y
10 377413 O-RING
11 377357 TORX SCREW
12 377412 GEAR FLANGE
14 377358 SECOND SHAFT
15 377355 NEEDLE SLEEVE
16 377354 NEEDLE ROLLER
17 377405 GEAR SET
18 377336 GASKET
19 377337 Flange and Spindle
21 372908 WASHER 7.05X19.5X0.2
22 372907 BALL BEARING 8X22X7
23 372906 WASHER 8.05X17X0.4
24 372942 RETAINING RING
25 377328 ARMATURE ASS'Y INCLUDING 26
26 372938 FAN
27 372904 BALL BEARING 6X19X6
28 372905 Rubber Bushing
29 372947 MAGNET
30 372901 BAFFLE
31 372900 FAN GUIDE
32 377329 STATOR 230V - 240V
33 377015 HOUSING
35 377363 BRUSH HOLDER SET (2PCS) + BRUSHES INCLUDED 36.37
36 377404 BRUSH HOLDER SET
37 372939 CARBON BRUSHE SET (1 PAIR)
38 377333 CONTROLLER
39 377335 D-Handle Set
40 371271 CORD CLIP
42 377330 SWITCH
43 372894 CORD ARMOR
44 714500 CORD 5M 2 X 1.0 WITH PLUG
45 372925 WASHER 10.2X14.8X0.1
46 372924 WASHER 10.2X14.8X0.2
47 372926 WASHER 10.2X14.8X0.5
48 372929 Bevel Gear. Pinion Set
49 372918 GASKET
50 377356 WASHER
51 377359 BALL BEARING
52 377338 Saw Cover Ass'Y INCLUDED 53-57
53 377406 Shaft Washer Set
54 377362 ROLLER
55 377407 MAIN HANDLE
56 377361 CLAMP LEVER M6X20
57 377360 SUCTION NOZZLE
58 377408 Flat Hd. Screw
60 377339 CLAMP FLANGE
61 377400 SPACE WASHER
62 377401 CLAMP NUT
501 377016 BLOW CASE
503 377098 SPANNER
504 377099 CHISEL
603 981840 Grease (B) 30GR
604 335782 Grease (60 GR)
605 308471 Grease 70 GR
606 980927 Grease 500GR
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CM5MA
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

HIKOKI CM5MA Parts Diagram

HIKOKI CM5MA Parts Diagram

Download (796.15KB)
