HIKOKI H70SA Demolition Hammer Parts

SKU: HIKOKI H70SA
€83.26
VAT included

HIKOKI H70SA Demolition Hammer Spare Parts

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Demolition Hammer H70SA.
HIKOKI H70SA Demolition Hammer Parts
  • HIKOKI H70SA Demolition Hammer Parts
  • HIKOKI H70SA Demolition Hammer Parts Diagram
HiKOKI Power Tools Italia S.p.a.

HIKOKI H70SA Demolition Hammer Parts

SKU: HIKOKI H70SA Condition: New
€83.26
VAT included

HIKOKI H70SA Demolition Hammer Spare Parts

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Demolition Hammer H70SA.
settings 92 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
92 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

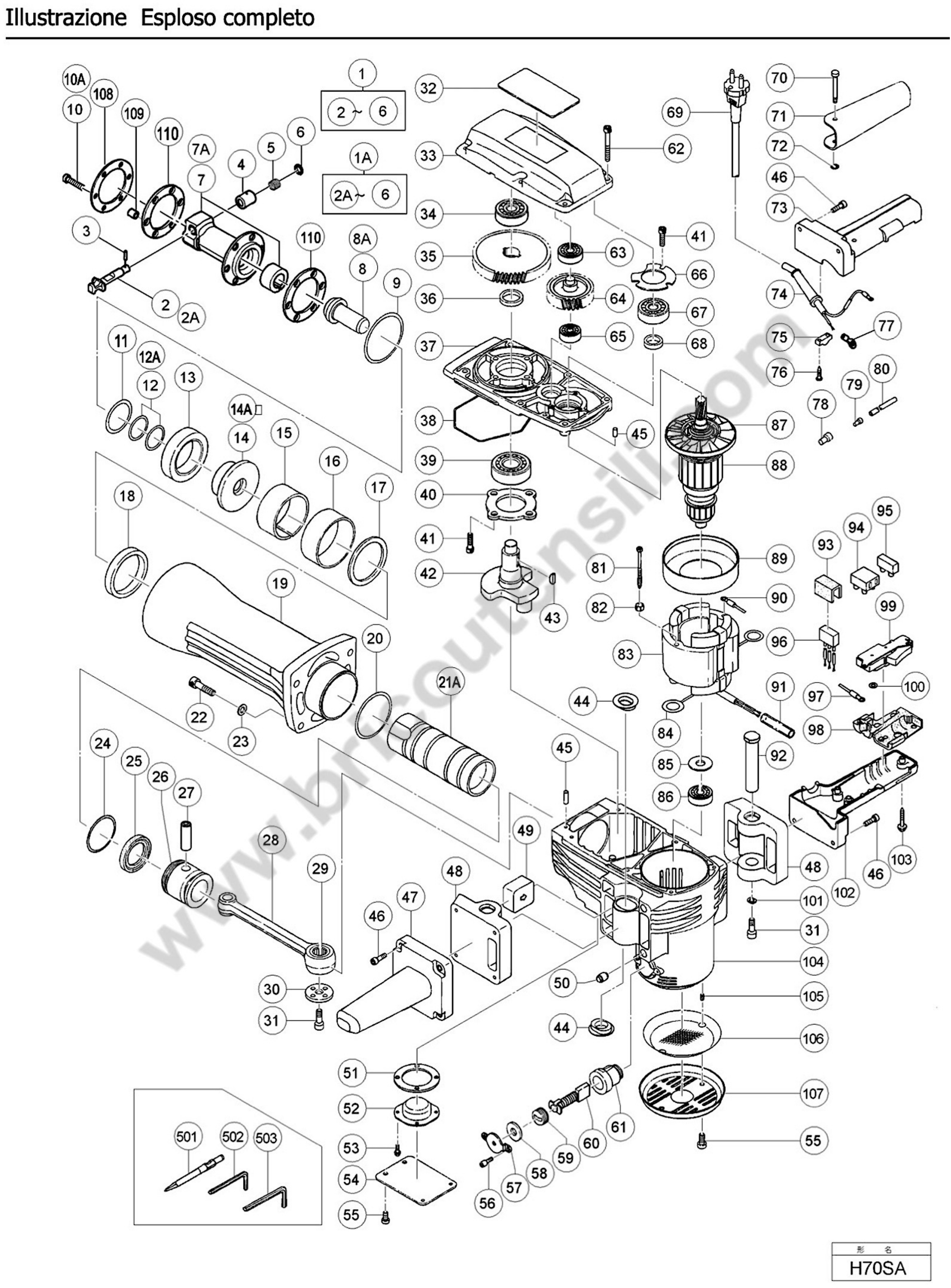

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 318656 Stop Lever Ass'y H65SB-H70SA €78.49
1A
 photo_cameraImage coming soon 323747 Stop Lever Ass'y INCLUD.2A-6 SINCE 7.2005 €76.21
2A
 photo_cameraImage coming soon 323748 STOP LEVER €48.52
2
 photo_cameraImage coming soon 998423 Stop Lever €49.95
3
 photo_cameraImage coming soon 998426 NEEDLE ROLLER €1.28
4
 photo_cameraImage coming soon 998424 SPRING CASE €15.91
5
 photo_cameraImage coming soon 956975 LEVER SPRING €2.07
6
 photo_cameraImage coming soon 998425 DAMPER (B) €5.51
7A
 photo_cameraImage coming soon 323733 FRONT COVER €323.28
7
 photo_cameraImage coming soon 998435 FRONT COVER €305.38
8A
 Hitachi Demolition Hammer H65SB2 Second Hammer 323732 Hitachi Demolition Hammer H65SB2 Second Hammer €64.01
8
 photo_cameraImage coming soon 998420 Second Hammer €42.85
9
 photo_cameraImage coming soon 998428 O-RING (C) €2.88
10
 photo_cameraImage coming soon 306437 NYLOCK HEX. SOCKET HD. BOLT M8X30 €1.83
11
 photo_cameraImage coming soon 998427 O-RING (B) €2.12
12A
 photo_cameraImage coming soon 323731 O-ring (i.d 26.5) SINCE 7.2005 €1.87
12
 photo_cameraImage coming soon 998419 O-ring (e) €1.28
13
 photo_cameraImage coming soon 998433 DAMPER (A) €18.24
14A
 photo_cameraImage coming soon 323730 SHANK SLEEVE €39.63
14
 photo_cameraImage coming soon 998418 Shank Sleeve €35.75
15
 photo_cameraImage coming soon 956963 MOUTH €40.04
16
 photo_cameraImage coming soon 956962 MOUTH COVER €2.88
17
 photo_cameraImage coming soon 956961 Mouth Washer €2.83
18
 photo_cameraImage coming soon 956960 URETHANE RING €11.54
19
 photo_cameraImage coming soon 376180 *Cylinder Case SEE HTR376180 * €194.91
20
 O-RING 1AS.60 for Hammer DH40MRY-DH45MR 956996 O-RING 1AS.60 for Hammer DH40MRY-DH45MR €3.83
21A
 Striker for Demolition Hammer Hitachi H65SB2 323724 Striker for Demolition Hammer Hitachi H65SB2 €102.01
24
 photo_cameraImage coming soon 998414 O-RING (A) €14.70
25
 photo_cameraImage coming soon 998415 OIL SEAL (A) €9.15
26
 photo_cameraImage coming soon 998413 PISTON €73.22
27
 photo_cameraImage coming soon 944928 PISTON PIN €17.01
28
 photo_cameraImage coming soon 998434 CONNECTING ROD ASS'Y €58.21
29
 photo_cameraImage coming soon 944921 NEEDLE BEARING (NTN 8E-NK 18/20 RDO) €24.09
30
 photo_cameraImage coming soon 956955 CRANK WASHER €4.14
33
 photo_cameraImage coming soon 319360 GEAR COVER H70SA €47.05
34
 Ball Bearing Hitachi 6302VV 6302VV Ball Bearing Hitachi 6302VV €9.62
35
 photo_cameraImage coming soon 944916 FINAL GEAR €61.88
36
 photo_cameraImage coming soon 944915 DISTANCE RING (B) €4.46
37
 photo_cameraImage coming soon 332181 INNER COVER €43.90
38
 photo_cameraImage coming soon 957143 Seal Ring (a) €4.07
39
 photo_cameraImage coming soon 6205DD BALL BEARING 6205DDCMPS2L €11.80
40
 photo_cameraImage coming soon 956949 BEARING COVER €2.12
42
 photo_cameraImage coming soon 998430 CRANK SHAFT €79.60
43
 photo_cameraImage coming soon 956850 WOODRUFF KEY 4X16 €1.30
44
 photo_cameraImage coming soon 318655 Damper (b) €7.53
45
 photo_cameraImage coming soon 944918 PIN D5X15.8 €1.30
49
 photo_cameraImage coming soon 319364 Handle Damper (b) H70SA €9.78
50
 Damper for Demolition Hammers H60MRV-H45MR-H45MRY 310124 Damper for Demolition Hammers H60MRV-H45MR-H45MRY €5.77
51
 photo_cameraImage coming soon 956969 Holder Seal €1.28
52
 photo_cameraImage coming soon 998416 Holder H70SA €3.46
57
 photo_cameraImage coming soon 956972 Cap Cover €1.28
58
 photo_cameraImage coming soon 944960 CAP RUBBER €1.30
59
 Brushe Cap for Routers Hitachi M12SA-M12V G 940540 Brushe Cap for Routers Hitachi M12SA-M12V G €1.78
60
 Carbon Brushes for Angle Grinder Hitachi G23SF - G23SR 999074 Carbon Brushes for Angle Grinder Hitachi G23SF - G23SR €15.05
61
 photo_cameraImage coming soon 956984 BRUSH HOLDER €11.95
63
 photo_cameraImage coming soon 6201VV BALL BEARING 6201VVCMPS2L €6.76
64
 photo_cameraImage coming soon 956948 COUNTER GEAR €36.05
65
 photo_cameraImage coming soon 6001VV BALL BEARING 6001VVCMPS2L €8.22
66
 photo_cameraImage coming soon 944911 BEARING COVER (A) €1.30
67
 photo_cameraImage coming soon 6203DD BALL BEARING 6203DDCMPS2L €8.89
68
 photo_cameraImage coming soon 944907 DISTANCE RING (A) €2.88
69
 photo_cameraImage coming soon 714520 POWER CORD 5M 2X1.5 €15.00
70
 photo_cameraImage coming soon 992870 PIN €6.33
71
 photo_cameraImage coming soon 992869 SWITCH LEVER €10.52
72
 photo_cameraImage coming soon 968643 RETAINING RING (E-TYPE) FOR D4 SHAFT €2.40
73
 photo_cameraImage coming soon 305636 HANDLE (A) €23.61
74
 photo_cameraImage coming soon 940778 CORD ARMOR D10.7 €3.43
75
 photo_cameraImage coming soon 960266 CORD CLIP €1.37
83
 photo_cameraImage coming soon 340488E STATOR ASSY H70SA 230V €86.51
84
 Brush Terminal for Demolition Hammer H60MRV 945932 Brush Terminal for Demolition Hammer H60MRV €1.36
85
 photo_cameraImage coming soon 944954 BEARING WASHER €1.30
86
 photo_cameraImage coming soon 6201DD BALL BEARING 6201DDCMPS2L €7.04
87
 photo_cameraImage coming soon 996370 FAN €19.03
88
 Armature 220-230V for Demolition Hammer Hikoki - Hitachi H65SB2 360286E Armature 220-230V for Demolition Hammer Hikoki - Hitachi H65SB2 €150.00
89
 photo_cameraImage coming soon 306098 FAN GUIDE €7.20
90
 photo_cameraImage coming soon 986277 INTERNAL CABLE €1.30
92
 photo_cameraImage coming soon 371932 Handle PIN €17.34
95
 photo_cameraImage coming soon 938307 PILLAR TERMINAL (OLD 938307Z / 512-31) €2.60
96
 Noise Suppressor for Angle Grinder Hitachi G12SA2 994273 Noise Suppressor for Angle Grinder Hitachi G12SA2 €9.62
98
 photo_cameraImage coming soon 312408 HANDLE €19.36
99
 Switch (A) 1 P Screw type) w/o Lock for Hammer DH50SB 992891 Switch (A) 1 P Screw type) w/o Lock for Hammer DH50SB €29.60
102
 photo_cameraImage coming soon 305631 HANDLE (B) €22.19
104
 photo_cameraImage coming soon 336268 HOUSING ASS'Y H70SA *(METALLIC SILVER GREEN) €264.70
106
 photo_cameraImage coming soon 319362 Mesh €7.43
107
 photo_cameraImage coming soon 306099 Tail Cover €14.07
108
 photo_cameraImage coming soon 323736 DAMPER PLATE €19.80
109
 Collar for Demolition Hammer Hitachi H65SB2 323737 Collar for Demolition Hammer Hitachi H65SB2 €5.83
110
 photo_cameraImage coming soon 323735 FRONT DAMPER €11.03
Page 2 local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
603
 photo_cameraImage coming soon 324728 PROTECTION X LRP 1503 VRA €128.82
604
 photo_cameraImage coming soon 981840 GREASE 30 GR €10.98
605
 photo_cameraImage coming soon 308471 GREASE 70 GR €19.79
607
 photo_cameraImage coming soon 980927 GREASE 500 GR €84.44

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

HIKOKI H70SA Demolition Hammer Spare Parts

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Demolition Hammer H70SA.

In the following table, look for the model of the Demolition Hammer and the respective parts of the code.
HIKOKI Demolition Hammer H70SA
HIKOKI Demolition Hammer H70SA Spare Parts Pag.1
# Part Num. Description
1 318656 Stop Lever Ass'y H65SB-H70SA
1A 323747 Stop Lever Ass'y INCLUD.2A-6 SINCE 7.2005
2 998423 Stop Lever
2A 323748 Stop Lever SINCE 7.2005 H65SB2
3 998426 Needle Roller
4 998424 Spring Case
5 956975 Lever Spring
6 998425 Damper (b)
7 998435 FRONT COVER
7A 323733 Front Cover SINCE 7.2005 H65SB2
8 998420 Second Hammer
8A 323732 Second Hammer SINCE 7.2005 H65SB2
9 998428 O-RING (C)
10 306437 Nylock Hex. Socket Hd. Bolt M8x30
11 998427 O-RING (B)
12 998419 O-ring (e)
12A 323731 O-ring (i.d 26.5) SINCE 7.2005
13 998433 Damper (a)
14 998418 Shank Sleeve
14A 323730 Shank Sleeve SINCE 7.2005 H65SB2
15 956963 Mouth
16 956962 Mouth Cover
17 956961 Mouth Washer
18 956960 Urethane Ring
19 376180 *Cylinder Case SEE HTR376180 *
20 956996 O-RING 1AS.60
21A 323724 Striker H65SB2 *378614
24 998414 O-ring (a)
25 998415 Oil Seal (a)
26 998413 PISTON H65SB-H70SA
27 944928 Piston PIN
28 998434 Connecting Rod Ass'y
29 944921 Needle Bearing (ntn 8e-nk 18/20 Rdo)
30 956955 Crank Washer
33 319360 GEAR COVER H70SA
34 6302VV BALL BEARING 6302VV
35 944916 FINAL GEAR
36 944915 Distance Ring (b)
37 332181 INNER COVER
38 957143 Seal Ring (a)
39 6205DD BALL BEARING 6205DD
40 956949 BEARING COVER
42 998430 Crank Shaft
43 956850 Woodruff Key 4x16
44 318655 Damper (b)
45 944918 PIN D5X15.8
47 305633 Side Handle
48 319365 HANDLE HOLDER
49 319364 Handle Damper (b) H70SA
50 310124 Handle Damper
51 956969 Holder Seal
52 998416 Holder H70SA
54 998417 COVER PLATE
57 956972 Cap Cover
58 944960 Cap Rubber
59 940540 Brush Cap
60 999074 SELF-LOCKING CARBON BRUSHE (1 PAIR)
61 956984 BRUSH HOLDER
63 6201VV BALL BEARING 6201VV
64 956948 Counter Gear
65 6001VV BALL BEARING 6001VV
66 944911 Bearing Cover (a)
67 6203DD BALL BEARING 6203DD
68 944907 Distance Ring (a)
69 714520 Cord 5M 2X1.5 WITH PLUG
70 992870 PIN
71 992869 SWITCH LEVER
72 968643 Retaining Ring (e-type) For D4 Shaft
73 305636 HANDLE (A)
74 940778 Cord Armor 10.7
75 960266 Cord Clip
76 982095 Tapping Screw (w/washer) D4x20
77 980063 Terminal M4.0
78 959141 Connector 50092 (10 Pcs.)
79 959140 Connector 50091 (10 Pcs.)
82 956764 SPECIAL WASHER
83 340488E STATOR ASSY H70SA 230V
84 945932 BRUSH TERMINAL
85 944954 BEARING WASHER
86 6201DD Ball Bearing 6201ddcmps2l
87 996370 FAN
88 360286E Armature Ass'y 220v-230v H65SB-SB2
89 306098 Fan Guide
90 986277 INTERNAL WIRE
91 319363 VINYL TUBE
92 371932 Handle PIN
93 930153 Support (b)
94 958308Z Pillar Terminal (a)
95 938307 PILLAR TERMINAL (OLD 938307Z/512-31
96 994273 Noise Suppressor
97 981974 INTERNAL WIRE
98 312408 Support (e)
99 992891 Switch (a) (1p Screw Type) W/o Lock
100 949423 FLAT WASHER M4
101 319367 WASHER
102 305631 HANDLE (B)
104 336268 HOUSING ASS'Y H70SA *(METALLIC SILVER GREEN)
106 319362 Mesh
107 306099 Tail Cover
108 323736 Damper Plate SINCE 7.200 H65SB2
109 323737 Collar SINCE 7.20055
110 323735 Front Damper SINCE 7.2005 H65SB2
STANDARD ACCESSORIES Pag.2
501 944961 BULL POINT 410MM
502 943277 KEY
503 872422 ALLEN KEY
603 324728 Service Kit (h 70sa) INCLUD.9.10A.11.12A.18.20.24.25.38.60.
604 981840 Grease (a) For Hammer.hammer Drill (30g
605 308471 Grease For Hammer.hammer Drill (70g)
606 930035 Grease (sep-3a) (100g)
607 980927 Grease For Hammer.hammer Drill (500g)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
HIKOKI H70SA
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

HIKOKI H70SA Parts Diagram

HIKOKI H70SA Parts Diagram

Download (629.6KB)

You might also like

O-RING (A) mm 76x2,3 for Rotary Hammer Hitachi DH52MEY
HiKOKI Power Tools Italia S.p.a. SKU: 338160
O-RING (A) mm 76x2,3 for Rotary Hammer Hitachi DH52MEY
O-RING (A) mm 76x2,3 for Demolition Hammer Hitachi DH52MEY Original spare part Hitachi - HIKOKI, O-RING (A) mm 76x2,3 for Demolition Hammer SDS MAX DH52MEY Equipped with Brushless Motor. Part for the follows items: - Rotary Hammer...
AVAILABLE €1.23
Details
Filter PCB Ass'y for Rotary Hammer DH45ME
HiKOKI Power Tools Italia S.p.a. SKU: 338181
Filter PCB Ass'y for Rotary Hammer DH45ME
Filter PCB Ass'y for Rotary Hammer DH45ME Original spare parts HITACHI, Filter PCB Ass'y 220V-240V for Rotary Hammer DH45ME - Demolition Hammers DH52MEY - H60MEY Parts for the following products: -  Rotary Hammer DH45ME Y -...
on 7/10 Business Days Approx. €25.00
Details
Comments (0)
