Hitachi Rotary Hammer DH28PMY2 Parts

SKU: Hitachi DH28PMY2
€70.43
VAT included

Hitachi Rotary Hammer Drill DH28PMY2 Spare Parts

Hitachi-HIKOKI Tanaka Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer Drill DH28PMY2.
Hitachi Spare Parts for Rotary Hammer Drill DH28PMY2
  • Hitachi Spare Parts for Rotary Hammer Drill DH28PMY2
  • Hitachi Spare Parts Diagram for Rotary Hammer Drill DH28PMY2
HiKOKI Power Tools Italia S.p.a.

Hitachi Rotary Hammer DH28PMY2 Parts

SKU: Hitachi DH28PMY2 Condition: New
€70.43
VAT included

Hitachi Rotary Hammer Drill DH28PMY2 Spare Parts

Hitachi-HIKOKI Tanaka Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer Drill DH28PMY2.
settings 118 Spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN: Usually Ships in 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
Machine Type: Rotary Hammer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
118 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 7/10 BUSINESS DAYS

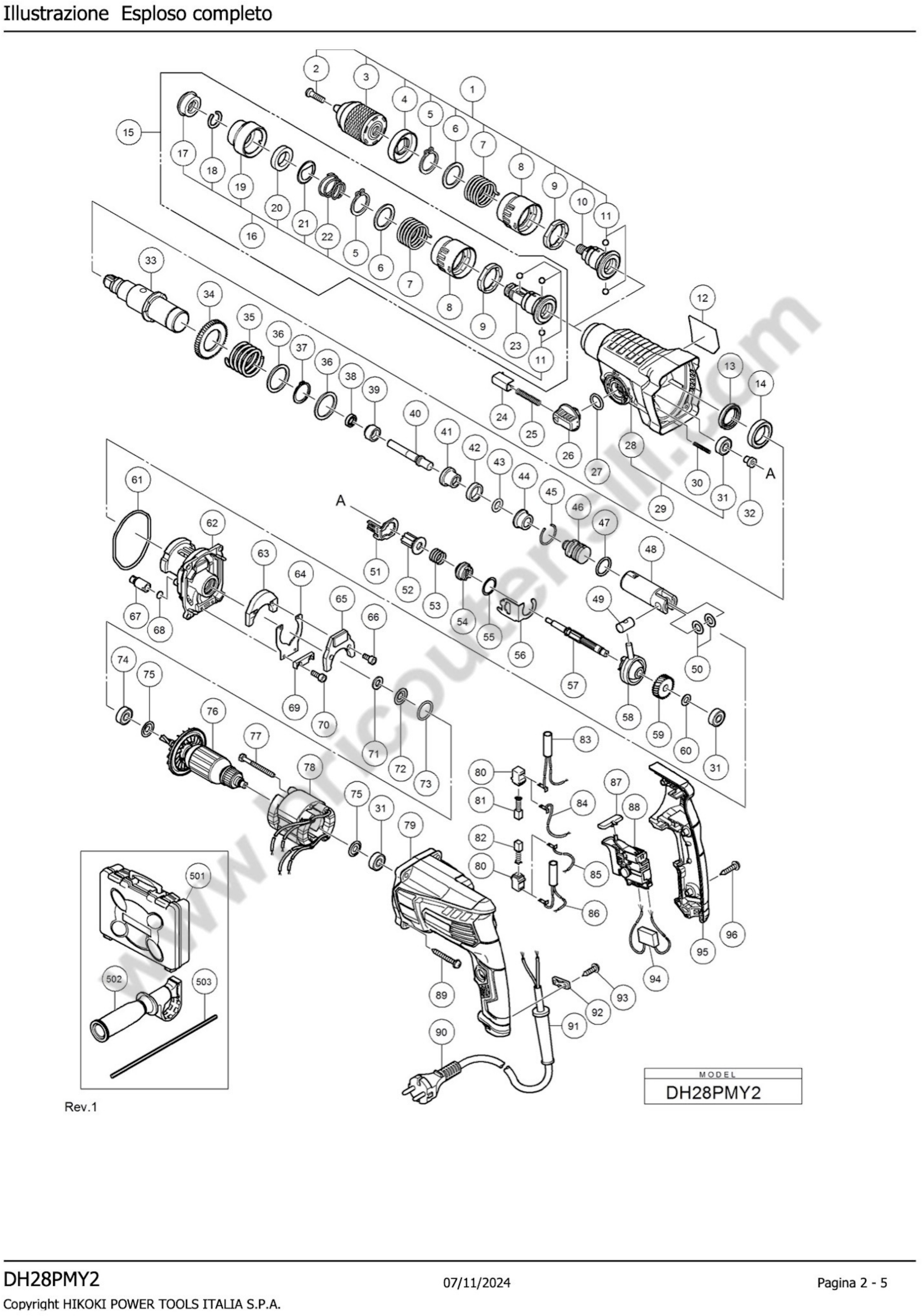

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 375012 CHUCK INCLUDED 2-11 €66.39
4
 photo_cameraImage coming soon 326527 STOPPER €4.65
5
 photo_cameraImage coming soon 965469 Ring Type C X D.25 Trees €0.00 Not available for order
6
 photo_cameraImage coming soon 326520 WASHER (B) €7.82
7
 photo_cameraImage coming soon 326519 SPRING €8.89
8
 photo_cameraImage coming soon 375013 LOCK GRIP €1.55
9
 photo_cameraImage coming soon 326801 LOCK RING €35.67
10
 photo_cameraImage coming soon 375011 DH24PM SPINDLE SEAT €23.07
11
 Steel Ball 7 mm for Hammers Hitachi DH24-26-28 335300 Steel Ball 7 mm for Hammers Hitachi DH24-26-28 €3.48
13
 photo_cameraImage coming soon 335259 OIL SEAL €4.06
14
 photo_cameraImage coming soon 6805BB BALL BEARING 6805 €3.32
15
 photo_cameraImage coming soon 375010 Pump impeller €36.17
16
 photo_cameraImage coming soon 375363 GRIP SET €3.87
17
 Front Cap for Rotary Hammers Hitachi DH22/28 306345 Front Cap for Rotary Hammers Hitachi DH22/28 €4.18
18
 Stopper Ring for Hammers Hitachi 306340 Stopper Ring for Hammers Hitachi €2.08
19
 photo_cameraImage coming soon 374436 GRIP €1.33
20
 photo_cameraImage coming soon 374437 BALL HOLDER €2.01
21
 photo_cameraImage coming soon 374435 HOLDER PLATE €1.33
22
 photo_cameraImage coming soon 322812 Spring Gate Punta €2.05
23
 photo_cameraImage coming soon 375009 CYLINDER €24.29
24
 photo_cameraImage coming soon 322789 BACK PANEL €5.86
25
 photo_cameraImage coming soon 317223 PUSHING SPRING €2.22
26
 photo_cameraImage coming soon 334011 CHANGE LEVER €3.12
27
 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 878885 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 €1.34
28
 photo_cameraImage coming soon 375005 GEAR BOX €20.83
29
 photo_cameraImage coming soon 375006 COMPLETE GEAR BOX INCLUDED 28.31 €19.67
30
 photo_cameraImage coming soon 335800 SPRING (E) €0.00 Not available for order
31
 BALL BEARING 608VVC2PS2L 608VVM BALL BEARING 608VVC2PS2L €7.11
32
 photo_cameraImage coming soon 374422 SHAFT HOLDER (B) €1.33
33
 photo_cameraImage coming soon 375007 CYLINDER €49.09
34
 photo_cameraImage coming soon 335265 SECOND GEAR €8.91
35
 photo_cameraImage coming soon 374430 SPRING (B) €1.68
36
 photo_cameraImage coming soon 301679 WASHER (A) €2.18
37
 photo_cameraImage coming soon 948310 RETAINING RING FOR D30 SHAFT €1.71
38
 Oil Seal mm 9,5x16x4 for Rotary Hammer Hitachi DH24PG 335262 Oil Seal mm 9,5x16x4 for Rotary Hammer Hitachi DH24PG €2.63
39
 photo_cameraImage coming soon 375014 PATENT SEAT €2.20
40
 photo_cameraImage coming soon 375008 SECOND PATENT €7.61
41
 photo_cameraImage coming soon 374429 HAMMER HOLDER (A) €3.16
42
 photo_cameraImage coming soon 322805 DAMPER (A) €2.05
43
 photo_cameraImage coming soon 322808 O-RING (C) €2.02
44
 photo_cameraImage coming soon 324524 DAMPER HOLDER €7.80
45
 photo_cameraImage coming soon 322807 STOPPER RING €2.05
46
 photo_cameraImage coming soon 374443 STRIKER €5.38
47
 photo_cameraImage coming soon 372816 0-RING €4.10
48
 photo_cameraImage coming soon 372817 PISTON €13.51
49
 photo_cameraImage coming soon 335793 PISTON PIN €4.62
50
 photo_cameraImage coming soon 335794 PISTON WASHER €1.66
51
 photo_cameraImage coming soon 374434 LOCK PLATE €1.33
52
 photo_cameraImage coming soon 374440 SECOND PINION €8.61
53
 photo_cameraImage coming soon 323182 CLUTCH SPRING €2.05
54
 photo_cameraImage coming soon 375022 CLUTCH €5.44
55
 photo_cameraImage coming soon 331315 WASHER €1.62
56
 photo_cameraImage coming soon 374439 CHANGE PLATE© €1.33
57
 photo_cameraImage coming soon 374438 SECOND SHAFT €6.86
58
 photo_cameraImage coming soon 335249 RECIPROCATING BEARING €19.44
59
 photo_cameraImage coming soon 374441 FIRST GEAR €5.22
60
 photo_cameraImage coming soon 374442 BEARING WASHER €1.33
61
 O-Ring D 72.2 for Rotary Hammers Hitachi DH26PB 335245 O-Ring D 72.2 for Rotary Hammers Hitachi DH26PB €2.78
62
 photo_cameraImage coming soon 374625 INNER COVER €11.78
63
 photo_cameraImage coming soon 374627 WEIGHT (A) €2.54
64
 Flat Washer for Angle Grinder Flex L 3709 335282 Flat Washer for Angle Grinder Flex L 3709 €7.10
65
 photo_cameraImage coming soon 374628 Powe Cable LE 14-7 125 INOX €2.65
67
 photo_cameraImage coming soon 334008 AIR CAP €1.60
68
 photo_cameraImage coming soon 324543 In Dh24pb3 Felt Gasket-Pc3 €2.05
69
 photo_cameraImage coming soon 374626 SPRING HOLDER €1.33
71
 photo_cameraImage coming soon 322816 FELT PACKING €2.05
72
 Packing Washer for Rotary Hammer Hitachi DH24PB3 322818 Packing Washer for Rotary Hammer Hitachi DH24PB3 €4.09
73
 photo_cameraImage coming soon 876796 O-RING (P-22) €1.33
74
 photo_cameraImage coming soon 608DDM BALL BEARING 608DDC2PS2L €7.07
75
 Dust Washer for Demolition Hammer Hitachi H45MRY 982631 Dust Washer for Demolition Hammer Hitachi H45MRY €1.34
76
 photo_cameraImage coming soon 361108E ARMATURE (B) 220V-230V €28.45
78
 photo_cameraImage coming soon 341028K STATOR (A) 220V-230V €22.03
79
 photo_cameraImage coming soon 374622 HOUSING €12.10
80
 Brush Holder for Demolition Hammer Hitachi DH28PCY 955203 Brush Holder for Demolition Hammer Hitachi DH28PCY €4.39
81
 Carbon Brushes for Sanders Hitachi SV12-13 999041 Carbon Brushes for Sanders Hitachi SV12-13 €9.62
82
 Carbon Brushes for Rotary Hammer Hitachi DH24PB3 999072 Carbon Brushes for Rotary Hammer Hitachi DH24PB3 €18.01
87
 Pusching Button for Drills Hitachi DV16-18V-DV20VB2 322853 Pusching Button for Drills Hitachi DV16-18V-DV20VB2 €2.78
88
 photo_cameraImage coming soon 374610 SWITCH 220V-240V €20.51
90
 photo_cameraImage coming soon 714520 POWER CORD 5M 2X1.5 €15.54
91
 Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.37
92
 photo_cameraImage coming soon 937631 CORD CLIP €1.37
94
 Noise Suppressor Hitachi GP 10 930039 Noise Suppressor Hitachi GP 10 €4.04
95
 photo_cameraImage coming soon 374623 HANDLE COVER €6.89
501
 photo_cameraImage coming soon 375015 CASE €0.12 Not available for order
502
 photo_cameraImage coming soon 374447 SIDE HANDLE €12.18
503
 photo_cameraImage coming soon 303709 delimiter Depth €1.75
Page 2 local_shipping Usually Ships in 7/10 BUSINESS DAYS
Pos. Item Price Buy
501
 photo_cameraImage coming soon 375015 CASE €0.12 Not available for order
502
 photo_cameraImage coming soon 374447 SIDE HANDLE €12.18
503
 photo_cameraImage coming soon 303709 delimiter Depth €1.75
Page 3 local_shipping Usually Ships in 7/10 BUSINESS DAYS
Pos. Item Price Buy
601
 photo_cameraImage coming soon 306885 DUST COLLECTOR (B) ASS'Y €39.43
602
 photo_cameraImage coming soon 986802 DUST COLLECTOR ASS'Y €0.12 Not available for order
603
 photo_cameraImage coming soon 986803 DUST COVER €0.12 Not available for order
604
 photo_cameraImage coming soon 986804 SEAL COVER €0.12 Not available for order
605
 photo_cameraImage coming soon 948310 RETAINING RING FOR D30 SHAFT €1.71
606
 photo_cameraImage coming soon 958063 WASHER €0.12 Not available for order
607
 Steel Ball 6,35 mm for Hammers Hitachi 959150 Steel Ball 6,35 mm for Hammers Hitachi €3.48
608
 photo_cameraImage coming soon 986805 OUTER RACE €0.12 Not available for order
609
 photo_cameraImage coming soon 986806 SOCKET €0.12 Not available for order
610
 photo_cameraImage coming soon 306910 SOCKET ADAPTER (B) €0.12 Not available for order
611
 photo_cameraImage coming soon 971787 DUST CUP €6.85
612
 photo_cameraImage coming soon 931844 STOPPER €0.12 Not available for order
613
 photo_cameraImage coming soon 321814 DRILL CHUCK 13VLRB-D €31.72
614
 photo_cameraImage coming soon 331966 FLAT HD. SCREW (LEFT HAND) M6 X 20 €0.12 Not available for order
615
 photo_cameraImage coming soon 321813 DRILL CHUCK 13VLD-D €31.72
616
 photo_cameraImage coming soon 971511Z DRIVER BIT (A) NO.2 25L €0.12 Not available for order
617
 photo_cameraImage coming soon 971512Z DRIVER BIT (A) NO.3 25L €7.10
618
 photo_cameraImage coming soon 971794 ANCHOR SETTING ADAPTER A W1/4” (MANUAL) €0.12 Not available for order
619
 photo_cameraImage coming soon 971795 ANCHOR SETTING ADAPTER A W5/16" (MANUAL) €0.12 Not available for order
620
 photo_cameraImage coming soon 971796 ANCHOR SETTING ADAPTER A W3/8" (MANUAL) €0.12 Not available for order
621
 photo_cameraImage coming soon 971797 ANCHOR SETTING ADAPTER A W1/2" (MANUAL) €0.12 Not available for order
622
 photo_cameraImage coming soon 971798 ANCHOR SETTING ADAPTER A W5/8" (MANUAL) €0.12 Not available for order
623
 photo_cameraImage coming soon 971799 ANCHOR SETTING ADAPTER B W1/4" (MANUAL) €0.12 Not available for order
624
 photo_cameraImage coming soon 971800 ANCHOR SETTING ADAPTER B W5/16” (MANUAL) €0.12 Not available for order
625
 photo_cameraImage coming soon 971801 ANCHOR SETTING ADAPTER B W3/8" (MANUAL) €0.12 Not available for order
626
 photo_cameraImage coming soon 971802 ANCHOR SETTING ADAPTER B W1/2" (MANUAL) €0.12 Not available for order
627
 photo_cameraImage coming soon 971803 ANCHOR SETTING ADAPTER B W5/8” (MANUAL) €0.12 Not available for order
628
 photo_cameraImage coming soon 320859 SYRINGE (BLOW-OUT BULB TYPE) €0.12 Not available for order
629
 photo_cameraImage coming soon 944477 COTTER FOR AUS €0.12 Not available for order
630
 photo_cameraImage coming soon 982684 CENTER PIN (A)09L FOR CORE BIT 032-38 €0.12 Not available for order
631
 photo_cameraImage coming soon 982685 CENTER PIN (B) 104L FOR CORE BIT D45-90 €0.12 Not available for order
632
 photo_cameraImage coming soon 335781 GREASE FOR ROTARY HAMMER (500G) €78.63
633
 photo_cameraImage coming soon 335782 GREASE FOR ROTARY HAMMER (60G) €18.17

Shipping and delivery information will be available shortly.

Hitachi Rotary Hammer Drill DH28PMY2 Spare Parts

Hitachi-HIKOKI Tanaka Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer Drill DH28PMY2.

In the following table , look for the model of the Rotary Hammer Drill and the respective parts of the code.
Hitachi DH28PMY2

Rotary Hammer Drill DH28PMY2
Pag.1
# Part Num. Description
1 375012 CHUCK INCLUDED 2-11
4 326527 STOPPER
5 965469 RING TYPE C FOR SHAFTS D.25
6 326520 DH24PM ROLLER
7 326519 DH24PM SPRING
8 375013 LOCK GRIP
9 326801 LOCKING RING
10 375011 DH24PM SPINDLE SEAT
11 335300 BALLS D7.0 (10PCS)
13 335259 OIL SEAL
14 6805BB BEARING 6805
15 375010 SDS-PLUS CHUCK INCLUDED 5-9.11.16.23
16 375363 LOCKING RING KIT INCLUDED 11(1 PC.).17-22
17 306345 FRONT CAP
18 306340 LOCKING RING
19 374436 LOCKING RING
20 374437 BALL SUPPORT
21 374435 SUPPORT PLATE
22 322812 BIT HOLDER SPRING
23 375009 CYLINDER
24 322789 SELECTOR BUTTON
25 317223 SPRING
26 334011 GEAR LEVER
27 878885 RING
28 375005 GEAR BOX
29 375006 COMPLETE GEAR BOX INCLUDED 28.31
30 335800 SPRING (E)
31 608VVM BALL BEARING 608VVM
32 374422 SHAFT SEAT (B)
33 375007 CYLINDER
34 335265 SECOND GEAR
35 374430 SPRING (B)
36 301679 WASHER
37 948310 RING TYPE C FOR SHAFTS D.30
38 335262 OIL SEAL (A)
39 375014 PATENT SEAT
40 375008 SECOND PATENT
41 374429 PATENT SUPPORT
42 322805 SHOCK ABSORBER
43 322808 O-RING (C)
44 324524 SHOCK ABSORBER SUPPORT DH24PB3-PC3
45 322807 STOP RING
46 374443 STRIKER
47 372816 O-RING
48 372817 PISTON
49 335793 PISTON PIN
50 335794 PISTON WASHER
51 374434 LOCKING PLATE
52 374440 SECOND PINION
53 323182 CLUTCH SPRING
54 375022 CLUTCH
55 331315 WASHER DH22PH
56 374439 SLIDE
57 374438 SECONDARY SHAFT
58 335249 ARTICULATED BEARING
59 374441 FIRST GEAR
60 374442 WASHER
61 335245 O-RING D72.2
62 374625 INNER COVER
63 374627 WEIGHT (A)
64 335282 LEAF SPRING
65 374628 WEIGHT (B)
67 334008 BREATHER
68 324543 FELT SEAL (A)
69 374626 SPRING SEAT
71 322816 FELT SEAL
72 322818 PACKING WASHER
73 876796 O-RING P.22
74 608DDM BALL BEARING 608DDM
75 982631 WASHER
76 361108E ARMOR
78 341028K STATOR
79 374622 CASING
80 955203 BRUSH HOLDER
81 999041 BRUSHES (1 PAIR)
82 999072 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
87 322853 REV. BUTTON
88 374610 SWITCH
90 714520 CABLE 5M 2X1.5 WITH PLUG
91 953327 CABLE PROTECTION SLEEVE D8.8
92 937631 WIRE TERMINAL
94 930039 NOISE FILTER
95 374623 GRIP COVER
Standard Accessories Pag.2
501 375015 CASE
502 374447 SIDE HANDLE
503 303709 DEPTH GAUGE
Optional Accessories Pag.3
601 306885 DUST COLLECTOR (B) ASS'Y
602 986802 DUST COLLECTOR ASS'Y
603 986803 DUST COVER
604 986804 SEAL COVER
605 948310 RETAINING RING FOR D30 SHAFT
606 958063 WASHER
607 959150 STEEL BALL D6.35 (10 PCS.)
608 986805 OUTER RACE
609 986806 SOCKET
610 306910 SOCKET ADAPTER (B)
611 971787 DUST CUP
612 931844 STOPPER
613 321814 DRILL CHUCK 13VLRB-D
614 331966 FLAT HD. SCREW (LEFT HAND) M6X20
615 321813 DRILL CHUCK 13VLD-D
616 971511Z + DRIVER BIT (A) NO.2 25L
617 971512Z + DRIVER BIT (A) NO.3 25L
618 971794 ANCHOR SETTING ADAPTER A W1/4" (MANUAL)
619 971795 ANCHOR SETTING ADAPTER A W5/16" (MANUAL)
620 971796 ANCHOR SETTING ADAPTER A W3/8" (MANUAL)
621 971797 ANCHOR SETTING ADAPTER A W1/2" (MANUAL)
622 971798 ANCHOR SETTING ADAPTER A W5/8" (MANUAL)
623 971799 ANCHOR SETTING ADAPTER B W1/4" (MANUAL)
624 971800 ANCHOR SETTING ADAPTER B W5/16" (MANUAL)
625 971801 ANCHOR SETTING ADAPTER B W3/8" (MANUAL)
626 971802 ANCHOR SETTING ADAPTER B W1/2" (MANUAL)
627 971803 ANCHOR SETTING ADAPTER B W5/8" (MANUAL)
628 320859 SYRINGE (BLOW-OUT BULB TYPE)
629 944477 COTTER
630 982684 CENTER PIN (A) 109L FOR CORE BIT D32-38
631 982685 CENTER PIN (B) 104L FOR CORE BIT D45-90
632 335781 GREASE FOR ROTARY HAMMER (500G)
633 335782 GREASE FOR ROTARY HAMMER (60G)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi DH28PMY2
6 Items

Data sheet

SHIPPING IN
Usually Ships in 7/10 BUSINESS DAYS
Machine Type
Rotary Hammer
MORE INFO:
[email protected]

Specific References

New

Download

Hitachi DH28PMY2 Parts Diagram

Hitachi DH28PMY2 Parts Diagram

Download (421.76KB)

You might also like

Switch for Rotary Hammers Hitachi DH22-24-26-28
HiKOKI Power Tools Italia S.p.a. SKU: 335796
Switch for Rotary Hammers Hitachi DH22-24-26-28
Switch for Rotary Hammers Hitachi DH22-24-26-28 Original spare parts Hitachi, Switch for Rotary Hammers Hitachi, DH22PG - DH24PB3 - DH24PG - DH26PG - DH28PCY - DH28PC. Parts for the following products: - Rotary Hammer Hitachi DH22PG...
AVAILABLE €23.45
Details
Piston for Hammers Hitachi DH24-26-28PC
HiKOKI Power Tools Italia S.p.a. SKU: 335255
Piston for Hammers Hitachi DH24-26-28PC
Piston for Rotary Hammers Hitachi DH24-26-28PC Genuine replacement part Hitachi Koky, Piston for Rotary Hammers model DH24PC-DH26PC-DH28PCY-DH28PC. Part for the following items: - Hammer DH 24PG - Hammer DH 26PC - Hammer DH 28 PCY -...
AVAILABLE €23.72
Details
Carbon Brushes for Sanders Hitachi SV12-13
HiKOKI Power Tools Italia S.p.a. SKU: 999041
Carbon Brushes for Sanders Hitachi SV12-13
Carbon Brushes for Sanders Hitachi SV12-13 Genuine spare Hitachi, Carbon Brushes for Sanders SV12SD - SV12SG - SV12SH - SV12V, for Drills, D 13VG - DV 18V - DV 20VB2, for Jig Saws FCJ65V3 - CJ90VST - CJ110MVA - CJ110MV, for Hammers DH...
AVAILABLE €9.62
Details
Steel Ball 7 mm for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 959156
Steel Ball 7 mm for Hammers Hitachi
Steel Ball 7 mm for Hammers Hitachi Hitachi genuine parts, steel ball diameter MM 7, Box 10 Pcs for Demolition hammers and Drills Hammers, DH14DSL - DH18PB - DH18DSL - DH25DL - DH25DAL - DH36DL - DH36DAL - H25PV - DH28PD - DH30PC2....
AVAILABLE €3.48
Details
Second Pinion for Hammers Hitachi DH28PC - Drawing
HiKOKI Power Tools Italia S.p.a. SKU: 335278
Second Pinion for Hammers Hitachi DH28PCY
Second Pinion for Hammers Hitachi DH28PCY Genuine parts Hitachi, Second Pinion for Hammers model Electropneumatic Hammer 3.5 Joule - 3.5Kg DH28PCY. For the following items: - Electropneumatic Hammer DH26PC - Electropneumatic Hammer DH...
AVAILABLE €16.60
Details
Pinion Sleeve for Hammers Hitachi DH28PC
HiKOKI Power Tools Italia S.p.a. SKU: 335275
Pinion Sleeve for Hammers Hitachi DH28PCY
Pinion Sleeve for Hammers Hitachi DH28PCY Genuine parts Hitachi, Pinion Sleeve for Hammers model Electropneumatic Hammer 3.5 Joule - 3.5Kg DH28PCY. Part for the following items: - Electropneumatic Hammer DH26PC - Electropneumatic...
AVAILABLE €9.62
Details
Pinion Lock Plate for Hammers Hitachi DH28PC
HiKOKI Power Tools Italia S.p.a. SKU: 335276
Pinion Lock Plate for Hammers Hitachi DH28PCY
Pinion Lock Plate for Hammers Hitachi DH28PCY Genuine parts Hitachi, Pinion Lock Plate for Hammers model Electropneumatic Hammer 3.5 Joule - 3.5Kg DH28PCY For the following items: - Electropneumatic Hammer DH26PC - Electropneumatic...
AVAILABLE €19.40
Details
Pusching Button for Drills Hitachi DV16-18V-DV20VB2
HiKOKI Power Tools Italia S.p.a. SKU: 322853
Pusching Button for Drills Hitachi DV16-18V-DV20VB2
Pusching Button for Drills Hitachi DV16-18V-DV20VB2 Original spare part HITACHI, Pusching Button for Percussion Drills Hitachi DV 16-18V - DV 20VB2. Part for the following products: - Percussion Drill DV16V - Percussion Drill DV...
AVAILABLE €2.78
Details
Stopper Ring for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 306340
Stopper Ring for Hammers Hitachi
Stopper Ring for Hammers Hitachi Genuine parts Hitachi, Stopper Ring for Hammers Hitachi. For the following items: - Hammer DH 28 PCY - Hammer DH 26PC - Hammer DH 24PG
AVAILABLE €2.08
Details
Noise Suppressor Hitachi GP 10
HiKOKI Power Tools Italia S.p.a. SKU: 930039
Noise Suppressor Hitachi GP 10
Noise Suppressor Hitachi GP 10 Genuine parts Hitachi, Noise Suppressor Model GP 10 for Angle Grinders, Sanders, Circular Saws, Hammers, Hammers, Routers. Part for the following items: - Rotorbital Sander Hitachi SV13YA - Rotorbital...
AVAILABLE €4.04
Details
Front Cap for Rotary Hammers Hitachi DH22/28
HiKOKI Power Tools Italia S.p.a. SKU: 306345
Front Cap for Rotary Hammers Hitachi DH22/28
Front Cap for Rotary Hammers Hitachi DH22/28 Genuine part HITACHI, Front Cap for Rotary Hammers DH22PG - DH24PG - DH26PC - DH28PCY - DH14DSL - DH18DSL - DH25DL - DH25DAL - DH36DL - DH36DAL - DH28PD - DH24PB3 - DH28PC - DH28PFY.
AVAILABLE €4.18
Details
Brush Holder for Demolition Hammer Hitachi DH28PCY
HiKOKI Power Tools Italia S.p.a. SKU: 955203
Brush Holder for Demolition Hammer Hitachi DH28PCY
Brush Holder for Demolition Hammer Hitachi DH28PCY Genuine Spare Part HITACHI, Brush Holder for Demolition Hammer Hitachi DH22PG - DH22PH - DH24PB3 - DH24PC3 - DH24PD3 - DH24PG - DH24PH - DH24PM - DH26PB - DH26PC - DH28PBY - DH28PCY -...
Usually Ships in: 7/10 Business Days Approx. €4.39
Details
O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3
HiKOKI Power Tools Italia S.p.a. SKU: 878885
O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3
O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 Hitachi genuine parts, O-Ring S-18 for Rotary Hammers DH24PC3 - DH24PD3 - DH24PB3 - DH24PG - DH24PH - DH36DAL - DH36DL - DH24DVA Part for the following products: - ROTARY HAMMER...
AVAILABLE €1.34
Details
Carbon Brushes for Rotary Hammer Hitachi DH24PB3
HiKOKI Power Tools Italia S.p.a. SKU: 999072
Carbon Brushes for Rotary Hammer Hitachi DH24PB3
Carbon Brushes for Rotary Hammer Hitachi DH24PB3 Genuine Spare Part Hitachi, Self-Locking Carbon Brushes for Rotary Hammers DH24PB3 - DH24PC3 - DH24PD3 - DH24PG - DH24PH - DH24PM...
on 7/10 Business Days Approx €18.01
Details
Cylinder Clutch for Rotative Hammer Hitachi DH26PB
HiKOKI Power Tools Italia S.p.a. SKU: 335263
Cylinder Clutch for Rotative Hammer Hitachi DH26PB
Cylinder Clutch for Rotary Hammer Hitachi DH26PB Genuine Spare Part Hitachi, Cylinder Clutch for Rotary Hammers DH26PB - DH18DBL - DH24PG - DH24PH - DH24PB - DH24PC - DH24PBY - DH24PCY - DH24PMY - DH28PMY. Part for the following...
AVAILABLE €17.55
Details
Dust Washer for Demolition Hammer Hitachi H45MRY
HiKOKI Power Tools Italia S.p.a. SKU: 982631
Dust Washer for Demolition Hammer Hitachi H45MRY
Dust Washer for Demolition Hammer Hitachi H45MRY Genuine Spare Part Hitachi, Dust Washer for Demolition Hammers H45MR - H45FRV - H45MRY - H45SR - DH40MRY - H41MB. Part for the following items: - Rotary Hammer Hitachi DH24PG - Rotary...
AVAILABLE €1.34
Details
Armature 220v-230v for Rotary Hammer Hitachi DH26PB
HiKOKI Power Tools Italia S.p.a. SKU: 360961E
Armature 220v-230v for Rotary Hammer Hitachi DH26PB
Armature 220v-230v for Rotary Hammer Hitachi DH26PB Genuine Spare Part Hitachi, Armature 220v-230v for Rotary Hammers DH26PB - DH26PC - DH28PBY - DH28PCY - DH28PMY. Part for the following products: -  Rotary Hammer DH26PB - Rotary...
AVAILABLE €33.46
Details
Packing Washer for Rotary Hammer Hitachi DH24PB3
HiKOKI Power Tools Italia S.p.a. SKU: 322818
Packing Washer for Rotary Hammer Hitachi DH24PB3
Packing Washer for Rotary Hammer Hitachi DH24PB3 Genuine replacement part HITACHI HIKOKI, Packing Washer for Rotary Hammers DH24PB3 - DH24PC3 - DH24PD3 - DH24PM Part for the following products: -  Rotary Hammer Hitachi DH24PB3 -...
on 7/10 Business Days Approx. €4.09
Details
Comments (0)
No customer reviews for the moment.
