HiKOKI Power Tools Italia S.p.a.

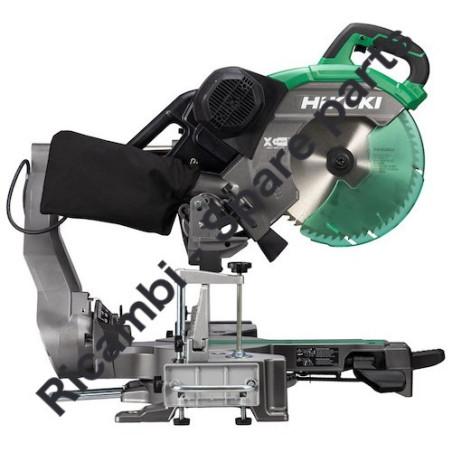

Hitachi C12RSH3 Miter Saw Parts

SKU: Hitachi C12RSH3
€1.35
VAT included

Hitachi C12RSH3 Miter Saw Spare Parts

Fix Your Sliding Compound Miter Saw C12RSH3. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.
Hitachi C12RSH3 Miter Saw Parts
  • Hitachi C12RSH3 Miter Saw Parts
  • Hitachi C12RSH3 Miter Saw Parts - Drawing
  • Hitachi C12RSH3 Miter Saw Parts - Drawing 1
  • Hitachi C12RSH3 Miter Saw Parts - Drawing 2
HiKOKI Power Tools Italia S.p.a.

Hitachi C12RSH3 Miter Saw Parts

SKU: Hitachi C12RSH3 Condition: New
€1.35
VAT included

Hitachi C12RSH3 Miter Saw Spare Parts

Fix Your Sliding Compound Miter Saw C12RSH3. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.
settings 51 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
51 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

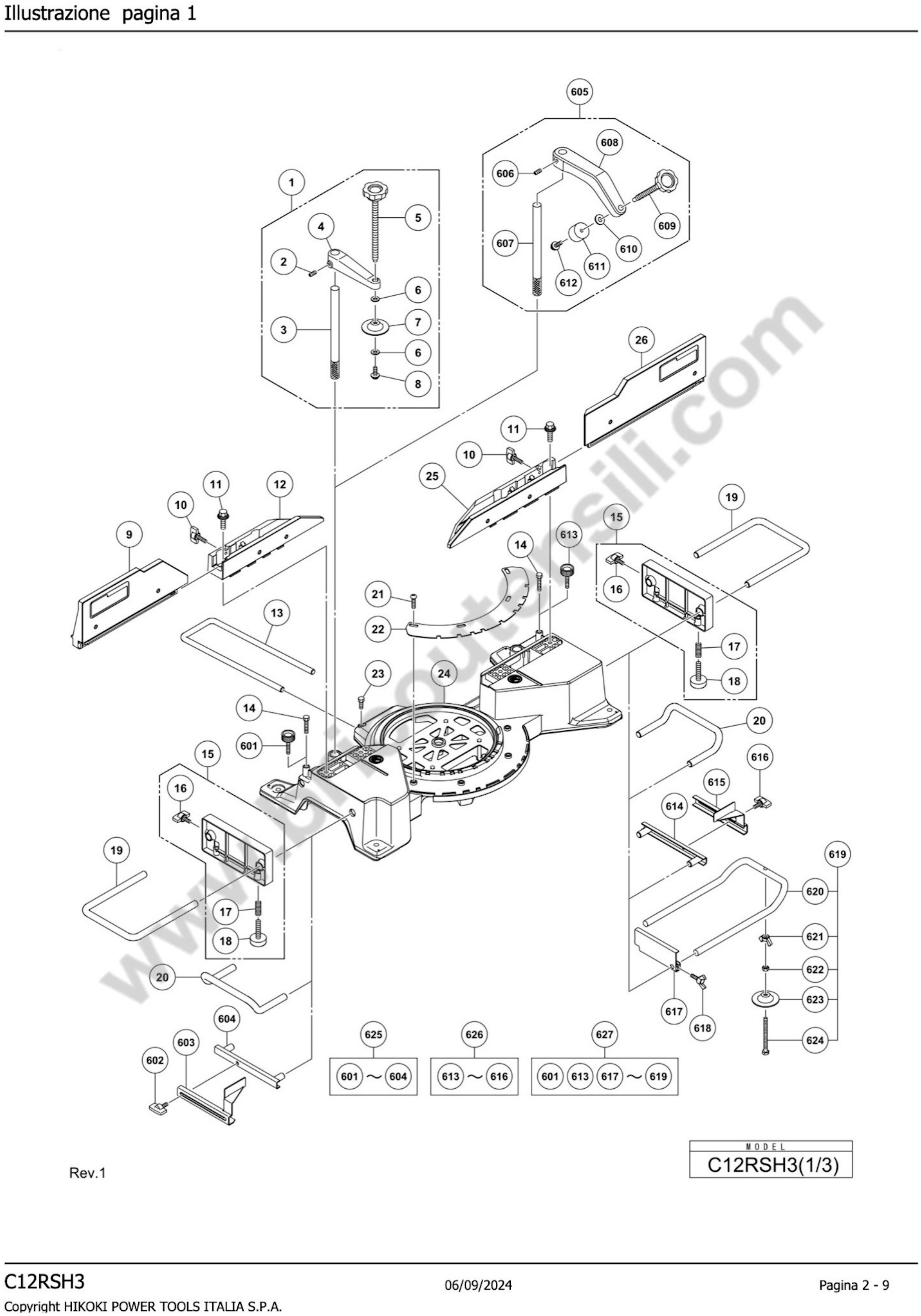

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 339624 VISE ASS'Y €14.72
3
 photo_cameraImage coming soon 339626 VISE SHAFT €4.87
5
 photo_cameraImage coming soon 339625 FIXING KNOB €6.17
6
 photo_cameraImage coming soon 996722 WASHER €1.55
7
 photo_cameraImage coming soon 322047 VISE PLATE €7.60
17
 photo_cameraImage coming soon 998852 Spare Part 998852 €1.28
602
 Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE 301806 Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE €1.23
607
 photo_cameraImage coming soon 339626 VISE SHAFT €4.87
616
 Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE 301806 Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE €1.23
617
 photo_cameraImage coming soon 974561 STOPPER €7.66
620
 photo_cameraImage coming soon 321549 HOLDER €28.13
623
 photo_cameraImage coming soon 322047 VISE PLATE €7.60
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

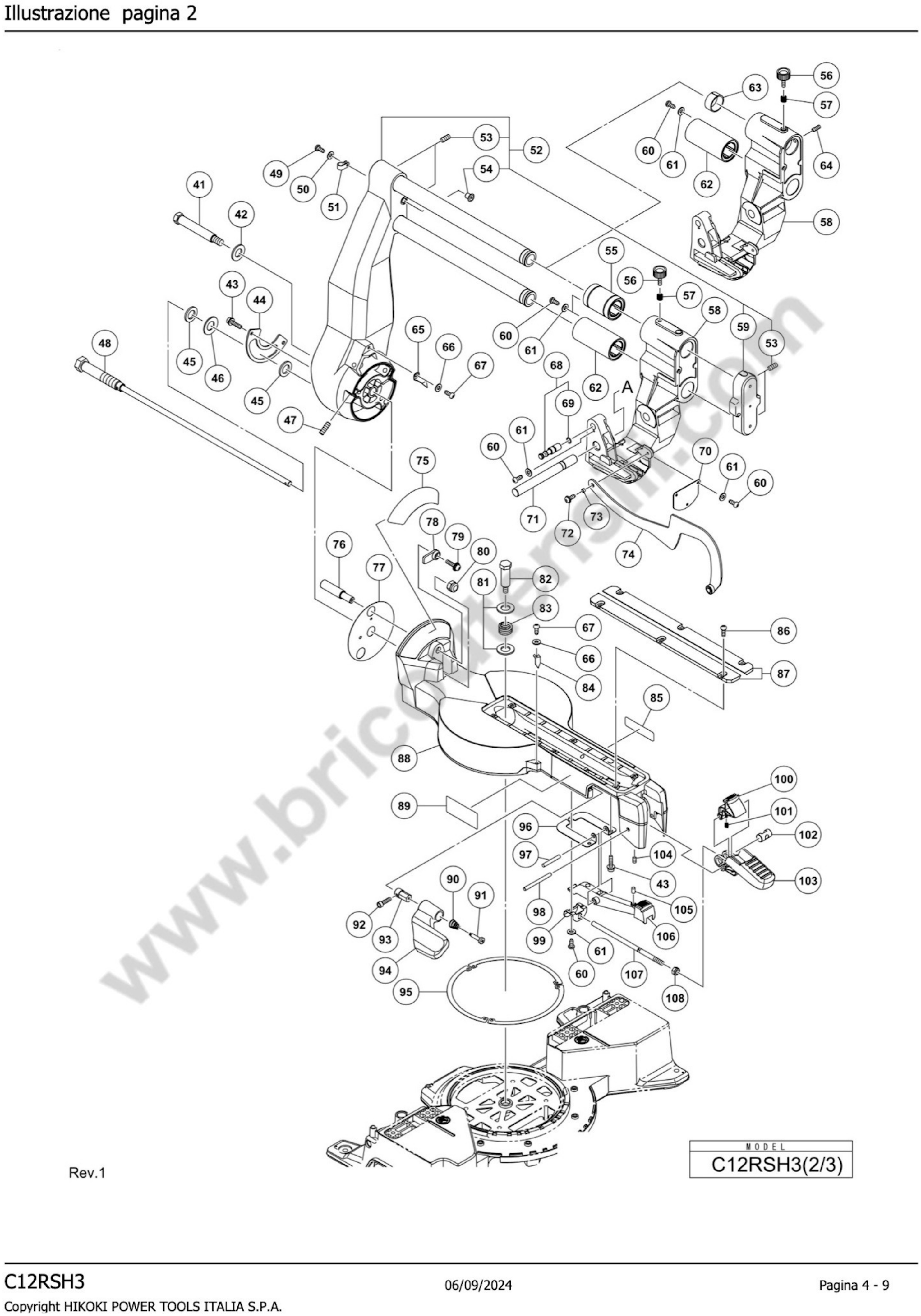

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
54
 photo_cameraImage coming soon 323606 BASE RUBBER €1.60
56
 photo_cameraImage coming soon 324418 KNOB BOLT M6X25 €5.92
57
 photo_cameraImage coming soon 947859 Lock Spring €1.75
59
 photo_cameraImage coming soon 334458 SUPPORT €12.02
62
 photo_cameraImage coming soon 324414 BALL BUSHING €25.08
69
 photo_cameraImage coming soon 872645 O-RING (P-9) €2.12
76
 photo_cameraImage coming soon 324420 SET PIN (A) €8.76
78
 photo_cameraImage coming soon 324421 GRIP €1.60
82
 photo_cameraImage coming soon 324401 SHAFT (B) €6.98
83
 photo_cameraImage coming soon 324402 SPRING (B) €5.48
90
 photo_cameraImage coming soon 339620 CLUTCH SPRING €1.33
91
 photo_cameraImage coming soon 339621 CLUTCH SCREW €1.33
95
 photo_cameraImage coming soon 324400 LINER €2.20
97
 photo_cameraImage coming soon 983564 PIN D6 €3.84
98
 photo_cameraImage coming soon 321339 LEVER SHAFT €2.49
105
 photo_cameraImage coming soon 946362 BEARING LOCK €1.30
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

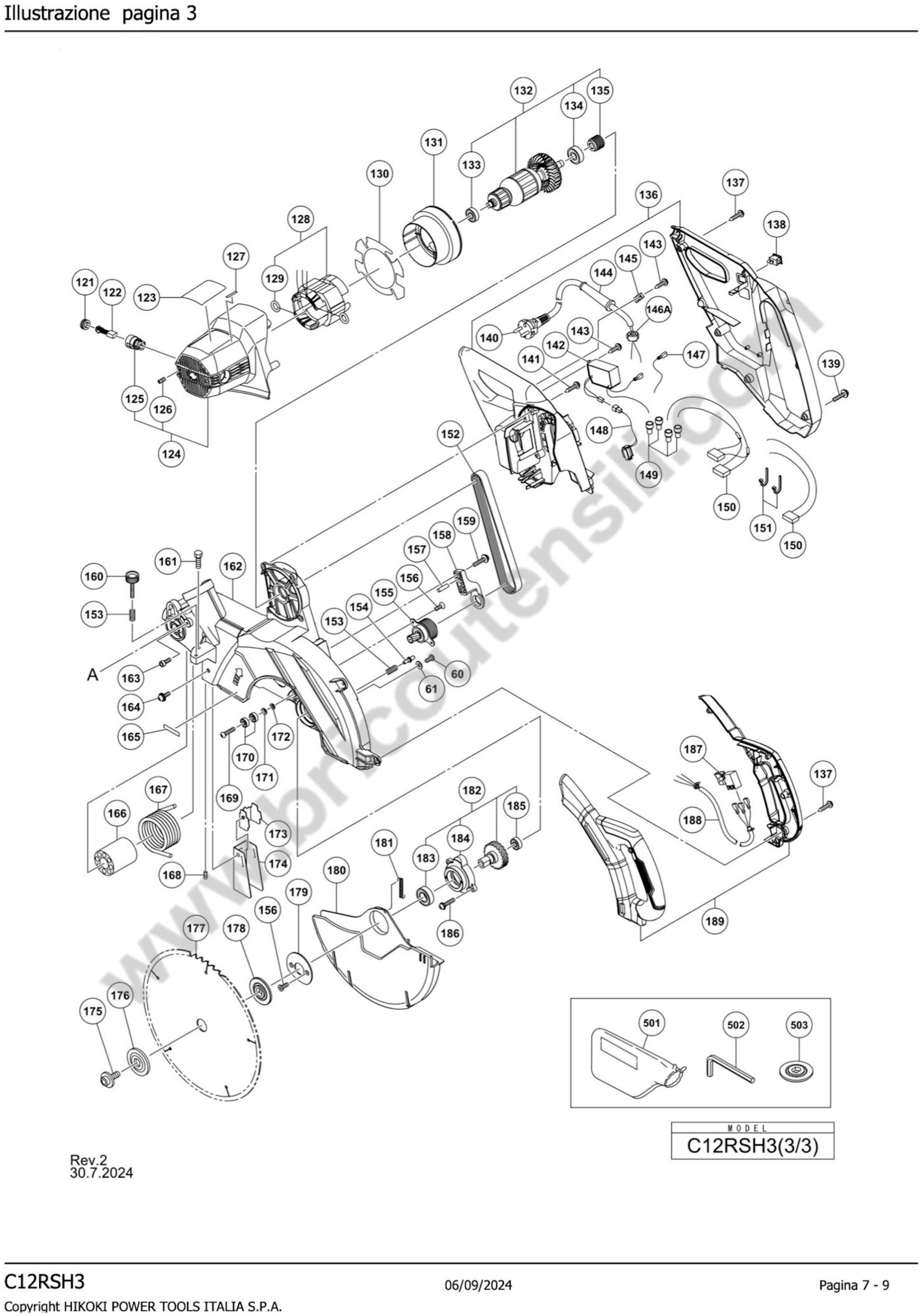

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
121
 Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU 945161 Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU €2.78
122
 photo_cameraImage coming soon 999065 CARBON BRUSH (1 PAIR) €10.05
124
 photo_cameraImage coming soon 339643 HOUSING ASS'Y €19.09
125
 Brush Holder for Angle Grinders Hitachi G23SS-G23SW-G23SWU 938241 Brush Holder for Angle Grinders Hitachi G23SS-G23SW-G23SWU €11.86
128
 photo_cameraImage coming soon 340925E STATOR ASS'Y (B) 220V-240V €62.43
129
 photo_cameraImage coming soon 937623 BRUSH TERMINAL €1.33
131
 photo_cameraImage coming soon 339642 FAN GUIDE €1.81
132
 photo_cameraImage coming soon 361021C ARMATURE ASS'Y 220V-230V €53.55
133
 photo_cameraImage coming soon 6000VV BALL BEARING 6000VVCMPS2L €9.76
134
 photo_cameraImage coming soon 6201VV BALL BEARING 6201VVCMPS2L €6.76
138
 photo_cameraImage coming soon 319503 SWITCH (W/COVER) €16.39
140
 photo_cameraImage coming soon 500247Z CORD €17.20
144
 Cord Armor D.10.1 for Hitachi Power Tools 938051 Cord Armor D.10.1 for Hitachi Power Tools €1.34
145
 photo_cameraImage coming soon 937631 CORD CLIP €1.37
146
 photo_cameraImage coming soon 334379 FERRITE CORE €6.61
152
 photo_cameraImage coming soon 324427 BELT (200H10) 16X508 €36.29
153
 photo_cameraImage coming soon 988821 LOCK SPRING €5.28
154
 photo_cameraImage coming soon 307732 STOPPER PIN €4.57
155
 photo_cameraImage coming soon 339641 PINION SET €17.54
157
 photo_cameraImage coming soon 983545 NEEDLE ROLLER €1.28
158
 photo_cameraImage coming soon 325259 BEARING HOLDER (B) €4.40
160
 photo_cameraImage coming soon 961468 KNOB BOLT M6X37 €1.70
166
 photo_cameraImage coming soon 324388 SLEEVE €7.66
167
 photo_cameraImage coming soon 310898 SPRING €18.58
170
 photo_cameraImage coming soon 606ZZM BALL BEARING 606VVC2 €16.22
173
 photo_cameraImage coming soon 339648 GUIDE HOLDER €1.33

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi C12RSH3 Miter Saw Spare Parts

Fix Your Sliding Compound Miter Saw C12RSH3. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.

In the following table, look for the model of the Miter Saw and theirs spare part.
Slide Compound Miter Saw C12RSH3

HITACHI C12RSH3 Parts List Pag.1
# Parts Num. Description
1 339624 COMPLETE REGULATOR INCLUDED 2-8
3 339626 SHAFT
5 339625 FIXING KNOB
6 996722 WASHER
7 322047 PLATE
10 322959 WING BOLT M6X22
17 998852
601 960017 KNOB BOLT M6X32
602 301806 WING NUT M6X15
604 321390 CROWN MOLDING STOPPER HOLDER
606 307956 INCLUDED 606-612
607 339626 SHAFT
611 964851 RUBBER ELEMENT
613 960017 KNOB BOLT M6X32
614 321390 CROWN MOLDING STOPPER HOLDER
616 301806 WING NUT M6X15
617 974561 STOPPER C12LCH
620 321549 SUPPORT INCLUDED 620-624
623 322047 PLATE
Pag.2
# Parts Num.
 Description
50 949429 WASHER FOR BOLT M4
51 948614 NYLON CLIP FOR SWISS,GBR,ESP
52 380826 INCLUDED 53.54.59
54 323606 PLUG
56 324418 LOCK SCREW C12RSH
57 947859 STOP SPRING *GIVE 996224
59 334458 SUPPORT AXIAL
62 324414 BUSH
66 949429 WASHER FOR BOLT M4
69 872645 O-RING P.9
76 324420 PIN A C12RSH
78 324421 KEY
82 324401 SHAFT (B)
83 324402 SPRING B C12RSH
84 318927 INDICATOR (A)
90 339620 CLUTCH SPRING
91 339621 CLUTCH SCREW
95 324400 PLATE C12RSH
97 983564 PIVOT
98 321339 LEVER SHAFT
104 319541 SEAL LOCK HEX. SOCKET SET SCREW M5X6
105 946362 LOCKING KEY
Pag.3
# Parts Num.
 Description
121 945161 BRUSH COVER
122 999065 BRUSHES (1 PAIR) FOR 220V-240V
124 339643 CASE 1 INCLUDED 125.126
125 938241 BRUSH HOLDER
126 938477 GROUND SCREW M5X8 T.E.I.
128 340925E STATOR
129 937623 TERMINAL
130 339734 GASKET
131 339642 FAN GUIDE
132 361021C ARMATURE INCLUDED 133-135
133 6000VV BALL BEARING 6000VV
134 6201VV BALL BEARING 6201VV
138 319503 SWITCH 1 EXCEPT FOR USA.CAN
140 500247Z 1 (CORD ARMOR D10.1)
144 938051 CABLE PROTECTION SLEEVE D.10.1
145 937631 WIRE TERMINAL
146 334379 TOROID 1 EXCEPT FOR USA.CAN
147 324458 INTERNAL WIRE EXCEPT FOR USA.CAN
149 959141 JOINT
150 334380 1 EXCEPT FORGBR(110V).TPE.USA.CAN.
151 975144 CABLE TIE 2 FOREUROPE.GBR.AUS.NZL.SAF
152 324427 BELT C12RSH
153 988821 SPRING
154 307732 STOPPER PIN
155 339641 PINION
157 983545 PIVOT
158 325259 BEARING SUPPORT
160 961468 KNOB BOLT
166 324388 BUSHING C12RSH
167 310898 SPRING C12RSH
170 606ZZM BALL BEARING 606ZZM
171 949455 GROWER WASHER M6
172 949425 FLAT WASHER M6
173 339648 GUIDE STOP
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
