HiKOKI Power Tools Italia S.p.a.

Hikoki UM36DA Brushless Mixer Spare Parts

SKU: Hitachi UM36DA
€8.69
VAT included

Hikoki UM36DA Brushless Mixer Spare Parts

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues fo UM36DA Brushless Mixer.
Hikoki UM36DA Brushless Mixer Spare Parts
  • Hikoki UM36DA Brushless Mixer Spare Parts
  • Hikoki UM36DA Brushless Mixer Spare Parts - Drawing
HiKOKI Power Tools Italia S.p.a.

Hikoki UM36DA Brushless Mixer Spare Parts

SKU: Hitachi UM36DA Condition: New
€8.69
VAT included

Hikoki UM36DA Brushless Mixer Spare Parts

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues fo UM36DA Brushless Mixer.
settings 38 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
38 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

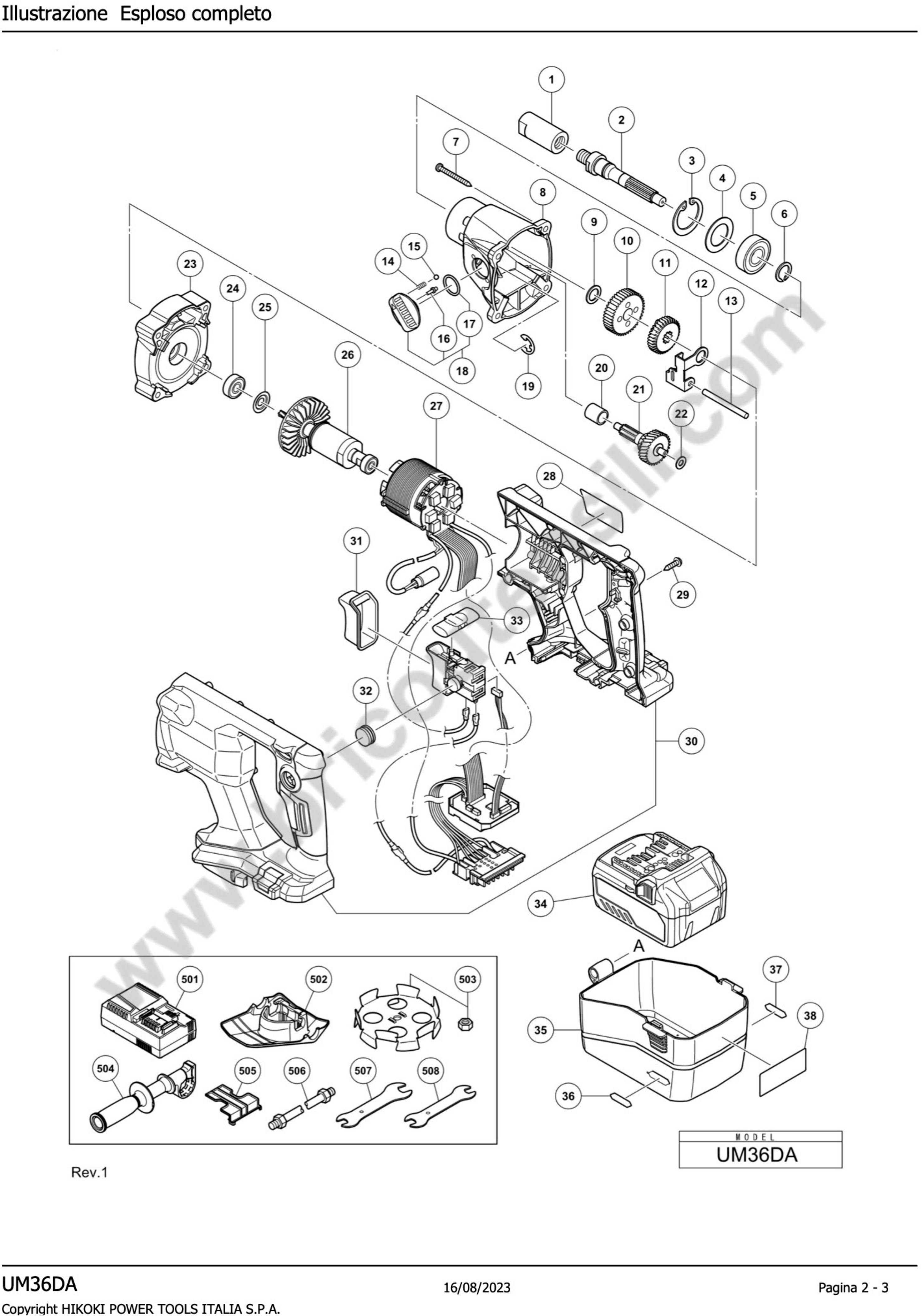

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 376520 HOLDER (M14) €7.97
2
 photo_cameraImage coming soon 376580 SPINDLE €11.93
3
 photo_cameraImage coming soon 939556 Ring Type C X D.35 Holes €13.80
4
 photo_cameraImage coming soon 334633 DUST WASHER €2.31
5
 photo_cameraImage coming soon 6202DD Ball Bearing 6202dd €7.97
6
 photo_cameraImage coming soon 375195 RETAINING RING D15 €1.27
8
 photo_cameraImage coming soon 376579 GEAR COVER €11.93
9
 photo_cameraImage coming soon 322799 WASHER (C) €7.66
10
 photo_cameraImage coming soon 376582 LOW SPEED GEAR €7.11
11
 photo_cameraImage coming soon 376583 HIGH SPEED GEAR €8.78
12
 photo_cameraImage coming soon 338742 SHIFT ARM €1.33
13
 photo_cameraImage coming soon 322860 Without Dv18v €2.20
14
 photo_cameraImage coming soon 981328 Spring H Dh24dva €1.91
15
 photo_cameraImage coming soon 319535 BALLS D3.5 (10 PCS.) €2.55
16
 photo_cameraImage coming soon 322848 roll €3.13
17
 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 878885 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 €1.34
18
 photo_cameraImage coming soon 338737 SHIFT LEVER ASS'Y €2.22
19
 photo_cameraImage coming soon 323048 Ring Seal (E-Type) €2.52
20
 photo_cameraImage coming soon 376682 DISTANCE PIECE €1.67
21
 photo_cameraImage coming soon 376584 SECOND PINION €16.02
22
 photo_cameraImage coming soon 322852 washer Dm20v €2.20
23
 photo_cameraImage coming soon 376581 INNER COVER (B) €9.87
24
 photo_cameraImage coming soon 608DDM BALL BEARING 608DDC2PS2L €7.07
25
 Dust Washer for Demolition Hammer Hitachi H45MRY 982631 Dust Washer for Demolition Hammer Hitachi H45MRY €1.34
26
 photo_cameraImage coming soon 361140 ROTOR €33.06
27
 photo_cameraImage coming soon 341078 STATOR FET PCB €115.68
30
 photo_cameraImage coming soon 376586 HOUSING (A).(B) SET €19.25
31
 photo_cameraImage coming soon 376123 SWITCH COVER €1.27
32
 photo_cameraImage coming soon 376124 Bearing Holder €12.86
33
 photo_cameraImage coming soon 319760 PUSHING BUTTON €2.27
35
 photo_cameraImage coming soon 376122 BATTERY COVER €3.83
36
 photo_cameraImage coming soon 373913 MV LABEL (A) €1.40
37
 photo_cameraImage coming soon 373914 MV LABEL (B) €1.40
38
 photo_cameraImage coming soon 376587 LABEL (W) €1.27
502
 photo_cameraImage coming soon 376521 RUBBER SHIELD €15.35
503
 photo_cameraImage coming soon 376517 MIXER 150MM (A5) €31.85
504
 photo_cameraImage coming soon 338768 SIDE HANDLE €18.01
506
 photo_cameraImage coming soon 376516 SHAFT (A2)=600mm €19.15

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hikoki UM36DA Brushless Mixer Spare Parts

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues fo UM36DA Brushless Mixer.

Hikoki UM36DA Brushless Mixer Spare Parts
Hikoki UM36DA Brushless Mixer Spare Parts
# Part Num. Description
1 376520 HOLDER (M14)
2 376580 SPINDLE
3 939556 RETAINING RING FOR D35 HOLE (10 PCS.)
4 334633 DUST WASHER
5 6202DD BALL BEARING 6202DD
6 375195 RETAINING RING D15
8 376579 GEAR COVER
9 322799 WASHER (C)
10 376582 LOW SPEED GEAR
11 376583 HIGH SPEED GEAR
12 338742 SHIFT ARM
13 322860 PIN D5 DV18V
14 981328 SPRING (H)
15 319535 STEEL BALL D3.5 (10 PCS.)
16 322848 SHIFT PIN
17 878885 O-RING (S-18)
18 338737 SHIFT LEVER ASS'Y (INCLUD.16.17)
19 323048 RETAINING RING (E-TYPE) FOR D15 SHAFT
20 376682 DISTANCE PIECE
21 376584 SECOND PINION
22 322852 WASHER (B) DM20V
23 376581 INNER COVER (B)
24 608DDM BALL BEARING 608DD
25 982631 WASHER (A)
26 361140 ROTOR
27 341078 STATOR FET PCB
30 376586 HOUSING (A).(B) SET
31 376123 SWITCH COVER
32 376124 ON LOCK COVER
33 319760 PUSHING BUTTON
35 376122 BATTERY COVER
36 373913 MV LABEL (F)
37 373914 MV LABEL (B)
38 376587 LABEL (W)
Standard Accessories
502 376521 RUBBER SHIELD
503 376517 MIXER 150MM (A5)
504 338768 SIDE HANDLE
506 376516 SHAFT (A2)=600mm
507 376518 WRENCH 17/22MM
508 931161 WRENCH 17/19MM

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi UM36DA
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Hikoki UM36DA Drawing

Hikoki UM36DA Drawing

Download (356KB)
