Hikoki DH18DPA Cordless Rotary Hammer Parts
Hitachi-HIKOKI Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for
DH18DPA Cordless Rotary Hammer.In the following table, look for the model of the Rotary Hammer and the respective parts of the code.

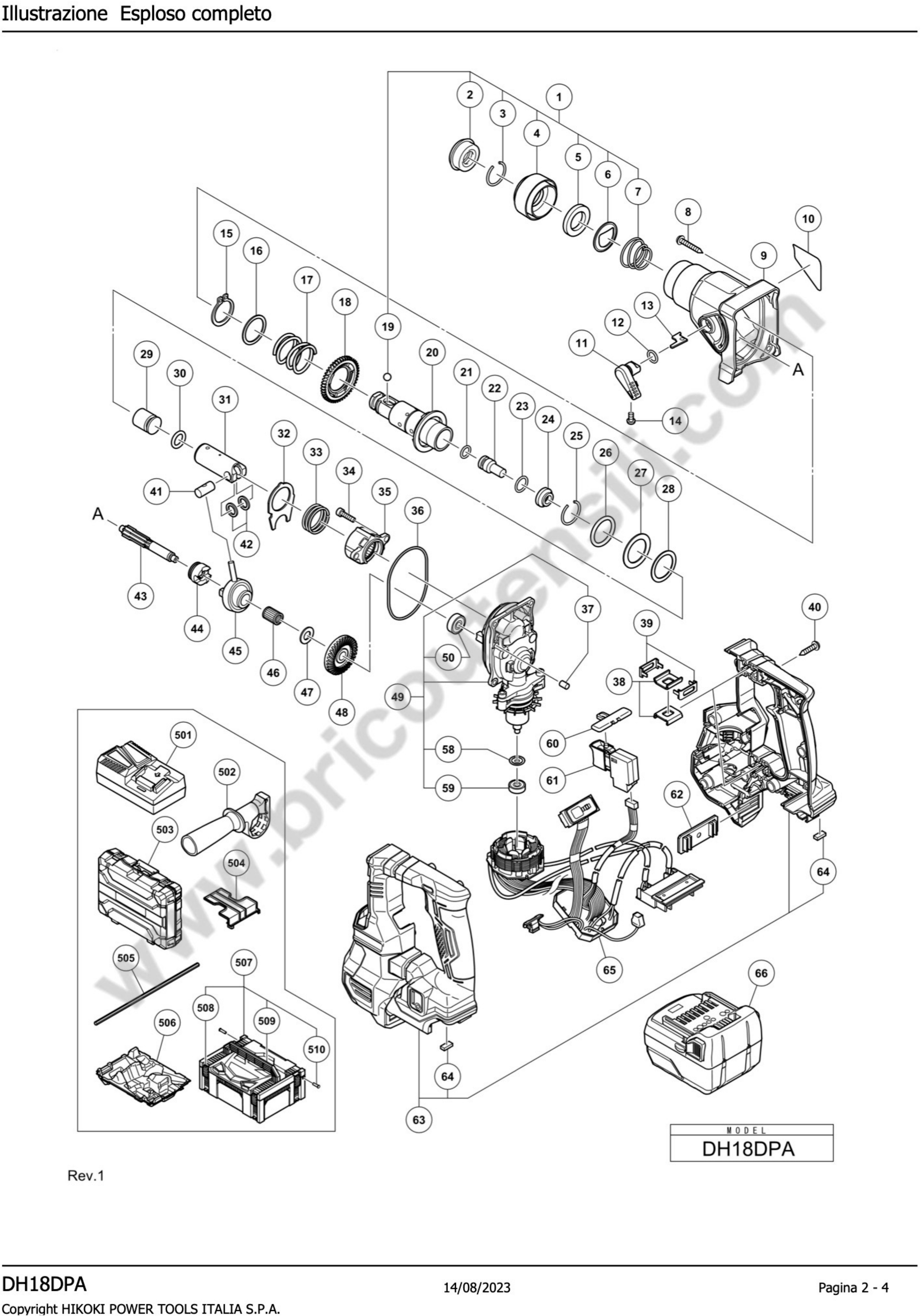

| DH18DPA 18V SLIDE BRUSHLESS SDS PLUS ROTARY HAMMER Parts |
| # |
Part Num. |
Description |
| 1 |
376603 |
GRIP SET |
| 2 |
306345 |
FRONT CAP |
| 3 |
306340 |
STOPPER RING |
| 4 |
376338 |
GRIP |
| 5 |
324528 |
BALL HOLDER |
| 6 |
374435 |
HOLDER PLATE |
| 7 |
322812 |
HOLDER SPRING |
| 9 |
376342 |
GEAR COVER |
| 11 |
376334 |
CHANGE LEVER |
| 12 |
872654 |
O-RING (1AP-10) |
| 13 |
327875 |
STOPPER DH14/18DL |
| 15 |
965469 |
RETAINING RING FOR D25 SHAFT |
| 16 |
944274 |
WASHER |
| 17 |
376743 |
SPRING (A) |
| 18 |
376676 |
SECOND GEAR |
| 19 |
959156 |
STEEL BALLS D7.0 (10PCS) |
| 20 |
376335 |
CYLINDER |
| 21 |
301672 |
O-RING (B) |
| 22 |
376336 |
SECOND HAMMER |
| 23 |
311814 |
O-RING (P-15) |
| 24 |
376337 |
HAMMER HOLDER |
| 25 |
376673 |
STOPPER RING |
| 26 |
376339 |
DAMPER |
| 27 |
376340 |
THRUST WASHER (A) |
| 28 |
376674 |
THRUST WASHER (B) |
| 29 |
376325 |
STRIKER |
| 30 |
306326 |
O-RING (A) |
| 31 |
376326 |
PISTON |
| 32 |
376327 |
THRUST PLATE |
| 33 |
306976 |
SPRING (B) |
| 35 |
376321 |
INNER COVER (B) |
| 36 |
327870 |
O-RING (A) |
| 37 |
376318 |
FELT PACKING (A) |
| 38 |
376328 |
HANDLE PLATE (A) |
| 39 |
376329 |
HANDLE PLATE (B) |
| 41 |
306322 |
PISTON PIN |
| 42 |
328660 |
WASHER |
| 43 |
376322 |
SECOND SHAFT (A) |
| 44 |
376593 |
CLUTCH |
| 45 |
325585 |
RECIPROCATING BEARING |
| 46 |
306320 |
NEEDLE CAGE |
| 47 |
376675 |
THRUST WASHER (C) |
| 48 |
376324 |
BEVEL GEAR |
| 49 |
377012 |
INNER COVER ASS'Y (A) INCLUD.37.50.58.59 |
| 50 |
626VVM |
BALL BEARING 626VVC2PS2L |
| 58 |
376332 |
DUST WASHER (B) |
| 59 |
333826 |
BALL BEARING 625DD |
| 60 |
324225 |
PUSHING BUTTON (B) |
| 61 |
376527 |
DC-SPEED CONTROL SWITCH |
| 62 |
376703 |
BATTERY RUBBER |
| 63 |
376346 |
HOUSING (A).(B) SET INCLUD.64 |
| 64 |
376702 |
DAMPER (A) |
| 65 |
376355 |
WIRING |
| 66 |
378683 |
BATTERY BSL 1850C (EUROPE.AUS.NZL) |
| STANDARD ACCESSORIES |
| 502 |
324548 |
SIDE HANDLE |
| 505 |
303709 |
DEPTH GAUGE |
| 506 |
376557 |
INNER TRAY |
| 507 |
336471 |
CASE ASS'Y (STACKABLE 2) |
| 508 |
336472 |
LATCH |
| 509 |
336473 |
HANDLE |
| 510 |
336474 |
HINGE |
| OPTIONAL ACCESSORIES |
| 601 |
752098 |
HAMMER DRILL CHUCK SET 13MM INCLUD.602.603 |
| 602 |
752053 |
CHUCK HANDLE |
| 603 |
303335 |
RUBBER CAP |
| 604 |
752097 |
DRILL CHUCK AND ADAPTER SET INCLUD.605.606 |
| 605 |
744085 |
CHUCK ADAPTER (G) (SDS PLUS) |
| 606 |
752058 |
DRILL CHUCK 13VLRB-D INCLUD.607.608 |
| 607 |
331966 |
FLAT HD. SCREW (LEFT HAND) M6X20 |
| 608 |
987576 |
CHUCK WRENCH FOR 13VLB-D.13VLR-D |
| 609 |
971787 |
DUST CUP |
| 610 |
335724 |
HOOK |
| 611 |
337357 |
TRUSS HD. SCREW M4 (BLACK) |
| 612 |
335782 |
GREASE FOR ROTARY HAMMER (60G) |
| 613 |
335781 |
GREASE FOR ROTARY HAMMER (500G) |
| 614 |
376690 |
GREASE FOR CORDLESS ROTARY HAMMER (50G) |
| 615 |
306885 |
DUST COLLECTOR (B) ASS'Y INCLUD.616 |
| 616 |
306910 |
SOCKET ADAPTER (B) |
| 617 |
752056 |
DRILL CHUCK 13VLD-D INCLUD.602 |
| 618 |
971511Z |
+ DRIVER BIT (A) NO.2 25L |
| 619 |
752254 |
+ DRIVER BIT (A) NO.3 25L |
