Hikoki Spare Parts for Cordless Hammer DH18DPB

Hitachi-HIKOKI Original spare parts sourced directly from the manufacturer, with after-sales assistance at the best price on the web for to fix Brushless Cordless Rotary Hammer DH18DPB.

Fix Your Rotary Hammer DH18DPB. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Hitachi Spare Parts for Cordless Hammer DH18DPB
  • Hitachi Spare Parts for Cordless Hammer DH18DPB
  • Hitachi Spare Parts for Cordless Hammer DH18DPB - Drawing
HiKOKI Power Tools Italia S.p.a.

Hikoki Spare Parts for Cordless Hammer DH18DPB

SKU: Hikoki DH18DPB Condition: New
€4.18
VAT included

Hikoki Spare Parts for Cordless Hammer DH18DPB

Hitachi-HIKOKI Original spare parts sourced directly from the manufacturer, with after-sales assistance at the best price on the web for to fix Brushless Cordless Rotary Hammer DH18DPB.

Fix Your Rotary Hammer DH18DPB. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 73 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
73 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

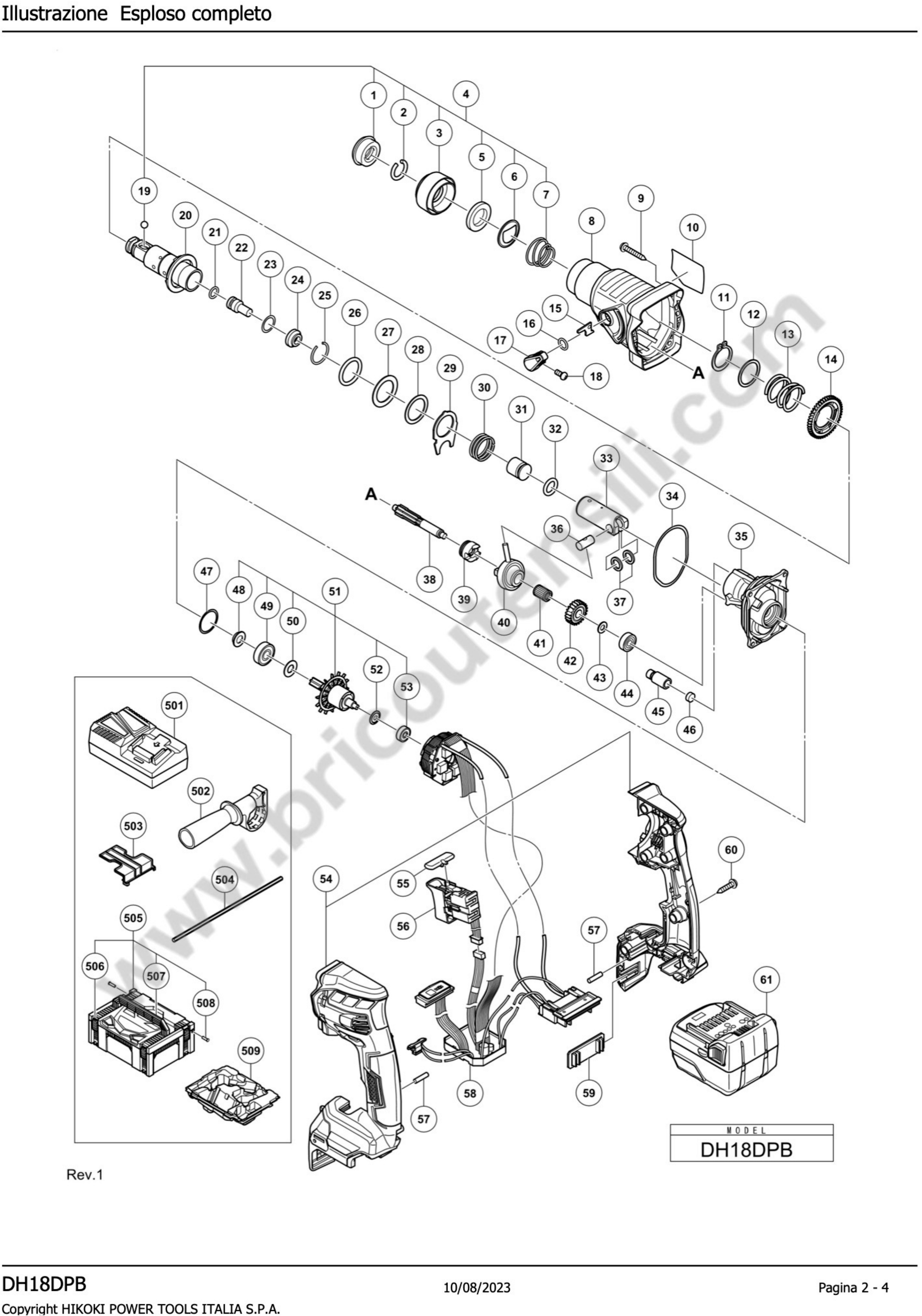

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Front Cap for Rotary Hammers Hitachi DH22/28 306345 Front Cap for Rotary Hammers Hitachi DH22/28 €4.18
2
 Stopper Ring for Hammers Hitachi 306340 Stopper Ring for Hammers Hitachi €2.08
3
 photo_cameraImage coming soon 376338 GRIP €1.27
4
 photo_cameraImage coming soon 376603 GRIP SET INCLUD.1-3.5-7.19 €4.12
5
 photo_cameraImage coming soon 324528 BALL HOLDER €7.34
6
 photo_cameraImage coming soon 374435 HOLDER PLATE €1.33
7
 photo_cameraImage coming soon 322812 Spring Gate Punta €2.05
8
 photo_cameraImage coming soon 376588 GEAR CASE €16.85
12
 photo_cameraImage coming soon 944274 washer Dh22pg €2.02
13
 photo_cameraImage coming soon 376743 SPRING (A) €1.27
14
 photo_cameraImage coming soon 376676 SECOND GEAR €9.70
15
 Stopper for Hammers Hitachi DH14DSL 327875 Stopper for Hammers Hitachi DH14DSL €4.04
16
 photo_cameraImage coming soon 889495 O-RING (1AP-10) *SEE HTR889495 €1.27
17
 photo_cameraImage coming soon 376334 CHANGE LEVER €1.27
19
 Steel Ball 7 mm for Hammers Hitachi 959156 Steel Ball 7 mm for Hammers Hitachi €3.48
20
 photo_cameraImage coming soon 376335 CYLINDER €19.23
21
 O-RING (B) for Rotary Hammer Hitachi DH20PB 301672 O-RING (B) for Rotary Hammer Hitachi DH20PB €1.13
22
 photo_cameraImage coming soon 376336 SECOND HAMMER €1.77
23
 photo_cameraImage coming soon 311814 O-Ring Dh14/18dl €2.02
24
 photo_cameraImage coming soon 376337 HAMMER HOLDER €1.79
25
 photo_cameraImage coming soon 376673 STOPPER RING €2.21
26
 photo_cameraImage coming soon 376339 DAMPER €1.27
27
 photo_cameraImage coming soon 376340 THRUST WASHER (A) €1.27
28
 photo_cameraImage coming soon 376674 THRUST WASHER (B) €1.27
29
 photo_cameraImage coming soon 376327 376327 PLATE €1.27
30
 photo_cameraImage coming soon 306976 Spring (B) Dh14/18dl €6.09
31
 photo_cameraImage coming soon 376325 STRIKER €3.32
32
 photo_cameraImage coming soon 306326 O-Ring (A) Dh14/18dl €4.74
33
 photo_cameraImage coming soon 376326 PISTON €6.66
34
 photo_cameraImage coming soon 325583 O-RING (I.D. D61) €2.55
35
 photo_cameraImage coming soon 376590 INNER COVER €10.66
36
 photo_cameraImage coming soon 306322 Piston pin Dh14/18dl €6.77
38
 photo_cameraImage coming soon 376591 SECOND SHAFT €6.79
39
 photo_cameraImage coming soon 376593 CLUTCH €4.20
40
 photo_cameraImage coming soon 325585 Bearing Articulated Dh14/18dl €40.66
41
 photo_cameraImage coming soon 306320 Needle Bearing For Dh14/18dl €8.13
43
 photo_cameraImage coming soon 995634 Washer (B) D12.5 €1.74
44
 photo_cameraImage coming soon 626VVM BALL BEARING 626VVC2PS2L €5.14
45
 photo_cameraImage coming soon 334008 AIR CAP €1.60
46
 photo_cameraImage coming soon 376789 FELT PACKING (D) €1.28
47
 photo_cameraImage coming soon 878609 O-Ring S-24 €2.02
48
 photo_cameraImage coming soon 306312 flange Dh22pg €2.70
49
 photo_cameraImage coming soon 609DDC Ball Bearing 609ddc3ps2-L €12.80
50
 photo_cameraImage coming soon 376788 DUST WASHER €1.28
51
 photo_cameraImage coming soon 376667 ROTOR ASS'Y (A) INCLUD.48-50.52.53 €32.89
52
 photo_cameraImage coming soon 376332 DUST WASHER (B) €1.27
53
 photo_cameraImage coming soon 333826 BALL BEARING 625DD €7.39
54
 photo_cameraImage coming soon 376665 HOUSING SET A+B €14.43
55
 Pusching Button for Drills Hitachi DV16-18V-DV20VB2 322853 Pusching Button for Drills Hitachi DV16-18V-DV20VB2 €2.78
56
 photo_cameraImage coming soon 376670 SWITCH €21.47
57
 photo_cameraImage coming soon 373041 REAR BUMPER €1.40
58
 photo_cameraImage coming soon 376669 WIRING €130.37
59
 photo_cameraImage coming soon 376746 BATTERY RUBBER €1.28
502
 photo_cameraImage coming soon 324548 Lateral grip €17.67
503
 photo_cameraImage coming soon 329897 BATTERY PROTECTION €2.20
504
 photo_cameraImage coming soon 303709 delimiter Depth €1.75
505
 photo_cameraImage coming soon 402545 CASE ASS'Y (STACKABLE 2) €64.34
507
 photo_cameraImage coming soon 336473 HANDLE FOR EUROPE.RUS €6.68
509
 photo_cameraImage coming soon 376671 INNER TRAY €13.44
601
 photo_cameraImage coming soon 752098 HAMMER DRILL CHUCK SET 13MM INCLUD.602,603 €99.90
602
 photo_cameraImage coming soon 752053 CHUCK HANDLE €5.57
604
 photo_cameraImage coming soon 752097 DRILL CHUCK AND ADAPTER SET INCLUD.605,606 €48.09
605
 photo_cameraImage coming soon 744085 CHUCK ADAPTER (G) (SDS PLUS) €14.08
606
 photo_cameraImage coming soon 752058 DRILL CHUCK 13VLRB-D INCLUD.607,608 €30.83
608
 photo_cameraImage coming soon 987576 Chuck Wrench For 13vlb HTA100106 €7.99
609
 photo_cameraImage coming soon 971787 DUST CUP €6.85
610
 photo_cameraImage coming soon 335724 HOOK €9.50
611
 photo_cameraImage coming soon 337357 TRUSS HD. SCREW M4 (BLACK) €1.27
612
 photo_cameraImage coming soon 335782 GREASE FOR ROTARY HAMMER (60G) €18.17
613
 photo_cameraImage coming soon 335781 GREASE FOR ROTARY HAMMER (500G) €78.63
615
 photo_cameraImage coming soon 306885 DUST COLLECTOR (B) ASS'Y €39.43
617
 photo_cameraImage coming soon 752056 DRILL CHUCK 13VLD-D INCLUD.602 €30.83
619
 photo_cameraImage coming soon 971512Z DRIVER BIT (A) NO.3 25L €7.10

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hikoki Spare Parts for Cordless Hammer DH18DPB

Hitachi-HIKOKI Original spare parts sourced directly from the manufacturer, with after-sales assistance at the best price on the web for to repair Brushless Cordless Rotary Hammer DH18DPB.

Fix Your Brushless Rotary Hammer DH18DPB Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Hammer and their spare part.
Hikoki DH18DPB

Hikoki DH18DPB Brushless Cordless Rotary Hammer Spare Parts
# Part Num. Description
1 306345 FRONT CAP
2 306340 STOPPER RING
3 376338 GRIP
4 376603 GRIP SET INCLUD.1-3.5-7.19
5 324528 BALL HOLDER DH24PB3-PC3-DVA
6 374435 HOLDER PLATE
7 322812 HOLDER SPRING
8 376588 GEAR CASE
11 965469 RETAINING RING FOR D25 SHAFT
12 944274 WASHER DH22PG
13 376743 SPRING (A)
14 376676 SECOND GEAR
15 327875 STOPPER DH14/18DL
16 889495 O-RING (1AP-10) *SEE HTR889495
17 376334 CHANGE LEVER
19 959156 STEEL BALLS D7.0 (10PCS)
20 376335 CYLINDER
21 301672 O-RING (B)
22 376336 SECOND HAMMER
23 311814 O-RING (P-15) DH14/18DL
24 376337 HAMMER HOLDER
25 376673 STOPPER RING
26 376339 DAMPER
27 376340 THRUST WASHER (A)
28 376674 THRUST WASHER (B)
29 376327 376327 PLATE
30 306976 SPRING (B)
31 376325 STRIKER
32 306326 O-RING (A) DH14/18DL
33 376326 PISTON
34 325583 O-RING DH14/18DL
35 376590 INNER COVER
36 306322 PISTON PIN DH14/18DL
37 328660 WASHER DH22PG
38 376591 SECOND SHAFT
39 376593 CLUTCH
40 325585 RECIPROCATING BEARING
41 306320 NEEDLE CAGE
42 376687 FIRST GEAR
43 995634 WASHER (B) D12.5
44 626VVM BALL BEARING 626VVM
45 334008 AIR CAP
46 376789 FELT PACKING (D)
47 878609 O-RING S-24
48 306312 FRINGER DH22PG
49 609DDC BALL BEARING 609DDC3PS2-L
50 376788 DUST WASHER
51 376667 ROTOR ASS'Y (A) INCLUD.48-50.52.53
52 376332 DUST WASHER (B)
53 333826 BALL BEARING 625DD
54 376665 HOUSING SET A+B
55 322853 PUSHING BUTTON
56 376670 SWITCH
57 373041 REAR BUMPER
58 376669 WIRING
59 376746 BATTERY RUBBER
502 324548 SIDE HANDLE DH24PB3/PC3
503 329897 BATTERY COVER
504 303709 DEPTH GAUGE
505 402545 CASE ASSY STACKABLE 2 INCLUD.506-508
506 336472 LATCH
507 336473 HANDLE
508 336474 HINGE
509 376671 INNER TRAY
OPTIONAL ACCESSORIES
601 752098 HAMMER DRILL CHUCK SET 13MM INCLUD.602,603
602 752053 CHUCK HANDLE
603 303335 RUBBER CAP
604 752097 DRILL CHUCK AND ADAPTER SET INCLUD.605,606
605 744085 CHUCK ADAPTER (G) (SDS PLUS)
606 752058 DRILL CHUCK 13VLRB-D INCLUD.607,608
607 331966 FLAT HD. SCREW (LEFT HAND) M6X20
608 987576 CHUCK WRENCH FOR 13VLB-D,13VLR-D
609 971787 DUST CUP
610 335724 HOOK
611 337357 TRUSS HD. SCREW M4 (BLACK)
612 335782 GREASE FOR ROTARY HAMMER (60G)
613 335781 GREASE FOR ROTARY HAMMER (500G)
614 376690 GREASE FOR CORDLESS ROTARY HAMMER (50G)
615 306885 DUST COLLECTOR (B) ASS'Y INCLUD.616
616 306910 SOCKET ADAPTER (B)
617 752056 DRILL CHUCK 13VLD-D INCLUD.602
618 971511Z + DRIVER BIT (A) NO.2 25L
619 971512Z + DRIVER BIT (A) NO.3 25L

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hikoki DH18DPB
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Hikoki DH18DPB Drawing

Hikoki DH18DPB Drawing

Download (354.95KB)

You might also like

Piston for Hammers Hitachi DH14-18DL-22PG Sale
HiKOKI Power Tools Italia S.p.a. SKU: 306324
Piston for Hammers Hitachi DH14-18DL-22PG
Piston for Hammers Hitachi DH14-18DL-22PG Genuine parts for Hitachi Hammers model DH 14DL - DH 18DL - DH 22PG. For the following items: - Hammer DH 14DL - Hammer DH 18DL - Hammer DH 22PG - Code: 306324
Last items in stock €18.00
Details
Steel Ball 7 mm for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 959156
Steel Ball 7 mm for Hammers Hitachi
Steel Ball 7 mm for Hammers Hitachi Hitachi genuine parts, steel ball diameter MM 7, Box 10 Pcs for Demolition hammers and Drills Hammers, DH14DSL - DH18PB - DH18DSL - DH25DL - DH25DAL - DH36DL - DH36DAL - H25PV - DH28PD - DH30PC2....
AVAILABLE €3.48
Details
Second Gear for Hammers Hitachi DH18PB Sale
HiKOKI Power Tools Italia S.p.a. SKU: 306333
Second Gear for Hammers Hitachi DH18PB
Second Gear for Hammers Hitachi DH18PB Genuine parts Hitachi, Second Gear for Hammers model DH 14 - DH14DSL - DH18DL - DH 22 PG -  DH18PB. Part for the following items: - Drill Hammer DH 14 - Cordless Hammer DH14DSL - Drill Hammer...
AVAILABLE €27.77
Details
Thrust Plate for Hammers Hitachi DH18PB Sale
HiKOKI Power Tools Italia S.p.a. SKU: 325588
Thrust Plate for Hammers Hitachi DH18PB
Thrust Plate for Hammers Hitachi DH18PB Genuine parts Hitachi, Thrust Plate for Hammers model DH 14 - DH14DSL - DH18DL - DH 22 PG - DH18PB. For the following items: - Drill Hammer DH 14 - Cordless Hammer DH14DSL - Drill Hammer DH18DL...
AVAILABLE €8.23
Details
Stopper for Hammers Hitachi DH14DSL
HiKOKI Power Tools Italia S.p.a. SKU: 327875
Stopper for Hammers Hitachi DH14DSL
Stopper for Hammers Hitachi DH14DSL Genuine parts Hitachi, Stopper for Hammers model DH 14 - DH14DSL - DH18DL - DH 22 PG - DH18PB. For the following items: - Drill Hammer DH 14 - Cordless Hammer DH14DSL - Drill Hammer DH18DL - Drill...
AVAILABLE €4.04
Details
Stopper Ring for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 306340
Stopper Ring for Hammers Hitachi
Stopper Ring for Hammers Hitachi Genuine parts Hitachi, Stopper Ring for Hammers Hitachi. For the following items: - Hammer DH 28 PCY - Hammer DH 26PC - Hammer DH 24PG
AVAILABLE €2.08
Details
Front Cap for Rotary Hammers Hitachi DH22/28
HiKOKI Power Tools Italia S.p.a. SKU: 306345
Front Cap for Rotary Hammers Hitachi DH22/28
Front Cap for Rotary Hammers Hitachi DH22/28 Genuine part HITACHI, Front Cap for Rotary Hammers DH22PG - DH24PG - DH26PC - DH28PCY - DH14DSL - DH18DSL - DH25DL - DH25DAL - DH36DL - DH36DAL - DH28PD - DH24PB3 - DH28PC - DH28PFY.
Last items in stock €4.18
Details
Brushes Cap for Demolition Hammers Hitachi DH14DL
HiKOKI Power Tools Italia S.p.a. SKU: 319847
Brushes Cap for Demolition Hammers Hitachi DH14DL
Brushes Cap for Demolition Hammers Hitachi DH14DL Genuine part Hitachi, Brushes Cap for Hammers Hitachi DH14DL - DH14DSL - DH18DL - DH18DSL - DV24DV - CR18DL - CR18DSL - CR24DV - WR18DHL - WR18DSHL.  Part for the following items: -...
AVAILABLE €2.78
Details
Carbon Brushes for Demolition Hammer Hitachi DH14DSL
HiKOKI Power Tools Italia S.p.a. SKU: 999100
Carbon Brushes for Demolition Hammer Hitachi DH14DSL
Carbon Brushes for Demolition Hammer Hitachi DH14DSL Genuine Spare Parts Hitachi, Carbon Brushe set for Demolition Hammer  DH14DL - DH14DSL - DH18DL - DH18DSL - WR18DHL - WR18DSHL....
AVAILABLE €9.62
Details
Carbon Brushes Holder for Hammers Hitachi DH14-18DL - DSL
HiKOKI Power Tools Italia S.p.a. SKU: 328486
Carbon Brushes Holder for Hammers Hitachi DH14-18DL - DSL
Carbon Brushes Holder for Hammers Hitachi DH14-18DL - DSL Genuine parts Hitachi, Carbon Brushes Holder for Hammers model DH 14DL - DH 18DL - DH 14DSL - DH 18 DSL. For the following items: -  Hammer DH 14DL - DSL...
AVAILABLE €22.19
Details
Armature for Cordless Hammers Hitachi DH18DL - DH18DSL
HiKOKI Power Tools Italia S.p.a. SKU: 360809
Armature for Cordless Hammers Hitachi DH18DL - DH18DSL
Armature for Cordless Hammers Hitachi DH18DL - DH18DSL Genuine parts Hitachi, Armature for Cordless Hammers DH18DL - DH18DSL Part for the following items: - Cordless Hammer Hitachi DH18DL -  Cordless Hammer Hitachi DH18DSL - Code:...
Last items in stock €72.45
Details
Comments (0)
