HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Rotary Hammer DH36PDA

SKU: HIKOKI Hitachi DH36PDA
€4.18
VAT included

Hitachi Spare Parts for Cordless Rotary Hammer DH36PDA

Hitachi Koky genuine spare parts or replacement parts for to repair Cordless Rotary Hammer DH36PDA.
Hitachi Spare Parts for Cordless Rotary Hammer DH36PDA
  • Hitachi Spare Parts for Cordless Rotary Hammer DH36PDA
  • Hitachi Spare Parts for Cordless Rotary Hammer DH36PDA - Drawing
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Rotary Hammer DH36PDA

SKU: HIKOKI Hitachi DH36PDA Condition: New
€4.18
VAT included

Hitachi Spare Parts for Cordless Rotary Hammer DH36PDA

Hitachi Koky genuine spare parts or replacement parts for to repair Cordless Rotary Hammer DH36PDA.
settings 78 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
78 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

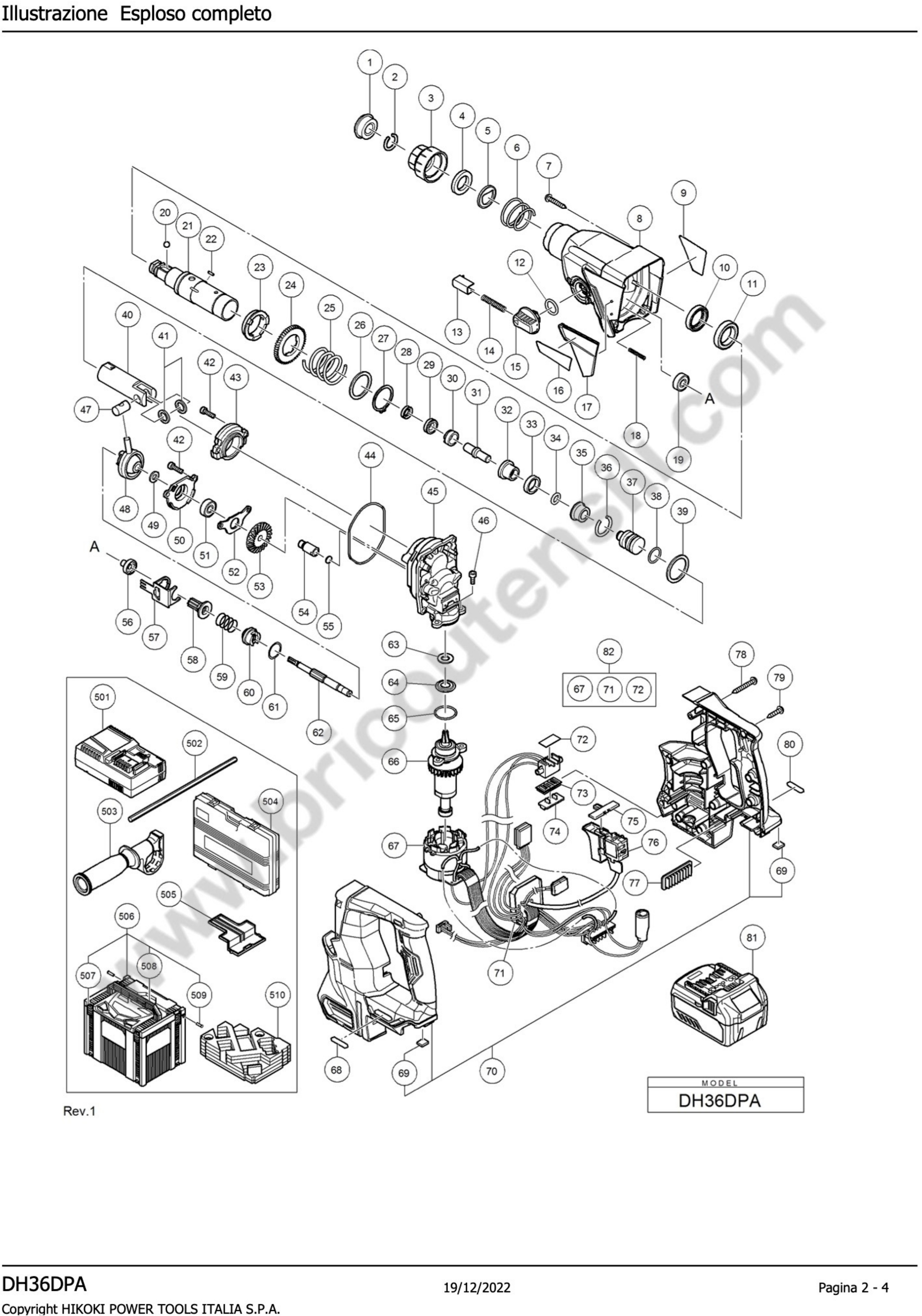

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Front Cap for Rotary Hammers Hitachi DH22/28 306345 Front Cap for Rotary Hammers Hitachi DH22/28 €4.18
2
 Stopper Ring for Hammers Hitachi 306340 Stopper Ring for Hammers Hitachi €2.08
3
 photo_cameraImage coming soon 324527 GRIP €3.78
4
 photo_cameraImage coming soon 371326 BALL HOLDER (FW) €13.19
5
 photo_cameraImage coming soon 324526 Support Thrust Dh24dva €1.46
6
 photo_cameraImage coming soon 322812 Spring Gate Punta €2.05
8
 photo_cameraImage coming soon 370306 GEAR COVER ASS'Y €34.52
10
 photo_cameraImage coming soon 335259 OIL SEAL €4.06
11
 photo_cameraImage coming soon 335260 BALL BEARING 6805DD €4.66
12
 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 878885 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 €1.34
13
 photo_cameraImage coming soon 322789 BACK PANEL €5.86
14
 photo_cameraImage coming soon 317223 PUSHING SPRING €2.22
15
 photo_cameraImage coming soon 334011 CHANGE LEVER €3.12
17
 photo_cameraImage coming soon 370308 BRAND PLATE €3.08
19
 photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
20
 Steel Ball 7 mm for Hammers Hitachi DH24-26-28 335300 Steel Ball 7 mm for Hammers Hitachi DH24-26-28 €3.48
21
 Cylinder for Rotary Hammer Hitachi DH24PG 335261 Cylinder for Rotary Hammer Hitachi DH24PG €30.57
23
 Cylinder Clutch for Rotative Hammer Hitachi DH26PB 335263 Cylinder Clutch for Rotative Hammer Hitachi DH26PB €17.55
24
 photo_cameraImage coming soon 335265 SECOND GEAR €8.91
25
 photo_cameraImage coming soon 335266 PROTECTION L3709-125 HEADSET €11.19
26
 photo_cameraImage coming soon 301679 WASHER (A) €2.18
27
 photo_cameraImage coming soon 948310 RETAINING RING FOR D30 SHAFT €1.71
28
 Oil Seal mm 9,5x16x4 for Rotary Hammer Hitachi DH24PG 335262 Oil Seal mm 9,5x16x4 for Rotary Hammer Hitachi DH24PG €2.63
29
 photo_cameraImage coming soon 335268 HAMMER HOLDER (C) €13.24
30
 photo_cameraImage coming soon 335795 SLEEVE (FW) €5.85
31
 photo_cameraImage coming soon 335269 SECOND HAMMER €5.48
32
 photo_cameraImage coming soon 335267 HAMMER HOLDER (A) €4.17
33
 photo_cameraImage coming soon 322805 DAMPER (A) €2.05
34
 photo_cameraImage coming soon 322808 O-RING (C) €2.02
35
 photo_cameraImage coming soon 324524 DAMPER HOLDER €7.80
36
 photo_cameraImage coming soon 322807 STOPPER RING €2.05
37
 photo_cameraImage coming soon 372815 STRIKER €6.08
38
 photo_cameraImage coming soon 372816 0-RING €4.10
39
 photo_cameraImage coming soon 301679 WASHER (A) €2.18
40
 photo_cameraImage coming soon 372817 PISTON €13.51
41
 photo_cameraImage coming soon 335794 PISTON WASHER €1.66
43
 photo_cameraImage coming soon 370309 INNER COVER (B) €7.20
44
 photo_cameraImage coming soon 370310 0-RING €7.63
45
 photo_cameraImage coming soon 370311 INNER COVER (A) €23.38
47
 photo_cameraImage coming soon 335793 PISTON PIN €4.62
48
 photo_cameraImage coming soon 335249 RECIPROCATING BEARING €19.44
50
 photo_cameraImage coming soon 370312 O-Ring DH 5 SDS-max €21.37
51
 photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
52
 photo_cameraImage coming soon 370313 BEARING COVER (A) €2.19
53
 photo_cameraImage coming soon 370314 BEVEL GEAR (A) €27.22
54
 photo_cameraImage coming soon 334008 AIR CAP €1.60
55
 photo_cameraImage coming soon 324543 In Dh24pb3 Felt Gasket-Pc3 €2.05
56
 Pinion Sleeve for Hammers Hitachi DH28PCY 335275 Pinion Sleeve for Hammers Hitachi DH28PCY €9.62
57
 Pinion Lock Plate for Hammers Hitachi DH28PCY 335276 Pinion Lock Plate for Hammers Hitachi DH28PCY €19.40
58
 Second Pinion for Hammers Hitachi DH28PCY 335278 Second Pinion for Hammers Hitachi DH28PCY €16.60
59
 photo_cameraImage coming soon 323182 CLUTCH SPRING €2.05
60
 photo_cameraImage coming soon 335254 CLUTCH €5.44
61
 photo_cameraImage coming soon 331315 WASHER €1.62
62
 photo_cameraImage coming soon 335277 SECOND SHAFT €9.15
63
 photo_cameraImage coming soon 370315 FELT PACKING €1.29
64
 photo_cameraImage coming soon 370316 PACKING WASHER €1.29
65
 photo_cameraImage coming soon 872470 O-RING (S-26) €2.09
66
 photo_cameraImage coming soon 361072 ROTOR (B) €85.12
67
 photo_cameraImage coming soon 340981 STATOR €13.15
69
 photo_cameraImage coming soon 370321 DAMPER (A) €1.27
70
 photo_cameraImage coming soon 376794 HOUSING (A).(B) SET INCLUD.69 €29.91
71
 photo_cameraImage coming soon 372867 SWITCH CONTROLLER ASS'Y INCLUD.76 €157.56
72
 photo_cameraImage coming soon 370327 RUBBER CUSHION €2.77
73
 photo_cameraImage coming soon 370545 TERMINAL RUBBER BASE €1.29
74
 photo_cameraImage coming soon 371715 TERMINAL COVER €1.29
75
 photo_cameraImage coming soon 324225 PUSHING BUTTON (B) €1.63
76
 photo_cameraImage coming soon 370322 DC-SPEED CONTROL SWITCH €31.01
77
 photo_cameraImage coming soon 370328 BATTERY RUBBER (B) €2.65
82
 photo_cameraImage coming soon 372867 SWITCH CONTROLLER ASS'Y INCLUD.76 €157.56
503
 photo_cameraImage coming soon 335273 SIDE HANDLE €11.47
504
 photo_cameraImage coming soon 373134 CASE €88.95
506
 photo_cameraImage coming soon 402541 CASE ASS'Y (STACKABLE 4) INCLUD.507-509 €108.25
508
 photo_cameraImage coming soon 336473 HANDLE FOR EUROPE.RUS €6.68
510
 photo_cameraImage coming soon 376002 BOTTOM CUSHION €61.04
605
 photo_cameraImage coming soon 303623 CHUCK ADAPTER (G) (SDS PLUS) €14.07
608
 photo_cameraImage coming soon 987576 Chuck Wrench For 13vlb HTA100106 €7.99
610
 photo_cameraImage coming soon 971787 DUST CUP €6.85
617
 photo_cameraImage coming soon 306885 DUST COLLECTOR (B) ASS'Y €39.43
621
 photo_cameraImage coming soon 335782 GREASE FOR ROTARY HAMMER (60G) €18.17
622
 photo_cameraImage coming soon 335781 GREASE FOR ROTARY HAMMER (500G) €78.63
623
 photo_cameraImage coming soon 402933 DUST EXTRACTOR €286.93

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Cordless Rotary Hammer DH36PDA

Hitachi Koky genuine spare parts or replacement parts for to repair Cordless Rotary Hammer DH36PDA.

In the following table, look for the model of the Cordless Hammer and the respective parts of the code.
Hitachi DH36PDA

HIKOKI CORDLESS ROTARY HAMMER Model DH36DPA
# Part Num. Description
1 306345 FRONT CAP
2 306340 STOPPER RING
3 324527 GRIP
4 371326 BALL HOLDER (FW)
5 324526 HOLDER PLATE
6 322812 HOLDER SPRING
8 370306 GEAR COVER ASS'Y INCLUD.10,11,19
10 335259 OIL SEAL
11 335260 BALL BEARING 6805DD
12 878885 O-RING (S-18)
13 322789 PUSHING BUTTON
14 317223 PUSHING SPRING
15 334011 CHANGE LEVER
17 370308 BRAND PLATE
18 335800 SPRING (E)
19 608VVM BALL BEARING 608VVC2PS2L
20 335300 STEEL BALL D7.0 (10 PCS.)
21 335261 CYLINDER
22 335264 PIN D2.5
23 335263 CYLINDER CLUTCH
24 335265 SECOND GEAR
25 335266 SPRING (A)
26 301679 WASHER (A)
27 948310 RETAINING RING FOR D30 SHAFT
28 335262 OIL SEAL (A)
29 335268 HAMMER HOLDER (C)
30 335795 SLEEVE (FW)
31 335269 SECOND HAMMER
32 335267 HAMMER HOLDER (A)
33 322805 DAMPER (A)
34 322808 O-RING (C)
35 324524 DAMPER HOLDER
36 322807 STOPPER RING
37 372815 STRIKER
38 372816 O-RING
39 301679 WASHER (A)
40 372817 PISTON
41 335794 PISTON WASHER
43 370309 INNER COVER (B) INCLUD.54,55,63-65
44 370310 O-RING
45 370311 INNER COVER (A)
47 335793 PISTON PIN
48 335249 RECIPROCATING BEARING
49 335250 BEARING WASHER
50 370312 BEARING HOLDER (B)
51 608VVM BALL BEARING 608VVC2PS2L
52 370313 BEARING COVER (A)
53 370314 BEVEL GEAR (A)
54 334008 AIR CAP
55 324543 FELT PACKING (A)
56 335275 PINION SLEEVE
57 335276 LOCK PLATE
58 335278 SECOND PINION
59 323182 CLUTCH SPRING
60 335254 CLUTCH
61 331315 WASHER
62 335277 SECOND SHAFT
63 370315 FELT PACKING
64 370316 PACKING WASHER
65 872470 O-RING (S-26)
66 361072 ROTOR (B)
67 340981 STATOR
69 370321 DAMPER (A)
70 376794 HOUSING (A).(B) SET INCLUD.69
71 372867 SWITCH CONTROLLER ASS'Y INCLUD.76
72 370327 RUBBER CUSHION
73 370545 TERMINAL RUBBER BASE
74 371715 TERMINAL COVER
75 324225 PUSHING BUTTON (B)
76 370322 DC-SPEED CONTROL SWITCH
77 370328 BUTTERY RUBBER (B)
82 372867 WIRING ASS'Y INCLUD.67,71,72
503 335273 DEPTH GAUGE
504 373134 CASE
506 402541 CASE ASS'Y (STACKABLE 4) INCLUD.507-509
507 336472 LATCH
508 336473 HANDLE
509 336474 HINGE
510 376002 BOTTOM CUSHION
605 303623 CHUCK ADAPTER (G) (SDS PLUS)
608 987576 CHUCK WRENCH FOR 13VLB-D,13VLR-D
610 971787 DUST CUP
617 306885 DUST COLLECTOR (B) ASS'Y INCLUD.618
621 335782 GREASE FOR ROTARY HAMMER (60G)
622 335781 GREASE FOR ROTARY HAMMER (500G)
623 402933 DUST EXTRACTOR

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
HIKOKI Hitachi DH36PDA
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Hitachi DH36PDA

Drawing Hitachi DH36PDA

Download (416.66KB)

You might also like

Piston for Hammers Hitachi DH24-26-28PC
HiKOKI Power Tools Italia S.p.a. SKU: 335255
Piston for Hammers Hitachi DH24-26-28PC
Piston for Rotary Hammers Hitachi DH24-26-28PC Genuine replacement part Hitachi Koky, Piston for Rotary Hammers model DH24PC-DH26PC-DH28PCY-DH28PC. Part for the following items: - Hammer DH 24PG - Hammer DH 26PC - Hammer DH 28 PCY -...
AVAILABLE €23.72
Details
Steel Ball 7 mm for Hammers Hitachi DH24-26-28
HiKOKI Power Tools Italia S.p.a. SKU: 335300
Steel Ball 7 mm for Hammers Hitachi DH24-26-28
Steel Ball 7 mm for Hammers Hitachi DH24-26-28 Hitachi genuine parts, steel ball diameter MM 7, Box 10 Pcs for Demolition hammers and Drills Hammers, DH 24PG - 26PC DH - DH 28PCY - DH28PC. Suitable for the following items: - Drill...
AVAILABLE €3.48
Details
Second Pinion for Hammers Hitachi DH28PC - Drawing
HiKOKI Power Tools Italia S.p.a. SKU: 335278
Second Pinion for Hammers Hitachi DH28PCY
Second Pinion for Hammers Hitachi DH28PCY Genuine parts Hitachi, Second Pinion for Hammers model Electropneumatic Hammer 3.5 Joule - 3.5Kg DH28PCY. For the following items: - Electropneumatic Hammer DH26PC - Electropneumatic Hammer DH...
AVAILABLE €16.60
Details
Pinion Sleeve for Hammers Hitachi DH28PC
HiKOKI Power Tools Italia S.p.a. SKU: 335275
Pinion Sleeve for Hammers Hitachi DH28PCY
Pinion Sleeve for Hammers Hitachi DH28PCY Genuine parts Hitachi, Pinion Sleeve for Hammers model Electropneumatic Hammer 3.5 Joule - 3.5Kg DH28PCY. Part for the following items: - Electropneumatic Hammer DH26PC - Electropneumatic...
AVAILABLE €9.62
Details
Pinion Lock Plate for Hammers Hitachi DH28PC
HiKOKI Power Tools Italia S.p.a. SKU: 335276
Pinion Lock Plate for Hammers Hitachi DH28PCY
Pinion Lock Plate for Hammers Hitachi DH28PCY Genuine parts Hitachi, Pinion Lock Plate for Hammers model Electropneumatic Hammer 3.5 Joule - 3.5Kg DH28PCY For the following items: - Electropneumatic Hammer DH26PC - Electropneumatic...
Last items in stock €19.40
Details
Stopper Ring for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 306340
Stopper Ring for Hammers Hitachi
Stopper Ring for Hammers Hitachi Genuine parts Hitachi, Stopper Ring for Hammers Hitachi. For the following items: - Hammer DH 28 PCY - Hammer DH 26PC - Hammer DH 24PG
AVAILABLE €2.08
Details
Front Cap for Rotary Hammers Hitachi DH22/28
HiKOKI Power Tools Italia S.p.a. SKU: 306345
Front Cap for Rotary Hammers Hitachi DH22/28
Front Cap for Rotary Hammers Hitachi DH22/28 Genuine part HITACHI, Front Cap for Rotary Hammers DH22PG - DH24PG - DH26PC - DH28PCY - DH14DSL - DH18DSL - DH25DL - DH25DAL - DH36DL - DH36DAL - DH28PD - DH24PB3 - DH28PC - DH28PFY.
Last items in stock €4.18
Details
O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3
HiKOKI Power Tools Italia S.p.a. SKU: 878885
O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3
O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 Hitachi genuine parts, O-Ring S-18 for Rotary Hammers DH24PC3 - DH24PD3 - DH24PB3 - DH24PG - DH24PH - DH36DAL - DH36DL - DH24DVA Part for the following products: - ROTARY HAMMER...
AVAILABLE €1.34
Details
Cylinder Clutch for Rotative Hammer Hitachi DH26PB
HiKOKI Power Tools Italia S.p.a. SKU: 335263
Cylinder Clutch for Rotative Hammer Hitachi DH26PB
Cylinder Clutch for Rotary Hammer Hitachi DH26PB Genuine Spare Part Hitachi, Cylinder Clutch for Rotary Hammers DH26PB - DH18DBL - DH24PG - DH24PH - DH24PB - DH24PC - DH24PBY - DH24PCY - DH24PMY - DH28PMY. Part for the following...
AVAILABLE €17.55
Details
Cylinder for Rotary Hammer Hitachi DH24PG
HiKOKI Power Tools Italia S.p.a. SKU: 335261
Cylinder for Rotary Hammer Hitachi DH24PG
Cylinder for Rotary Hammer Hitachi DH24PG Original spare part Hitachi, Cylinder for Rotary Hammers DH24PG - DH24PH - DH26PB - DH26PC - DH28PBY - DH28PCY - DH18DBL - DH36DBL...
Usually Ships in: 7/10 Business Days Approx. €30.57
Details
Comments (0)
