HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Impact Driver WH18DBEL

SKU: Hitachi WH18DBEL
€1.66
VAT included

Hitachi Spare Parts for Cordless Impact Driver WH18DBEL

Hitachi HIKOKI genuine spare parts or replacement parts for to repair WH18DBEL Cordless Impact Driver.
Hitachi Spare Parts for Cordless Impact Driver WH18DBEL
  • Hitachi Spare Parts for Cordless Impact Driver WH18DBEL
  • Hitachi Spare Parts for Cordless Impact Driver WH18DBEL - Drawing
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Impact Driver WH18DBEL

SKU: Hitachi WH18DBEL Condition: New
€1.66
VAT included

Hitachi Spare Parts for Cordless Impact Driver WH18DBEL

Hitachi HIKOKI genuine spare parts or replacement parts for to repair WH18DBEL Cordless Impact Driver.
settings 40 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
40 spare parts

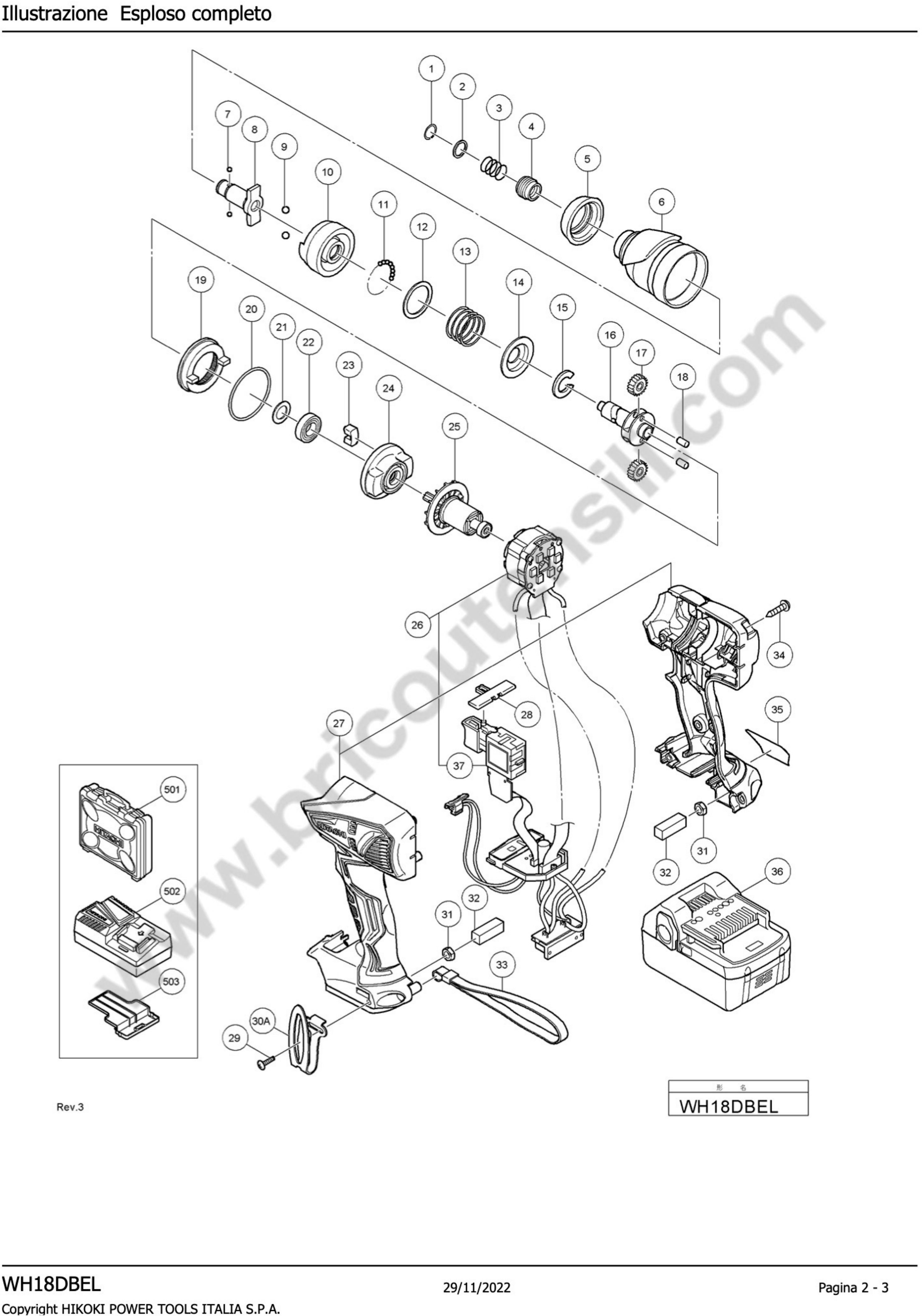

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 330619 RETAINING RING €1.53
2
 photo_cameraImage coming soon 330856 WASHER D €2.51
3
 photo_cameraImage coming soon 331284 Guide Spring (D) €1.47
4
 photo_cameraImage coming soon 322717 GUIDE SLEEVE (D) €4.47
5
 photo_cameraImage coming soon 335907 FRONT CAP €1.63
6
 photo_cameraImage coming soon 335908 HAMMER CASE €19.43
7
 photo_cameraImage coming soon 319535 BALLS D3.5 (10 PCS.) €2.55
8
 photo_cameraImage coming soon 335910 ANVIL (F) €13.44
9
 Steel Ball D5.556 for Impact Driver Hitachi WH10DFL 959154 Steel Ball D5.556 for Impact Driver Hitachi WH10DFL €1.84
10
 photo_cameraImage coming soon 335911 HAMMER © €14.97
11
 photo_cameraImage coming soon 959148 STEEL BALL D3.175 €1.35
12
 photo_cameraImage coming soon 315978 WASHER (J) €2.27
13
 photo_cameraImage coming soon 331285 HAMMER SPRING (D) €2.65
14
 photo_cameraImage coming soon 316172 R502FR HOLDER €2.27
15
 photo_cameraImage coming soon 316171 Stopper €6.54
16
 photo_cameraImage coming soon 335912 SPINDLE (E) €17.15
17
 photo_cameraImage coming soon 326295 Idle Gear Set (2 Pcs.) €25.09
18
 photo_cameraImage coming soon 319914 Needle Roller €2.31
19
 photo_cameraImage coming soon 330657 Ring Gear €4.84
20
 photo_cameraImage coming soon 983852 O-RING (S-42) €2.54
21
 photo_cameraImage coming soon 319911 Washer (E) €2.23
22
 photo_cameraImage coming soon 6901VV BALL BEARING 6901VVCMPS2L €12.93
23
 photo_cameraImage coming soon 324230 Damper (A) €1.62
24
 photo_cameraImage coming soon 336240 INNER COVER €1.70
25
 photo_cameraImage coming soon 335913 ROTOR PINION €43.81
26
 photo_cameraImage coming soon 335915 WIRING INCLUD.37 €143.63
27
 photo_cameraImage coming soon 335929 HOUSING (A).(B)SET (GREEN) €25.77
28
 photo_cameraImage coming soon 324225 PUSHING BUTTON (B) €1.63
30A
 photo_cameraImage coming soon 335724 HOOK €9.50
32
 photo_cameraImage coming soon 328644 PACKING €2.55
37
 photo_cameraImage coming soon 335323 DC-SPEED CONTROL SWITCH €22.36
500
 photo_cameraImage coming soon 337852 CASE €59.23
501
 photo_cameraImage coming soon 329897 BATTERY PROTECTION €2.20
503
 photo_cameraImage coming soon 309922 Grease (Attolub Ms No.2) 500g €82.01
504
 photo_cameraImage coming soon 329897 BATTERY PROTECTION €2.20
506
 photo_cameraImage coming soon 309922 Grease (Attolub Ms No.2) 500g €82.01
510
 photo_cameraImage coming soon 985329 NON-MAGNETIC HEX. SOCKET 10MM 65L HIT-985329.A2 €13.07
511
 photo_cameraImage coming soon 996178 NON-MAGNETIC HEX. SOCKET 12MM 65L HIT-996178.A5    €13.07
512
 photo_cameraImage coming soon 996179 NON-MAGNETIC HEX. SOCKET 13MM 65L HIT-996179.A21 €13.07
516
 photo_cameraImage coming soon 996182 NON-MAGNETIC HEX. SOCKET 17MM 65L HIT-996182.A5 €19.79
519
 photo_cameraImage coming soon 987575 CHUCK WRENCH FOR 10VLB-D 1 HIT-987575.A7 €8.38
520
 photo_cameraImage coming soon 930119 Chuck Wrench 6.5g €13.41

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Cordless Impact Driver WH18DBEL

Hitachi HIKOKI genuine spare parts or replacement parts for to repair WH18DBEL Cordless Impact Driver.

In the following table, look for the model of the Cordless Hammer and the respective parts of the code.
Hitachi WH18DBEL
CORDLESS IMPACT DRIVER HITACHI WH18DBEL
# Part Num. Description
1 330619 RETAINING RING WH10DCL
2 330856 WASHER D
3 331284 GUIDE SPRING D
4 322717 GUIDE SLEEVE (D)
5 335907 FRONT CAP
6 335908 HAMMER CASE
7 319535 STEEL BALL D3.5 (10 PCS.)
8 335910 ANVIL (F)
9 959154 STEEL BALL D.5,556(10PZ)
10 335911 HAMMER ©
11 959148 STEEL BALL D.3,175(10PCS)
12 315978 WASHER (J)
13 331285 HAMMER SPRING (D)
14 316172 WASHER (S)
15 316171 STOPPER
16 335912 SPINDLE (E)
17 326295 IDLE GEAR SET (2 PCS.)
18 319914 NEEDLE ROLLER WH12DM
19 330657 RING GEAR
20 983852 O-RING (S-42)
21 319911 WASHER (E)
22 6901VV BALL BEARING 6901VV
23 324230 DAMPER (A) WR14DMR
24 336240 INNER COVER
25 335913 ROTOR PINION
26 335915 WIRING INCLUD.37
27 335929 HOUSING (A).(B)SET (GREEN)
28 324225 PUSHING BUTTON (B) WR18DL
29 327001 TRUSS HD. SCREW M4 (BLACK)
30A 335724 HOOK
32 328644 PACKING
37 335323 DC-SPEED CONTROL SWITCH
500 337852 CASE
501 329897 BATTERY COVER
502 321823 DRILL CHUCK AND ADAPTER SET INCLUD.616
503 309922 GREASE (ATTOLUB MS NO.2) 500G
504 329897 BATTERY COVER HIT-329897.A103
505 321823 DRILL CHUCK AND ADAPTER SET INCLUD.616 HIT-321823.A12
506 309922 GREASE (ATTOLUB MS NO.2) 500G HIT-309922.A5
507 992671 DRIVER BIT (B) NO.2 50L HIT-992671.A0
508 992672 DRIVER BIT (B) NO.3 50L HIT-992672.A30
509 996177 NON-MAGNETIC HEX. SOCKET 8MM 65L HIT-996177.A22
510 985329 NON-MAGNETIC HEX. SOCKET 10MM 65L HIT-985329.A2
511 996178 NON-MAGNETIC HEX. SOCKET 12MM 65L HIT-996178.A5
512 996179 NON-MAGNETIC HEX. SOCKET 13MM 65L HIT-996179.A21
513 996180 NON-MAGNETIC HEX. SOCKET 14MM 65L HIT-996180.A5
514 996185 NON-MAGNETIC HEX. SOCKET 15MM 65L HIT-996185.A2
515 996181 NON-MAGNETIC HEX. SOCKET 16MM 65L HIT-996181.A21
516 996182 NON-MAGNETIC HEX. SOCKET 17MM 65L HIT-996182.A5
517 996186 NON-MAGNETIC HEX. SOCKET 19MM 65L HIT-996186.A16
518 996197 HEX. SOCKET (LONG) 21MMX166L HIT-996197.A3
519 987575 CHUCK WRENCH FOR 10VLB-D 1 HIT-987575.A7
520 930119 CHUCK WRENCH 6.5G HIT-930119.A14
521 307543 CHUCK ADAPTER HIT-307543.A24
522 306927 SILICONE RUBBER HIT-306927.A10
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi WH18DBEL
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Hitachi WH18DBEL

Drawing Hitachi WH18DBEL

Download (316.66KB)
