HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Rotary Hammer Drill DH28PCY2

SKU: Hitachi DH28PCY2
€4.18
VAT included

Hitachi Spare Parts for Rotary Hammer Drill DH28PCY2

Hitachi-HIKOKI Tanaka Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer Drill DH28PCY2.
Hitachi Spare Parts for Rotary Hammer Drill DH28PCY2
  • Hitachi Spare Parts for Rotary Hammer Drill DH28PCY2
  • Hitachi Spare Parts for Rotary Hammer Drill DH28PCY2 - Diagram
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Rotary Hammer Drill DH28PCY2

SKU: Hitachi DH28PCY2 Condition: New
€4.18
VAT included

Hitachi Spare Parts for Rotary Hammer Drill DH28PCY2

Hitachi-HIKOKI Tanaka Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer Drill DH28PCY2.
settings 87 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
84 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

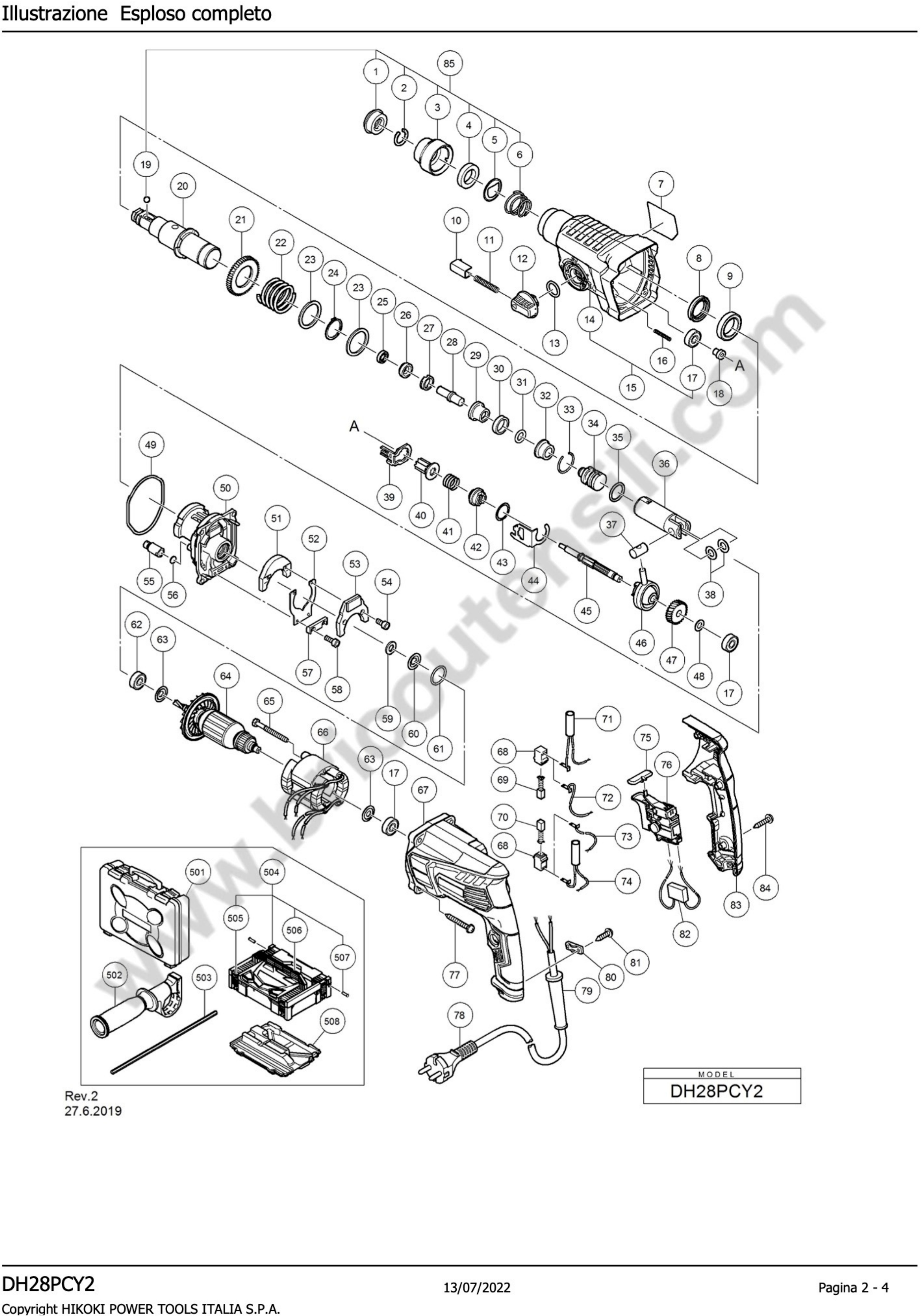

Esploso pagina 1
Pos. Item Price Buy
1
 Front Cap for Rotary Hammers Hitachi DH22/28 306345 Front Cap for Rotary Hammers Hitachi DH22/28 €4.18
2
 Stopper Ring for Hammers Hitachi 306340 Stopper Ring for Hammers Hitachi €2.08
3
 photo_cameraImage coming soon 374436 GRIP €1.33
4
 photo_cameraImage coming soon 374437 BALL HOLDER €2.01
5
 photo_cameraImage coming soon 374435 HOLDER PLATE €1.33
6
 photo_cameraImage coming soon 322812 Spring Gate Punta €2.05
8
 photo_cameraImage coming soon 335259 OIL SEAL €4.06
9
 photo_cameraImage coming soon 6805BB BALL BEARING 6805 €3.32
10
 photo_cameraImage coming soon 322789 BACK PANEL €5.86
11
 photo_cameraImage coming soon 317223 PUSHING SPRING €2.22
12
 photo_cameraImage coming soon 334011 CHANGE LEVER €3.12
13
 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 878885 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 €1.34
14
 photo_cameraImage coming soon 374624 GEAR COVER €17.48
15
 photo_cameraImage coming soon 375018 GEAR COVER INCLUDING 14.17 €17.10
17
 photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
18
 photo_cameraImage coming soon 374422 SHAFT HOLDER (B) €1.33
19
 Steel Ball 7 mm for Hammers Hitachi DH24-26-28 335300 Steel Ball 7 mm for Hammers Hitachi DH24-26-28 €3.48
20
 photo_cameraImage coming soon 374426 CYLINDER €25.36
21
 photo_cameraImage coming soon 335265 SECOND GEAR €8.91
22
 photo_cameraImage coming soon 374430 SPRING (B) €1.68
23
 photo_cameraImage coming soon 301679 WASHER (A) €2.18
24
 photo_cameraImage coming soon 948310 RETAINING RING FOR D30 SHAFT €1.71
25
 Oil Seal mm 9,5x16x4 for Rotary Hammer Hitachi DH24PG 335262 Oil Seal mm 9,5x16x4 for Rotary Hammer Hitachi DH24PG €2.63
26
 photo_cameraImage coming soon 374431 HAMMER HOLDER (B) €1.68
27
 photo_cameraImage coming soon 374427 HOLDER SLEEVE €3.51
28
 photo_cameraImage coming soon 374432 SECOND HAMMER €3.72
29
 photo_cameraImage coming soon 374429 HAMMER HOLDER (A) €3.16
30
 photo_cameraImage coming soon 322805 DAMPER (A) €2.05
31
 photo_cameraImage coming soon 322808 O-RING (C) €2.02
32
 photo_cameraImage coming soon 324524 DAMPER HOLDER €7.80
33
 photo_cameraImage coming soon 322807 STOPPER RING €2.05
34
 photo_cameraImage coming soon 374443 STRIKER €5.38
35
 photo_cameraImage coming soon 372816 0-RING €4.10
36
 photo_cameraImage coming soon 372817 PISTON €13.51
37
 photo_cameraImage coming soon 335793 PISTON PIN €4.62
38
 photo_cameraImage coming soon 335794 PISTON WASHER €1.66
39
 photo_cameraImage coming soon 374434 LOCK PLATE €1.33
40
 photo_cameraImage coming soon 374440 SECOND PINION €8.61
41
 photo_cameraImage coming soon 323182 CLUTCH SPRING €2.05
42
 photo_cameraImage coming soon 375022 CLUTCH €5.44
43
 photo_cameraImage coming soon 331315 WASHER €1.62
44
 photo_cameraImage coming soon 374439 CHANGE PLATE© €1.33
45
 photo_cameraImage coming soon 374438 SECOND SHAFT €6.86
46
 photo_cameraImage coming soon 335249 RECIPROCATING BEARING €19.44
47
 photo_cameraImage coming soon 374441 FIRST GEAR €5.22
48
 photo_cameraImage coming soon 374442 BEARING WASHER €1.33
49
 O-Ring D 72.2 for Rotary Hammers Hitachi DH26PB 335245 O-Ring D 72.2 for Rotary Hammers Hitachi DH26PB €2.78
50
 photo_cameraImage coming soon 374625 INNER COVER €11.78
51
 photo_cameraImage coming soon 374627 WEIGHT (A) €2.54
52
 Flat Washer for Angle Grinder Flex L 3709 335282 Flat Washer for Angle Grinder Flex L 3709 €7.10
53
 photo_cameraImage coming soon 374628 Powe Cable LE 14-7 125 INOX €2.65
55
 photo_cameraImage coming soon 334008 AIR CAP €1.60
56
 photo_cameraImage coming soon 324543 In Dh24pb3 Felt Gasket-Pc3 €2.05
57
 photo_cameraImage coming soon 374626 SPRING HOLDER €1.33
59
 photo_cameraImage coming soon 322816 FELT PACKING €2.05
60
 Packing Washer for Rotary Hammer Hitachi DH24PB3 322818 Packing Washer for Rotary Hammer Hitachi DH24PB3 €4.09
61
 photo_cameraImage coming soon 876796 O-RING (P-22) €1.33
62
 photo_cameraImage coming soon 608DDM BALL BEARING 608DDC2PS2L €7.07
63
 Dust Washer for Demolition Hammer Hitachi H45MRY 982631 Dust Washer for Demolition Hammer Hitachi H45MRY €1.34
64
 photo_cameraImage coming soon 361108E ARMATURE (B) 220V-230V €28.45
66
 photo_cameraImage coming soon 341028K STATOR (A) 220V-230V €22.03
67
 photo_cameraImage coming soon 374622 HOUSING €12.10
68
 Brush Holder for Demolition Hammer Hitachi DH28PCY 955203 Brush Holder for Demolition Hammer Hitachi DH28PCY €4.39
69
 Carbon Brushes for Sanders Hitachi SV12-13 999041 Carbon Brushes for Sanders Hitachi SV12-13 €9.62
70
 Carbon Brushes for Rotary Hammer Hitachi DH24PB3 999072 Carbon Brushes for Rotary Hammer Hitachi DH24PB3 €18.01
75
 Pusching Button for Drills Hitachi DV16-18V-DV20VB2 322853 Pusching Button for Drills Hitachi DV16-18V-DV20VB2 €2.78
76
 photo_cameraImage coming soon 374610 SWITCH 220V-240V €20.51
78
 photo_cameraImage coming soon 714520 POWER CORD 5M 2X1.5 €15.00
79
 Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.37
80
 photo_cameraImage coming soon 937631 CORD CLIP €1.37
82
 Noise Suppressor Hitachi GP 10 930039 Noise Suppressor Hitachi GP 10 €4.04
83
 photo_cameraImage coming soon 374623 HANDLE COVER €6.89
85
 photo_cameraImage coming soon 375363 GRIP SET €3.87
501
 photo_cameraImage coming soon 374630 CASE €31.85
502
 photo_cameraImage coming soon 374447 SIDE HANDLE €12.18
503
 photo_cameraImage coming soon 303709 delimiter Depth €1.75
504
 photo_cameraImage coming soon 402544 CASE ASS'Y (STACKABLE 1) INCLUD.505-507 €53.42
506
 photo_cameraImage coming soon 336473 HANDLE FOR EUROPE.RUS €6.68
508
 photo_cameraImage coming soon 337741 INNER TRAY €18.40
509
 photo_cameraImage coming soon 306885 DUST COLLECTOR (B) ASS'Y €39.43
511
 Steel Ball 6,35 mm for Hammers Hitachi 959150 Steel Ball 6,35 mm for Hammers Hitachi €3.48
512
 photo_cameraImage coming soon 971787 DUST CUP €6.85
513
 photo_cameraImage coming soon 335781 GREASE FOR ROTARY HAMMER (500G) €78.63
514
 photo_cameraImage coming soon 335782 GREASE FOR ROTARY HAMMER (60G) €18.17

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Rotary Hammer Drill DH28PCY2

Hitachi-HIKOKI Tanaka Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer Drill DH28PCY2.

In the following table , look for the model of the Rotary Hammer Drill and the respective parts of the code.
Hitachi DH28PCY2

Rotary Hammer Drill Hitachi - HIKOKI DH28PCY2
# Part Num. Description
1 306345 FRONT CAP
2 306340 STOPPER RING
3 374436 GRIP
4 374437 BALL HOLDER
5 374435 HOLDER PLATE
6 322812 HOLDER SPRING
8 335259 OIL SEAL
9 6805BB BALL BEARING 6805
10 322789 PUSHING BUTTON
11 317223 PUSHING SPRING
12 334011 CHANDE LEVER
13 878885 O-RING
14 374624 GEAR COVER
15 375018 GEAR COVER INCLUDING 14.17
16 335800 SPRING (E)
17 608VVM BALL BEARING 608VVM
18 374422 SHAFT HOLDER (B)
19 335300 STEEL BALL D7.0 (10PCS) * GIVE HTR959156
20 374426 CYLINDER
21 335265 SECOND GEAR
22 374430 SPRING (B)
23 301679 WASHER (A)
24 948310 RETAINING RING TYPE C FOR D.30 SHAFT
25 335262 OIL SEAL (A)
26 374431 HAMMER HOLDER (B)
27 374427 HOLDER SLEEVE
28 374432 SECOND HAMMER
29 374429 HAMMER HOLDER (B)
30 322805 DAMPER (A)
31 322808 O-RING (C)
32 324524 DAMPER HOLDER DH24PB3-PC3
33 322807 STOPPER RING
34 374443 STRIKER
35 372816 O-RING
36 372817 PISTON
37 335793 PISTON PIN
38 335794 PISTON WASHER
39 374434 LOCK PLATE
40 374440 SECOND PINION
41 323182 CLUTCH SPRING
42 375022 CLUTCH
43 331315 WASHER DH22PH
44 374439 CHANGE PLATE©
45 374438 SECOND SHAFT
46 335249 RECIPROCATING BEARING
47 374441 FIRST GEAR
48 374442 BEARING WASHER
49 335245 O-RING D72.2
50 374625 INNER COVER
51 374627 WEIGHT (A)
52 335282 LEAF SPRING
53 374628 WEIGHT (B)
55 334008 AIR CAP
56 324543 FELT PACKING (A)
57 374626 SPRING HOLDER
59 322816 FELT PACKING
60 322818 PACKING WASHER DH24PM
61 876796 O-RING P.22
62 608DDM BALL BEARING 608DDM
63 982631 WASHER
64 361108E ARMATURE (B) 220V-230V
66 341028K STATOR (A) 220V-230V
67 374622 HOUSING
68 955203 BRUSH HOLDER
69 999041 CARBON BRUSHE (1 PAIR)
70 999072 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
75 322853 PUSHING BUTTON
76 374610 SWITCH 220V-240V
78 714520 CORD 5M 2X1.5 WITH PLUG (CORD ARMOR D8.8)
79 953327 CORD ARMOR D8.8
80 937631 CORD CLIP
82 930039 NOISE SUPPRESSOR FOR EUROPE.RUS.NZL.CHN.TPE
83 374623 HANDLE COVER
85 375363 GRIP SET INCLUD. 1-6.19
501 374630 CASE
502 374447 SIDE HANDLE
503 303709 DEPTH GAUGE
504 402544 CASE ASS'Y (STACKABLE 1) INCLUD.505-507
505 336472 LATCH
506 336473 HANDLE
507 336474 HINGE
508 337741 INNER TRAY
509 306885 DUST COLLECTOR (B) ASS'Y DH24PB3-PC3-PD3
510 948310 RETAINING RING FOR D30 SHAFT HIT-948310.A4
511 959150 STEEL BALL D6.35 (10 PCS.)
512 971787 DUST CUP
513 335781 GREASE FOR ROTARY HAMMER (500G)
514 335782 GREASE FOR ROTARY HAMMER (60G)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi DH28PCY2
5 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi DH28PCY2

Diagram Hitachi DH28PCY2

Download (375KB)

You might also like

Carbon Brushes for Sanders Hitachi SV12-13
HiKOKI Power Tools Italia S.p.a. SKU: 999041
Carbon Brushes for Sanders Hitachi SV12-13
Carbon Brushes for Sanders Hitachi SV12-13 Genuine spare Hitachi, Carbon Brushes for Sanders SV12SD - SV12SG - SV12SH - SV12V, for Drills, D 13VG - DV 18V - DV 20VB2, for Jig Saws FCJ65V3 - CJ90VST - CJ110MVA - CJ110MV, for Hammers DH...
AVAILABLE €9.62
Details
Steel Ball 7 mm for Hammers Hitachi DH24-26-28
HiKOKI Power Tools Italia S.p.a. SKU: 335300
Steel Ball 7 mm for Hammers Hitachi DH24-26-28
Steel Ball 7 mm for Hammers Hitachi DH24-26-28 Hitachi genuine parts, steel ball diameter MM 7, Box 10 Pcs for Demolition hammers and Drills Hammers, DH 24PG - 26PC DH - DH 28PCY - DH28PC. Suitable for the following items: - Drill...
AVAILABLE €3.48
Details
Pusching Button for Drills Hitachi DV16-18V-DV20VB2
HiKOKI Power Tools Italia S.p.a. SKU: 322853
Pusching Button for Drills Hitachi DV16-18V-DV20VB2
Pusching Button for Drills Hitachi DV16-18V-DV20VB2 Original spare part HITACHI, Pusching Button for Percussion Drills Hitachi DV 16-18V - DV 20VB2. Part for the following products: - Percussion Drill DV16V - Percussion Drill DV...
AVAILABLE €2.78
Details
Steel Ball 6,35 mm for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 959150
Steel Ball 6,35 mm for Hammers Hitachi
Steel Ball 6,35 mm for Hammers Hitachi Hitachi genuine parts, steel ball diameter MM 6,35, Box 10 Pcs for Demolition Hammers and Percussion drills, H45MR - H45MRY - H41MB - H60MC - D13VG - DV16V-20VB2. Suitable for the following...
AVAILABLE €3.48
Details
Stopper Ring for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 306340
Stopper Ring for Hammers Hitachi
Stopper Ring for Hammers Hitachi Genuine parts Hitachi, Stopper Ring for Hammers Hitachi. For the following items: - Hammer DH 28 PCY - Hammer DH 26PC - Hammer DH 24PG
AVAILABLE €2.08
Details
Noise Suppressor Hitachi GP 10
HiKOKI Power Tools Italia S.p.a. SKU: 930039
Noise Suppressor Hitachi GP 10
Noise Suppressor Hitachi GP 10 Genuine parts Hitachi, Noise Suppressor Model GP 10 for Angle Grinders, Sanders, Circular Saws, Hammers, Hammers, Routers. Part for the following items: - Rotorbital Sander Hitachi SV13YA - Rotorbital...
AVAILABLE €4.04
Details
Front Cap for Rotary Hammers Hitachi DH22/28
HiKOKI Power Tools Italia S.p.a. SKU: 306345
Front Cap for Rotary Hammers Hitachi DH22/28
Front Cap for Rotary Hammers Hitachi DH22/28 Genuine part HITACHI, Front Cap for Rotary Hammers DH22PG - DH24PG - DH26PC - DH28PCY - DH14DSL - DH18DSL - DH25DL - DH25DAL - DH36DL - DH36DAL - DH28PD - DH24PB3 - DH28PC - DH28PFY.
Last items in stock €4.18
Details
Brush Holder for Demolition Hammer Hitachi DH28PCY
HiKOKI Power Tools Italia S.p.a. SKU: 955203
Brush Holder for Demolition Hammer Hitachi DH28PCY
Brush Holder for Demolition Hammer Hitachi DH28PCY Genuine Spare Part HITACHI, Brush Holder for Demolition Hammer Hitachi DH22PG - DH22PH - DH24PB3 - DH24PC3 - DH24PD3 - DH24PG - DH24PH - DH24PM - DH26PB - DH26PC - DH28PBY - DH28PCY -...
Usually Ships in: 7/10 Business Days Approx. €4.39
Details
O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3
HiKOKI Power Tools Italia S.p.a. SKU: 878885
O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3
O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 Hitachi genuine parts, O-Ring S-18 for Rotary Hammers DH24PC3 - DH24PD3 - DH24PB3 - DH24PG - DH24PH - DH36DAL - DH36DL - DH24DVA Part for the following products: - ROTARY HAMMER...
Last items in stock €1.34
Details
Carbon Brushes for Rotary Hammer Hitachi DH24PB3
HiKOKI Power Tools Italia S.p.a. SKU: 999072
Carbon Brushes for Rotary Hammer Hitachi DH24PB3
Carbon Brushes for Rotary Hammer Hitachi DH24PB3 Genuine Spare Part Hitachi, Self-Locking Carbon Brushes for Rotary Hammers DH24PB3 - DH24PC3 - DH24PD3 - DH24PG - DH24PH - DH24PM...
on 7/10 Business Days Approx €18.01
Details
Dust Washer for Demolition Hammer Hitachi H45MRY
HiKOKI Power Tools Italia S.p.a. SKU: 982631
Dust Washer for Demolition Hammer Hitachi H45MRY
Dust Washer for Demolition Hammer Hitachi H45MRY Genuine Spare Part Hitachi, Dust Washer for Demolition Hammers H45MR - H45FRV - H45MRY - H45SR - DH40MRY - H41MB. Part for the following items: - Rotary Hammer Hitachi DH24PG - Rotary...
AVAILABLE €1.34
Details
Oil Seal mm 9,5x16x4 for Rotary Hammer Hitachi DH24PG
HiKOKI Power Tools Italia S.p.a. SKU: 335262
Oil Seal mm 9,5x16x4 for Rotary Hammer Hitachi DH24PG
Oil Seal mm 9,5x16x4 for Rotary Hammer Hitachi DH24PG Original spare part Hitachi, Oil Seal mm 9,5x16x4 for Rotary Hammers DH24PG - DH24PH - DH26PB - DH26PC - DH28PBY...
Last items in stock €2.63
Details
Packing Washer for Rotary Hammer Hitachi DH24PB3
HiKOKI Power Tools Italia S.p.a. SKU: 322818
Packing Washer for Rotary Hammer Hitachi DH24PB3
Packing Washer for Rotary Hammer Hitachi DH24PB3 Genuine replacement part HITACHI HIKOKI, Packing Washer for Rotary Hammers DH24PB3 - DH24PC3 - DH24PD3 - DH24PM Part for the following products: -  Rotary Hammer Hitachi DH24PB3 -...
on 7/10 Business Days Approx. €4.09
Details
Comments (0)
