Hitachi Spare Parts for Rotary Hammer DH24PD3

SKU: Hitachi DH24PD3 Condition: New
€4.18
VAT included

Hitachi Spare Parts for Rotary Hammer DH24PD3

Hitachi-HIKOKI Original spare parts at attractive prices never seen on the web, we are a licensed service center with after-sales service able to quickly solve the maintenance or repair any issues for Rotary Hammer DH24PD3.
settings 171 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
109 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

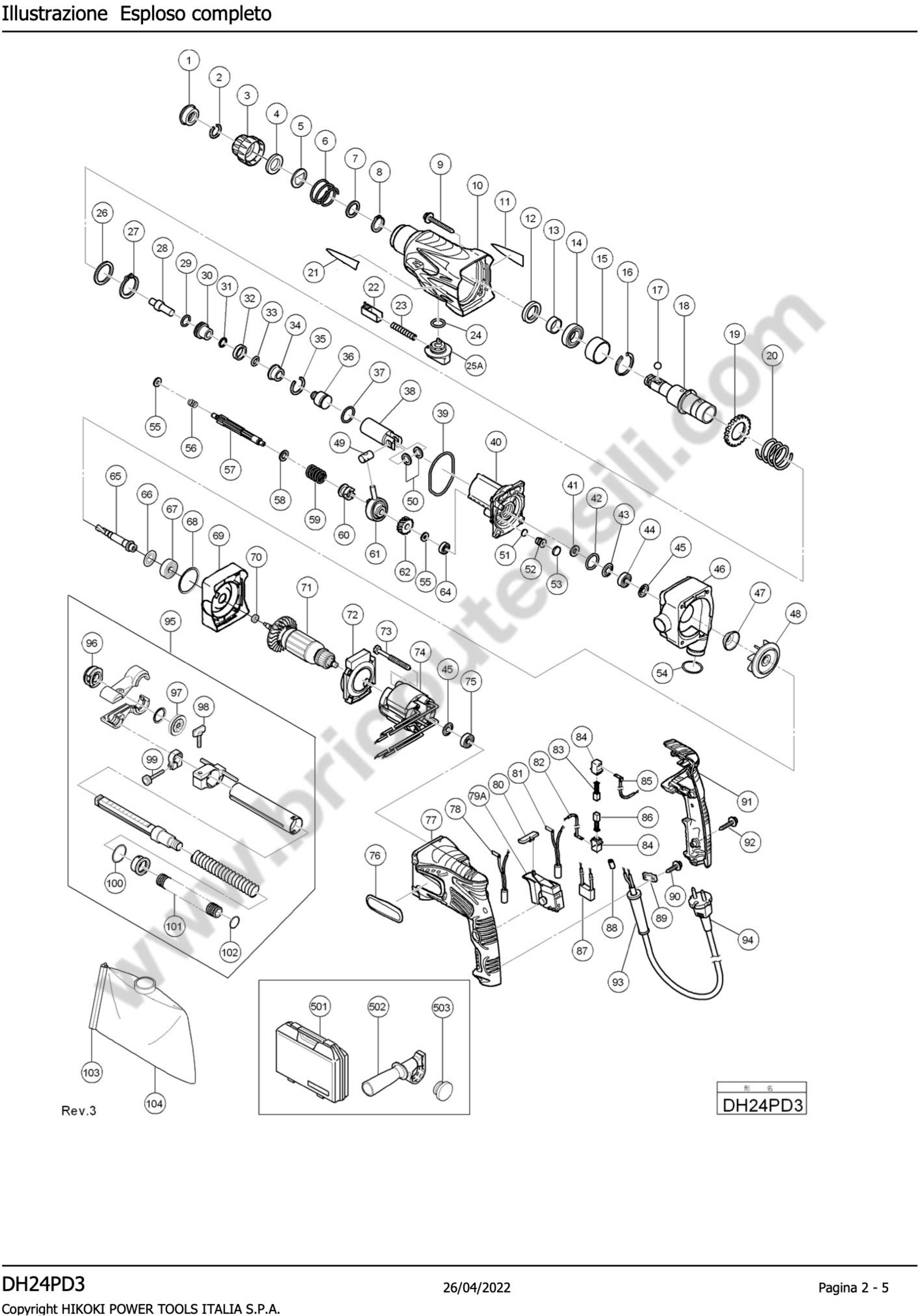

Esploso pagina 1
Pos. Item Price Buy
1
 Front Cap for Rotary Hammers Hitachi DH22/28 306345 Front Cap for Rotary Hammers Hitachi DH22/28 €4.18
2
 Stopper Ring for Hammers Hitachi 306340 Stopper Ring for Hammers Hitachi €2.08
3
 photo_cameraImage coming soon 324527 GRIP €3.78
4
 photo_cameraImage coming soon 324528 BALL HOLDER €7.34
5
 photo_cameraImage coming soon 324526 Support Thrust Dh24dva €1.46
6
 photo_cameraImage coming soon 322812 Spring Gate Punta €2.05
7
 photo_cameraImage coming soon 984118 WASHER (B) €1.30
8
 photo_cameraImage coming soon 939547 RETAINING RING FOR D20 SHAFT €5.65
9
 photo_cameraImage coming soon 302210 Tapping Screw (w/flange) D5x90 €2.05
10
 photo_cameraImage coming soon 324546 GEAR COVER €71.01
12
 photo_cameraImage coming soon 307688 OIL SEAL €5.10
13
 photo_cameraImage coming soon 322815 SLEEVE €1.99
14
 photo_cameraImage coming soon 6904DD BALL BEARING 6904DDPS2L €23.92
15
 photo_cameraImage coming soon 324522 SLEEVE (A) €3.68
16
 photo_cameraImage coming soon 948310 RETAINING RING FOR D30 SHAFT €1.71
17
 Steel Ball 7 mm for Hammers Hitachi 959156 Steel Ball 7 mm for Hammers Hitachi €3.48
18
 photo_cameraImage coming soon 322814 CYLINDER €71.68
19
 photo_cameraImage coming soon 301677 SECOND GEAR €29.15
20
 photo_cameraImage coming soon 301678 SPRING (A) €4.12
22
 photo_cameraImage coming soon 324530 PUSHING BUTTON €1.82
23
 photo_cameraImage coming soon 317223 PUSHING SPRING €2.22
24
 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 878885 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 €1.34
25A
 photo_cameraImage coming soon 322787 CHANGE LEVER €7.55
26
 photo_cameraImage coming soon 301679 WASHER (A) €2.18
27
 photo_cameraImage coming soon 322813 RETAINING RING 37MM €1.99
28
 photo_cameraImage coming soon 324525 SECOND HAMMER €7.34
29
 O-Ring 1 AP-20 for Rotary Hammer Hitachi DH24PB3 944486 O-Ring 1 AP-20 for Rotary Hammer Hitachi DH24PB3 €1.41
30
 photo_cameraImage coming soon 324524 DAMPER HOLDER €7.80
31
 photo_cameraImage coming soon 322802 O-RING (B) €3.86
32
 photo_cameraImage coming soon 322805 DAMPER (A) €2.05
33
 photo_cameraImage coming soon 322808 O-RING (C) €2.02
34
 photo_cameraImage coming soon 324523 HAMMER HOLDER €13.24
35
 photo_cameraImage coming soon 322807 STOPPER RING €2.05
36
 Striker for Cordless Hammers Hitachi DH36DL-DH36DAL 324535 Striker for Cordless Hammers Hitachi DH36DL-DH36DAL €12.42
37
 photo_cameraImage coming soon 322834 BACK PANEL €3.86
38
 Piston for Cordless Rotary Hammers Hitachi DH25DAL-DH36DAL 324534 Piston for Cordless Rotary Hammers Hitachi DH25DAL-DH36DAL €21.58
39
 photo_cameraImage coming soon 322793 O-RING (I.D. 66.5) €12.01
40
 photo_cameraImage coming soon 324542 INNER COVER ASS'Y €39.20
41
 photo_cameraImage coming soon 322816 FELT PACKING €2.05
42
 photo_cameraImage coming soon 876796 O-RING (P-22) €1.33
43
 Packing Washer for Rotary Hammer Hitachi DH24PB3 322818 Packing Washer for Rotary Hammer Hitachi DH24PB3 €4.09
44
 photo_cameraImage coming soon 608DDM BALL BEARING 608DDC2PS2L €7.07
45
 Dust Washer for Demolition Hammer Hitachi H45MRY 982631 Dust Washer for Demolition Hammer Hitachi H45MRY €1.34
47
 photo_cameraImage coming soon 302113 Seal Plate €2.39
48
 photo_cameraImage coming soon 302111 Dust FAN €10.45
49
 photo_cameraImage coming soon 322798 PISTON PIN €2.52
50
 photo_cameraImage coming soon 322799 WASHER (C) €7.66
51
 photo_cameraImage coming soon 324543 In Dh24pb3 Felt Gasket-Pc3 €2.05
52
 photo_cameraImage coming soon 324545 Valve Dh24pb3-Pc3 €1.82
53
 photo_cameraImage coming soon 324544 Felt Dh24pb3-Pc3-Pd3 €1.87
54
 photo_cameraImage coming soon 302371 0-RING €1.28
55
 photo_cameraImage coming soon 322795 SPACER €1.99
56
 photo_cameraImage coming soon 322796 SPRING (B) €15.01
57
 photo_cameraImage coming soon 322794 SECOND SHAFT €21.21
58
 photo_cameraImage coming soon 301659 WASHER (B) €1.30
59
 Clutch Spring for Rotative Hammer Hitachi DH24PB3 301660 Clutch Spring for Rotative Hammer Hitachi DH24PB3 €2.08
60
 photo_cameraImage coming soon 324532 CLUTCH €13.24
61
 photo_cameraImage coming soon 324533 RECIPROCATING BEARING €42.44
62
 photo_cameraImage coming soon 322797 FIRST GEAR €15.75
64
 photo_cameraImage coming soon 626VVM BALL BEARING 626VVC2PS2L €5.14
65
 photo_cameraImage coming soon 323176 Dust Shaft €89.95
66
 photo_cameraImage coming soon 993052 DUST WASHER €1.28
67
 photo_cameraImage coming soon 6001DD BALL BEARING 6001DDCMPS2L €8.46
68
 photo_cameraImage coming soon 302372 Felt €1.28
69
 photo_cameraImage coming soon 325153 Casing (A) DH24PD3 €15.48
70
 photo_cameraImage coming soon 302114 Rubber Sleeve €2.39
71
 photo_cameraImage coming soon 360746E ARMATURE 220-230V X DH24PD3 €86.68
72
 photo_cameraImage coming soon 324531 PULLEY X LRP 1503 VRA €79.91
74
 photo_cameraImage coming soon 340635E STATOR 220V-230V €68.60
75
 photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
77
 Left Housing for Rotary Hammer Hitachi DH24PB3 324553 Left Housing for Rotary Hammer Hitachi DH24PB3 €31.29
78
 photo_cameraImage coming soon 324549 CHOKE COIL (A) BROWN €13.24
79A
 Switch for Rotary Hammers Hitachi DH22-24-26-28 335796 Switch for Rotary Hammers Hitachi DH22-24-26-28 €23.45
80
 Pusching Button for Drills Hitachi DV16-18V-DV20VB2 322853 Pusching Button for Drills Hitachi DV16-18V-DV20VB2 €2.78
81
 photo_cameraImage coming soon 324551 CHOKE COIL (A) BLUE €13.24
83
 Carbon Brushes for Sanders Hitachi SV12-13 999041 Carbon Brushes for Sanders Hitachi SV12-13 €9.62
84
 Brush Holder for Demolition Hammer Hitachi DH28PCY 955203 Brush Holder for Demolition Hammer Hitachi DH28PCY €4.39
86
 Carbon Brushes for Rotary Hammer Hitachi DH24PB3 999072 Carbon Brushes for Rotary Hammer Hitachi DH24PB3 €18.01
87
 Noise Suppressor Hitachi GP 10 930039 Noise Suppressor Hitachi GP 10 €4.04
88
 photo_cameraImage coming soon 981373 TUBE (D) €1.37
89
 photo_cameraImage coming soon 937631 CORD CLIP €1.37
91
 Right Handle Cover for Rotary Hammer Hitachi DH24PB3 324554 Right Handle Cover for Rotary Hammer Hitachi DH24PB3 €18.53
93
 photo_cameraImage coming soon 940778 CORD ARMOR D10.7 €3.43
94
 photo_cameraImage coming soon 714520 POWER CORD 5M 2X1.5 €15.00
95
 photo_cameraImage coming soon 302074 Dust Collection Adapter Ass'y €63.81
96
 photo_cameraImage coming soon 302077 Nozzle Seal €8.17
97
 photo_cameraImage coming soon 302075 Rubber Cap €3.15
98
 photo_cameraImage coming soon 301801 WING BOLT M6X27 €1.28
100
 photo_cameraImage coming soon 872470 O-RING (S-26) €2.09
101
 photo_cameraImage coming soon 302076 Hose Ass'y €9.71
102
 photo_cameraImage coming soon 873095 O-RING (P-16) €1.28
103
 photo_cameraImage coming soon 302386 Rail DH24PD €3.15
104
 photo_cameraImage coming soon 302048 Dust Bag Ass'y (deep Blue) €52.95
502
 photo_cameraImage coming soon 324548 Lateral grip €17.67
601
 photo_cameraImage coming soon 981840 GREASE 30 GR €10.98
602
 photo_cameraImage coming soon 308471 GREASE 70 GR €19.79
603
 photo_cameraImage coming soon 980927 GREASE 500 GR €84.44
604
 photo_cameraImage coming soon 306885 DUST COLLECTOR (B) ASS'Y €39.43
610
 photo_cameraImage coming soon 321825 DRILL CHUCK AND ADAPTER SET INCLUD. 608 €48.09
611
 photo_cameraImage coming soon 303623 CHUCK ADAPTER (G) (SDS PLUS) €14.07
616
 photo_cameraImage coming soon 321814 DRILL CHUCK 13VLRB-D €31.72
617
 photo_cameraImage coming soon 995344 Flat Hd. Screw (A) M6x25 €3.09
618
 photo_cameraImage coming soon 321813 DRILL CHUCK 13VLD-D €31.72
620
 photo_cameraImage coming soon 971512Z DRIVER BIT (A) NO.3 25L €7.10
657
 photo_cameraImage coming soon 303334 CHUCK HANDLE €5.57
659
 photo_cameraImage coming soon 930515 CHUCK WRENCH 10G €12.17
667
 photo_cameraImage coming soon 303332 HAMMER DRILL CHUCK SET 13MM €106.96
674
 photo_cameraImage coming soon 981122 SPECIAL SCREW M6X22 €1.75
675
 photo_cameraImage coming soon 971787 DUST CUP €6.85

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Rotary Hammer DH24PD3

Hitachi-HIKOKI Original spare parts at attractive prices never seen on the web, we are a licensed service center with after-sales service able to quickly solve the maintenance or repair any issues for Rotary Hammer DH24PD3.

In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
Hitachi DH24PD3

Rotary Hammer DH24PD3 Electric Tool Parts
# Part Num. Description
1 306345 Front Cap
2 306340 Stopper Ring
3 324527 Grip
4 324528 Ball Holder
5 324526 Holder Plate
6 322812 Holder Spring
7 984118 Washer (b)
8 939547 Retaining Ring For D20 Shaft (10 Pcs.)
9 302210 Tapping Screw (w/flange) D5x90
10 324546 Gear Cover
12 307688 Oil Seal
13 322815 Sleeve
14 6904DD Ball Bearing 6904ddps2l
15 324522 Sleeve (a)
16 948310 Retaining Ring For D30 Shaft
17 959156 Steel Ball D7.0 (10 Pcs.)
18 322814 Cylinder
19 301677 Second Gear
20 301678 Spring (a)
22 324530 Pushing Button
23 317223 Pushing Spring
24 878885 O-ring (s-18)
25A 322787 Change Lever
26 301679 Washer (a)
27 322813 Retaining Ring 37mm
28 324525 Second Hammer
29 944486 O-ring (1ap-20)
30 324524 Damper Holder
31 322802 O-RING (B)
32 322805 Damper (a)
33 322808 O-RING (C)
34 324523 Hammer Holder
35 322807 Stopper Ring
36 324535 Striker DH24PB3-PC3
37 322834 O-ring (i.d. 16)
38 324534 PISTON DH24PB3-PC3
39 322793 O-ring (i.d. 66.5)
40 324542 Inner Cover Ass'y DH24PB3-PC3 INCLUD. 51-53
41 322816 Felt Packing
42 876796 O-RING P.22
43 322818 PACKING WASHER
44 608DDM BALL BEARING 608DDM
45 982631 WASHER A
46 325152 CASING (B)
47 302113 Seal Plate
48 302111 Dust FAN
49 322798 PISTON PIN
50 322799 WASHER (C)
51 324543 Felt Packing (a)
52 324545 VALVE
53 324544 Felt Packing (B)
54 302371 O-RING
55 322795 Spacer DH24PB2
56 322796 SPRING (B) DH24PB2
57 322794 SECOND Shaft
58 301659 WASHER (B)
59 301660 CLUTCH SPRING
60 324532 CLUTCH DH24PB3-PC3
61 324533 Reciprocating Bearing DH24PB3-PC3
62 322797 FIRST GEAR
64 626VVM BALL BEARING 626VVM
65 323176 Dust Shaft
66 993052 Dust WASHER
67 6001DD BALL BEARING 6001DD
68 302372 Felt
69 325153 Casing (A) DH24PD3
70 302114 Rubber Sleeve
71 360746E ARMATURE 220-230V X DH24PD3
72 324531 Fan Guide DH24PM
74 340635E STATOR DH24PB3-PC3
75 608VVM BALL BEARING 608VVM
77 324553 HOUSING, LEFT
78 324549 Choke Coil (a) Brown DH24PB3-PC3
79A 335796 SWITCH
80 322853 Pushing Button
81 324551 Choke Coil (a) Blue DH24PB3-PC3
83 999041 Carbon Brush (1 Pair)
84 955203 BRUSH HOLDER
86 999072 Carbon Brush (auto Stop Type) (1 Pair)
87 930039 Noise Suppressor
88 981373 TUBE D
89 937631 Cord Clip
91 324554 Handle Cover
93 940778 Cord Armor 10.7
94 714520 Cord 5M 2X1.5 WITH PLUG
95 302074 Dust Collection Adapter Ass'y
96 302077 Nozzle Seal
97 302075 Rubber Cap
98 301801 Wing Bolt M6x27
100 872470 O-RING S26
101 302076 Hose Ass'y
102 873095 O-RING P16
103 302386 Rail DH24PD
104 302048 Dust Bag Ass'y (deep Blue)
STANDARD ACCESSORIES
501 325099 Case
502 324548 SIDE HANDLE DH24PB3 / PC3
503 302374 Cap
601 981840 Grease (a) For Hammer.hammer Drill (30g
602 308471 Grease For Hammer.hammer Drill (70g)
603 980927 Grease For Hammer.hammer Drill (500g)
604 306885 Dust Collector (b) Ass'y
605 306910 Socket Adapter (b)
606 303625 Core Bit Shank (sds Plus) 25-38mm 105l
607 303626 Core Bit Shank (sds Plus) 25-38mm 300l
608 303627 CORE BIT SHANK (SDS PLUS) 45-90MM 300L
609 303624 CHUCK ADAPTER (D) (SDS PLUS)
610 321825 DRILL CHUCK AND ADAPTER SET
611 303623 CHUCK ADAPTER (G) (SDS PLUS)
612 303369 MOTOR (SINGLE-PHASE)
613 306368 DRILL BIT (SLENDER SHAFT) D3.5X90
614 306370 ADAPTER FOR SLENDER SHAFT (SDS PLUS)
615 931844 STOPPER
616 321814 DRILL CHUCK 13VLRB-D
617 995344 FLAT HD. SCREW (A) (LEFT HAND) M6X25
618 321813 DRILL CHUCK 13VLD-D
619 971511Z + DRIVER BIT (A) NO. 2 25L
620 971512Z + DRIVER BIT (A) NO. 3 25L
621 944477 COTTER
622 982684 CENTER PIN (A) 109L FOR CORE BIT D32-38
623 982685 CENTER PIN (B) 104L FOR CORE BIT D45-90
624 982672 CORE BIT (A) 25MM
625 982673 CORE BIT (A) 29MM
626 982674 CORE BIT (A) 32MM
627 982686 GUIDE PLATE (FOR CORE BIT 32MM)
628 982675 CORE BIT (A) 35MM
629 982687 GUIDE PLATE (FOR CORE BIT 35MM)
630 982676 CORE BIT (A) 38MM
631 982688 GUIDE PLATE (FOR CORE BIT 38MM)
632 982677 CORE BIT (B) 45MM
633 982689 GUIDE PLATE (FOR CORE BIT 45MM)
634 982678 CORE BIT (B) 50MM
635 982690 GUIDE PLATE (FOR CORE BIT 50MM)
636 971794 ANCHOR SETTING ADAPTER A W1/4” (MANUAL)
637 971795 ANCHOR SETTING ADAPTER A W5/16” (MANUAL)
638 971796 ANCHOR SETTING ADAPTER A W3/8” (MANUAL)
639 971797 ANCHOR SETTING ADAPTER A W1/2” (MANUAL)
640 971798 ANCHOR SETTING ADAPTER A W5/8” (MANUAL)
641 971799 ANCHOR SETTING ADAPTER B W1/4” (MANUAL)
642 971800 ANCHOR SETTING ADAPTER B W5/16” (MANUAL)
643 971801 ANCHOR SETTING ADAPTER B W3/8” (MANUAL)
644 971802 ANCHOR SETTING ADAPTER B W1/2” (MANUAL)
645 971803 ANCHOR SETTING ADAPTER B W5/8” (MANUAL)
646 944460 TAPER SHANK DRILL BIT D11X100
647 944461 TAPER SHANK DRILL BIT D12.3X110
648 993038 TAPER SHANK DRILL BIT D12.7X110
649 944462 TAPER SHANK DRILL BIT D14.3X110
650 944500 TAPER SHANK DRILL BIT D14.5X110
651 944463 TAPER SHANK DRILL BIT D17.5X120
652 944464 TAPER SHANK DRILL BIT D21.5X140
653 320859 SYRINGE (BLOW-OUT BULB TYPE)
654 303046 BULL POINT (SDS+) 250MM (ROUND SHANK TYPE)
655 303044 CHEMICAL ANCHOR ADAPTER (SDS+) 12.7MMX90L
656 303045 CHEMICAL ANCHOR ADAPTER (SDS+) 19.0MMX100L
657 303334 CHUCK HANDLE
658 302976 ANCHOR SETTING ADAPTER A (SDS+) W1/4X260L
659 930515 CHUCK WRENCH 10G
660 302975 ANCHOR SETTING ADAPTER A (SDS+) W5/16X260L
661 303621 ANCHOR SETTING ADAPTER A (SDS+) W3/8X160L
662 302974 ANCHOR SETTING ADAPTER A (SDS+) W3/8X260L
663 302979 ANCHOR SETTING ADAPTER B (SDS+) W1/4X260L
664 302978 ANCHOR SETTING ADAPTER B (SDS+) W5/16X260L
665 303622 ANCHOR SETTING ADAPTER B (SDS+) W3/8X160L
666 302977 ANCHOR SETTING ADAPTER B (SDS+) W3/8X260L
667 303332 HAMMER DRILL CHUCK SET 13MM INCLUD. 668, 669
668 303334 CHUCK HANDLE
669 303335 RUBBER CAP
670 303617 TAPER SHANK ADAPTER (SDS PLUS) NO. 1
671 303618 TAPER SHANK ADAPTER (SDS PLUS) NO. 2
672 303619 A-TAPER SHANK ADAPTER (SDS PLUS)
673 303620 B-TAPER SHANK ADAPTER (SDS PLUS)
674 981122 SPECIAL SCREW M6X22
675 971787 DUST CUP

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

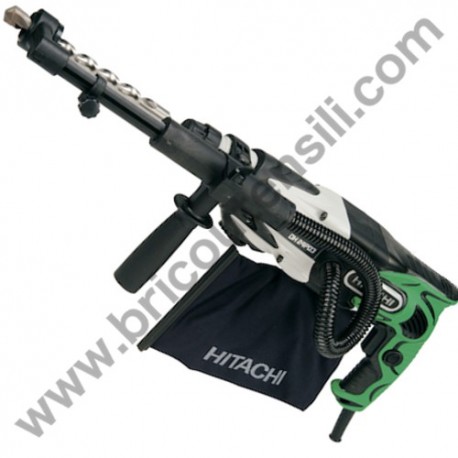

Hitachi DH24PD3
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Hitachi DH24PD3

Drawing Hitachi DH24PD3

Download (354.27KB)

You might also like

Switch for Rotary Hammers Hitachi DH22-24-26-28
HiKOKI Power Tools Italia S.p.a. SKU: 335796
Switch for Rotary Hammers Hitachi DH22-24-26-28
Switch for Rotary Hammers Hitachi DH22-24-26-28 Original spare parts Hitachi, Switch for Rotary Hammers Hitachi, DH22PG - DH24PB3 - DH24PG - DH26PG - DH28PCY - DH28PC. Parts for the following products: - Rotary Hammer Hitachi DH22PG -...
Last items in stock €23.45
Details
Carbon Brushes for Sanders Hitachi SV12-13
HiKOKI Power Tools Italia S.p.a. SKU: 999041
Carbon Brushes for Sanders Hitachi SV12-13
Carbon Brushes for Sanders Hitachi SV12-13 Genuine spare Hitachi, Carbon Brushes for Sanders SV12SD - SV12SG - SV12SH - SV12V, for Drills, D 13VG - DV 18V - DV 20VB2, for Jig Saws FCJ65V3 - CJ90VST - CJ110MVA - CJ110MV, for Hammers DH...
AVAILABLE €9.62
Details
Steel Ball 7 mm for Hammers Hitachi DH24-26-28
HiKOKI Power Tools Italia S.p.a. SKU: 335300
Steel Ball 7 mm for Hammers Hitachi DH24-26-28
Steel Ball 7 mm for Hammers Hitachi DH24-26-28 Hitachi genuine parts, steel ball diameter MM 7, Box 10 Pcs for Demolition hammers and Drills Hammers, DH 24PG - 26PC DH - DH 28PCY - DH28PC. Suitable for the following items: - Drill...
AVAILABLE €3.48
Details
Pusching Button for Drills Hitachi DV16-18V-DV20VB2
HiKOKI Power Tools Italia S.p.a. SKU: 322853
Pusching Button for Drills Hitachi DV16-18V-DV20VB2
Pusching Button for Drills Hitachi DV16-18V-DV20VB2 Original spare part HITACHI, Pusching Button for Percussion Drills Hitachi DV 16-18V - DV 20VB2. Part for the following products: - Percussion Drill DV16V - Percussion Drill DV...
AVAILABLE €2.78
Details
Steel Ball 6,35 mm for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 959150
Steel Ball 6,35 mm for Hammers Hitachi
Steel Ball 6,35 mm for Hammers Hitachi Hitachi genuine parts, steel ball diameter MM 6,35, Box 10 Pcs for Demolition Hammers and Percussion drills, H45MR - H45MRY - H41MB - H60MC - D13VG - DV16V-20VB2. Suitable for the following...
AVAILABLE €3.48
Details
Stopper Ring for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 306340
Stopper Ring for Hammers Hitachi
Stopper Ring for Hammers Hitachi Genuine parts Hitachi, Stopper Ring for Hammers Hitachi. For the following items: - Hammer DH 28 PCY - Hammer DH 26PC - Hammer DH 24PG
AVAILABLE €2.08
Details
Front Cap for Rotary Hammers Hitachi DH22/28
HiKOKI Power Tools Italia S.p.a. SKU: 306345
Front Cap for Rotary Hammers Hitachi DH22/28
Front Cap for Rotary Hammers Hitachi DH22/28 Genuine part HITACHI, Front Cap for Rotary Hammers DH22PG - DH24PG - DH26PC - DH28PCY - DH14DSL - DH18DSL - DH25DL - DH25DAL - DH36DL - DH36DAL - DH28PD - DH24PB3 - DH28PC - DH28PFY.
Last items in stock €4.18
Details
Brush Holder for Demolition Hammer Hitachi DH28PCY
HiKOKI Power Tools Italia S.p.a. SKU: 955203
Brush Holder for Demolition Hammer Hitachi DH28PCY
Brush Holder for Demolition Hammer Hitachi DH28PCY Genuine Spare Part HITACHI, Brush Holder for Demolition Hammer Hitachi DH22PG - DH22PH - DH24PB3 - DH24PC3 - DH24PD3 - DH24PG - DH24PH - DH24PM - DH26PB - DH26PC - DH28PBY - DH28PCY -...
Usually Ships in: 7/10 Business Days Approx. €4.39
Details
O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3
HiKOKI Power Tools Italia S.p.a. SKU: 878885
O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3
O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 Hitachi genuine parts, O-Ring S-18 for Rotary Hammers DH24PC3 - DH24PD3 - DH24PB3 - DH24PG - DH24PH - DH36DAL - DH36DL - DH24DVA Part for the following products: - ROTARY HAMMER...
Last items in stock €1.34
Details
Carbon Brushes for Rotary Hammer Hitachi DH24PB3
HiKOKI Power Tools Italia S.p.a. SKU: 999072
Carbon Brushes for Rotary Hammer Hitachi DH24PB3
Carbon Brushes for Rotary Hammer Hitachi DH24PB3 Genuine Spare Part Hitachi, Self-Locking Carbon Brushes for Rotary Hammers DH24PB3 - DH24PC3 - DH24PD3 - DH24PG - DH24PH - DH24PM...
on 7/10 Business Days Approx €18.01
Details
Clutch for Cordless Hammers Hitachi DH24PC3
HiKOKI Power Tools Italia S.p.a. SKU: 324606
Clutch for Cordless Hammers Hitachi DH24PC3
Clutch for Cordless Hammers Hitachi DH24PC3 Original spare Hitachi, Clutch for Cordless Hammers DH24PC3 - DH24DVA - DH24PM - DH25DAL - DH36DAL Parts for the following products: -...
AVAILABLE €19.40
Details
Armature for Rotary Hammer Hitachi DH24PB3
HiKOKI Power Tools Italia S.p.a. SKU: 360720E
Armature for Rotary Hammer Hitachi DH24PB3
Armature for Rotary Hammer Hitachi DH24PB3 Genuine Spare Part Hitachi, Armature 220V-230V Ass'y for Rotary Hammers DH24PB3 - DH24PC3 - DH24PM. Parts for the following products: - ...
Last items in stock €54.00
Details
Noise Suppressor for Angle Grinder Hitachi G12SA2
HiKOKI Power Tools Italia S.p.a. SKU: 994273
Noise Suppressor for Angle Grinder Hitachi G12SA2
Noise Suppressor for Angle Grinder Hitachi G12SA2 Genuine replacement part Hitachi, Noise Suppressor for Angle Grinders Hitachi G12SA2 - G12S2 - G12SG - G 13SR3 - G 13SB3 - Polisher Sander SAT180 -  Reciprocating Saw CR13VC. Part for...
AVAILABLE €9.62
Details
Second Pinion for Rotary Hammers Hitachi DH24PC3
HiKOKI Power Tools Italia S.p.a. SKU: 323181
Second Pinion for Rotary Hammers Hitachi DH24PC3
Second Pinion for Rotary Hammers Hitachi DH24PC3 Genuine parts Hitachi, Second Pinion for Rotary Hammers DH22PH - DH24PC3 - DH24DVA - DH24PM - DH25DAL - DH36DAL Part for the...
Last items in stock €20.93
Details
Cord Armor D.10.1 for Hitachi Power Tools
HiKOKI Power Tools Italia S.p.a. SKU: 938051
Cord Armor D.10.1 for Hitachi Power Tools
Cord Armor D.10.1 for Hitachi Power Tools Genuine spare parts Hitachi KOKY, Cord Armor D.10.1 for Hitachi Power Tools Parts for the following products: - For Hitachi Power Tools - Code: 938051
AVAILABLE €1.34
Details
Dust Washer for Demolition Hammer Hitachi H45MRY
HiKOKI Power Tools Italia S.p.a. SKU: 982631
Dust Washer for Demolition Hammer Hitachi H45MRY
Dust Washer for Demolition Hammer Hitachi H45MRY Genuine Spare Part Hitachi, Dust Washer for Demolition Hammers H45MR - H45FRV - H45MRY - H45SR - DH40MRY - H41MB. Part for the following items: - Rotary Hammer Hitachi DH24PG - Rotary...
AVAILABLE €1.34
Details
O-Ring 1 AP-20 for Rotary Hammer Hitachi DH24PB3
HiKOKI Power Tools Italia S.p.a. SKU: 944486
O-Ring 1 AP-20 for Rotary Hammer Hitachi DH24PB3
O-Ring 1 AP-20 for Rotary Hammer Hitachi DH24PB3 Genuine replacement part HITACHI, O-Ring 1 AP-20 for Rotary Hammers DH22PB - DH24DV - DH24DVA - DH24PB3 - DH24PC3 - DH24PD3 -  DH24PM. Part for the following products: - Rotary Hammer...
AVAILABLE €1.41
Details
Piston for Cordless Rotary Hammers Hitachi DH25DAL-DH36DAL
HiKOKI Power Tools Italia S.p.a. SKU: 324534
Piston for Cordless Rotary Hammers Hitachi DH25DAL-DH36DAL
Piston for Cordless Rotary Hammers Hitachi DH25DAL-DH36DAL Original spare part Hitachi, Piston for Cordless Rotary Hammers DH25DL - DH25DAL - DH36DL - DH36DAL. Part for the following products: -  Cordless Rotary Hammer DH25DL -...
Last items in stock €21.58
Details
Left Housing for Rotary Hammer Hitachi DH24PB3
HiKOKI Power Tools Italia S.p.a. SKU: 324553
Left Housing for Rotary Hammer Hitachi DH24PB3
Left Housing for Rotary Hammer Hitachi DH24PB3 Genuine replacement part HITACHI, Left Housing for Rotary Hammers DH24PB3 - DH24PC3 - DH24PD3 - DH24PM - DM20V. Part...
Last items in stock €31.29
Details
Striker for Cordless Hammers Hitachi DH36DL-DH36DAL
HiKOKI Power Tools Italia S.p.a. SKU: 324535
Striker for Cordless Hammers Hitachi DH36DL-DH36DAL
Striker for Cordless Hammers Hitachi DH36DL-DH36DAL Original spare part Hitachi-HIKOKI, Striker for Cordless Rotary Hammers DH25DL - DH25DAL - DH36DL - DH36DAL. Part for the following products: -  Cordless Rotary Hammer DH25DL -...
Last items in stock €12.42
Details
Packing Washer for Rotary Hammer Hitachi DH24PB3
HiKOKI Power Tools Italia S.p.a. SKU: 322818
Packing Washer for Rotary Hammer Hitachi DH24PB3
Packing Washer for Rotary Hammer Hitachi DH24PB3 Genuine replacement part HITACHI HIKOKI, Packing Washer for Rotary Hammers DH24PB3 - DH24PC3 - DH24PD3 - DH24PM Part for the following products: -  Rotary Hammer Hitachi DH24PB3 -...
on 7/10 Business Days Approx. €4.09
Details
Comments (0)
