HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Driver Drill DS14DVF3

SKU: Hitachi DS14DVF3
€2.57
VAT included

Hitachi Spare Parts for Cordless Driver Drill DS14DVF3

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Cordless with 14.4 V with Lithium Batteries DS14DVF3.

Hitachi Spare Parts for Cordless Driver Drill DS14DVF3
  • Hitachi Spare Parts for Cordless Driver Drill DS14DVF3
  • Hitachi Spare Parts for Cordless Driver Drill DS14DVF3
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Driver Drill DS14DVF3

SKU: Hitachi DS14DVF3 Condition: New
€2.57
VAT included

Hitachi Spare Parts for Cordless Driver Drill DS14DVF3

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Cordless with 14.4 V with Lithium Batteries DS14DVF3.

settings 42 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
42 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

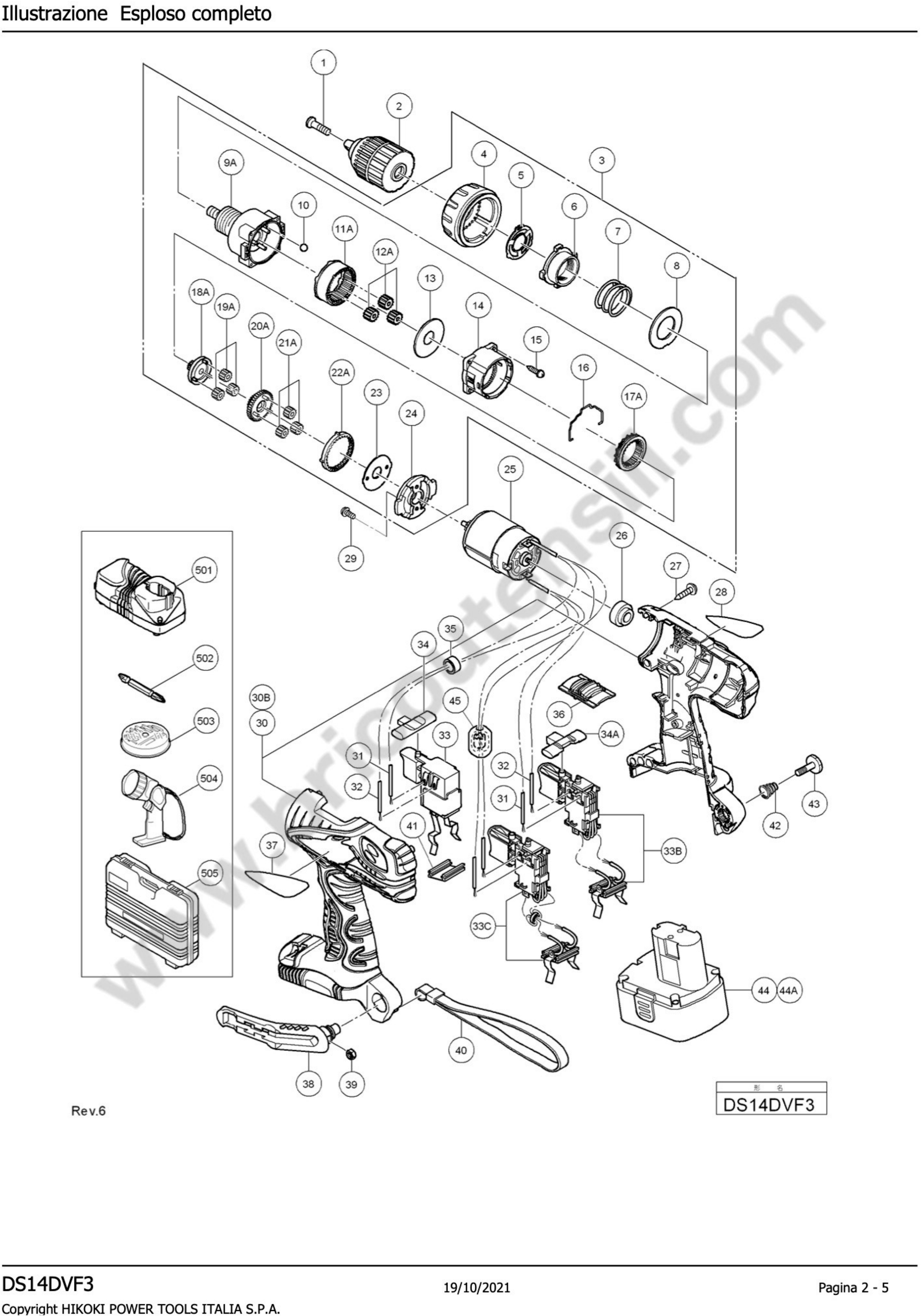

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 324503 Special Screw (left Hand) (b) M6x23 €2.10
3
 photo_cameraImage coming soon 324490 GEAR BOX ASS'Y €86.51
4
 photo_cameraImage coming soon 324114 CLUTCH DIAL €6.36
5
 photo_cameraImage coming soon 324108 CLICK SPRING €4.78
6
 photo_cameraImage coming soon 324109 NUT €3.53
7
 photo_cameraImage coming soon 324110 SPRING €3.53
8
 photo_cameraImage coming soon 324347 WASHER (D) €3.53
9A
 photo_cameraImage coming soon 333314 FRONT CASE €18.89
10
 photo_cameraImage coming soon 306936 STEEL BALL D5 €1.40
11A
 photo_cameraImage coming soon 332027 RING GEAR €5.90
12A
 photo_cameraImage coming soon 332028 PLANET GEAR (C) - 3PCS. €3.99
13
 photo_cameraImage coming soon 324349 WASHER (A) €3.53 Not available for order
14
 photo_cameraImage coming soon 324501 REAR CASE €4.78
16
 photo_cameraImage coming soon 324115 SHIFT ARM €3.26
17A
 photo_cameraImage coming soon 332030 SLIDE RING GEAR B €7.84
18A
 photo_cameraImage coming soon 332029 PINION (C) €3.99
19A
 photo_cameraImage coming soon 332031 PLANET GEAR (B) - 3PCS. €2.04
20A
 photo_cameraImage coming soon 332032 PINION (B) €3.99
21A
 photo_cameraImage coming soon 332034 PLANET GEAR (A) - 3PCS. €4.03
22A
 photo_cameraImage coming soon 332033 FIRST RING GEAR €3.99
23
 photo_cameraImage coming soon 324355 WASHER (B) €3.53
24
 photo_cameraImage coming soon 324495 MOTOR SPACER €4.20
25
 photo_cameraImage coming soon 324483 MOTOR DS14DVF3-DFL €27.79
26
 photo_cameraImage coming soon 324485 SUPPORT LRP 1503 VRA €1.41
30
 photo_cameraImage coming soon 324482 HOUSING A B SET DS14DVF3 UNTIL DEC 07 €23.53
30B
 Housing for Cordless Drill Hitachi DS14DVF3 329178 Housing for Cordless Drill Hitachi DS14DVF3 €25.00
32
 photo_cameraImage coming soon 324499 INTERNAL WIRE RED €1.59
33
 photo_cameraImage coming soon 324498 DC-SPEED CONTROL SWITCH €29.91
33B
 photo_cameraImage coming soon 332807 Dc-speed Control Switch DS14-18DVF3 AFTER DEC. 07 €36.34
34
 photo_cameraImage coming soon 324117 PUSHING BUTTON €1.34
34A
 photo_cameraImage coming soon 329181 PUSHING BUTTON €1.34
36
 photo_cameraImage coming soon 324116 SHIFT KNOB €1.34
38
 photo_cameraImage coming soon 320287 HOOK ASS'Y €6.60
39
 photo_cameraImage coming soon 320288 M5 V-LOCK NUT €2.20
40
 photo_cameraImage coming soon 306952 STRAP (BLACK) €8.78
41
 photo_cameraImage coming soon 315141 TERMINAL SUPPORT (A) €2.27
42
 photo_cameraImage coming soon 319926 HOOK SPRING €2.20
43
 photo_cameraImage coming soon 320881 SPECIAL SCREW (A) M5 €2.27
44
 photo_cameraImage coming soon 322633 Battery Eb 1414s (w/english N.p) €92.76
44
 photo_cameraImage coming soon 333159 BATTERY BCC 1415 (EUROPE.AUS.NZL) €92.76
502
 photo_cameraImage coming soon 983006 + DRIVER BIT NO.2 65L €13.19
505
 photo_cameraImage coming soon 324502 CASE (BLACK) €25.50
Page 2 local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
502
 photo_cameraImage coming soon 983006 + DRIVER BIT NO.2 65L €13.19
505
 photo_cameraImage coming soon 324502 CASE (BLACK) €25.50

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Cordless Driver Drill DS14DVF3

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Cordless with 14.4 V with Lithium Batteries DS14DVF3.

In the following table, look for the model of the Cordless driver drill and theirs spare part.
Hitachi DS14DBL
Hitachi HIKOKI DS14DVF3 Spares and Accessories Pag.1
# Part Num. Description
1 324503 Special Screw (left Hand) (b) M6x23
3 324490 Gear Box Ass'y
4 324114 Clutch Dial
5 324108 Click Spring
6 324109 Nut
7 324110 Spring
8 324347 WASHER D DS18DVF3
9A 333314 FRONT CASE
10 306936 STEEL BALL D5
11A 332027 RING GEAR
12A 332028 PLANET GEAR (C) - 3PCS.
13 324349 WASHER A DS18DVF3
14 324501 REAR CASEDS14-18DVF3
16 324115 SHIFT ARM DS9-12-14DVF3
17A 332030 SLIDE RING GEAR B
18A 332029 PINION (C)
19A 332031 PLANET GEAR (B) - 3PCS.
20A 332032 PINION (B)
21A 332034 PLANET GEAR (A) - 3PCS.
22A 332033 FIRST RING GEAR
23 324355 WASHER B DS18DVF3
24 324495 MOTOR SPACER DS18DVF
25 324483 MOTOR DS14DVF3-DFL
26 324485 SPACER DS14DFL
30 324482 HOUSING A B SET DS14DVF3 UNTIL DEC 07
30B 329178 HOUSING A B SET DS14DVF3 FROM JAN 08
31 324484 INTERNAL WIRE BLACK
32 324499 INTERNAL WIRE RED
33 324498 Dc-speed Control Switch DS14-18DVF3 UNTIL DEC. 07
33B 332807 Dc-speed Control Switch DS14-18DVF3 AFTER DEC. 07
33C 334887 SW TERMINAL SET
34 324117 PUSHING BUTTON DS9-12-14DVF3 UNTIL DEC. 07
34A 329181 PUSHING BUTTON DS9-12-14DVF3 FROM JAN 08
35 323229 FERRITE CORE
36 324116 SHIFT KNOB DS9-12-14DVF3
38 320287 HOOK ASS'Y
39 320288 V-LOCK NUT M5
40 306952 STRAP BLACK
41 315141 TERMINAL SUPPORT UNTIL DEC 07
42 319926 HOOK SPRING
43 320881 Special Screw (a) M5 WR14DM
44 322633 Battery Eb 1414s (w/english N.p)
44 333159 BATTERY BCC 1415 (EUROPE.AUS.NZL)
45 334864 INTERNAL WIRE FERRITE SET
STANDARD ACCESSORIES Pag.2
501 CHARGER (MODEL UC 18YG)
502 983006 + DRIVER BIT NO.2 65L
503 BIT SET
504 TORCHLIGHT (MODEL UB 18D)
505 324502 CASE (BLACK)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
