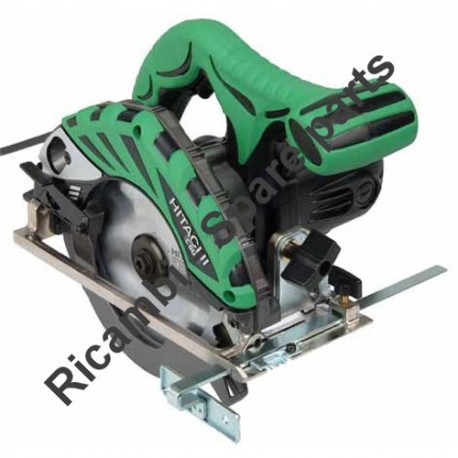

Hitachi Spare Parts for Circular Saw C6U

SKU: Hitachi C6U
€1.35
VAT included

Hitachi Spare Parts for Circular Saw C6U

Distribution and Sale at attractive prices of Hitachi-HIKOKI Tanaka Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Circular Saw C6U.

Hitachi Spare Parts for Circular Saw C6U
  • Hitachi Spare Parts for Circular Saw C6U
  • Hitachi Spare Parts for Circular Saw C6U
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Circular Saw C6U

SKU: Hitachi C6U Condition: New
€1.35
VAT included

Hitachi Spare Parts for Circular Saw C6U

Distribution and Sale at attractive prices of Hitachi-HIKOKI Tanaka Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Circular Saw C6U.

settings 61 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
61 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

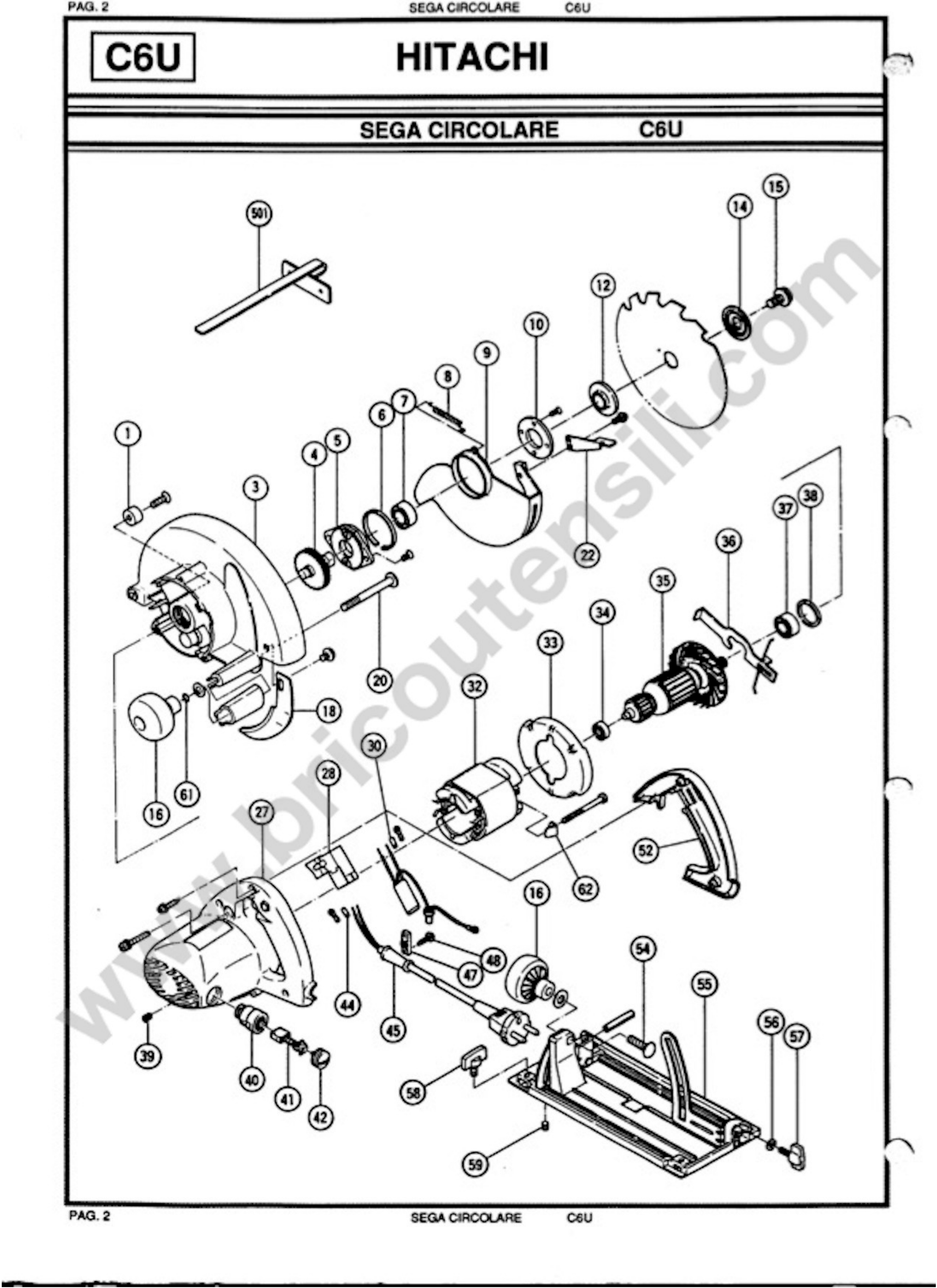

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 961729 CUSHION €1.16
2
 photo_cameraImage coming soon 949794 FLAT HD. SCREW M6X20 €0.00 Not available for order
3
 photo_cameraImage coming soon 302742 Gear Cover Ass’y €41.42
4
 photo_cameraImage coming soon 302449 SPINDLE AND GEAR SET €25.56
5
 photo_cameraImage coming soon 302433 BEARING HOLDER €4.82
6
 photo_cameraImage coming soon 961807 BUSHING €3.60
7
 photo_cameraImage coming soon 6003VV BALL BEARING 6003VVCMPS2L €8.48
9
 photo_cameraImage coming soon 302461 Safety Cover €0.00 Not available for order
10
 photo_cameraImage coming soon 302435 BEARING COVER €2.38
11
 photo_cameraImage coming soon 990430 SEAL LOCK FLAT HD.M4X10 €4.82
14
 photo_cameraImage coming soon 302423 WASHER (B) €3.60
16A
 photo_cameraImage coming soon 302458 KNOB €1.16
17
 photo_cameraImage coming soon 949433 BOLT WASHER M8 €0.00 Not available for order
18A
 photo_cameraImage coming soon 303838 RIVING KNIFE €12.14
20
 photo_cameraImage coming soon 302460 Diagonal Bolt M8 €4.82
21
 photo_cameraImage coming soon 992013 Seal Lock Flat Hd. Screw M5x14. €0.00 Not available for order
22
 photo_cameraImage coming soon 302464 KNOB €3.60
25
 photo_cameraImage coming soon 301653 Tapp.Screw (W / Flange) D4x20 €6.04
28
 photo_cameraImage coming soon 302470 SWITCH (C) (1P SCREW TYPE) W/O LOCK €9.70
28
 Switch for Circular Saws Hitachi C6U2 - C7MFA - C7U2 963756Z Switch for Circular Saws Hitachi C6U2 - C7MFA - C7U2 €28.00
29
 Noise Suppressor Hitachi GP 10 930039 Noise Suppressor Hitachi GP 10 €3.60
29
 Noise Suppressor for Angle Grinder Hitachi G12SA2 994273 Noise Suppressor for Angle Grinder Hitachi G12SA2 €7.26
31
 photo_cameraImage coming soon 930804 TERMINAL M4.0 €0.00 Not available for order
33
 photo_cameraImage coming soon 302454 Fan Guide €2.38
34
 BALL BEARING 608VVC2PS2L 608VVM BALL BEARING 608VVC2PS2L €7.26
36
 photo_cameraImage coming soon 302453 Lock Lever €3.60
37
 BALL BEARING 6001VVCMPS2L 6001VV BALL BEARING 6001VVCMPS2L €8.48
38
 photo_cameraImage coming soon 958130 RUBBER RING €2.38
39A
 photo_cameraImage coming soon 938477 HEX. SOCKET SET SCREW MSX8 €0.00 Not available for order
40
 photo_cameraImage coming soon 958900 BRUSH HOLDER €7.26
40
 photo_cameraImage coming soon 981586 BRUSH HOLDER €7.26
41
 Carbon Brushes for Hitachi Hammer Hitachi DH38MS 999043 Carbon Brushes for Hitachi Hammer Hitachi DH38MS €6.04
42
 Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU 945161 Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU €2.38
42
 Brushe Cap for Mixers Hitachi D13 - D13SA 961781 Brushe Cap for Mixers Hitachi D13 - D13SA €3.60
43
 photo_cameraImage coming soon 992810 TERMINAL FOR CORD €0.00 Not available for order
44
 photo_cameraImage coming soon 981373 TUBE (D) €1.16
45
 Cord Armor D.10.1 for Hitachi Power Tools 938051 Cord Armor D.10.1 for Hitachi Power Tools €1.16
45
 Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.16
46
 photo_cameraImage coming soon 5002342 TAP BOLT €0.00 Not available for order
46
 photo_cameraImage coming soon 5002372 TAP BOLT €0.00 Not available for order
46
 photo_cameraImage coming soon 500247Z CORD €17.02
46
 photo_cameraImage coming soon 5002482 SCRWE €2.20
47
 photo_cameraImage coming soon 960266 CORD CLIP €1.16
48
 photo_cameraImage coming soon 984750 Tapp. Screw (W / Flange) D4x16 €0.00 Not available for order
49
 photo_cameraImage coming soon 959140 CONNECTOR 50091 €0.00 Not available for order
51
 photo_cameraImage coming soon 953174 Hex. Hd. Tapping Screw D5x55 €0.00 Not available for order
53
 photo_cameraImage coming soon 949686 ROLL PIN D6X40 (10 PCS.) €8.48
54
 photo_cameraImage coming soon 302457 BOLT (SQUARE) M8X30 €0.00 Not available for order
56
 photo_cameraImage coming soon 949425 WASHER M6 (10 PCS.) €0.00 Not available for order
57
 photo_cameraImage coming soon 302459 WING BOLT M6X17 €0.00 Not available for order
59A
 photo_cameraImage coming soon 302469 SLOTTED HD. SET SCREW (SEAL LOCK) M6X6 €1.16
61
 photo_cameraImage coming soon 676531 O-RING (P-7) €1.16
64
 photo_cameraImage coming soon 308479 Bevel Plate €0.00 Not available for order
65
 photo_cameraImage coming soon 308480 Rivet D6x17 €0.00 Not available for order
67
 photo_cameraImage coming soon 316246 Guide Piece €1.16
501
 GUIDE 302756 GUIDE €7.26
502A
 photo_cameraImage coming soon 302478 BOX WRENCH €0.00 Not available for order
503
 WASHER (A) 302476 WASHER (A) €4.95
606
 Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE 301806 Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE €1.16
607
 photo_cameraImage coming soon 949237 MACHINE SCREW M5X12 (10 PCS.) €0.00 Not available for order
608
 photo_cameraImage coming soon 949454 SPRING WASHER M5 (10 PCS.) €0.00 Not available for order

Shipping and delivery information will be available shortly.

Hitachi Spare Parts for Circular Saw C6U

Distribution and Sale at attractive prices of Hitachi-HIKOKI Tanaka Original Spare Parts

. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Circular Saw C6U.

Circular saws light, well balanced and low-noise design featuring the characteristic cybernetic very ergonomic. Base in die-cast aluminum plated nickel, resistant to wear and knocks. Action blower on the cutting area for improved cleaning and precision. Gear Housing magnesium alloy strong and lightweight. Double system to fix the angle of the cutting thanks to two separate knobs that ensure a high cutting precision. Carbide-tipped blade, convenient adjustment of the cutting depth, shaft lock for quick blade changes. It also has a knife blade that helps guide the precision of the cut.

- C6U

In the following table, look for the model of the CORDLESS DRILL and theirs spare part.


Hitachi C6U Circular Saw
1 961729 Cushion
2 949794 Flat Hd. Screw M6x20 (10 Pcs.)
3 302742 Gear Cover Ass’y
4 302449 Spindle And Gear Set
5 302433 Bearing Holder
6 961807 Bushing
7 6003VV Ball Bearing 6003vwcmpsz2l
8 302463 Return Spring
9 302461 Safety Cover
10 302435 Bearing Cover
11 990430 Seal Lock Flat Hd. Screw M4x10
12 302443 Washer (a)
BA 302409 Tct Saw Blade 165mm-d30 Hole-nt16
BA 302407 Tct Saw Blade 165mm-d16 Hole-nti6
14 302423 Washer (b)
15 302427 Bolt (w/flange) M8x15.5
16A 302458 Knob
17 949433 Bolt Washer M8 (10 Pcs.)
18A 303838 Riving Knife
19 302468 Bolt (w/flange) M8x10 (black)
20 302460 Diagonal Bolt M8
21 992013 Seal Lock Flat Hd. Screw M5x14.
22 302464 Knob
23 986662 Machine Screw (w/washers) M4x10
24 997234 Machine Screw (w/washers) M5x35
25 301653 Tapping Screw (w/flange) D4x20 (black)
27 302472 Housing Ass’y
27 302473 Housing Ass’y
27 302471 Housing Ass’y
28 302470 Switch (c) (1p Screw Type) W/o Lock
28 963756Z Switch (2p Pillar Type) W/safety Lock
29 994273 Noise Suppressor
29 930039 Noise Suppressor
31 930804 Terminal M4.0 (10 Pcs.)
32 340197C Stator 110v
32 340197E Stator 220v-230v
33 302454 Fan Guide
34 608VVM Ball Bearing 608vvc2pszl
35 360186C Armature 110v
35 360186E Armature 220v-230v
36 302453 Lock Lever
37 6001VV Ball Bearing 6001vvcmpsz2l
38 958130 Rubber Ring
39A 938477 Hex. Socket Set Screw M5x8
40 958900 Brush Holder
40 981586 Brush Holder
41 999043 Carbon Brush (1 Pair)
42 945161 Brush Cap
42 961781 Brush Cap
43 992810 Terminal
44 981373 Tube (d)
45 953327 Cord Armor D8.8
45 938051 Cord Armor D10.1
46 5002342 Cord
46A 5004352 Cord 240V GB
46 500247Z Cord
46 5002482 Cord
46 5002372 Cord
47 960266 Cord Clip
48 984750 Tapping Screw (w/flange) D4x16
49 959140 Connector 50091 (10 Pcs.)
50 983869 Internal Wire
51 953174 Hex. Hd. Tapping Screw D5x55
52 302455 Handle Cover
53 949686 Roll Pin D6x40 (10 Pcs.)
54 302457 Bolt (square) M8x30
55B 316443 Base Ass’y
56 949425 Washer M6 (10 Pcs.)
57 302459 Wing Bolt M6x17
59A 302469 Slotted Hd. Set Screw (seal Lock) M6x6
61 676531 O-ring (p-7)
62 993853 Earth Washer D5
63A 303839 Cap
64 308479 Bevel Plate
65 308480 Rivet D6x17
66 976815 Machine Screw (w/washers) M4x8
67 316246 Guide Piece
501 302756 Guide
502A 302478 Box Wrench 13mm
503 302476 Washer (a)
601 302981 Dust Collector Set (d)
602 317848 Guide Rail Adapter Ass’y INCLUD.602-607
603 317849 Rail Bar
604 317850 Bar
605 317851 Bar
606 301806 Wing Bolt M6x15
607 949237 Machine Screw M5x12 (10 Pcs.)
608 949454 Spring Washer M5 (10 Pcs.)

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi C6U
12 Items

Data sheet

SHIPPING IN
Usually Ships in 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Hitachi C6U

Drawing Hitachi C6U

Download (287KB)
