Hitachi Spare Parts for Impact Drill FDV16VA

SKU: Hitachi FDV16VA
€1.88
VAT included

Hitachi Spare Parts for Impact Drill FDV16VA

Hitachi Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Impact Drill FDV16VA.
Hitachi Spare Parts for Impact Drill FDV16VA
  • Hitachi Spare Parts for Impact Drill FDV16VA
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Impact Drill FDV16VA

SKU: Hitachi FDV16VA Condition: New
€1.88
VAT included

Hitachi Spare Parts for Impact Drill FDV16VA

Hitachi Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Impact Drill FDV16VA.
settings 78 Spare parts

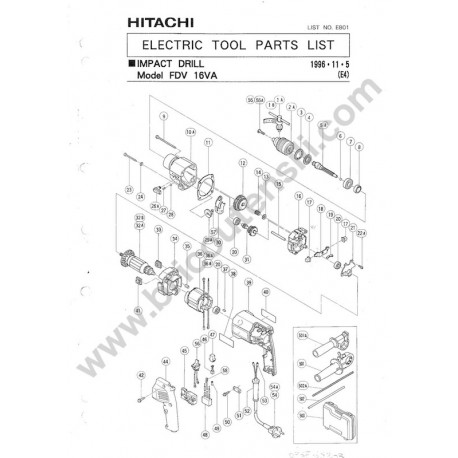

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN: Usually Ships in 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
Machine Type: Drill
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
78 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 7/10 BUSINESS DAYS

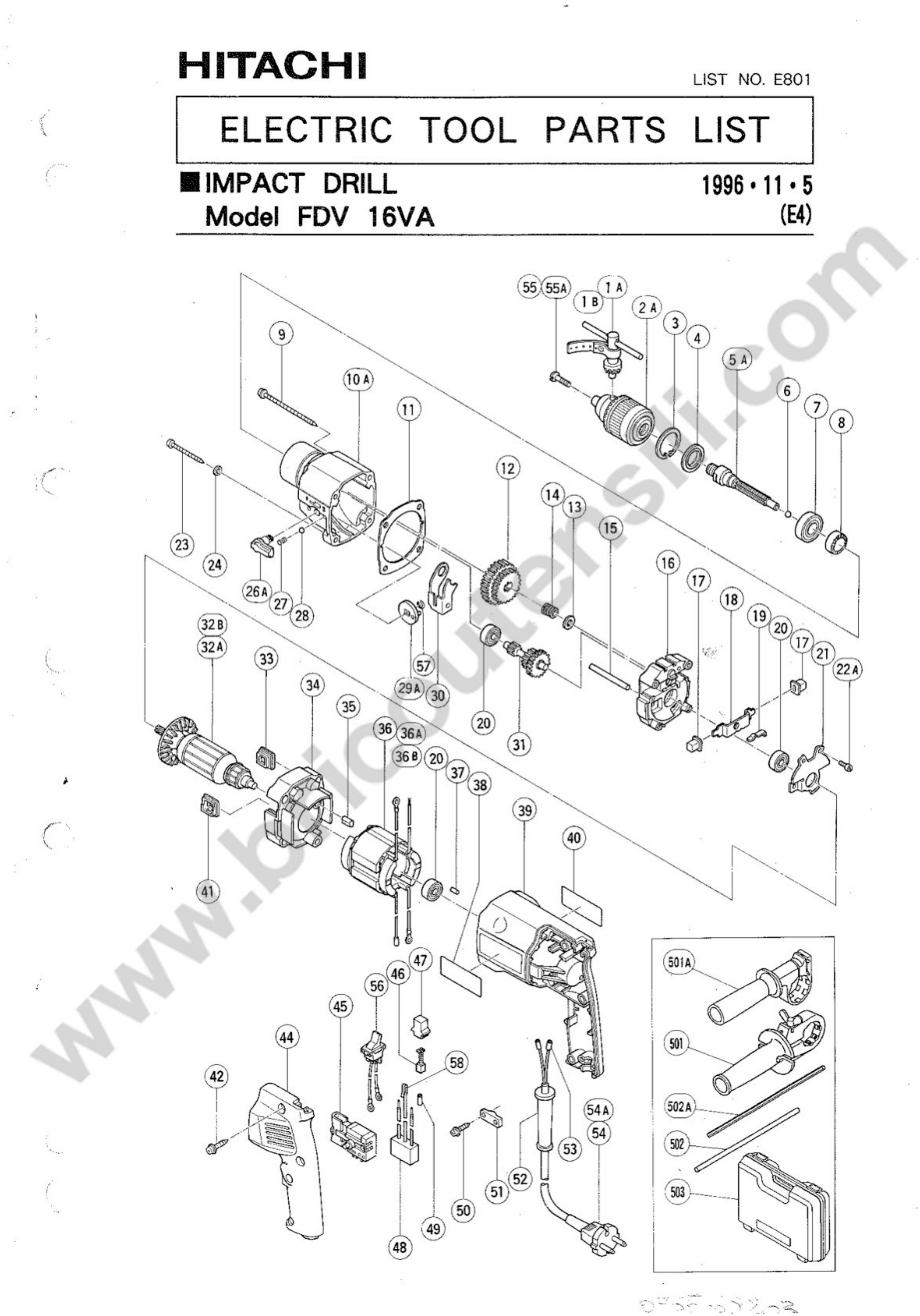

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1A
 photo_cameraImage coming soon 879355 Chuck Wrench 10g €0.00 Not available for order
1B
 photo_cameraImage coming soon 987576 Chuck Wrench For 13vlb HTA100106 €8.48
2A
 photo_cameraImage coming soon 879353 Drill Chuck 13vlr €0.00 Not available for order
3
 photo_cameraImage coming soon 948001 RETAINING RING FOR D32 HOLE €2.38
4
 photo_cameraImage coming soon 971654 Oil Seals €3.60
5A
 photo_cameraImage coming soon 994740 Spindle €8.48
6
 photo_cameraImage coming soon 959149 STEEL BALL D4.76 €1.16
7
 Bearing 6002DD for Hammers-Reciprocatin Saw-Milling Machine Hitachi 6002DD Bearing 6002DD for Hammers-Reciprocatin Saw-Milling Machine Hitachi €9.70
8
 photo_cameraImage coming soon 994450 Ratchet (b) €13.36
9
 photo_cameraImage coming soon 981539Z Tapping Screw (w/washer) D5x85 €0.00 Not available for order
10A
 photo_cameraImage coming soon 991977 Gear Cover €0.00 Not available for order
11
 photo_cameraImage coming soon 992000 Packing €0.00 Not available for order
12
 photo_cameraImage coming soon 994742 Gear €13.36
13
 photo_cameraImage coming soon 971657 Washer €0.00 Not available for order
14
 photo_cameraImage coming soon 971656 Spring €0.00 Not available for order
15
 photo_cameraImage coming soon 984104 pin D.5 €2.38
16
 photo_cameraImage coming soon 991985 Inner Cover €38.98
17
 photo_cameraImage coming soon 991976 Change Knob €0.00 Not available for order
18
 photo_cameraImage coming soon 991982 Change Plate €2.38
19
 photo_cameraImage coming soon 963226 Spring (a) €1.16
20
 BALL BEARING 608VVC2PS2L 608VVM BALL BEARING 608VVC2PS2L €7.26
21
 photo_cameraImage coming soon 991981 Bearing Holder €2.38
22A
 photo_cameraImage coming soon 993126 Seal Lock Screw (w/sp. Washer) M5x12 €0.00 Not available for order
23
 photo_cameraImage coming soon 955912 Tapping Screw D5x45 €0.00 Not available for order
24
 photo_cameraImage coming soon 949424 WASHER M5 (10 PCS.) €2.38
26A
 photo_cameraImage coming soon 994750 Shift Lever €0.00 Not available for order
27
 photo_cameraImage coming soon 981328 Spring H Dh24dva €2.38
28
 STEEL BALL D3.97 959155 STEEL BALL D3.97 €1.16
29A
 photo_cameraImage coming soon 994751 Shift Plate €0.00 Not available for order
30
 photo_cameraImage coming soon 991978 Shift Arm €2.38
31
 photo_cameraImage coming soon 994741 Second Pinion €21.90
32A
 photo_cameraImage coming soon 360029E Armature 220v230v €0.00 Not available for order
32A
 photo_cameraImage coming soon 360029F Armature 230v240v €0.00 Not available for order
32B
 photo_cameraImage coming soon 360326U Armature Ass’y 110v127v €0.00 Not available for order
33
 photo_cameraImage coming soon 991974 Piece (b) €0.00 Not available for order
34
 photo_cameraImage coming soon 991975 Fan Guide €6.04
35
 photo_cameraImage coming soon 994343 RUBBER BUSHING €0.00 Not available for order
36B
 photo_cameraImage coming soon 340050G Stator 220v230v €19.46
36
 photo_cameraImage coming soon 340060C Stator 115v €0.00 Not available for order
36
 photo_cameraImage coming soon 340060E Stator 220v €0.00 Not available for order
36A
 photo_cameraImage coming soon 340060J Stator 220v230v €0.00 Not available for order
36A
 photo_cameraImage coming soon 340060K Stator 230v240v €0.00 Not available for order
36
 photo_cameraImage coming soon 340O060F Stator 230v240v €0.00 Not available for order
37
 photo_cameraImage coming soon 946362 BEARING LOCK €1.16
38
 photo_cameraImage coming soon 994840 Hitachi Label €0.00 Not available for order
39
 photo_cameraImage coming soon 311139 Housing (off Black Green) €0.00 Not available for order
39
 photo_cameraImage coming soon 994821 Housing (moss Green) €14.58
41
 photo_cameraImage coming soon 991973 Piece (a) €12.14
42
 photo_cameraImage coming soon 982095 Tapping Screw (w/washer) D4x20 €0.00 Not available for order
44
 photo_cameraImage coming soon 311140 Handle Cover (off Black Green) €0.00 Not available for order
44
 photo_cameraImage coming soon 994823 Handle Cover (moss Green) €6.04
45
 photo_cameraImage coming soon 994744 SWITCH (2P PILLAR TYPE) W/LOCK - DISCONTINUED €0.00 Not available for order
45
 photo_cameraImage coming soon 994843 SWITCH (2P PILLAR TYPE) W/LOCK - DISCONTINUED €0.00 Not available for order
46
 Carbon Brushes for Sanders Hitachi SV12-13 999041 Carbon Brushes for Sanders Hitachi SV12-13 €9.70
47
 Brushe Holder for Orbital Sanders Hitachi SV12SD-SG-SH 930483 Brushe Holder for Orbital Sanders Hitachi SV12SD-SG-SH €2.38
48
 Noise Suppressor for Angle Grinder Hitachi G12SA2 994273 Noise Suppressor for Angle Grinder Hitachi G12SA2 €7.26
50
 photo_cameraImage coming soon 984750 Tapp. Screw (W / Flange) D4x16 €0.00 Not available for order
51
 photo_cameraImage coming soon 960266 CORD CLIP €1.16
52
 photo_cameraImage coming soon 930026 CORD ARMOR D10.2 €3.60
52
 photo_cameraImage coming soon 930487 CORD ARMOR D8.2 €0.00 Not available for order
53
 photo_cameraImage coming soon 981373 TUBE (D) €1.16
54
 photo_cameraImage coming soon 500212Z Cord €0.00 Not available for order
54
 photo_cameraImage coming soon 500231Z Cord €0.00 Not available for order
54
 photo_cameraImage coming soon 500240Z Cord, Electrical, 2 Wires €0.00 Not available for order
54
 photo_cameraImage coming soon 500245Z CORD (CORD ARMOR D10.1) FOR SYR €0.00 Not available for order
54
 photo_cameraImage coming soon 500395Z Cord €0.00 Not available for order
54
 photo_cameraImage coming soon 500409Z Cord €13.36
54
 photo_cameraImage coming soon 500423Z CORD €0.00 Not available for order
54A
 photo_cameraImage coming soon 500436Z CORD 1 (CORD ARMOR D8.8) €0.00 Not available for order
54
 photo_cameraImage coming soon 500439Z CORD (CORD ARMOR D8.8) FOR AUS,NZL €0.00 Not available for order
55
 photo_cameraImage coming soon 981122 SPECIAL SCREW M6X22 €1.16
55A
 Flat Hd. Screw (A) M6x25 995344 Flat Hd. Screw (A) M6x25 €3.60
57
 photo_cameraImage coming soon 673489 RETAINING RING (E-TYPE) FOR D5 SHAFT €0.00 Not available for order
58
 photo_cameraImage coming soon 302488 NOISE SUPPRESSOR €0.00 Not available for order
501A
 photo_cameraImage coming soon 303659 Side grip €13.36
502A
 photo_cameraImage coming soon 303709 delimiter Depth €1.16
502
 photo_cameraImage coming soon 971677 Stopper €0.00 Not available for order
503
 photo_cameraImage coming soon 310904 Case €0.00 Not available for order

Shipping and delivery information will be available shortly.

Hitachi Spare Parts for Impact Drill FDV16VA

Hitachi Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Impact Drill FDV16VA.

In the following table , look for the model of the impact drill and the respective parts of the code .
Hitachi FDV16VA
Hitachi FDV16VA spares and accessories
# Part Num. Description
1A 879355 Chuck Wrench 10g
1B 987576 Chuck Wrench For 13vlbd,13vlrd
2A 879353 Drill Chuck 13vlr
3 948001 Retaining Ring For D32 Hole
4 971654 Dust Seal
5A 994740 Spindle
6 959149 Steel Ball D4.76 (10 Pcs.)
7 6002DD Ball Bearing 6002ddcmpsal
8 994450 Ratchet (b)
9 981539Z Tapping Screw (w/washer) D5x85
10A 991977 Gear Cover
11 992000 Packing
12 994742 Gear
13 971657 Washer
14 971656 Spring
15 984104 Pin D5
16 991985 Inner Cover
17 991976 Change Knob
18 991982 Change Plate
19 963226 Spring (a)
20 608VVM Ball Bearing 608vvc2psz2l
21 991981 Bearing Holder
22A 993126 Seal Lock Screw (w/sp. Washer) M5x12
23 955912 Tapping Screw D5x45
24 949424 Washer M5 (10 Pcs.)
26A 994750 Shift Lever
27 981328 Spring (h)
28 959155 Steel Ball D3.97 (10 Pcs.)
29A 994751 Shift Plate
30 991978 Shift Arm
31 994741 Second Pinion
32A 360029E Armature 220v230v
32A 360029F Armature 230v240v
32B 360326U Armature Ass’y 110v127v
33 991974 Piece (b)
34 991975 Fan Guide
35 994343 Rubber Bushing
36 340060C Stator 115v
36 340060E Stator 220v
36 340O060F Stator 230v240v
36A 340060J Stator 220v230v
36A 340060K Stator 230v240v
36B 340050G Stator 220v230v
37 946362 Bearing Lock
38 994840 Hitachi Label
39 311139 Housing (off Black Green)
39 994821 Housing (moss Green)
41 991973 Piece (a)
42 982095 Tapping Screw (w/washer) D4x20
44 311140 Handle Cover (off Black Green)
44 994823 Handle Cover (moss Green)
45 994744 Switch (2p Pillar Type) W/lock - DISCONTINUED
45 994843 Switch (2p Pillar Type) W/lock - DISCONTINUED
46 999041 Carbon Brush (1 Pair)
47 930483 Brush Holder
48 994273 Noise Suppressor
50 984750 Tapping Screw (w/flange) D4x16
51 960266 Cord Clip
52 930487 Cord Armor D8.2
52 930026 Cord Armor D10.2
53 981373 Tube (d)
54 500212Z Cord
54A 500436Z Cord
54 500395Z Cord
54 500231Z Cord
54 500240Z Cord
54 500423Z Cord
54 500439Z Cord
54 500409Z Cord
54 500245Z Cord
55 981122 Special Screw M6x22
55A 995344 Flat Hd. Screw (a) (left Hand) M6x25
57 673489 Retaining Ring (etype) For D5 Shaft
58 302488 Earth Terminal
501A 303659 Side Handle
502 971677 Stopper
502A 303709 Depth Gauge
503 310904 Case

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Hitachi FDV16VA
12 Items

Data sheet

SHIPPING IN
Usually Ships in 7/10 BUSINESS DAYS
Machine Type
Drill
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi FDV16VA

Diagram Hitachi FDV16VA

Download (259.04KB)

You might also like

Switch for Drills Hitachi DV18V-DV20VB2
HiKOKI Power Tools Italia S.p.a. SKU: 322854
Switch for Drills Hitachi DV18V-DV20VB2
Switch for Drills Hitachi DV18V-DV20VB2 Genuine spare part HITACHI, Switch for Impact Drills Hitachi DV 18V - DV 20VB2 Part for the following products: -  Impact Drill Hitachi DV 18V -  Impact Drill Hitachi DV 20VB2 - Codice : 322854
Usually Ships in: 7/10 Business Days Approx. €30.44
Details
Carbon Brushes for Sanders Hitachi SV12-13
HiKOKI Power Tools Italia S.p.a. SKU: 999041
Carbon Brushes for Sanders Hitachi SV12-13
Carbon Brushes for Sanders Hitachi SV12-13 Genuine spare Hitachi, Carbon Brushes for Sanders SV12SD - SV12SG - SV12SH - SV12V, for Drills, D 13VG - DV 18V - DV 20VB2, for Jig Saws FCJ65V3 - CJ90VST - CJ110MVA - CJ110MV, for Hammers DH...
AVAILABLE €9.70
Details
Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V Sale
HiKOKI Power Tools Italia S.p.a. SKU: 939544
Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V
Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V Original spare part HITACHI, Retaining Ring Type C 15 mm diameter for shafts, for Impact Drills D 13VG - DV 16V. Part for the following products: - Impact Drill D 13VG -...
AVAILABLE €0.00
Details
Switch for Impact Drills Hitachi DV 16V Sale
HiKOKI Power Tools Italia S.p.a. SKU: 321632
Switch for Impact Drills Hitachi DV 16V
Switch for Impact Drills Hitachi DV 16V Original spare part HITACHI, Switch 1P Pillar Type for Drill D10VC2 - Impact Drill DV16V - FDV16VB2. Part for the following products: - Drill Hitachi D10VC2...
AVAILABLE €41.42
Details
Pusching Button for Drills Hitachi DV16-18V-DV20VB2
HiKOKI Power Tools Italia S.p.a. SKU: 322853
Pusching Button for Drills Hitachi DV16-18V-DV20VB2
Pusching Button for Drills Hitachi DV16-18V-DV20VB2 Original spare part HITACHI, Pusching Button for Percussion Drills Hitachi DV 16-18V - DV 20VB2. Part for the following products: - Percussion Drill DV16V - Percussion Drill DV...
AVAILABLE €2.38
Details
Chuck Spindle for Percussion Drills Hitachi DV18V-DV20VB2
HiKOKI Power Tools Italia S.p.a. SKU: 322857
Chuck Spindle for Percussion Drills Hitachi DV18V-DV20VB2
Chuck Spindle for Percussion Drills Hitachi DV18V-DV20VB2 Original spare part Hitachi, Chuck Spindle for Impact drills DV 18V - DV 20VB2. Part for the following products: - Percussion Drill DV 18V - Percussion Drill DV 20VB2 - Code:...
AVAILABLE €28.00
Details
Steel Ball 6,35 mm for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 959150
Steel Ball 6,35 mm for Hammers Hitachi
Steel Ball 6,35 mm for Hammers Hitachi Hitachi genuine parts, steel ball diameter MM 6,35, Box 10 Pcs for Demolition Hammers and Percussion drills, H45MR - H45MRY - H41MB - H60MC - D13VG - DV16V-20VB2. Suitable for the following...
AVAILABLE €3.60
Details
Chuck Spindle for Percussion Drills Hitachi D13VG
HiKOKI Power Tools Italia S.p.a. SKU: 319346
Chuck Spindle for Percussion Drills Hitachi D13VG
Chuck Spindle for Percussion Drills Hitachi D13VG Original spare Hitachi, Chuck Spindle for Impact drills D13VG. Parts for the following products: - Percussion Drill D 13VG - Code: 319346
Last items in stock €26.78
Details
Chuck Spindle for Percussion Drills Hitachi DV16V
HiKOKI Power Tools Italia S.p.a. SKU: 322513
Chuck Spindle for Percussion Drills Hitachi DV16V
Chuck Spindle for Percussion Drills Hitachi DV16V Original spare Hitachi, Chuck Spindle for Impact drills DV16V. Parts for the following products: - Percussion Drill DV16V - Code: 322513
AVAILABLE €18.24
Details
Brushe Holder for Orbital Sanders Hitachi SV12SD-SG-SH
HiKOKI Power Tools Italia S.p.a. SKU: 930483
Brushe Holder for Orbital Sanders Hitachi SV12SD-SG-SH
Brushe Holder for Orbital Sanders Hitachi SV12SD-SG-SH Genuine replacement part HITACHI, Brushe Holder for Orbital Sanders SV12V - SV12SD - SV12SG - SV12SH - Rotorbital Sanders SV13YA - FCJ65V3. Part for the following products: -...
AVAILABLE €2.38
Details
Gear for Percussion Drill DV 16V Sale
HiKOKI Power Tools Italia S.p.a. SKU: 323527
Gear for Percussion Drill DV 16V
Gear for Percussion Drill DV 16V Hitachi genuine parts, Percussion Gear for Percussion Drill DV 16V. Part for the following products: - Percussio Drill Hitachi DV 16V - Code: 323527
AVAILABLE €25.56
Details
Noise Suppressor for Angle Grinder Hitachi G12SA2
HiKOKI Power Tools Italia S.p.a. SKU: 994273
Noise Suppressor for Angle Grinder Hitachi G12SA2
Noise Suppressor for Angle Grinder Hitachi G12SA2 Genuine replacement part Hitachi, Noise Suppressor for Angle Grinders Hitachi G12SA2 - G12S2 - G12SG - G 13SR3 - G 13SB3 - Polisher Sander SAT180 -  Reciprocating Saw CR13VC. Part for...
AVAILABLE €7.26
Details
Comments (0)
No customer reviews for the moment.
