HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Angle Grinder G13SE2

SKU: Hitachi G13SE2
€1.54
VAT included

Hitachi Spare Parts for Angle Grinder G13SE2

We have the original Spares HITACHI-HIKOKI for Angle Grinder G13SE2, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Angle Grinder G13SE2. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.
Hitachi Spare Parts for Angle Grinder G13SE2
  • Hitachi Spare Parts for Angle Grinder G13SE2
  • Hitachi Spare Parts for Angle Grinder G13SE2
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Angle Grinder G13SE2

SKU: Hitachi G13SE2 Condition: New
€1.54
VAT included

Hitachi Spare Parts for Angle Grinder G13SE2

We have the original Spares HITACHI-HIKOKI for Angle Grinder G13SE2, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Angle Grinder G13SE2. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.
settings 45 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
45 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

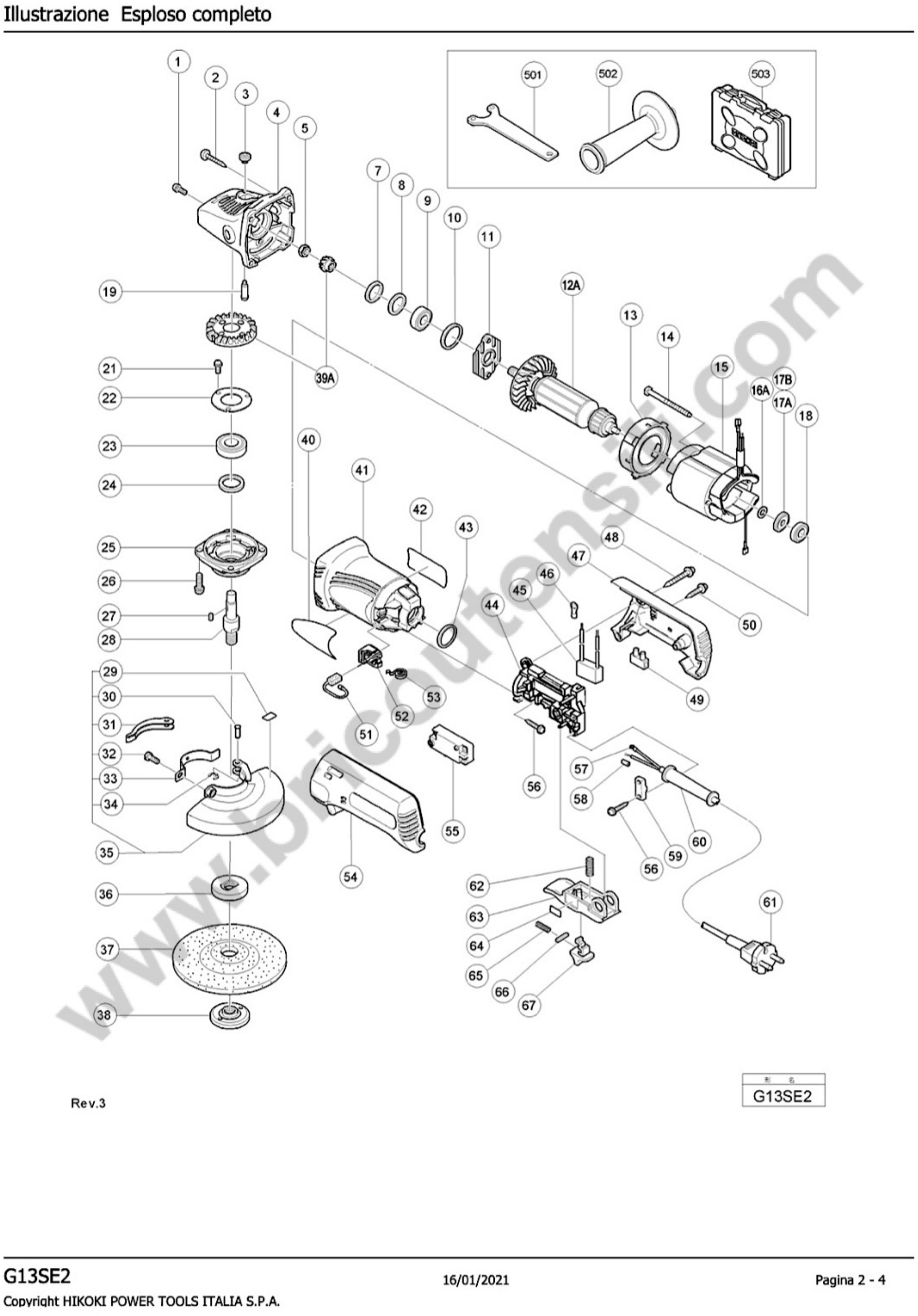

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
3
 Pushing Button for Angle Grinders Hitachi G15VA - G15YF 301944 Pushing Button for Angle Grinders Hitachi G15VA - G15YF €1.52
4
 photo_cameraImage coming soon 321737 GEAR COVER ASS'Y €48.09
5
 photo_cameraImage coming soon 949558 NUT M8 (10 PCS.) €1.26
8
 photo_cameraImage coming soon 980866 COVER KIT €38.82
9
 photo_cameraImage coming soon 629T12 BALL BEARING 629T12DDC3PS2-L €5.44
10
 photo_cameraImage coming soon 957754 RUBBER RING €1.67
12A
 photo_cameraImage coming soon 360603F ARMATURE 230V G12-13SE2 230-240V €49.64
13
 photo_cameraImage coming soon 321732 FAN GUIDE €1.75
15
 photo_cameraImage coming soon 340551E STATOR 230V €42.61
17B
 Dust Seal for Angle Grinders Hitachi G13SD - G12S2 315877 Dust Seal for Angle Grinders Hitachi G13SD - G12S2 €1.59
18
 photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
19
 Pin Retainer for Angle Grinder Hitachi G12 301943 Pin Retainer for Angle Grinder Hitachi G12 €4.19
23
 photo_cameraImage coming soon 6201DD BALL BEARING 6201DDCMPS2L €7.04
25
 photo_cameraImage coming soon 308545 PACKING GLAND €10.20
27
 photo_cameraImage coming soon 944109 FEATHER KEY 3X3X8 €2.99
28
 photo_cameraImage coming soon 994301 SPINDLE (A) €18.28
30
 photo_cameraImage coming soon 311744 SET PIN €1.42
31
 photo_cameraImage coming soon 311743 LEVER €6.62
33
 photo_cameraImage coming soon 311491 SET PIECE (B) €5.32
35
 photo_cameraImage coming soon 311742 WHEEL GUARD ASS'Y €22.63
36
 photo_cameraImage coming soon HTA376067 RECIEVE WASHER €6.02
38
 photo_cameraImage coming soon HTA339579 WHEEL NUT M14 €6.37
39A
 Gear and Pinion Set for Angle Grinders Hitachi G13VA-G13YC 329054 Gear and Pinion Set for Angle Grinders Hitachi G13VA-G13YC €22.30
41
 photo_cameraImage coming soon 321731 HOUSING G12SE2-G13SE2 €15.90
44
 photo_cameraImage coming soon 311738 SWITCH BOX €3.28
45
 Noise Suppressor Hitachi GP 10 930039 Noise Suppressor Hitachi GP 10 €4.04
47
 photo_cameraImage coming soon 321739 TAIL COVER (B) €6.43
49
 photo_cameraImage coming soon 938307 PILLAR TERMINAL (OLD 938307Z / 512-31) €2.60
51
 photo_cameraImage coming soon 999076 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) €12.89
51
 Carbon Brushes for Grinder Hitachi 999088 Carbon Brushes for Grinder Hitachi €9.62
52
 photo_cameraImage coming soon 317810 BRUSH HOLDER €5.94
53
 Carbon Brush Spring for Angle Grinders G 12 S2 308536 Carbon Brush Spring for Angle Grinders G 12 S2 €2.18
54
 photo_cameraImage coming soon 321738 TAIL COVER (A) €6.43
55
 Switch for Angle Grinders Hitachi G12SE 311739 Switch for Angle Grinders Hitachi G12SE €22.19
58
 photo_cameraImage coming soon 981373 TUBE (D) €1.37
59
 photo_cameraImage coming soon 960266 CORD CLIP €1.37
60
 Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.37
61
 photo_cameraImage coming soon 714500 POWER CABLE €15.65
63
 photo_cameraImage coming soon 308554 PADDLE LEVER €3.41
64
 photo_cameraImage coming soon 308557 LEVER ACTION SEAL €1.70
65
 photo_cameraImage coming soon 301631 SPRING (F) €1.22
67
 photo_cameraImage coming soon 308555 LOCK LEVER (BLACK) €1.89
501
 photo_cameraImage coming soon HTA711271 WRENCH €5.66
502
 photo_cameraImage coming soon HTA711283 SIDE HANDLE €13.61
503
 photo_cameraImage coming soon HTA325515 Case €42.61
Page 2 local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
501
 photo_cameraImage coming soon HTA711271 WRENCH €5.66
502
 photo_cameraImage coming soon HTA711283 SIDE HANDLE €13.61
503
 photo_cameraImage coming soon HTA325515 Case €42.61

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Angle Grinder G13SE2

We have the original Spares HITACHI-HIKOKI for Angle Grinder G13SE2, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Angle Grinder G13SE2. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.

In the following table , look for the model of the Angle Grinder and the ripettivo spare part.
Angle Grinder G13SE2
DISC GRINDER Model Hitachi G13SE2 Pag.1
# Part Num. Description
2 320523 TAPPING SCREW D5X25 BLACK
3 301944 PUSHING BUTTON WITH SPRING G13SB3
4 321737 GEAR COVER ASS’Y G12SE2-G13SE2
5 949558 NUT M8 (10PCS)
7 308543 SEAL RING (A)
8 980866 WASHER (C)
9 629T12 BALL BEARING 629T12
10 957754 RUBBER RING
11 321734 BEARING COVER
12A 360603F ARMATURE 230V G12-13SE2 230-240V
13 321732 FAN GUIDE
15 340551E STATOR 230V G12SE2-G13SE2
16A 311737 THRUST WASHER
17B 315877 DUST SEAL
18 608VVM BALL BEARING 608VVM
19 301943 LOCK PIN
22 936680 BEARING COVER (B)
23 6201DD BALL BEARING 6201DD
24 308546 FELT PACKING
25 308545 PACKING GLAND
27 944109 FEATHER KEY 3X3X8
28 994301 SPINDLE (A)
29 311492 LABEL
30 311744 SET PIN
31 311743 LEVER
33 311491 SET PIECE (B)
34 874759 RETAINING RING (E-TYPE) FOR D2.5 SHAFT
35 311742 WHEEL GUARD ASS’Y
36 HTA376067 WHEEL WASHER
38 HTA339579 WHEEL NUT M14
39A 329054 GEAR AND PINION ASS’Y
41 321731 HOUSING G12SE2-G13SE2
43 321733 RUBBER RING G12SE2
44 311738 SWITCH BOX
45 930039 NOISE SUPPRESSOR
46 311741 TERMINAL
47 321739 TAIL COVER (B) G12SE2-G13SE2
49 938307 PILLAR TERMINAL (OLD 938307Z / 512-31
51 999088 CARBON BRUSH (1 PAIR)
51 999076 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
52 317810 BRUSH HOLDER
53 308536 SPRING
54 321738 TAIL COVER (A) G12SE2-G13SE2
55 311739 SWITCH (1P SCREW TYPE) W/O LOCK
57 980063 TERMINAL
58 981373 TUBE D
59 960266 CORD CLIP
60 953327 CORD ARMOR D8.8
61 714500 CORD 5M 2 X 1.0 WITH PLUG
62 983595 SPRING
63 308554 PADDLE LEVER
64 308557 LEVER ACTION SEAL FOR SWITCH (ON-OFF LOCK TYPE)
65 301631 SPRING (F)
66 982696 FEATHER KEY 3X3X15
67 308555 LOCK LEVER (BLACK)
STANDARD ACCESSORIES Pag.2
501 HTA711271 WRENCH
502 HTA711283 SIDE HANDLE
503 HTA325515 CASE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
