HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Angle Grinder G12SE

SKU: Hitachi G12SE
€1.37
VAT included

Hitachi Spare Parts for Angle Grinder G12SE

We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Angle Grinder G 12SE.
Hitachi Spare Parts for Angle Grinder G12SE
  • Hitachi Spare Parts for Angle Grinder G12SE
  • Hitachi Spare Parts for Angle Grinder G12SE
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Angle Grinder G12SE

SKU: Hitachi G12SE Condition: New
€1.37
VAT included

Hitachi Spare Parts for Angle Grinder G12SE

We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Angle Grinder G 12SE.
settings 75 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN: Usually Ships in 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
Machine Type: Grinder
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
75 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 7/10 BUSINESS DAYS

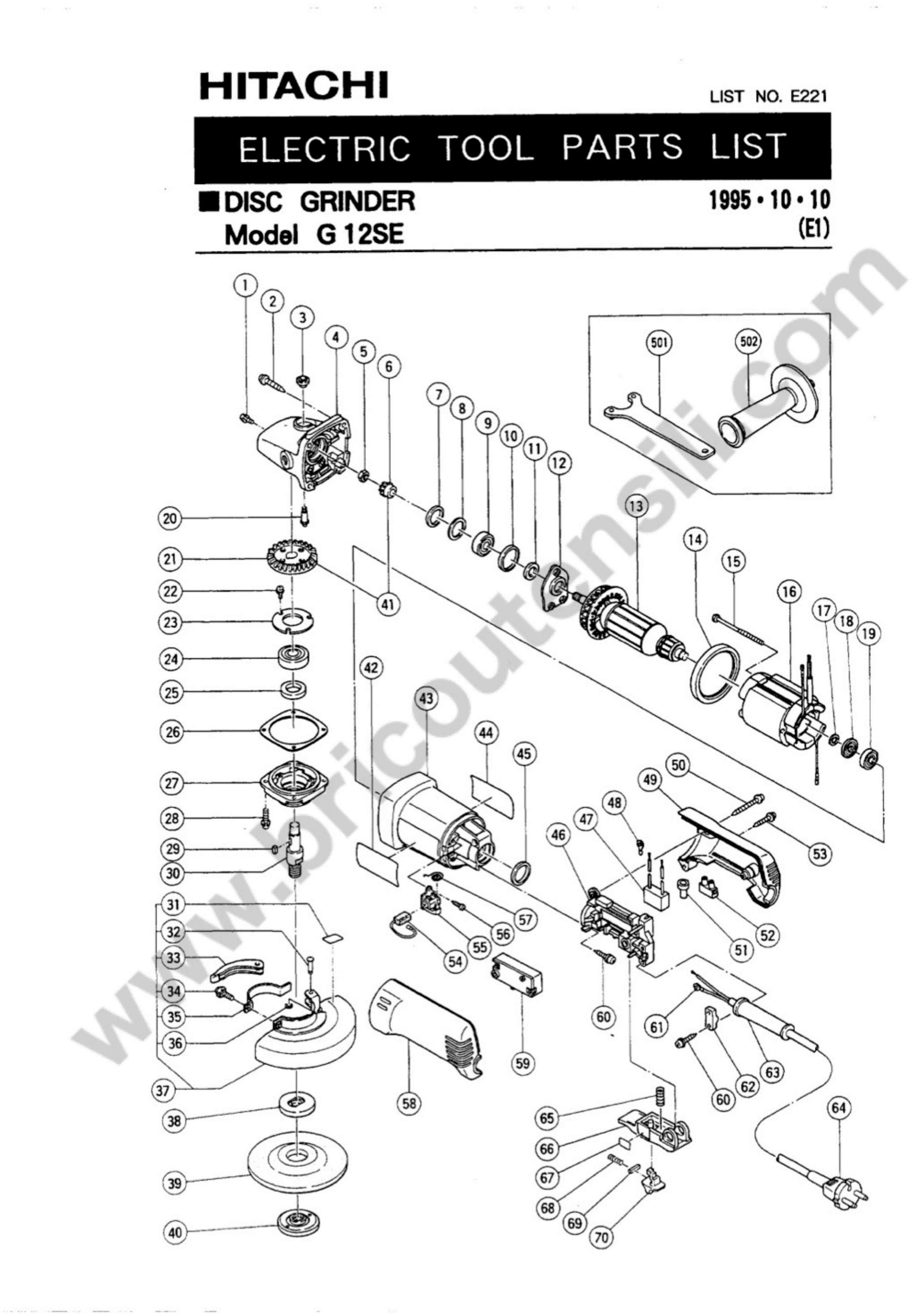

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 303255 Seal Lock Screw M4X10 G12Se €0.00 Not available for order
2
 photo_cameraImage coming soon 937807 TAPPING SCREW W/O FLANGE D5x25 €0.00 Not available for order
3
 Pushing Button for Angle Grinders Hitachi G15VA - G15YF 301944 Pushing Button for Angle Grinders Hitachi G15VA - G15YF €1.16
4
 photo_cameraImage coming soon 308542 GEAR COVER ASS'Y €29.22
5
 photo_cameraImage coming soon 301941 SPECIAL NUT M7 €0.00 Not available for order
6
 Gear and Pinion Set for Angle Grinders Hitachi G13VA-G13YC 329054 Gear and Pinion Set for Angle Grinders Hitachi G13VA-G13YC €21.90
7
 photo_cameraImage coming soon 308543 SEAL RING (A) €0.00 Not available for order
8
 photo_cameraImage coming soon 980866 COVER KIT €38.82
9
 photo_cameraImage coming soon 629T12 BALL BEARING 629T12DDC3PS2-L €6.04
10
 photo_cameraImage coming soon 957754 RUBBER RING €1.16
11
 photo_cameraImage coming soon 994320 FELT €0.00 Not available for order
12
 photo_cameraImage coming soon 308538 BEARING COVER €2.38
13
 photo_cameraImage coming soon 360375E ARMATURE €59.72
13
 photo_cameraImage coming soon 360375U Armature Assy 115V G12Se €0.00 Not available for order
14
 photo_cameraImage coming soon 308537 FAN GUIDE €2.38
15
 photo_cameraImage coming soon 982021 Tapping Screw D4X70 G10Sr/12Sr €0.00 Not available for order
16
 photo_cameraImage coming soon 340339C STATOR 110V €0.00 Not available for order
16
 photo_cameraImage coming soon 340339D Stator 115V G12Se €0.00 Not available for order
16
 photo_cameraImage coming soon 340339E STATOR €0.00 Not available for order
17
 photo_cameraImage coming soon 311737 THRUST WASHER €0.00 Not available for order
18
 photo_cameraImage coming soon 311435 DUST SEAL (A) €0.00 Not available for order
19
 BALL BEARING 608VVC2PS2L 608VVM BALL BEARING 608VVC2PS2L €7.26
20
 Pin Retainer for Angle Grinder Hitachi G12 301943 Pin Retainer for Angle Grinder Hitachi G12 €3.60
21
 Gear and Pinion Set for Angle Grinders Hitachi G13VA-G13YC 329054 Gear and Pinion Set for Angle Grinders Hitachi G13VA-G13YC €21.90
22
 photo_cameraImage coming soon 991207 Seal Lock Screw W/Washer M4X8 €0.00 Not available for order
24
 BALL BEARING 6201DDCMPS2L 6201DD BALL BEARING 6201DDCMPS2L €7.26
25
 photo_cameraImage coming soon 308548 TAIL COVER (A)  €7.26
26
 photo_cameraImage coming soon 308547 SEAL PACKING €0.00 Not available for order
27
 photo_cameraImage coming soon 308545 PACKING GLAND €9.70
28
 photo_cameraImage coming soon 307046 Seal Lock Screw M5X16 G12Se €0.00 Not available for order
29
 photo_cameraImage coming soon 944109 FEATHER KEY 3X3X8 €2.38
30
 photo_cameraImage coming soon 994301 SPINDLE (A) €18.24
30
 photo_cameraImage coming soon 994302 Spindle (B) 5/8"-11 Umc Cm5Sb €0.00 Not available for order
31
 photo_cameraImage coming soon 311492 Label G12Se G18Se3 G23Sc3 €0.00 Not available for order
32
 photo_cameraImage coming soon 311744 SET PIN €1.16
33
 photo_cameraImage coming soon 311743 LEVER €6.04
34
 photo_cameraImage coming soon 880734 MACHINE SCREW M5X25 (BLACK) €0.00 Not available for order
35
 photo_cameraImage coming soon 311491 SET PIECE (B) €4.82
37
 photo_cameraImage coming soon 311745 WHEEL GUARD ASS'Y (TOOLLESS TYPE) €32.88
38
 photo_cameraImage coming soon 874759 RETAINING RING (E-TYPE) FOR D2.5 SHAFT €0.00 Not available for order
38
 Wheel Washer for Grinder Hitachi G12SS 937817Z Wheel Washer for Grinder Hitachi G12SS €13.36
38
 photo_cameraImage coming soon 937922P WHEEL WASHER (B) G13SC2 €0.00 Not available for order
39
 photo_cameraImage coming soon 937819Z D.C. WHEELS 115MM €0.00 Not available for order
40
 photo_cameraImage coming soon 937923P WHEEL NUT 5/811 UMC THREAD €0.00 Not available for order
41
 Gear and Pinion Set for Angle Grinders Hitachi G13VA-G13YC 329054 Gear and Pinion Set for Angle Grinders Hitachi G13VA-G13YC €21.90
43
 photo_cameraImage coming soon 308559 HOUSING  €13.36
46
 photo_cameraImage coming soon 311738 SWITCH BOX €3.60 Not available for order
47
 Noise Suppressor Hitachi GP 10 930039 Noise Suppressor Hitachi GP 10 €3.60
48
 photo_cameraImage coming soon 311741 Terminal (Since 8/2001) Sp18V €0.00 Not available for order
48
 photo_cameraImage coming soon 980063 TERMINAL FOR KUW,SIN,SAF,NZL.GBR €0.00 Not available for order
49
 photo_cameraImage coming soon 308549 TAIL COVER (B)  €7.26
50
 photo_cameraImage coming soon 303694 TAPPING SCREW (W/FLANGE) D4X35 (BLACK) €0.00 Not available for order
51
 photo_cameraImage coming soon 959140 CONNECTOR 50091 €0.00 Not available for order
51
 photo_cameraImage coming soon 959141 CONNECTOR 50092 €0.00 Not available for order
52
 photo_cameraImage coming soon 938307 PILLAR TERMINAL (OLD 938307Z / 512-31) €2.38 Not available for order
53
 photo_cameraImage coming soon 301653 Tapp.Screw (W / Flange) D4x20 €6.04
54
 Carbon Brushes for Grinder Hitachi 999088 Carbon Brushes for Grinder Hitachi €9.70
55
 photo_cameraImage coming soon 308535 BRUSH HOLDER €8.48 Not available for order
56
 photo_cameraImage coming soon 306945 TAPPING SCREW D3X10 €0.00 Not available for order
57
 Carbon Brush Spring for Angle Grinders G 12 S2 308536 Carbon Brush Spring for Angle Grinders G 12 S2 €2.38
59
 Switch for Angle Grinders Hitachi G12SE 311739 Switch for Angle Grinders Hitachi G12SE €21.90
59
 photo_cameraImage coming soon 311740 Switch 1P Screwtype W/O Lock €0.00 Not available for order
60
 photo_cameraImage coming soon 984750 Tapp. Screw (W / Flange) D4x16 €0.00 Not available for order
62
 photo_cameraImage coming soon 960266 CORD CLIP €1.16
63
 Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.16
64
 photo_cameraImage coming soon 500237Z CORD €0.00 Not available for order
64
 photo_cameraImage coming soon 500240Z Cord, Electrical, 2 Wires €0.00 Not available for order
64
 photo_cameraImage coming soon 500436Z CORD 1 (CORD ARMOR D8.8) €0.00 Not available for order
64
 photo_cameraImage coming soon 714500 POWER CABLE €15.80
65
 photo_cameraImage coming soon 983595 SPRING  €0.00 Not available for order
67
 photo_cameraImage coming soon 308557 LEVER ACTION SEAL €1.16
69
 photo_cameraImage coming soon 982696 FEATHER KEY 3X3X15 €0.00 Not available for order
70
 photo_cameraImage coming soon 308555 LOCK LEVER (BLACK) €2.38
70
 photo_cameraImage coming soon 308556 LOCK LEVER (GRAY) €2.38
86
 photo_cameraImage coming soon 308554 PADDLE LEVER €3.60
87
 photo_cameraImage coming soon 308558 LEVER ACTION SEAL €1.16
88
 photo_cameraImage coming soon 301631 SPRING (F) €1.16

Shipping and delivery information will be available shortly.

Hitachi Spare Parts for Angle Grinder G12SE

We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Angle Grinder G 12SE.

In the following table, look for the model of the Angle Grinder and their spare part.
Hitachi G12SE

HITACHI G12SE PARTS - GRINDER
# Part Num. Description
1 303255 Seal Lock Screw M4X10 G12Se
2 937807 TAPPING SCREW W/O FLANGE D5x25
3 301944 Pushing Button G18Dl G14Dsl
4 308542 Gear Cover Assy G12Se G12Sa2
5 301941 Special Nut M7 G10Sr G12Sr
6 329054 GEAR ASS'Y G12SE2 G12SA2 G12SA3
7 308543 Seal Ring (A) G12Se G12Sa2/3
8 980866 Washer (C) G12Se G13Se G12Sa2
9 629T12 Ball Bearing 629T12Ddc3Ps2-L
10 957754 Rubber Ring G12Sa/2/3 G12Se
11 994320 Felt G12Sa G12Sa2
12 308538 Bearing Cover G12Se G12Sa2
13 360375E ARMATURE 220V240V
13 360375U Armature Assy 115V G12Se
14 308537 Fan Guide G12Sa/G12Se/G12Sa2
15 982021 Tapping Screw D4X70 G10Sr/12Sr
16 340339C STATOR 110V
17 311737 Thrust Washer G12Se G12Va
16 340339E STATOR 220V240V
18 311435 Dust Seal (A) G12Se C7D G12Va
16 340339D Stator 115V G12Se
19 608VVM Ball Bearing G10Sr Sp18Sa C7Sb
20 301943 Lock Pin G10Sd1 G10Sr/2 G12Se
21 329054 GEAR ASS'Y G12SE G12SA2
22 991207 Seal Lock Screw W/Washer M4X8
24 6201DD Ball Bearing Sp18Sa P12R
25 308548 Tail Cover (A) G12Se 308548
26 308547 Seal Packing G12Se G12Sa2
27 308545 Packing Gland G12Se G12Sa2
28 307046 Seal Lock Screw M5X16 G12Se
29 944109 Feather Key 3X3X8 Dh24Vb Sb10T
30 994301 SPINDLE (A) 22.23mm G12SA/SE
30 994302 Spindle (B) 5/8"-11 Umc Cm5Sb
31 311492 Label G12Se G18Se3 G23Sc3
32 311744 Set Pin   G12Se G12Va G13Va
33 311743 Lever G12Se
34 880734 Machine Screw M5X25 C12Lsh
35 311491 Set Piece (B) G12Se G12Va
37 311745 Wheel Guard Assy G12Se2 G12Se
38 937817Z WHEEL WASHER G12SR2 G12SR3
38 937922P WHEEL WASHER (B) G13SC2
38 874759 Retaining Ring G12Se N3804Ab3
39 937819Z D.C. WHEELS 115MM
40 937923P WHEEL NUT 5/811 UMC THREAD
41 329054 GEAR ASSY G12SE G12SA2
43 308559 Housing G12Se
46 311738 Switch Box G12Se2 G13Se2
47 930039 NOISE SUPPRESSOR 1
48 311741 Terminal (Since 8/2001) Sp18V
48 980063 Terminal Cr12V D13V Dh38Ye G12
49 308549 Tail Cover (B) G12Se
50 303694 Tap Screw W/Flange D4X35
51 959140 Connector 50091 C8Fb2 10Pcs Cv
51 959141 Connector 50092 C10Fs 10Pcs C
52 938307 Pillar Terminal C7Bd C7Sb C8
53 301653 Tap Screw W/Flange Blk D4X20
54 999088 Carbon Brush (Pair) G12Sa2/3
55 308535 Brush Holder G12Se G12Va
56 306945 Tapping Screw D3X10 Dh20Dv
57 308536 Spring G12Se G12S2 G12Sa2/3
59 311739 SWITCH
59 311740 Switch 1P Screwtype W/O Lock
60 984750 Tap Screw W/Flange D4X16 C8 C
62 960266 Cord Clip C7Bd/Sb C8 Dh38Ye
63 953327 Cord Armor D8.8 D10Vh Sv13Yb
64 714500 CORD 5M 2X1.0 + PLUG
64 500436Z CORD 1 (CORD ARMOR D8.8)
64 500237Z CORD
64 500240Z Cord, Electrical, 2 Wires
65 983595 Spring Cr10V G12Se G12Se2
67 308557 Lever Action Seal G12Se
69 982696 Feather Key 3X3X15 Dh25V G12Se
70 308555 Lock Lever (Black) W/Lock
70 308556 Lock Lever (Gray) W/O Lock
86 308554 Paddle Lever G12Se
87 308558 LEVER 308558
88 301631 Spring (F) Nv65Ah C6Dc2 C18Dmr
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi G12SE
6 Items

Data sheet

SHIPPING IN
Usually Ships in 7/10 BUSINESS DAYS
Machine Type
Grinder
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi G12SE

Diagram Hitachi G12SE

Download (268.73KB)

You might also like

Switch for Angle Grinders Hitachi G12SE
HiKOKI Power Tools Italia S.p.a. SKU: 311739
Switch for Angle Grinders Hitachi G12SE
Switch for Angle Grinders Hitachi G12SE Genuine spare parts Hitachi, Switch for angle grinders with disc max 115/125/150 mm, G 12SE - G 13SE2 - G 13SE - G 13SE2. Part for the following products: -  Angle Grinder Hitachi G 12SE -...
AVAILABLE €21.90
Details
Carbon Brushes for Grinder Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 999088
Carbon Brushes for Grinder Hitachi
Carbon Brushes for Grinder Hitachi Original Spare Parts Hitachi, Carbon Brushes for Grinder Hitachi. Part for the following products: - Angle Grinder G 13SB3 - Angle Grinder G 13VA - Angle Grinder G 15VA - Grinder GP2S2 - Grinder...
AVAILABLE €9.70
Details
Pushing Button for Angle Grinders Hitachi G15VA - G15YF
HiKOKI Power Tools Italia S.p.a. SKU: 301944
Pushing Button for Angle Grinders Hitachi G15VA - G15YF
Pushing Button for Angle Grinders Hitachi G15VA - G15YF Original spare parts Hitachi, Pushing Button with Spring for angle grinders G 12 SA2 - SG - VA - SE2 - SR4 - SS2 - STA - SS - S2 - SN  - G15VA - G15YF. Part for the following...
AVAILABLE €1.16
Details
Noise Suppressor Hitachi GP 10
HiKOKI Power Tools Italia S.p.a. SKU: 930039
Noise Suppressor Hitachi GP 10
Noise Suppressor Hitachi GP 10 Genuine parts Hitachi, Noise Suppressor Model GP 10 for Angle Grinders, Sanders, Circular Saws, Hammers, Hammers, Routers. Part for the following items: - Rotorbital Sander Hitachi SV13YA - Rotorbital...
AVAILABLE €3.60
Details
Pin Retainer for Angle Grinder Hitachi G12
HiKOKI Power Tools Italia S.p.a. SKU: 301943
Pin Retainer for Angle Grinder Hitachi G12
Pin Retainer for Angle Grinder Hitachi G12 Original spare parts Hitachi, Pin Retainer for Angle Grinder G 12 SA2 - G 12 SG - G 12 VA - G 12 SE2 - G 12 SR4 - G 12 SS2 - G 12 STA - G12SR3 - G12SA3 - G12SQ - G 12SW - G 13SN - G...
AVAILABLE €3.60
Details
Gear and Pinion Set for Angle Grinders Hitachi G13VA-G13YC
HiKOKI Power Tools Italia S.p.a. SKU: 329054
Gear and Pinion Set for Angle Grinders Hitachi G13VA-G13YC
Gear and Pinion Set for Angle Grinders Hitachi G13VA-G13YC Genuine spare part Hitachi KOKY, Gear and Pinion Set for Angle Grinders G12SA3 - G12SE2 - G13SB2 - G13SB3 - G13SE2 - G13VA - G13YC Part for the following products: - Angle...
AVAILABLE €21.90
Details
Carbon Brush Spring for Angle Grinders G 12 S2
HiKOKI Power Tools Italia S.p.a. SKU: 308536
Carbon Brush Spring for Angle Grinders G 12 S2
Carbon Brush Spring for Angle Grinders G 12 S2 Genuine spare parts Hitachi, Carbon Brush Spring for Angle Grinders G 12 S2 - G 12 SA2 - G12 SA3 - G 12 SE2 - G 12 VA - G 13 SD - G 13 SB3...
AVAILABLE €2.38
Details
Comments (0)
No customer reviews for the moment.
