Hitachi Spare Parts for Rotary Hammer Drill DH50SA1

SKU: Hitachi DH50SA1
€25.16
VAT included

Hitachi Spare Parts for Rotary Hammer Drill DH50SA1

Hitachi-HIKOKI Tanaka authorized repair center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer Drill DH50SA1.
Hitachi Spare Parts for Rotary Hammer Drill DH50SA1
  • Hitachi Spare Parts for Rotary Hammer Drill DH50SA1
  • Hitachi Spare Parts for Rotary Hammer Drill DH50SA1
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Rotary Hammer Drill DH50SA1

SKU: Hitachi DH50SA1 Condition: New
€25.16
VAT included

Hitachi Spare Parts for Rotary Hammer Drill DH50SA1

Hitachi-HIKOKI Tanaka authorized repair center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer Drill DH50SA1.
settings 88 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
88 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

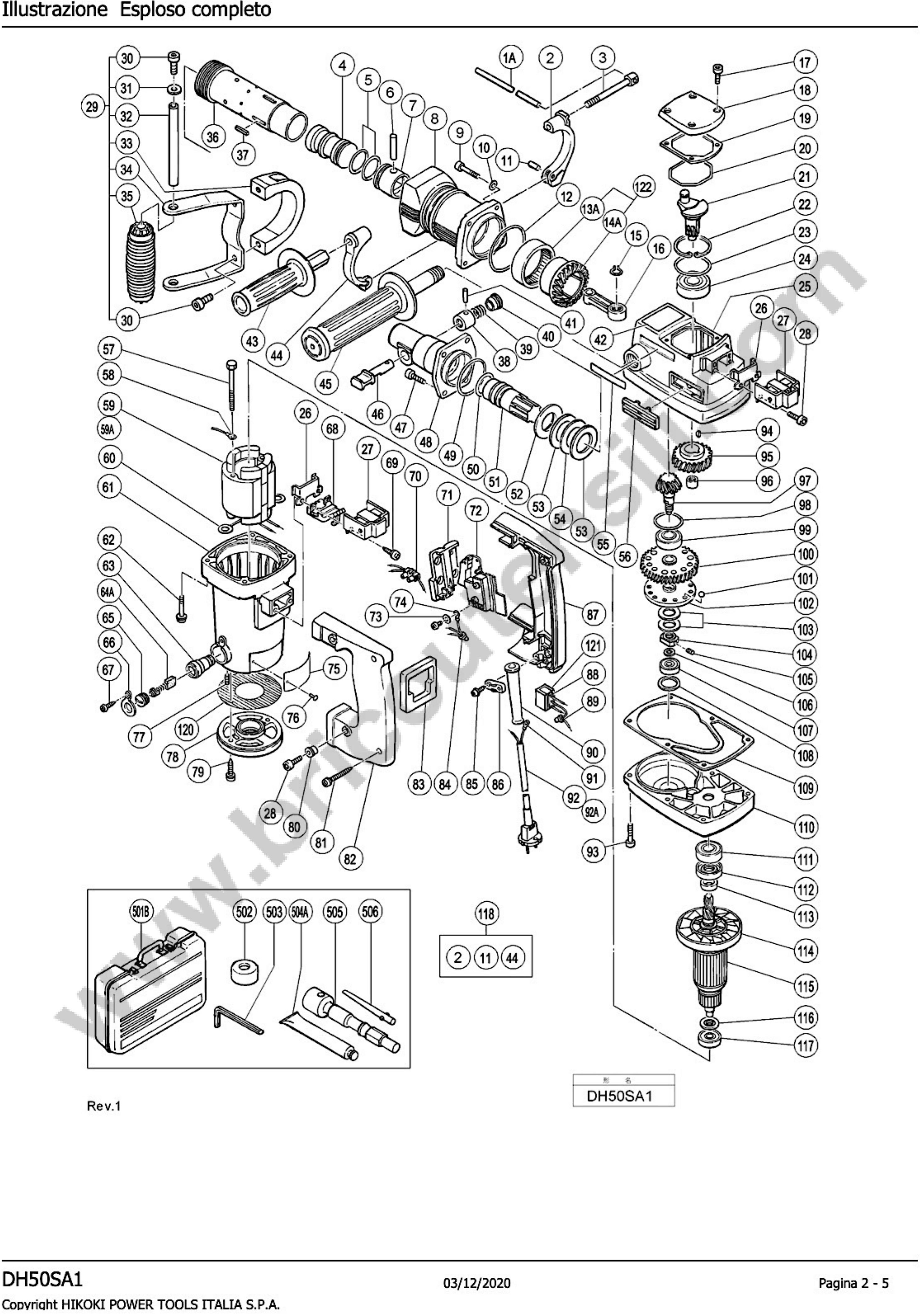

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1A
 photo_cameraImage coming soon 971786 DEPTH DELIMITER €7.11
2
 photo_cameraImage coming soon 985464 COMPLETE HANDLE SUPPORT €20.76
4
 photo_cameraImage coming soon 993252 STANDARD HAMMER €46.54
5
 photo_cameraImage coming soon 985773 RING €7.98
6
 photo_cameraImage coming soon 955593 PIN €3.44
7
 photo_cameraImage coming soon 985772 PISTON FOR DH50SA / SA1 / SB €61.23
8
 photo_cameraImage coming soon 993247 CYLINDER CASE X DH50SA1 / SB €144.86
11
 photo_cameraImage coming soon 949747 ROLL PIN D6X25 (10 PCS) €5.27
12
 photo_cameraImage coming soon 985779 O-RING (D) €2.87
13A
 photo_cameraImage coming soon 327733 NEEDLE BEARING TLA5520Z €26.50
14A
 photo_cameraImage coming soon 327736 THIRD GEAR €73.34
15
 Retaining Ring 12 mm for Hitachi Power Tools 939542 Retaining Ring 12 mm for Hitachi Power Tools €3.13
16
 photo_cameraImage coming soon 985771 CONROD W / BEARING DH50SA1 €43.65
18
 photo_cameraImage coming soon 991716 COVER €9.59
19
 photo_cameraImage coming soon 980749 GASKET €1.30
20
 photo_cameraImage coming soon 980744 O-RING (S-55) €3.20
21
 photo_cameraImage coming soon 985763 CRANKSHAFT €58.98
22
 photo_cameraImage coming soon 948227 RETAINING RING FOR D47 HOLE €1.65
23
 photo_cameraImage coming soon 985765 O-RING (B) €2.44
24
 photo_cameraImage coming soon 6204DD BALL BEARING 6204DDCMPS2L €11.52
25
 photo_cameraImage coming soon 987020 MOTOR CARTER €63.61
26
 photo_cameraImage coming soon 980750 GUIDE PLATE €22.11
27
 photo_cameraImage coming soon 980727 HANDLE RUBBER €17.93
29
 photo_cameraImage coming soon 986959 HANDLE A 'D' €68.67
31
 photo_cameraImage coming soon 986963 WASHER (C) €14.60
34
 photo_cameraImage coming soon 986961 SUPPORT €14.60
36
 photo_cameraImage coming soon 993231 CYLINDER X DH50SA1-DH50SB €208.32
37
 photo_cameraImage coming soon 971750 FEATHER KEY 3X3X20 €3.30
38
 photo_cameraImage coming soon 993241 SPRING HOUSING €18.67
39
 photo_cameraImage coming soon 993242 SPRING €1.71
40
 photo_cameraImage coming soon 993243 RING €7.98
41
 photo_cameraImage coming soon 943364 NEEDLE ROLLER D4X20 €1.30
43
 photo_cameraImage coming soon 985477 LATERAL GRIP €12.38
44
 photo_cameraImage coming soon 985464 COMPLETE HANDLE SUPPORT €20.76
47
 photo_cameraImage coming soon 985479 SEAL LOCK HEX. SOCKET HD. BOLT M8X25 €4.06
48
 photo_cameraImage coming soon 300014 FRONT COVER X DH50SA1 €154.39
49
 photo_cameraImage coming soon 986896 O-RING (F) €1.71
50
 photo_cameraImage coming soon 986882 0-RING €10.18
52
 photo_cameraImage coming soon 993235 WASHER €12.38
53
 photo_cameraImage coming soon 993234 DAMPER €5.17
54
 photo_cameraImage coming soon 993233 WASHER €1.99
56
 photo_cameraImage coming soon 991713 GUIDE €1.30
58
 photo_cameraImage coming soon 986277 INTERNAL CABLE €1.30
60
 photo_cameraImage coming soon 937623 BRUSH TERMINAL €1.33
61
 photo_cameraImage coming soon 985435 HOUSING COMPL. €94.09
63
 photo_cameraImage coming soon 983362 BRUSH HOLDER €7.45
64A
 Carbon Brushes for Hitachi Hammer DH45MR 999071 Carbon Brushes for Hitachi Hammer DH45MR €20.93
65
 Brushe Cap for Mixers Hitachi D13 - D13SA 961781 Brushe Cap for Mixers Hitachi D13 - D13SA €4.18
66
 photo_cameraImage coming soon 981959 COVER €2.87
68
 photo_cameraImage coming soon 985469 GROMMET €9.57
70
 photo_cameraImage coming soon 938307 PILLAR TERMINAL (OLD 938307Z / 512-31) €2.60
71
 photo_cameraImage coming soon 312408 HANDLE €19.36
72
 Switch (A) 1 P Screw type) w/o Lock for Hammer DH50SB 992891 Switch (A) 1 P Screw type) w/o Lock for Hammer DH50SB €29.60
78
 photo_cameraImage coming soon 985437 FINAL COVER €24.45
80
 photo_cameraImage coming soon 991711 DISTANCE PIECE (B) €1.33
82
 photo_cameraImage coming soon 983273 HANDLE (B) €14.64
83
 photo_cameraImage coming soon 980751 HANDLE GASKET €1.39
86
 photo_cameraImage coming soon 960266 CORD CLIP €1.37
87
 photo_cameraImage coming soon 983272 HANDLE (A) €16.03
88
 Noise Suppressor for Angle Grinder Hitachi G12SA2 994273 Noise Suppressor for Angle Grinder Hitachi G12SA2 €9.62
90
 photo_cameraImage coming soon 940778 CORD ARMOR D10.7 €3.43
92
 photo_cameraImage coming soon 714520 POWER CORD 5M 2X1.5 €15.00
94
 photo_cameraImage coming soon 932815 WOODRUFF KEY 3X13 €1.39
96
 Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR 939299 Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR €13.81
97
 photo_cameraImage coming soon 985770 THIRD PINION €56.28
98
 O-Ring S-36 for Hammer Hitachi H25PV 984483 O-Ring S-36 for Hammer Hitachi H25PV €2.08
99
 photo_cameraImage coming soon 6202DD Ball Bearing 6202dd €7.97
100
 photo_cameraImage coming soon 985766 SECOND GEAR €68.67
101
 Steel Ball 6,35 mm for Hammers Hitachi 959150 Steel Ball 6,35 mm for Hammers Hitachi €3.48
102
 photo_cameraImage coming soon 985767 CLUTCH PLATE €37.84
103
 photo_cameraImage coming soon 985768 SPRING €2.60
104
 photo_cameraImage coming soon 300042 NUT €15.85
106
 photo_cameraImage coming soon 944516 BEARING WASHER (B) €1.23
107
 photo_cameraImage coming soon 629VVM BALL BEARING 629VVC2PS2L €7.32
108
 Bearing Washer (C) for Hammer Hitachi DH40MA 944525 Bearing Washer (C) for Hammer Hitachi DH40MA €1.26
110
 photo_cameraImage coming soon 993248 GEAR COVER €55.26
111
 photo_cameraImage coming soon 6202VV BALL BEARING 6202VVCMPS2L €7.42
112
 photo_cameraImage coming soon 985439 SEAL €10.80
113
 photo_cameraImage coming soon 985438 SLEEVE €20.76
114
 photo_cameraImage coming soon 985482 FAN €7.33
115
 photo_cameraImage coming soon 985472E ARMATURE 220V DH50SA1 / SB H55SA €139.79
117
 photo_cameraImage coming soon 6200VV BALL BEARING 6200VVCMPS2L €6.22
118
 photo_cameraImage coming soon 985464 COMPLETE HANDLE SUPPORT €20.76
122
 photo_cameraImage coming soon 327737 SET THIRD GEAR DH50SA1 €102.62
501B
 photo_cameraImage coming soon 319784 CASE (PLASTIC) €119.07
502
 photo_cameraImage coming soon 985468 DUST COVER €7.41
504A
 photo_cameraImage coming soon 981840 GREASE 30 GR €10.98
Page 2 local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
501B
 photo_cameraImage coming soon 319784 CASE (PLASTIC) €119.07
502
 photo_cameraImage coming soon 985468 DUST COVER €7.41
504A
 photo_cameraImage coming soon 981840 GREASE 30 GR €10.98
638
 photo_cameraImage coming soon 980927 GREASE 500 GR €84.44
648
 photo_cameraImage coming soon 305074 SERVICE KIT (DH 50SA1) €79.48
649
 photo_cameraImage coming soon 308471 GREASE 70 GR €19.79

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Rotary Hammer Drill DH50SA1

Hitachi-HIKOKI Tanaka authorized repair center

 and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer Drill DH50SA1.

In the following table, look for the model of the hammer and the respective parts of the code.
Hitachi DH50SA1

HITACHI ROTARY HAMMER DRILL DH50SA1 Pag.1
# Part Num. Description
1A 971786 STOPPER ROD
2 985464 HANDLE HOLDER (A)
3 985465 HANDLE BOLT - DISCONTINUED
4 993252 STRIKER
5 985773 O-RING (A)
6 955593 PISTON PIN
7 985772 PISTON FOR DH50SA / SA1 / SB
8 993247 CYLINDER CASE X DH50SA1 / SB
11 949747 ROLL PIN D6X25 (10 PCS)
12 985779 O-RING (D)
13A 327733 NEEDLE BEARING TLA5520Z
14A 327736 THIRD GEAR
15 939542 RETAINING RING FOR D12 SHAFT (10 PCS.) (10 PCS)
16 985771 CONNECTING ROD ASS'Y W / BEARING DH50SA1
18 991716 CRANK COVER
19 980749 SEAL PACKING
20 980744 O-RING S.55
21 985763 CRANKSHAFT
22 948227 RETAINING RING FOR D47 HOLE
23 985765 O-RING (B)
24 6204DD BALL BEARING 6204DD
25 987020 CRANKCASE
26 980750 GUIDE PLATE
27 980727 HANDLE RUBBER
29 986959 HOLDER ASS'Y
31 986963 WASHER (C)
32 986962 SHAFT
33 986960 HOLDER (A)
34 986961 HOLDER (B)
35 944951 GRIP
36 993231 CYLINDER X DH50SA1-DH50SB
37 971750 FEATHER KEY 3X3X20
38 993241 SPRING CASE
39 993242 STOPPER SPRING
40 993243 STOPPER SLEEVE
41 943364 NEEDLE ROLLER D4X20 (NEW TYPE)
43 985477 SIDE HANDLE
44 985464 HANDLE HOLDER (B)
45 956259 SIDE HANDLE
46 300043 STOP LEVER FOR DH50SA1
47 985479 SEAL LOCK HEX. SOCKET HD. BOLT M8X25
48 300014 FRONT COVER X DH50SA1
49 986896 O-RING (F)
50 986882 O-RING
51 300013 SECOND HAMMER (DH50SA1)
52 993235 DAMPER WASHER
53 993234 DAMPER
54 993233 WASHER
55 957561 HITACHI LABEL
56 991713 WIND GUIDE (B)
58 986277 INTERNAL CABLE
59A 985471F STATOR - FIELD 230V-240V H55SA
60 937623 TERMINAL
61 985435 HOUSING ASS'Y
63 983362 BRUSH HOLDER
64A 999071 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
65 961781 BRUSH CAP
66 981959 CAPCOVER
68 985469 INTERNAL WIRE HOLDER
70 938307 PILLAR TERMINAL (OLD 938307Z / 512-31
71 312408 SUPPORT
72 992891 SWITCH (A) (1P SCREW TYPE) W/O LOCK
73 949423 FLAT WASHER M4
74 983276Z INTERNAL WIRE
76 949510 RIVET D2.5X4.8 (10 PCS) (OLD 949510
78 985437 TAIL COVER
80 991711 DISTANCE PIECE (B)
82 983273 HANDLE (B)
83 980751 HANDLE PACKING
84 959141 CONNECTOR 50092
86 960266 CORD CLIP
87 983272 HANDLE (A)
88 994273 NOISE SUPPRESSOR
89 959140 CONNECTOR 50091
90 940778 CORD ARMOR 10.7
91 992810 TERMINAL
92 714520 CORD 5M 2X1.5 WITH PLUG
94 932815 WOODRUFF KEY 3X13
95 985764 FIRST GEAR - DISCONTINUED
96 939299 NEEDLE BEARING (M661)
97 985770 THIRD PINION
98 984483 O-RING (S-36)
99 6202DD BALL BEARING 6202DD
100 985766 SECOND GEAR
101 959150 STEEL BALL D.6,35 (10PCS)
102 985767 CLUTCH PLATE
103 985768 BELLEVILLE SPRING
104 300042 SPECIAL NUT
105 985033 HEX. SOCKET SET SCREW M6X6
106 944516 BEARING WASHER
107 629VVM BALL BEARING 629VVM
108 944525 BEARING WASHER (C)
109 985769 SEAL PACKING
110 993248 GEAR COVER
111 6202VV BALL BEARING 6202VV
112 985439 OIL SEAL
113 985438 SLEEVE
114 985482 FAN
115 985472E ARMATURE 220V DH50SA1 / SB H55SA
116 985436 DUST WASHER
117 6200VV BALL BEARING 6200VVCM
118 985464 HANDLE HOLDER ASS'Y
120 305195 NET
121 930153 SUPPORT (B)
122 327737 NEEDLE BEARING. THIRD GEAR SET DH50SA1
STANDARD ACCESSORIES Pag.2
501B 319784 CASE (PLASTIC)
502 985468 DUST COVER
503 872422 HEX. BAR WRENCH 6MM
504A 981840 GREASE (A) FOR HAMMER.HAMMER DRILL (30G)
505 987018 K-TAPER SHANK ADAPTER
506 987007 COTTER
601 986980 DRILL BIT D16.0X420 (HEX. SHANK TYPE)
602 986981 DRILL BIT D16.0X570 (HEX. SHANK TYPE)
603 986982 DRILL BIT D18.0X420 (HEX. SHANK TYPE)
604 986983 DRILL BIT D18.0X570 (HEX. SHANK TYPE)
605 986984 DRILL BIT D20.0X420 (HEX. SHANK TYPE)
606 986985 DRILL BIT D20.0X570 (HEX. SHANK TYPE)
607 986986 DRILL BIT D22.0X420 (HEX. SHANK TYPE)
608 986987 DRILL BIT D22.0X570 (HEX. SHANK TYPE)
609 986988 DRILL BIT D25.0X420 (HEX. SHANK TYPE)
610 986989 DRILL BIT D25.0X570 (HEX. SHANK TYPE)
611 986990 DRILL BIT D28.0X420 (HEX. SHANK TYPE)
612 986991 DRILL BIT D28.0X570 (HEX. SHANK TYPE)
613 986992 DRILL BIT D30.0X420 (HEX. SHANK TYPE)
614 986993 DRILL BIT D30.0X570 (HEX. SHANK TYPE)
615 986994 DRILL BIT D32.0X420 (HEX. SHANK TYPE)
616 986995 DRILL BIT D32.0X570 (HEX. SHANK TYPE)
617 986996 DRILL BIT D35.0X420 (HEX. SHANK TYPE)
618 986997 DRILL BIT D35.0X570 (HEX. SHANK TYPE)
619 986998 DRILL BIT D38.0X420 (HEX. SHANK TYPE)
620 986999 DRILL BIT D38.0X570 (HEX. SHANK TYPE)
621 987000 DRILL BIT D40.0X420 (HEX. SHANK TYPE)
622 987001 DRILL BIT D40.0X570 (HEX. SHANK TYPE)
623 987002 DRILL BIT D44.0X570 (HEX. SHANK TYPE)
624 987003 DRILL BIT D50.0X420 (HEX. SHANK TYPE)
625 987004 DRILL BIT D50.0X570 (HEX. SHANK TYPE)
626 987018 K-TAPER SHANK ADAPTER
627 987006 A-TAPER SLEEVE
628 987007 COTTER
629 985380 CORE BIT 50MM
630 987009 CORE BIT 65MM
631 987010 CORE BIT 80MM
632 987011 CORE BIT 90MM
633 987012 CORE BIT 100MM
634 987013 CORE BIT 125MM
635 987014 CORE BIT SHANK
636 955165 CENTER PIN (A) 133L FOR CORE BIT D38-150
637 984028 RATIO SHANK ADAPTER
638 980927 GREASE FOR HAMMER.HAMMER DRILL (500G)
639A 318085 SYRINGE (BELLOWS TYPE)
640 986947 BULL POINT 300MM
641 986948 BULL POINT 380MM
642 986949 BULL POINT 450MM
643 986952 COLD CHISEL 300MM
644 986953 COLD CHISEL 380MM
645 986954 COLD CHISEL 450MM
646 986950 CUTTER W50X400L
647 986951 CUTTER W75X400L
648 305074 SERVICE KIT (DH 50SA1)
649 308471 GREASE FOR HAMMER.HAMMER DRILL (70G)
650 318843 STRIKER
651 320859 SYRINGE (BLOW-OUT BULB TYPE)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi DH50SA1
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi DH50SA1

Diagram Hitachi DH50SA1

Download (479.5KB)

You might also like

Carbon Brushes for Hitachi Hammer DH45MR
HiKOKI Power Tools Italia S.p.a. SKU: 999071
Carbon Brushes for Hitachi Hammer DH45MR
Carbon Brushes for Hitachi Hammer DH45MR Genuine part Hitachi, Carbon Brushe Set for Rotary Hammer DH45MR. Part for the following products: -  Rotary Hammer DH45MR - Code : 999071
AVAILABLE €20.93
Details
Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR
HiKOKI Power Tools Italia S.p.a. SKU: 939299
Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR
Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR Genuine part HITACHI, Needle Bearing M661 for Demolition Hammers H45MR - H45MRY - H45FRV - H45SR - DH40MRY - DH45MR - H41MB - H25PV - DH30PC2 - DH38MS - DH50MRY - PR-38E....
AVAILABLE €13.81
Details
Steel Ball 6,35 mm for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 959150
Steel Ball 6,35 mm for Hammers Hitachi
Steel Ball 6,35 mm for Hammers Hitachi Hitachi genuine parts, steel ball diameter MM 6,35, Box 10 Pcs for Demolition Hammers and Percussion drills, H45MR - H45MRY - H41MB - H60MC - D13VG - DV16V-20VB2. Suitable for the following...
AVAILABLE €3.48
Details
O-Ring S-36 for Hammer Hitachi H25PV
HiKOKI Power Tools Italia S.p.a. SKU: 984483
O-Ring S-36 for Hammer Hitachi H25PV
O-Ring S-36 for Hammer Hitachi H25PV Genuine parts Hitachi, O-Ring S-36 for Hammer Class 3.5 Kg H25PV - Nailing Hitachi NV50AH - NV90HMC For the following items: - Demolition Hammer Hitachi Class 3.5 Kg H25PV - Nailer Hitachi NV50AH -...
AVAILABLE €2.08
Details
Noise Suppressor for Angle Grinder Hitachi G12SA2
HiKOKI Power Tools Italia S.p.a. SKU: 994273
Noise Suppressor for Angle Grinder Hitachi G12SA2
Noise Suppressor for Angle Grinder Hitachi G12SA2 Genuine replacement part Hitachi, Noise Suppressor for Angle Grinders Hitachi G12SA2 - G12S2 - G12SG - G 13SR3 - G 13SB3 - Polisher Sander SAT180 -  Reciprocating Saw CR13VC. Part for...
AVAILABLE €9.62
Details
Brushe Cap for Mixers Hitachi D13 - D13SA
HiKOKI Power Tools Italia S.p.a. SKU: 961781
Brushe Cap for Mixers Hitachi D13 - D13SA
Brushe Cap for Mixers Hitachi D13 - D13SA Genuine part Hitachi, Brushe Cap for Mixers D13 - D13SA - Circular Saws C9U - C0U2 - C9U3 - Core-Drill DC12V - Rotary Hammers DH50SA1 - DH50SB - Demolition Hammer H55SA Part for the following...
AVAILABLE €4.18
Details
Switch for Demolition Hammers Hitachi DH38MS-DH40MR
HiKOKI Power Tools Italia S.p.a. SKU: 313093
Switch for Demolition Hammers Hitachi DH38MS-DH40MR
Switch for Demolition Hammers Hitachi DH38MS-DH40MR Original replacement part for Hitachi, Switch (2P Screw Type W/O Lock) for Combined Demolition Hammers DH38MS - DH40MR - DH40SR. Part for the following Products: -  Combined Hammer...
Details
Bearing Washer (C) for Hammer Hitachi DH40MA
HiKOKI Power Tools Italia S.p.a. SKU: 944525
Bearing Washer (C) for Hammer Hitachi DH40MA
Bearing Washer (C) for Demolition Hammer Hitachi DH40MA Original replacement part Hitachi HIKOKI, Bearing Washer (C) for Demolition Hammer DH40SA - DH40YB - DH40MA. Part for the following items : -  Demolition Hammer DH40SA -...
on 7/10 Business Days Approx €1.26
Details
Comments (0)
