August Summer Clousure
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Jigsaw FCJ65V

SKU: Hitachi FCJ65V
€9.04
VAT included

Hitachi Spare Parts for Jigsaw FCJ65V

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Jigsaw FCJ65V.
Hitachi Spare Parts for Jigsaw FCJ65V
  • Hitachi Spare Parts for Jigsaw FCJ65V
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Jigsaw FCJ65V

SKU: Hitachi FCJ65V Condition: New
€9.04
VAT included

Hitachi Spare Parts for Jigsaw FCJ65V

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Jigsaw FCJ65V.
settings 63 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN: Usually Ships in 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
Machine Type: Jigsaw
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
63 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 7/10 BUSINESS DAYS

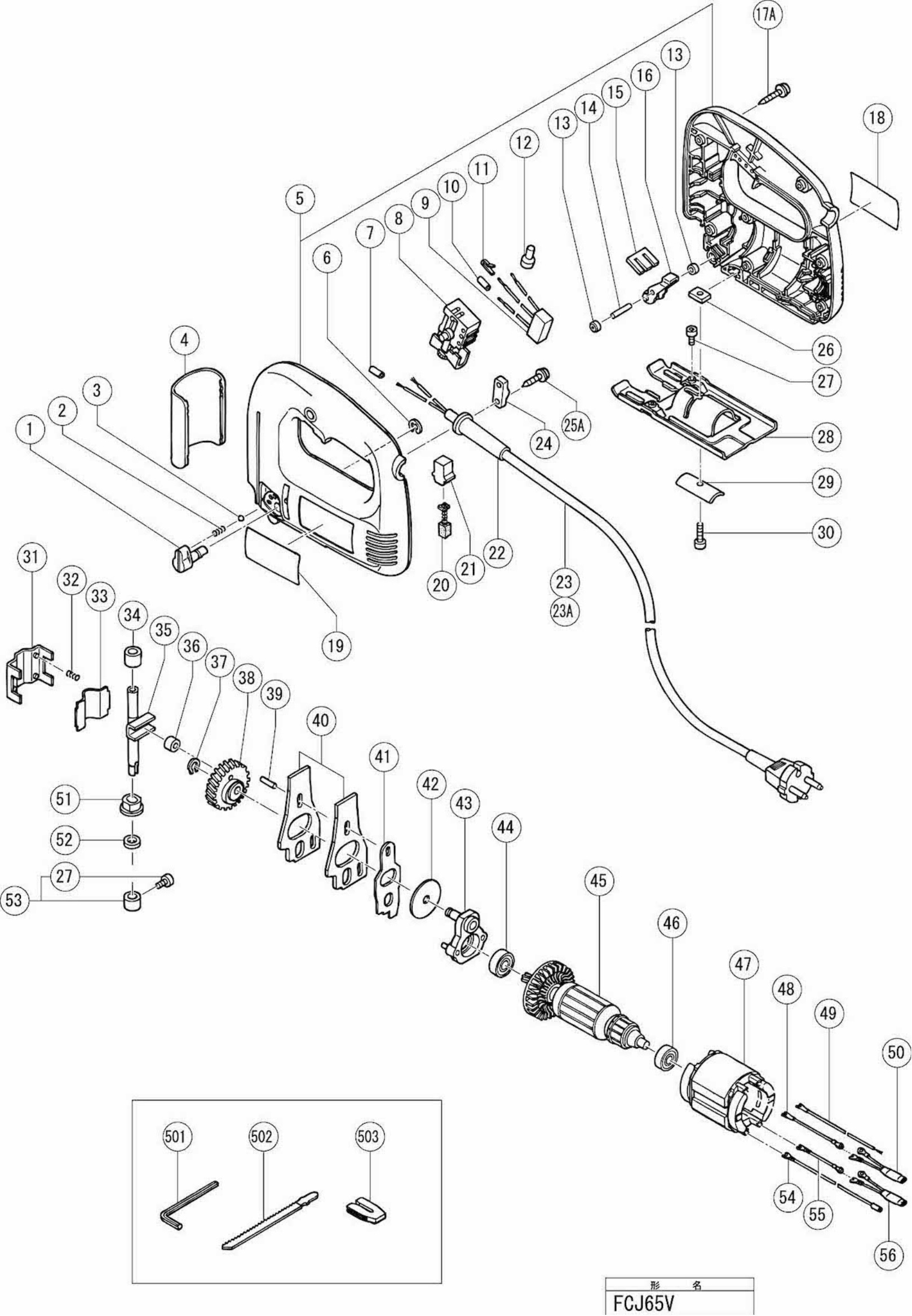

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 963368 Change Knob €7.26
2
 photo_cameraImage coming soon 982454 SPRING (C) €0.00 Not available for order
3
 STEEL BALL D3.97 959155 STEEL BALL D3.97 €1.16
4
 photo_cameraImage coming soon 305804 CHIP COVER €7.26
5
 photo_cameraImage coming soon 305973 HOUSING (A).(B) SET (MOSS GREEN) €32.88
5
 photo_cameraImage coming soon 310758 HOUSING (A).(B) SET (OFF BLACK GREEN) €35.32
6
 photo_cameraImage coming soon 673489 RETAINING RING (E-TYPE) FOR D5 SHAFT €0.00 Not available for order
7
 photo_cameraImage coming soon 981373 TUBE (D) €1.16
8
 photo_cameraImage coming soon 994744 SWITCH (2P PILLAR TYPE) W/LOCK - DISCONTINUED €0.00 Not available for order
8
 photo_cameraImage coming soon 994843 SWITCH (2P PILLAR TYPE) W/LOCK - DISCONTINUED €0.00 Not available for order
9
 Noise Suppressor for Angle Grinder Hitachi G12SA2 994273 Noise Suppressor for Angle Grinder Hitachi G12SA2 €7.26
10
 photo_cameraImage coming soon 981373 TUBE (D) €1.16
11
 photo_cameraImage coming soon 302488 NOISE SUPPRESSOR €0.00 Not available for order
13
 photo_cameraImage coming soon 994255 METAL (B) €2.38
14
 photo_cameraImage coming soon 943364 NEEDLE ROLLER D4X20 €1.16
15
 photo_cameraImage coming soon 994253 FELT €0.00 Not available for order
16
 photo_cameraImage coming soon 305967 ROLLER HOLDER €15.80 Not available for order
17A
 photo_cameraImage coming soon 301653 Tapp.Screw (W / Flange) D4x20 €6.04
20
 Carbon Brushes for Sanders Hitachi SV12-13 999041 Carbon Brushes for Sanders Hitachi SV12-13 €9.70
21
 Brushe Holder for Orbital Sanders Hitachi SV12SD-SG-SH 930483 Brushe Holder for Orbital Sanders Hitachi SV12SD-SG-SH €2.38
22
 photo_cameraImage coming soon 303662 CORD ARMOR D8.8 €0.00 Not available for order
22
 photo_cameraImage coming soon 307217 CORD ARMOR D7.2 €1.16
22
 photo_cameraImage coming soon 980193 CORD ARMOR D10.2 €1.16
24
 photo_cameraImage coming soon 960266 CORD CLIP €1.16
25A
 photo_cameraImage coming soon 984750 Tapp. Screw (W / Flange) D4x16 €0.00 Not available for order
26
 photo_cameraImage coming soon 962991 PLATE NUT €0.00 Not available for order
27
 photo_cameraImage coming soon 949811 Hex. Socket Hd. Bolt M4X8 (10 Pcs.) €0.00 Not available for order
28
 photo_cameraImage coming soon 962988 BASE €7.26 Not available for order
29
 photo_cameraImage coming soon 994260 BASE LOCKER (A) €1.16
30
 photo_cameraImage coming soon 949754 HEX. SOCKET HD. BOLT M4X16 €0.00 Not available for order
31
 photo_cameraImage coming soon 994243 PLATE HOLDER €1.16
32
 photo_cameraImage coming soon 963362 Spring €1.16
33
 photo_cameraImage coming soon 994244 PLATE €2.38
34
 photo_cameraImage coming soon 994262 METAL (A) €1.16
35
 photo_cameraImage coming soon 305803 PLUNGER €38.98
36
 photo_cameraImage coming soon 962982 CONNECTING PIECE €3.60
37
 photo_cameraImage coming soon 994251 RETAINING RING FOR D7 SHAFT €1.16
38
 photo_cameraImage coming soon 994250 GEAR €36.54
39
 photo_cameraImage coming soon 983545 NEEDLE ROLLER €1.16
40
 photo_cameraImage coming soon 994249 BALANCE WEIGHT €13.36
41
 photo_cameraImage coming soon 994248 ORBITAL CAM €2.38
42
 photo_cameraImage coming soon 994247 WASHER (A) €0.00 Not available for order
43
 photo_cameraImage coming soon 994246 HOLDER €17.02
44
 BALL BEARING 608VVC2PS2L 608VVM BALL BEARING 608VVC2PS2L €7.26
45
 photo_cameraImage coming soon 987120C ARMATURE 110V-127V €0.00 Not available for order
45
 photo_cameraImage coming soon 987120E ARMATURE 220V-230V €45.08
46
 photo_cameraImage coming soon 626VVM BALL BEARING 626VVC2PS2L €4.82
47
 photo_cameraImage coming soon 340228E STATOR 220V-230V €24.34
47
 photo_cameraImage coming soon 340228F STATOR 230V-240V €0.00 Not available for order
49
 photo_cameraImage coming soon 305813 INTERNAL WIRE €0.00 Not available for order
51
 photo_cameraImage coming soon 305966 METAL €2.38
52
 photo_cameraImage coming soon 963354 Felt (A) €0.00 Not available for order
53
 photo_cameraImage coming soon 305811 SET RING ASS'Y €8.48
54
 photo_cameraImage coming soon 305805 INTERNAL WIRE €0.00 Not available for order
501
 photo_cameraImage coming soon 943277 HEX. BAR WRENCH 3MM €0.00 Not available for order
502
 photo_cameraImage coming soon 879357 JIG SAW BLADES NO.41 €0.00 Not available for order
503
 photo_cameraImage coming soon 305810 TABLE INSERT €3.60
601
 photo_cameraImage coming soon 879336 JIG SAW BLADES NO.11 (5 PCS.) €0.00 Not available for order
602
 photo_cameraImage coming soon 879337 JIG SAW BLADES NO.12 (5 PCS.) €0.00 Not available for order
603
 photo_cameraImage coming soon 879338 JIG SAW BLADES NO.15 (5 PCS.) €0.00 Not available for order
604
 photo_cameraImage coming soon 879339 JIG SAW BLADES NO.16 (5 PCS.) €0.00 Not available for order
605
 photo_cameraImage coming soon 879340 JIG SAW BLADES NO.21 (5 PCS.) €0.00 Not available for order
606
 photo_cameraImage coming soon 879341 JIG SAW BLADES NO.22 (5 PCS.) €0.00 Not available for order
608
 photo_cameraImage coming soon 306021 DUST COLLECTOR €35.32

Shipping and delivery information will be available shortly.

Hitachi Spare Parts for Jigsaw FCJ65V

Hitachi-HIKOKI Tanaka

 authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Jigsaw FCJ65V.

In the following table, look for the model of the Jigsaw and theirs spare part.
Hitachi FCJ65V

Hitachi JIGSAW FCJ65V Parts
# Part Num. Description
1 963368 Change Knob
2 982454 SPRING (C)
3 959155 STEEL BALL D3.97 (10 PCS.)
4 305804 CHIP COVER
5 305973 HOUSING (A).(B) SET (MOSS GREEN)
5 310758 HOUSING (A).(B) SET (OFF BLACK GREEN)
6 673489 RETAINING RING (E-TYPE) FOR D5 SHAFT
7 981373 Tube (D)
8 994843 SWITCH (2P PILLAR TYPE) W/LOCK - DISCONTINUED
8 994744 SWITCH (2P PILLAR TYPE) W/LOCK - DISCONTINUED
9 994273 NOISE SUPPRESSOR CR13VA
10 981373 Tube (D)
11 302488 EARTH TERMINAL CJ120V
13 994255 METAL (B)
14 943364 NEEDLE ROLLER D4 X 20
15 994253 FELT
16 305967 ROLLER HOLDER
17A 301653 TAP SCREW w/FLANGE D4x20 C7SB
20 999041 CARBON BRUSH (1 PAIR)
21 930483 BRUSH HOLDER
22 303662 CORD ARMOR D8.8
22 980193 CORD ARMOR D10.2
22 307217 CORD ARMOR D7.2
24 960266 CORD CLIP
25A 984750 TAPPING SCREW (WIFLANGE) D4X16
26 962991 PLATE NUT
27 949811 Hex. Socket Hd. Bolt M4X8 (10 Pcs.)
28 962988 BASE
29 994260 BASE LOCKER (A)
30 949754 HEX. SOCKET HD. BOLT M4X16 (10 PCS.)
31 994243 PLATE HOLDER
32 963362 Spring
33 994244 PLATE
34 994262 METAL (A)
35 305803 PLUNGER
36 962982 CONNECTING PIECE
37 994251 RETAINING RING FOR D7 SHAFT
38 994250 GEAR
39 983 545 NEEDLE ROLLER
40 994249 BALANCE WEIGHT
41 994248 ORBITAL CAM
42 994247 WASHER (A)
43 994246 HOLDER
44 608VVM BALL BEARING G10SR SP18SA
45 987120C ARMATURE 110V-127V
45 987120E ARMATURE 220V-230V
46 626VVM BALL BEARING 626VVMC2ERPS2S
47 340228E STATOR 220V-230V
47 340228F STATOR 230V-240V
49 305813 INTERNAL WIRE
51 305966 METAL
52 963354 Felt (A)
53 305811 SET RING ASS'Y
54 305805 INTERNAL WIRE
501 943277 Allen Wrench For M3 Screw
502 879357 JIG SAW BLADE NO.41 (5 PCS.)
503 305810 TABLE INSERT
601 879336 JIG SAW BLADES NO.11 (5 PCS.)
602 879337 JIG SAW BLADES NO.12 (5 PCS.)
603 879338 JIG SAW BLADES NO.15 (5 PCS.)
604 879339 JIG SAW BLADES NO.16 (5 PCS.)
605 879340 JIG SAW BLADES NO.21 (5 PCS.)
606 879341 JIG SAW BLADES NO.22 (5 PCS.)
608 306021 DUST COLLECTOR

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Hitachi FCJ65V
12 Items

Data sheet

SHIPPING IN
Usually Ships in 7/10 BUSINESS DAYS
Machine Type
Jigsaw
MORE INFO:
[email protected]

Specific References

New

Download

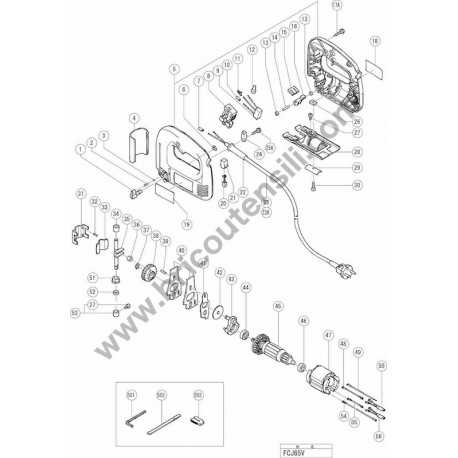

Drawing Hitachi FCJ65V

Drawing Hitachi FCJ65V

Download (393.4KB)
