Hitachi Spare Parts for Hammer Drill DH38YB

Name: Hitachi Spare Parts for Hammer Drill DH38YB
Brand: HiKOKI Power Tools Italia S.p.a.
SKU: Hitachi DH38YB
Availability: InStock

SKU: Hitachi DH38YB

€1.16

VAT included

Hitachi Spare Parts for Hammer Drill DH38YB

148 spare parts

Page 1 View exploded Usually Ships in 7/10 BUSINESS DAYS

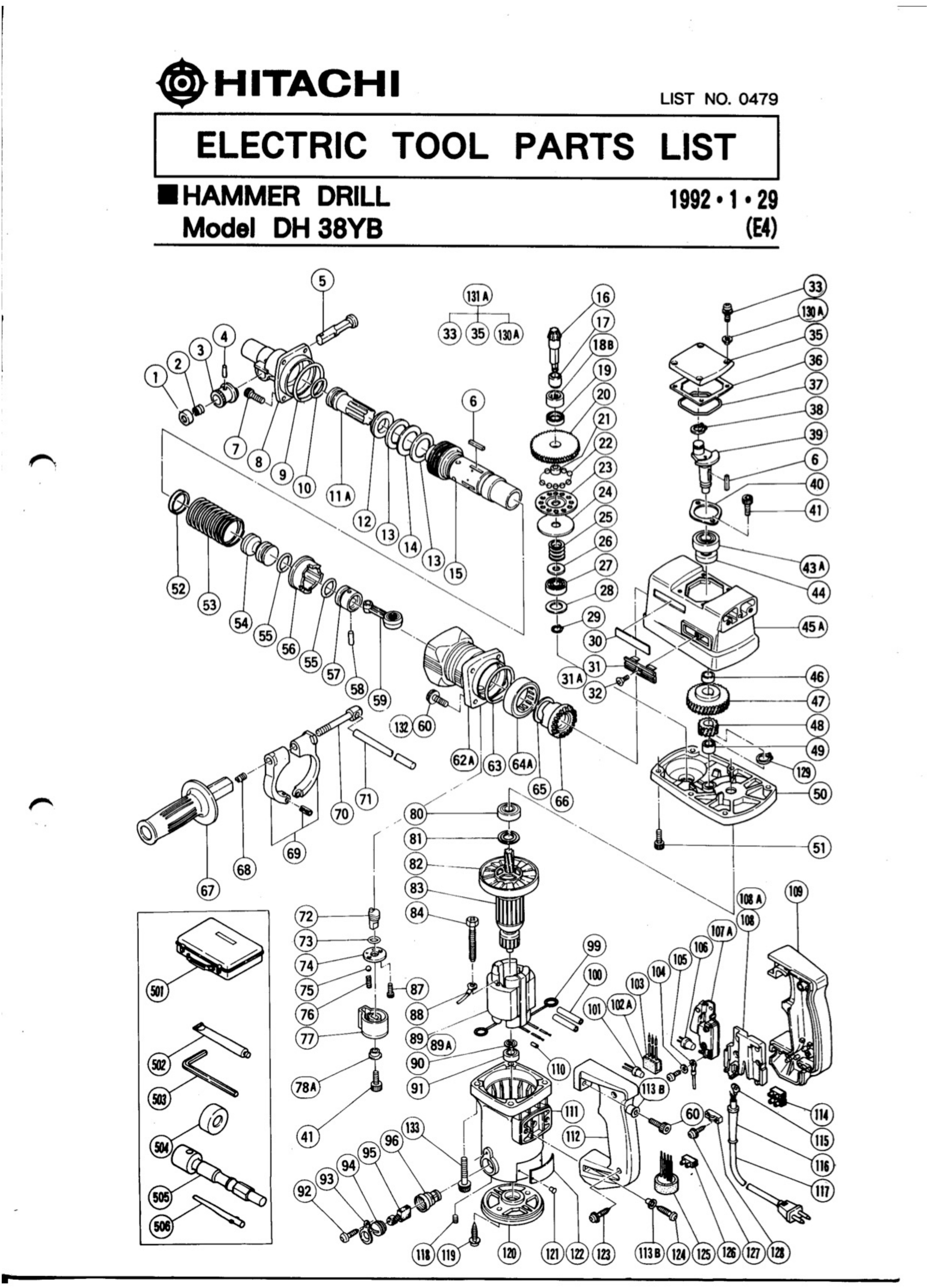

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
1	Image coming soon	986824 STOPPER WASHER	€0.00	Not available for order
2	Image coming soon	981937 STOPPER SPRING	€1.16
3	Image coming soon	983241 KNOB (A)	€43.86
4	Image coming soon	943364 NEEDLE ROLLER D4X20	€1.16
5	Image coming soon	983240 STOP LEVER	€0.00	Not available for order
6	Image coming soon	971750 FEATHER KEY 3X3X20	€3.60
7	Image coming soon	991696 SEAL LOCK BOLT M7X25	€3.60
8	Image coming soon	992801 FRONT COVER	€0.00	Not available for order
9	Image coming soon	985780 O — RING (E)	€0.00	Not available for order
10	Image coming soon	981857 O — RING (C)	€7.26
11A	Image coming soon	990144 SECOND HAMMER - DISCONTINUED	€0.00	Not available for order
12	Image coming soon	981862 DAMPER WASHER	€12.14
13	Image coming soon	992799 DAMPER	€7.26
14	Image coming soon	992798 WASHER	€0.00	Not available for order
15	Image coming soon	992797 CYLINDER	€0.00	Not available for order
16	Image coming soon	992796 THIRD PINION	€51.18
17	Image coming soon	981850 SLEEVE	€19.46
18B	Image coming soon	981852 BOTTOM KIT	€17.02
19		981851 Oil Seal 20x28x4,5 mm for Hammers Hitachi H25PV-DH28PD-DH30PC2	€3.60
20	Image coming soon	992795 SECOND GEAR	€65.82
21	Image coming soon	992806 METAL	€9.70
22		959150 Steel Ball 6,35 mm for Hammers Hitachi	€3.60
23	Image coming soon	992792 HOLDER	€9.70
24	Image coming soon	992793 PLATE	€6.04
25	Image coming soon	992794 SPRING	€9.70
26	Image coming soon	992791 WASHER	€8.48
27	Image coming soon	629VVM BALL BEARING 629VVC2PS2L	€7.26
28		944525 Bearing Washer (C) for Hammer Hitachi DH40MA	€1.16
29	Image coming soon	992805 RETAINING RING FOR D9 SHAFT	€1.16
30	Image coming soon	957561 HITACHI LABEL	€0.00	Not available for order
31	Image coming soon	980735 * SEE 991713 *	€1.16
31A	Image coming soon	991713 GUIDE	€1.16
32	Image coming soon	990430 SEAL LOCK FLAT HD.M4X10	€4.82
33	Image coming soon	987203 SEAL LOCK SCREW (WISP. WASHER) M4X12	€0.00	Not available for order
35	Image coming soon	993903 CRANK COVER ASS'Y	€10.92
36	Image coming soon	980749 GASKET	€1.16
37	Image coming soon	980744 O-RING (S-55)	€3.60
38		939542 Retaining Ring 12 mm for Hitachi Power Tools	€3.60
39	Image coming soon	991954 CRANK SHAFT	€51.18
40		981847 Wire Drive Motor for Wire Welding Telwin MAXIMA 190 Synergic	€46.30
41	Image coming soon	984509 SEAL LOCK HEX. SOCKET HD. BOLT MSX14	€0.00	Not available for order
43A	Image coming soon	6203DD BALL BEARING 6203DDCMPS2L	€8.48
44	Image coming soon	971745 OIL SEAL (A)	€8.48
45A	Image coming soon	991768 CRANK CASE	€96.32
46	Image coming soon	980706 COLLAR	€12.14
47	Image coming soon	981845 FIRST GEAR	€40.20
48	Image coming soon	981846 SECOND PINION	€24.34
49		939299 Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR	€13.36
50	Image coming soon	991953 GEAR COVER	€62.16
51	Image coming soon	992803 SEAL LOCK HEX. SOCKET HD. BOLT M6X20	€0.00	Not available for order
52	Image coming soon	981858 COVER KIT	€8.48
53	Image coming soon	981957 SPRING (A)	€7.26
54	Image coming soon	981855 STRIKER	€25.56
55		986104 O-Ring 23X30X3 mm for Demolition Hammers Hitachi DH40MRY-DH38MS	€2.38
56	Image coming soon	981956 CLUTCH	€82.90
57		981885 PISTON	€21.90
58		980708 Piston Pin for Hammers Hitachi DH40MRY-H41M	€3.60
59		980707 CONNECTING ROD	€32.88
60	Image coming soon	987707 SEAL LOCK HEX. SOCKET HD. BOLT M6X25	€0.00	Not available for order
62A	Image coming soon	993902 CYLINDER CASE	€0.00	Not available for order
63		956996 O-RING 1AS.60 for Hammer DH40MRY-DH45MR	€3.60
64A	Image coming soon	993069 NEEDLE BEARING (8) (NTN HMK4520)	€24.34
65	Image coming soon	981955 THRUST WASHER	€3.60
66	Image coming soon	981954 THIRD GEAR	€96.32
67	Image coming soon	981870 SIDE HANDLE	€15.80
68	Image coming soon	672612 SPRING	€1.16
69	Image coming soon	981960 HANDLE HOLDER	€25.56
70	Image coming soon	971785 HANDLE BOLT	€4.82
71	Image coming soon	971786 DEPTH DELIMITER	€7.26
72	Image coming soon	981964 LEVER SHAFT	€0.00	Not available for order
73	Image coming soon	981967 KIT THERMOSTAT	€10.92
74	Image coming soon	981965 SHAFT COVER	€4.82
75		959155 STEEL BALL D3.97	€1.16
76	Image coming soon	981966 SPRING (8)	€1.16
77	Image coming soon	981963 LEVER	€6.04
78A	Image coming soon	901711 DISTANCE PIECE (B)	€0.00	Not available for order
80	Image coming soon	6202VV BALL BEARING 6202VVCMPS2L	€7.26
81	Image coming soon	980700 DUST WASHER (B)	€1.16
82	Image coming soon	980740 BACK PANEL KIT	€46.30
83	Image coming soon	981971D ARMATURE ASS'Y 120V ~ 127V INCLUD.82	€0.00	Not available for order
83	Image coming soon	981971H ARMATURE ASS'Y 240V INCLUD.82	€0.00	Not available for order
83	Image coming soon	981971J ARMATURE ASS'Y 110V INCLUD.82 FOR GBR	€0.00	Not available for order
83	Image coming soon	981971L ARMATURE ASS'Y 220V — 230V INCLUD.82	€0.00	Not available for order
83	Image coming soon	981971U ARMATURE ASS'Y 110V — 115V INCLUD.80,81,82,90,91	€0.00	Not available for order
84	Image coming soon	960251 HEX. HD. TAPPING SCREW D5X65	€0.00	Not available for order
87	Image coming soon	983162 BOLT M4X12	€0.00	Not available for order
88	Image coming soon	986277 INTERNAL CABLE	€1.16
89	Image coming soon	981970C STATOR ASS'Y 110V — 115V INCLUD.89	€0.00	Not available for order
89	Image coming soon	981970D STATOR ASS'Y 120V — 127V INCLUD.99	€0.00	Not available for order
89	Image coming soon	981970E STATOR ASS’Y 220V — 230V INCLUD.89	€0.00	Not available for order
89	Image coming soon	981970F STATOR ASS'Y 240V INCLUD.89 FOR GBR	€0.00	Not available for order
89	Image coming soon	981970H STATOR ASS'Y 240V INCLUD.99,110 FOR AUS	€0.00	Not available for order
89	Image coming soon	981970J STATOR ASS'Y 110V INCLUD.89 FOR GBR	€0.00	Not available for order
89	Image coming soon	981970K STATOR ASS'Y 220V — 230V NCLUD.89 FOR NZL,ITA,FRA,HOL,DEN,SWE,AUT,NOR,SUI	€0.00	Not available for order
90	Image coming soon	980698 DUST WASHER (A)	€1.16
91		608VVM BALL BEARING 608VVC2PS2L	€7.26
92	Image coming soon	958715 TAPPING SCREW D4X10	€0.00	Not available for order
93	Image coming soon	981959 COVER	€2.38
94		961781 Brushe Cap for Mixers Hitachi D13 - D13SA	€3.60
95		999073 Carbon Brushes for Demolition Hammer Hitachi DH30PC2	€17.02
96	Image coming soon	981586 BRUSH HOLDER	€7.26
99	Image coming soon	930703 BRUSH TERMINAL	€3.60
101	Image coming soon	959140 CONNECTOR 50091	€0.00	Not available for order
102A	Image coming soon	963243 SUPPORT FOR NOISE SUPPRESSOR	€0.00	Not available for order
103		994273 Noise Suppressor for Angle Grinder Hitachi G12SA2	€7.26
104	Image coming soon	949423 WASHER M4	€0.00	Not available for order
105	Image coming soon	981974Z INTERNAL WIREFOR _GBR,ITA,FRG,FRA,ESP,HOL,DEN,FIN,SWE,AUT,SUI	€0.00	Not available for order
106	Image coming soon	959141 CONNECTOR 50092	€0.00	Not available for order
107A		981533Z Switch 2P Pillar Type W/O Lock for Hammer PR-38E	€36.54
107A	Image coming soon	990941 SWITCH (B) (1P SCREW TYPE) W/O LOCK	€38.98
108	Image coming soon	981869 SUPPORT	€6.04
108	Image coming soon	981986Z SUPPORT (A)	€30.44
108A	Image coming soon	990082 * SEE 312408 *	€9.70
109	Image coming soon	992808 HANDLE (A)	€0.00	Not available for order
109	Image coming soon	HTR981866 HANDLE (A) FOR AUS	€19.46
110	Image coming soon	981373 TUBE (D)	€1.16
111	Image coming soon	992790 HOUSING ASS’Y INCLUD.87,105	€69.48
112	Image coming soon	992809 HANDLE (B)	€15.80
113B	Image coming soon	981867 DISTANCE PIECE (C)	€17.02
114	Image coming soon	958308Z CLAMP	€0.00	Not available for order
115	Image coming soon	992810 TERMINAL FOR CORD	€0.00	Not available for order
116	Image coming soon	940778 CORD ARMOR D10.7	€3.60
116	Image coming soon	958049Z CORD ARMOR D8.2	€3.60
117	Image coming soon	500224Z CORD (CORD ARMOR D10.7) FOR SIN	€0.00	Not available for order
117	Image coming soon	500227Z CORD (CORD ARMOR D8.2) FOR NZL	€0.00	Not available for order
117	Image coming soon	500232Z CORD (CORD ARMOR D8.2) FOR SAF	€0.00	Not available for order
117	Image coming soon	500235Z CORD (CORD ARMOR D8.2) FOR INA	€12.14
117	Image coming soon	500239Z CORD (CORD ARMOR D10.7)	€0.00	Not available for order
117	Image coming soon	500249Z CORD (CORD ARMOR D8.8) FOR USA	€0.00	Not available for order
117	Image coming soon	500390Z Cord	€14.58
117	Image coming soon	500391Z CORD (CORD ARMOR D10.7) FOR SUI	€0.00	Not available for order
117	Image coming soon	500394Z CORD	€0.00	Not available for order
117	Image coming soon	500406Z CORD (CORD ARMOR 08.2) FOR GBR	€0.00	Not available for order
117	Image coming soon	500410Z CORD (CORD ARMOR D10.7) FOR AUS	€0.00	Not available for order
118	Image coming soon	938477 HEX. SOCKET SET SCREW MSX8	€0.00	Not available for order
119	Image coming soon	985480 TAPPING SCREW (W/WASHER) D5X20	€0.00	Not available for order
120	Image coming soon	302323 TAIL COVER (B)	€25.56
121	Image coming soon	949510 RIVET D2.5X4.8 (10 PCS.)	€0.00	Not available for order
123	Image coming soon	956636 TAPPING SCREW (W/WASHER) D4X25	€0.00	Not available for order
124	Image coming soon	992802 TAPPING SCREW D6X25	€0.00	Not available for order
125	Image coming soon	992807 CHOKE COIL INCLUD.113 FOR NZL	€0.00	Not available for order
126	Image coming soon	938307Z PILLAR TERMINAL FOR GBR,ITA,FRG,FRA,HOL,DEN,FIN,SWE,AUT,NOR,SUI	€0.00	Not available for order
127	Image coming soon	984750 Tapp. Screw (W / Flange) D4x16	€0.00	Not available for order
128	Image coming soon	960266 CORD CLIP	€1.16
129	Image coming soon	967261 RETAINING RING FOR D17 SHAFT	€1.16
130A	Image coming soon	990146 SPACER	€1.16
131A	Image coming soon	993903 CRANK COVER ASS'Y	€10.92
132	Image coming soon	991712 HEX. SOCKET HD. BOLT (W/FLANGE) M6X25	€0.00	Not available for order
133	Image coming soon	982411 HEX. SOCKET HD. BOLT (W/FLANGE) M6X50	€0.00	Not available for order

Shipping and delivery information will be available shortly.

Hitachi Spare Parts for Hammer Drill DH38YB

Hitachi-HIKOKI Original spare parts, at the lowest price on the web to make maintenance operations to replace broken parts or to repair Hammer Drill DH38YB, quick shipping and after-sales service.

In the following table, look for the model of the Hammer and the respective parts of the code.

Hitachi Hammer Drill DH38MB
#	Part Num.	Description
1	986824	STOP WASHER
2	981937	STOPPER SPRING
3	983241	KNOB (A)
4	943364	NEEDLE ROLLER D4X20
5	983240	STOP LEVER
6	971750	FEATHER KEY 3X3X20
7	991696	SEAL LOCK BOLT M7X25
8	992801	FRONT COVER
9	985780	O-RING (E)
10	981857	O-RING (C)
11A	990144	SECOND HAMMER - DISCONTINUED
12	981862	DAMPER WASHER
13	992799	DAMPER
14	992798	WASHER
15	992797	CYLINDER
16	992796	THIRD PINION
17	981850	SLEEVE
18B	981852	NEEDLE BEARING (A) HK2012
19	981851	OIL SEAL (B)
20	992795	SECOND GEAR
21	992806	METAL
22	959150	STEEL BALL D6.35 (10 PCS.)
23	992792	HOLDER
24	992793	PLATE
25	992794	SPRING
26	992791	WASHER
27	629VVM	BALL BEARING 628VVMC2EPS2L
28	944525	BEARING WASHER (C)
29	992805	RETAINING RING FOR D@ SHAFT
30	957561	HITACHI LABEL
31	980735	WIND GUIDE TILL 5.1987
31A	991713	WIND GUIDE (B) TILL 6.1987
32	990430	SEAL LOCK FLAT HD. SCREW M4X10. TILL 5.1987
33	987203	SEAL LOCK SCREW (W/SP. WASHER) M4X12
35	993903	CRANK COVER ASS'Y
36	980749	SEAL PACKING
37	980744	O-RING (S 55)
38	939542	RETAINING RING FOR D12 SHAFT (10 PCS.)
39	991954	CRANK SHAFT
40	981847	BEARING COVER
41	984509	SEAL LOCK HEX. SOCKET HD. BOLT M5X14
43A	6203DD	BALL BEARING 6203DD UCMAV2S
44	971745	OIL SEAL (A)
45A	991768	CRANK CASE INCLUD.18B,19,31A
46	980706	COLLAR
47	981845	FIRST GEAR
48	981846	SECOND PINION
49	939299	NEEDLE BEARING (M661)
50	991953	GEAR COVER
51	992803	SEAL LOCK HEX. SOCKET HD. BOLT M6X20
52	981858	VALVE BAND.
53	981957	SPRING (A)
54	981855	STRIKER
55	986104	O-RING
56	981956	CLUTCH
57	981885	PISTON
58	980708	PISTON PIN
59	980707	CONNECTING ROD ASS'Y
60	987707	SEAL LOCK HEX. SOCKET HD. BOLT M6X25 TILL 11.1984
60	987707	SEAL LOCK HEX. SOCKET HD. BOLT M6X25 SINCE 12,1984 FOR HANDLE (A)
62A	993902	CYLINDER CASE
63	956996	O-RING (1AS — 60)
64A	993069	NEEDLE BEARING (M455520)
65	981955	THRUST WASHER
66	981954	THIRD GEAR
67	981870	SIDE HANDLE
68	672612	SPRING
69	981960	HANDLE HOLDER
70	971785	HANDLE BOLT
71	971786	STOPPER ROD
72	981964	LEVER SHAFT
73	981967	O-RING (A)
74	981965	SHAFT COVER
75	959155	STEEL BALL D3.97 (10 PCS.)
76	981966	SPRING (8)
77	981963	LEVER
78A	901711	DISTANCE PIECE (B)
80	620 2VV	BALL BEARING 6202VVCMPS2S
81	980700	DUST WASHER (B)
82	980740	FAN
83	981971U	ARMATURE ASS'Y 110V — 115V INCLUD.80,81,82,90,91
83	981971D	ARMATURE ASS'Y 120V ~ 127V INCLUD.82
83	981971L	ARMATURE ASS'Y 220V — 230V INCLUD.82
83	981971H	ARMATURE ASS'Y 240V INCLUD.82
83	981971J	ARMATURE ASS'Y 110V INCLUD.82 FOR GBR
84	960251	HEX. HD. TAPPING SCREW D5X65
87	983162	SEAL LOCK HEX. SOCKET HD. BOLT M4X12
88	986277	INTERNAL WIRE FOR _NZL,GBR.SAF,ITA,FRG,FRA,ESP,HOL,DEN, FINSWE,AUT
89	981970C	STATOR ASS'Y 110V — 115V INCLUD.99
89	981970D	STATOR ASS'Y 120V — 127V INCLUD.99
89	981970E	STATOR ASS'Y 220V — 230V INCLUD.99
89	981970F	STATOR ASS'Y 240V INCLUD.99
89	981970H	STATOR ASS'Y 240V INCLUD.99,110 FOR AUS
89	981970J	STATOR ASS'Y 110V INCLUD.99 FOR GBR
89	981970K	STATOR ASS'Y 220V — 230V INCLUD.99 FOR_NZL,SAF,ITA,FRG,FRA,DEN, FIN,SWE,NOR,ESP,POR,SUI,HOL,AUT
90	980698	DUST WASHER (A)
91	608VVM	BALL BEARING 608VVMC2EPS2L
92	958715	TAPPING SCREW D4X10
93	981959	CAP COVER
94	961781	BRUSH CAP.
95	999073	CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
96	981586	BRUSH HOLDER
99	930703	BRUSH TERMINAL
100		VINYL TUBE (1.D.7XT0.5X120)
101	959140	CONNECTOR 50091 (10 PCS.)
102A	963243	SUPPORT
103	994273	NOISE SUPPRESSOR
104	949423	WASHER M4 (10 PCS.) FOR _GBR,ITA,FRG,FRA,ESP,HOL,DEN,FIN,SWE,AUT,SUI
105	981974Z	INTERNAL WIRE FOR _GBR,ITA,FRG,FRA,ESP,HOL,DEN,FIN,SWE,AUT,SUI
106	959141	CONNECTOR 50082 (10 PCS.)
107A	990941	SWITCH (B) (1P SCREW TYPE) W/O LOCK
107A	981533Z	SWITCH (2P PILLAR TYPE) W/O LOCK FOR AUS
108	981869	SUPPORT (A) TILL 10.1987
108	981986Z	SUPPORT (A) FOR AUS
108A	990082	SUPPORT (E) SINCE 11,1987
109	992808	HANDLE (A)
109	HTR981866	HANDLE (A) FOR AUS
110	981373	TUBE (D)
111	992790	HOUSING ASS'Y INCLUD,96,118
112	992809	HANDLE (B}
113B	981867	DISTANCE PIECE (C)
114	958308Z	PILLAR TERMINAL (A) FOR FIN
115	992810	TERMINAL FOR _ITA,FRG,FRA,HOL,DEN,FIN,SWE,AUT
116	958049Z	CORD ARMOR D8.2
116	940778	CORD ARMOR D10.7
117	500239Z	CORD (CORD ARMOR D10.7)
117	500224Z	CORD (CORD ARMOR 010.7) FOR_SIN,KUW
117	500227Z	CORD (CORD ARMOR D8.2) FOR NGU,NZL
117	500232Z	CORD (CORD ARMOR D8.2) FOR SAF
117	500235Z	CORD (CORD ARMOR D8.2)FOR INA.SUR.DEN,SWE,NO
117	500249Z	CORD (CORD ARMOR D8.2) FOR CAN
117	500390Z	CORD (CORD ARMOR D10.7) FOR ITA,FRG,FRA,HOL,DEN,FIN.SWE,AUT
117	500391Z	CORD (CORD ARMOR D10.7) FOR SUI
117	500394Z	CORD (CORD ARMOR D10.7) FOR SYR,ESP
117	500406Z	CORD (CORD ARMOR D8.2) FOR GBR
117	500410Z	CORD (CORD ARMOR D10.7) FOR AUS
118	938477	HEX. SOCKET SET SCREW MSX8
119	985480	TAPPING SCREW (W/WASHER) D5X20
120	302323	TAIL COVER (8)
121	949510	RIVET D2.5X4.8(10PCS)
122		NAME PLATE
123	956636	TAPPING SCREW (W/WASHER) D4X25
124	992802	TAPPING SCREW D6X25
125	992807	CHOKE COIL FOR NZL
126	938307Z	PILLAR TERMINAL FOR _GBR,ITA,FRG,FRA,ESP,HOL,DEN.FIN,SWE,AUT,SIN
127	984750	TAPPING SCREW (W/FLANGE) D4X16
128	960266	CORD CLIP
129	967261	RETAINING RING FOR D17 SHAFT
130A	990146	DISTANCE PIECE (A)
131A	993903	CRANK COVER ASS'Y INCLUD.33,35,130A,
132	991712	HEX. SOCKET HD. BOLT (W/FLANGE) M6X25
133	982411	HEX. SOCKET HD. BOLT (W/FLANGE) M6X50

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Hitachi DH38YB

Available 12 Items

Data sheet

SHIPPING IN: Usually Ships in 7/10 BUSINESS DAYS
Machine Type: Hammer
MORE INFO:: [email protected]

Specific References

Condition New

Download

Drawing Hitachi DH38YB

Download (472.51KB)

HiKOKI Power Tools Italia S.p.a. SKU: 999043

Carbon Brushes for Hitachi Hammer Hitachi DH38MS

Carbon Brushes for Hitachi Hammer Hitachi DH38MS Genuine spare part Hitachi-HIKOKI, Carbon Brushe Set for Combined Hammer DH38MS - Demolition Hammer H41MB Part for the following products: - Combined Hammer 9 Joule - 6.4Kg DH38MS -...

AVAILABLE €6.04

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Hitachi Spare Parts for Hammer Drill DH38YB

Hitachi Spare Parts for Hammer Drill DH38YB

Hitachi Spare Parts for Hammer Drill DH38YB

Hitachi Spare Parts for Hammer Drill DH38YB

Hitachi Spare Parts for Hammer Drill DH38YB

Data sheet

Specific References

Download

Drawing Hitachi DH38YB

You might also like
