HiKOKI Power Tools Italia S.p.a.

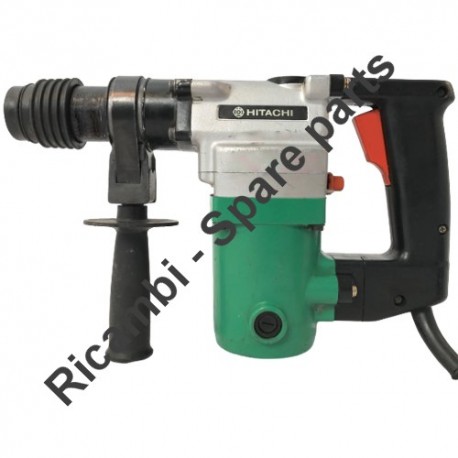

Hitachi Spare Parts for Demolition Hammer DH20V

SKU: Hitachi DH20V
€1.75
VAT included

Hitachi Spare Parts for Demolition Hammer DH20V

Hitachi-HIKOKI Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Demolition Hammer DH20V.
Hitachi Spare Parts for Demolition Hammer DH20V
  • Hitachi Spare Parts for Demolition Hammer DH20V
  • Hitachi Spare Parts for Demolition Hammer DH20V
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Demolition Hammer DH20V

SKU: Hitachi DH20V Condition: New
€1.75
VAT included

Hitachi Spare Parts for Demolition Hammer DH20V

Hitachi-HIKOKI Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Demolition Hammer DH20V.
settings 62 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
62 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

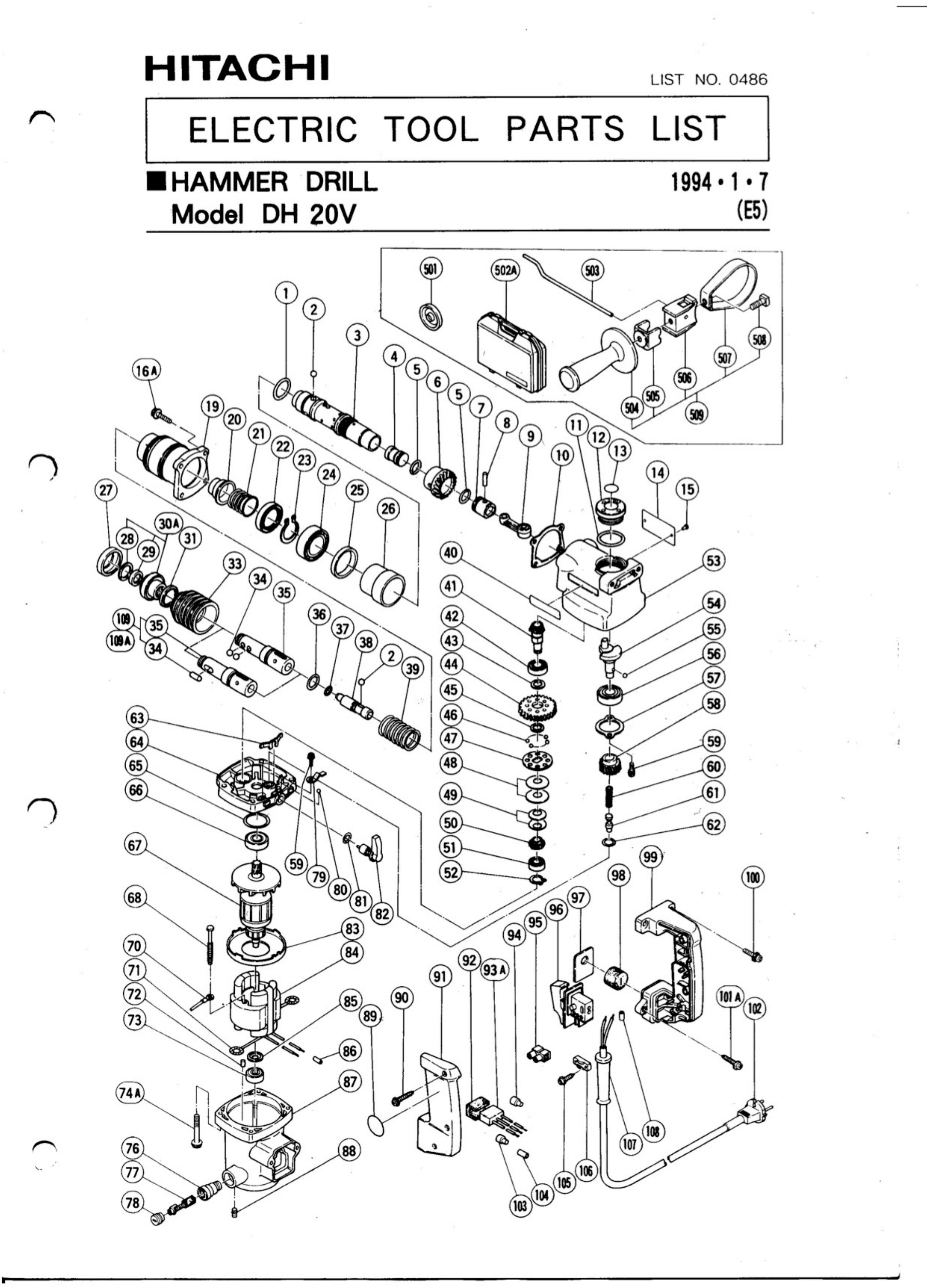

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 873570 O-RING (P-18) €1.49
2
 Steel Ball 6,35 mm for Hammers Hitachi 959150 Steel Ball 6,35 mm for Hammers Hitachi €3.48
3
 photo_cameraImage coming soon 992932 CYLINDER €70.34
4
 photo_cameraImage coming soon 992903 STRIKER €14.21
6
 photo_cameraImage coming soon 992933 THIRD GEAR €34.88
7
 photo_cameraImage coming soon 992930 PISTON €17.23
9
 photo_cameraImage coming soon 992501 CONNECTING ROD €16.71
10
 photo_cameraImage coming soon 980896 SEAL PACKING (8) €1.29
11
 photo_cameraImage coming soon 980948 O-RING €217.77
12
 photo_cameraImage coming soon 980880 OIL CAP €1.29
19
 photo_cameraImage coming soon 992948 CYLINDER CASE €24.21
22
 photo_cameraImage coming soon 992935 OIL SEAL €3.32
23
 photo_cameraImage coming soon 948310 RETAINING RING FOR D30 SHAFT €1.71
24
 photo_cameraImage coming soon 6906BB BALL BEARING 6906 €15.93
25
 photo_cameraImage coming soon 992906 URETHANE RING €5.34
26
 photo_cameraImage coming soon 980891 PIPE €3.90
29
 photo_cameraImage coming soon 992939 SEAL CAP €1.59
30A
 photo_cameraImage coming soon 993695 FRONT CAP ASS'Y INCLUD.28,29 €29.51
31
 photo_cameraImage coming soon 982697 URETHANE WASHER €4.17
34
 photo_cameraImage coming soon 959151 STEEL BALL D7.14 €1.68
35
 photo_cameraImage coming soon 992924 RETAINER SLEEVE (C) (FOR SQUARE SHANK) FOR NEEDLE ROLLER TYPE €54.36
37
 photo_cameraImage coming soon 872645 O-RING (P-9) €2.12
38
 photo_cameraImage coming soon 992904 SECOND HAMMER €29.51
39
 photo_cameraImage coming soon 992907 RETAINER SPRING (A) €1.59
41
 photo_cameraImage coming soon 992914 THIRD PINION €32.21
42
 photo_cameraImage coming soon 6001DD BALL BEARING 6001DDCMPS2L €8.46
44
 photo_cameraImage coming soon 992928 SECOND GEAR €26.89
46
 photo_cameraImage coming soon 959155 STEEL BALL D3.97 €1.35
47
 photo_cameraImage coming soon 992916 CLUTCH PLATE €5.41
48
 photo_cameraImage coming soon 992926 SPRING PLATE €1.23
51
 photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
53
 photo_cameraImage coming soon 980920Z CRANK CASE €37.09
54
 photo_cameraImage coming soon 992900 CRANK SHAFT €42.89
55
 photo_cameraImage coming soon 959149 STEEL BALL D4.76 €1.28
56
 photo_cameraImage coming soon 6202DD Ball Bearing 6202dd €7.97
57
 photo_cameraImage coming soon 980871 BEARING COVER €1.29
63
 photo_cameraImage coming soon 986276 STOPPER SPRING €2.40
64
 photo_cameraImage coming soon 992925 GEAR COVER €35.33
65
 photo_cameraImage coming soon 872470 O-RING (S-26) €2.09
70
 photo_cameraImage coming soon 986277 INTERNAL CABLE €1.30
71
 photo_cameraImage coming soon 930630 BRUSH TERMINAL €1.66
72
 photo_cameraImage coming soon 946362 BEARING LOCK €1.30
73
 photo_cameraImage coming soon 626VVM BALL BEARING 626VVC2PS2L €5.14
74A
 photo_cameraImage coming soon 980951 INDUCTANCE CARD KIT €181.56
76
 photo_cameraImage coming soon 980928 BRUSH HOLDER €3.07
77
 photo_cameraImage coming soon 999084 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) €12.52
78
 photo_cameraImage coming soon 937847 BRUSH CAP €2.16
80
 photo_cameraImage coming soon 959148 STEEL BALL D3.175 €1.35
82
 photo_cameraImage coming soon 992901 CHANGE LEVER €19.14
83
 photo_cameraImage coming soon 992911 FAN GUIDE €3.07
84
 photo_cameraImage coming soon 992927M STATOR ASS'Y 220V — 230V INCLUD.71,86 FOR ITA,ESP,DEN,AUT,NOR,SUI €50.93
84
 photo_cameraImage coming soon 992927N STATOR ASS'Y 230V — 240V INCLUD.71,86 FOR FRG,FRA,BEL.HOLSWE,FIN.GBR €50.93
86
 photo_cameraImage coming soon 981373 TUBE (D) €1.37
87
 photo_cameraImage coming soon 986812 HOUSING ASS'Y INCLUD.76,88 €54.36
91
 photo_cameraImage coming soon 980924Z HANDLE COVER (8) €9.65 Not available for order
93A
 Noise Suppressor for Angle Grinder Hitachi G12SA2 994273 Noise Suppressor for Angle Grinder Hitachi G12SA2 €9.62
102
 photo_cameraImage coming soon 5002302 CRANK SHAFT €4.67
102
 photo_cameraImage coming soon 500235Z CORD (CORD ARMOR D8.2) FOR INA €12.06
102
 photo_cameraImage coming soon 500390Z Cord €14.12
104
 photo_cameraImage coming soon 981373 TUBE (D) €1.37
106
 photo_cameraImage coming soon 960266 CORD CLIP €1.37
107
 Cord Armor D.10.1 for Hitachi Power Tools 938051 Cord Armor D.10.1 for Hitachi Power Tools €1.34
107
 Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.37
108
 photo_cameraImage coming soon 981373 TUBE (D) €1.37

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Demolition Hammer DH20V

Hitachi-HIKOKI Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Demolition Hammer DH20V.

In the following table, look for the model of the hammer and the respective parts of the code.
Hitachi DH20V
HITACHI HAMMER DRILL DH 20V
# Part Num. Descrizione
1 873570 O-RING (P -18)
2 959150 STEEL BALL D8.35 (10 PCS.)
3 992932 CYLINDER
4 992903 STRIKER
5 971760 O-RING
6 992933 THIRD GEAR
7 992930 PISTON
8 992931 PISTON PIN
9 992501 CONNECTING ROD
10 980896 SEAL PACKING (8)
11 980948 O-RING
12 980880 OIL CAP
13 980934Z CAUTION PLATE (ENGLISH) TILL 8.1986
13 992824 CAUTION PLATE (FRENCH) TILL 8.1986
13 992830 CAUTION PLATE (GERMAN) TILL 8.1986
14 NAME PLATE
15 949510 RIVET D2.5X4,8 (10 PCS.)
16A 992253 HEX. SOCKET HD. BOLT (W/FLANGE) M5X25
19 992948 CYLINDER CASE
20 992908 SPRING HOLDER
21 992909 RETAINER SPRING (B)
22 992935 OIL SEAL
23 948310 RETAINING RING FOR D30 SHAFT
24 6906BB BALL BEARING 6906
25 992906 URETHANE RING
26 980891 PIPE
27 992940 CAP COVER
28 992502 RETAINING RING D22
29 992939 SEAL CAP
30A 993695 FRONT CAP ASS'Y INCLUD.28,29
31 982697 URETHANE WASHER
33 993100 SLIDE GRIP
34 971812 NEEDLE ROLLER
34 959151 STEEL BALL D7.14 (10 PCS.)
35 992922 RETAINER SLEEVE (A) (FOR SQUARE SHANK; FOR STEEL BALL TYPE(till 2.1987)
35 992923 RETAINER SLEEVE (B) (FOR SQUARE SHANK) FOR STEEL BALL TYPE
35 993692 RETAINER SLEEVE (E) (FOR ROUND SHANK) FOR NEEDLE ROLLER TYPE
35 992924 RETAINER SLEEVE (C) (FOR SQUARE SHANK) FOR NEEDLE ROLLER TYPE
36 980890 O - RING (D)
37 872645 O — RING (P — 9)
38 992904 SECOND HAMMER
39 992907 RETAINER SPRING (A)
40 957561 HITACHI LABEL.
41 992914 THIRD PINION
42 6001DD BALL BEARING 6001DDUCMPS2S
43 992503 WASHER
44 992928 SECOND GEAR
45 971087 STOPPER WASHER
46 959155 STEEL BALL D3.97 (10 PCS.)
47 992916 CLUTCH PLATE
48 992926 SPRING PLATE
49 980877 BELLEVILLE SPRING
50 992504 BUSHING
51 608VVM BALL BEARING 608VVMC2EPS2L
52 940079 RETAINING RING FOR D8 SHAFT
53 980920Z CRANK CASE
54 992900 CRANK SHAFT
55 959149 STEEL BALL D4.76 (10 PCS.)
56 6202DD BALL BEARING 6202DDUCMPS2S
57 980871 BEARING COVER
58 992902F IRSTGEAR
59 987203 SEAL LOCK SCREW (WISP. WASHER) M4X12
60 992937 CLUTCH SPRING
61 902938 CLUTCH SHAFT
62 992508 THRUST WASHER
63 986276 STOPPER SPRING
64 992925 GEAR COVER
65 872470 O — RING (S ~ 26)
66 600ODD BALL BEARING 6000DDUCMPS2S
67 9929200A RMATURE 110V
67 9092920E ARMATURE 220V - 230V
67 992920F ARMATURE 240V
68 992509 HEX. HD. TAPPING SCREW D5X45
70 986277 INTERNAL WIRE FOR EUROPE
71 930630 BRUSH TERMINAL
72 946362 BEARING LOCK
73 626VVM BALL BEARING 626VVMC2ERPS2S
74A 980951 HEX. SOCKET HD. BOLT (W/FLANGE) M5X45
76 980928 BRUSH HOLDER
77 999084 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
78 937847 BRUSH CAP
79 992936B ALL SPRING
80 959148 STEEL BALL D3.175 (10 PCS.)
81 992912 O-RING (S-8)
82 992901 CHANGE LEVER
83 992911 FAN GUIDE
84 992927K STATOR ASS'Y 220V ~ 230V INCLUD.71,86
84 992927M STATOR ASS'Y 220V — 230V INCLUD.71,86 FOR ITA,ESP,DEN,AUT,NOR,SUI
84 992927N STATOR ASS'Y 230V — 240V INCLUD.71,86 FOR FRG,FRA,BEL.HOLSWE,FIN.GBR
84 992927J STATOR ASS'Y 110V INCLUD.71,86 FOR GBR
85 992500 WASHER (A)
86 981373 TUBE (0)
87 986812 HOUSING ASS'Y INCLUD.76,88
88 938477 HEX. SOCKET SET SCREW M5X8
89 962994 MARK PLATE FOR FRGHOL
90 958636 TAPPING SCREW (WASHER) D4x25
91 980924Z HANDLE COVER (8)
92 930153 SUPPORT (8) FOR NOISE SUPPRESSOR
93A 994273 NOISE SUPPRESSOR
94 959141 CONNECTOR 50082 (10 PCS,
95 938307Z PILLAR TERMINAL FOR EUROPE.HKG
96 9809227 SWITCH (2P PILLAR TYPE) W/LOCK
97 980900 PLATE
98 971816 HANDLE PACKING TILL 6.1986
99 980923Z HANDLE (B)
100 86274 MACHINE SCREW (W/WASHERS) M5X25
101A 985620 TAPPING SCREW (W/FLANGE) D5X25
102 5002302 CORD (CORD ARMOR D10.1)
102 500 424Z CORD (CORD ARMOR D8.8) FOR SAU
102 500 224Z CORD (CORD ARMOR D10.1) FOR SIN,KUW
102 500 235Z CORD (CORD ARMOR D8.8) FOR INA
102 500 390Z CORD (CORD ARMOR D10.1) FOR FRA,HOL,FIN,SWE,AUT,NOR,ITA,FRG,DEN
102 500391Z CORD (CORD ARMOR D10.1) FOR SUI
102 500 394Z CORD (CORD ARMOR 010.1) FOR SYR,ESP
102 500 406Z CORD (CORD ARMOR D8.8) FOR GBR
103 959140 CONNECTOR 50091 (10 PCS.)
104 981373 TUBE (D) FOR NOISE SUPPRESSOR
105 984750 TAPPING SCREW (W/FLANGE) D4X16
106 960266 CORD CLIP
107 953327 CORD ARMOR MM8.8
107 938051 CORD ARMOR MM10.1
108 981373 TUBE (D) FOR CORD
109 993691 RETAINER SLEEVE ASS'Y (FOR SQUARE SHANK)INCLUD.34,35 FOR NEEDLE ROLLER TYPE
19A 993693 RETAINER SLEEVE (E) ASS'Y (ROUND SHANK) INCLUD.34,35 FOR NEEDLE ROLLER TYPE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi DH20V
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Hitachi DH20V

Drawing Hitachi DH20V

Download (422.3KB)

You might also like

Carbon Brushes for Demolition Hammer Hitachi DH30PC2
HiKOKI Power Tools Italia S.p.a. SKU: 999073
Carbon Brushes for Demolition Hammer Hitachi DH30PC2
Carbon Brushes for Demolition Hammer Hitachi DH30PC2 Genuine Spare Part Hitachi, Autolocking Carbon Brushes for Rotary Hammers D13 - DH30PC2 - DH40MR - DH40MRY - DH40SR - H41SA - H41SC - H45MR - H45MRY - H45SR Part for the following...
AVAILABLE €16.60
Details
Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR
HiKOKI Power Tools Italia S.p.a. SKU: 939299
Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR
Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR Genuine part HITACHI, Needle Bearing M661 for Demolition Hammers H45MR - H45MRY - H45FRV - H45SR - DH40MRY - DH45MR - H41MB - H25PV - DH30PC2 - DH38MS - DH50MRY - PR-38E....
AVAILABLE €13.81
Details
Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU
HiKOKI Power Tools Italia S.p.a. SKU: 945161
Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU
Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU Original parts Hitachi, Brush holder Cap for Angle Grinders G 23SS - 23SW G - G 23SWU - Radial Miter Saws 10FCH2 C - C 12LCH - C 12RSH. Part for the following items: -...
AVAILABLE €2.78
Details
O-Ring 23X30X3 mm for Demolition Hammers Hitachi DH40MRY-DH38MS
HiKOKI Power Tools Italia S.p.a. SKU: 986104
O-Ring 23X30X3 mm for Demolition Hammers Hitachi DH40MRY-DH38MS
O-Ring 23X30X3 mm for Demolition Hammers Hitachi DH40MRY-DH38MS Genuine part HITACHI, O-Ring 23X30X3 mm for Demolition Hammers Hitachi DH40MRY-DH38MS-DH50MRY-H41MB. Part for the following products: - Demolition Hammer Hitachi...
AVAILABLE €2.08
Details
Oil Seal 20x32x5 for Rotary Hammer Hitachi DH45MR-DH40MRY-DH38MS
HiKOKI Power Tools Italia S.p.a. SKU: 313050
Oil Seal 20x32x5 for Rotary Hammer Hitachi DH45MR-DH40MRY-DH38MS
Oil Seal 20x32x5 for Rotary Hammer Hitachi DH45MR-DH40MRY-DH38MS Original Spare Part Hitachi, Oil Seal 20x32x5 for Rotary Hammers Hitachi DH45MR-DH40MRY-DH38MS. Part for the following products: - Rotary Hammer DH45MR - Rotary Hammer...
AVAILABLE €5.43
Details
Piston Pin for Hammers Hitachi DH40MRY-H41M
HiKOKI Power Tools Italia S.p.a. SKU: 980708
Piston Pin for Hammers Hitachi DH40MRY-H41M
Piston Pin for Hammers Hitachi DH40MRY-H41M Hitachi genuine parts, Rod/Piston Pin for Combined Hammer 10.5 Joule-6.8Kg UVP DH40MRY - Demolition Hammer Class 5 Kg Hitachi H41M. Part for the following items: - Combined Hammer 10.5...
AVAILABLE €3.48
Details
O-RING 1AS.60 for Hammer DH40MRY-DH45MR
HiKOKI Power Tools Italia S.p.a. SKU: 956996
O-RING 1AS.60 for Hammer DH40MRY-DH45MR
O-RING 1AS.60 for Hammer DH40MRY-DH45MR Genuine spare part Hitachi, O-RING 1AS.60 for Rotary Hammer DH40MRY - DH45MR - DH38MS. For the follows items: - Rotary Hammer DH40MRY - Rotary Hammer DH45MR - Rotary Hammer...
AVAILABLE €3.83
Details
Needle Roller 8x20 for Rotary Hammer Hitachi DH40MR
HiKOKI Power Tools Italia S.p.a. SKU: 313421
Needle Roller 8x20 for Rotary Hammer Hitachi DH40MR
Needle Roller 8x20 for Rotary Hammer Hitachi DH40MR Genuine replacement part Hitachi, Needle Roller 8x20 for Rotary Hammers DH40MR - DH40MRY - DH45MR - DH45MRY - DH50MB - DH50MRY. Part for the following products: - Rotary Hammer...
AVAILABLE €9.76
Details
Switch for Demolition Hammers Hitachi DH38MS-DH40MR
HiKOKI Power Tools Italia S.p.a. SKU: 313093
Switch for Demolition Hammers Hitachi DH38MS-DH40MR
Switch for Demolition Hammers Hitachi DH38MS-DH40MR Original replacement part for Hitachi, Switch (2P Screw Type W/O Lock) for Combined Demolition Hammers DH38MS - DH40MR - DH40SR. Part for the following Products: -  Combined Hammer...
Details
Comments (0)
