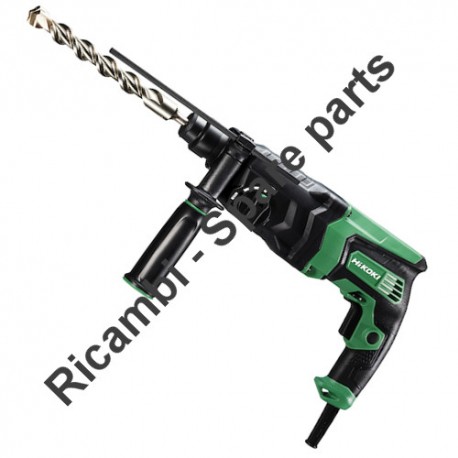

Hitachi Spare Parts for Rotary Hammer Drill DH26PB2

SKU: Hitachi DH26PB2
€2.24
VAT included

Hitachi Spare Parts for Rotary Hammer Drill DH26PB2

Hitachi original spare parts and replacement parts for Rotary Hammer Drill DH26PB2.

Super powerful, compact and lightweight 830 W rotary hammer, reversible, with SDS-PLUS connection, with safety clutch and electronic speed adjustment switch.
Hitachi Spare Parts for Rotary Hammer Drill DH26PB2
  • Hitachi Spare Parts for Rotary Hammer Drill DH26PB2
  • Hitachi Spare Parts for Rotary Hammer Drill DH26PB2

Hitachi Spare Parts for Rotary Hammer Drill DH26PB2

SKU: Hitachi DH26PB2 Condition: New
€2.24
VAT included

Hitachi Spare Parts for Rotary Hammer Drill DH26PB2

Hitachi original spare parts and replacement parts for Rotary Hammer Drill DH26PB2.

Super powerful, compact and lightweight 830 W rotary hammer, reversible, with SDS-PLUS connection, with safety clutch and electronic speed adjustment switch.
settings 80 spare parts

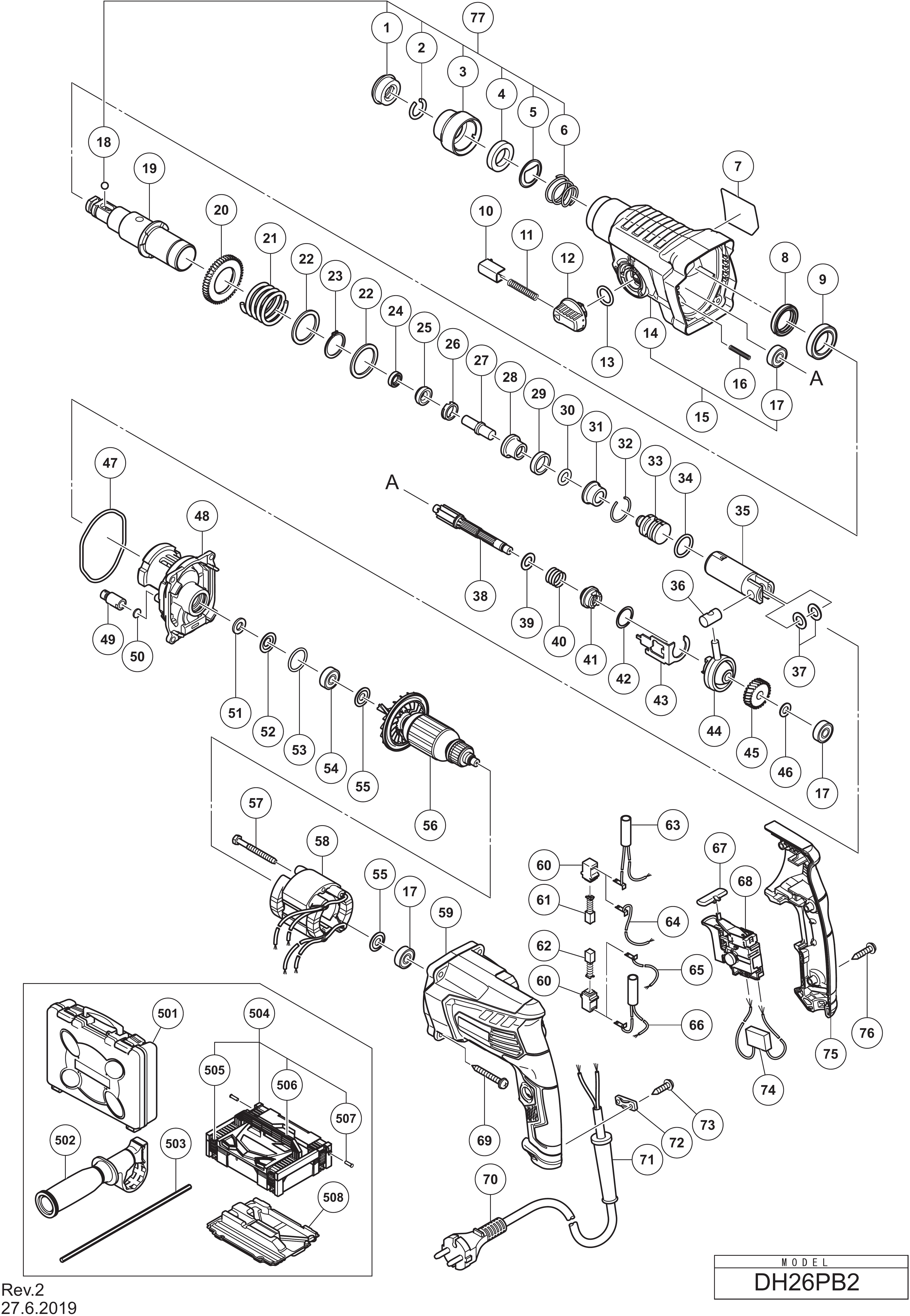

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

77 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
Front Cap for Rotary Hammers Hitachi DH22/28 306345 Front Cap for Rotary Hammers Hitachi DH22/28 €4.18
2
Stopper Ring for Hammers Hitachi 306340 Stopper Ring for Hammers Hitachi €2.08
3
photo_cameraImage coming soon 374436 GRIP €1.33
4
photo_cameraImage coming soon 374437 BALL HOLDER €2.01
5
photo_cameraImage coming soon 374435 HOLDER PLATE €1.33
6
photo_cameraImage coming soon 322812 Spring Gate Punta €2.05
8
photo_cameraImage coming soon 335259 OIL SEAL €4.06
9
photo_cameraImage coming soon 6805BB BALL BEARING 6805 €3.32
10
photo_cameraImage coming soon 322789 BACK PANEL €5.86
11
photo_cameraImage coming soon 317223 PUSHING SPRING €2.22
12
photo_cameraImage coming soon 334011 CHANGE LEVER €3.12
13
O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 878885 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 €1.34
14
photo_cameraImage coming soon 374620 GEAR COVER €16.75
15
photo_cameraImage coming soon 375017 GEAR COVER ASS'Y €16.47
17
photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
18
Steel Ball 7 mm for Hammers Hitachi DH24-26-28 335300 Steel Ball 7 mm for Hammers Hitachi DH24-26-28 €3.48
19
photo_cameraImage coming soon 374426 CYLINDER €25.36
20
photo_cameraImage coming soon 335265 SECOND GEAR €8.91
21
photo_cameraImage coming soon 374430 SPRING (B) €1.68
22
photo_cameraImage coming soon 301679 WASHER (A) €2.18
23
photo_cameraImage coming soon 948310 RETAINING RING FOR D30 SHAFT €1.71
24
Oil Seal mm 9,5x16x4 for Rotary Hammer Hitachi DH24PG 335262 Oil Seal mm 9,5x16x4 for Rotary Hammer Hitachi DH24PG €2.63
25
photo_cameraImage coming soon 374431 HAMMER HOLDER (B) €1.68
26
photo_cameraImage coming soon 374427 HOLDER SLEEVE €3.51
27
photo_cameraImage coming soon 374432 SECOND HAMMER €3.72
28
photo_cameraImage coming soon 374429 HAMMER HOLDER (A) €3.16
29
photo_cameraImage coming soon 322805 DAMPER (A) €2.05
30
photo_cameraImage coming soon 322808 O-RING (C) €2.02
31
photo_cameraImage coming soon 324524 DAMPER HOLDER €7.80
32
photo_cameraImage coming soon 322807 STOPPER RING €2.05
33
photo_cameraImage coming soon 374443 STRIKER €5.38
34
photo_cameraImage coming soon 372816 0-RING €4.10
35
photo_cameraImage coming soon 372817 PISTON €13.51
36
photo_cameraImage coming soon 335793 PISTON PIN €4.62
37
photo_cameraImage coming soon 335794 PISTON WASHER €1.66
39
photo_cameraImage coming soon 335251 Washer (C) €2.02
40
photo_cameraImage coming soon 323182 CLUTCH SPRING €2.05
41
photo_cameraImage coming soon 375022 CLUTCH €5.44
42
photo_cameraImage coming soon 331315 WASHER €1.62
43
photo_cameraImage coming soon 335252 Change Plate €2.29
44
photo_cameraImage coming soon 335249 RECIPROCATING BEARING €19.44
45
photo_cameraImage coming soon 374441 FIRST GEAR €5.22
46
photo_cameraImage coming soon 374442 BEARING WASHER €1.33
47
O-Ring D 72.2 for Rotary Hammers Hitachi DH26PB 335245 O-Ring D 72.2 for Rotary Hammers Hitachi DH26PB €2.78
48
photo_cameraImage coming soon 374433 INNER COVER €9.97
49
photo_cameraImage coming soon 334008 AIR CAP €1.60
50
photo_cameraImage coming soon 324543 In Dh24pb3 Felt Gasket-Pc3 €2.05
51
photo_cameraImage coming soon 322816 FELT PACKING €2.05
52
Packing Washer for Rotary Hammer Hitachi DH24PB3 322818 Packing Washer for Rotary Hammer Hitachi DH24PB3 €4.09
53
photo_cameraImage coming soon 876796 O-RING (P-22) €1.33
54
photo_cameraImage coming soon 608DDM BALL BEARING 608DDC2PS2L €7.07
55
Dust Washer for Demolition Hammer Hitachi H45MRY 982631 Dust Washer for Demolition Hammer Hitachi H45MRY €1.34
56
photo_cameraImage coming soon 361106E ARMATURE (A) 220V-230V €27.02
58
photo_cameraImage coming soon 341028K STATOR (A) 220V-230V €22.03
59
photo_cameraImage coming soon 374616 HOUSING (A) €10.04
60
Brush Holder for Demolition Hammer Hitachi DH28PCY 955203 Brush Holder for Demolition Hammer Hitachi DH28PCY €4.39
61
Carbon Brushes for Sanders Hitachi SV12-13 999041 Carbon Brushes for Sanders Hitachi SV12-13 €9.62
62
Carbon Brushes for Rotary Hammer Hitachi DH24PB3 999072 Carbon Brushes for Rotary Hammer Hitachi DH24PB3 €18.01
67
Pusching Button for Drills Hitachi DV16-18V-DV20VB2 322853 Pusching Button for Drills Hitachi DV16-18V-DV20VB2 €2.78
68
photo_cameraImage coming soon 374610 SWITCH 220V-240V €20.51
70
photo_cameraImage coming soon 500390Z Cord €14.12
71
Cord Armor D.10.1 for Hitachi Power Tools 938051 Cord Armor D.10.1 for Hitachi Power Tools €1.34
71
Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.37
72
photo_cameraImage coming soon 937631 CORD CLIP €1.37
74
Noise Suppressor Hitachi GP 10 930039 Noise Suppressor Hitachi GP 10 €4.04
75
photo_cameraImage coming soon 374617 HANDLE COVER (A) €5.98
77
photo_cameraImage coming soon 375363 GRIP SET €3.87
501
photo_cameraImage coming soon 374619 CASE €36.75
502
photo_cameraImage coming soon 374447 SIDE HANDLE €12.18
503
photo_cameraImage coming soon 303709 delimiter Depth €1.75
506
photo_cameraImage coming soon 336473 HANDLE FOR EUROPE.RUS €6.68
508
photo_cameraImage coming soon 337741 INNER TRAY €18.40
601
photo_cameraImage coming soon 306885 DUST COLLECTOR (B) ASS'Y €39.43
607
Steel Ball 6,35 mm for Hammers Hitachi 959150 Steel Ball 6,35 mm for Hammers Hitachi €3.48
611
photo_cameraImage coming soon 971787 DUST CUP €6.85
632
photo_cameraImage coming soon 335781 GREASE FOR ROTARY HAMMER (500G) €78.63
633
photo_cameraImage coming soon 335782 GREASE FOR ROTARY HAMMER (60G) €18.17

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Rotary Hammer Drill DH26PB2

Hitachi original spare parts and replacement parts for Rotary Hammer Drill DH26PB2.

Super powerful, compact and lightweight 830 W rotary hammer, reversible, with SDS-PLUS connection, with safety clutch and electronic speed adjustment switch. It is equipped with a brand new pneumatic technology that optimizes and greatly enhances the strike energy and the reliability of wear parts over time. Also new is the system that automatically adjusts the internal pressure of the pneumatic chamber, to optimize drilling as much as possible. Another very important novelty is the adoption of a bearing instead of the bushing, where the second shaft works, which guarantees an exceptional resistance to high working temperatures. Finally it is equipped with a very effective system to prevent blows and a new manual selector, very accessible and ergonomic, to choose between the 2 working modes: rotation with percussion or rotation only. Super-innovative design extremely ergonomic and practical, but with attention to the smallest details.
Combined action of rotation and percussion: opening of anchor holes, holes in reinforced concrete and holes in the brick.

In the following table , look for the model of the Rotary Hammer Drill and their respective spare parts.
Hitachi DH26PB2


Rotary Hammer Drill DH26PB2
# Part Num. Description
1 306345 FRONT CAP
2 306340 STOPPER RING
3 374436 GRIP
4 374437 BALL HOLDER
5 374435 HOLDER PLATE
6 322812 HOLDER SPRING
8 335259 OIL SEAL
9 6805BB BALL BEARING 6805
10 322789 PUSHING BUTTON
11 317223 PUSHING SPRING
12 334011 CHANGE LEVER
13 878885 O-RING (S-18)
14 374620 GEAR COVER
15 375017 GEAR COVER ASS'Y
16 335800 SPRING (E)
17 608VVM BALL BEARING 608VVC2PS2L
18 335300 STEEL BALL D7.0
19 374426 CYLINDER
20 335265 SECOND GEAR
21 374430 SPRING (B)
22 301679 WASHER (A)
23 948310 RETAINING RING FOR D30 SHAFT
24 335262 OIL SEAL (A)
25 374431 HAMMER HOLDER (B)
26 374427 HOLDER SLEEVE
27 374432 SECOND HAMMER
28 374429 HAMMER HOLDER (A)
29 322805 DAMPER (A)
30 322808 O-RING (C)
31 324524 DAMPER HOLDER
32 322807 STOPPER RING
33 374443 STRIKER
34 372816 O-RING
35 372817 PISTON
36 335793 PISTON PIN
37 335794 PISTON WASHER
39 335251 WASHER (C)
40 323182 CLUTCH SPRING
41 375022 CLUTCH
42 331315 WASHER
43 335252 CHANGE PLATE
44 335249 RECIPROCATING BEARING
45 374441 FIRST GEAR
46 374442 BEARING WASHER
47 335245 O-RING D72.2
48 374433 INNER COVER
49 334008 AIR CAP
50 324543 FELT PACKING (A)
51 322816 FELT PACKING
52 322818 PACKING WASHER
53 876796 O-RING (P-22)
54 608DDM BALL BEARING 608DD
55 982631 WASHER (A)
56 361106E ARMATURE (A) 220V-230V
58 341028K STATOR (A) 220V-230V
59 374616 HOUSING (A)
60 955203 BRUSH HOLDER
61 999041 CARBON BRUSH (1 PAIR)
62 999072 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
67 322853 PUSHING BUTTON
68 374610 SWITCH 220V-240V
70 500390Z CORD
71 953327 CORD ARMOR D8.8
71 938051 CORD ARMOR D10.1
72 937631 CORD CLIP
74 930039 NOISE SUPPRESSOR
75 374617 HANDLE COVER (A)
77 375363 GRIP SET
501 374619 CASE
502 374447 SIDE HANDLE
503 303709 DEPTH GAUGE
505 336472 LATCH
506 336473 HANDLE
507 336474 HINGE
508 337741 INNER TRAY
601 306885 DUST COLLECTOR (B) ASS'Y
605 948310 RETAINING RING FOR D30 SHAFT
607 959150 STEEL BALL D6.35
611 971787 DUST CUP
632 335781 GREASE FOR ROTARY HAMMER (500G)
633 335782 GREASE FOR ROTARY HAMMER (60G)

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi DH26PB2
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi DH26PB2

Diagram Hitachi DH26PB2

Download (309.17KB)

You might also like

HiKOKI Power Tools Italia S.p.a. SKU: 999041
Carbon Brushes for Sanders Hitachi SV12-13 Genuine spare Hitachi, Carbon Brushes for Sanders SV12SD - SV12SG - SV12SH - SV12V, for Drills, D 13VG - DV 18V - DV 20VB2, for Jig Saws FCJ65V3 - CJ90VST - CJ110MVA - CJ110MV, for Hammers DH...
AVAILABLE €9.62
HiKOKI Power Tools Italia S.p.a. SKU: 335300
Steel Ball 7 mm for Hammers Hitachi DH24-26-28 Hitachi genuine parts, steel ball diameter MM 7, Box 10 Pcs for Demolition hammers and Drills Hammers, DH 24PG - 26PC DH - DH 28PCY - DH28PC. Suitable for the following items: - Drill...
AVAILABLE €3.48
HiKOKI Power Tools Italia S.p.a. SKU: 322853
Pusching Button for Drills Hitachi DV16-18V-DV20VB2 Original spare part HITACHI, Pusching Button for Percussion Drills Hitachi DV 16-18V - DV 20VB2. Part for the following products: - Percussion Drill DV16V - Percussion Drill DV...
AVAILABLE €2.78
HiKOKI Power Tools Italia S.p.a. SKU: 959150
Steel Ball 6,35 mm for Hammers Hitachi Hitachi genuine parts, steel ball diameter MM 6,35, Box 10 Pcs for Demolition Hammers and Percussion drills, H45MR - H45MRY - H41MB - H60MC - D13VG - DV16V-20VB2. Suitable for the following...
AVAILABLE €3.48
HiKOKI Power Tools Italia S.p.a. SKU: 306340
Stopper Ring for Hammers Hitachi Genuine parts Hitachi, Stopper Ring for Hammers Hitachi. For the following items: - Hammer DH 28 PCY - Hammer DH 26PC - Hammer DH 24PG
AVAILABLE €2.08
HiKOKI Power Tools Italia S.p.a. SKU: 930039
Noise Suppressor Hitachi GP 10 Genuine parts Hitachi, Noise Suppressor Model GP 10 for Angle Grinders, Sanders, Circular Saws, Hammers, Hammers, Routers. Part for the following items: - Rotorbital Sander Hitachi SV13YA - Rotorbital...
AVAILABLE €4.04
HiKOKI Power Tools Italia S.p.a. SKU: 306345
Front Cap for Rotary Hammers Hitachi DH22/28 Genuine part HITACHI, Front Cap for Rotary Hammers DH22PG - DH24PG - DH26PC - DH28PCY - DH14DSL - DH18DSL - DH25DL - DH25DAL - DH36DL - DH36DAL - DH28PD - DH24PB3 - DH28PC - DH28PFY.
Last items in stock €4.18
HiKOKI Power Tools Italia S.p.a. SKU: 955203
Brush Holder for Demolition Hammer Hitachi DH28PCY Genuine Spare Part HITACHI, Brush Holder for Demolition Hammer Hitachi DH22PG - DH22PH - DH24PB3 - DH24PC3 - DH24PD3 - DH24PG - DH24PH - DH24PM - DH26PB - DH26PC - DH28PBY - DH28PCY -...
Usually Ships in: 7/10 Business Days Approx. €4.39
HiKOKI Power Tools Italia S.p.a. SKU: 878885
O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 Hitachi genuine parts, O-Ring S-18 for Rotary Hammers DH24PC3 - DH24PD3 - DH24PB3 - DH24PG - DH24PH - DH36DAL - DH36DL - DH24DVA Part for the following products: - ROTARY HAMMER...
Last items in stock €1.34
HiKOKI Power Tools Italia S.p.a. SKU: 999072
Carbon Brushes for Rotary Hammer Hitachi DH24PB3 Genuine Spare Part Hitachi, Self-Locking Carbon Brushes for Rotary Hammers DH24PB3 - DH24PC3 - DH24PD3 - DH24PG - DH24PH - DH24PM...
on 7/10 Business Days Approx €18.01
HiKOKI Power Tools Italia S.p.a. SKU: 938051
Cord Armor D.10.1 for Hitachi Power Tools Genuine spare parts Hitachi KOKY, Cord Armor D.10.1 for Hitachi Power Tools Parts for the following products: - For Hitachi Power Tools - Code: 938051
AVAILABLE €1.34
HiKOKI Power Tools Italia S.p.a. SKU: 982631
Dust Washer for Demolition Hammer Hitachi H45MRY Genuine Spare Part Hitachi, Dust Washer for Demolition Hammers H45MR - H45FRV - H45MRY - H45SR - DH40MRY - H41MB. Part for the following items: - Rotary Hammer Hitachi DH24PG - Rotary...
AVAILABLE €1.34
HiKOKI Power Tools Italia S.p.a. SKU: 335262
Oil Seal mm 9,5x16x4 for Rotary Hammer Hitachi DH24PG Original spare part Hitachi, Oil Seal mm 9,5x16x4 for Rotary Hammers DH24PG - DH24PH - DH26PB - DH26PC - DH28PBY...
Last items in stock €2.63
HiKOKI Power Tools Italia S.p.a. SKU: 322818
Packing Washer for Rotary Hammer Hitachi DH24PB3 Genuine replacement part HITACHI HIKOKI, Packing Washer for Rotary Hammers DH24PB3 - DH24PC3 - DH24PD3 - DH24PM Part for the following products: -  Rotary Hammer Hitachi DH24PB3 -...
on 7/10 Business Days Approx. €4.09
Comments (0)
