Hitachi Spare Parts for Electric Router for Wood FM8

SKU: Hitachi FM8
€1.33
VAT included

Hitachi Spare Parts for Corded Router for Wood FM8

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Corded Router for Wood FM8.
Hitachi Spare Parts for Electric Router for Wood FM8
  • On sale!
  • Hitachi Spare Parts for Electric Router for Wood FM8
  • Hitachi Spare Parts for Electric Router for Wood FM8

Hitachi Spare Parts for Electric Router for Wood FM8

SKU: Hitachi FM8 Condition: New
€1.33
VAT included

Hitachi Spare Parts for Corded Router for Wood FM8

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Corded Router for Wood FM8.
settings 24 spare parts

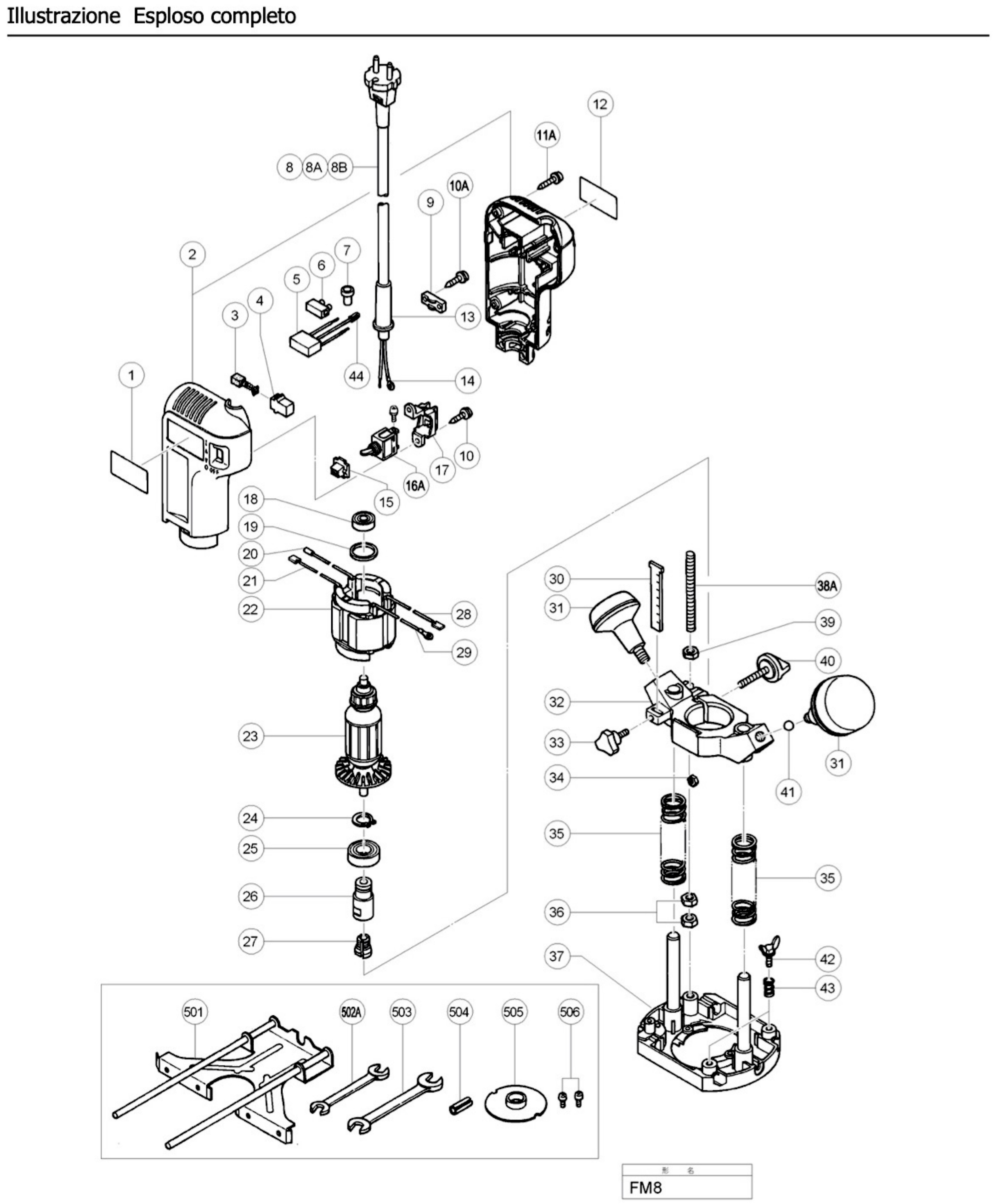

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

23 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 997527 HOUSING FOR FM8 €35.74
3
Carbon Brushes for Sanders Hitachi SV12-13 999041 Carbon Brushes for Sanders Hitachi SV12-13 €9.62
4
Brush Holder for Demolition Hammer Hitachi DH28PCY 955203 Brush Holder for Demolition Hammer Hitachi DH28PCY €4.39
5
Noise Suppressor for Angle Grinder Hitachi G12SA2 994273 Noise Suppressor for Angle Grinder Hitachi G12SA2 €9.62
8
photo_cameraImage coming soon 714500 POWER CABLE €15.65
9
photo_cameraImage coming soon 960266 CORD CLIP €1.37
13
photo_cameraImage coming soon 307217 CORD ARMOR D7.2 €1.52
15
photo_cameraImage coming soon 997523 SWITCH KNOB €1.30
16A
Switch for Angle Grinder Hitachi G12SS 955509 Switch for Angle Grinder Hitachi G12SS €15.21
17
photo_cameraImage coming soon 997521 SWITCH SUPPORT €3.64
18
photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
19
photo_cameraImage coming soon 995662 RUBBER RING €1.30
22
photo_cameraImage coming soon 340118E 220V STATOR FOR FM8 €26.78
23
photo_cameraImage coming soon 360083E ARMATURE 220V FOR FM8 €57.72
24
Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V 939544 Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V €0.55
25
photo_cameraImage coming soon 6002VV BALL BEARING 6002VVCMPS2L €9.49
26
photo_cameraImage coming soon 997510 SPINDLE €46.93
27
photo_cameraImage coming soon 997526 CONE SPINDLE D.8MM €20.18
31
photo_cameraImage coming soon 997515 KNOB €6.75
32
photo_cameraImage coming soon 997520 SUPPORT €20.92
35
photo_cameraImage coming soon 997513 SPRING €3.20
37
photo_cameraImage coming soon 997512 ANTIVIBRATION Ø40X30 MF M8X25 65SH €39.69
41
photo_cameraImage coming soon 997514 STEEL BALL D.7,94 €1.30

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Corded Router for Wood FM8

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Corded Router for Wood FM8.

In the following table, look for the model of the Power Router for Wood and theirs spare part.
Hitachi FM8

Corded Router for Wood FM8
# Part Num. Description
2 997527 HOUSING FOR FM8
3 999041 CARBON BRUSHE (1 PAIR)
4 955203 BRUSH HOLDER
5 994273 NOISE SUPPRESSOR
8 714500 POWER CABLE 5M 2 X 1.0 WITH PLUG
9 960266 CLAMP
13 307217 CORD ARMOR D.7,2
15 997523 SWITCH KNOB
16A 955509 SWITCH
17 997521 SWITCH SUPPORT
18 608VVM 608VVM BALL BEARING
19 995662 RUBBER RING
22 340118E 220V STATOR FOR FM8
23 360083E ARMATURE 220V FOR FM8
24 939544 RING D.15
25 6002VV BALL BEARING 6002VV
26 997510 SPINDLE
27 997526 CONE SPINDLE D.8MM
30 997518 GRADUATED SCALE
31 997515 KNOB
32 997520 SUPPORT
35 997513 SPRING
37 997512 BASE
41 997514 STEEL BALL D.7,94
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s HITACHI websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to HITACHI brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi FM8
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi FM8

Diagram Hitachi FM8

Download (221.47KB)
