HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Pneumatic Coil Nailer NV 90AB2

SKU: Hitachi NV 90AB2
€1.93
VAT included

Hitachi Spare Parts for Pneumatic Coil Nailer NV 90AB2

Hitachi-HIKOKI Tanaka Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for High Pressure Pneumatic Coil Nailer NV 90AB2.
Hitachi Spare Parts for Pneumatic Coil Nailer NV 90AB2
  • On sale!
  • Hitachi Spare Parts for Pneumatic Coil Nailer NV 90AB2
  • Hitachi Spare Parts for Pneumatic Coil Nailer NV 90AB2
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Pneumatic Coil Nailer NV 90AB2

SKU: Hitachi NV 90AB2 Condition: New
€1.93
VAT included

Hitachi Spare Parts for Pneumatic Coil Nailer NV 90AB2

Hitachi-HIKOKI Tanaka Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for High Pressure Pneumatic Coil Nailer NV 90AB2.
settings 102 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
102 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

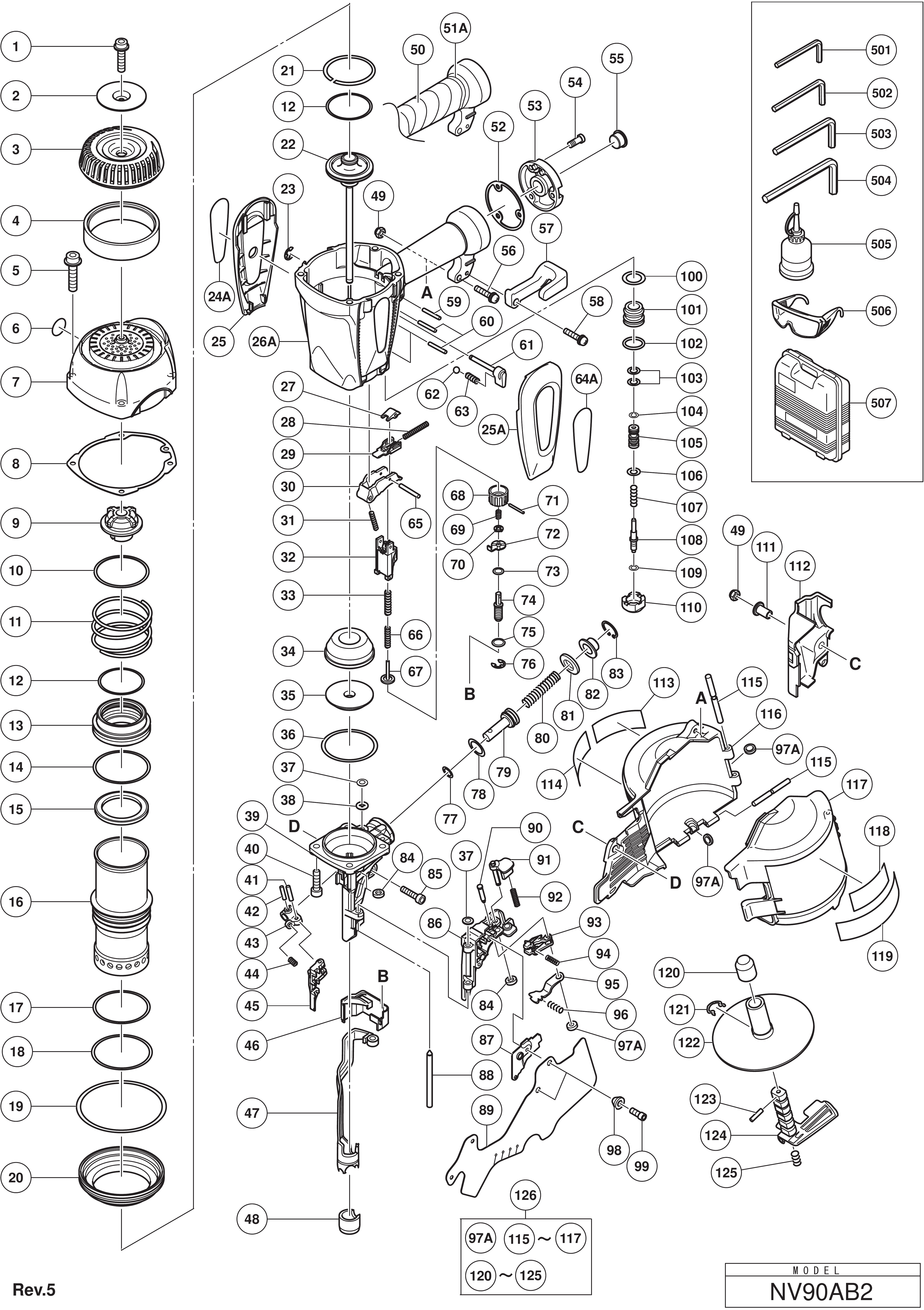

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 883321 PLATE €5.83
3
 photo_cameraImage coming soon 883319 TOP COVER €10.74
4
 photo_cameraImage coming soon 883320 MUFFLER (A) €29.06
5
 photo_cameraImage coming soon 318451 NYLOCK BOLT (W/FLANGE) M6X35 €2.25
7
 photo_cameraImage coming soon 884397 EXHAUST COVER €102.87
8
 photo_cameraImage coming soon 883317 PACKING €14.58
9
 photo_cameraImage coming soon 881945 EXHAUST VALVE RUBBER €12.87
10
 photo_cameraImage coming soon 883328 WASHER €1.49
11
 photo_cameraImage coming soon 881944 HEAD VALVE SPRING €5.56
12
 photo_cameraImage coming soon 877124 CYLINDER O-RING (B) €2.16
13
 photo_cameraImage coming soon 881942 HEAD VALVE €29.06
14
 photo_cameraImage coming soon 877312 CYLINDER O-RING (I.D 63.1) €1.83
15
 photo_cameraImage coming soon 881943 HEAD VALVE RUBBER €4.20
16
 photo_cameraImage coming soon 883310 CYLINDER €117.54
17
 photo_cameraImage coming soon 883312 PLATE O-RING (B) €1.49
18
 photo_cameraImage coming soon 883311 CYLINDER O-RING €4.20
19
 photo_cameraImage coming soon 883314 PLATE O-RING (A) €2.86
20
 photo_cameraImage coming soon 883327 CYLINDER PLATE €67.21
21
 photo_cameraImage coming soon 881930 PISTON RING €29.73
22
 photo_cameraImage coming soon 883290 PISTON (H) €146.90
23
 photo_cameraImage coming soon 968643 RETAINING RING (E-TYPE) FOR D4 SHAFT €2.40
25
 photo_cameraImage coming soon 884394 PROTECTOR €5.56
27
 photo_cameraImage coming soon 882896 TRIGGER PIECE €1.49
28
 photo_cameraImage coming soon 882897 SPRING €1.49
29
 photo_cameraImage coming soon 882895 TRIGGER ARM (B) €27.25
30
 photo_cameraImage coming soon 882894 TRIGGER €2.86
31
 photo_cameraImage coming soon 883759 TRIGGER SPRING €2.86
32
 photo_cameraImage coming soon 882885 PUSHING LEVER GUIDE €6.51
33
 photo_cameraImage coming soon 884398 PUSHING LEVER SPRING (C) €6.66
35
 photo_cameraImage coming soon 881967 PISTON BUMPER (B) €9.25
36
 O-RING 1AS.60 for Hammer DH40MRY-DH45MR 956996 O-RING 1AS.60 for Hammer DH40MRY-DH45MR €3.83
37
 photo_cameraImage coming soon 874436 O-RING (P-4) €1.30
38
 photo_cameraImage coming soon 878964 WASHER €1.57
39
 photo_cameraImage coming soon 883293 NOSE €360.79
40
 photo_cameraImage coming soon 306437 NYLOCK HEX. SOCKET HD. BOLT M8X30 €1.83
41
 photo_cameraImage coming soon 883093 PLUNGER (B) €7.47
42
 photo_cameraImage coming soon 949497 ROLL PIN D4X16 €2.85
43
 photo_cameraImage coming soon 883144 FEEDER ARM (B) €38.75
44
 photo_cameraImage coming soon 883143 FEEDER SPRING €1.49
45
 photo_cameraImage coming soon 883299 FEEDER (A) €43.52
46
 photo_cameraImage coming soon 883307 PUSHING LEVER COVER (B) €6.93
47
 photo_cameraImage coming soon 883303 PUSHING LEVER (A) €65.13
48
 photo_cameraImage coming soon 883106 NOSE CAP (A) €7.13
49
 photo_cameraImage coming soon 877371 NYLON NUT M5 €1.23
50
 photo_cameraImage coming soon 881768 GRIP TAPE (A) €6.53
52
 photo_cameraImage coming soon 883309 GASKET (B) €4.20
53
 photo_cameraImage coming soon 881949 CAP €6.01
57
 photo_cameraImage coming soon 881827 HOOK €4.23
59
 photo_cameraImage coming soon 949865 ROLL PIN D3X28 (10 PCS.) €2.13
60
 photo_cameraImage coming soon 949866 ROLL PIN D3X30 (10 PCS.) €4.02
61
 photo_cameraImage coming soon 884400 LOCK KNOB €21.92
62
 photo_cameraImage coming soon 959148 STEEL BALL D3.175 €1.35
63
 photo_cameraImage coming soon 882923 LOCK SPRING €1.71
65
 photo_cameraImage coming soon 881951 ROLL PIN D2.5X16 €2.21
66
 photo_cameraImage coming soon 884399 PUSHING LEVER SPRING (D) €7.20
67
 photo_cameraImage coming soon 882891 PUSHING LEVER (C) €19.93
68
 photo_cameraImage coming soon 882889 ADJUSTER €3.32
69
 photo_cameraImage coming soon 882890 ADJUSTER SPRING €1.49
70
 photo_cameraImage coming soon 882887 ADJUSTER PLATE (B) €3.32
72
 photo_cameraImage coming soon 882886 ADJUSTER PLATE (A) €2.86
73
 photo_cameraImage coming soon 981317 O-RING (S-4) €1.16
74
 photo_cameraImage coming soon 882888 PUSHING LEVER (B) €16.81
75
 photo_cameraImage coming soon 883304 PUSHING LEVER O-RING €1.49
76
 photo_cameraImage coming soon 872971 RETAINING RING (E-TYPE) FOR D3 SHAFT €1.33
77
 photo_cameraImage coming soon 872645 O-RING (P-9) €2.12
78
 O-Ring 1 AP-20 for Rotary Hammer Hitachi DH24PB3 944486 O-Ring 1 AP-20 for Rotary Hammer Hitachi DH24PB3 €1.41
79
 photo_cameraImage coming soon 883300 FEED PISTON €17.96
80
 photo_cameraImage coming soon 883301 FEED SPRING €1.49
81
 photo_cameraImage coming soon 877711 BUMPER €2.22
82
 photo_cameraImage coming soon 880331 FEED PISTON COVER €5.94
84
 photo_cameraImage coming soon 880319 SHAFT RING €2.26
86
 photo_cameraImage coming soon 883294 NAIL GUIDE €81.89
87
 photo_cameraImage coming soon 883295 NAIL GUIDE COVER €8.61
88
 photo_cameraImage coming soon 883298 NAIL GUIDE SHAFT €9.67
90
 photo_cameraImage coming soon 883297 SHAFT €6.93
91
 photo_cameraImage coming soon 886107 GUIDE LOCK €6.23
92
 photo_cameraImage coming soon 880446 SPRING €1.60
93
 photo_cameraImage coming soon 883329 NAIL STOPPER (A) €29.06
94
 photo_cameraImage coming soon 883088 STOPPER SPRING (A) €1.49
95
 photo_cameraImage coming soon 883086 NAIL STOPPER (B) €2.86
96
 photo_cameraImage coming soon 883087 STOPPER SPRING (B) €1.49
97A
 photo_cameraImage coming soon 877826 FEEDER SHAFT RING €3.24
98
 photo_cameraImage coming soon 878337 SLEEVE (B) €3.26
101
 photo_cameraImage coming soon 878881 VALVE BUSHING (B) €46.87
102
 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 878885 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 €1.34
104
 photo_cameraImage coming soon 981317 O-RING (S-4) €1.16
105
 photo_cameraImage coming soon 880672 VALVE PISTON (B) €35.27
106
 photo_cameraImage coming soon 878887 O-RING (I.D 11) €1.88
107
 photo_cameraImage coming soon 878884 PLUNGER SPRING €1.88
108
 photo_cameraImage coming soon 882921 PLUNGER (A) €15.08
109
 photo_cameraImage coming soon 878888 O-RING (I.D. 1.8) €1.30
110
 photo_cameraImage coming soon 882920 VALVE BUSHING (A) €27.23
111
 photo_cameraImage coming soon 882907 SLEEVE €4.33
112
 photo_cameraImage coming soon 883306 PUSHING LEVER COVER (A) €5.83
115
 photo_cameraImage coming soon 883111 PIN €13.69
116
 photo_cameraImage coming soon 883108 MAGAZINE €15.30
117
 photo_cameraImage coming soon 883109 MAGAZINE COVER €14.85
120
 photo_cameraImage coming soon 881003 HOLDER CAP (A) €2.15
121
 photo_cameraImage coming soon 880398 RATCHET SPRING €8.11
122
 photo_cameraImage coming soon 880503 NAIL HOLDER €8.48
124
 photo_cameraImage coming soon 883324 HOLDER SHAFT €8.52
126
 photo_cameraImage coming soon 883325 MAGAZINE ASS'Y €58.83
507
 photo_cameraImage coming soon 883323 CASE €73.86

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Pneumatic Coil Nailer NV 90AB2

Hitachi-HIKOKI Tanaka Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for High Pressure Pneumatic Coil Nailer NV 90AB2.

In the following table, look for the model of the Low Pressure Pneumatic Coil Nailer and their spare part.
Hitachi NV 90AB2

Pneumatic Coil Nailer NV 90AB2
# Part Num. Description
2 883321 PLATE
3 883319 TOP COVER
4 883320 MUFFLER (A)
5 318451 NYLOCK BOLT (W/FLANGE) M6X35
7 884397 EXHAUST COVER
8 883317 PACKING
9 881945 EXHAUST VALVE RUBBER
10 883328 WASHER
11 881944 HEAD VALVE SPRING
12 877124 CYLINDER O-RING (B)
13 881942 HEAD VALVE
14 877312 CYLINDER O-RING (I.D 63.1)
15 881943 HEAD VALVE RUBBER
16 883310 CYLINDER
17 883312 PLATE O-RING (B)
18 883311 CYLINDER O-RING
19 883314 PLATE O-RING (A)
20 883327 CYLINDER PLATE
21 881930 PISTON RING
22 883290 PISTON (H)
23 968643 RETAINING RING (E-TYPE) FOR D4 SHAFT
25 884394 PROTECTOR
27 882896 TRIGGER PIECE
28 882897 SPRING
29 882895 TRIGGER ARM (B)
30 882894 TRIGGER
31 883759 TRIGGER SPRING
32 882885 PUSHING LEVER GUIDE
33 884398 PUSHING LEVER SPRING (C)
34 883291 PISTON BUMPER (A)
35 881967 PISTON BUMPER (B)
36 956996 O-RING (1AS-60)
37 874436 O-RING (P-4)
38 878964 WASHER
39 883293 NOSE
40 306437 NYLOCK HEX. SOCKET HD. BOLT M8X30
41 883093 PLUNGER (B)
42 949497 ROLL PIN D4X16 (10 PCS.)
43 883144 FEEDER ARM (B)
44 883143 FEEDER SPRING
45 883299 FEEDER (A)
46 883307 PUSHING LEVER COVER (B)
47 883303 PUSHING LEVER (A)
48 883106 NOSE CAP (A)
49 877371 NYLON NUT M5
50 881768 GRIP TAPE (A)
52 883309 GASKET (B)
53 881949 CAP
55 872035 DUST CAP
57 881827 HOOK
59 949865 ROLL PIN D3X28 (10 PCS.)
60 949866 ROLL PIN D3X30 (10 PCS.)
61 884400 LOCK KNOB
62 959148 STEEL BALL D3.175 (10 PCS.)
63 882923 LOCK SPRING
65 881951 ROLL PIN D2.5X16
66 884399 PUSHING LEVER SPRING (D)
67 882891 PUSHING LEVER (C)
68 882889 ADJUSTER
69 882890 ADJUSTER SPRING
70 882887 ADJUSTER PLATE (B)
71 880093 ROLL PIN D2X16
72 882886 ADJUSTER PLATE (A)
73 981317 O-RING (S-4)
74 882888 PUSHING LEVER (B)
75 883304 PUSHING LEVER O-RING
76 872971 RETAINING RING (E-TYPE) FOR D3 SHAFT
77 872645 O-RING (P-9)
78 944486 O-RING (1AP-20)
79 883300 FEED PISTON
80 883301 FEED SPRING
81 877711 BUMPER
82 880331 FEED PISTON COVER
83 939555 RETAINING RING FOR D28 HOLE (10 PCS.)
84 880319 SHAFT RING
86 883294 NAIL GUIDE
87 883295 NAIL GUIDE COVER
88 883298 NAIL GUIDE SHAFT
89 883296 COVER
90 883297 SHAFT
91 886107 GUIDE LOCK
92 880446 SPRING
93 883329 NAIL STOPPER (A)
94 883088 STOPPER SPRING (A)
95 883086 NAIL STOPPER (B)
96 883087 STOPPER SPRING (B)
97A 877826 FEEDER SHAFT RING
98 878337 SLEEVE (B)
100 877699 HEAD VALVE O-RING (I.D 16.8)
101 878881 VALVE BUSHING (B)
102 878885 O-RING (S-18)
103 878925 O-RING (I.D 8.8)
104 981317 O-RING (S-4)
105 880672 VALVE PISTON (B)
106 878887 O-RING (I.D 11)
107 878884 PLUNGER SPRING
108 882921 PLUNGER (A)
109 878888 O-RING (I.D. 1.8)
110 882920 VALVE BUSHING (A)
111 882907 SLEEVE
112 883306 PUSHING LEVER COVER (A)
115 883111 PIN
116 883108 MAGAZINE
117 883109 MAGAZINE COVER
120 881003 HOLDER CAP (A)
121 880398 RATCHET SPRING
122 880503 NAIL HOLDER
123 878791 ROLL PIN D2.5X12
124 883324 HOLDER SHAFT
125 881826 SPRING
126 883325 MAGAZINE ASS'Y
507 883323 CASE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi NV 90AB2
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi NV 90AB2

Diagram Hitachi NV 90AB2

Download (220.29KB)

You might also like

O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3
HiKOKI Power Tools Italia S.p.a. SKU: 878885
O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3
O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 Hitachi genuine parts, O-Ring S-18 for Rotary Hammers DH24PC3 - DH24PD3 - DH24PB3 - DH24PG - DH24PH - DH36DAL - DH36DL - DH24DVA Part for the following products: - ROTARY HAMMER...
Last items in stock €1.34
Details
O-RING 1AS.60 for Hammer DH40MRY-DH45MR
HiKOKI Power Tools Italia S.p.a. SKU: 956996
O-RING 1AS.60 for Hammer DH40MRY-DH45MR
O-RING 1AS.60 for Hammer DH40MRY-DH45MR Genuine spare part Hitachi, O-RING 1AS.60 for Rotary Hammer DH40MRY - DH45MR - DH38MS. For the follows items: - Rotary Hammer DH40MRY - Rotary Hammer DH45MR - Rotary Hammer...
AVAILABLE €3.83
Details
O-Ring 1 AP-20 for Rotary Hammer Hitachi DH24PB3
HiKOKI Power Tools Italia S.p.a. SKU: 944486
O-Ring 1 AP-20 for Rotary Hammer Hitachi DH24PB3
O-Ring 1 AP-20 for Rotary Hammer Hitachi DH24PB3 Genuine replacement part HITACHI, O-Ring 1 AP-20 for Rotary Hammers DH22PB - DH24DV - DH24DVA - DH24PB3 - DH24PC3 - DH24PD3 -  DH24PM. Part for the following products: - Rotary Hammer...
AVAILABLE €1.41
Details
Comments (0)
